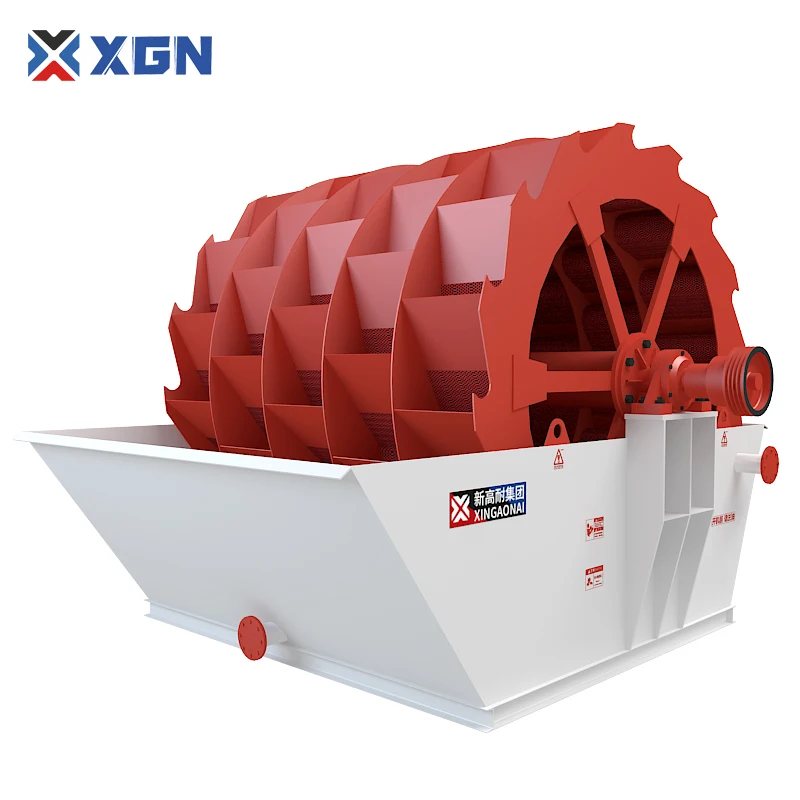

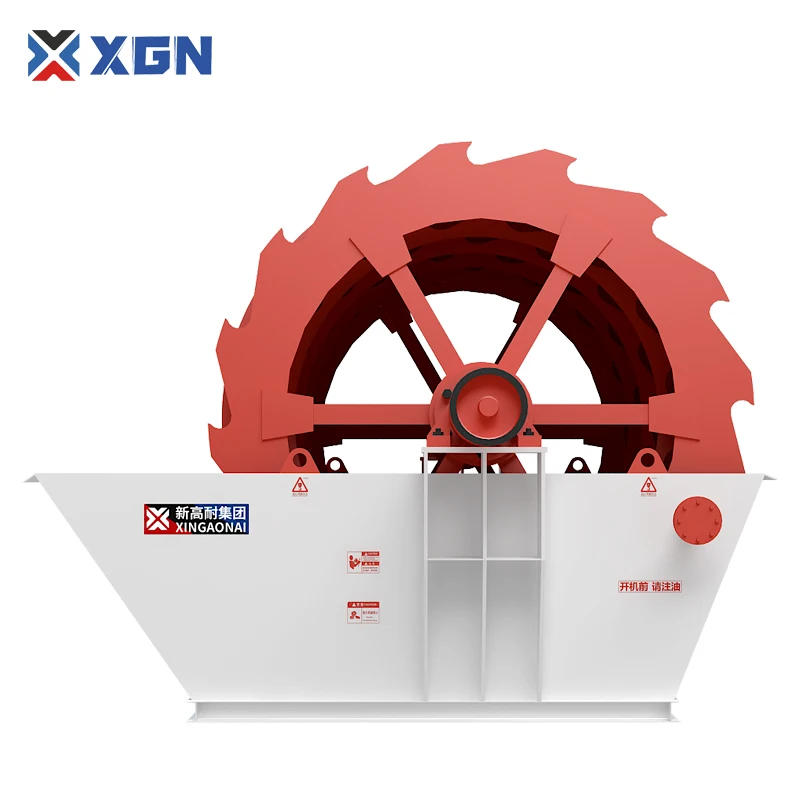

China Supplier Bucket Wheel Sand Washing Machine With Screen As Gravel And Sand Washer
- Category: >>>
- Supplier: Xingaonai Heavy Industry (Zhengzhou) Group Co. Ltd.
Share on (1601255583363):
Product Overview
Description
Products Description
Product description
The bucket wheel sand washing machine developed by our group, combined with the actual situation of the sand and gravel industry and long-term experience, can be widely used in the washing, grading, and impurity removal of materials，it can effectively improve the quality of the finished sand, and is the preferred equipment in the wet processing process of artificial sand making.
Applicable materials: limestone, bluestone, river pebbles, granite, etc.

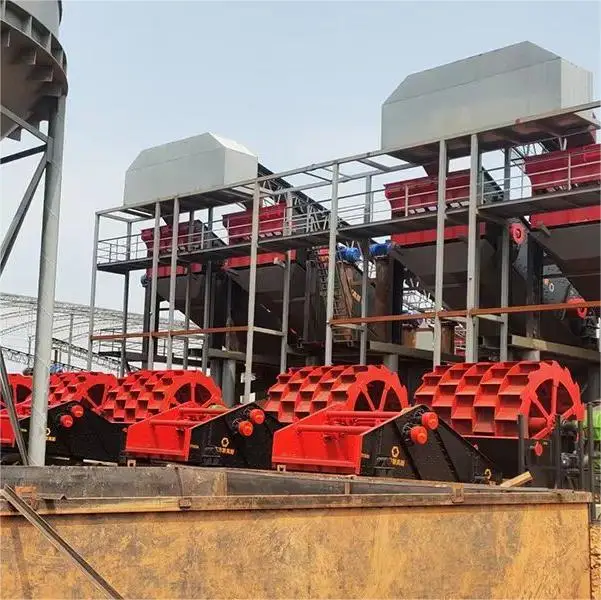

Applications scope: sand and gravel plants, metallurgy, building materials, concrete mixing plants, etc.
Applications scope: sand and gravel plants, metallurgy, building materials, concrete mixing plants, etc.
Product Advantage
1.Efficient and environmentally friendly
Structure optimization, efficient cleaning, grading and impurity removal; water washing process, less dust pollution.
2.Durable and stable
The design is reasonable, there are almost no wearing parts except the screen, and the failure rate is low; the manufacturing material is optimized, anti-wear, anti-corrosion, and it can operate without worry in harsh environments.
3.High cleanliness and less loss
The gradation of the washed construction sand is reasonable, and the fineness modulus is up to standard, which can meet the requirements of high-grade materials，and the loss of spun yarn and stone powder is less during the sand washing process.

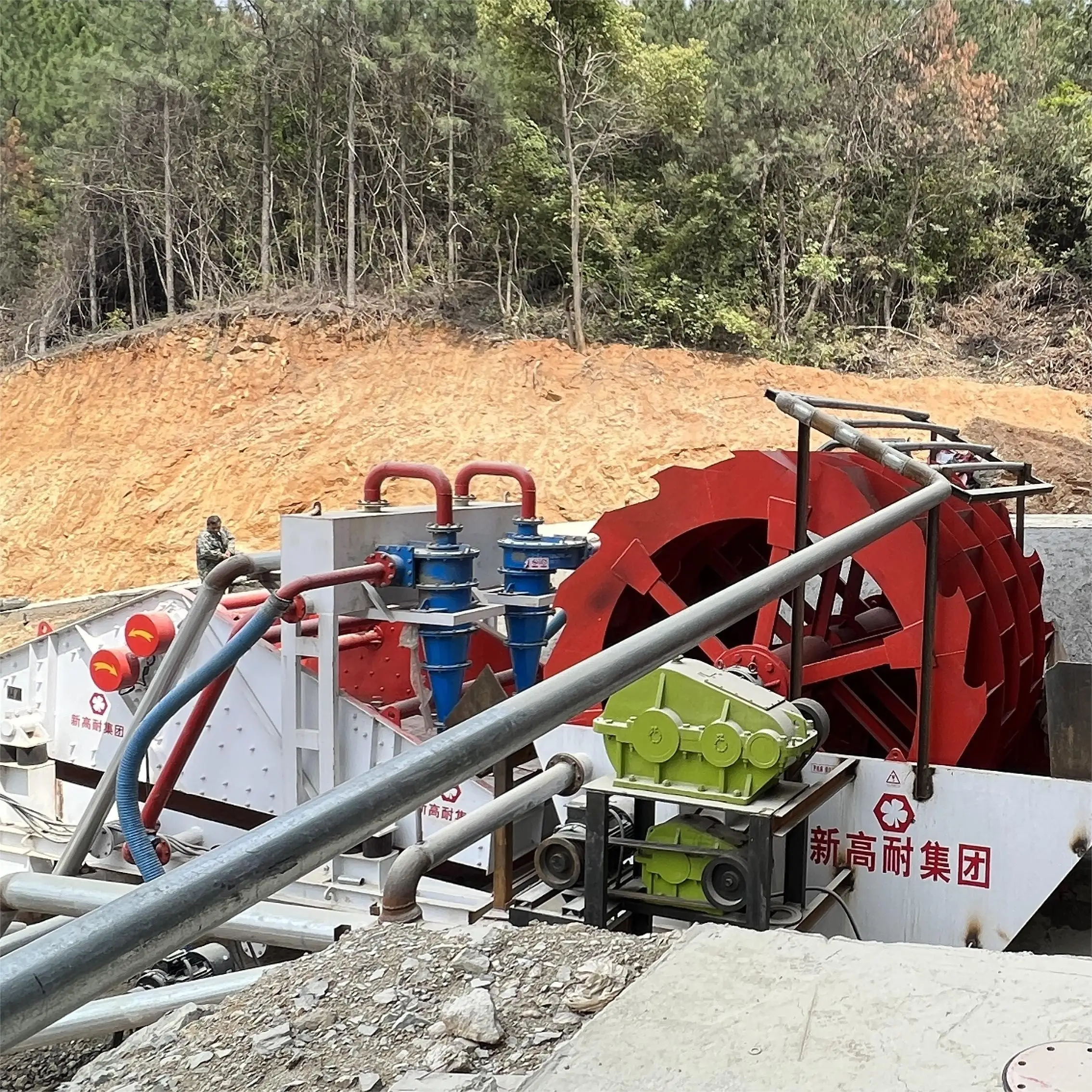

Machine Structure
Working principle:
the sand rolls under the drive of the impeller and grinds each other to remove the impurities covering the surface of the sand, at the same time, water is added to form a strong water flow, and impurities and foreign objects with small specific gravity are taken away in time, and are discharged from the washing tank at the overflow port to complete the cleaning function.
Product Parameters
Model | Impeller Specification Outer diameter×width | Impeller Speed (r/min) | Maximum Feed Size (mm) | Capacity (t/h) | Motor Power (kw) | Overall Size length×width ×height (mm) |
XGN-XS2610 | Φ2600×1000 | 1.178 | ≤10 | 20-50 | 5.5 | 3255×1982×2690 |
XGN-XS2816 | Φ2800×1600 | 1.177 | ≤10 | 30-60 | 11 | 3540×3000×2880 |
XGN-XS3016 | Φ3000×1600 | 1.179 | ≤10 | 50-120 | 15 | 3845×3000×3080 |
XGN-XS3220 | Φ3200×2000 | 1.18 | ≤10 | 70-160 | 15 | 4100×3560×3300 |
XGN-XS3230 | Φ3200×3000 | 1.18 | ≤10 | 180-220 | 18.5 | 4100×3560×3300 |
XGN-XS3620 | Φ3600×2000 | 1.18 | ≤10 | 100-180 | 18.5 | 4600×3560×3700 |
Why Choose Us

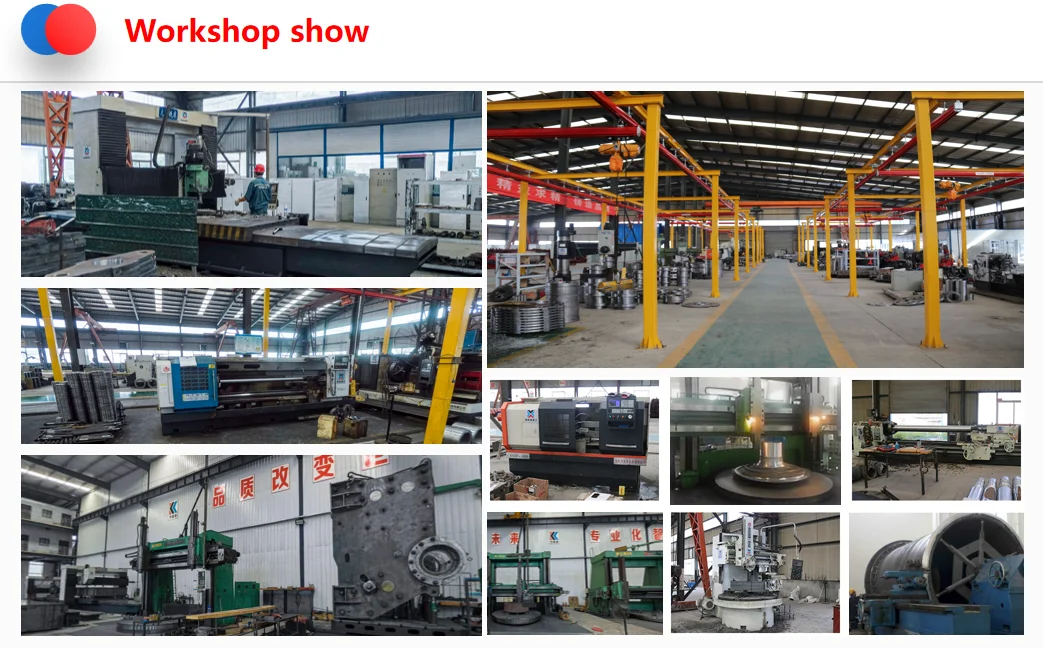

Xingaonai Group is specialized in the research and development and manufacturing of feeding, crushing, grinding, screening, conveying, automation and other equipment. It owns three major physical factories, and several well-known subsidiaries such as Jiaozuo Pathfinder Heavy Machinery Co., LTD., and Zhengzhou Xingaonai Heavy Machinery Co., LTD., So far, the group's sales and service outlets are all over the world, and the equipment is exported to more than 100 countries and regions in the world, and enjoys a good reputation at home and abroad.
Xingaonai Mession: Committed to becoming your satisfactory partner
Xingaonai Vision: Establishing a business with precision to meet customer needs
Treat each other with sincerity and provide high-quality services
Xingaonai Value: Efficient Innovation Communication Persistence
Xingaonai Vision: Establishing a business with precision to meet customer needs
Treat each other with sincerity and provide high-quality services
Xingaonai Value: Efficient Innovation Communication Persistence
Certifications
Exhibition &Customer Photos

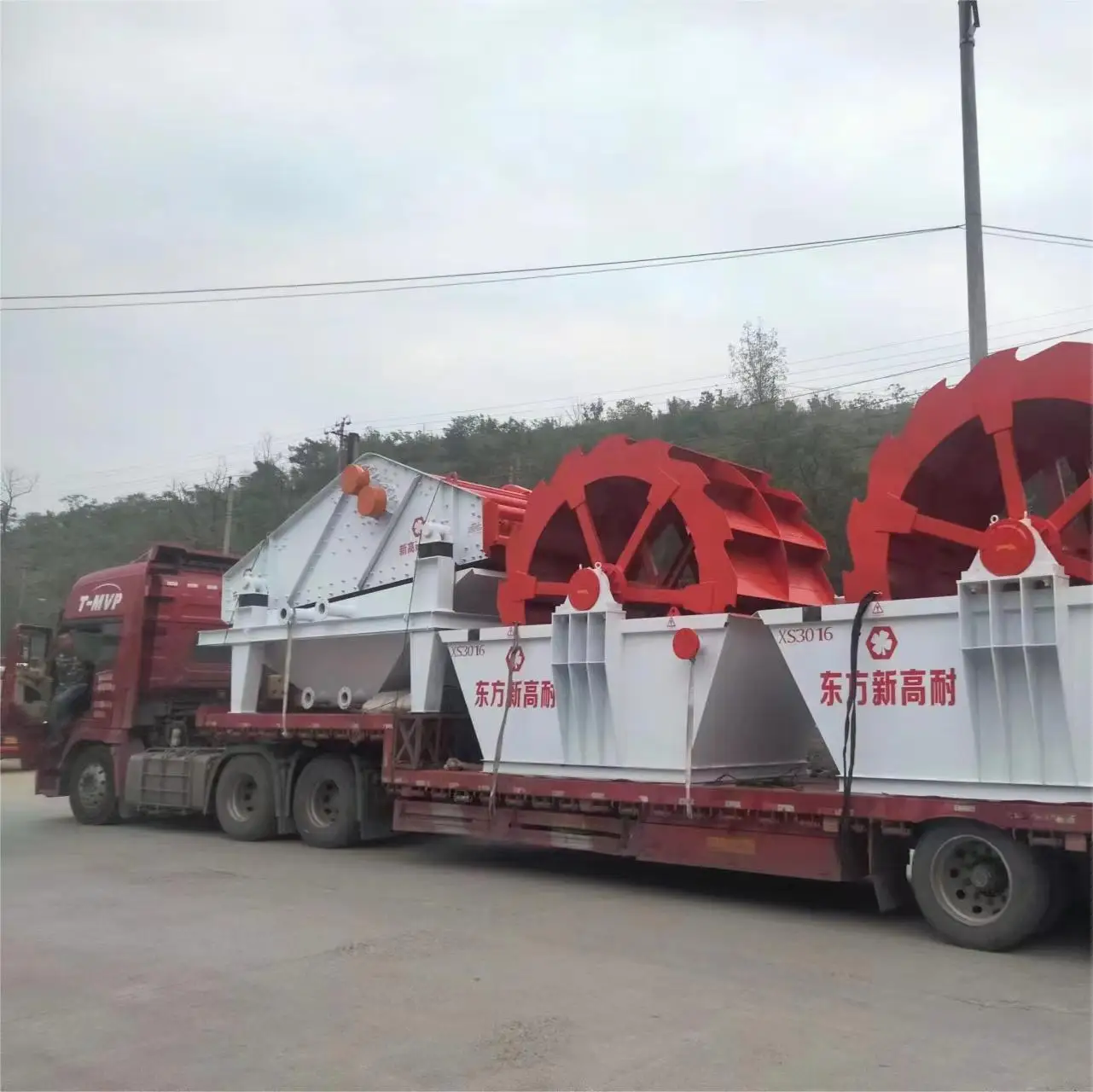

Packaging & Logistics

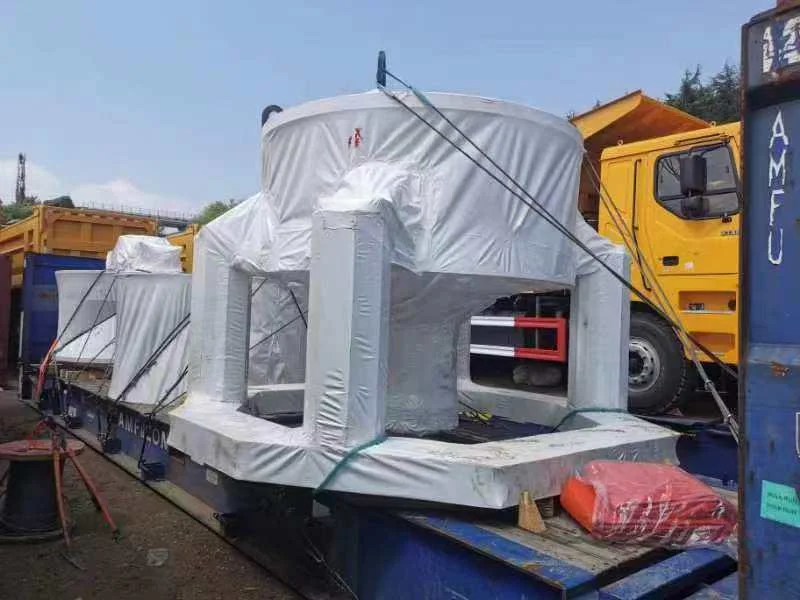

Packing
1.The equipment and wearing parts are packed in plastic film and wooden box.
2.FCL:Shipped in standard export container.
2.FCL:Shipped in standard export container.
3.Various packaging methods can be provided according to customer requirements, such as: fumigation-free wooden boxes, steel boxes, etc.
Sea freight
Sea freight
We ship the goods to China's main seaports, such as Qingdao, Tianjin, Shanghai, etc., and then ship the equipment to your country by sea.
FAQ
--------------- RFQ --------------
We are manufacture, and we have 3 factories.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
