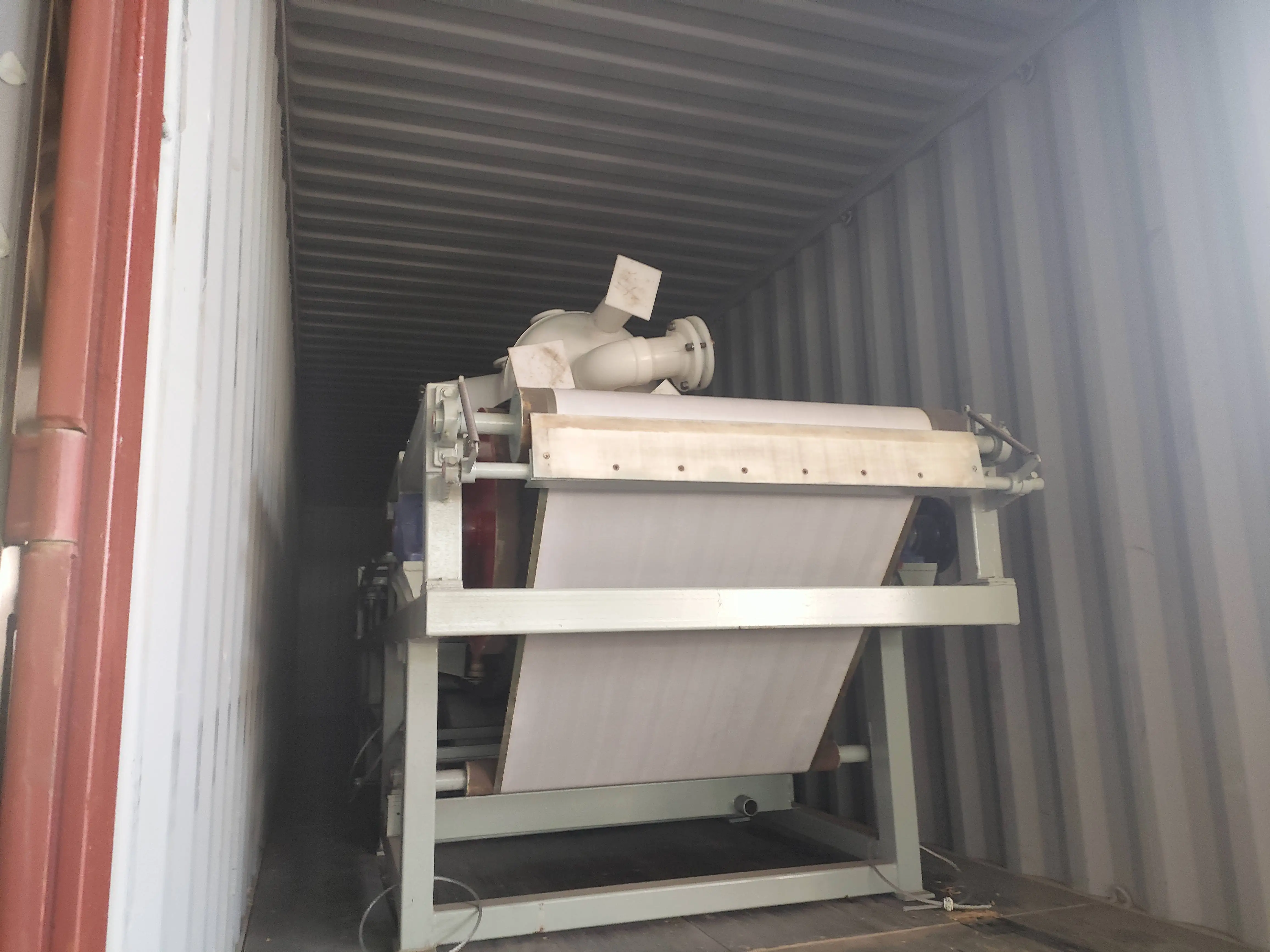

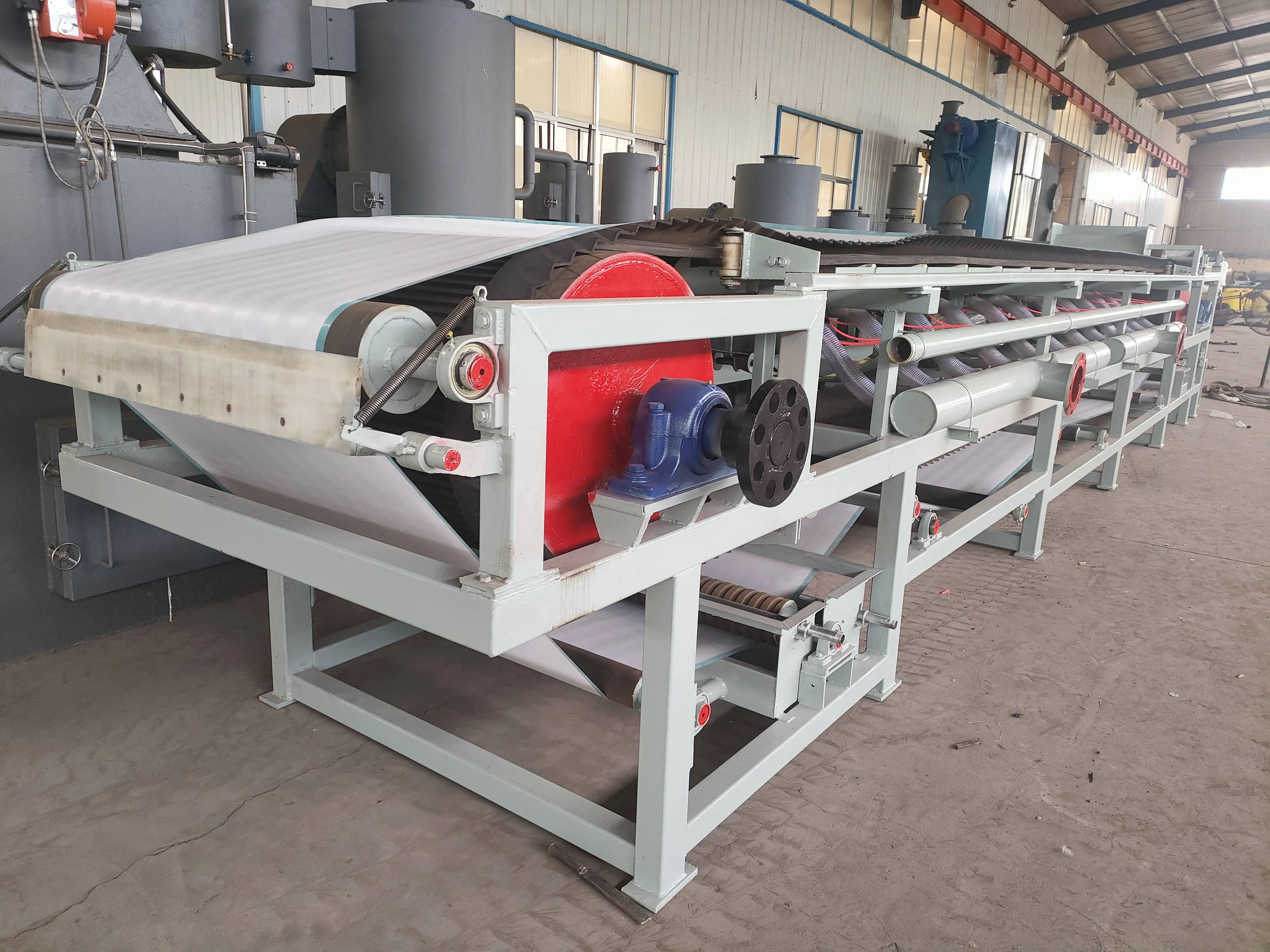

Mineral processing sludge separator belt vacuum filter press equipment
- Category: >>>
- Supplier: Shandong Kangtailong Intelligent Equipment Co. Ltd.
Share on (1601255648397):
Product Overview
Description
Product introduction
The vacuum belt filter is the equipment which realizes solid-liquid separation with vacuum negative pressure as the driving force.
In terms of structure, the filter section is arranged along the horizontal length direction, which can continuously complete the filtration, washing, suction, filter cloth regeneration and other operations. It has the advantages of high filtration efficiency, large production capacity, good washing effect, low moisture content of filter cake, flexible operation and low maintenance cost.
In terms of structure, the filter section is arranged along the horizontal length direction, which can continuously complete the filtration, washing, suction, filter cloth regeneration and other operations. It has the advantages of high filtration efficiency, large production capacity, good washing effect, low moisture content of filter cake, flexible operation and low maintenance cost.
Main Features
1.24 hours continuous filtration of vacuum belt filter: it can work without break, large processing capacity, saving labor.
2.Drier filter cake and low moisture content of filter cakes: it makes full use of gravity and vacuum suction to separate the liquid from the solid, especially for taillings processing.
3.Simple and easy to operate and maintain.
4.Using a fixed vacuum box:rubber belt moves on the box and form the moving seal together with box, the sealing water can be functioned as the lubricant aswell as the coolant.
5. Horizontal surface:this design assures regular cake thickness which provides flexibility of operation.

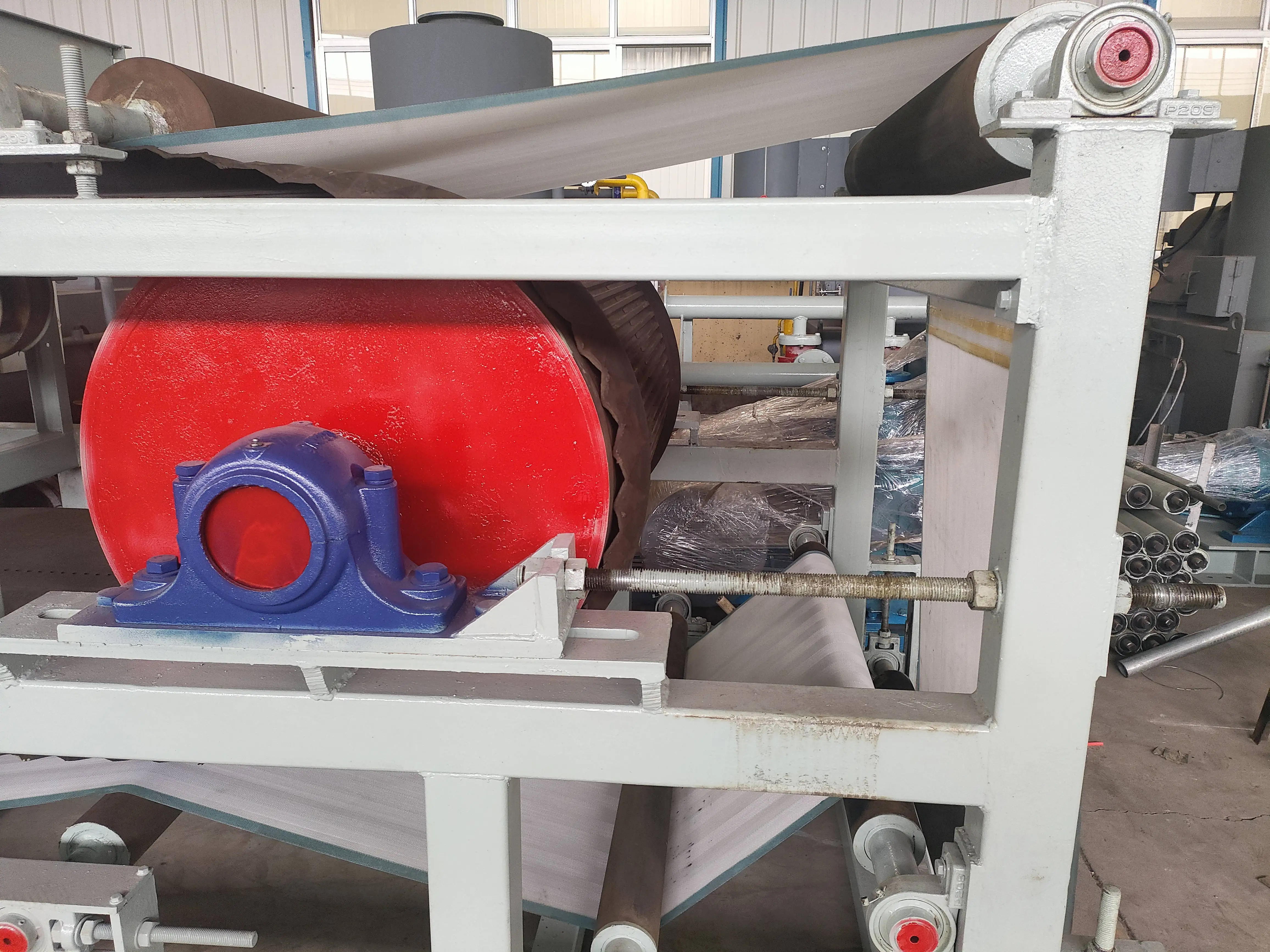

6.The bearing way of the tape: this machine equipped with rollers, which can reduce the friction when rubber belt works, long service life of belt.
7,.Modular frame structure of vacuum belt filter: it ensure that rubber belt can be installedeasily,dismantled easily, and maintained easily.

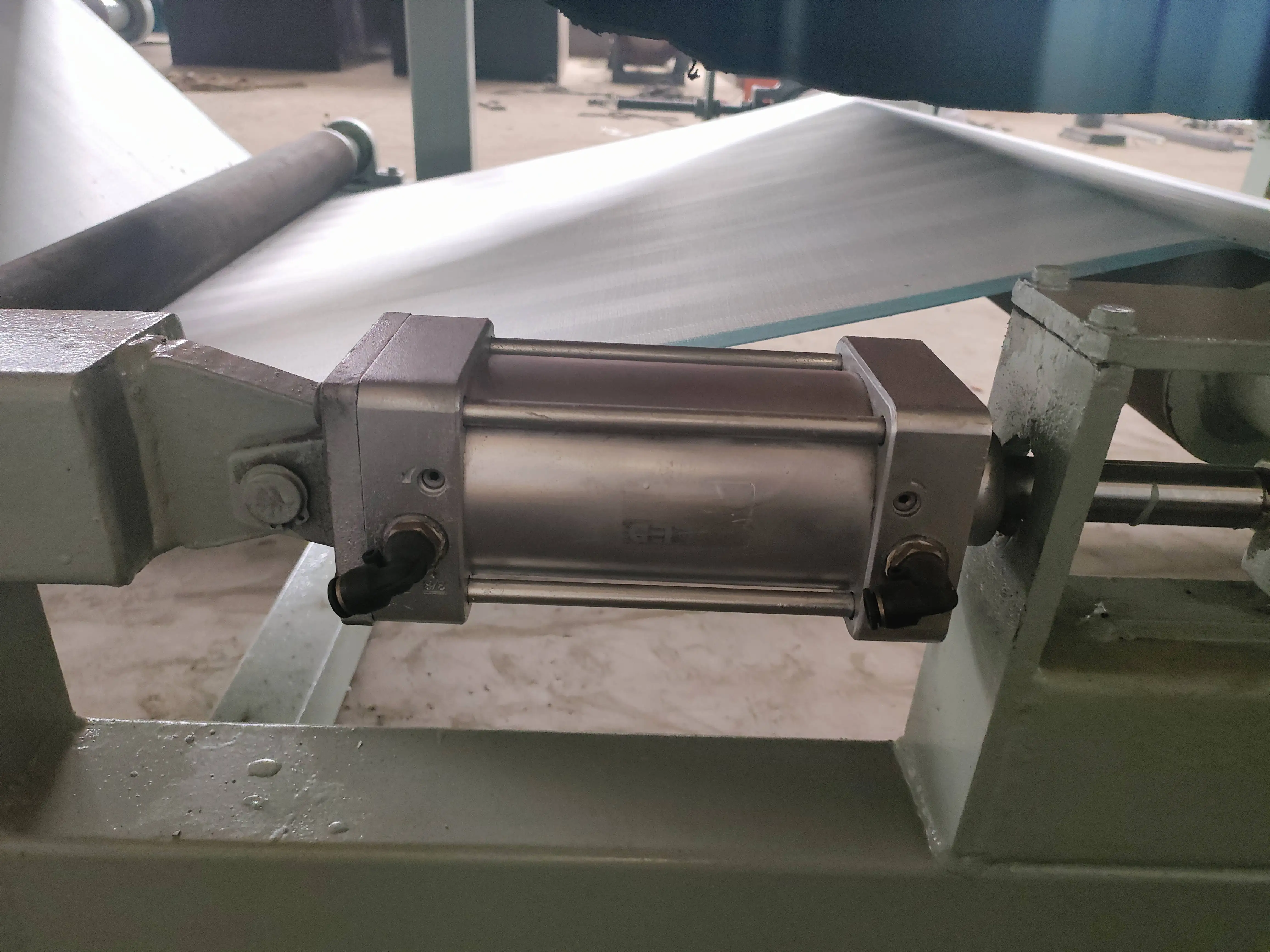

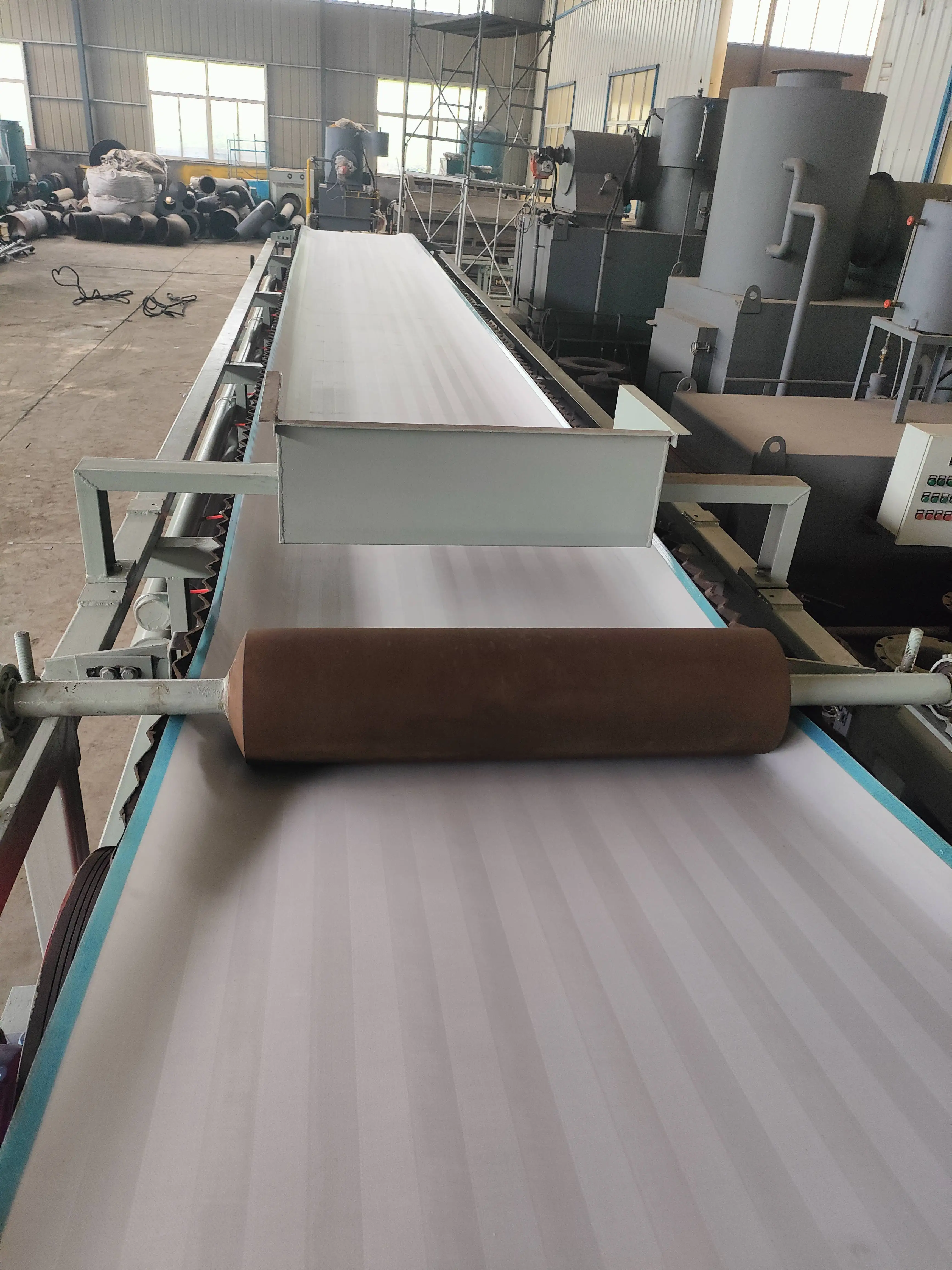

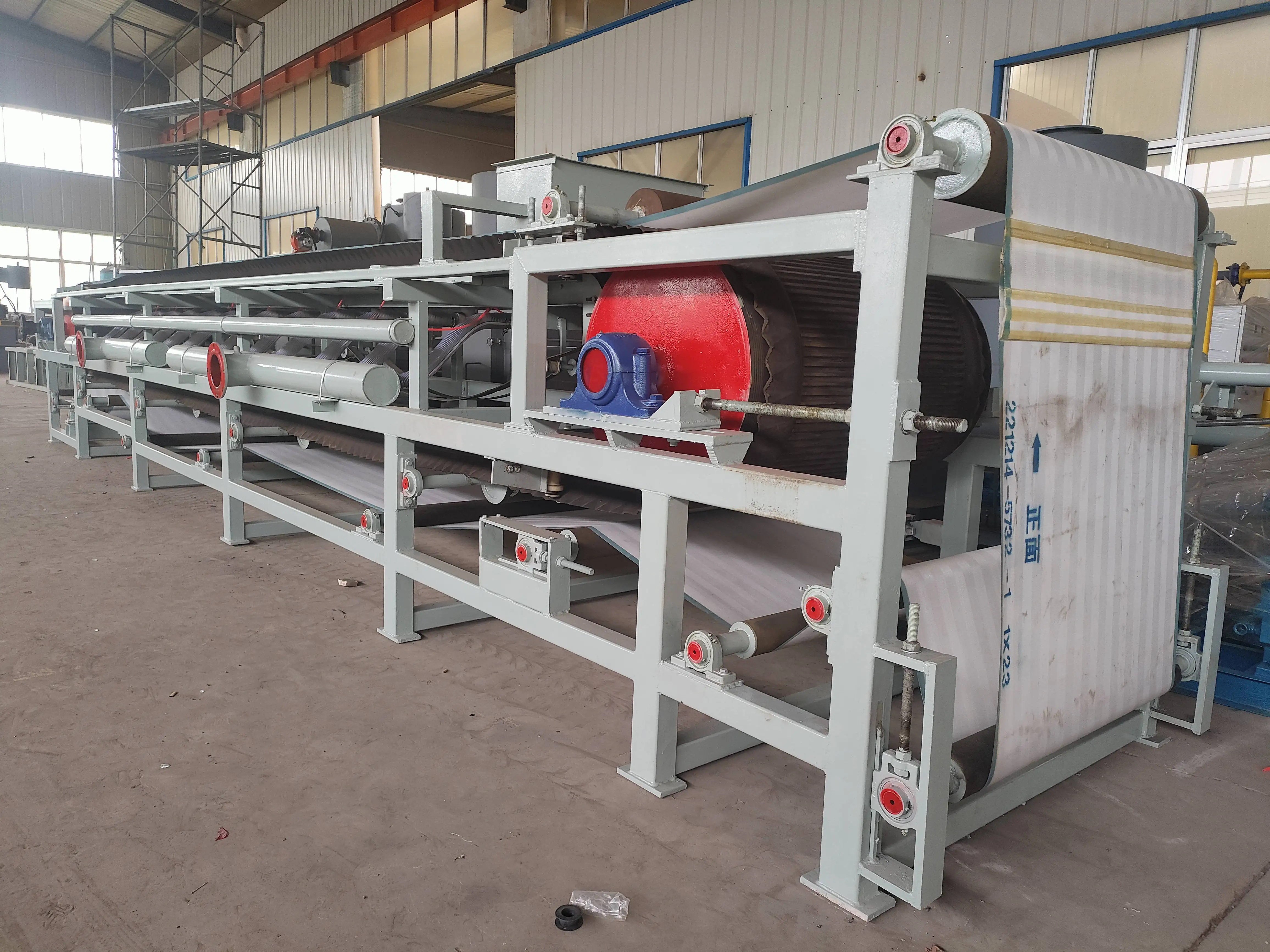

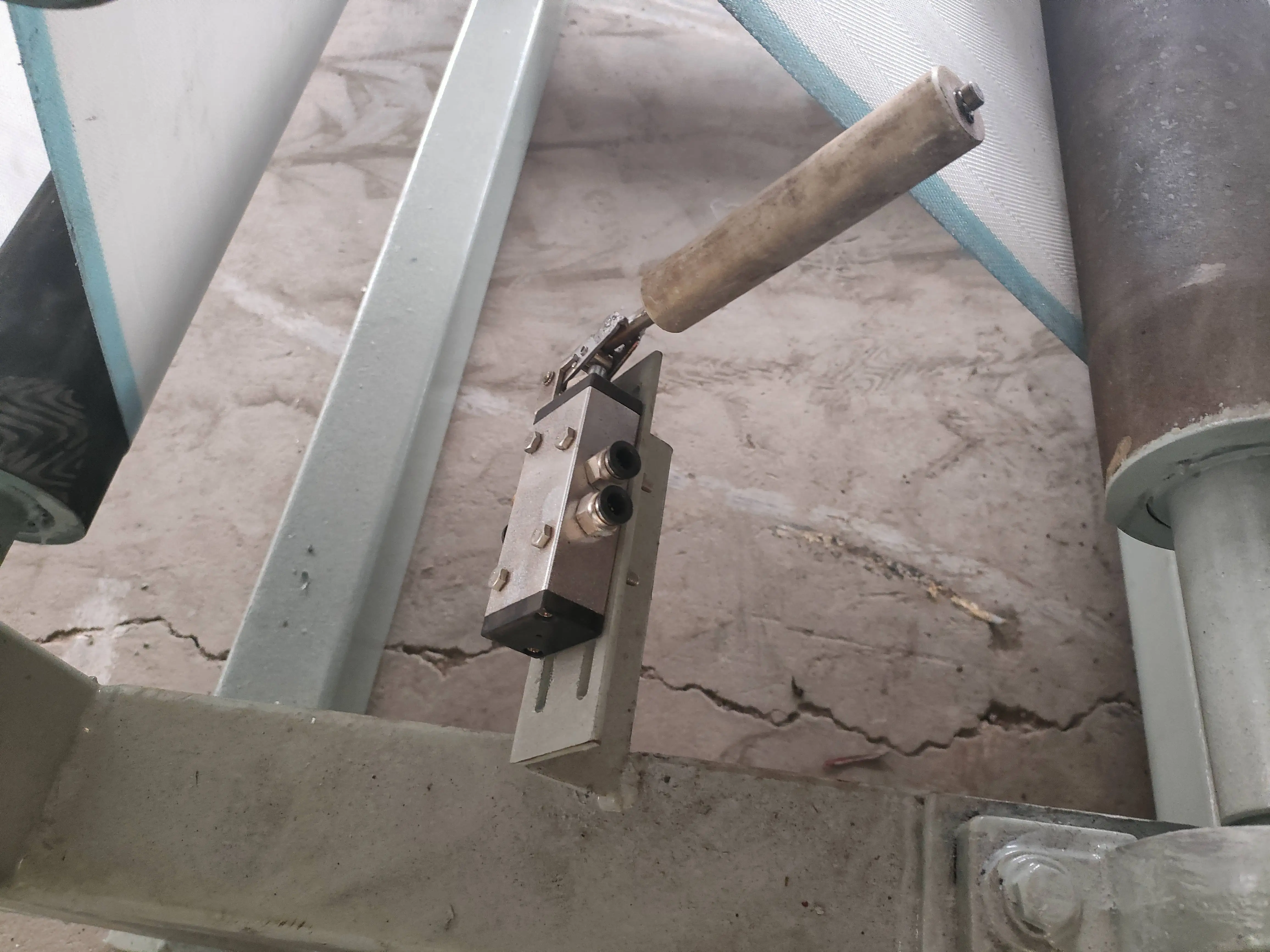

Equipment Details
Technical parameter
Model | Filter area（㎡） | Fitter the effective width | Width of the fuselage | The fuselage height |
KTL-400 | 1.0 | 400mm | 1800mm | 2060mm |
KTL-1300 | 20 | 1300mm | ||
KTL-1800 | 30 | 1800mm | 2430mm | 2180mm |
KTL-2000 | 39.2 | 2000mm | 2700mm | 2180mm |
KTL-2500 | 56 | 2500mm | 3200mm | 2450mm |
KTL-3150 | 79.4 | 3150mm | 3650mm | 2450mm |

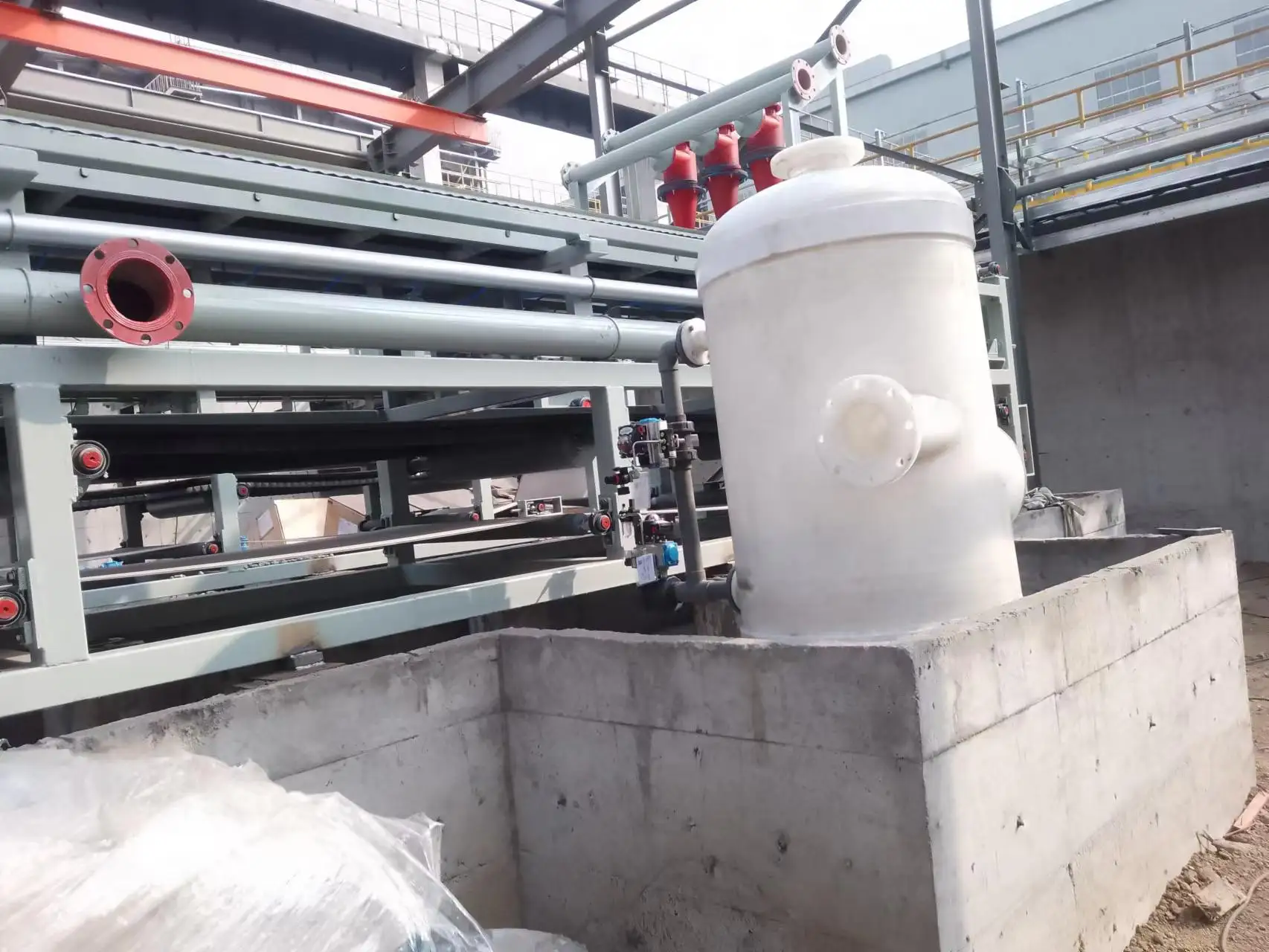

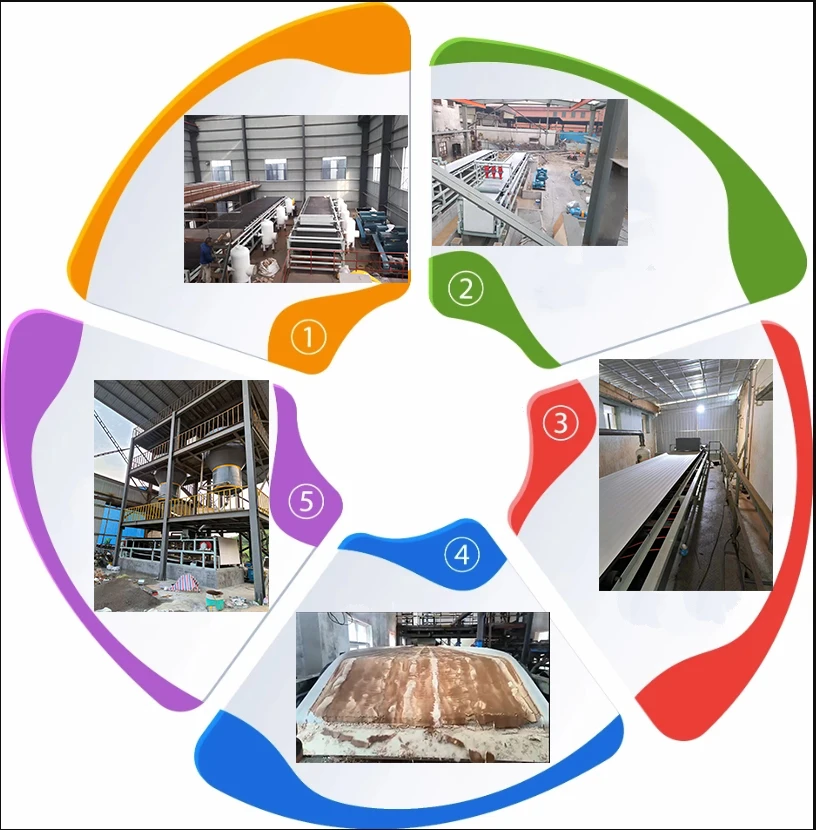

Equipment application
Widely used in metallurgy, mining, chemical industry, paper making, food, as long as, environmental protection and other fields of solid-liquid separation, especially in flue gas desulfurization (FGD) gypsum dehydration has a good application

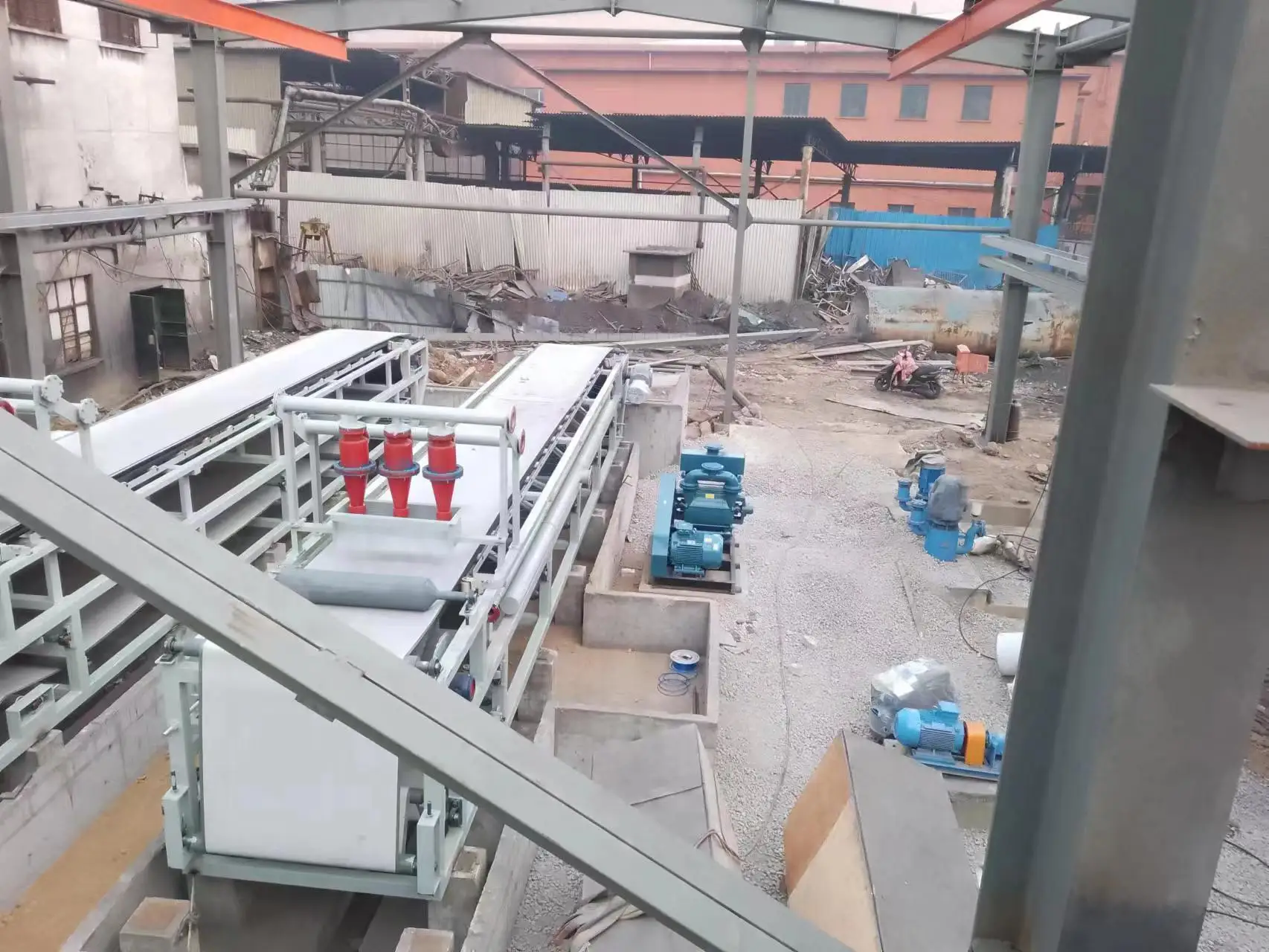

Customer site visit

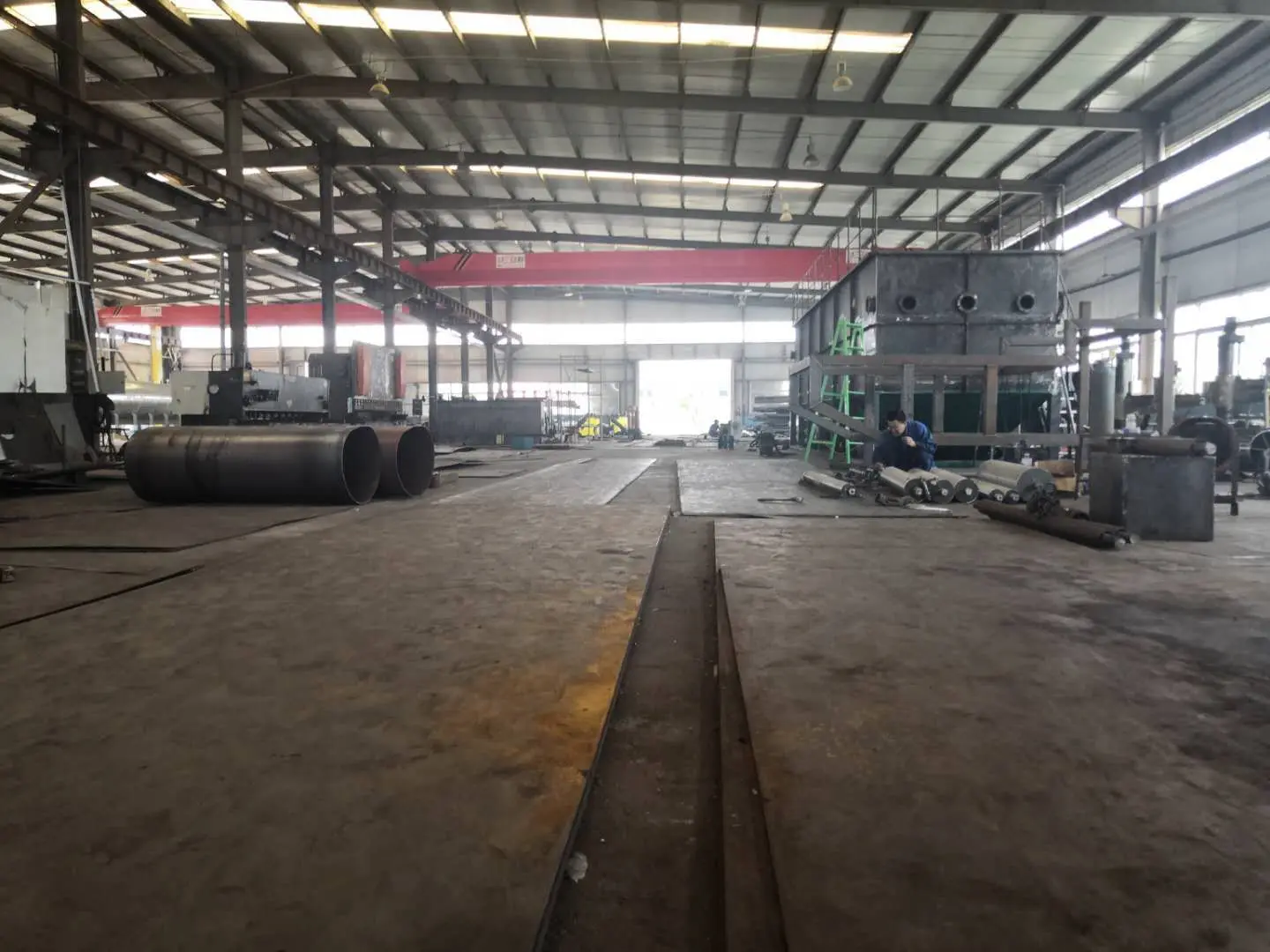

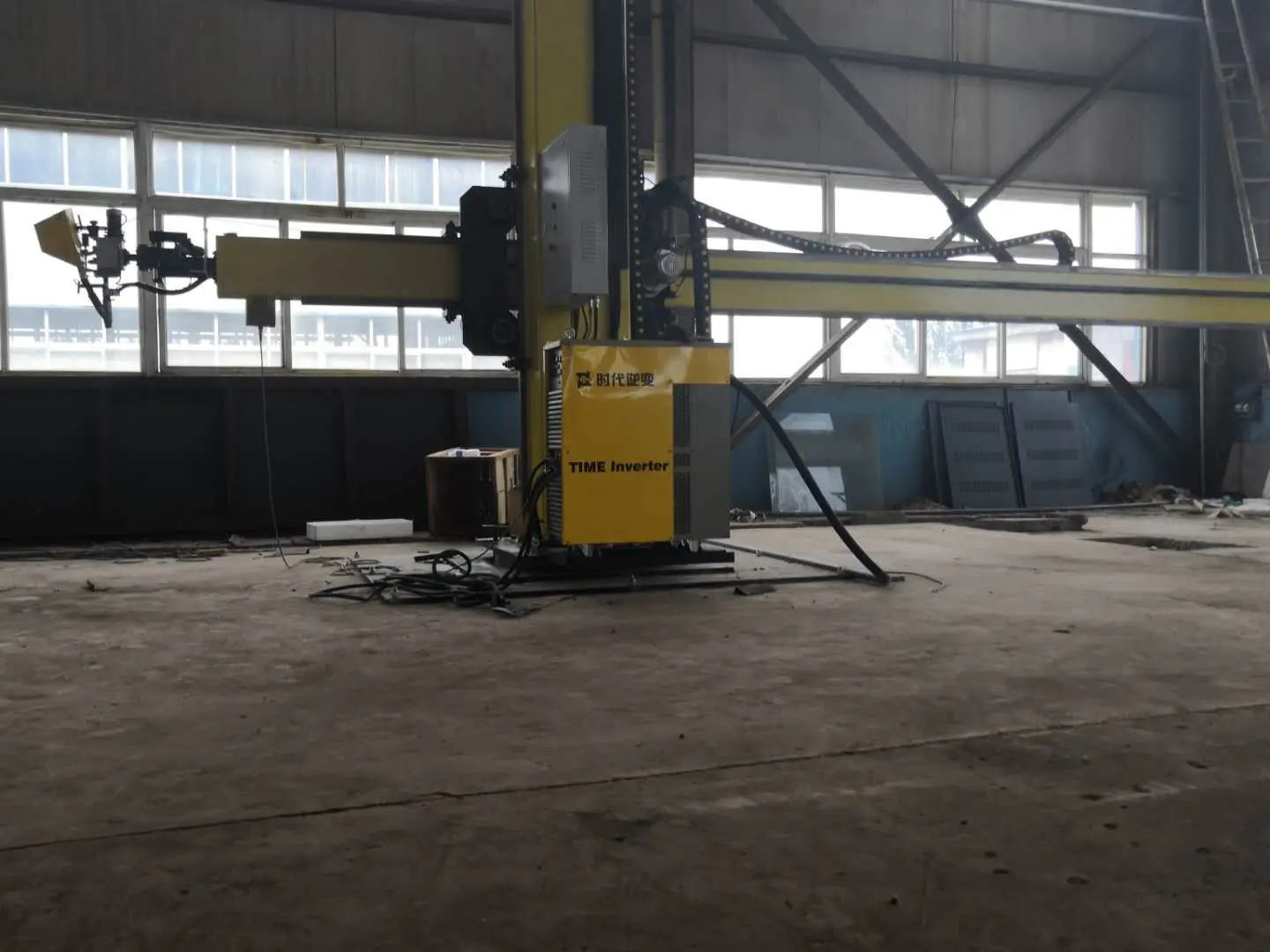

Company introduction
Shandong Kangtailong Intelligent Equipment Co., Ltd. is located in the southern part of Shandong Peninsula, a coastal open city,and a machinery manufacturing base - Zhucheng City, Shandong Province.
The company is an environmental protection equipment manufacturing enterprise integrating R&D, manufacturing, sales and installation. Relying on the functional advantages of talents, technology, information, market, etc., the company has now developed into a domestic company specializing in harmless treatment of diseased animals, sewage, and air treatment. The company's products cover multiple fields of environmental protection, with four major series and more than 100 models. The equipment is simple to operate and automatically controlled. It is currently being promoted in various cities across the country. Among them, the underground integrated sewage treatment equipment, belt filter press, grille decontamination machine, high-efficiency anaerobic generator, harmless treatment complete set, fully automatic dosing equipment, plasma deodorization equipment, bag dust removal equipment, etc. have been favored by Everbright customers.
The company is willing to develop with you in the spirit of mutual respect, responsibility and integrity, empathy, and achieving win-win results.
The company is an environmental protection equipment manufacturing enterprise integrating R&D, manufacturing, sales and installation. Relying on the functional advantages of talents, technology, information, market, etc., the company has now developed into a domestic company specializing in harmless treatment of diseased animals, sewage, and air treatment. The company's products cover multiple fields of environmental protection, with four major series and more than 100 models. The equipment is simple to operate and automatically controlled. It is currently being promoted in various cities across the country. Among them, the underground integrated sewage treatment equipment, belt filter press, grille decontamination machine, high-efficiency anaerobic generator, harmless treatment complete set, fully automatic dosing equipment, plasma deodorization equipment, bag dust removal equipment, etc. have been favored by Everbright customers.
The company is willing to develop with you in the spirit of mutual respect, responsibility and integrity, empathy, and achieving win-win results.
