double shaft coal mixer
US $7999-$8699
LUZUN High Quality Cheap Price concrete mixers fully hydraulic diesel engine self loading mixer truck 1.2cbm concrete mixer
- Category: >>>
- Supplier: Laizhou Luzun Machinery Co. Ltd.
Share on (1601255679184):
Product Overview
Description
Product Overview

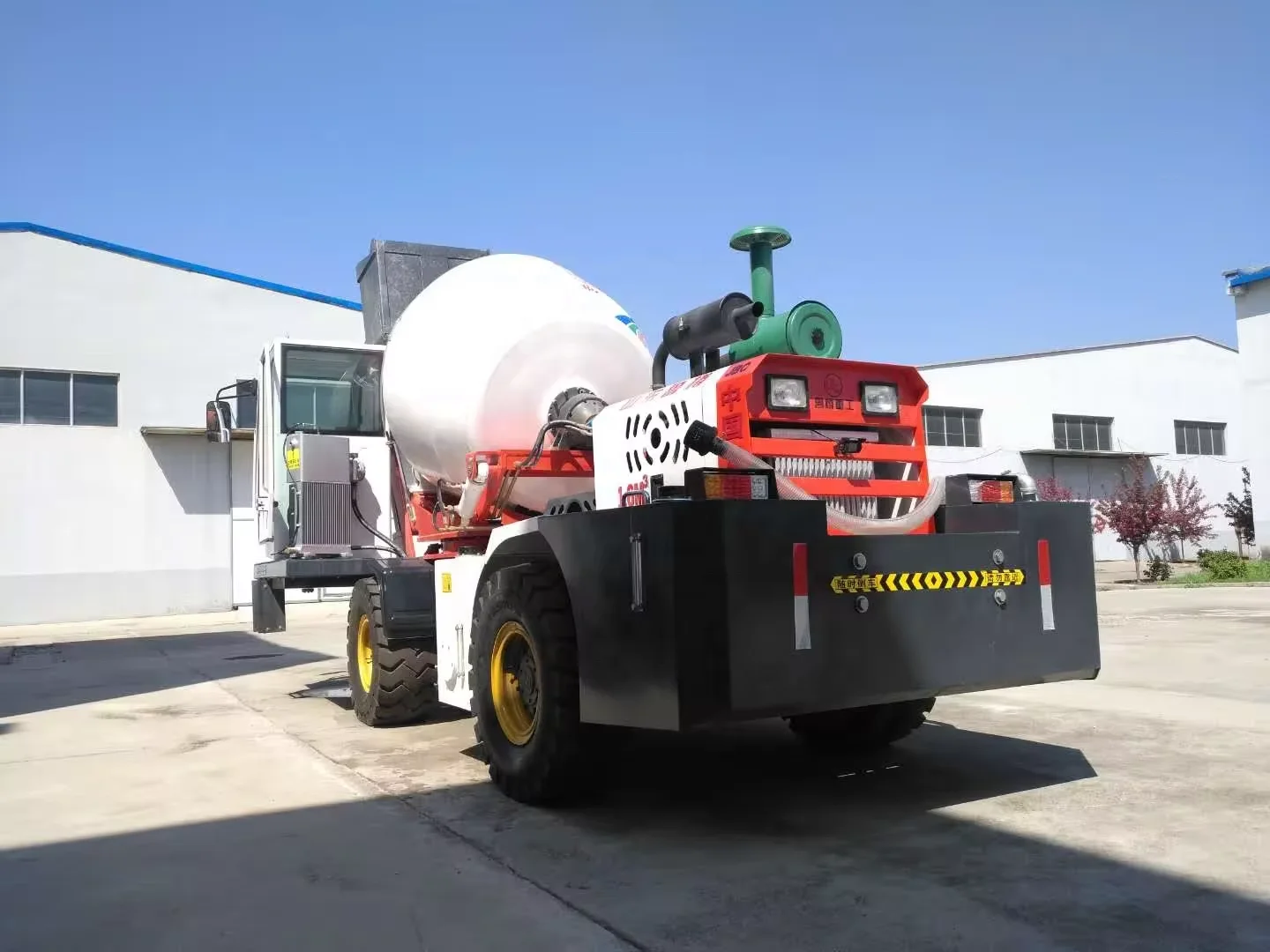

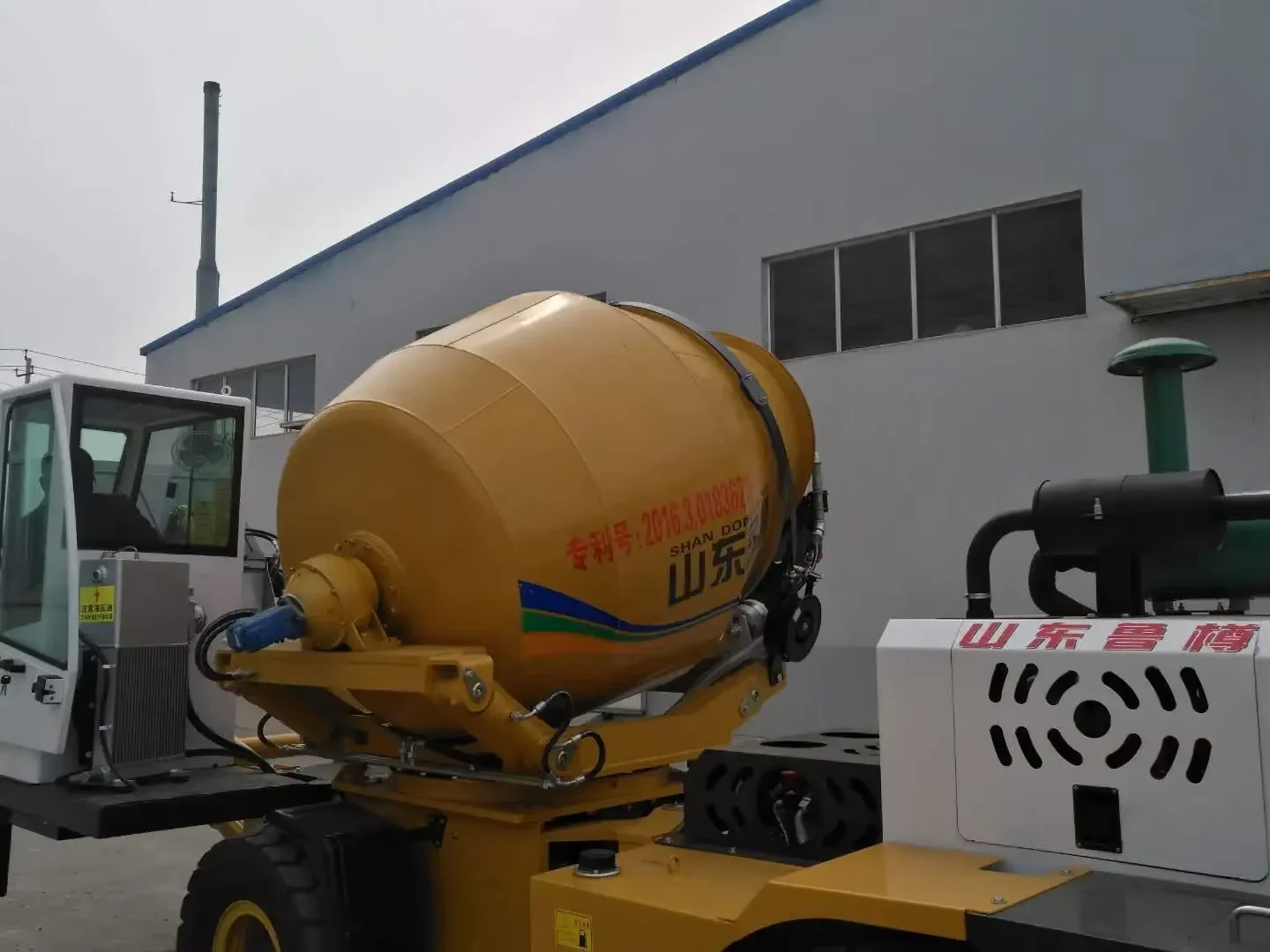

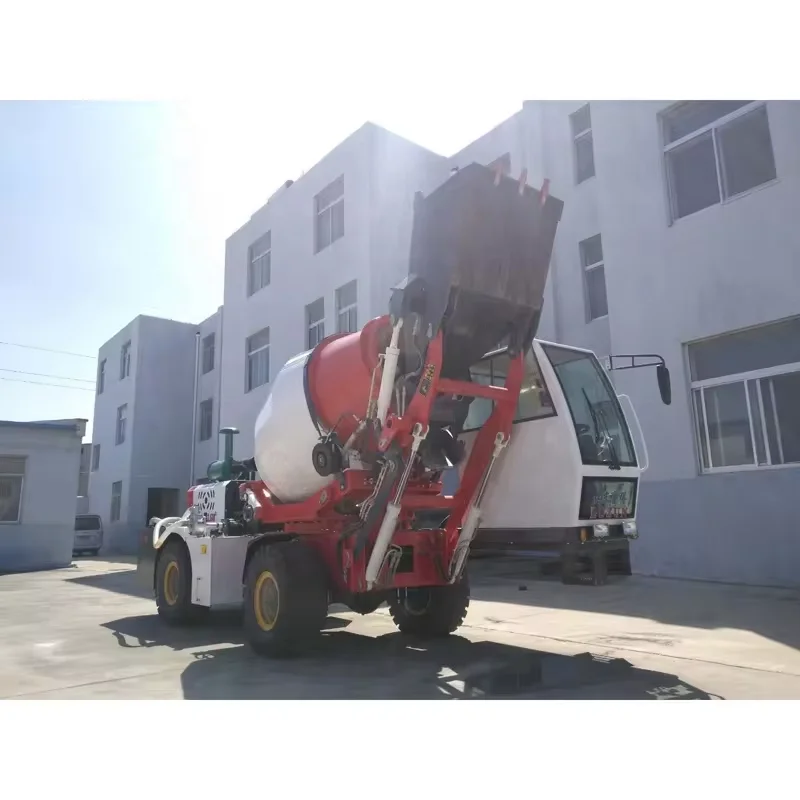

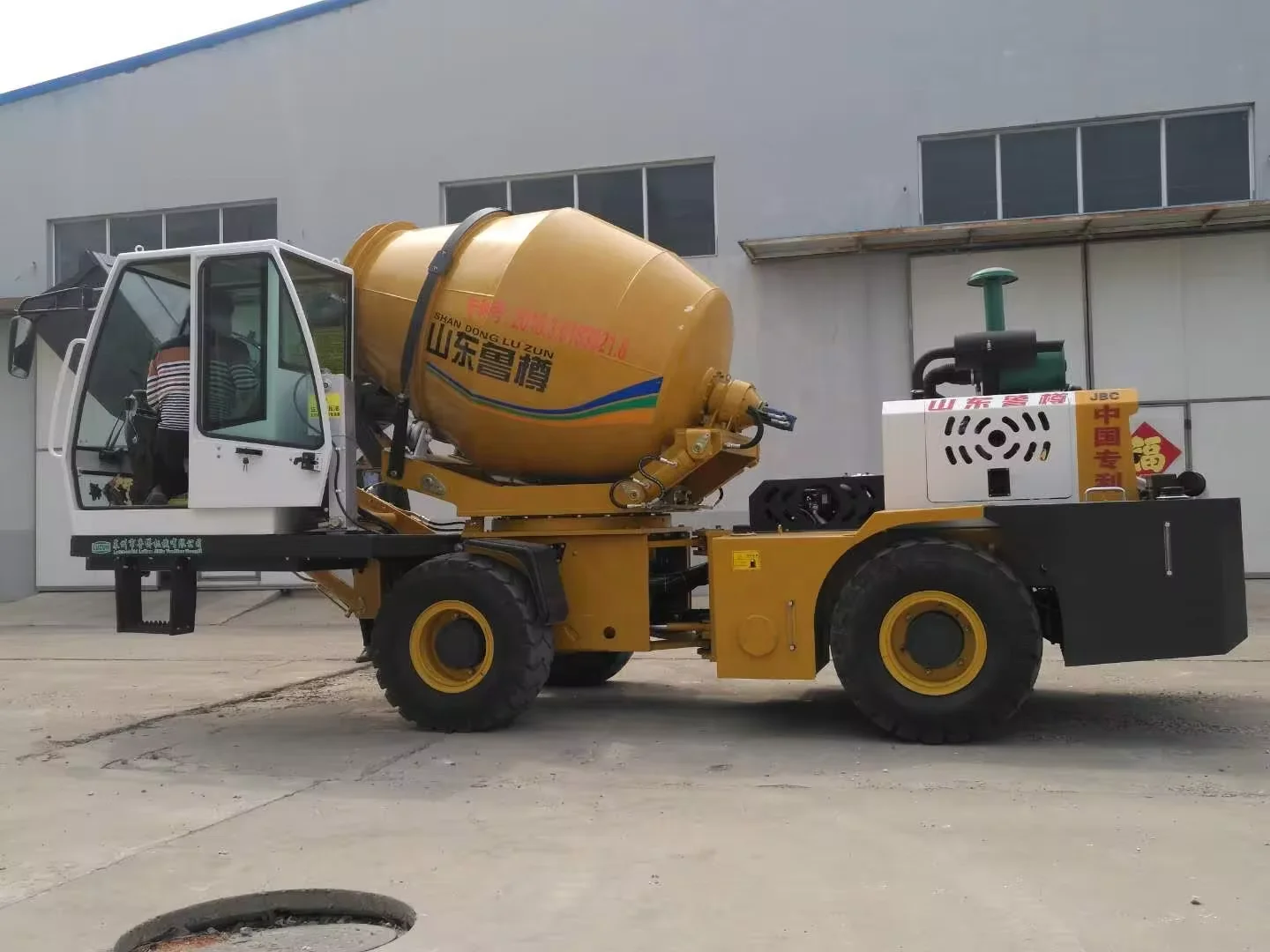

1.2m³ small portable self loading concrete mixer

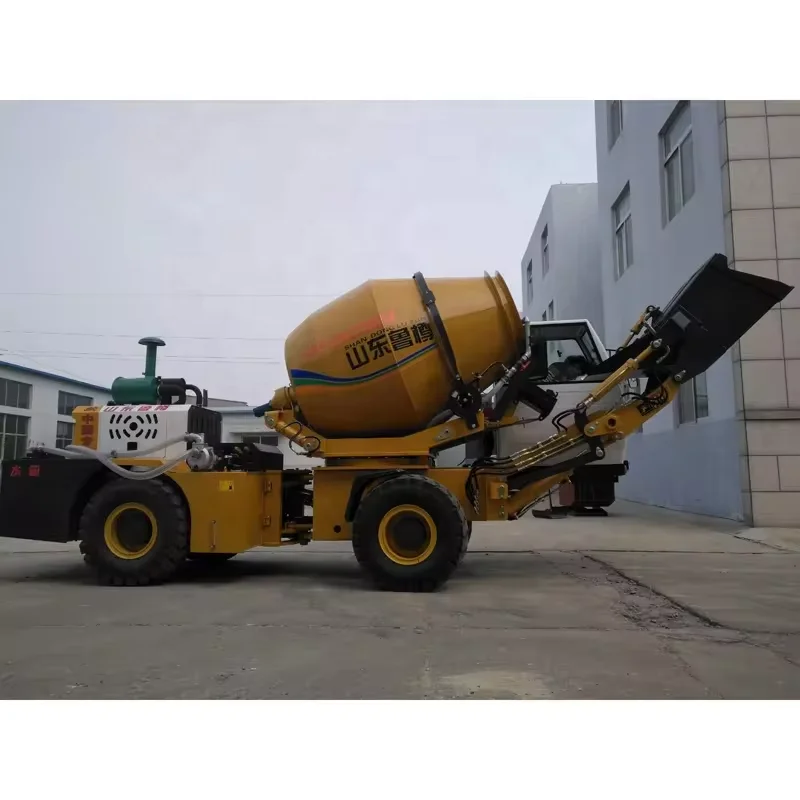

Luzun self loading concrete mixer truck is used to solve the problem that the prior mixer truck has a single function and can only carry out the concrete conveying task. The self loading mixer truck comprises a mixing body, and the body is equipped with a mixing drum. The drum is driven to rotate by the hydraulic mechanism. The drum is inclined, with an opening at the highest end. At the opening there is a feeding port fixed to the mixer truck. The drum is equipped with stirring screws. The two sides of the mixing drum are symmetrically provided with a boom. One end of the boom is hinged on the mixing body, and the body is further provided with a lifting cylinder to lift and lower the booms. A hopper is fixed between the two booms, and is provided with a door at the end near the feeding port. A discharging cylinder for controlling opening and closing of the door is provided on the hopper. The fully automatic loading mixer has a simple structure and is easy to use. It can realize the loading, mixing and unloading of concrete without excessive staff operation, which is economical and practical.
Product specifications
Engine | Yunnei/Yuchai/Cummins |
Rated Power | 55KW(75HP) |
Type | 4-cylinders |
Max Torque | 330nm/2400rpm |
Chassis | articulated chassis |
Driving Type | 4*4 |
Type | 12-16.5-12PR |
Hopper volume | 700L |
Generator | 28V-500Wa(18A) |
Geometrical volume | 2.6 cbm |
Concrete Output | 1.2 cbm/batch,4.8-5 cbm/hour |
Drum Rotating Speed | 15rpm |
Water Tank | 0/180/270 |
Water Pump | 2*260L |
Hydraulic Gear Pump | 24V self priming pump |
Gradient | 30% full loaded |
Max speed | 25km/h |
Size | 4880*2800*3150mm |
Weight | 4800kg |
Max total weight | 7680kg |

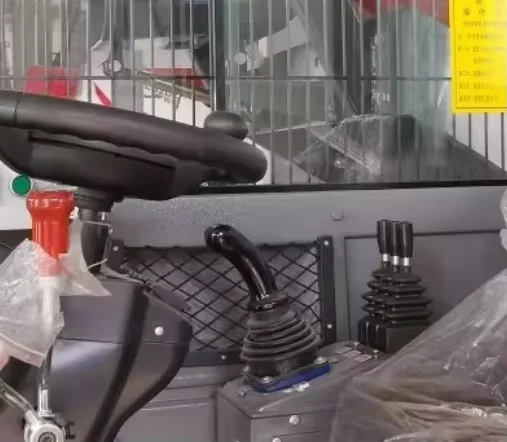

Cab | closed,with warm/cool air conditioner |
Fuel tank | 100L |
Total Hydraulic Capacity | 100L |
Engine oil | 16L |
Details Images

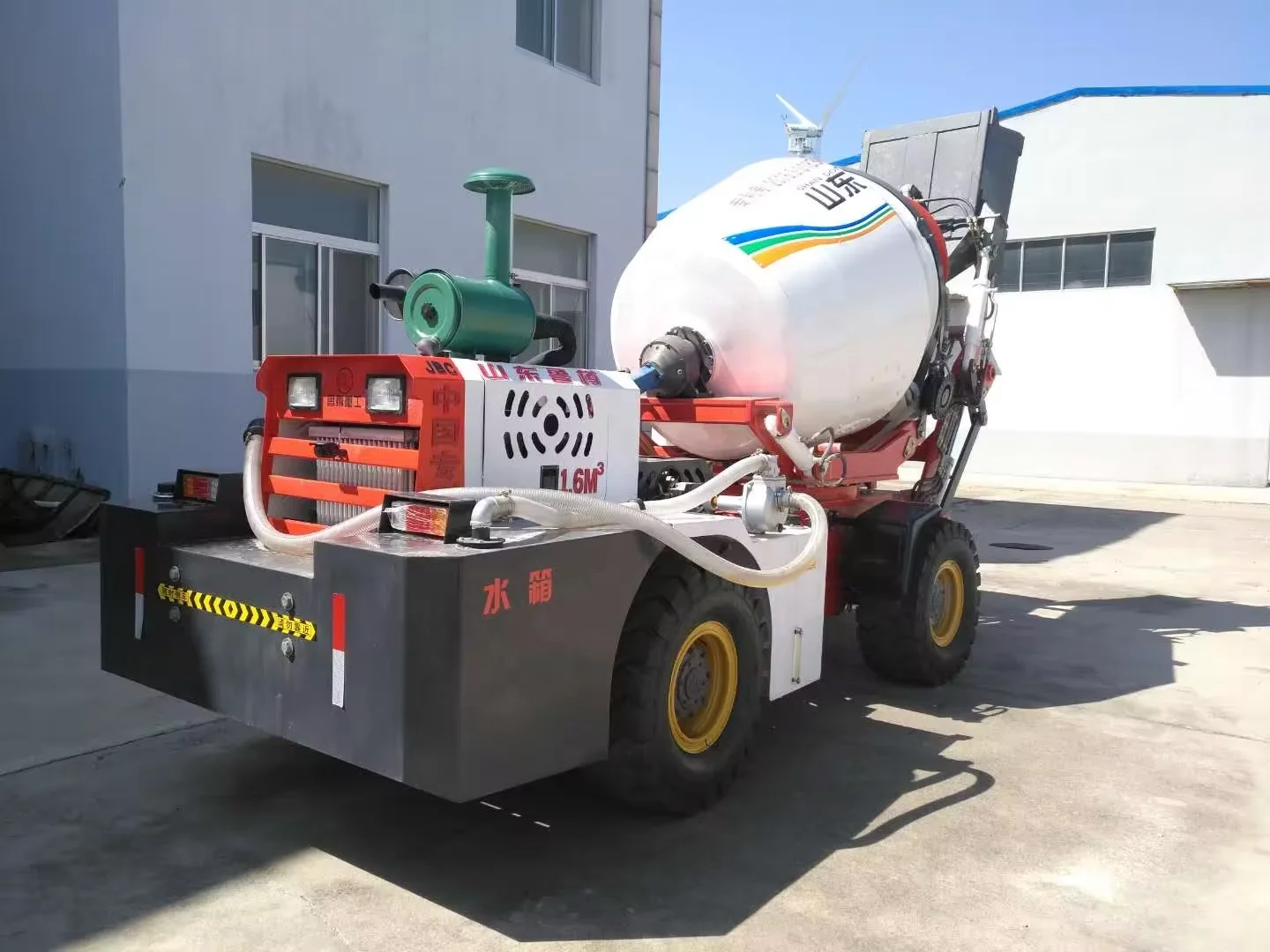

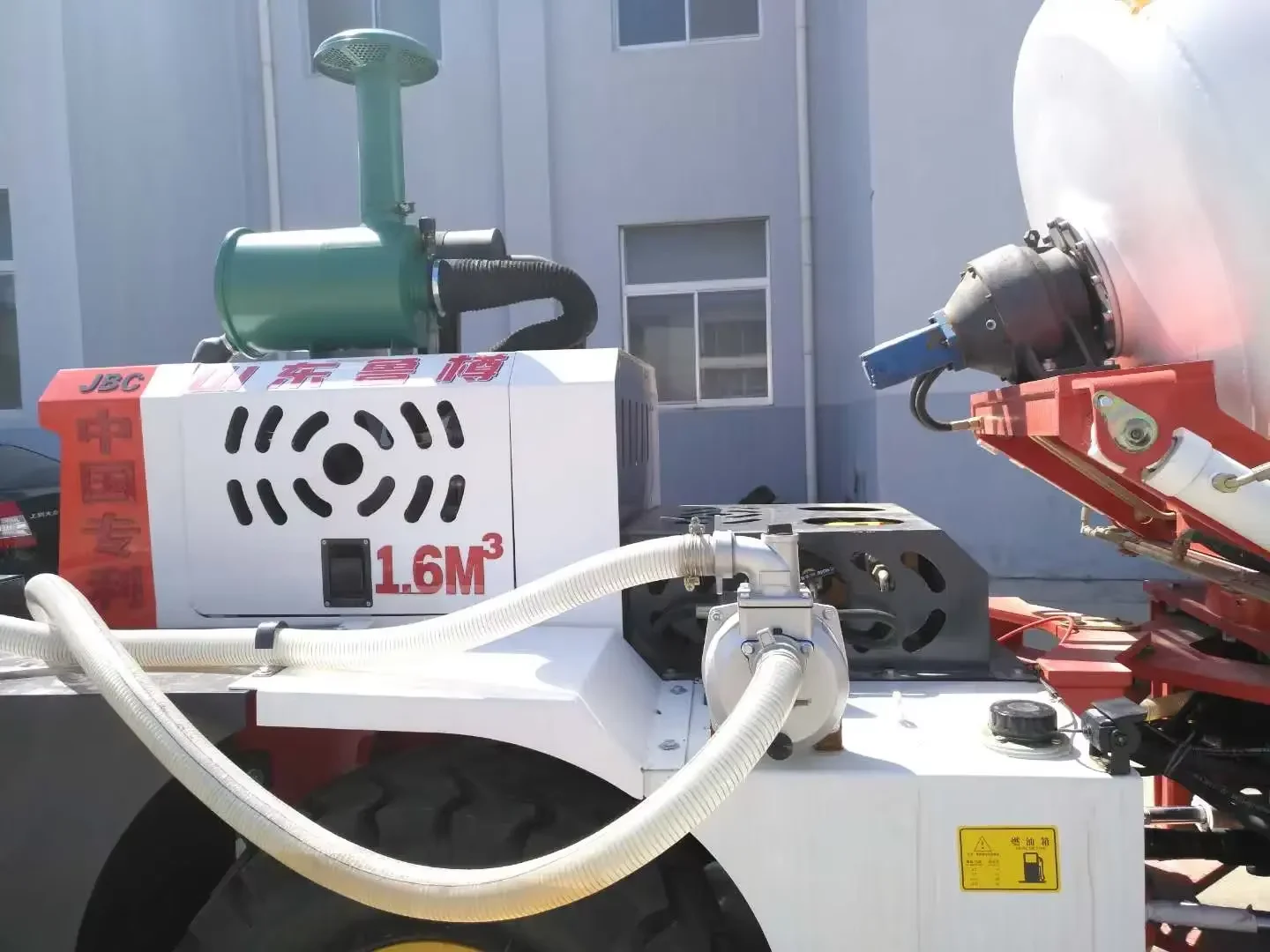

External water pump with big suction for filling water into the water tank

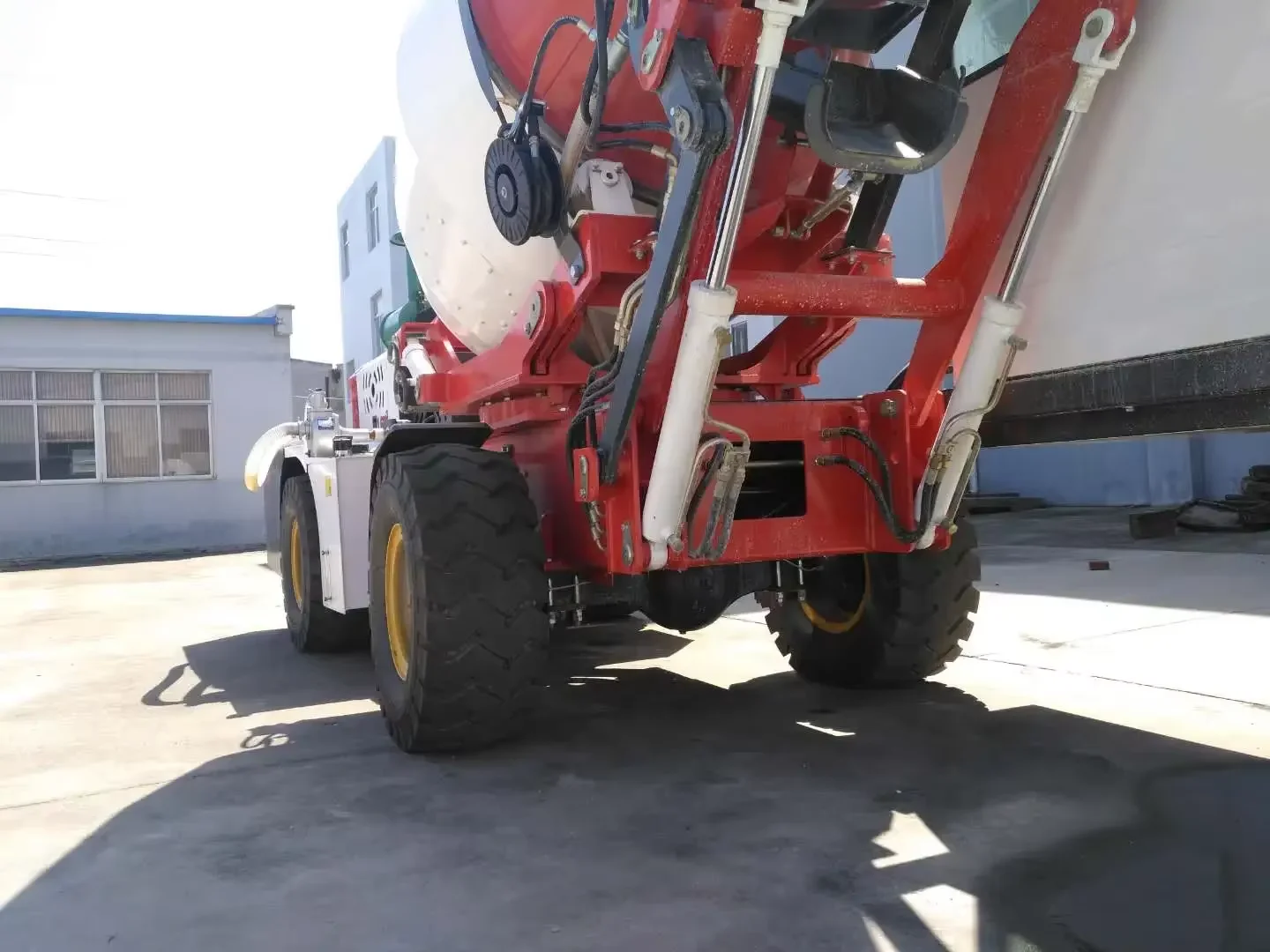

discharge

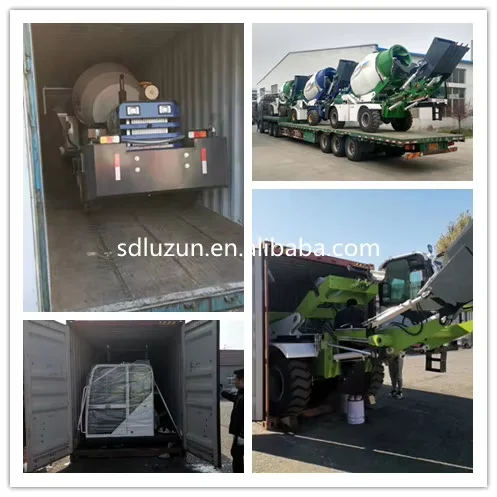

Shipping&package
one 40HQ container can be put 2 sets
Customers&Expos
LUZUN self-loading concrete mixer has been continuously exported to dozens of countries like Hungary, Saudi Arabia, Algeria,Panama, Venezuela, Russia, Uzbekistan, Kazakhstan, India, Malaysia, the Philippines, Vietnam, Cambodia, Kenya, Somalia, etc. and has become the most popular mixer trucks in local markets.

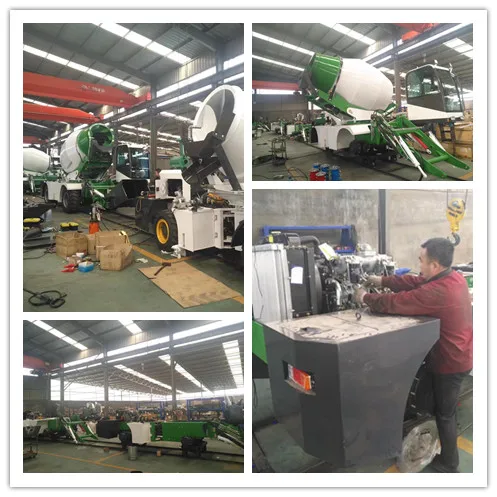

Company Profile
Certifications
As of June 2018, Luzun has experienced 17 innovations. In addition to paying attention to the performance of the equipment produced, the safety, stability and appearance of the concrete mixer truck have been further improved. As a leading enterprise in the China machinery industry, LUZUN pays more attention to the needs of customers, listens to customers' opinions and enhances product quality as the primary task. To this end, it is committed to creating technological and practical, time and effort saving, labor costs economizing, efficiency improving, reliable and stable construction machinery.
Successful Project
FAQ
Q: What is your payment term?
A: Our payment term is T/T- 30% deposit, balance paid before delivery. Or 100% irrevocable L/C at sight.
Q: How soon can you deliver the mixer after I place the order?
A: We keep fresh inventory. Most orders are delivered in less than 7 days. If it is OEM, the order will be delivered in 15-20 days.
Q: Is your quality good?
A: We use advanced Italian technology and make improvement based on customer feedback. Till now our professional R&D team has launched 13th generation mixers and registered 24 national patents. Besides, we successfully passed the quality certification of CCC and CE.
Q: Do you have warranty?
A: Yes, we offer one year warranty based on the confidence on our quality.
Q: Can I be your agent?
A: Sure. You are welcome to be our agent. We will provide necessary support to you.
Q: Can I get a discount?
A: We sell directly from factory. The price is better than trading companies.
But still discount is available based on the order quantity.
