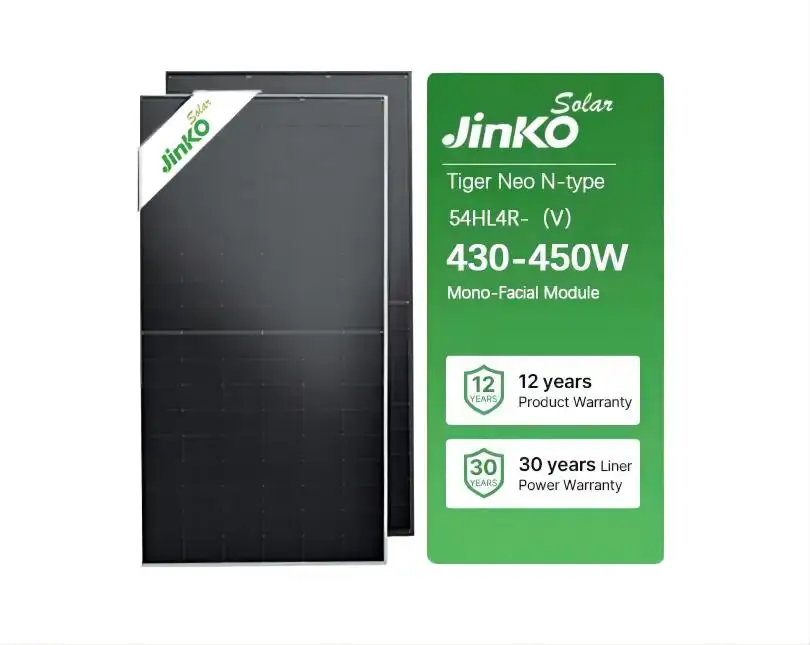

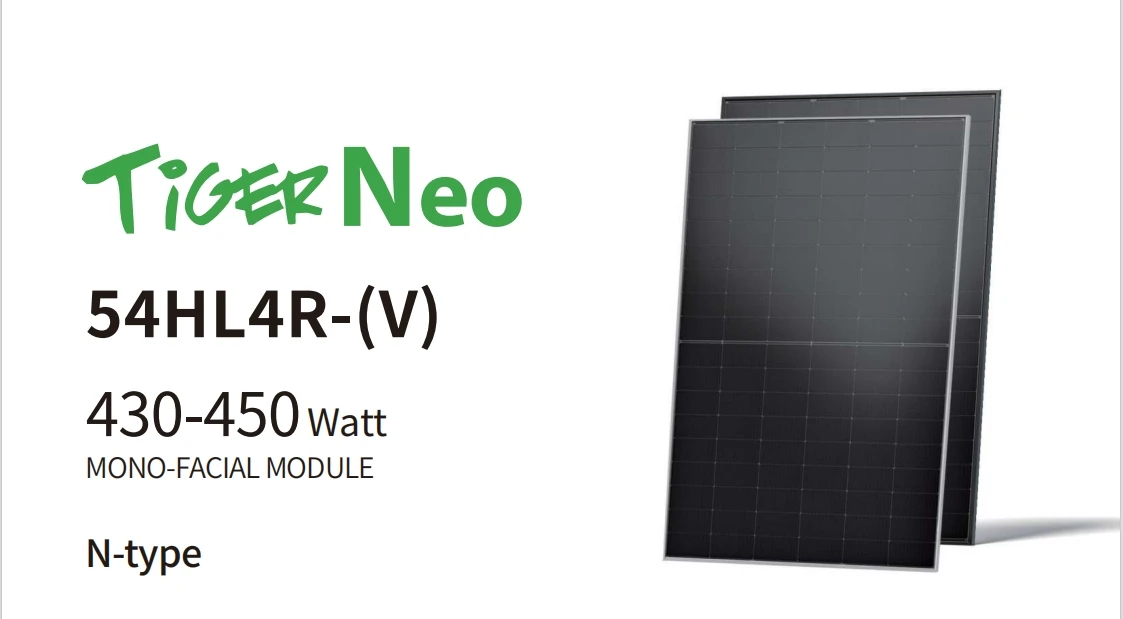

Jinko Topcon Solar Panels 430W 435W Tier 1 All Black Photovoltaic Panel For Sale
- Category: >>>
- Supplier: Nonivia Technology Co. Ltd.
Share on (1601255956554):
Product Overview
Description
Product Description
Electrical Data | ||||||||||
Maximum Power (Pmax) | 430W | 435W | 440W | 445W | 450W | |||||
Maximum Power Voltage (Vmp) | 32.38V | 32.59V | 32.81V | 33.02V | 33.21V | |||||
Maximum Power Current (Imp) | 13.28 A | 13.35 A | 13.41 A | 13.48 A | 13.55A | |||||
Open-circuit Voltage (Voc) | 38.95V | 39.16V | 39.38V | 39.59V | 39.78V | |||||
Short-circuit Current (Isc) | 13.73A | 13.80A | 13.86A | 13.93A | 14.00A | |||||
Module Efficiency STC (%) | 21.52% | 21.77% | 22.02% | 22.27% | 22.52% | |||||
Power Tolerance | 0~+3% | |||||||||
Maximum system voltage | 25A | |||||||||
Maximum series fuse rating | 1000/1500VDC (IEC) | |||||||||
Mechanical Data | ||
Cell Type: | N-type Mono-crystalline | |
Cell number: | 108(54x2) | |
Dimensions: | 1762x1134x30mm | |
Front glass: | 3.2mm, anti-reflection, high transmission, low iron tempered glass | |
Junction box: | IP68 Rated | |
Frame: | Anodized Aluminium Alloy | |
Weight: | 21.0 kg | |
