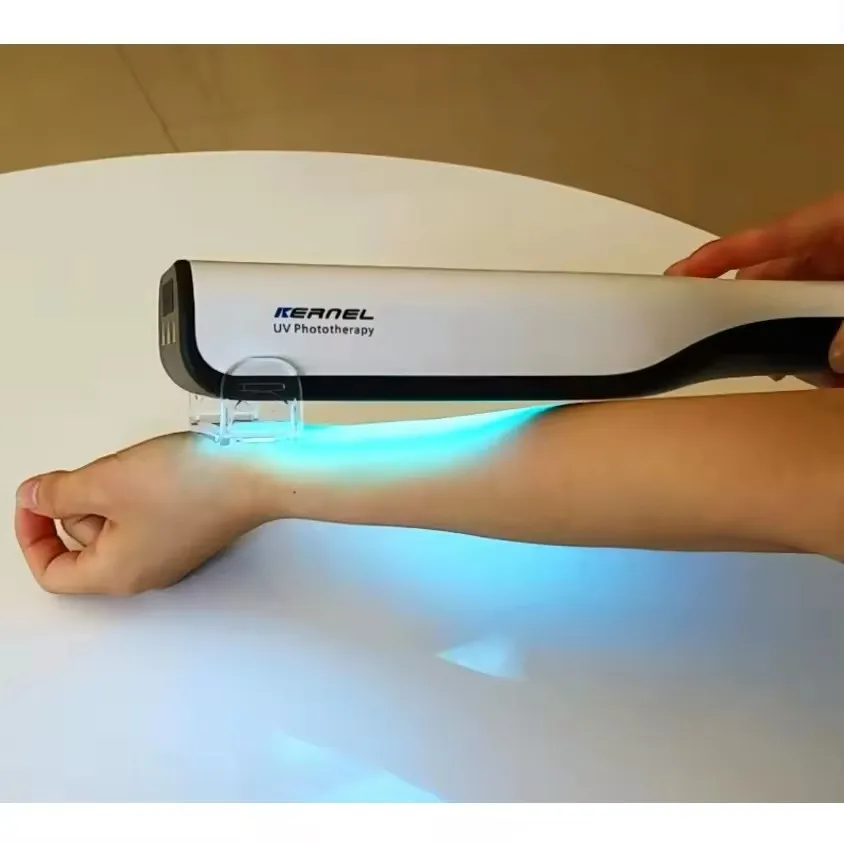

Kernel UV Phototherapy Medical Device UV Lamp for Psoriasis Vitiligo Atopic Dermatitis
- Category: >>>
- Supplier: Kernel Medical Equipment Co. Ltd.Kernel Ltd.
Share on (1601255965990):
Product Overview
Description

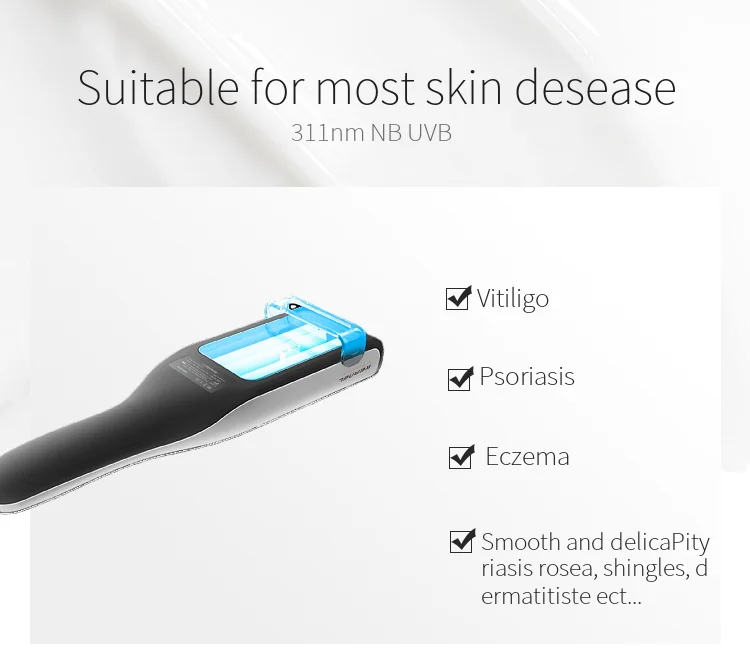

Indications:
Psoriasis, Vitiligo, Eczema, Chronic eczema, Neurodermatitis, Atopic dermatitis and other skin diseases.
Narrow Band UVB phototherapy is considered a first-line treatment for many conditions such as psoriasis, vitiligo and eczema, is
safe enough for pregnant women and children to use, and has none of the serious side effects .
UV lights slow abnormal growth of skin cells and can help create repigmentation.
Psoriasis, Vitiligo, Eczema, Chronic eczema, Neurodermatitis, Atopic dermatitis and other skin diseases.
Narrow Band UVB phototherapy is considered a first-line treatment for many conditions such as psoriasis, vitiligo and eczema, is
safe enough for pregnant women and children to use, and has none of the serious side effects .
UV lights slow abnormal growth of skin cells and can help create repigmentation.
Product Description

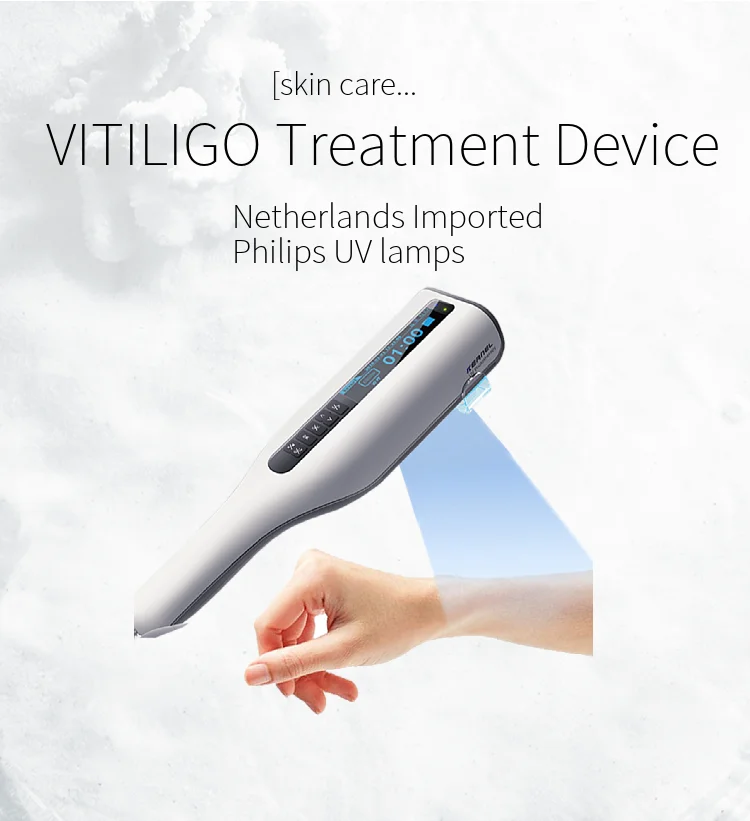

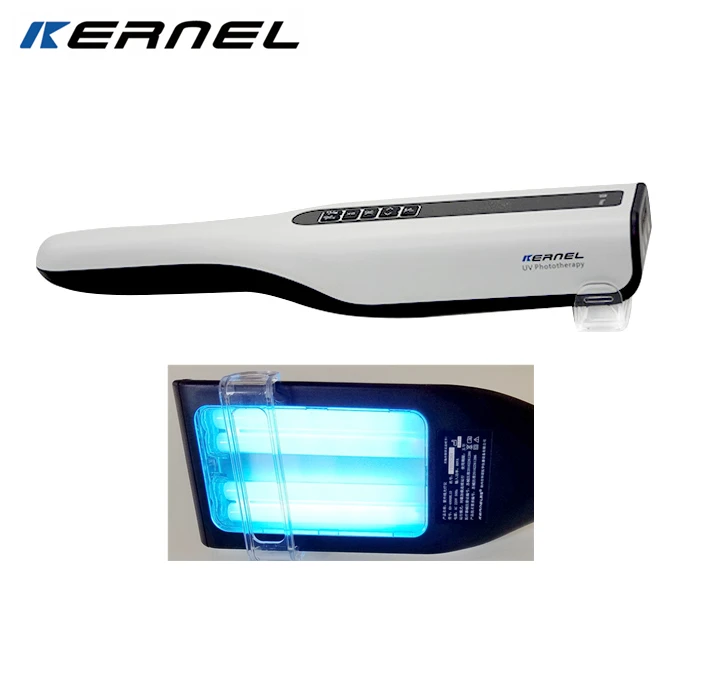

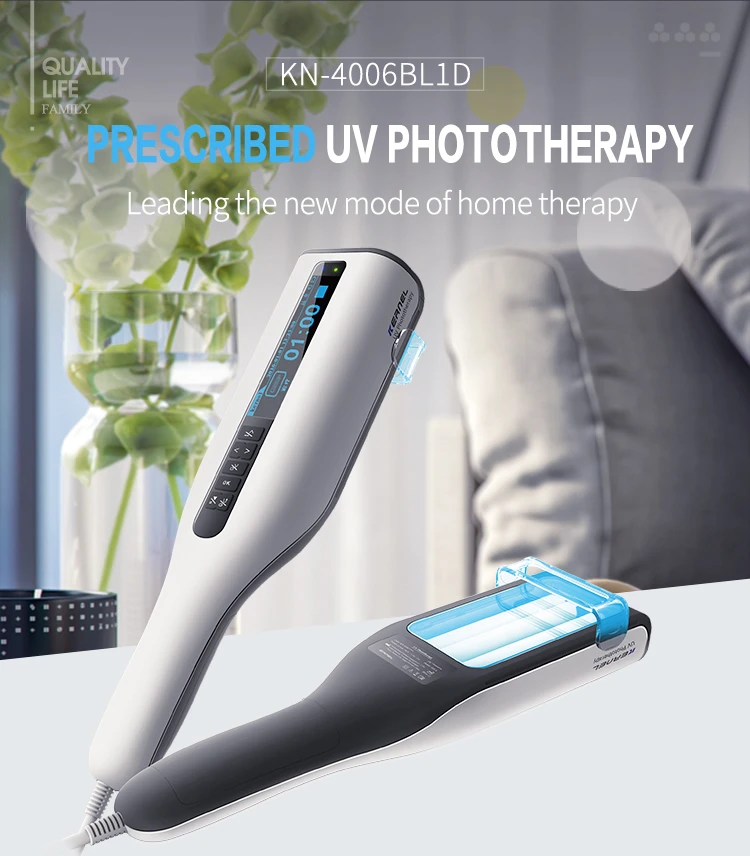

Handheld Portable PHILIPS UV LAMPS UVA/ UVB phototherapy for skin vitiligo psoriasis eczema treatment

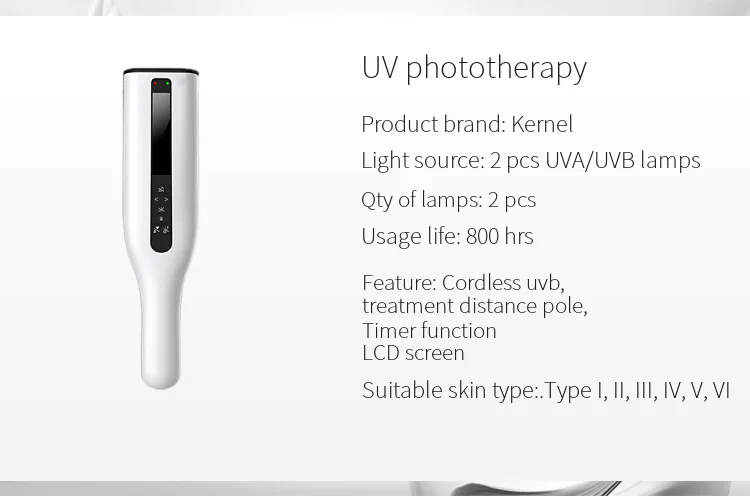

Technical parameter | ||
Light source | Netherlands Philips UV lamps | |
Model | KN4006AL1D, KN4006BL1D | |
Intensity | 4.5mW/cm2 | |
Irradiation areas | 104cm2 | |

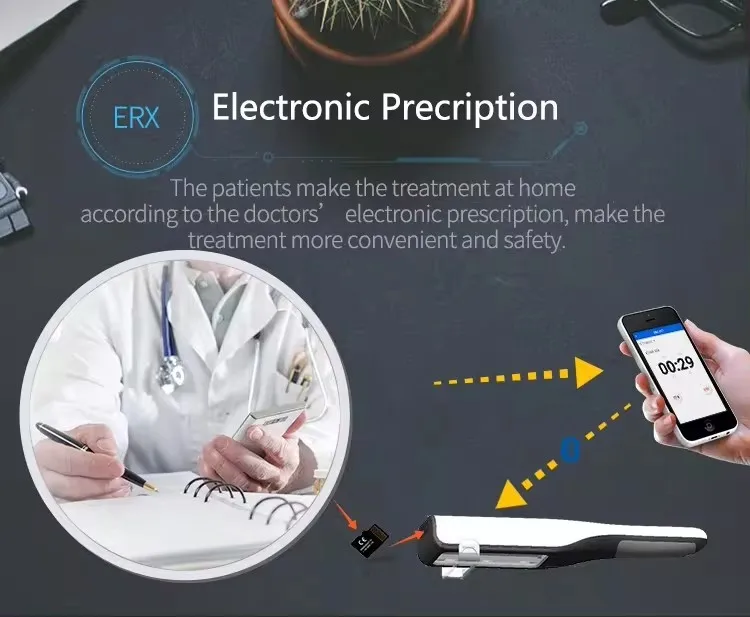

Functions | case management\\electronic prescription | |
Feature | Cordless uvb, rechargeable battery | |
Application People | People who travel oftenly, out of business, international student etc. | |

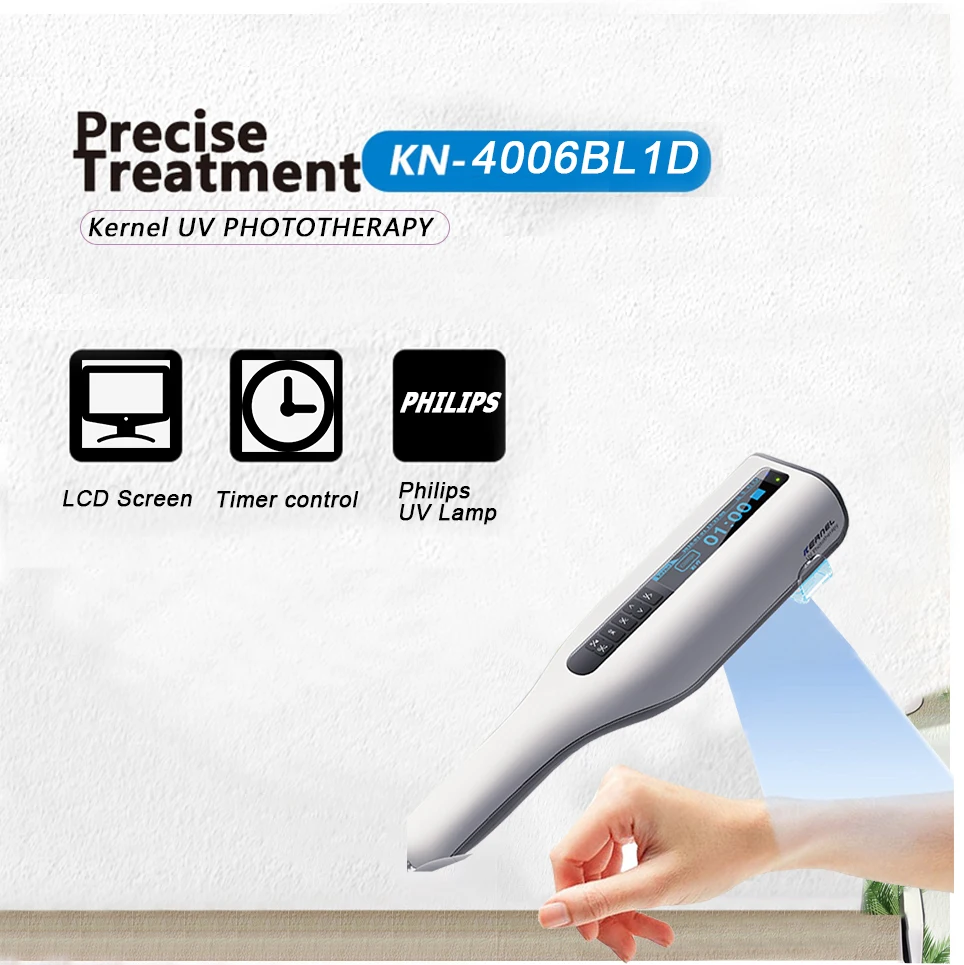

What sets Kernel KN-4006BL1D apart from its rivals?
1.Small size and light weight,convenient for patient to carry

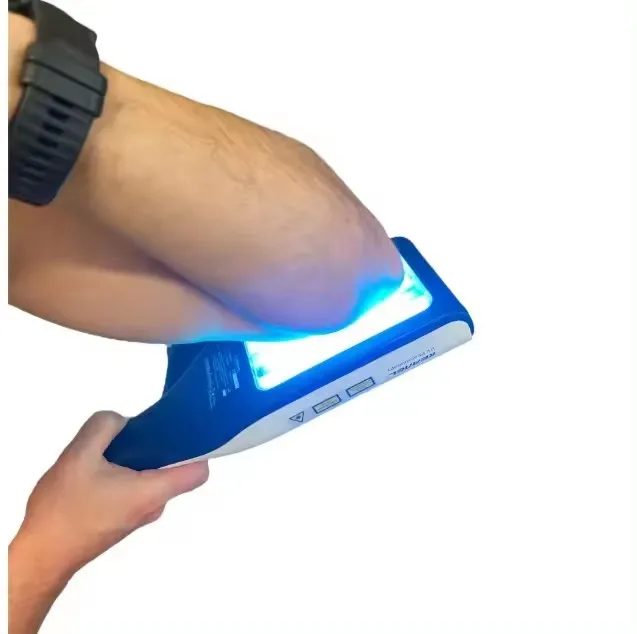

2.Hand-held operation,flexible irradiated site ,Time countdown function
3. Two pieces of Philips UV lamps

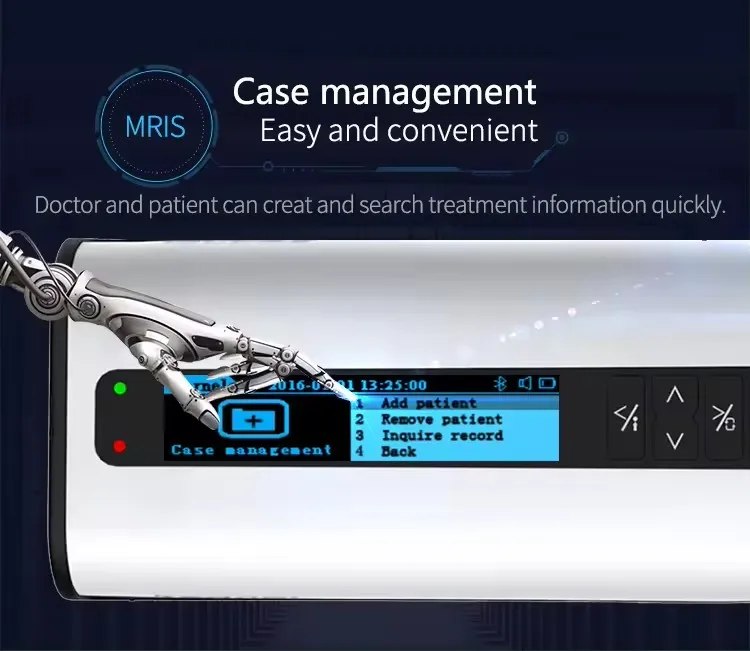

4.Proximity sensor,Case management
5.Dust-proof and water-proof level up to IP22
1.Small size and light weight,convenient for patient to carry
2.Hand-held operation,flexible irradiated site ,Time countdown function
3. Two pieces of Philips UV lamps
4.Proximity sensor,Case management
5.Dust-proof and water-proof level up to IP22
Clinical Application
Different Part， Different Dose
Initial dose and increment (reference value)
(1) Vitiligo 150-200mj/Cm2
(2) Psoriasis 300mj/Cm2
1. Face, Perineum: 150-180mj/Cm2
Increment:
no red: plus 50-80mj/Cm2;
Red spot is less than 12 hours: plus 30-50mj/Cm2
Red spot one day: can be maintained
Red spots more than one day: should consider reducing the dose
2. Palm, Foot surface: 400mj/Cm2
Increment:
no red can add 200mj/Cm2
3. Trunk, limbs: 200-250mj/Cm2
Increment:
Red spot is less than 12 hours, plus 50mj/Cm2
Not red: add 100mj/Cm2
Initial dose and increment (reference value)
(1) Vitiligo 150-200mj/Cm2
(2) Psoriasis 300mj/Cm2
1. Face, Perineum: 150-180mj/Cm2
Increment:
no red: plus 50-80mj/Cm2;
Red spot is less than 12 hours: plus 30-50mj/Cm2
Red spot one day: can be maintained
Red spots more than one day: should consider reducing the dose
2. Palm, Foot surface: 400mj/Cm2
Increment:
no red can add 200mj/Cm2
3. Trunk, limbs: 200-250mj/Cm2
Increment:
Red spot is less than 12 hours, plus 50mj/Cm2
Not red: add 100mj/Cm2
Warranty
The lamp comes with 1 year manufacturer's warranty (500 hours for bulbs)
How to use UV Phototherapy?
Before treatment
Before treatment: the first step, please take a bath for 15 to 20 minutes to remove skin surface scales;
The second step, patients need to determine the MED.
Note:
1.Intensity of KN - 4003 - B/BL is 4.5 mW/cm2
2. MED calculation method for: irradiation time S = dose (J/cm2) * 1000/10 (mW/cm2)
Treatment:
Psoriasis:
3 ~ 4 times / week, 15 ~ 20 times / treatment course.
Vitiligo:
2 ~ 3 times / week, need treatment for 30 ~ 50 times or more.
Parapsoriasis:
PUVA, UVA/UVB,NB-UVB: 4 times / week, until histology improvement.
Dose adjustment:
A. No erythema effect or Previous light erythema effect disappeared
Every time increase 20~ 25% dose.
B. Mild erythema effect
Same as the last dose or increase 10% dose,if erythema effect disappears,same as A .
C. Asymptomatic, clear the shinning erythema
Stop treatment for one time, then with the same exposure, later every time by 10% gradually increasing dose.
D. The pain of erythema, or with edema,blister
Stop treatment, until recovery. Reduce the dose half,
The lamp comes with 1 year manufacturer's warranty (500 hours for bulbs)
How to use UV Phototherapy?
Before treatment
Before treatment: the first step, please take a bath for 15 to 20 minutes to remove skin surface scales;
The second step, patients need to determine the MED.
Note:
1.Intensity of KN - 4003 - B/BL is 4.5 mW/cm2
2. MED calculation method for: irradiation time S = dose (J/cm2) * 1000/10 (mW/cm2)
Treatment:
Psoriasis:
3 ~ 4 times / week, 15 ~ 20 times / treatment course.
Vitiligo:
2 ~ 3 times / week, need treatment for 30 ~ 50 times or more.
Parapsoriasis:
PUVA, UVA/UVB,NB-UVB: 4 times / week, until histology improvement.
Dose adjustment:
A. No erythema effect or Previous light erythema effect disappeared
Every time increase 20~ 25% dose.
B. Mild erythema effect
Same as the last dose or increase 10% dose,if erythema effect disappears,same as A .
C. Asymptomatic, clear the shinning erythema
Stop treatment for one time, then with the same exposure, later every time by 10% gradually increasing dose.
D. The pain of erythema, or with edema,blister
Stop treatment, until recovery. Reduce the dose half,
