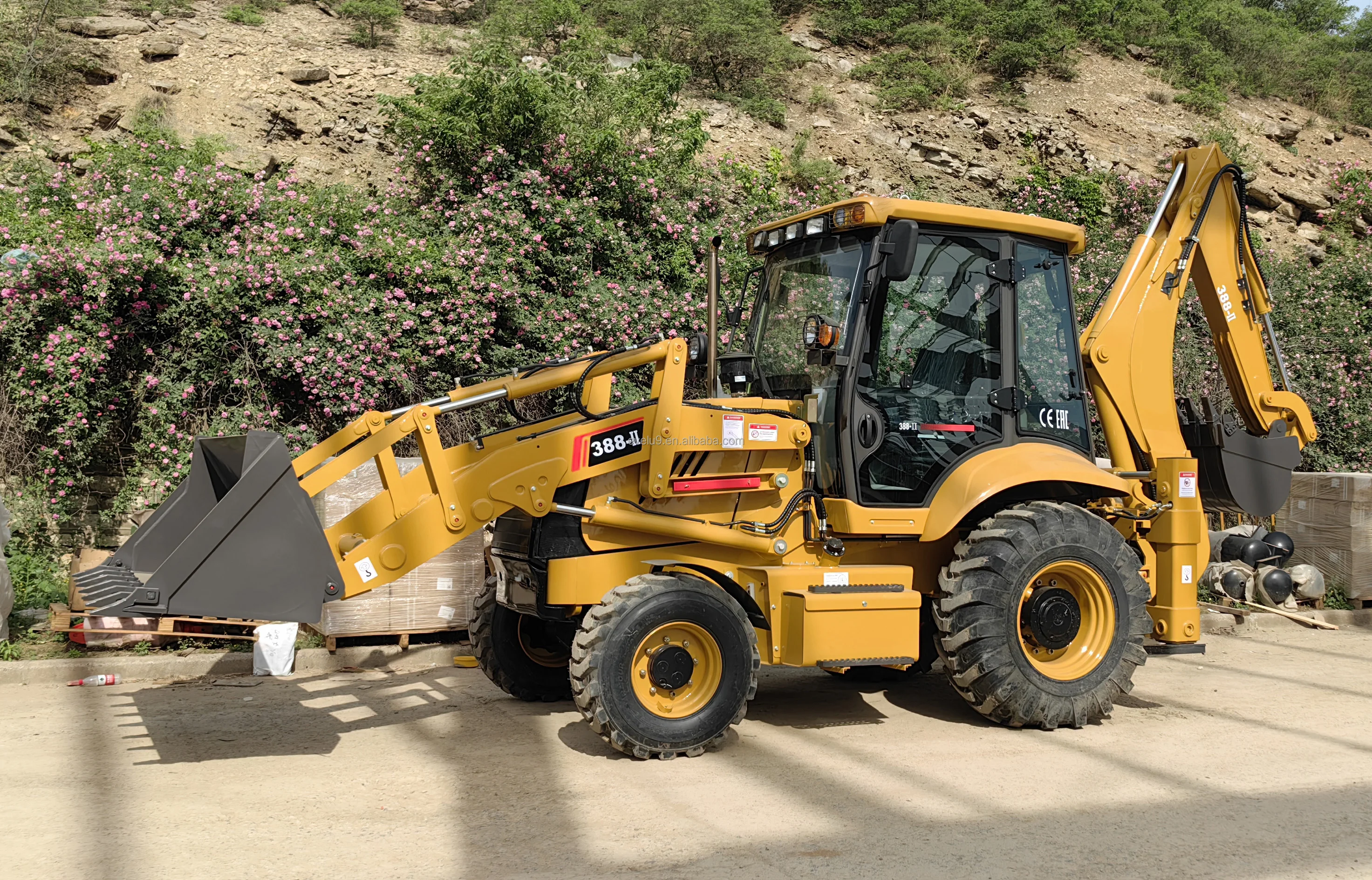

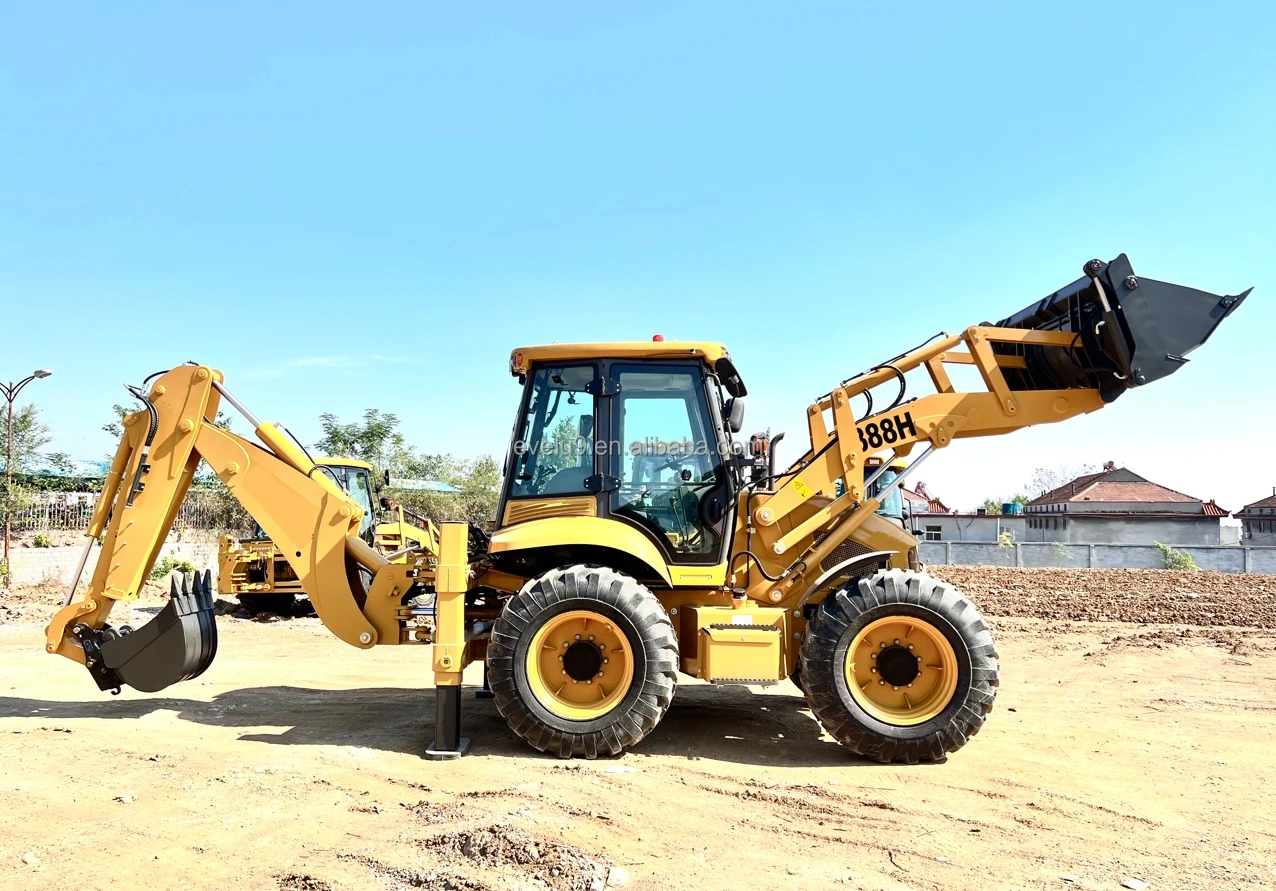

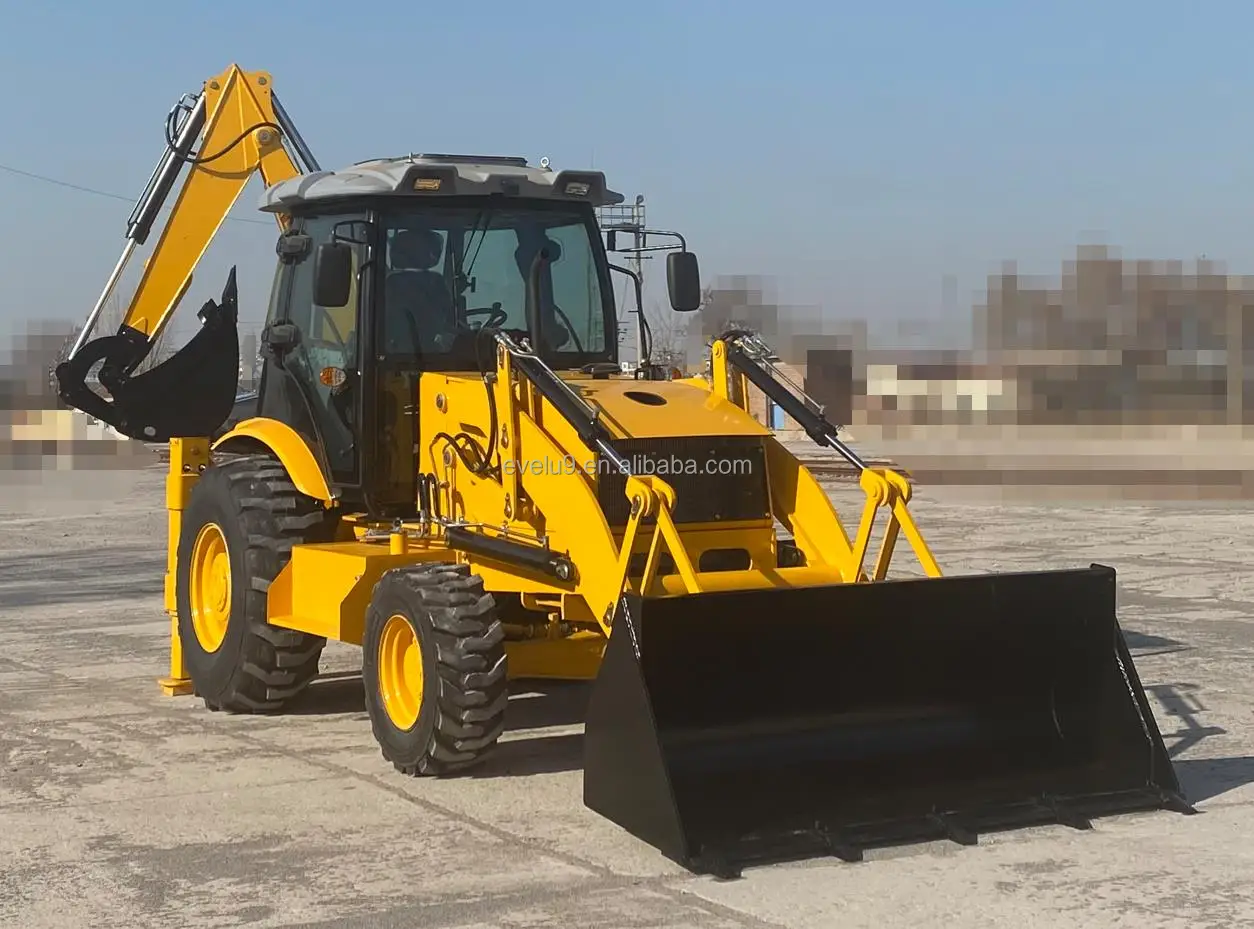

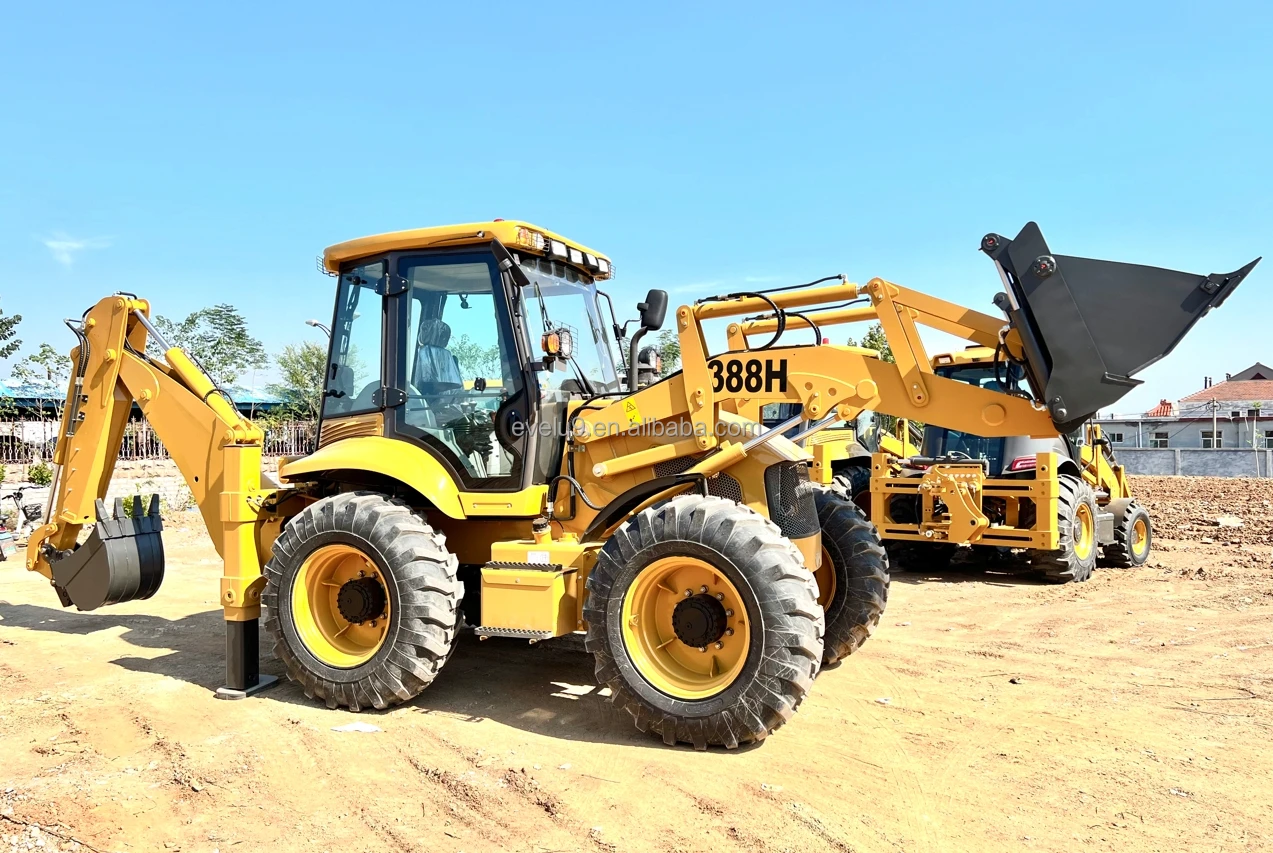

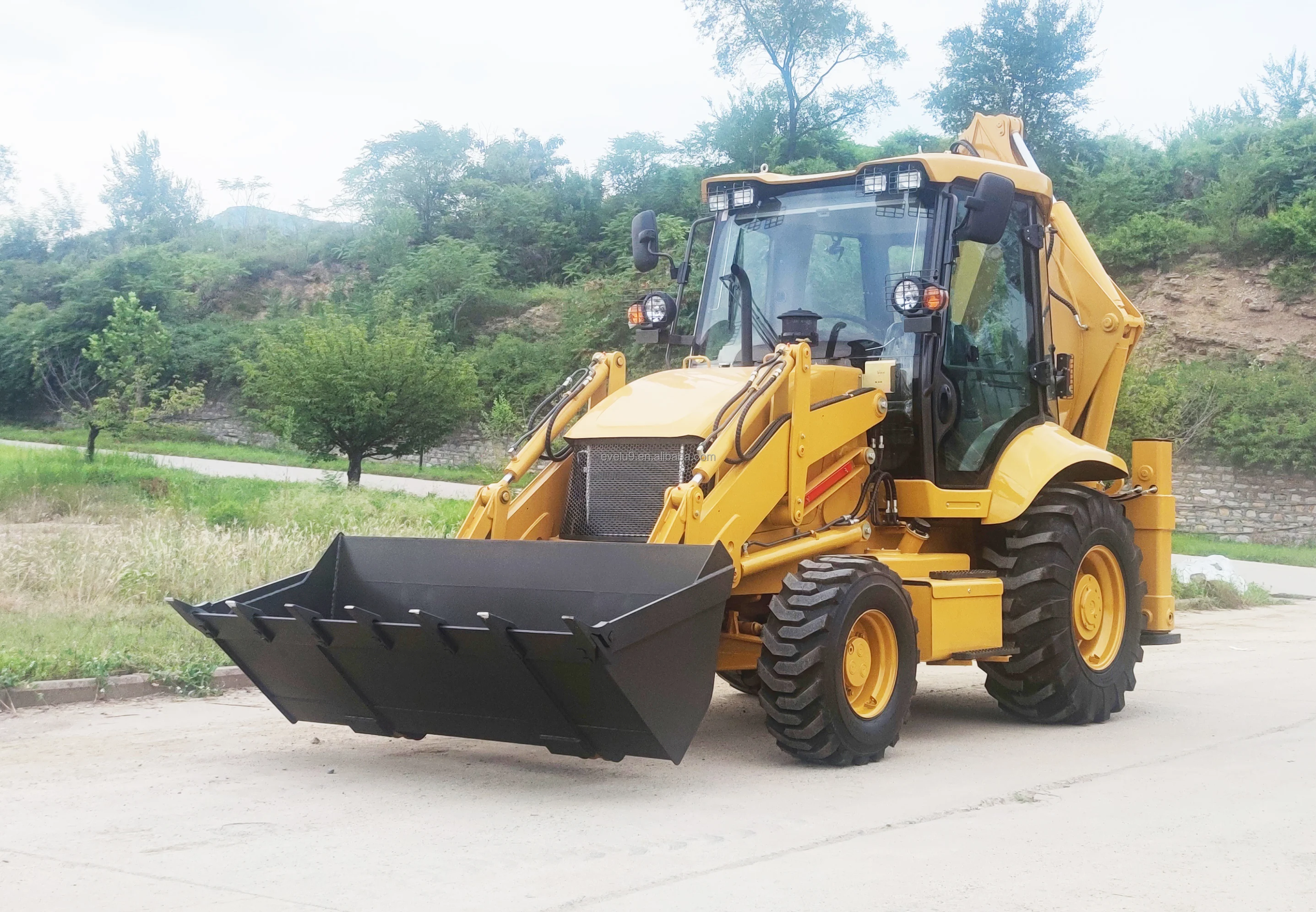

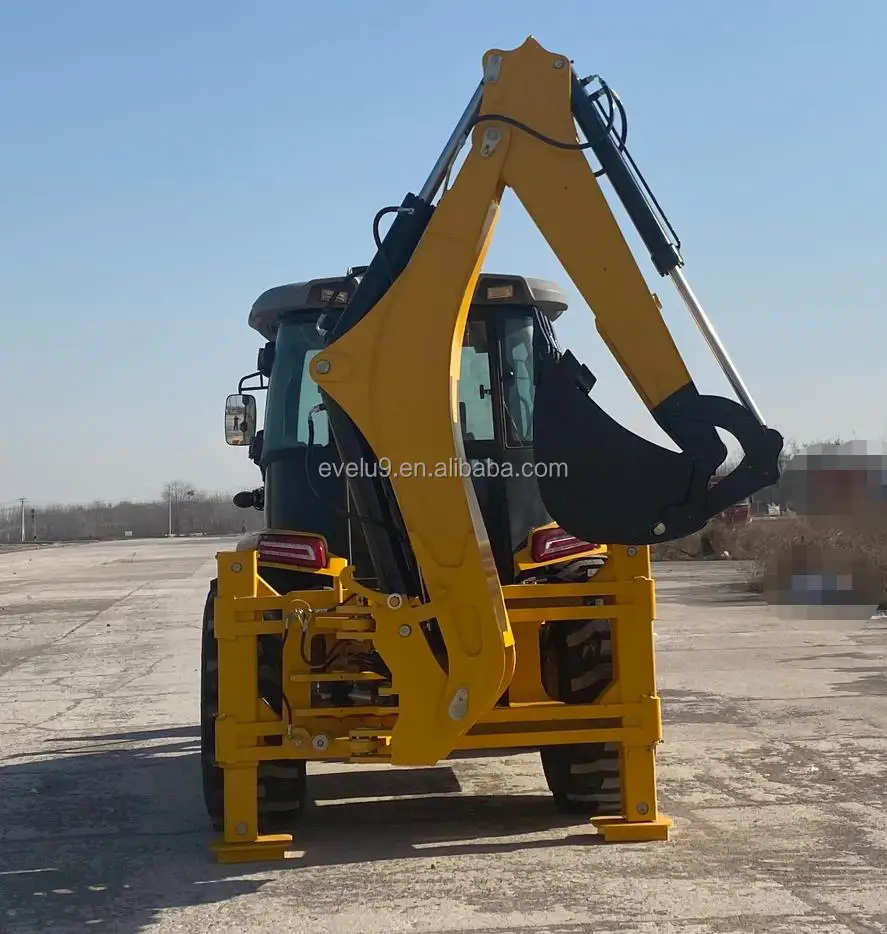

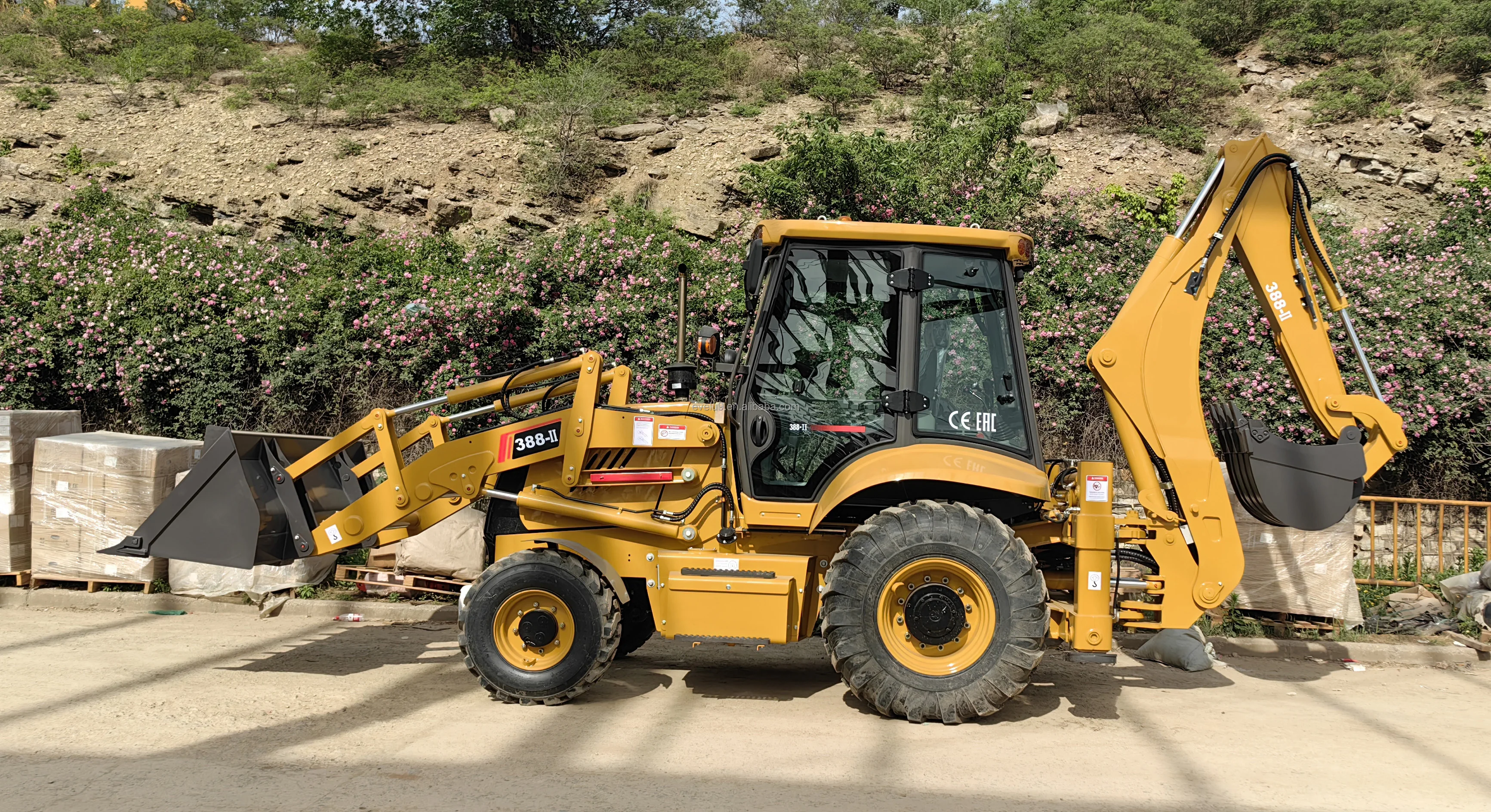

Digger Backhoe loader wheel loader excavator loader

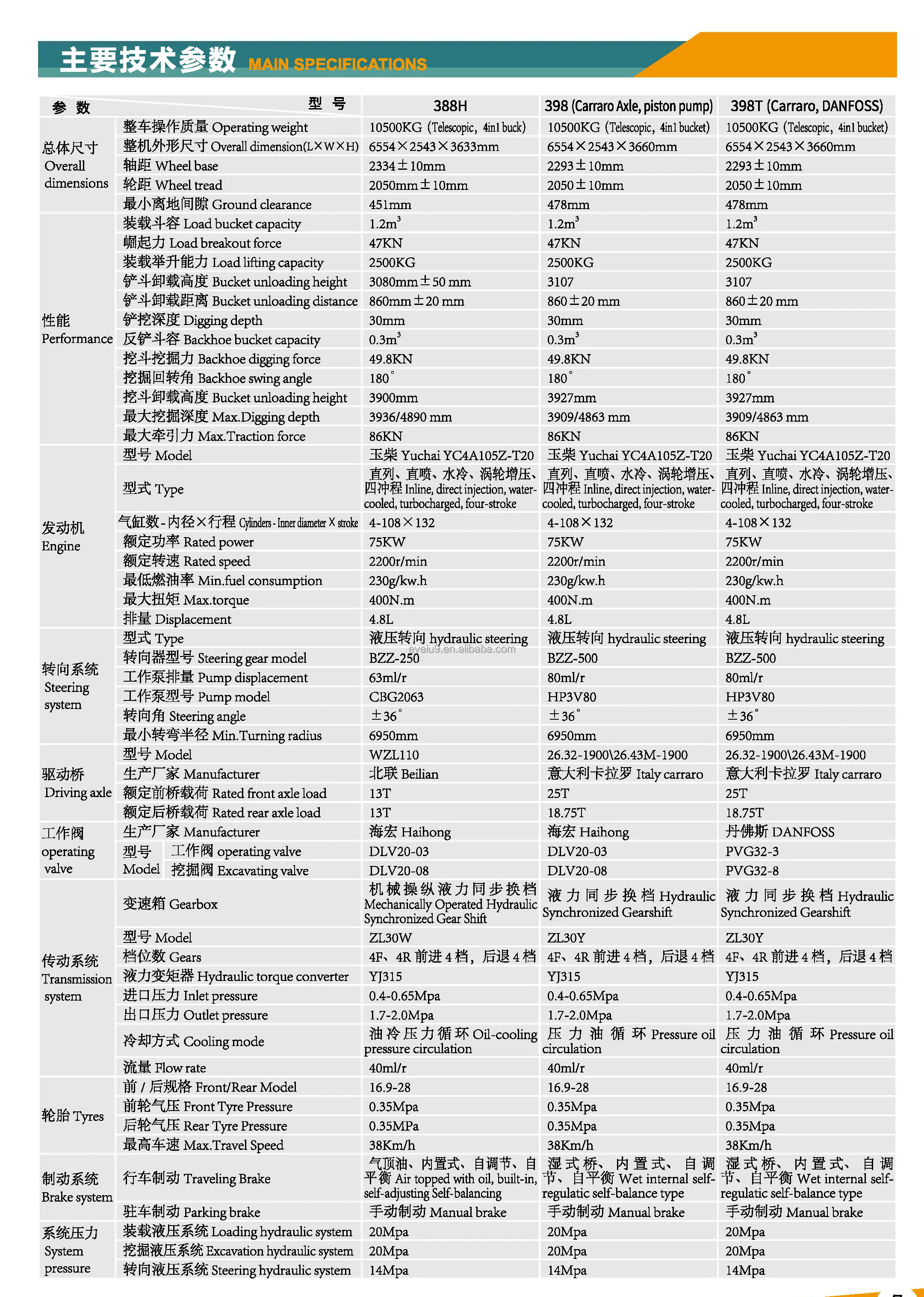

The Performance Parameter of Backhoe Loader

Overall Operating Weight

10500kg

Transport Dimension

L*W*H

6555×2550×3660mm

Wheel base

2300mm

Min. Ground Clearance

450mm

Bucket Capacity

1.5m³

Breakout Force

47KN

Loading Lifting Capacity

2800KG

Bucket Dumping Height

3080mm

Bucket Dumping Distance

1062mm

Digging Depth

52mm

Backhoe Capacity(Width)

0.35m³(620mm)

Max. Digging Depth

4000mm / 5000

Swing Angle of backhoe

180^o

Max. Pulling Force

50KN

Diesel Engine

Model

Cummins / Perkins / YUCHAI

Type

In Line,Direct injection,Four-Stroke,Water Cooling

Rated Power

75KW

Axle

Brand

CARRARO (Italy)

Rated Loader of Axle

25t

Transmission / Gearbox

Brand

CARRARO (Italy)

Gears

4 Gears Ahead, 4 Gears Astern

Max.Speed

30Km/h

Hydraulic System

Brand

Danfoss / Haihong

Pressure of Hydraulic System

20Mpa
