Forestry bulldozer 160HP Mini Crawler Dozers Forest Logging Type Bulldozer with winch

Share on (1601256029772):


Price:$2,000.00

Quantity:


Product Overview

Description



Product Overview

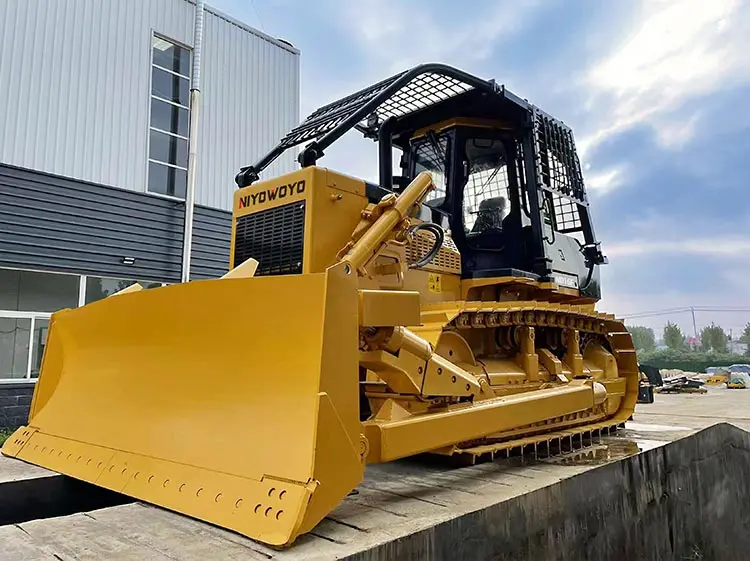

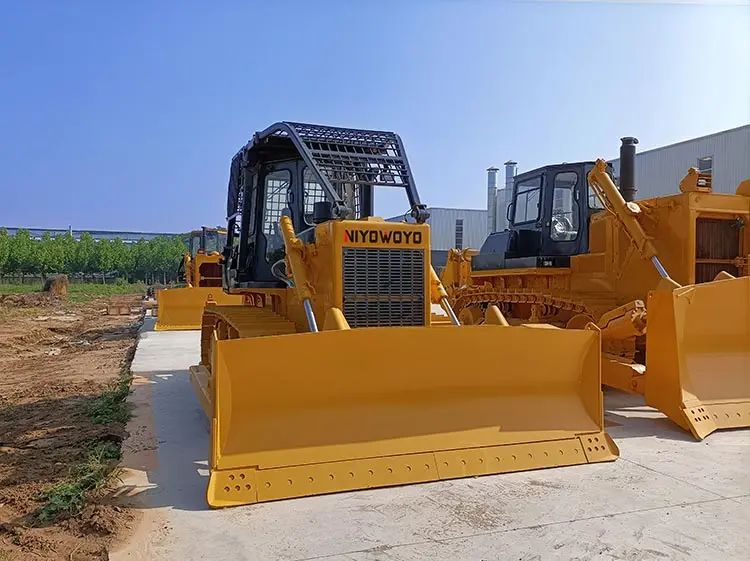

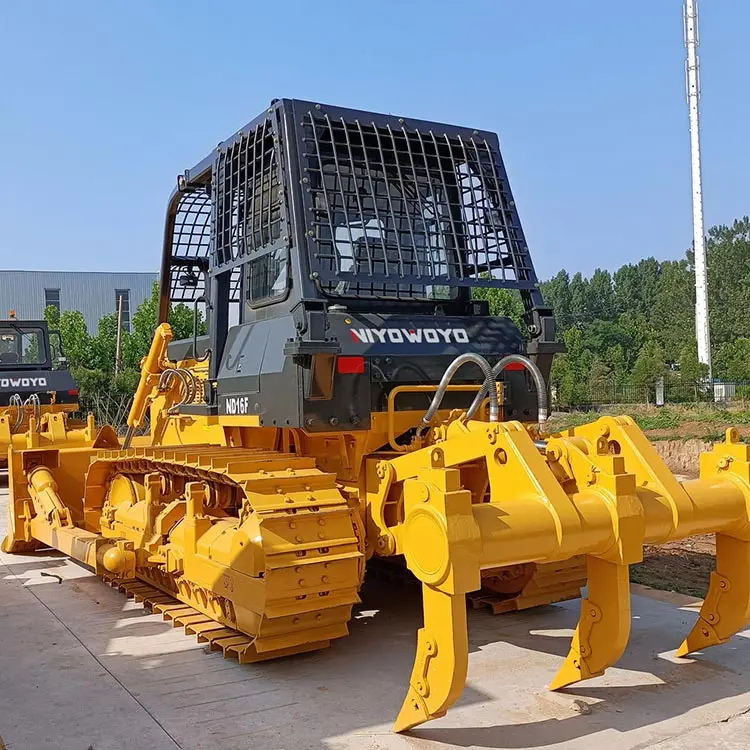

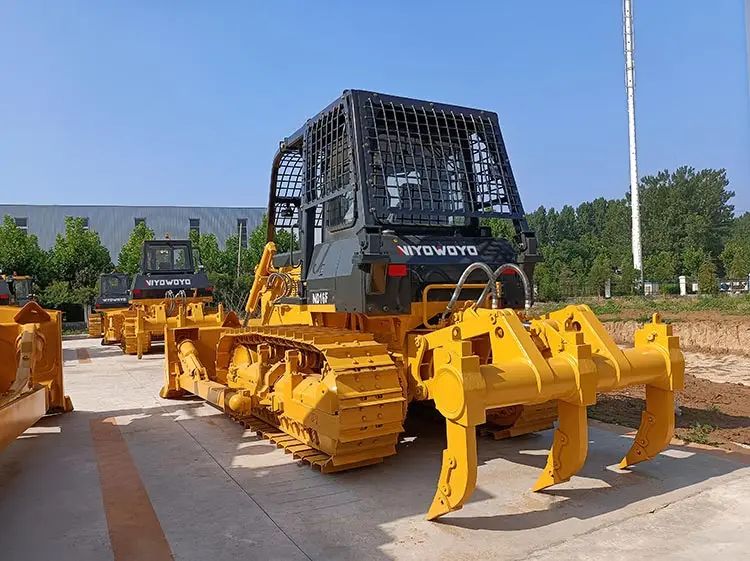

160HP Forest Logging Bulldozer
--ND16F forest logging bulldozer is developed according to the needs of forest operation environment. It adopts hydraulic transmission, hydraulic control technology, and forward anti roll frame to effectively protect the whole machine. It has advanced and reasonable structure, stable performance, and easy and flexible operation.
--It is applicable to the construction operations in forest logging sites. At the same time, a winch is equipped at the rear end of the bulldozer to complete forest logging consignment and other operations requiring traction by means of winch traction. If necessary, a winch can be equipped for bulldozer self rescue when working in dangerous areas.

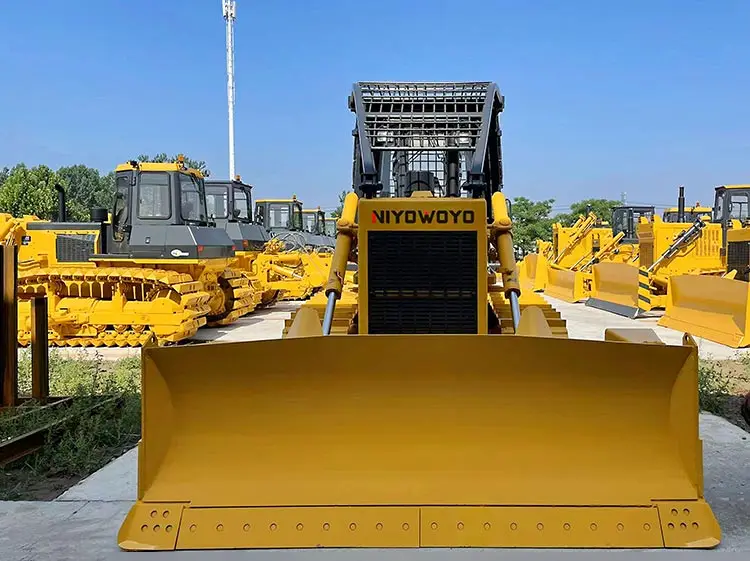

--The standard logging shovel can forcefully clear all kinds of thorns and obstacles on the logging road, so that the bulldozer can efficiently complete the logging operation.

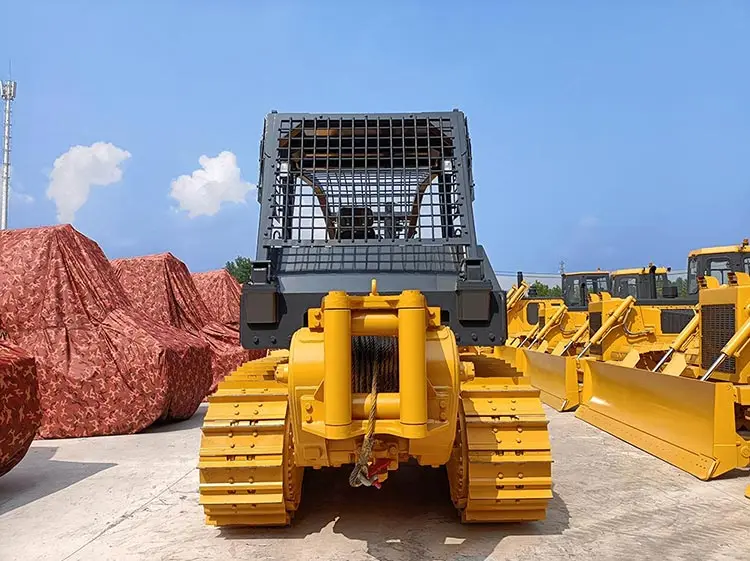

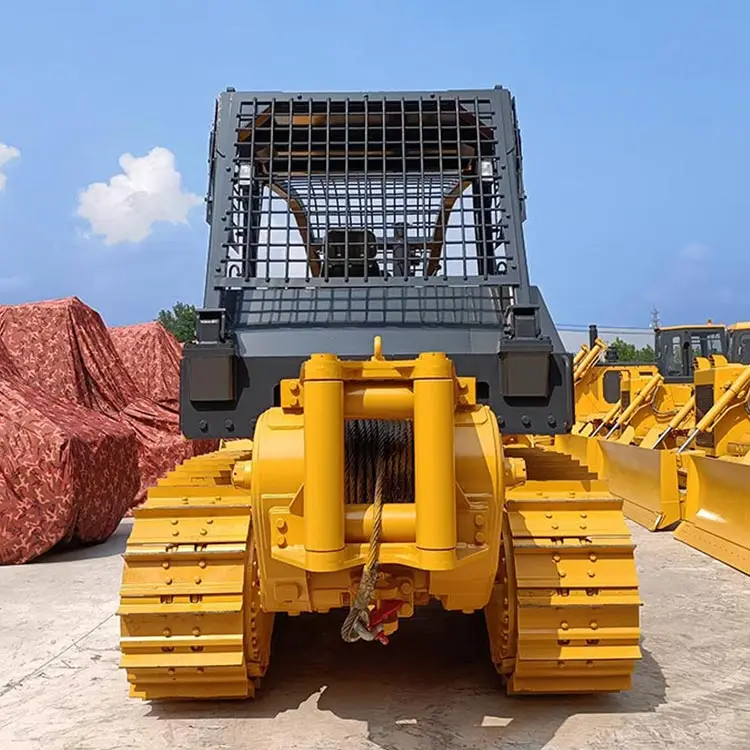

--The winch is used for dragging trees and bulldozer self rescue in forest operation. The powerful traction ensures efficient operation efficiency, and the unique self rescue function of the winch ensures the safety of the operator.













Product Paramenters




Item
Specification
1
Model
ND16F
2
Type
ND16F Forest Logging Bulldozer
3
Engine Model
WP10G178E355/WD10G178E25
4
Rated power
131/1850(kw/rpm)
5
Operating weight
16.8 Ton
6
Dimension(no ripper)
5220×3440×3260(mm)
7
Grounding length(mm)
2635(mm)
8
Ground pressure
0.063(MPa)
9
Track gauge
1880(mm)
10
Dozing capacity
4.5(m³)
11
Blade width
3440(mm)
12
Blade height
1150(mm)
13
Max drop below ground
540(mm)
14
Track shoe width
510(560.610)(mm)
15
Pitch
203.2(mm)
16
Quantity of Carrier rollers
4
17
Quantity of Track rollers
14
18
Max tractor force
144(KN)
19
Forward Speed
F1:0-3.29(Km/h)
20
F2:0-5.82(Km/h)
21
F3:0-9.63(Km/h)
22
Rear Speed
R1:0-4.28(Km/h)
23
R2:0-7.59(Km/h)
24
R3:0-12.53(Km/h)


Main Features

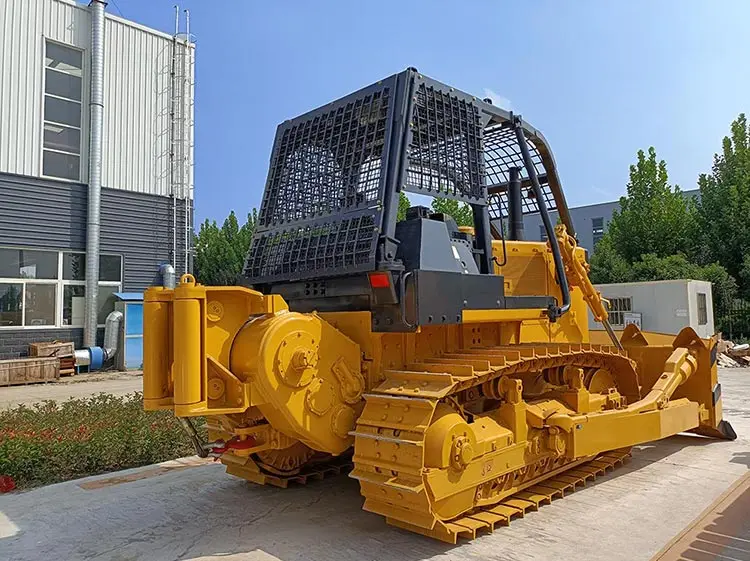

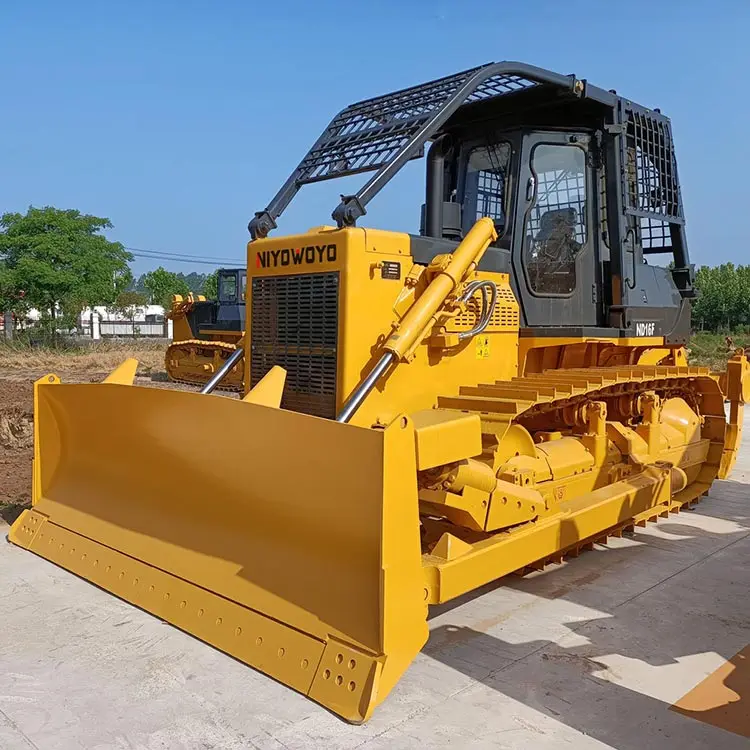

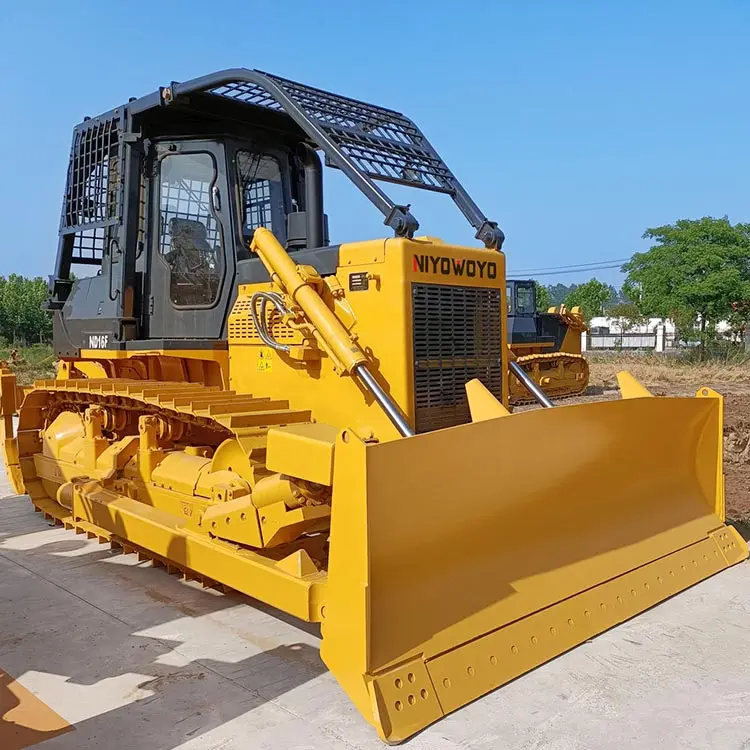

ND16F forest logging bulldozer is equipped with special lumbering shelter/cab. The wide (510mm) tracks and the mechanical winch can be equipped to achieve good trafficability and self-rescue performance and adapt to lumbering, skidding, and traction transport in the rainforests and forest farms.
The standard lumbering blade can powerfully remove all kinds of bramble obstacles along the lumbering path. The winch is used for traction of the lumbers and self-rescue of the bulldozer during the lumbering operations, of which the self-rescue function of the winch guarantees the operator's safety.


Product Configuration

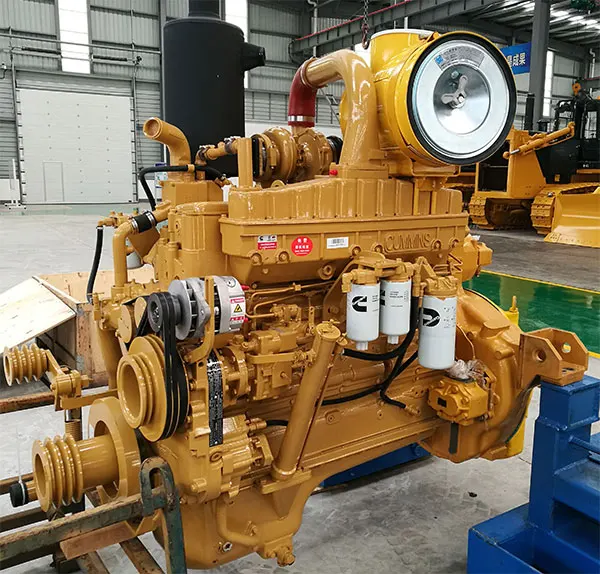

Engine-NIYOWOYO bulldozer come equipped with a Weichai or Cummins series engine.These engine are purpose built to produce high torque coupled with superior reliability,performance and more importantly,low fuel consumption.

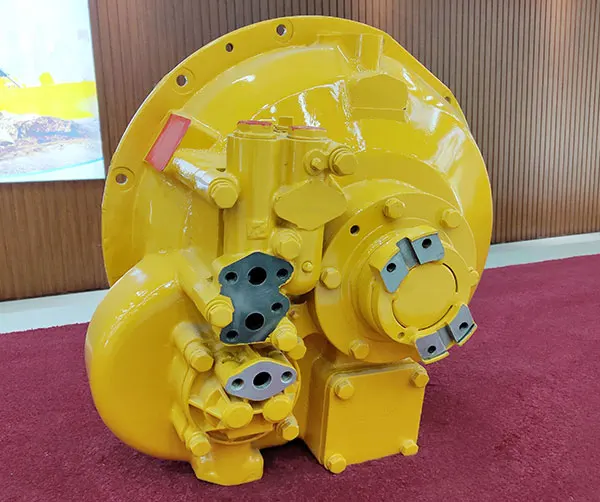

Powershift Transmission-The powershift transmission box is planetary gears type , by operating hydraulic control valve for traveling forward and reverse.It features planetary gears,multi-disk clutch and hydraulically applied forced lubrication.




Torque converter-Based on a revolutionary 3-element, 1-stage 1-phase design,the torque converter can effortlessly transmits power from the engine to its final drive that minimizes power loss.

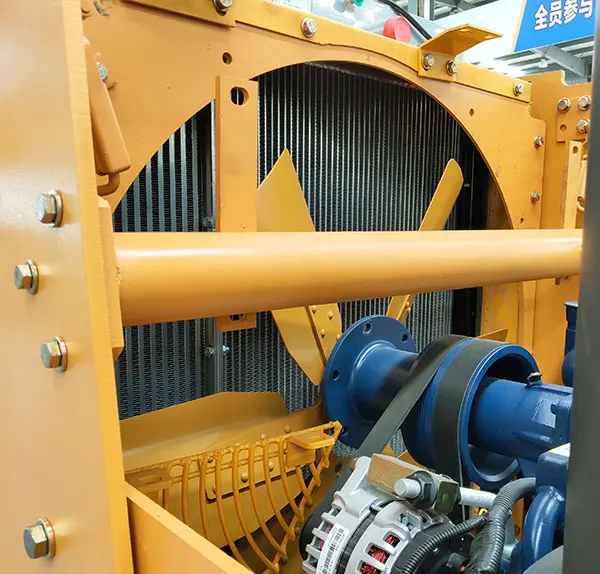

Cooling system-The closed system keeps the tank pressure at a specific value , which can increase the evaporation temperature and heat dissipation efficiency of the cooling water.

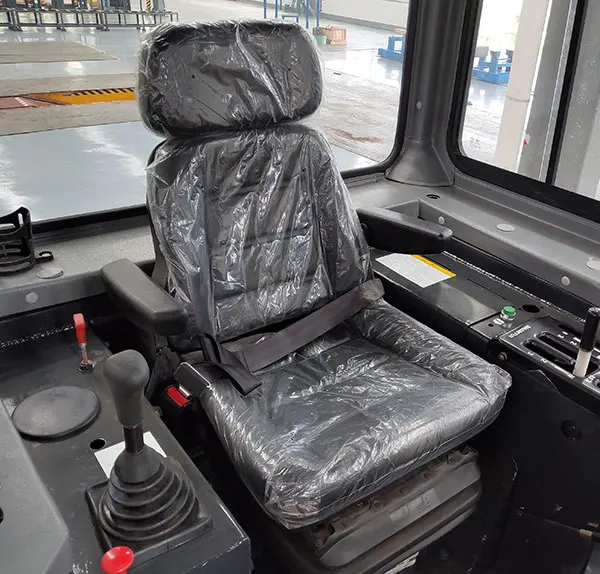

Cabin-New hexahedral cab with large internal space and wide field of view,excellent vibration and well-damped cabin provides a comfortable working environment. Well-displayed instrument panel equipped for easy monitoring of all functions on board.

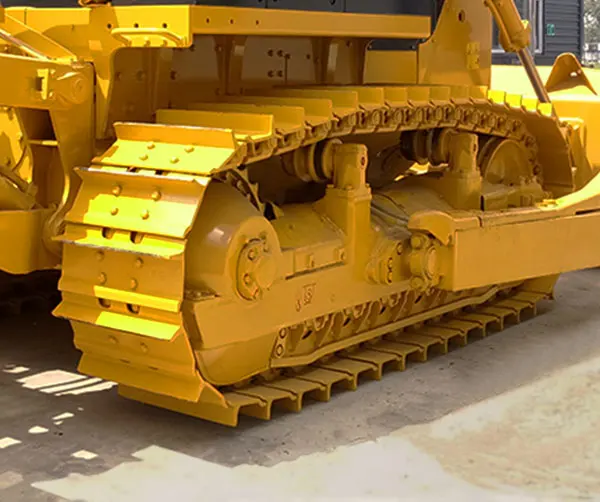

Undercarriage system-The undercarriage is the most frequently worn out components on bulldozer.Therefore,a more durable undercarriage means lower running cost. NIYOWOYO bulldozer equipped with distinctive lubricated track trains,which greatly improve the service life of undercarriage system.

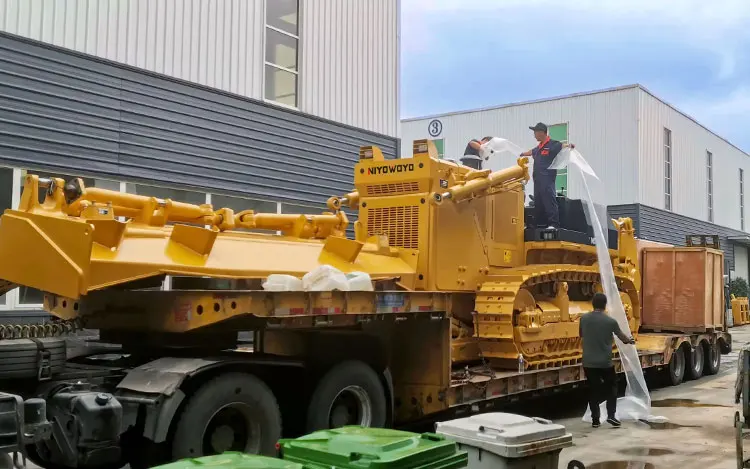

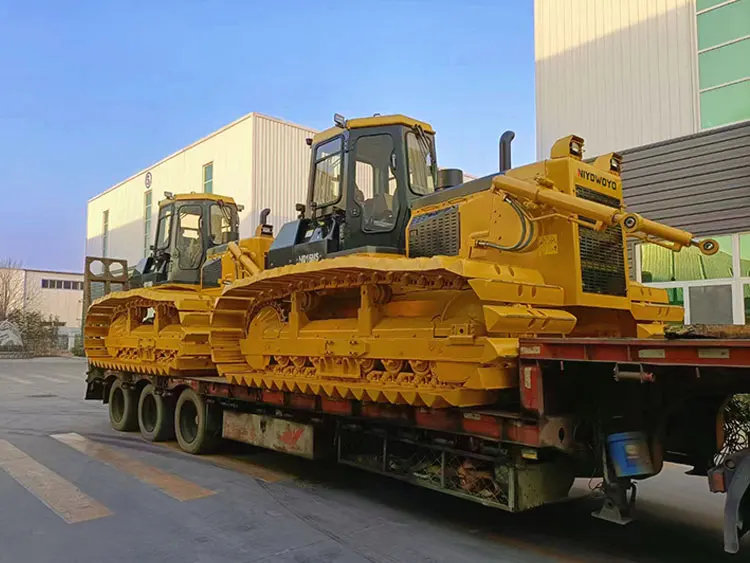

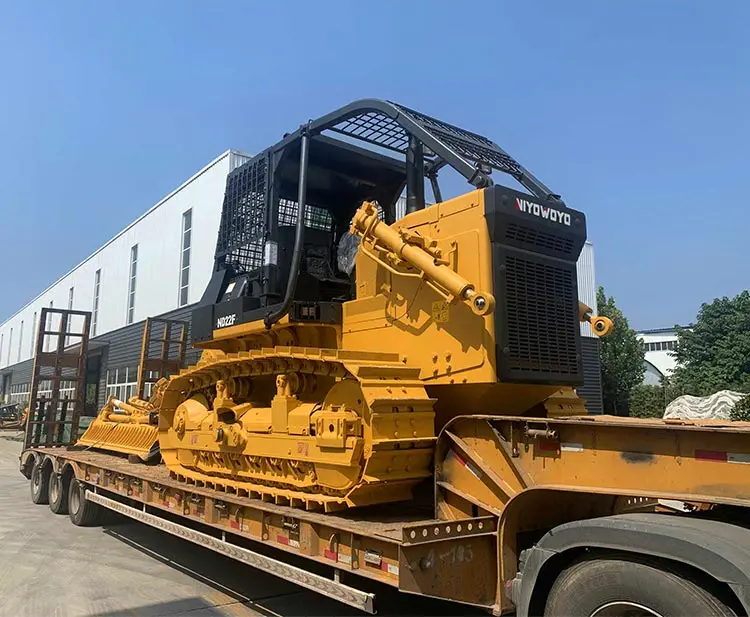

Delivery & Check



Before the machines delivered to our clients,our workers will check the machines again to make sure everything is good and clean the machines before delivery. We will also check the spare parts for the machine one by one to make sure everything will go with the machine together.The spare parts stock will help our clients to do the repair and maintenance job easily.












Company Profile

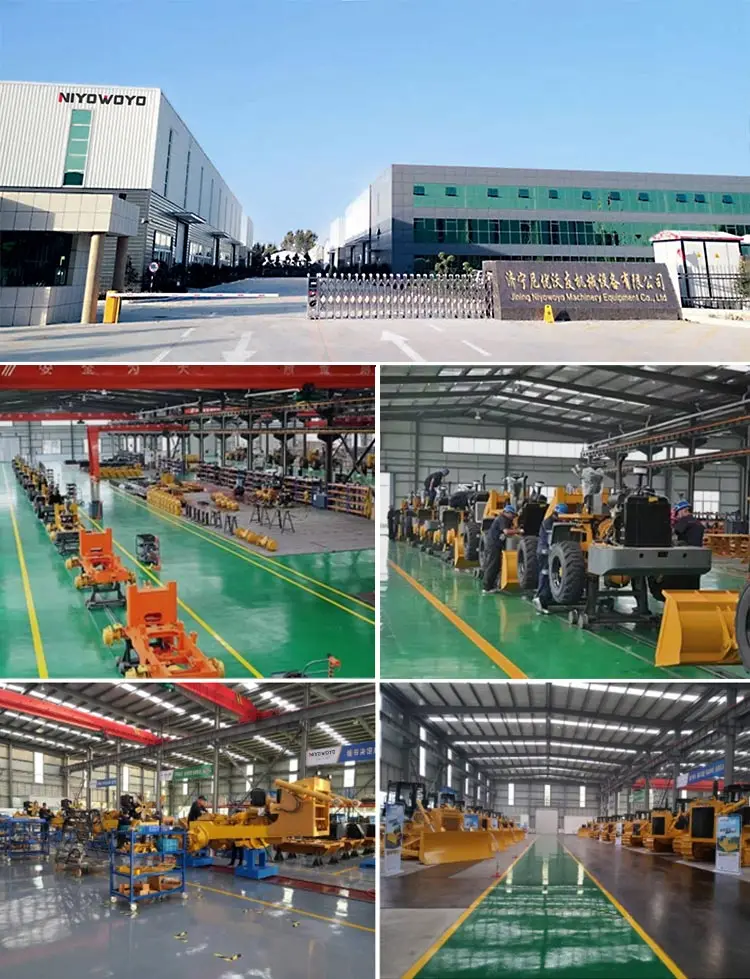

Jining Niyowo Machinery Equipment Co., Ltd. focuses on the development and production of various construction machinery, including bulldozers, excavators, loaders, rollers and accessories. There is a large inventory of new equipment, as well as a comprehensive sales, parts, service and construction equipment leasing division in China. We look forward to serving your equipment needs!

If you have other questions, please feel free to
contact us !


Our service


Niyowoyo has a spare parts warehouse and service center, which can provide customers with all kinds of spare parts needed for after-sales and maintenance in a timely manner.Our professional customer service team consists of experienced and skilled engineers and technicians, ensuring professional and prompt all-round service for our customers.


Why choose us?
(1) More than 50 sales,large and advanced production.
(2) Have professional sales,can offer the best solutions.
(3) With keeping good relation with chassis factory.
(4) Build strict QC team to guarantee the quality.
(5) Own good sales team, can offer warm follow-up service.
(6)Spare parts supply.


FAQ


Q1. Are you a manufacturer or trader?
A: We are a manufacturer of construction machines which focus on producing and
exporting Excavator, Wheel Loader, Bulldozer.

Q2. What is your terms of payment?
A: T/T 30% as deposit in advance, and full payment before delivery.

Q3. How about your delivery time?
A: Generally, it will takes 45 days after deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some stock.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q5. What is your warranty policy?
A: We can supply 1 year or 1200h warranty for our machines and parts for free within warranty.
