pvc cnc cutting machine UPVC Window Profile CNC Cutting Center Machine Provided Engine with 3 Machines Aluminum New Engine

Product Overview

Description

 >>>Jinan Yuefeng Machinery Co., Ltd founded in 1983, a professional manufacturer specialized in producing PVC and Aluminum win-door equipment, curtain wall equipment and insulating glass equipments, we are the foremost pioneet in the win-door industry.

>>>Yuefeng has a fully equipped machining center and highly qualilfied technicians. With the year of effort and the support from all strata of the society, we are becoming stronger. It is specializing in developing and manufacturing PVC & aluminum window and doors machines, curtain-wall machines, insulating glass machines, and milling machines. It is the most powerful champion and promoter in the win-door industry. Our products exported to Middle East, Russia, South Africa, Vietnam, India, srilanka us, and South America etc., and deeply favored by the customers.

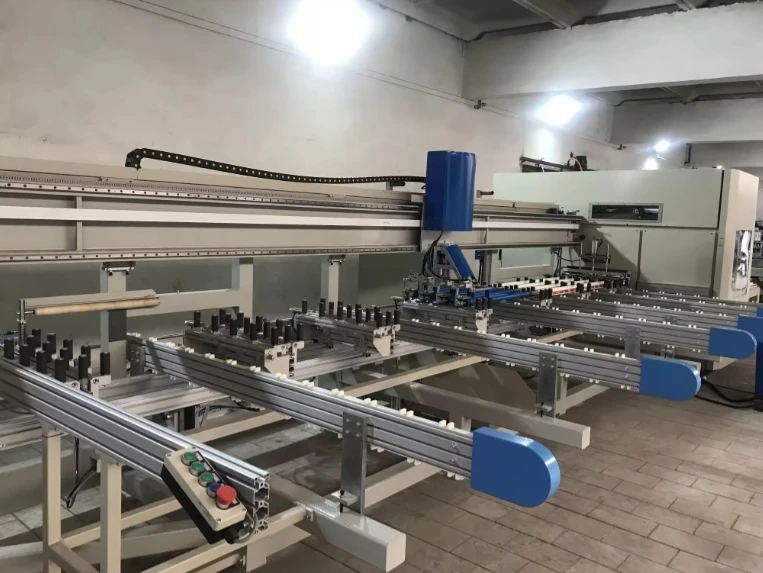

 SJMC02B      UPVC CNC Cutting Center

















1.Automatically download optimized blanking data and process parameters, without manual input and adjustment
2.Automatically cut aluminum window profiles at 45degree
3.Automatically complete the clamping, feeding and cutting of profiles, with a high degree of automation
4.Equipped with a circulating feeding system, which greatly improves production efficiency
5.The manipulator can simultaneously clamp and complete the sawing of four profiles at one time, with high production efficiency
6.Imported spindle motor, high processing quality
7.Linear motion guide rail, high precision of processed products
8.Imported drive system, closed loop control, high processing accuracy









Input voltage	380V 50Hz
Input power	3.0Kw
Air pressure	0.4~0.6MPa
Air consumption	210L/min
Spindle speed	3200r/min
Cutting length	360~3800mm
Cutting width	≤120mm
Cutting height	≤200mm
Cutting angle	90° 45° -45°
Saw feeding speed	0~3m/min
Saw blade standard	φ450×4×φ30×Z120
Overall dimension	4800×1300×1450mm

























>>>.Glass Curtain Wall Machine.
>>>.Arc Bending Machine
>>>.Corner Crimping Machine
>>>.Glass Edging Machine
>>>.Glass washing Machine
>>>.Butyl Coating Machine
>>>.Two-component Extruder Machine
>>>.Insulating Glass Machine
>>>.End Milling Machine
>>>.Machining Center
>>>.Welding Machine
>>>.Cutting Machine
>>>.Insulating Glass Solution
>>>.Aluminum Window and Door Solution
>>>.Upvc Window and Door Solution



























1.The biggest aluminium construction frame factory in india. Sharp engineer.They have been using this three axis machining center for more than 7 years.

2.Regular customer in coimbatore in india frist line bought in 2014, second line bought 2019

3.Amrica customer factory





1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.
