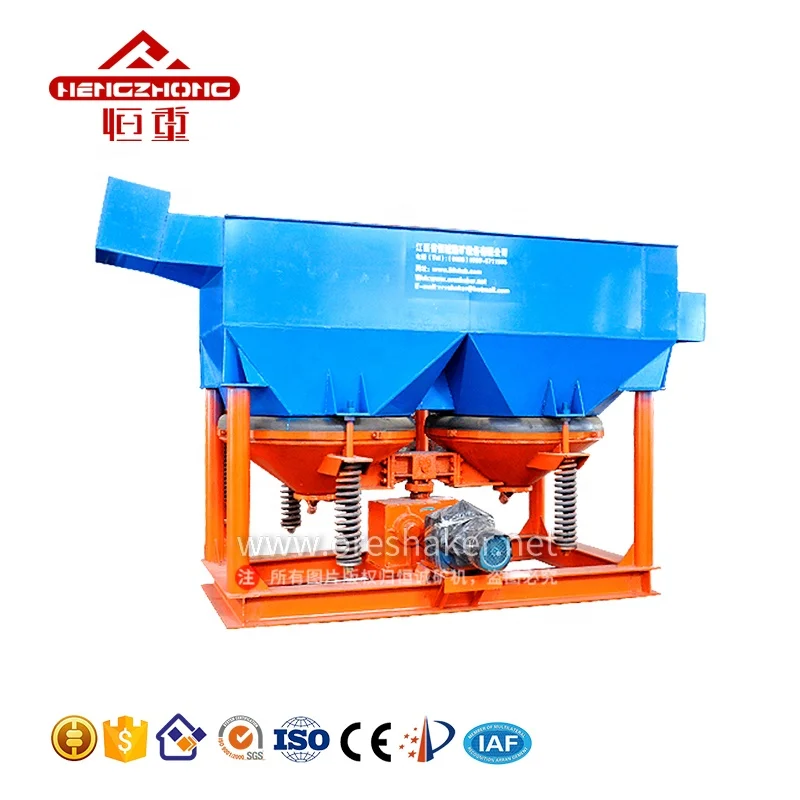

Tin ore processing plant cassiterite gravity jig concentrator gold mining equipment diamond jig machine for barite
- Category: >>>
- Supplier: Jiangxi Hengcheng Mining Equipment Co. Ltd.
Share on (1601256140684):
Product Overview
Description
Product Description
Jig machine belongs to gravity-based equipment, which can separate mineral based on different specific gravity. Jig machine is widely used in gravity concentration of tin, tungsten, placer gold, hematite ore, manganese, titanium, antimony, lead, tantalum, niobium and other minerals.
Working Principle

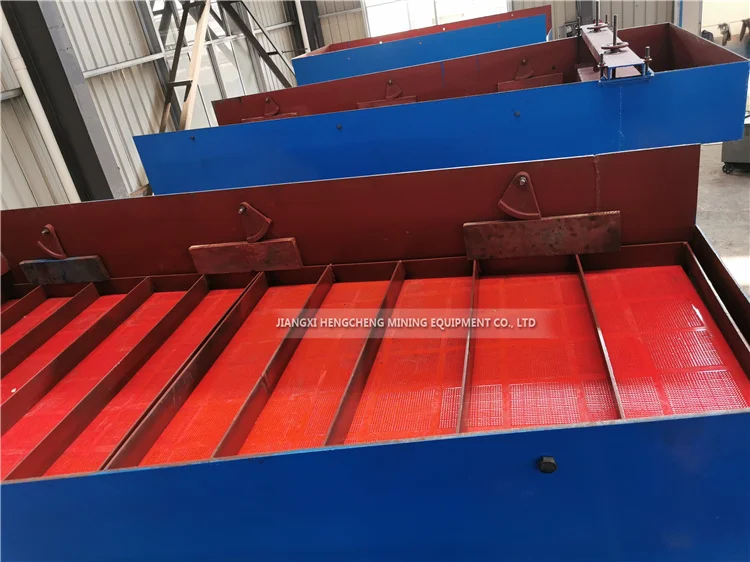

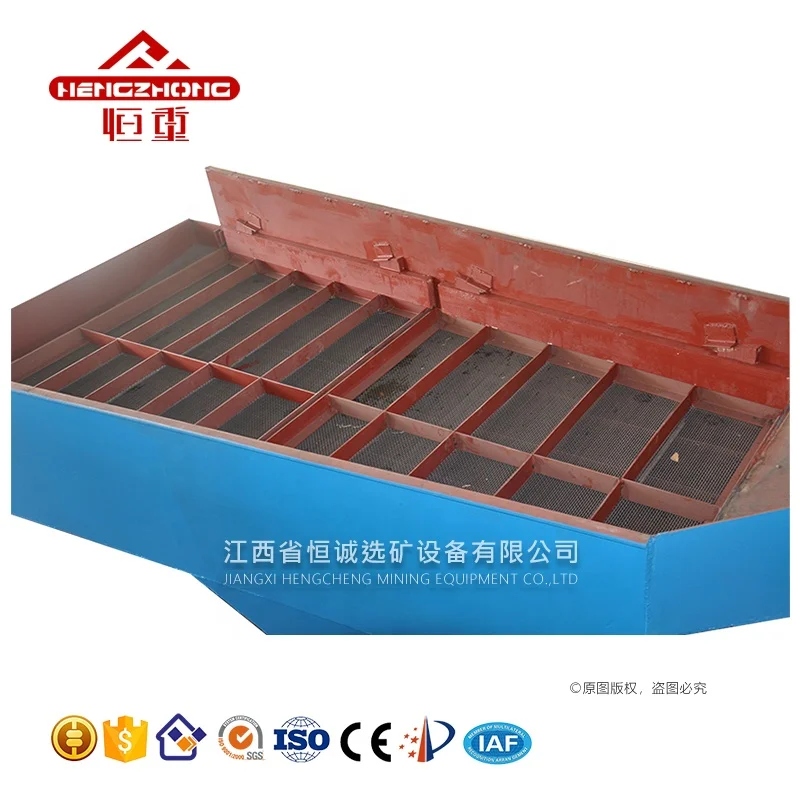

Jig machines need water to work, and it loosens materials in vertical alternative water-flows, and it forms different layers of materials of different densities and discharges both layers from up and down discharging ports separately. The basic composition of jigger is jigging chambers, also called jigging boxes, and there are screens in each chamber.
Water and raw ore will be fed from one end of the jigger screen, the ore granules will move in the vertical alternative
water-flows. Layers will be formed because of density difference of materials. The minerals with small density will be in the up layer and will flow together with the pulp flow while material with bigger density will be in the down layer and will discharged from the down discharging port as jigging concentrate.
Water and raw ore will be fed from one end of the jigger screen, the ore granules will move in the vertical alternative
water-flows. Layers will be formed because of density difference of materials. The minerals with small density will be in the up layer and will flow together with the pulp flow while material with bigger density will be in the down layer and will discharged from the down discharging port as jigging concentrate.
Main Features
1. High capacity
2. High concentration ratio and high recovery;
3. Fabricated with highest quality material;
4. Easy to install, operate and maintain;
5. The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling;
6. Saving water 30-40% than ordinary jig;
7. The pulsation speed very easy adjusted by regulator;
8. Suitable for roughing and desiliming.
3. Fabricated with highest quality material;
4. Easy to install, operate and maintain;
5. The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling;
6. Saving water 30-40% than ordinary jig;
7. The pulsation speed very easy adjusted by regulator;
8. Suitable for roughing and desiliming.
Application
Mainly applied for placer gold, alluvila gold, tantalum-niobium, titanium, coltan ore, tungsten, iron, tin, hematite, cope,
manganese, barite, zirconium and chrome etc concentration.

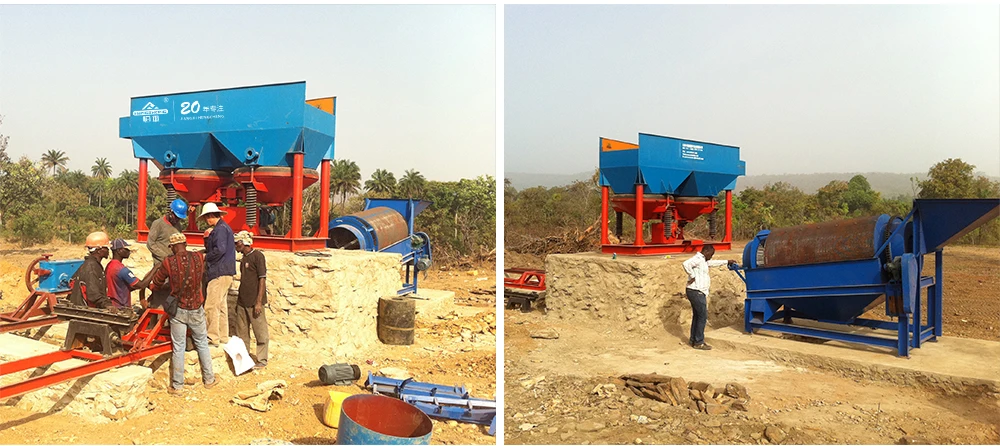

We have provided jig machine for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa, Uganda, Zambia,Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant, diamond washing plant, Iron ore washing plant,ect.
manganese, barite, zirconium and chrome etc concentration.
We have provided jig machine for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa, Uganda, Zambia,Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant, diamond washing plant, Iron ore washing plant,ect.

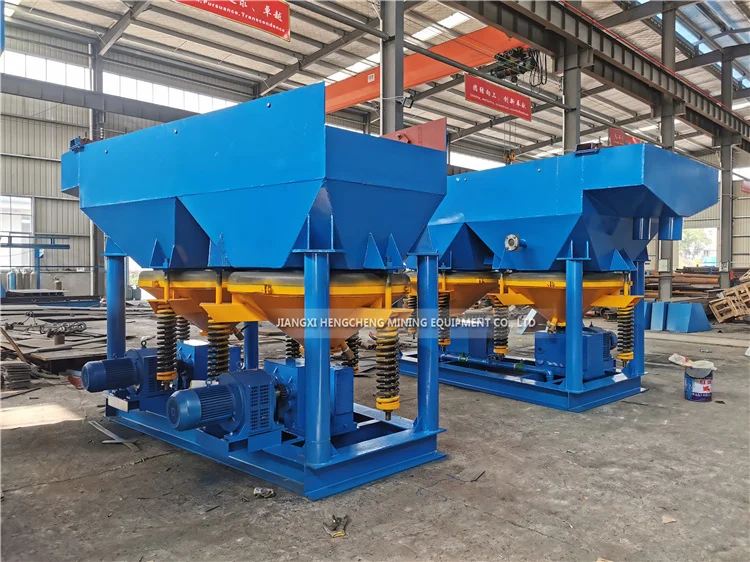

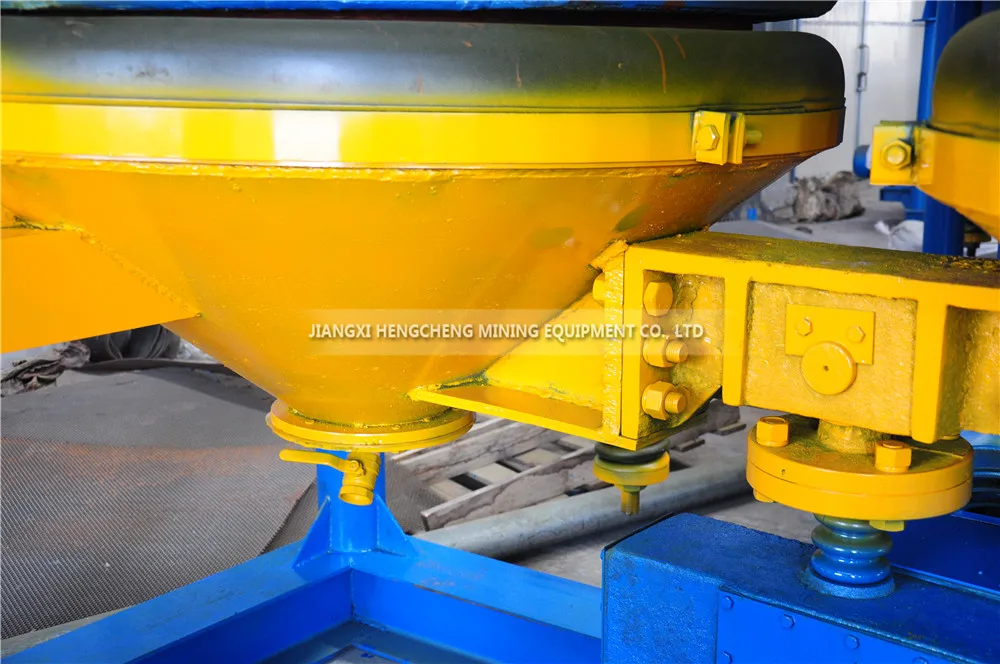

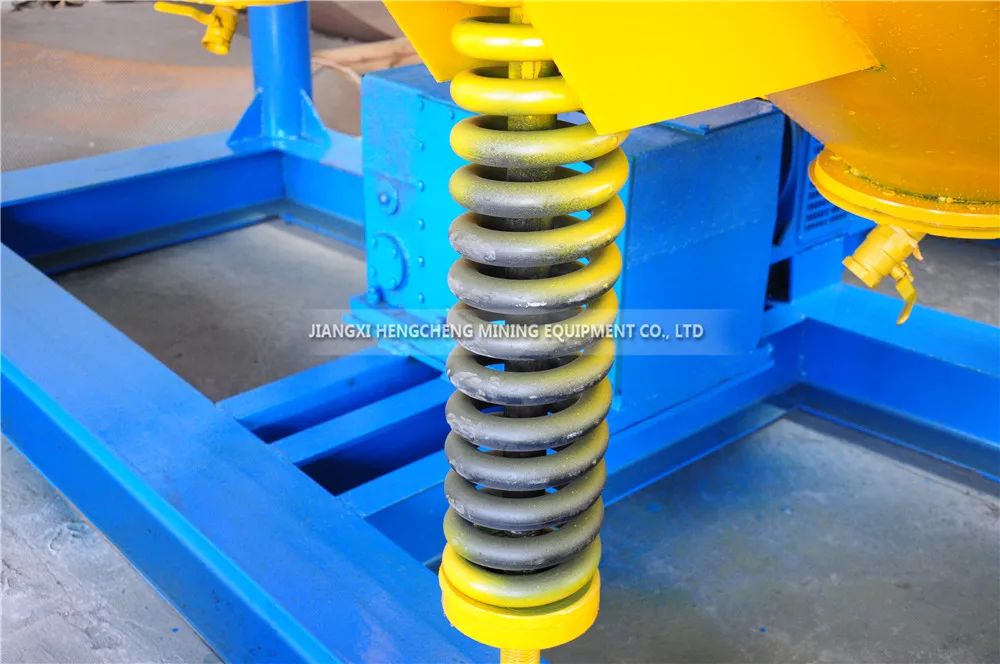

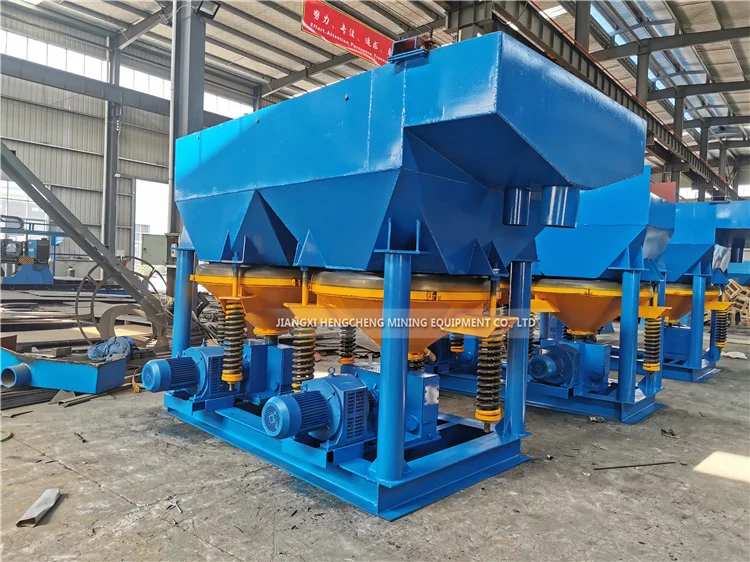

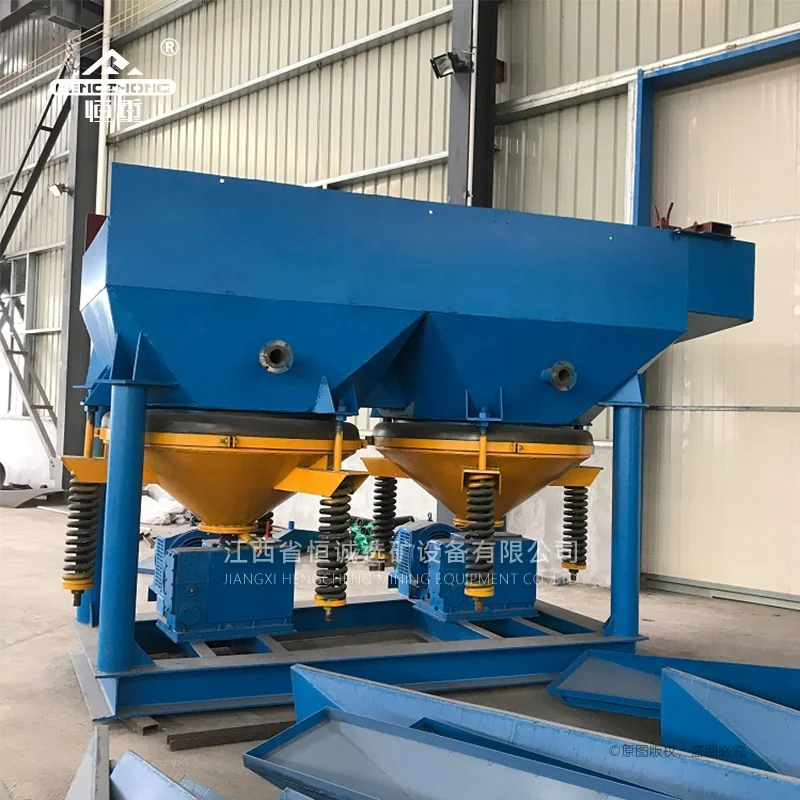

Detailed Images
We focus on every details of machine.
Size Information
Chamber | Water added (m3/T) | Capacity (t/h) | |||||||
shape | Area (M2) | ||||||||
JT0.57-1 | Ladder | 0.57 | <6 | 1-3 | 1-2.5 | 1550*780*1530 | 0.61 | 1.5 | |
JT1-1 | Ladder | 1.04 | <10 | 1-3 | 2-4 | 2270*1110*1890 | 0.9 | 2.2 | |
JT2-2 | Rect | 2.28 | <10 | 1-3 | 4-8 | 3225*1550*2050 | 1.64 | 3 | |
JT3-1 | Ladder | 3.3 | <10 | 1-3 | 6-10 | 3180*2000*2600 | 3.26 | 5.5 | |
JT5-2 | Ladder | 4.86 | <10 | 1-3 | 10-15 | 3600*2000*2600 | 3.5 | 7.5 | |
JT1.5-2 | Rect | 1.53 | <30 | 1-2 | 5-8 | 3200*1550*2050 | 1.52 | 3 | |
JT4-2 | Rect | 4.33 | <30 | 1-2 | 10-15 | 3600*1850*2600 | 3.5 | 7.5 | |
Related Products
Packing&Shipping
1. All the goods will be delivered in 10-20 days after receving payment.
2. The machine will be packed in export container.
3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.
4. We promise that your goods will be shipped to destination timely and safely.
2. The machine will be packed in export container.
3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.
4. We promise that your goods will be shipped to destination timely and safely.
Company Introduction
Jiangxi Hengcheng Mining Equipment Co.,ltd, a leading manufacturer and supplier of gravity separation equipment in China Jiangxi Province, with more than 20 years of equipment producing experience.

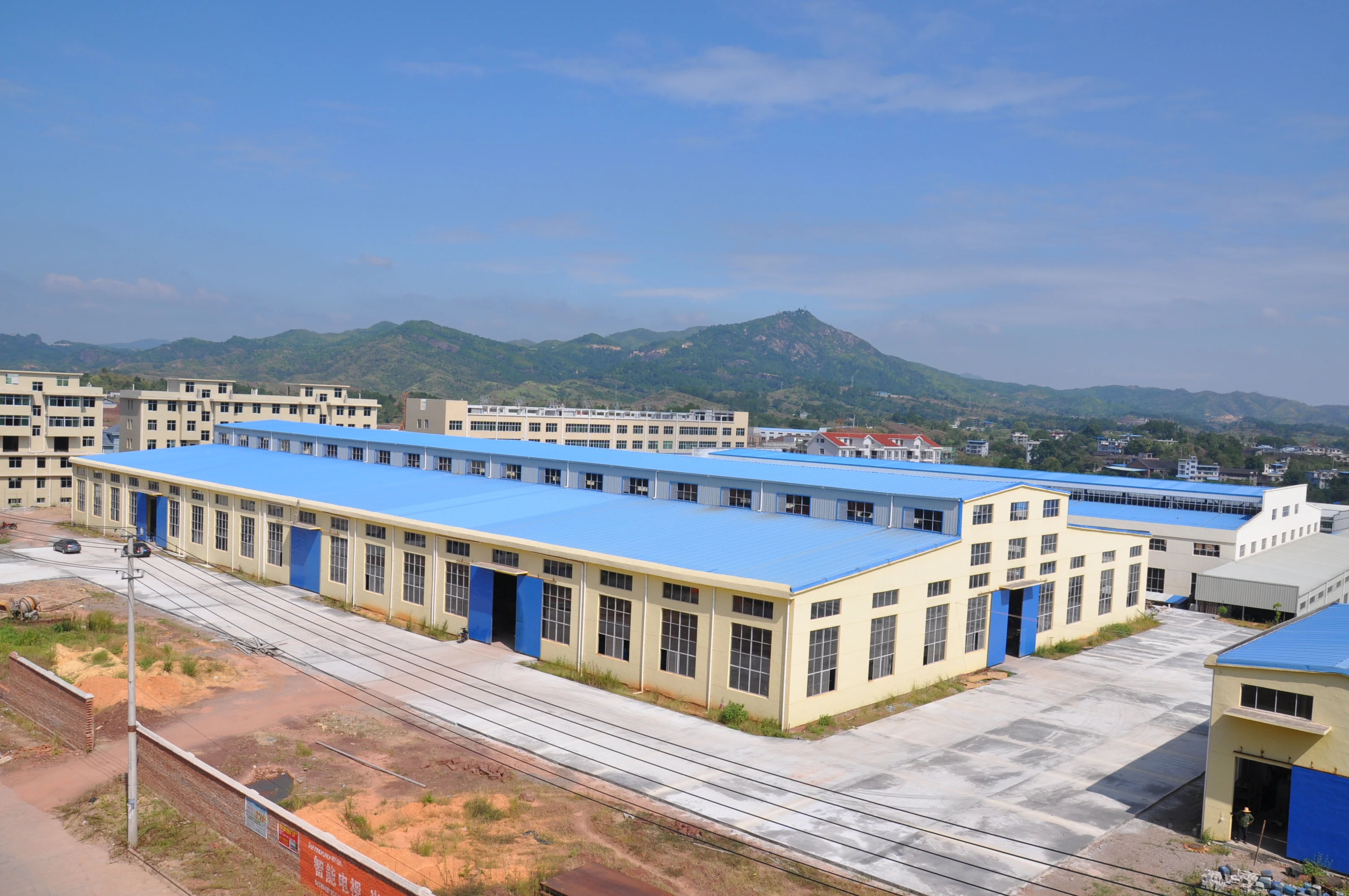

Currently our factory owns an area of more than 10000㎡, self-contained with modernized processing machines. Our machines already been exported to many overseas countries, like South Africa, Zimbabwe， Togo, Sudan, Tanzania, Kenya, Mali, Vietnam, Philippine, Bolivia, USA, Singapore,Mongolia, etc.
