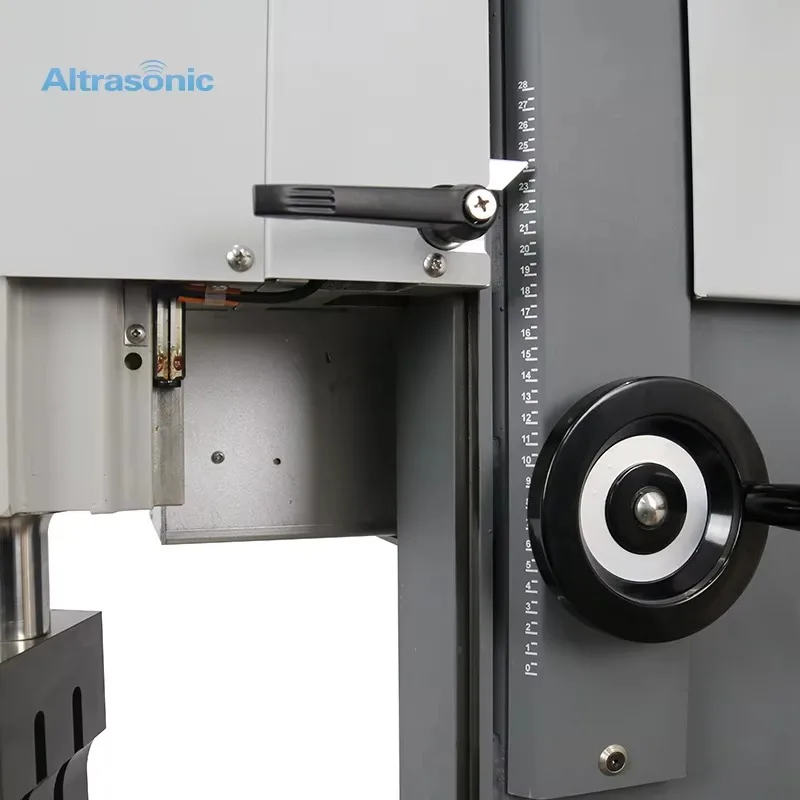

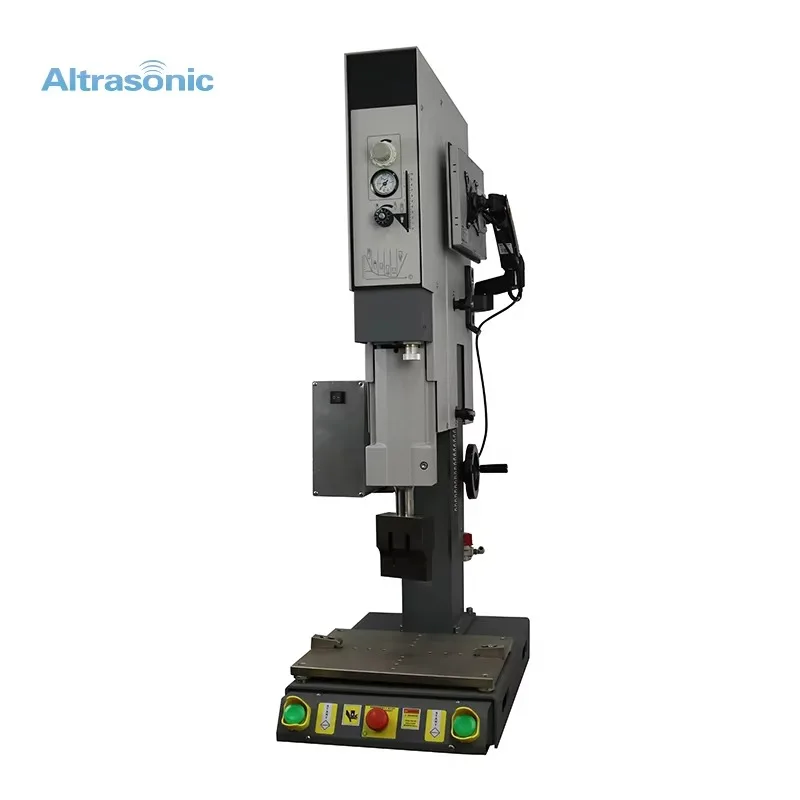

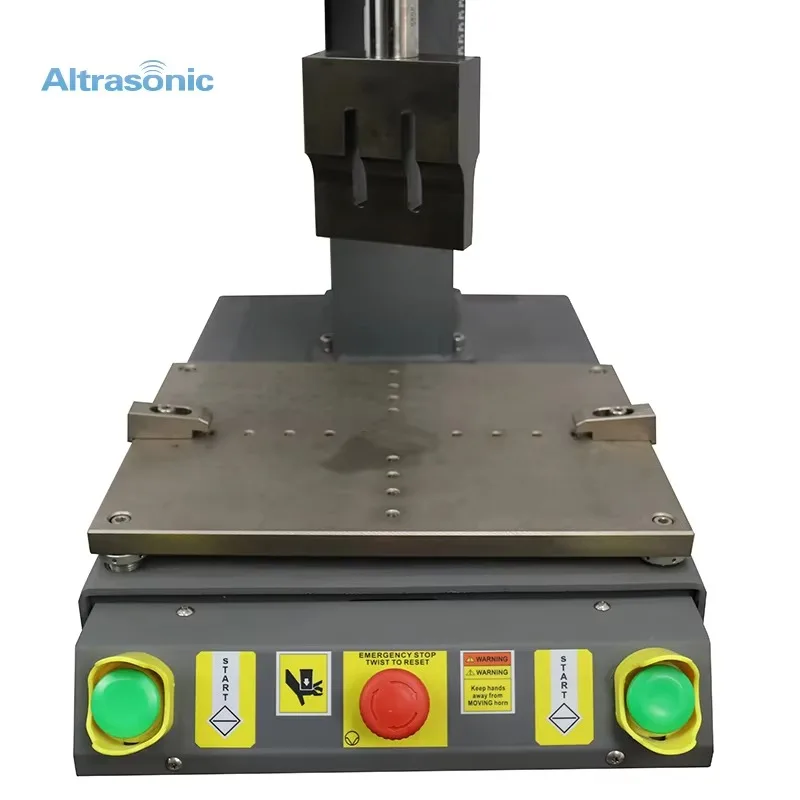

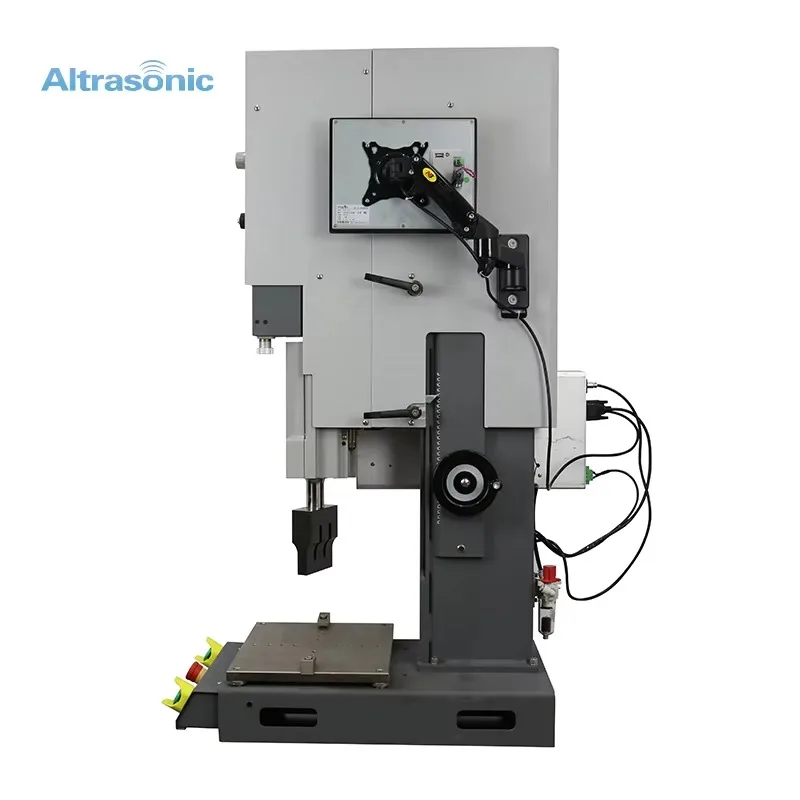

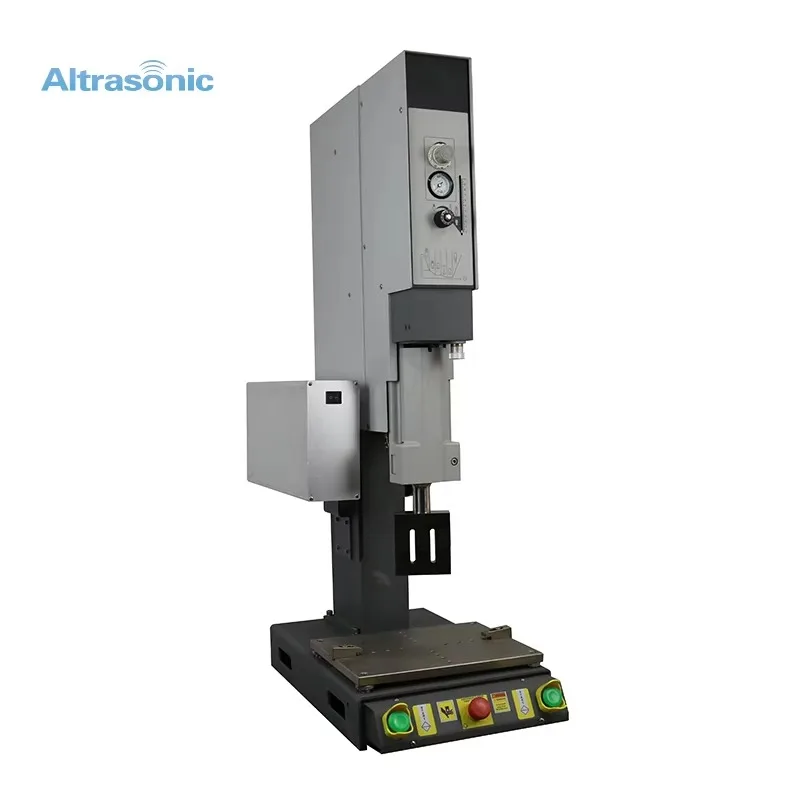

1200w 2000w ultrasonic plastic welding machine automatic ultrasonic plastic welding machine for plastic shells
- Category: >>>
- Supplier: Hangzhou Altrasonic Technology Co. Ltd.
Share on (1601256144760):
Product Overview
Description
HS-W20B
Specification
Item No | HS-W20B |
Frequency | 20Khz |
Power | 1500W |
Voltage | 200-240V, Alternating current |
50-60hz, Single phase | |
Electric current | 10A |
Range of welding time | 0.05-10/sec |
Environment Temperature | 5-50℃ |
Air supply requirements | Clean dry compressed air, maximum pressure 7kg |
Maximum pressure | 1.96KN |
Maximum stroke | 100MM |
Beats | 80/Min |
Triggered Dynamic range | 67-890N |
Weight | 66Kgs |
Dimension | 476mm(L)*736mm(W)*1524mm(H) |
Product Description
Ultrasonic welding equipment can be easily customized to fit the exact specifications of the parts being welded. The parts are sandwiched between a fixed shaped nest (anvil) and a sonotrode (horn) connected to a transducer, and a ~20 kHz low-amplitude acoustic vibration is emitted. (Note: Common frequencies used in ultrasonic welding of thermoplastics are 15 kHz, 20 kHz, 30 kHz, 35 kHz, 40 kHz and 70 kHz). When welding plastics, the interface of the two parts is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. The ultrasonic energy melts the point contact between the parts, creating a joint. This process is a good automated alternative to glue, screws or snap-fit designs. It is typically used with small parts (e.g. cell phones, consumer electronics, disposable medical tools, toys, etc.) but it can be used on parts as large as a small automotive instrument cluster.
Recommend Products
Company Profile
FAQ
Q: Do you have it in stock?
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through
communication.
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q: . Do you have operating manual?
A: Of course, we will put it with the goods together.
Also we will upload video in youtube and inform you the related link.
Q: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our
main markets is USA and European etc
Q: Could you do OEM?
A: Yes, of course.Everybody like OEM,We cherish the OEM VIP buyer like you,We can produce according customers’ requirement,just
send us your requirements and design of drawing and sample
Q: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q: Terms of Payment
A: We have flexible and active payment if order huge.
Q: What custom requirements can you accept?
A: LOGO, product appearance, tool head size, packaging requirements, special customized requirements will be accepted, etc.
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through
communication.
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q: . Do you have operating manual?
A: Of course, we will put it with the goods together.
Also we will upload video in youtube and inform you the related link.
Q: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our
main markets is USA and European etc
Q: Could you do OEM?
A: Yes, of course.Everybody like OEM,We cherish the OEM VIP buyer like you,We can produce according customers’ requirement,just
send us your requirements and design of drawing and sample
Q: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q: Terms of Payment
A: We have flexible and active payment if order huge.
Q: What custom requirements can you accept?
A: LOGO, product appearance, tool head size, packaging requirements, special customized requirements will be accepted, etc.
