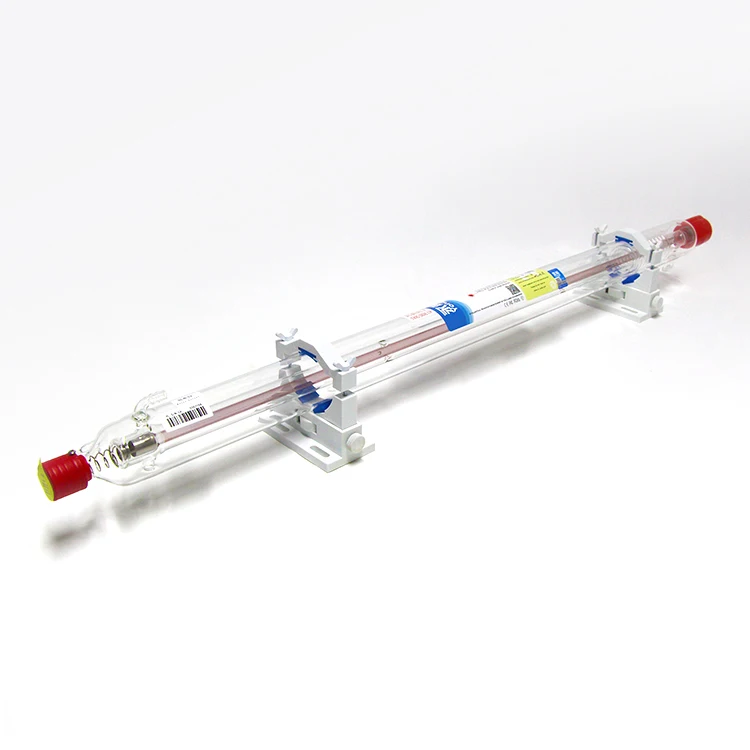

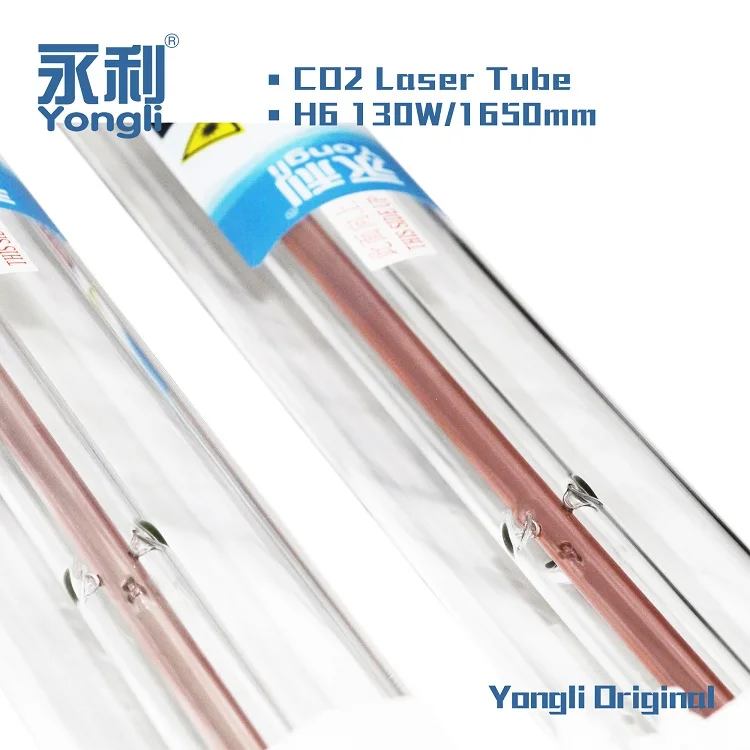

Top Manufacturer Yongli Customizable CO2 Laser Tube 130w 160w H6 for Metal Acrylic Wood Stone Materials Engraving
- Category: >>>
- Supplier: Jilin Yongli Laser Technology Co. Ltd.
Share on (1601256145318):
Product Overview
Description
Top Manufacturer Yongli Customizable CO2 Laser Tube 130w 160w H6 for Metal Acrylic Wood Stone Materials Engraving
Product Description

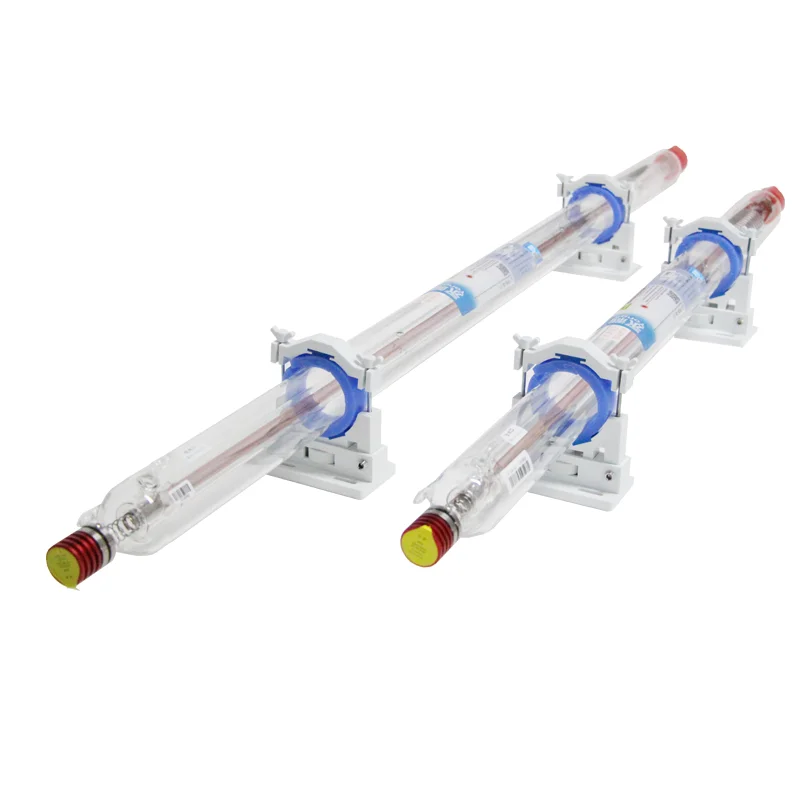

Yongli H series high quality Long service life Co2 laser tube superior design
YongLi H Series 80W 100W 130W 150W 180W Co2 Laser Tube represent the highest standard in DC laser tube technology. Each tube is thoroughly tested for quality and agreed power ratings. CO2 tubes are metal sealed, water cooled, with one of the best life time ratings of up to 10,000 hours.
The H series co2 laser tube is the most advanced and highest cost valued laser tube series of our company. It adopts its own patented technology to effectively correct the diameter and quality of the output spot with physical methods to increase the power while solving the problem of spot mode changes. Imported raw materials are safe and reliable, the coating technology is upgraded, the gas purity is improved, the working time is longer, and the working quality is more stable.
The H series co2 laser tube is the most advanced and highest cost valued laser tube series of our company. It adopts its own patented technology to effectively correct the diameter and quality of the output spot with physical methods to increase the power while solving the problem of spot mode changes. Imported raw materials are safe and reliable, the coating technology is upgraded, the gas purity is improved, the working time is longer, and the working quality is more stable.
12 Months limited warranty*
* faster processing of materials
* deeper and cleaner cuts for any given material depth
* More options for creativity
* faster processing of materials
* deeper and cleaner cuts for any given material depth
* More options for creativity
Technical Parameters
Laser Tube Model | H1 | H2 | H4 | H6 | H8 | |
Rated Power (watts) | 75 | 90 | 100 | 130 | 150 | |
Max Power (watts) | 90 | 100 | 130 | 160 | 180 | |
Length (mm) | 1100 | 1250 | 1450 | 1650 | 1850 | |
Diameter (mm) | 60±2 | 60±2 | 60±2 | 70±2 | 70±2 | |
Ignition Voltage (kV) | 24 | 28 | 31 | 33 | 34 | |
Working Voltage (kV) | 18 | 20 | 22 | 24 | 22 | |
Working Current (mA) | 20 | 26 | 28 | 30 | 35 | |
Recomended Working Current (mA) | 16 | 21 | 22 | 24 | 28 | |
Power Instability(%) | ≤±5 | ≤±5 | ≤±5 | ≤±5 | ≤±5 | |
catalyst | Yes | Yes | Yes | Yes | Yes | |
Warranty (months) | 10 | 12 | 10 | 10 | 10 | |
Gross Weight | 2.8 | 3.2 | 3.5 | 4.9 | 6.8 | |
Package Dimension(L*W*H) | 144*30*31 | 157*16*13 | 176*18*15 | 20*26*23 | ||
Product Details
THE BEST LASER TUBE FOR LASER CUTTING ENGRAVING MACHINE
Get the security of knowing you have maximum power from any tube purchased from YONGLI Laser Tech. We use watt readers to confirm a quality spot spot and wattage. Most glass CO2 laser tubes are under powered by at least 15%. Tube and power supply testing ensures you get 100%+ power. YONGLI Metal sealed 40-180 watts output CO2 laser tubes can quickly be installed on most CO2 laser machines. Call us if you need help.
Original Patented Manufacturing Process : YongLi H series 80W 90W 100W 130W 150W co2 laser tube are designed, engineered, and built with safety and reliability in mind. We use parts from the world’s leading suppliers and build the co2 laser tube to international standards. Using original Catalytic technology to get perfect laser spot, stable power rates, and long life span.
Original Patented Manufacturing Process : YongLi H series 80W 90W 100W 130W 150W co2 laser tube are designed, engineered, and built with safety and reliability in mind. We use parts from the world’s leading suppliers and build the co2 laser tube to international standards. Using original Catalytic technology to get perfect laser spot, stable power rates, and long life span.
Worry Free Shipment: All Co2 laser tubes for co2 laser cutting machine have commercial insurance before shipping to you, if there is any broken in transport,we will send the new one free again depend on the broken photos and damage report from the courier.
High-Quality Optics: The YongLi co2 laser tubes for co2 Laser Engraver Cutter Engraving Machine are equipped with top-quality, American II-VI lenses to achieve strong and stable output power and good laser beam mode. Imported tube ensures a Stable cavity structure. High quality laser beam and high power output; Double laser cutting speed, service life is about 30% longer than ordinary laser Glass Tube. We have 12 months warranty for YongLi h Series laser tube;
High Efficient Nano Catalyst Coated: * Unique laser coating technology enhances the co2 laser tubes power and improves its service life time, co2 laser cutting speed ,quality of laser beam, and last-longer than other ordinary CO2 laser tubes. 30% lower of the maintenance cost.
High-Quality Optics: The YongLi co2 laser tubes for co2 Laser Engraver Cutter Engraving Machine are equipped with top-quality, American II-VI lenses to achieve strong and stable output power and good laser beam mode. Imported tube ensures a Stable cavity structure. High quality laser beam and high power output; Double laser cutting speed, service life is about 30% longer than ordinary laser Glass Tube. We have 12 months warranty for YongLi h Series laser tube;
High Efficient Nano Catalyst Coated: * Unique laser coating technology enhances the co2 laser tubes power and improves its service life time, co2 laser cutting speed ,quality of laser beam, and last-longer than other ordinary CO2 laser tubes. 30% lower of the maintenance cost.

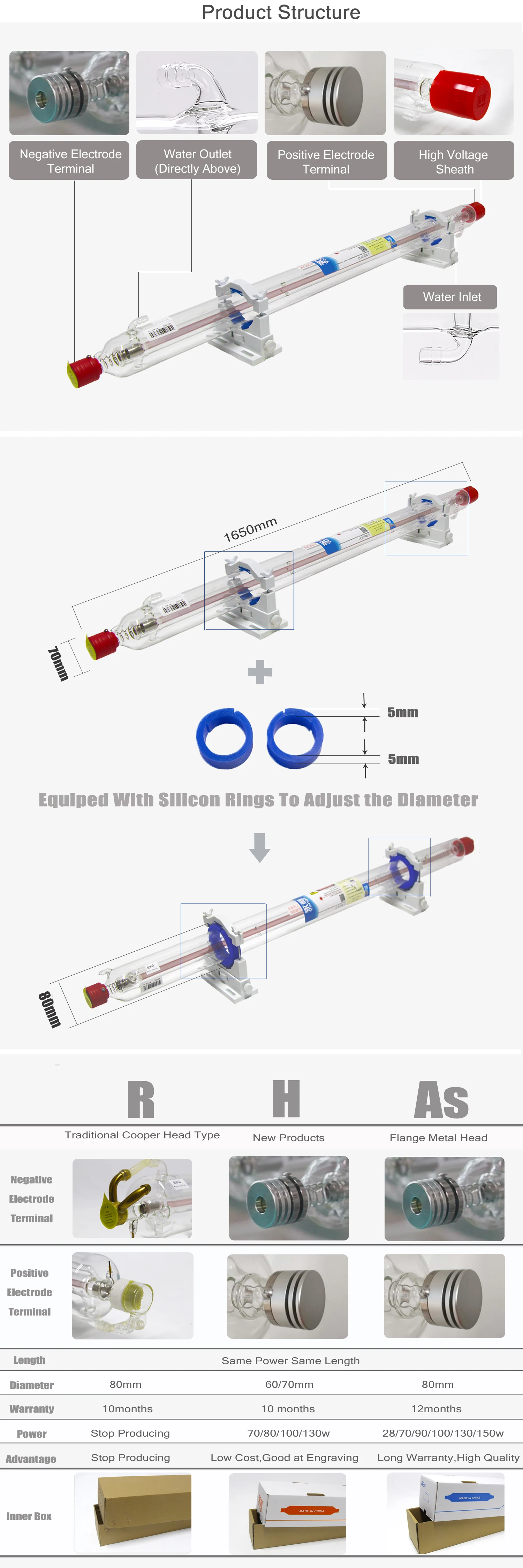

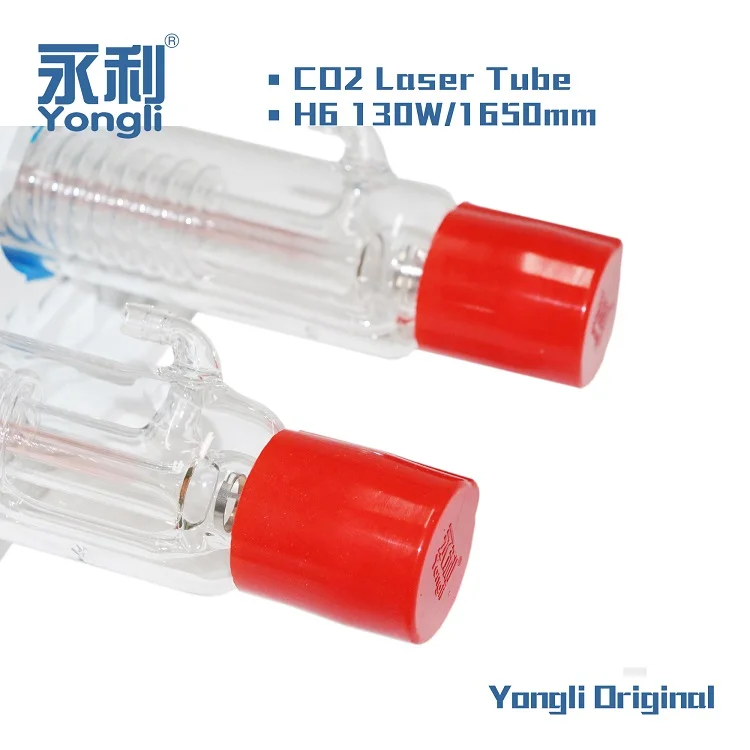

YONGLI H Series CO2 Laser Tube Structure
1. High Voltage Sheath: Seal the High pressure sheath with plastic wrap to prevent dust from entering and causing wet ignition.

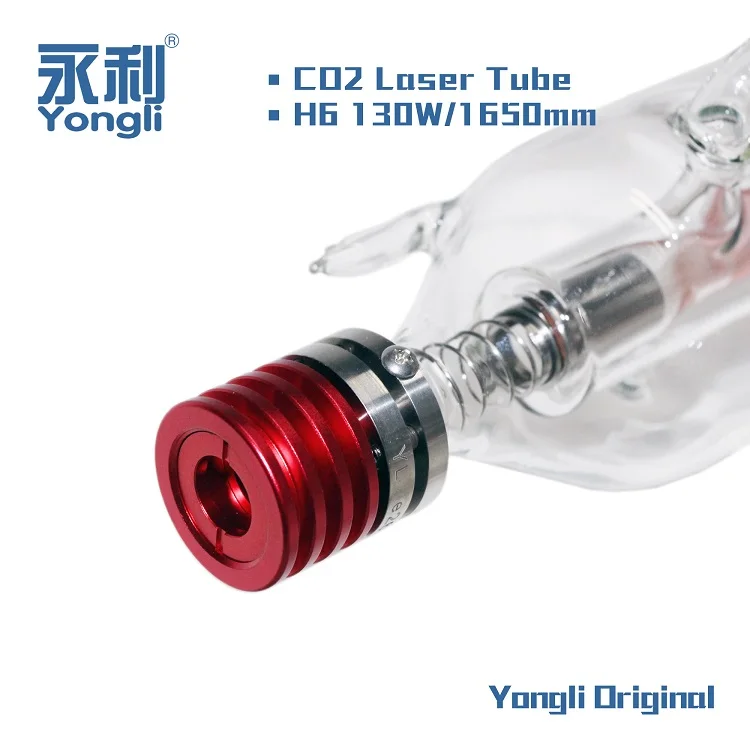

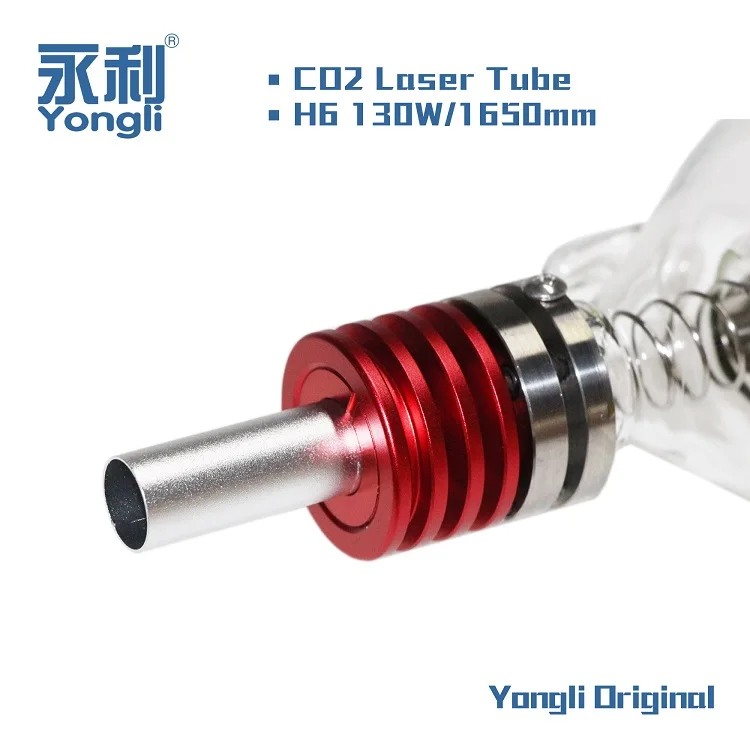

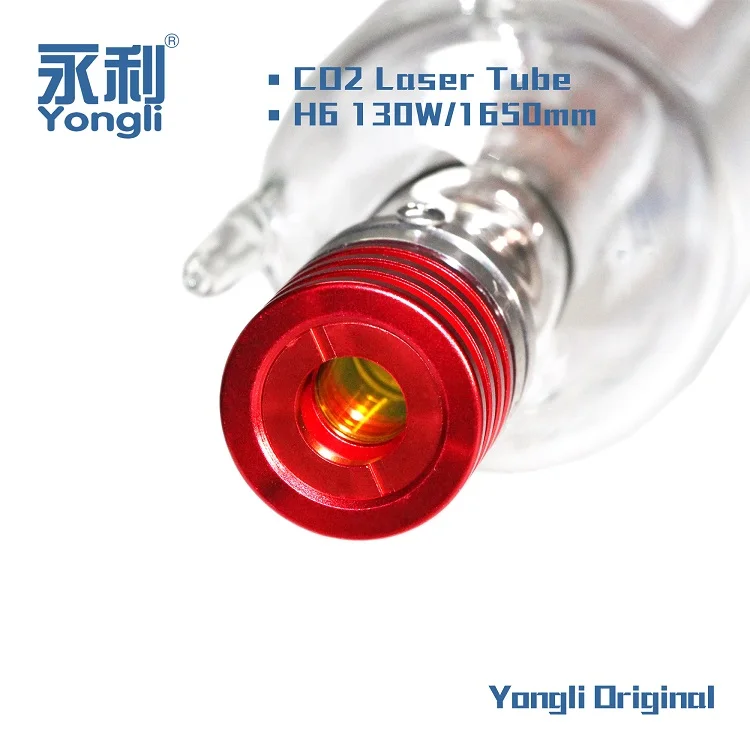

2. Positive Electrode Terminal：Full Metal head structure, Special heat dissipation process to greatly reduce lens operating temperature. Adapting new unique screws wiring method, easy to connect and disassemble .
3. Water Inlet/Outlet:During installation,the water outlet mouth must upward, and always make sure that the water circulation is Low IN High OUT.
4. Negative Electrode Terminal: equipped with high quality, American II-VI lens to achieve strong and stable output power and best lase beam mode.
5. Extended Protection Tube for Output Lens Protection: The extended protection tube is recommended when Multi-layer plywood, PVC materials are to be cut. The extended protection tube should be installed to avoid laser lens damage or laser power reduction caused by dust contaminating or laser tube heads temperature increasing
2. Positive Electrode Terminal：Full Metal head structure, Special heat dissipation process to greatly reduce lens operating temperature. Adapting new unique screws wiring method, easy to connect and disassemble .
3. Water Inlet/Outlet:During installation,the water outlet mouth must upward, and always make sure that the water circulation is Low IN High OUT.
4. Negative Electrode Terminal: equipped with high quality, American II-VI lens to achieve strong and stable output power and best lase beam mode.
5. Extended Protection Tube for Output Lens Protection: The extended protection tube is recommended when Multi-layer plywood, PVC materials are to be cut. The extended protection tube should be installed to avoid laser lens damage or laser power reduction caused by dust contaminating or laser tube heads temperature increasing
Electrode
CO2 laser instruments generally adopts the cold cathode cylindrical shape, the negative pole material selection has great influence on life-span; and the basic requirement is to keep a low sputter rate, small gas absorption rate and to use nickel as metal material.
4th Gen Nano Gold Coating Technology
We adopted a new production and sealing technique to fill the laser tube with CO2, to guarantee its high quality and stability.
As Series Co2 laser tube is very popular to cut thick materials, with a lifespan of 12000 hrs and a power between 40W-180W.

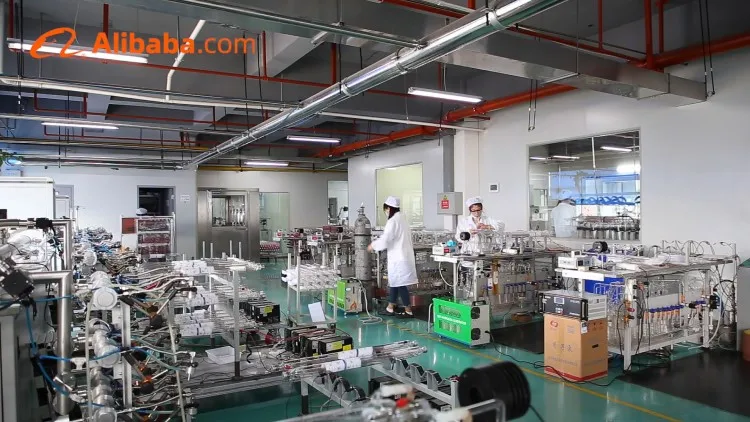

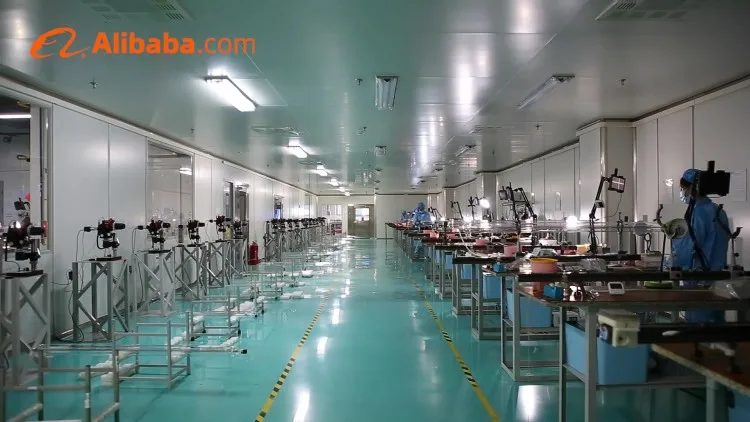

World-Class Manufacture Standard
To prevent dust from entering the vicinity of the electrode inside the high-pressure jacket, wrap the plastic wrap around the
high-pressure jacket.
high-pressure jacket.
* Faster cutting and engraving of materials
* Deeper and cleaner cuts
* Better laser beam quality for more crisp cutting or engraving
* Up to 12,000 hour life span
* High power and high stability
* Sunlite Lasers from YONGLI Laser Group Technology, which is well known for making high quality and long lasting CO2 laser tubes.
* Deeper and cleaner cuts
* Better laser beam quality for more crisp cutting or engraving
* Up to 12,000 hour life span
* High power and high stability
* Sunlite Lasers from YONGLI Laser Group Technology, which is well known for making high quality and long lasting CO2 laser tubes.
INDIVIDUAL LABEL ENSURE QUALITY FOR EACH TUBE
YongLi strictly selection of domestic and international suppliers of high-quality materials.With advanced production processes, first-class production equipment, stringent testing standards for co2 customers around the world to provide high-quality CO2 glass laser tubes.
YongLi as a professional Manufacture of CO2 laser application,customized development processes and
technologies for different fields.
technologies for different fields.
TOP 3 CO2 LASER TUBE MANUFACTURE IN CHINA
YongLi Laser is certified ISO 9001:2015, giving our customers the assurance that our business processes are both well-documented and conform to the same standards of quality upheld by most of the world’s largest and most highly-regarded companies.

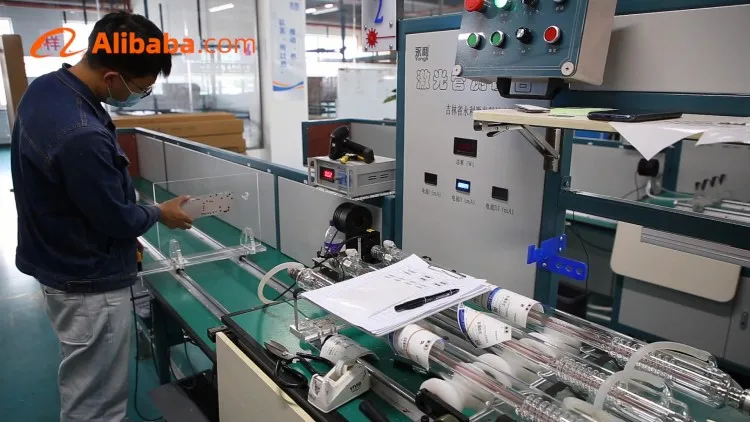

Our key components are tested or burned-in for
hundreds of hours, and in the end, we only use the best components that have passed our stringent control standards.
Our key components are tested or burned-in for
hundreds of hours, and in the end, we only use the best components that have passed our stringent control standards.
Product Advantage

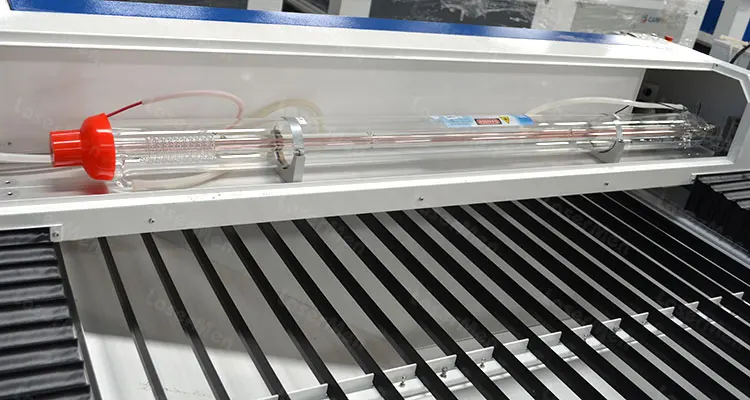

PERFECT REPLACEMENT LASER TUBE FOR ALL CUTTING ENGRAVING MACHINE
This laser tube is made of the boron silicate glass that is also applied on the solar tubes. It is resistant to high temperature and high pressure.We package and ship with a great amount of care and effort to ensure tubes arrive on time and in one piece!
We offer both before and after sale product services and technical support to our OEM and system integration partners worldwide.
Pre-sale serviceMaterial testing for free
Provide material testing with our laser tubes in different laser powers and configurations for specific industry. Upon returning your processed samples, we also will provide a detailed report that is for your specific industry and application.
Technical Consultation
Provide customers with professional technical, application and price consultation (via Email, Phone, WhatsApp, WeChat, Skype, etc.). Quickly respond to any questions that customers concern about, such as: laser processing in differences on the application of different materials, laser processing speed, etc.
After Sales Service
* Customers need to provide feedback and relevant photos and videos if the issue has arisen during their use of the CO2 laser tube and related products.
* The issue information will be conveyed to our technicians within 24 hours, and they will then work quickly to determine the cause of the problem.
* Customers will be informed of problem causes, and a solution, within 48 hours. If the Laser tube needs to be replaced within the period of warranty, no charge will be taken
We offer both before and after sale product services and technical support to our OEM and system integration partners worldwide.
Pre-sale serviceMaterial testing for free
Provide material testing with our laser tubes in different laser powers and configurations for specific industry. Upon returning your processed samples, we also will provide a detailed report that is for your specific industry and application.
Technical Consultation
Provide customers with professional technical, application and price consultation (via Email, Phone, WhatsApp, WeChat, Skype, etc.). Quickly respond to any questions that customers concern about, such as: laser processing in differences on the application of different materials, laser processing speed, etc.
After Sales Service
* Customers need to provide feedback and relevant photos and videos if the issue has arisen during their use of the CO2 laser tube and related products.
* The issue information will be conveyed to our technicians within 24 hours, and they will then work quickly to determine the cause of the problem.
* Customers will be informed of problem causes, and a solution, within 48 hours. If the Laser tube needs to be replaced within the period of warranty, no charge will be taken

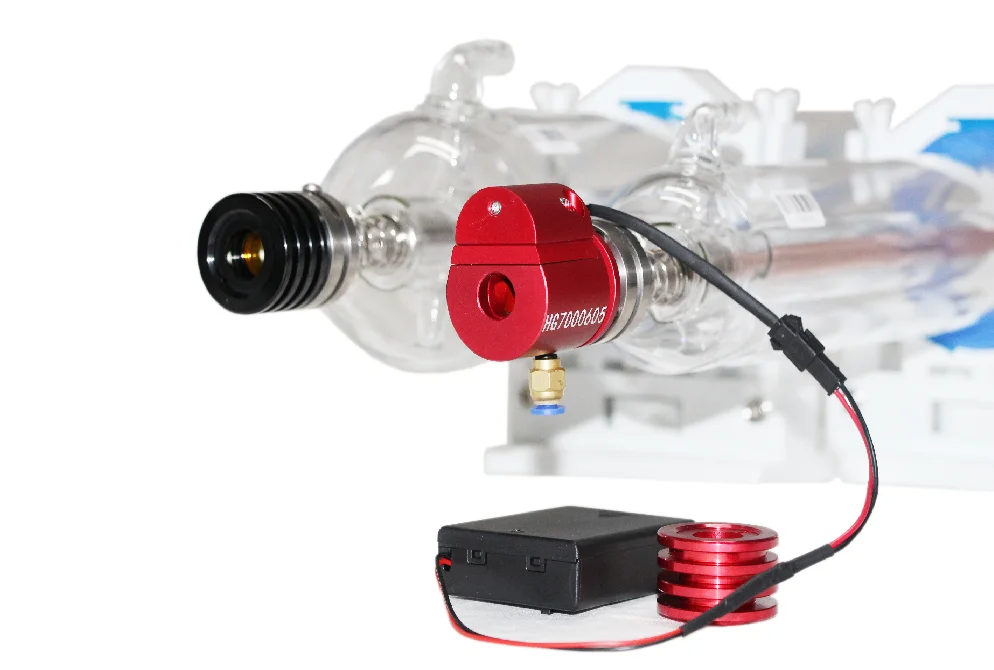

CO2 LASER VISUALIZATION INDICATOR
Equipped with threaded poles to attach a red laser guidance system (not included) that allows easy mirror alignment. No more taping your mirrors!
Note: The Red Dot Laser Pointer is not universal model and it can not be compared with other brands laser tubes. It could only work on YongLi As/H series Co2 Laser Tube
Note: The Red Dot Laser Pointer is not universal model and it can not be compared with other brands laser tubes. It could only work on YongLi As/H series Co2 Laser Tube

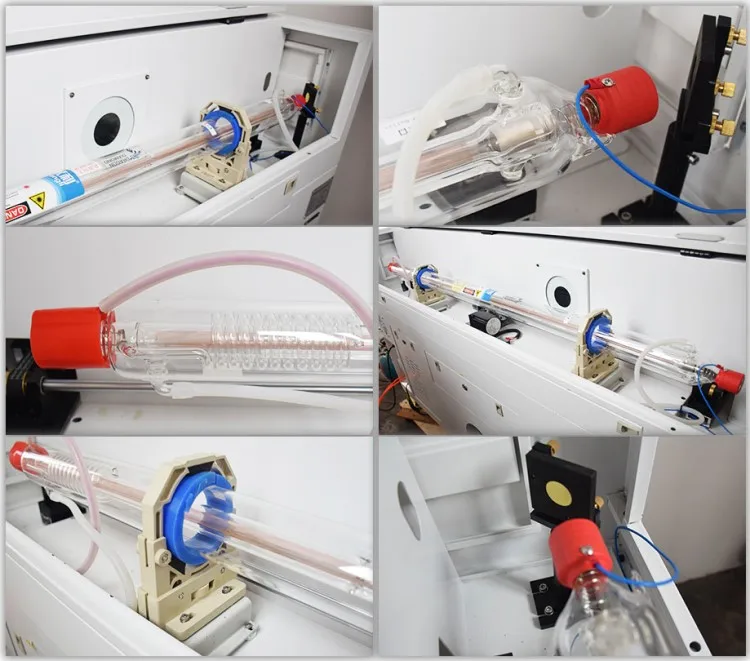

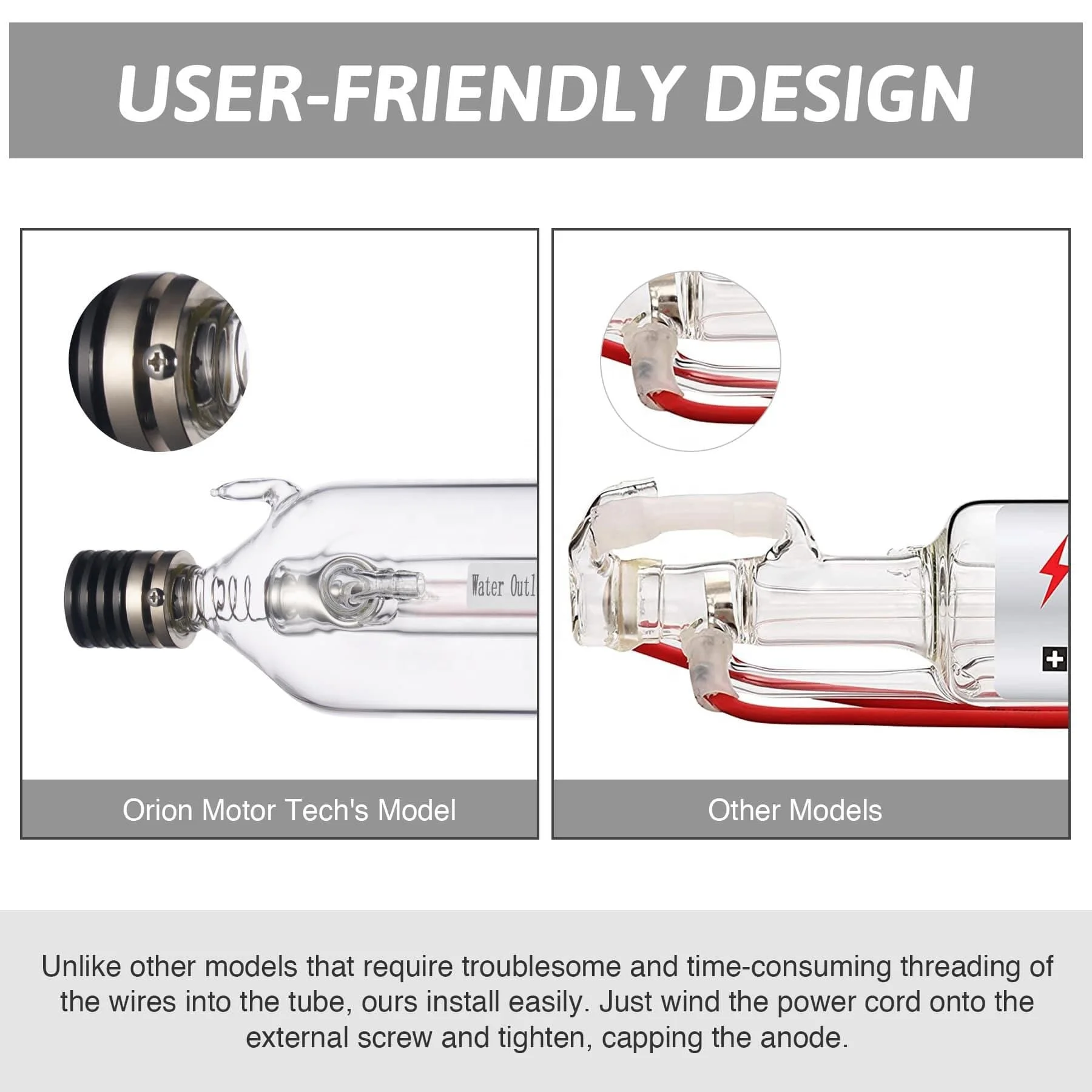

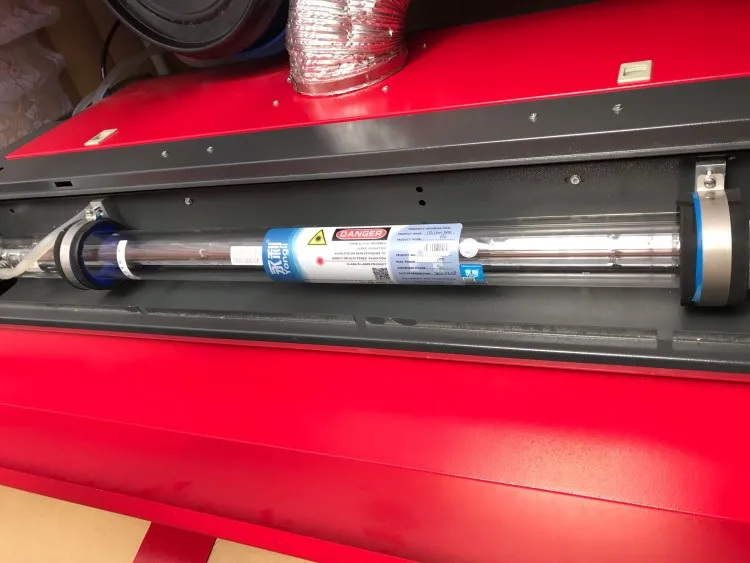

USER-FRIENDLY EASY TO INSTALL CO2 LASER TUBE
EASY TO INSTALL: The preinstalled YongLi cathode and anode terminal connections with a full metal structure allow safer and faster replacement. It installs quickly and easily: just wrap your power supply's connecting wires around the anode and cathode's connections and hook your water cooling system to the pipe fittings at either end.
SAFE AND SOUND: The inner tube for the engraving laser beam is surrounded by built-in water tubing and a hermetically sealed outer tube to keep it cool and high functioning. Ports at either end allow easy connection with your water pump or industrial water chiller, and a protective cap shields the high-voltage anode from any shorts or arcing.
SAFE AND SOUND: The inner tube for the engraving laser beam is surrounded by built-in water tubing and a hermetically sealed outer tube to keep it cool and high functioning. Ports at either end allow easy connection with your water pump or industrial water chiller, and a protective cap shields the high-voltage anode from any shorts or arcing.
Why Choose Us
YongLi's Unique Technology Platform
YongLi's unique technology platform allows our products to have higher output powers and superior beam quality at a lower cost than can be achieved by any other competing technology. Our proprietary designs are based around innovative pumping techniques and high-performance components perfected by YongLi over a 30-year period of intense investment and innovation. The cornerstones of
YongLi Laser technology are our cladding side-pumping technique and distributed single-emitter diode pumping architecture.
YongLi Laser technology are our cladding side-pumping technique and distributed single-emitter diode pumping architecture.
Our Core Values
Our highly engineered component and sub-system solutions, and deep expertise in advanced photonics, vision and precision motion make us the global technology partner of choice for advanced industrial OEMs. Building a high-performing culture enables us to achieve our growth goals.
It starts with cohesive teams that are engaged an aligned around our vision and strategy,
and who live our values and drive performance through the YongLi Growth System, which is a common set of tools and processes for continuous improvement.
and who live our values and drive performance through the YongLi Growth System, which is a common set of tools and processes for continuous improvement.
Application
YongLi 40w 80w 100w 150w 180w Co2 Laser Tube Application
LASER CUTTING ENGRAVING SOLUTIONS
For CO2 laser engraving,it is popular in the filed of non-metal processing and some sheet metal processing. It has a wide application. It can be applied to below industries and materials.
For CO2 laser engraving,it is popular in the filed of non-metal processing and some sheet metal processing. It has a wide application. It can be applied to below industries and materials.
Industries: Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.
Materials: Materials such as acrylic, wood planks(light planks, candlenut wood),metal sheet, bamboo ware, double color board, paper, leather, shell, conconut shell,ox horn, resin animal grease, ABS board,lamp shade, etc.
Materials: Materials such as acrylic, wood planks(light planks, candlenut wood),metal sheet, bamboo ware, double color board, paper, leather, shell, conconut shell,ox horn, resin animal grease, ABS board,lamp shade, etc.
YongLi Co2 Laser Tube Applications
YongLi 40-180w co2 laser tube is a perfect laser tube for everything from home use to starting a business. As series co2 laser tube provides the laser cutting engraving machine with high quality engraving and cutting at a low cost.
YONGLI As Series CO2 laser tube are widely used in industrial production, national defense, scientific research and other fields, such as metrology, material processing, laser communication, energy and so on.
YONGLI As Series CO2 laser tube are widely used in industrial production, national defense, scientific research and other fields, such as metrology, material processing, laser communication, energy and so on.
Packing & Shipping
YONGLI CO2 LASER TUBE PACKING&SHIPPING
Package: Fumigation free package
Packing Size: 225cm*51cm*51cm/166cm*39cm*39cm
Gross Weight: Subject to the laser tube model
Standard export packing or customized packing as your request. We use hard boxes, your cargo will not be affected in any way
Every laser tube is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with a wooden case which is reinforced with an iron bar on the top and bottom. All our laser tubes are well protected during the long trip by sea or by train.
Packing Size: 225cm*51cm*51cm/166cm*39cm*39cm
Gross Weight: Subject to the laser tube model
Standard export packing or customized packing as your request. We use hard boxes, your cargo will not be affected in any way
Every laser tube is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with a wooden case which is reinforced with an iron bar on the top and bottom. All our laser tubes are well protected during the long trip by sea or by train.
We can transport machine by sea/air freight or express by DHL EMS UPS etc. According to your requirement.
Important Note:
The Shipping fee shown on the page is just a rough count by the system, The Shipping Fee can be very different depends on the shipping method and the destination. It does not represent the Precise Shipping Cost. Please contact us to get the accurate shipping fee for this product
Important Note:
The Shipping fee shown on the page is just a rough count by the system, The Shipping Fee can be very different depends on the shipping method and the destination. It does not represent the Precise Shipping Cost. Please contact us to get the accurate shipping fee for this product
FAQ
Q: How would I know this tube compatible with my machine?
A: We suggest to refer the Accessories List of your machine first, to confirm the DIAMETER, LENGTH and POWER of the tube. Size fits, compatible. Our Professional technicians are waiting to answer all your questions! Just talk to us!!
Q: How does the product come packaged?
A: Tightly embrace the laser tube with high-density sponge. Double foam rubber, Double boxed. We keep improving our packaging, listening patiently to the feedback form our customers. If there is any problem caused by transport, we will be responsible for it.
Q: Storage?
A: Laser tube is consumable, which means that a long-time storage may lead to power attenuation. Thus, we recommend to buy it when need it. After receive the tube, test it first. If there any problem, let us know in time, we will provide 3 months after-sales services for free.
Q: How to insulate the high-voltage end?
A: After putting on the silicone tube, pour some glues inside. Wrap a few more turns with electrical tape.
Q: Size of the water hose for inlet and outlet?
A: Tube of Diameter 7 mm x 11 mm (0711), or of Diameter 6 mm x 8 mm (0608). (0711 is better because it’s thicker.)
Q: Why choose YONGLI Co2 Laser Tube?
A: We have more than 30 years of solid experience in laser industry, and we are the earliest seller of CO2 Laser Tube. Over the years, we keep improving our product quality, as well as its function, according to customer’s feedback. Our goal is to create value for our customers and always be responsible for the products we sell. We are your trusted partner for laser accessories.
A: We suggest to refer the Accessories List of your machine first, to confirm the DIAMETER, LENGTH and POWER of the tube. Size fits, compatible. Our Professional technicians are waiting to answer all your questions! Just talk to us!!
Q: How does the product come packaged?
A: Tightly embrace the laser tube with high-density sponge. Double foam rubber, Double boxed. We keep improving our packaging, listening patiently to the feedback form our customers. If there is any problem caused by transport, we will be responsible for it.
Q: Storage?
A: Laser tube is consumable, which means that a long-time storage may lead to power attenuation. Thus, we recommend to buy it when need it. After receive the tube, test it first. If there any problem, let us know in time, we will provide 3 months after-sales services for free.
Q: How to insulate the high-voltage end?
A: After putting on the silicone tube, pour some glues inside. Wrap a few more turns with electrical tape.
Q: Size of the water hose for inlet and outlet?
A: Tube of Diameter 7 mm x 11 mm (0711), or of Diameter 6 mm x 8 mm (0608). (0711 is better because it’s thicker.)
Q: Why choose YONGLI Co2 Laser Tube?
A: We have more than 30 years of solid experience in laser industry, and we are the earliest seller of CO2 Laser Tube. Over the years, we keep improving our product quality, as well as its function, according to customer’s feedback. Our goal is to create value for our customers and always be responsible for the products we sell. We are your trusted partner for laser accessories.
