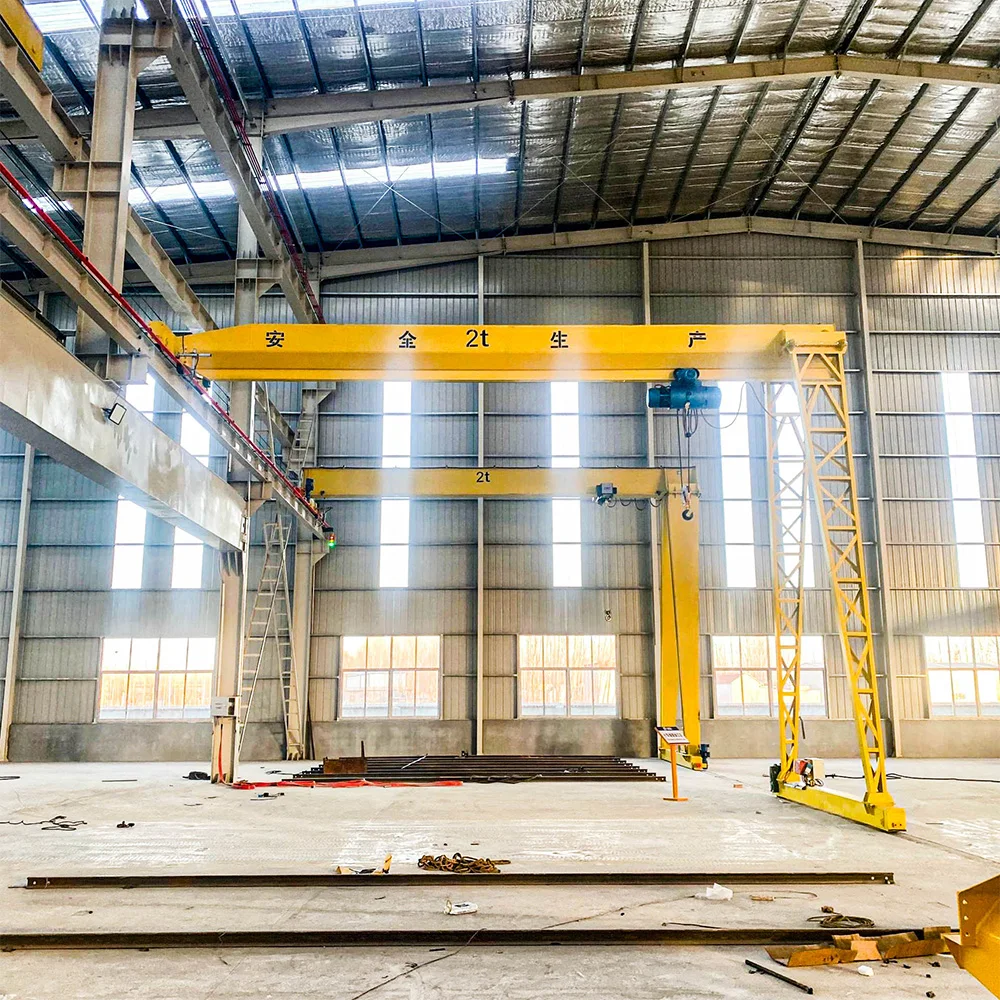

Factory outlet wheel type semi gantry crane with electric hoist
- Category: >>>
- Supplier: Henan Huasui Heavy Industry Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601256149589):
Product Overview
Description
Products Description
A semi-gantry crane is a strong and adaptable material handling solution that is perfect for settings where flexibility and space efficiency are essential. Because it combines the advantages of an overhead crane and a full gantry crane, it is ideal for both interior and outdoor applications. This kind of crane has a single or double girder that is supported by a floor-level rail on one side and a runway on the other. Effective material handling is made possible by the design in a number of sectors, including manufacturing, construction, shipbuilding, and logistics.
Because of its distinctive form, which combines raised and ground support, it is a great help in situations where flexibility and efficient use of space are crucial. The semi-gantry crane offers unmatched performance, safety, and dependability whether you need it for sturdy material handling on a construction site or precise lifting in a manufacturing facility.
Purchasing a semi-gantry crane entails selecting a material handling system that is durable, flexible, and efficient. Whether you want to precisely handle large loads or maximize your workspace, a semi-gantry crane offers outstanding performance that is customized to meet your demands.
Features
Efficiency of Space:
Adaptability and Flexibility:
Partial Ground Support: A runway on one side and a moving leg on the other provide support for the semi-gantry crane. This design reduces the requirement for large runway systems, maximizing workspace.
Low Headroom: The semi-gantry crane is perfect for locations with height restrictions because it is frequently designed with low headroom.
Low Headroom: The semi-gantry crane is perfect for locations with height restrictions because it is frequently designed with low headroom.
Adaptability and Flexibility:
Indoor and Outdoor Use: It may be used both indoors and outdoors because to its versatile design. It requires little modification to be installed in already-existing structures.
Customizable Configurations: The crane can be made to match particular operational requirements, such as different spans, lifting capacities, and heights. It is available in single-girder and double-girder configurations.
Customizable Configurations: The crane can be made to match particular operational requirements, such as different spans, lifting capacities, and heights. It is available in single-girder and double-girder configurations.
Elevated Load Capability:
Sturdy Construction: The semi-gantry crane's high-strength materials engineering allows it to precisely manage huge loads. Depending on the design, the lifting capacity can be anywhere from a few tons to several hundred tons.
Modern Hoisting Mechanisms: Outfitted with electric or manual winches and other cutting-edge hoisting technology, these mechanisms guarantee dependable and seamless lifting operations.
Sturdy Construction: The semi-gantry crane's high-strength materials engineering allows it to precisely manage huge loads. Depending on the design, the lifting capacity can be anywhere from a few tons to several hundred tons.
Modern Hoisting Mechanisms: Outfitted with electric or manual winches and other cutting-edge hoisting technology, these mechanisms guarantee dependable and seamless lifting operations.
Operational Simplicity:
User-Friendly Controls: The crane's controls are simple to use and enable users to handle items securely and effectively. Versatility is increased with remote control and cab operating options.
Safety Features: To guarantee safe operations in challenging conditions, integrated safety features such as overload protection, anti-collision devices, and emergency stop functions are included.
User-Friendly Controls: The crane's controls are simple to use and enable users to handle items securely and effectively. Versatility is increased with remote control and cab operating options.
Safety Features: To guarantee safe operations in challenging conditions, integrated safety features such as overload protection, anti-collision devices, and emergency stop functions are included.
Economical Resolution:
Lower Infrastructure Costs: The semi-gantry crane requires less structural support than an overhead or full gantry crane, whichlowers the cost of installation and maintenance.
Energy Efficiency: With its efficient design, the crane will gradually use less energy and incur fewer operating expenses.
Lower Infrastructure Costs: The semi-gantry crane requires less structural support than an overhead or full gantry crane, whichlowers the cost of installation and maintenance.
Energy Efficiency: With its efficient design, the crane will gradually use less energy and incur fewer operating expenses.
Detailed Images
Girder
The girder is the main horizontal beam of the crane that spans the distance between the crane's supports. In a semi-gantry crane,it can be a single-girder or double-girder configuration.Typically constructed from high-strength steel, the girder is
designed to withstand significant bending and torsional stresses.
designed to withstand significant bending and torsional stresses.
Hoist
The hoist is the mechanism that lifts and lowers the load. It can be electrically powered or manually operated, depending on the crane's design and application.It is attached to the girder and moves horizontally along it, allowing precise positioning of the load. It consists of a motor, drum, wire rope or chain, and hook.
Leg
One side of the crane is supported by a vertical leg that travels on a ground-level rail or track.It provides stability and supports the load while allowing the crane to move horizontally along the ground. It also houses wheels or bogies that facilitate
smooth movement.
smooth movement.
Control System
The control system is the interface through which the operator controls the crane’s movements. It can include pendant controls, radio remote controls, or a cabin control.It allows precise manipulation of the crane's functions, including lifting, lowering,
and traversing.
and traversing.
Technical Parameter
Cap. (t) | 2 | 3 | 5 | 10 | |||||||
Span (m) | 10/12/16/20 | 10/12/16/20 | 10/12/16/20 | 10/12/16/20 | |||||||
Lifting Height | 6 | 6 | 6 | ||||||||
Travelling Unit | Speed (m/min) | Remote | 20 | 20 | 20 | 20/30 | |||||
Cabin | 20/30 | 20/30 | 20/30 | ||||||||
Motor | Remote | 0.8/1.5kW *2 | 0.8/1.5kW *2 | 0.8/1.5kW *2 | 1.5/2.2kW *2 | ||||||
Cabin | 1.5kW *2 | 1.5kW *2 | 1.5kW *2 | 1.5/2.1kW*2 | |||||||
Wheel Dia. (mm) | 270 | 270 | 270 | 270/440 | |||||||
Lifting Unit | Lifting Speed (m/min) | 8/0.8 | 8/0.8 | 8/0.8 | 7/0.7 | ||||||
Travelling Speed (m/min) | 20(30) | 20(30) | 20(30) | ||||||||
Motor | Lifting | 4/3 or 3/0.3 | 4/4.5 or 0.4/4.5 | 4/7.5 or 0.8/7.5 | 4/13 or 1.5/13 | ||||||
Travelling | 4/0.4 | 4/0.4 | 4/0.8 | 4/0.8*2 | |||||||
Working Grade | A4 | A4 | A4 | ||||||||
Rec. Rail | P24 | P24 | P24 P38 | P38 | |||||||
Power Source | 380V 50Hz 3 Phase | ||||||||||
Weight (kg) | Remote | 3250~5350 | 3500~6150 | 4300~6900 | 6600~10650 | ||||||
Cabin | 4050~6150 | 4300~6950 | 5100~7700 | 7400~11450 | |||||||
Max. Wheel Pressure (kN) | 14~35 | 28~39 | 37~53 | 78~103 | |||||||

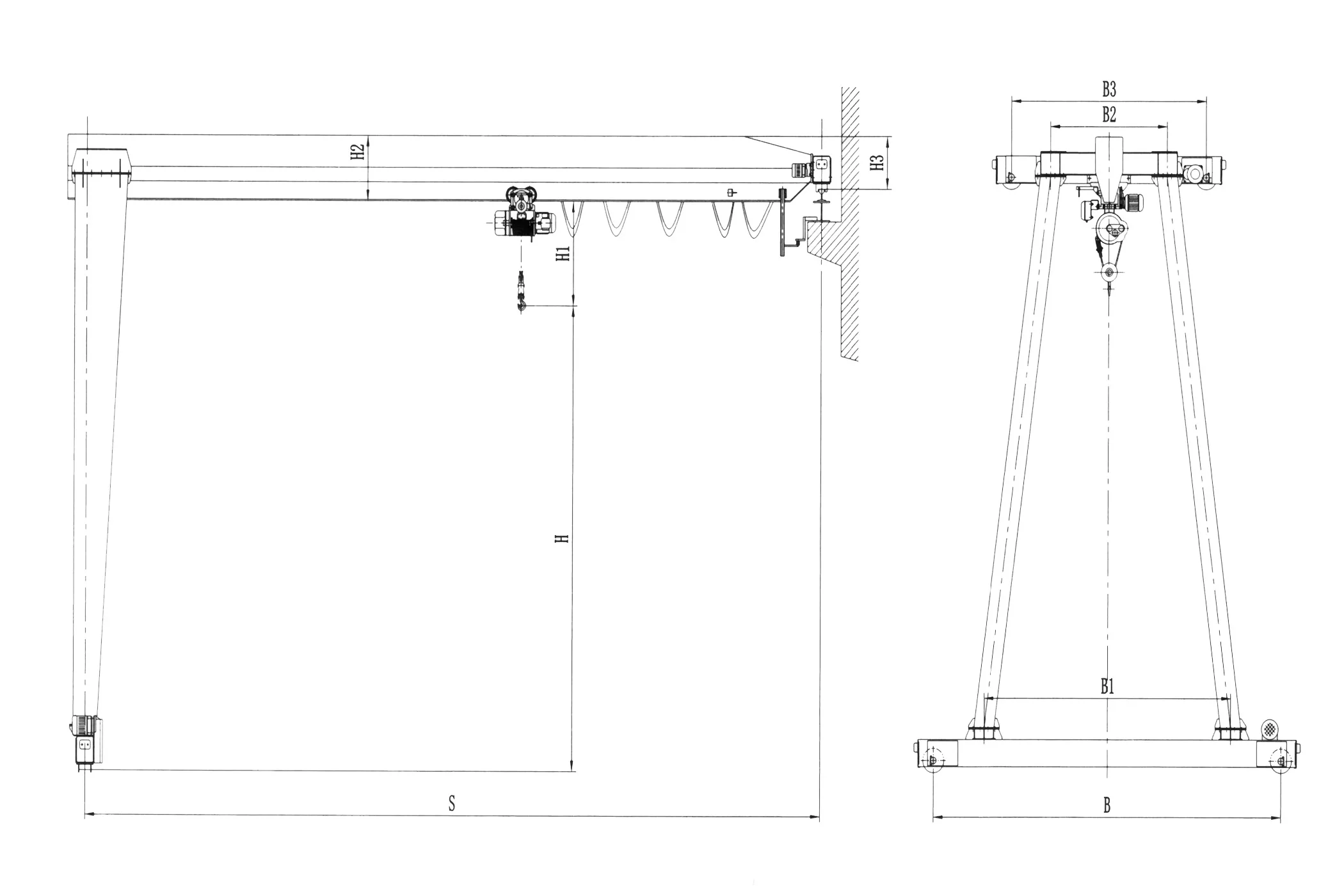

Dime. (mm) | H1 | 1020 | 1150 | 1320 | 1670 | ||||||
H2 | 550/595/700/900 | 650/700/800/1000 | 720/800/900/1100 | 900/1000/1100/1250 | |||||||
H3 | 490/580/745 | 530/580/660/820 | 580/660/745/875 | 720/865/920/970 | |||||||
B | 4400 | 4400 | 4600 | 4800/5200 | |||||||
B1 | 3300 | 3300 | 3500 | 3700 | |||||||
B2 | 1400 | 1400 | 1500 | 1600 | |||||||
B3 | 2000/2500/3000 | 2000/2500/3000 | 2000/2500/3000 | ||||||||
About Our Factory
Certifications
Packing & Delivery
FAQ
1. What types of cranes do you offer?
As a manufacturer with over 20 years’ experience, Huasui provide a range of cranes, including gantry cranes, overhead cranes, RTG cranes, jib cranes, and customized lifting solutions tailored to specific industry needs, such as for steel, precast concrete, and container handling.
2. How do I know which crane is suitable for my project?
Our team of experts is here to help! By understanding your lifting capacity requirements, operational environment, and usage frequency, we can recommend the ideal crane solution for your project. Contact us for a free consultation.
3. How to choose the right crane?
The following factors need to be considered when choosing a crane: Load capacity, Lifting height, Working environment, Frequency of operation.
4. What maintenance services do you offer?
We offer comprehensive maintenance plans, including preventive maintenance, inspection, repair, and spare parts replacement, to keep your crane running efficiently and safely. Our service team is available for scheduled and emergency support.
5. Are your cranes compliant with international safety standards?
Absolutely. Our cranes are manufactured in compliance with major international standards such as ISO, EN, and GB/T. Additionally,
we ensure that each crane undergoes rigorous testing and inspection before delivery.
we ensure that each crane undergoes rigorous testing and inspection before delivery.
6. What are your delivery and installation timelines?
Delivery and installation timelines vary based on the type and customization of the crane. Generally, standard cranes can be delivered within 6–8 weeks, while customized solutions may require additional time. We aim to provide accurate timelines upfront to ensure smooth project planning.
7. Do you offer installation services?
Yes, we provide comprehensive training programs for crane operators, including safety training, maintenance guidelines, and operational best practices to ensure your team is fully prepared to operate the crane safely and efficiently.
