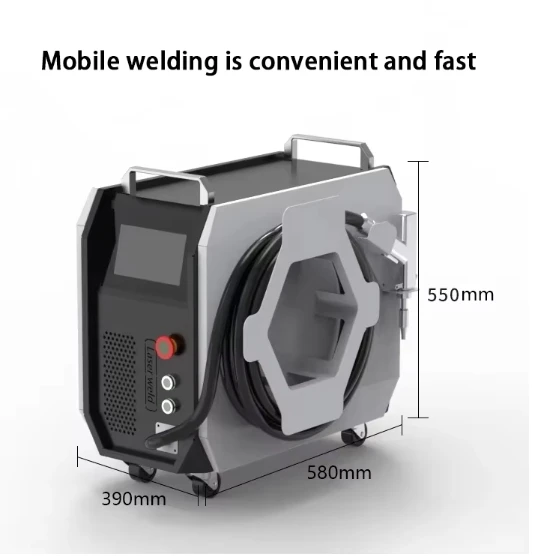

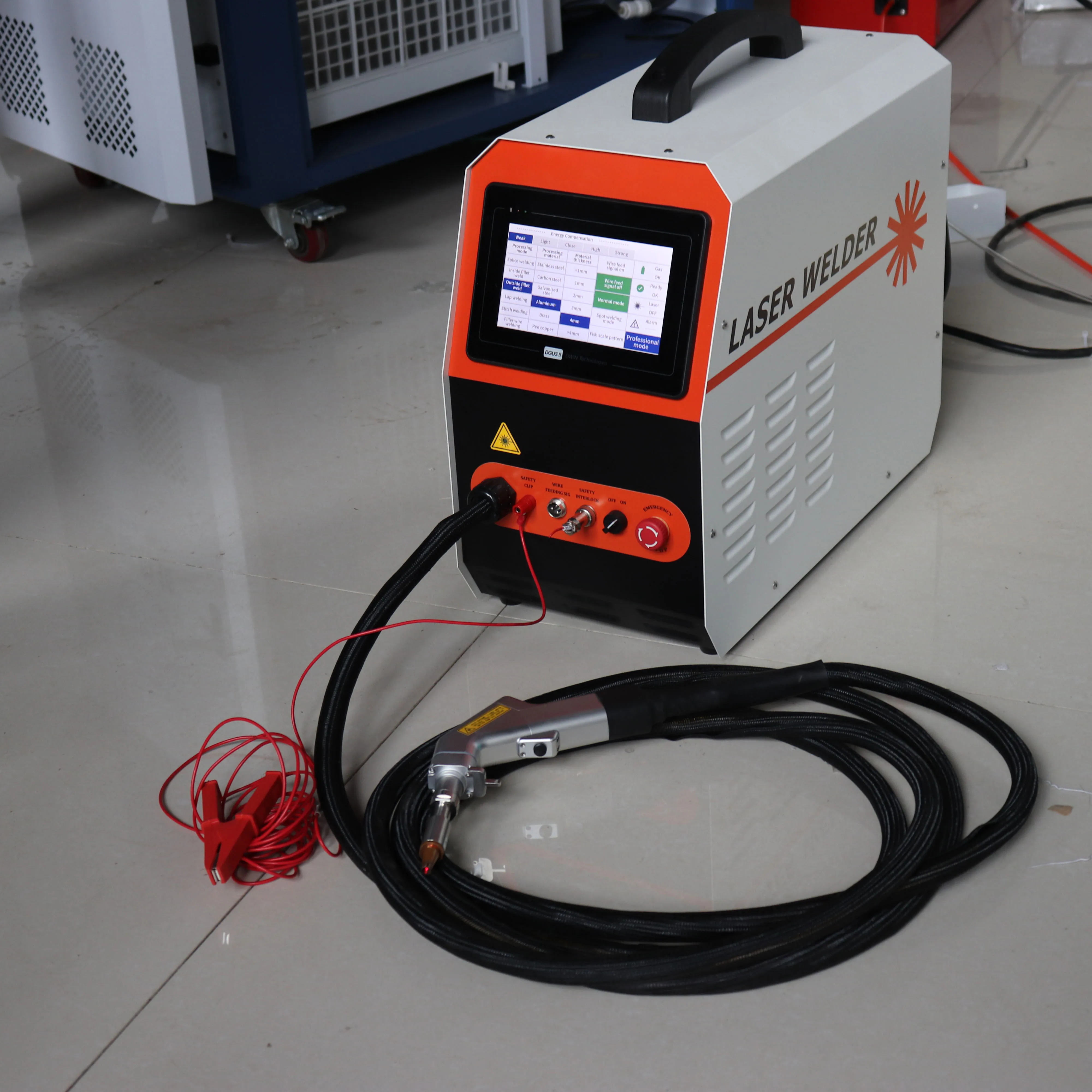

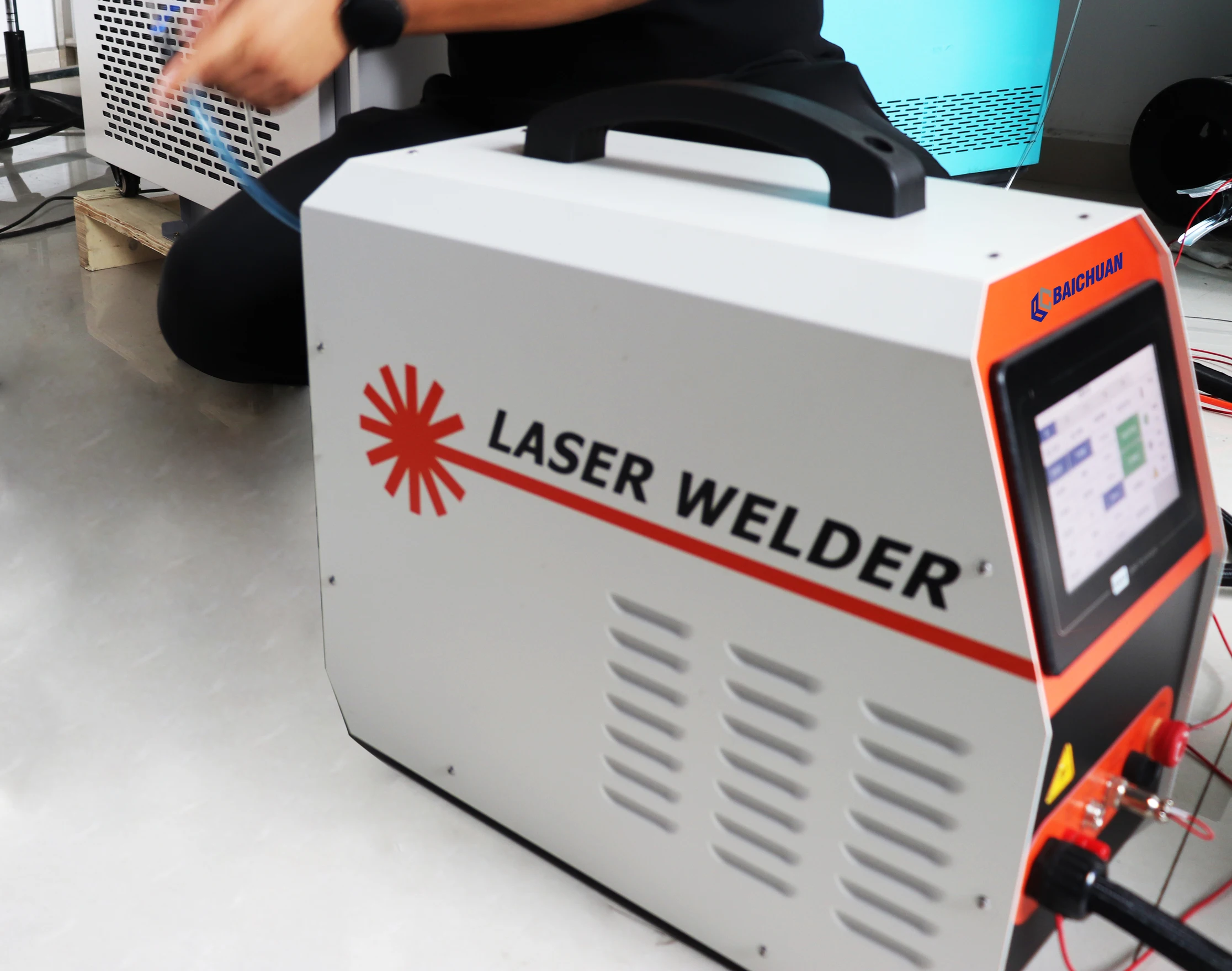

2024 new 3 in 1 Handheld 1500W 1800W Laser Welder Machine with Air Cooling Laser Source Gear Core Component Metal Welding
- Category: >>>
- Supplier: Baichuan (Zhengzhou) Intelligent Equipment Manufacturing Co. Ltd.Baichuan Ltd.
Share on (1601256152327):
Product Overview
Description
Other related products
Products Description
Under the independent monitoring of each component,Baichuan laser welding machine has the lowest maintenance cost and the longest service life. lt adopts the highest-cost Raycus laser, Hanli water cooler, and joint public research and development of Intelligent equipment Research Institute of Tsinghua University to launch a safer and more comprehensive system for detection.Only to ensure a better experience for every Baichuan user. Unlike laser cleaning machines,handheld laser welding machines are equipped with an additional Multi functional automatic wire feeder.
Equipment General Situation | Baichuan laser cleaning machine | |

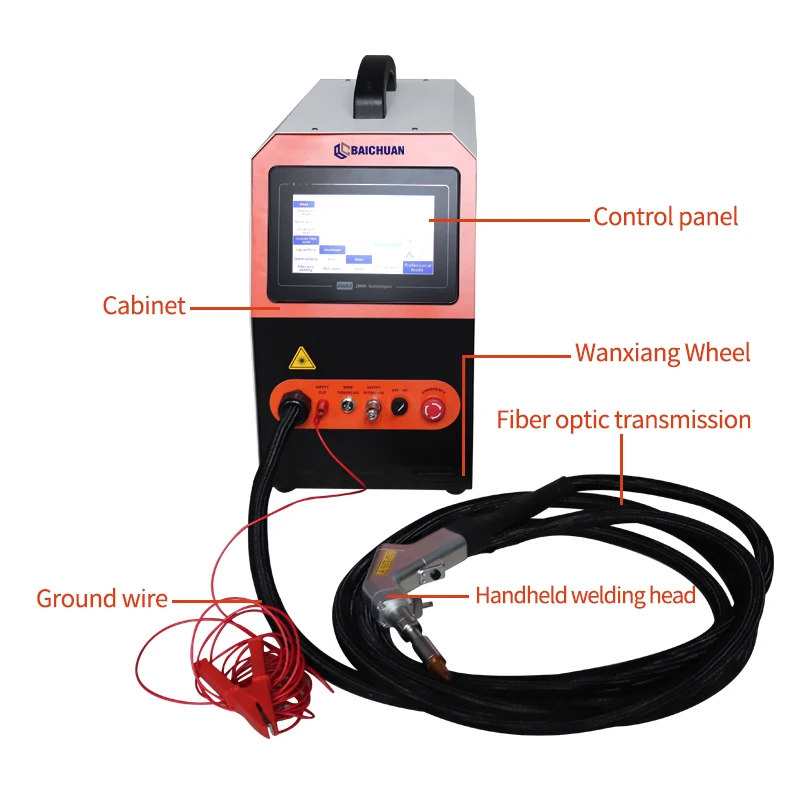

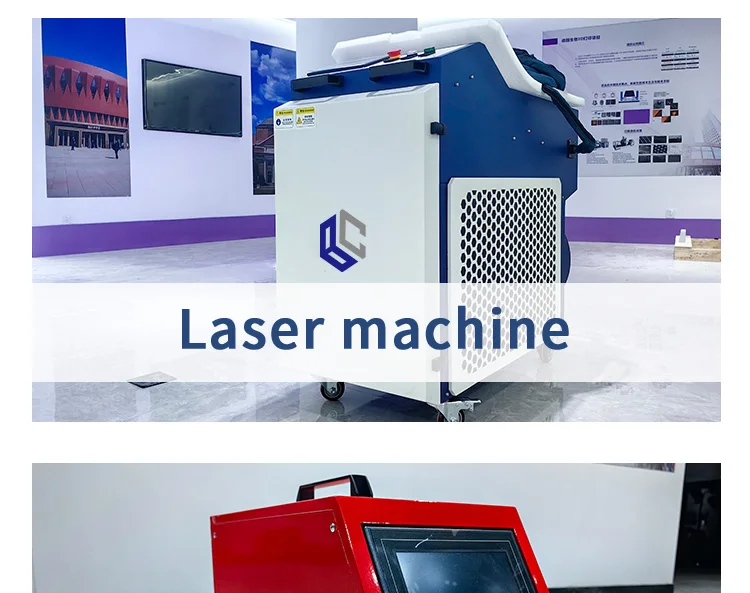

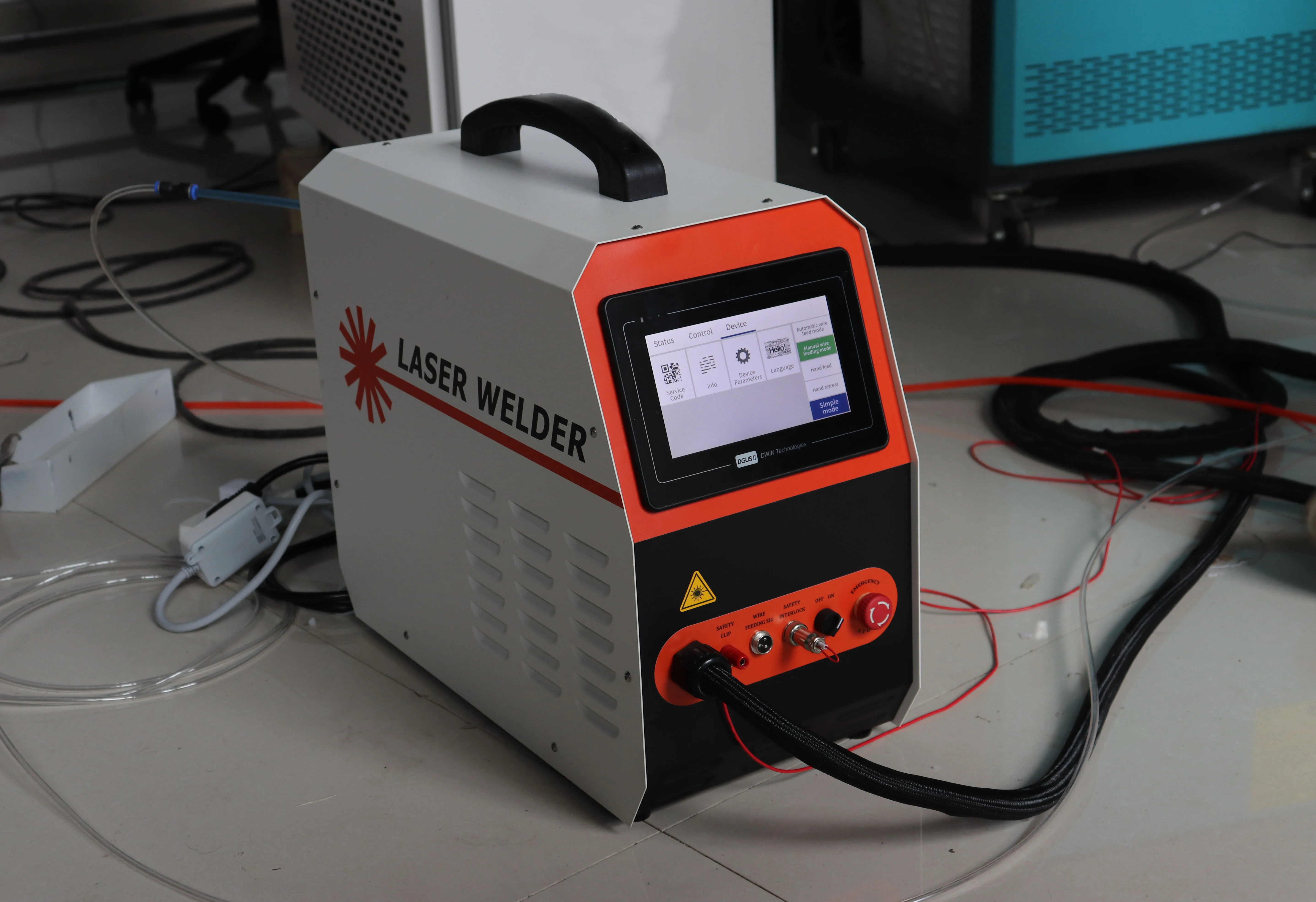

Equipment name | Air-cooled laser welding machine | |
Device model | QZ-Q3 | |
Power supply | 220V±5%, 50Hz rated current: ≤40A Rated power: ≤11KW | |
Wiring | P+N+PE (220V) | |
Working time | 24H (continuous operation) | |
Operation rate | ≥95% | |
Optical performance parameter | ||
Working mode | continuous/modulation/pulse/linear array/timing | |
Output power adjustment range (%) | 1-100% | |
Output laser wavelength (nanometer) | 1080 ± 10 nm | |
Power stability | < 5% | |
Maximum modulation frequency | 50kHz | |
Laser response time | < 10us | |
Indicated laser wavelength (nanometer) | 650 | |
Indicated optical power adjustable range (milliwatt) | <1mW | |
Laser conduction system parameters | 13/16L | |

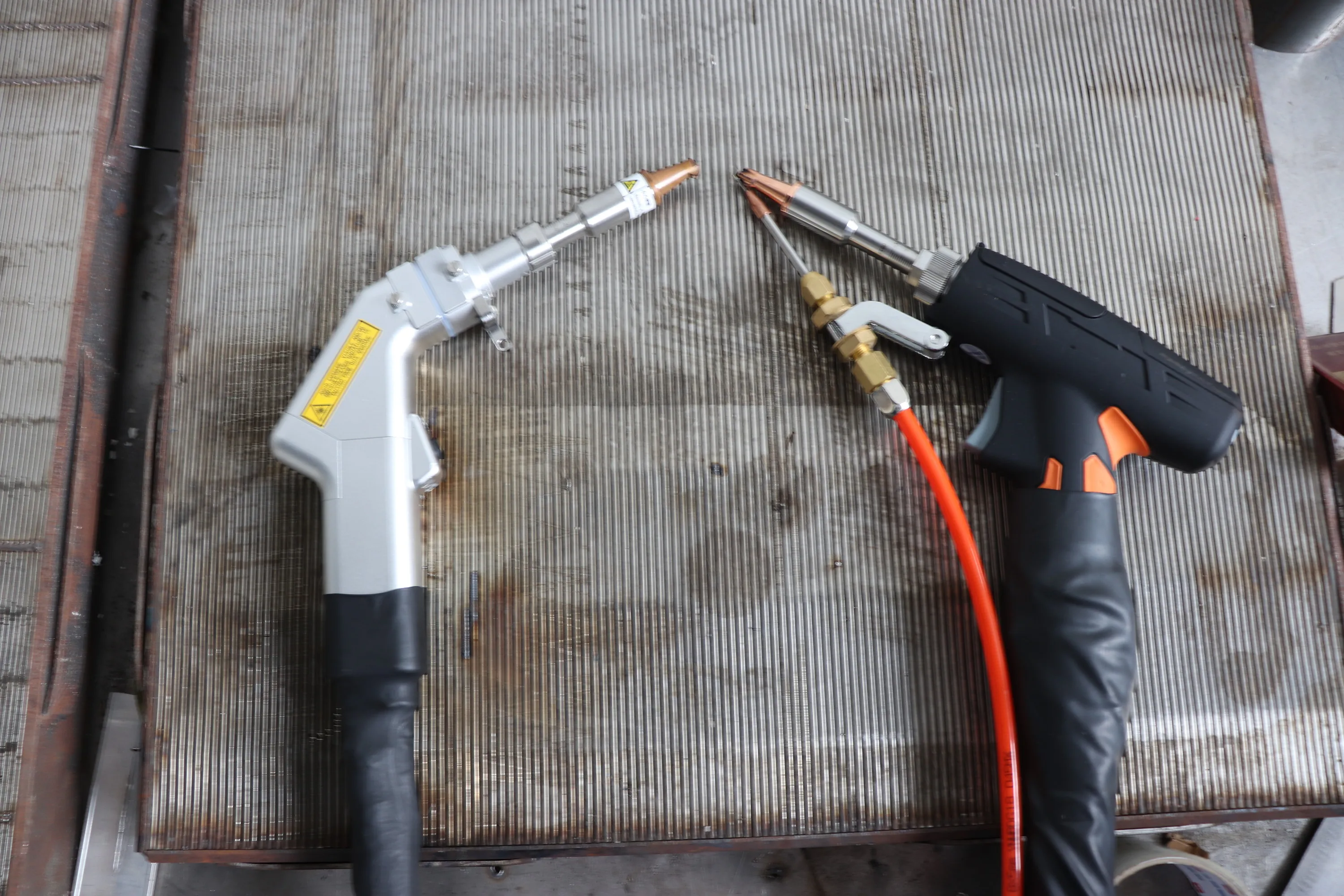

Interface type | GW handheld welding head | |
Collimation focal length | 50mm | |
Focal length | 150mm | |
Transmission length | Standard length 5±0.5m (optional 10m) | |

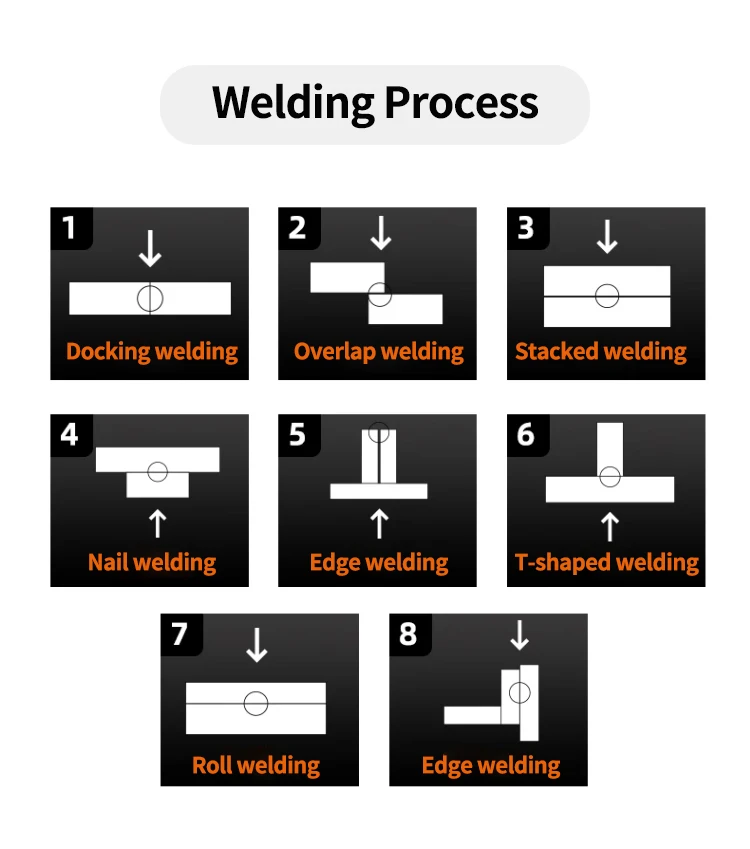

Job requirement | straight line, fish scale , spot | |
Cooling and protective gas | inert gas | |
Operating environment temperature range | -10° -40 °C | |
Ambient humidity range | ≤85 degree | |
Input voltage | 220VAC/50Hz/60Hz | |
Machine power | ≤ 4.0kW | |

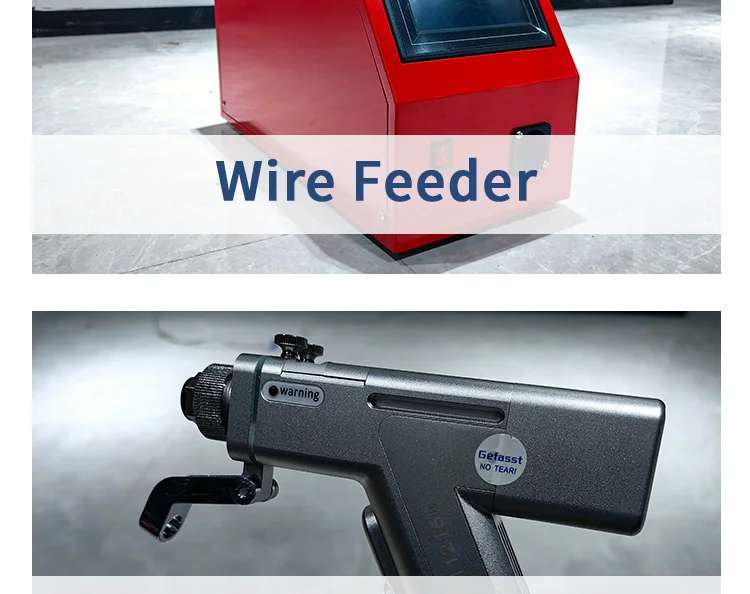

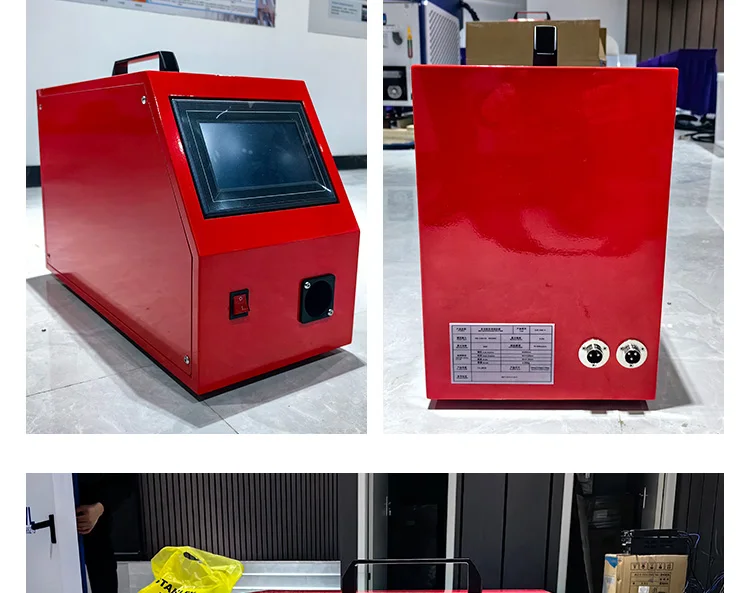

Multi functional automatic wire feeder | ||

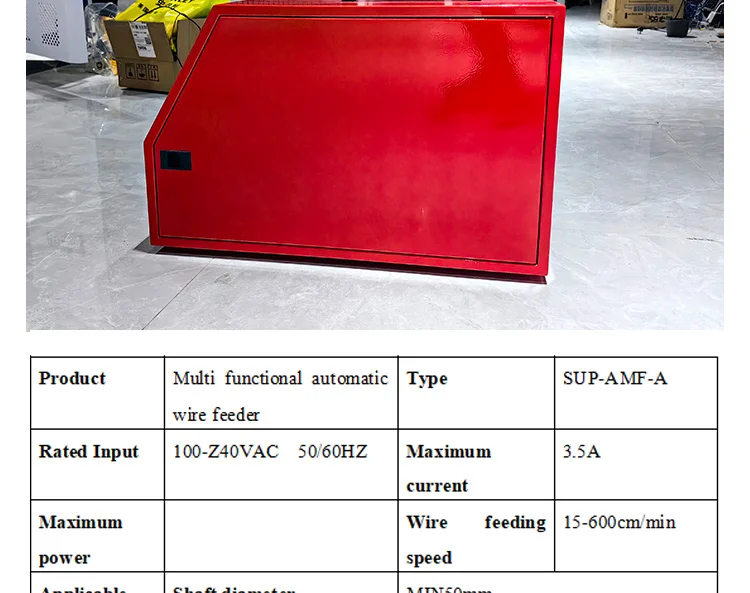

Product | Multi functional automatic wire feeder | Type | SUP-AMF-A | |
Rated Input | 100-Z40VAC 50/60HZ | Maximum | 3.5A | |
Maximum power | Wire feeding speed | 15-600cm/min | ||

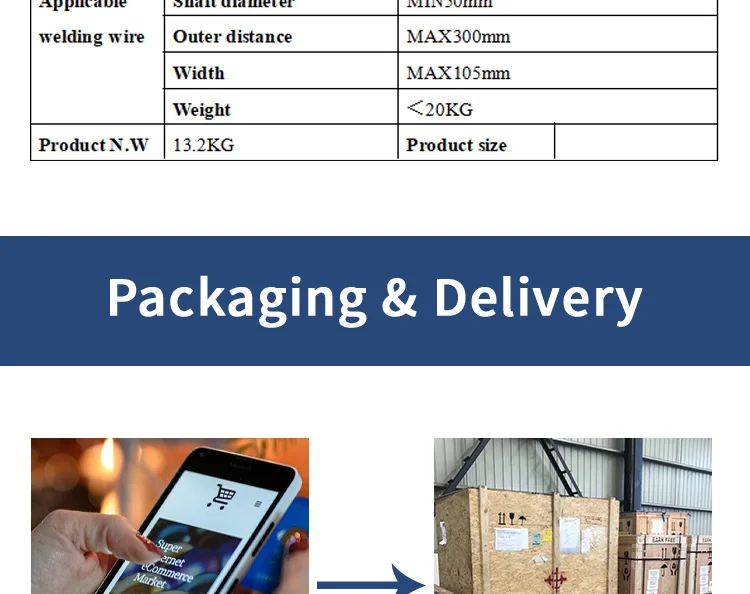

Applicable welding wire | Shaft diameter | MIN50mm | ||
Applicable welding wire | Outer distance | MAX300mm | ||
Width | MAX105mm | |||
Weight | ＜20KG | |||
Product N.W | 13.2KG | Product size | ||
CONFIRM THEORDER
FOR DELIVERY
WAREHOUSING，INTERNATIONAL
TRANSPORT，CUSTOMS DECLARATION
CUSTOMS CLEARANCE,ETC
DELIVER TO YOUR DOOR
Three Things You Need to know:
1. Laser we mainly use foam packaging, to prevent the instrument collision and damage.
2. Packing is mainly in wooden cases without fumigation which is easy to pass the customs.
3. Accepted Delivery Terms: FOB,CFR,CIF,EXW, FAS,CIP,FCA,CPT,DDP,etc.
2. Packing is mainly in wooden cases without fumigation which is easy to pass the customs.
3. Accepted Delivery Terms: FOB,CFR,CIF,EXW, FAS,CIP,FCA,CPT,DDP,etc.

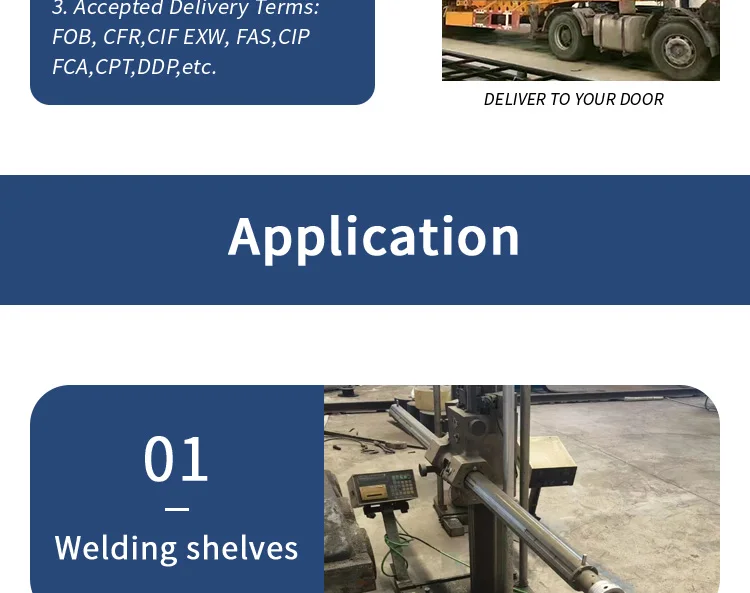

Applicable Industries:Decoration welding shelves,stainless steel door and window guardrails,distribution boxes,stainless steel furniture welding,other
Other related product recommendations

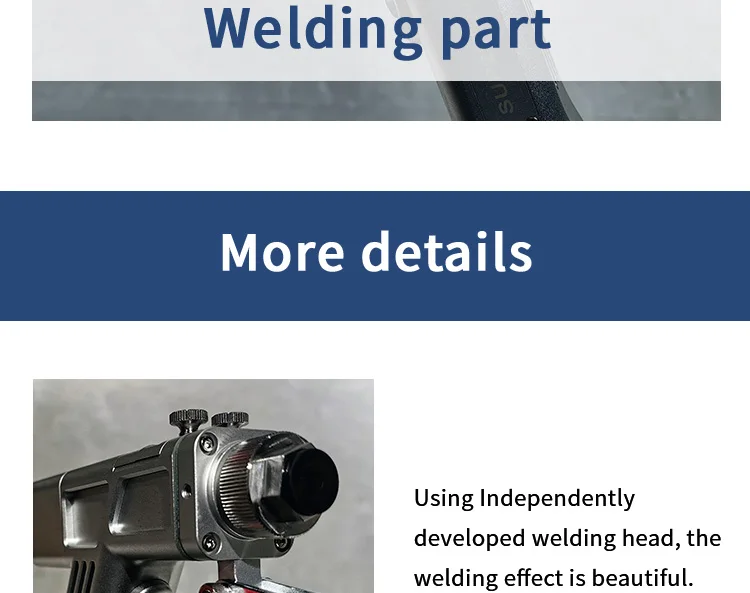

Using Independently developed welding head,the welding effect is beautiful.

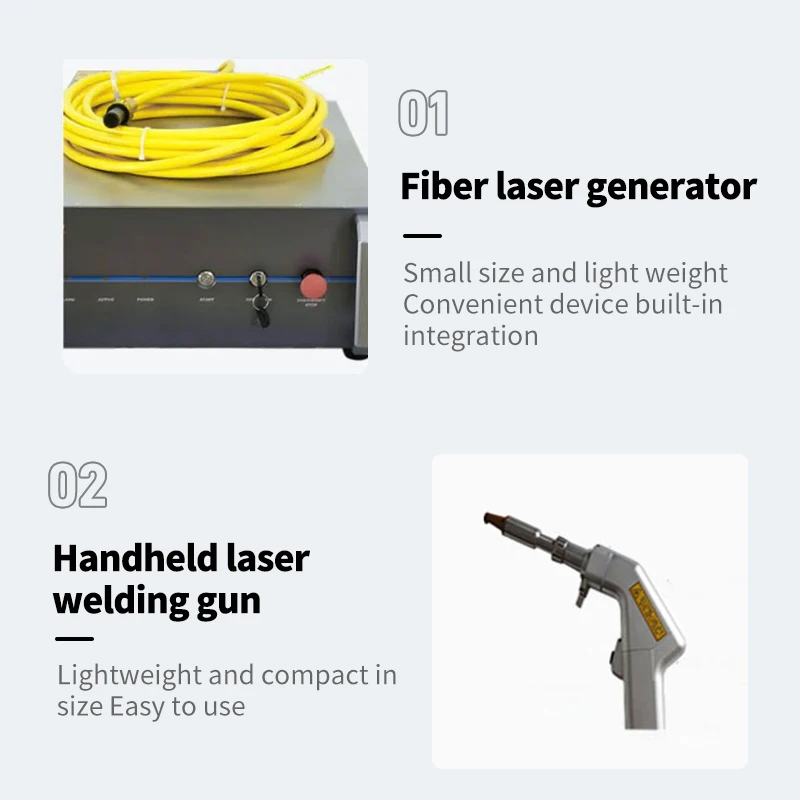

The standard configuration is Raycus and MAX laser source,the quality is stable and reliable.
Equipment installation and line connection specifications,stable and reliable quality
Mass production in physical factory,fast delivery.
Export fumigation-free and moisture-proof sealed packaging.

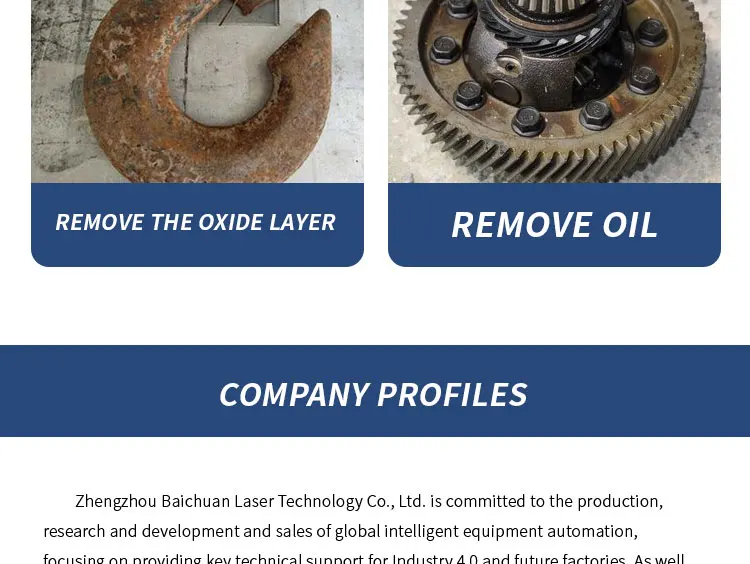

Zhengzhou Baichuan Laser Technology Co, Ltd. is committed to the production,research and development and sales of global intelligent equipment automation,focusing on providing key technical support for lndustry 4.0 and future factories. As well as targeted personalized system integration solutions, it is a first-class enterprise in the domestic laser industry and one of the world-class intelligent equipment automation manufacturers. Baichuan Laser is located in the Kyushu Tongqu, the hinterland of the Central Plains of Zhengzhou high-tech Development Zone, Henan Province, and Tsinghua University intelligent equipment Research lnstitute strong cooperation, equipped with advanced processing, testing, measurement equipment. The company implements strict quality management, and has passed ISO 9001 quality system certification, ISO 14001 environmental system certification,ISO 45001 occupational health and safety certification,and several product series have obtained EU CE system certification.
The company has an outstanding series of laser cutting machine series, handheld laser welding, handheld laser cleaning machine, intelligent painting equipment and other products of the technical expert team, integration of international frontier intelligent automation technology, and closely cooperate with Germany, the United States, the United Kingdom and other world-renowned device manufacturers, developed and produced a number of technologies in the leading position at home and abroad. In particular, the high-efficiency metal laser handheld series ranks first in the metal cutting industry in terms of technical surface cleaning and welding technology. ln order to better serve customers, Baichuan Laser has established after-sales service system all over the world, has dozens of overseas agents, and set up special service agencies to provide customers in different industries with metal cutting forming, surface treatment, painting and automatic production line all-round application solutions, so that the company's products and manufacturing processes in various industries can achieve seamless connection. Baichuan Laser, help China's intelligent manufacturing, create world quality,service global customers!
1.According to customer needs, the company can provide video installation tutorials, remote guidance for installation and debugging,explanation of machine structure principles software installation and processing parameter settings,normal maintenance and processing knowledge of the entire machine, and other comprehensive training for customers.
2.The company guarantees the normal use and maintenance of the machine for customers, and provides remote repair technical guidance within 6 months from the date of purchase,with discounts on consumables and vulnerable parts.
3.Our senior professional after-sales service personnel can respond to customer maintenance and repair requirements 24 hours a day within the scope of their machines, providing fast and efficient services.
The company's senior professional after-sales service personnel can respond to customer maintenance and repair requirements 24 hours within the scope of the customer's machine, and provide fast and efficient service.
4.The company free after-sales service line timely response to customer technical consultation.
Q1: How to install and run the machine?
A3: 1) just tell us below information，Max work size:choose most suitable model.
A1: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q2: How can I do if the machine goes wrong? A2: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q3: I don’t know which one is suitable for me? A3: 1) just tell us below information，Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q4: What's your MOQ?
A4: We don't have MOQ. No matter 1 set order or 100 sets order, we will give you support with our heart and soul.
Q5: How do your factory do regarding quality control?A5: Quality is priority. Each Baichuan laser machine will be tested by 24 items. After all the 24 items passed, then our QC do 48~72 hours reliability test.
