High Recovery Copper Sulfide Oxide Ore Separation Machine Small Copper Ore Process Plant
- Category: >>>
- Supplier: Jiangxi Hengcheng Mining Equipment Co. Ltd.
Share on (1601256158335):
Product Overview
Description
Product Overview
Copper Sulfide Ore Flotation Machine Copper Processing Plant For Sale
Achieve optimal mineral ore recovery with minimal impact on the environment. JXHC chemical flotation process enables sustainable and cost-effective copper/lead/zinc ore recovery.
Why do we use flotation separation?
Flotation is a benefication method based on the hydrophobicity difference of the mineral surface. While the copper mineral is usually in the form of sulfuration exiting in the mineral. Its natural floatability is good, so flotation is the main method of extracting the copper ore. According to the processing order of the useful mineral, the copper ore processing/mining can be divided into precedence flotation, equivalent flotation, mixed flotation and partial flotation. The process choice of copper ore flotation is determined by the raw ore properties.
Problems that need to be considered when processing.
Meanwhile, there are many determined factors for copper ore flotation process, like the mineral disseminated particle size, the associated relationship with quartz rock and the gangue mineral types. Only taking full consideration of the factors and using the proper process, it can efficiently recycle the useful copper mineral from the raw ore.

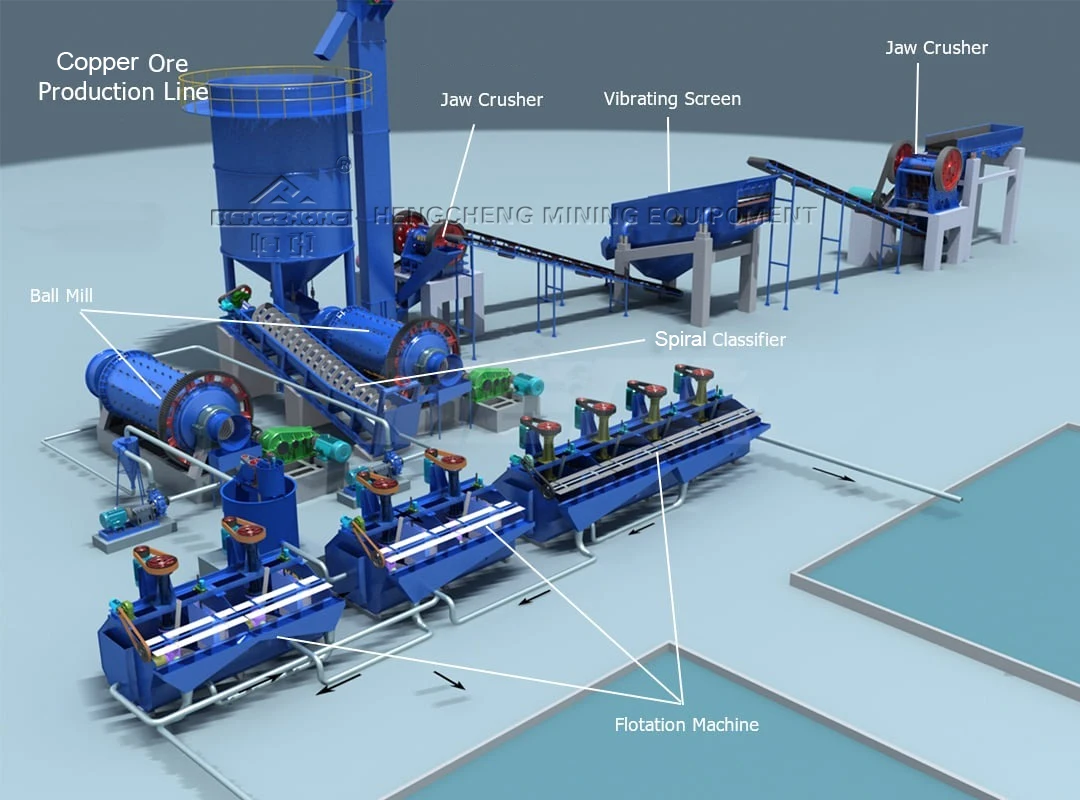

Main machines

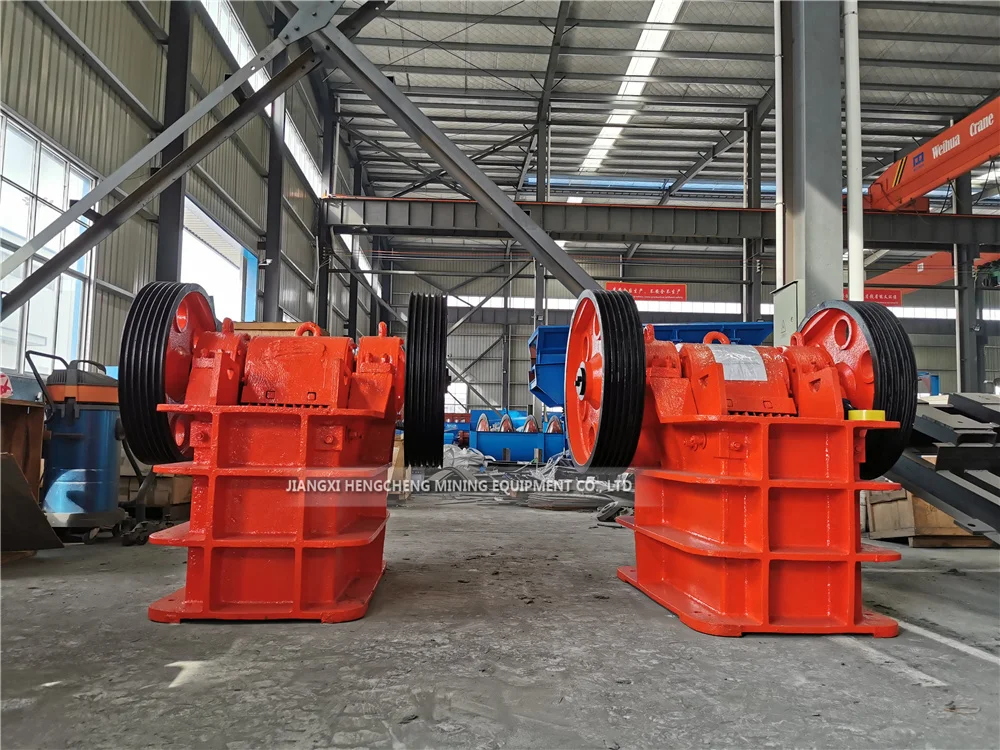

Jaw Crusher
PE jaw crusher is mainly used as primary crusher and secondary crusher in the mining plant, it can crush all kinds of medium and hard ores and rock materials which the compressive strength less than 320Mpa.
Jaw crusher is a necessary equipment for mineral processing lines.

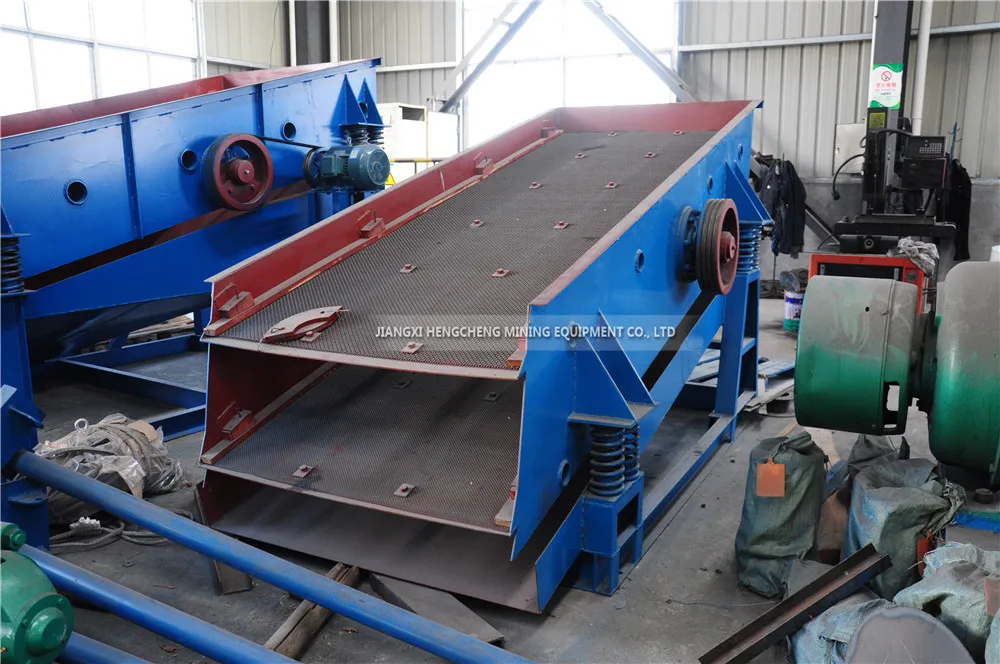

Vibrating Screen
Circular vibrating screen (round vibrating screen) is a new type of vibrating screen with multi-layers and high efficiency.
Circular vibrating screen uses round eccentric shaft exciter and partial block to adjust amplitude, material sieve has long running line and many sieving specifications.

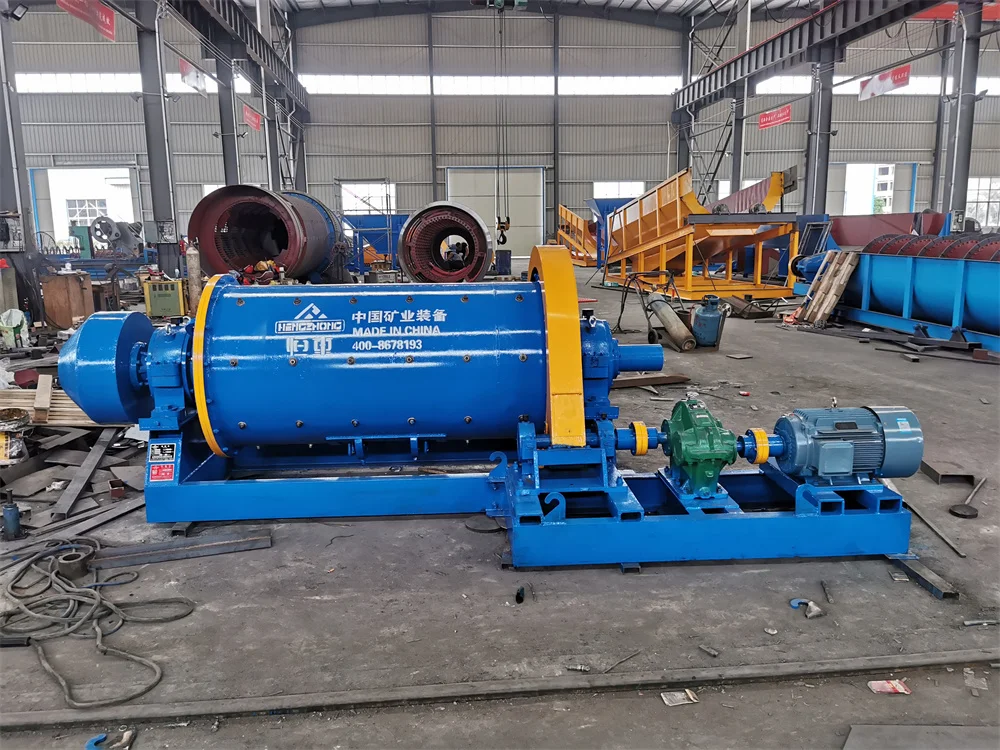

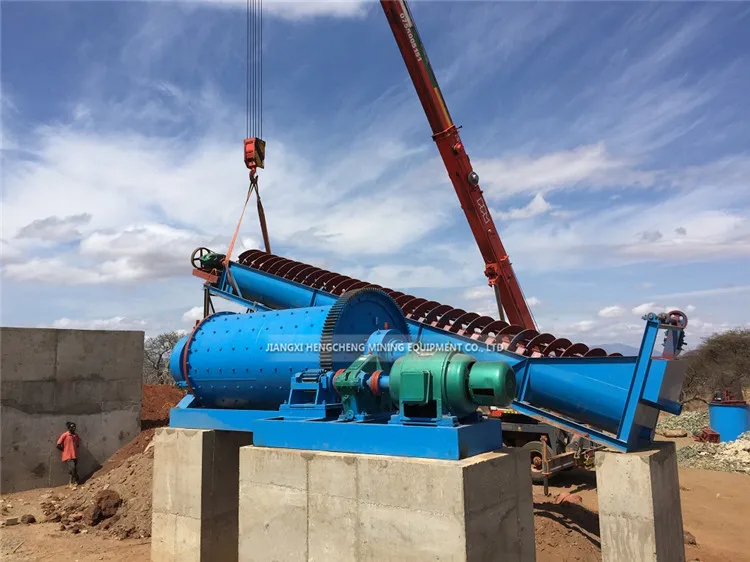

Bal Mill
ball mill is a key equipment to grind the crushed materials, and it is widely used in ore processing of ferrous metal and non-ferrous
metal, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overflow type due to different ways of discharging material.
metal, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overflow type due to different ways of discharging material.

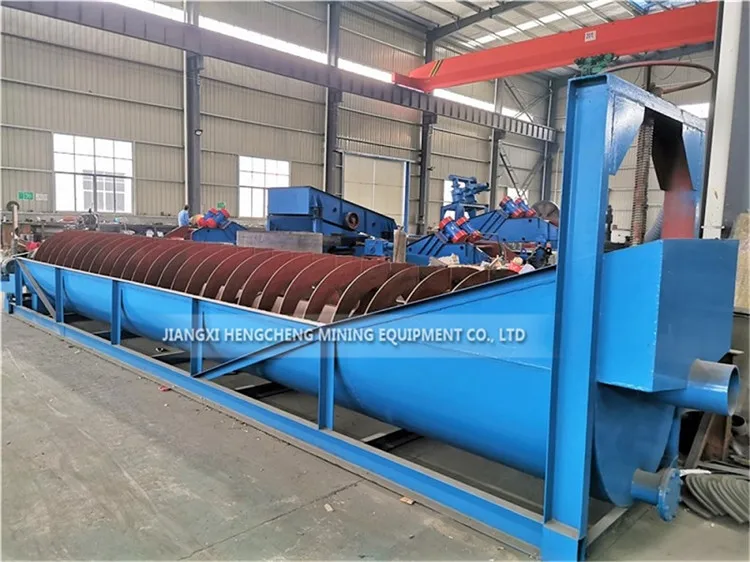

Spiral Classifier
Spiral classifier mainly used mineral classification after grinding mineral, widely used with ball mill to form a closed-circuit
to distribute sands, or used for grading ore sand and fine mud in gravity separation, grading ore sand according to particle size,
desliming and dehydration.
to distribute sands, or used for grading ore sand and fine mud in gravity separation, grading ore sand according to particle size,
desliming and dehydration.

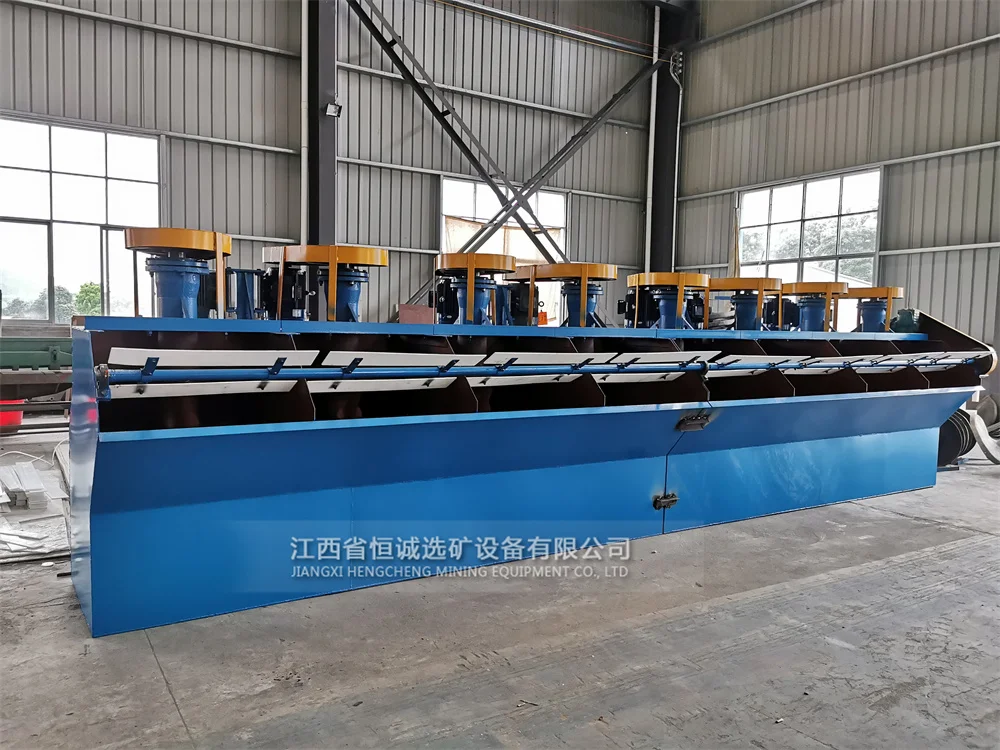

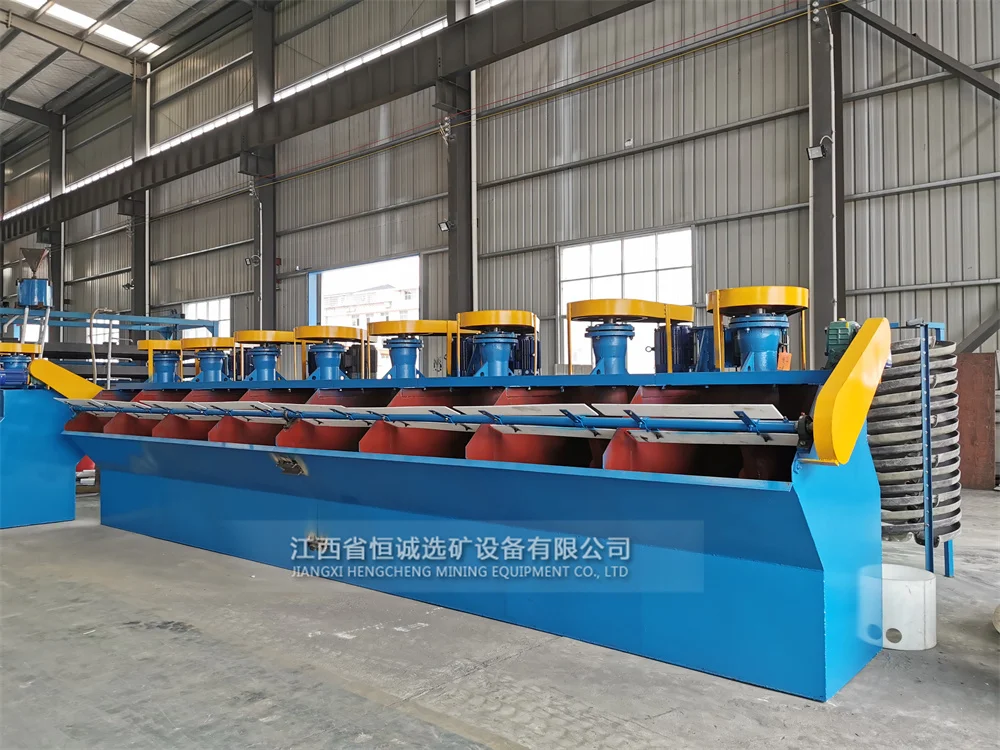

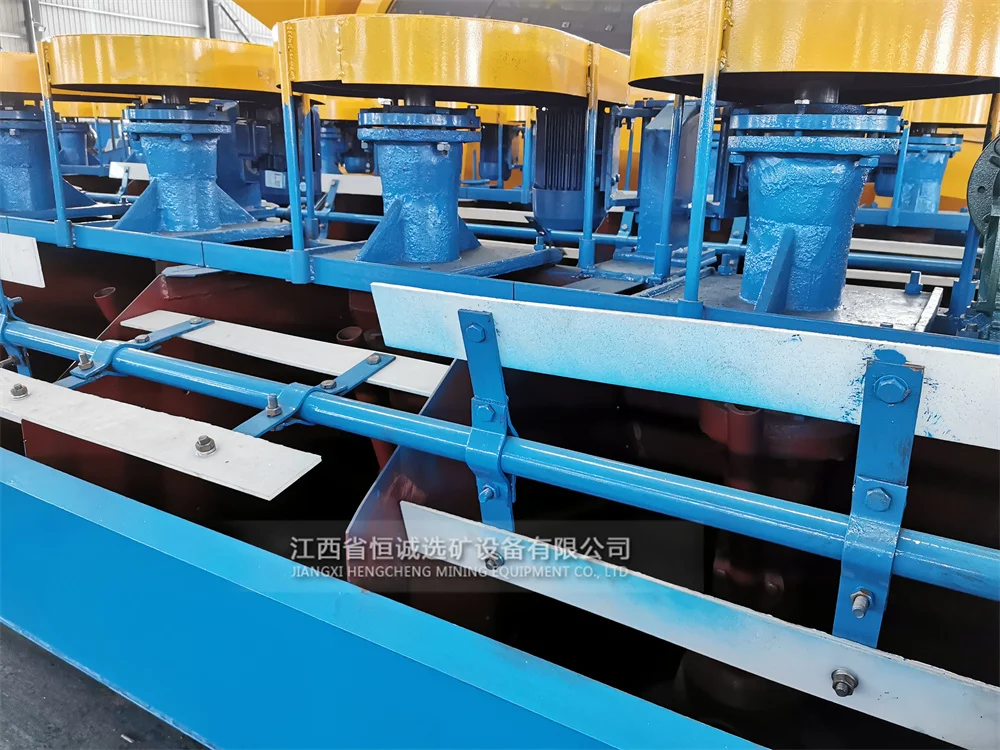

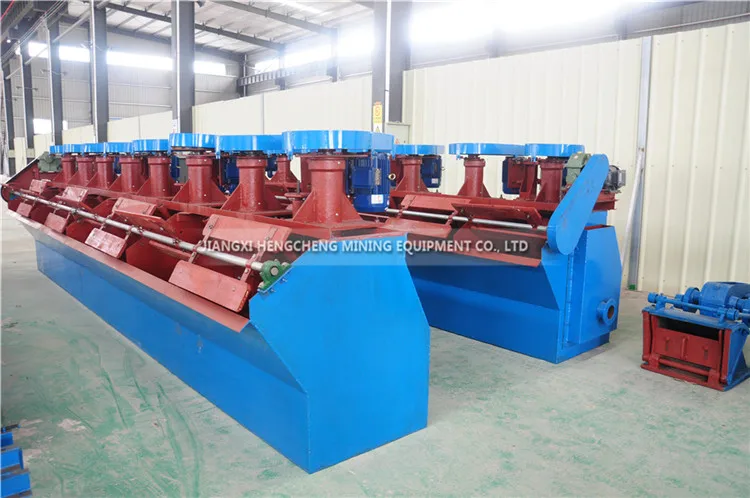

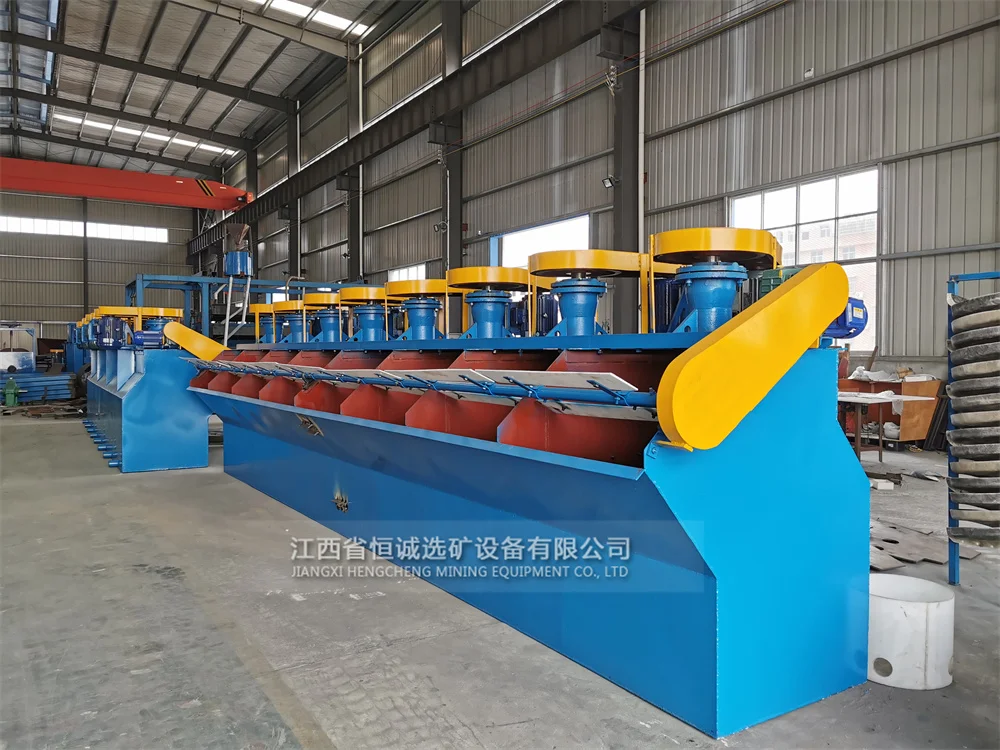

Flotation Machine
Flotation machine is widely used for roughing, concentrating and recovering flotation of nonferrous metals that include copper,
lead, zinc, nickel and molybdenum, ferrous metal, It can also be used for separating nonmetallic minerals. like coal and fluorite.
lead, zinc, nickel and molybdenum, ferrous metal, It can also be used for separating nonmetallic minerals. like coal and fluorite.

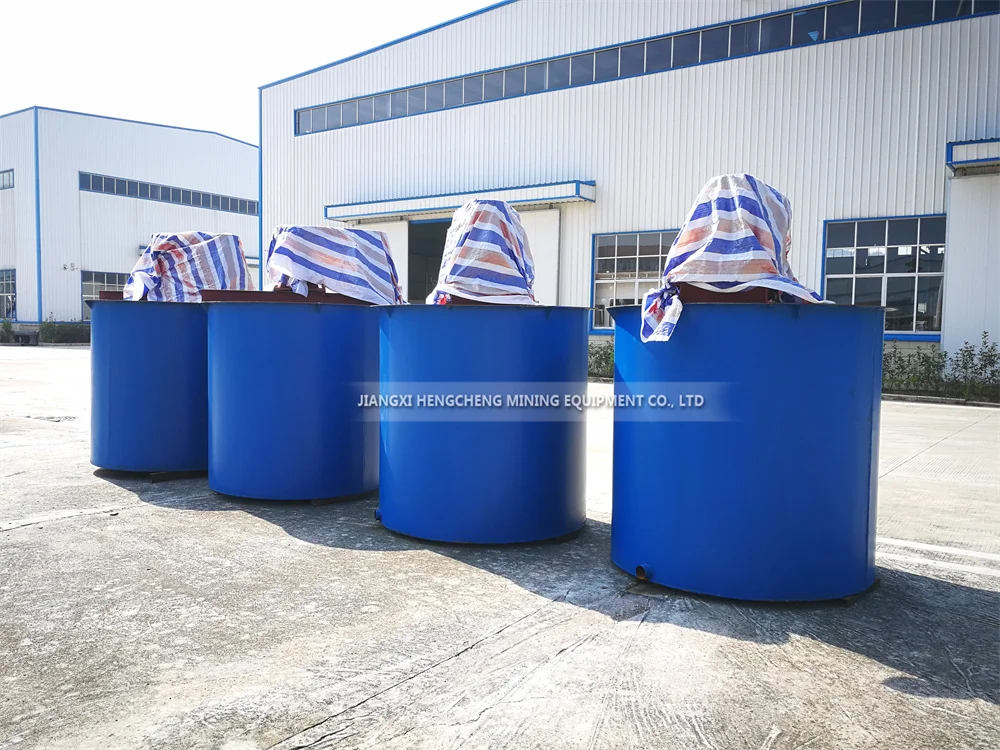

Mixing Tank With Agitator
The MIXING TANK is suitable for the mineral processing industry, also can be used for all kinds of chemical industry mixing, carbon steel mixing tanks before the flotation process of minerals mixing, the medicine and slurry fully mixed evenly, Mixing barrel is necessary
industrial blender machine to increase the reaction time and strengthen the quality of drug reaction.
industrial blender machine to increase the reaction time and strengthen the quality of drug reaction.

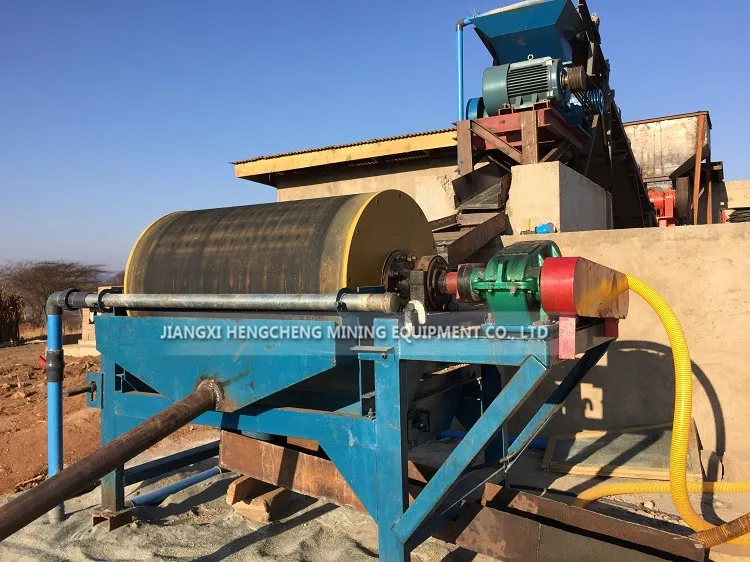

Magnetic Separator
Magnetic separator is usually used for sorting the fine-grained strong magnetic minerals, or removing strong magnetic minerals from non-magnetic minerals. With a deep magnetic field, the machine can make a continuous row of ore feeding and discharge. It also has enough working clearance and high processing capabilities.

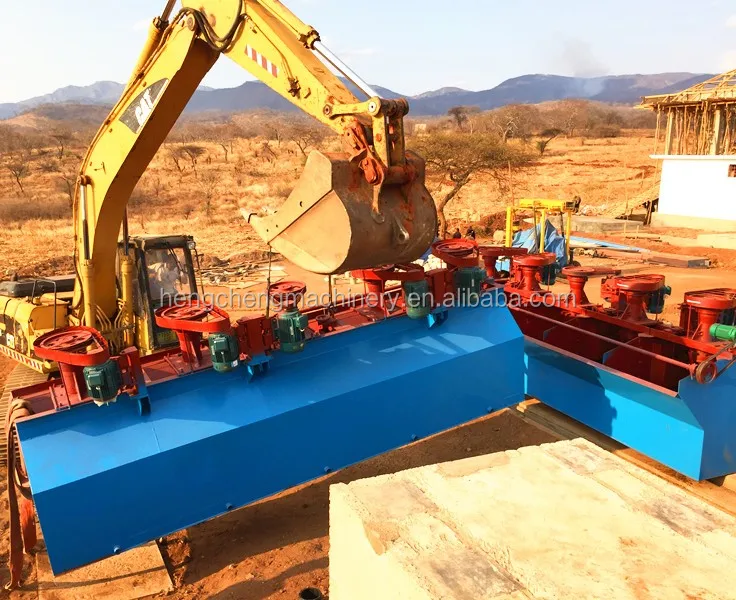

Successful project
Related Equipment: Jaw Crusher, Ball Mill, Hammer Mill, Spiral Classfier, Spiral chute, Flotation Machine
1) JXHC designed the flowchart and plants layout drawing for this customer.
2) JXHC supplied full sets of equipment for the whole processing line.
3) JXHC dispatched our Engineer Mr. JASON for guiding installation at customer's project site.
3) JXHC dispatched our Engineer Mr. JASON for guiding installation at customer's project site.
Our Advantages
* Comes from one supplier, responsible for the whole package.
* Provides mechanical and performance guarantees for the entire plant unit, with clear battery limits for engineering and implementation.
* Provides optimal process performance with safe operation and maintenance.
* Offers savings in design and manufacturing.
* Delivering processing facilities to global environmental standards with localized vision.
* Provides mechanical and performance guarantees for the entire plant unit, with clear battery limits for engineering and implementation.
* Provides optimal process performance with safe operation and maintenance.
* Offers savings in design and manufacturing.
* Delivering processing facilities to global environmental standards with localized vision.
Product Parameters
Model | Volume | Cell size | Impeller Dia. | Impeller speed | Capacity | Power | Singe cell weight |
Unit | m3 | mm | mm | r/min | m3/min | kw | kg |
XJK-3A | 0.35 | 700×700×700 | 300 | 483 | 0.18-0.4 | 2.2/0.55 | 430 |
XJK-4A | 0.62 | 820×900×850 | 350 | 400 | 0.3-0.9 | 3/1.1 | 755 |
XJK-5A | 1.1 | 1100×1100×1000 | 500 | 330 | 0.6-1.6 | 5.5/1.1 | 1416 |
XJK-6A | 2.8 | 1750×1600×1100 | 600 | 280 | 1.5-3.5 | 11/1.1 | 2113 |
XJK-7A | 5.8 | 2200×2200×1200 | 750 | 240 | 3–7 | 22/1.5 | 3400 |
SF-0.37 | 0.37 | 700×700×750 | 296 | 386 | 0.2-0.4 | 1.5/0.55 | 468 |
SF-0.7 | 0.7 | 820×900×950 | 350 | 400 | 0.3-0.9 | 3/1.1 | 805 |
SF-1.2 | 1.2 | 1100×1100×1100 | 450 | 312 | 0.6-1.2 | 5.5/1.1 | 1373 |
SF-2.8 | 2.8 | 1700×1600×1150 | 550 | 268 | 1.5-3.5 | 11/1.5 | 2138 |
SF-4 | 4 | 1850×2050×1200 | 650 | 220 | 2–4 | 15/1.5 | 2582 |
SF-8 | 8 | 2200×2900×1400 | 760 | 191 | 4–8 | 30/1.5 | 4129 |
SF-10 | 10 | 2200×2900×1700 | 760 | 191 | 5–10 | 30/1.5 | 4486 |
SF-16 | 16 | 2850×3800×1700 | 760 | 191 | 5–16 | 30×2/1.5 | 8320 |
SF-20 | 20 | 2850×3800×2000 | 760 | 191 | 5–20 | 30×2/1.5 | 9828 |
Company Profile
Jiangxi Hengcheng Mining Equipment Co., Ltd
Jiangxi Hengcheng Mining Equipment Co., Ltd is a well-known manufacturer and supplier of mineral ore mining equipment in Jiangxi Province, China. We have more than 20 years of equipment-producing experience.
Our factory owns an area of more than 30000m², self-contained with modernized processing machines. Our equipment has already been exported to more than 23 countries, like South Africa, Togo, Sudan, Zimbabwe, Tanzania, Kenya, Mali, Vietnam, Indonesia, Philippines, Bolivia, USA, Singapore, Mongolia, etc.
Currently, we are good at alluvial/soil gold ore, hard rock gold ore, manganese ore, chrome ore, tin ore, copper ore,
tantalum-niobium(coltan) ore processing, etc. Therefore, we have gained lots of knowledge of mining technology and project running experiences.
Our factory owns an area of more than 30000m², self-contained with modernized processing machines. Our equipment has already been exported to more than 23 countries, like South Africa, Togo, Sudan, Zimbabwe, Tanzania, Kenya, Mali, Vietnam, Indonesia, Philippines, Bolivia, USA, Singapore, Mongolia, etc.
Currently, we are good at alluvial/soil gold ore, hard rock gold ore, manganese ore, chrome ore, tin ore, copper ore,
tantalum-niobium(coltan) ore processing, etc. Therefore, we have gained lots of knowledge of mining technology and project running experiences.
Exhibitions
Our company had attended international exhibitions two times in South Africa and Kenya. Both of them are for the mining industry. During the two exhibitions, we obtained a large number of customers and orders. At the same time, through such close communication with customers, we had a clearer understanding of customers' needs, and we also achieved significant improvement in production.
Contact US
All of our equipment can be customized according to your requirements. If you are interested in our products, please
don't hesitate to contact us. You can tell me the following questions so that we can send you an accurate quotation
don't hesitate to contact us. You can tell me the following questions so that we can send you an accurate quotation
soon, including extra discounts!
1. Which machine do you need like gold washing machine, spiral chute, vibrating screen, jig separator, Shaking table, stone crusher, jaw crusher, impact crusher, etc.
2. What is your raw material plan to process like gold ore, diamond ore, copper ore or iron ore, etc.
3. The capacity you need is Like 100 tons per hour or 2000 tons per day.
4. Your contact information both email and phone number are essential, we can contact you easier.
2. What is your raw material plan to process like gold ore, diamond ore, copper ore or iron ore, etc.
3. The capacity you need is Like 100 tons per hour or 2000 tons per day.
4. Your contact information both email and phone number are essential, we can contact you easier.
