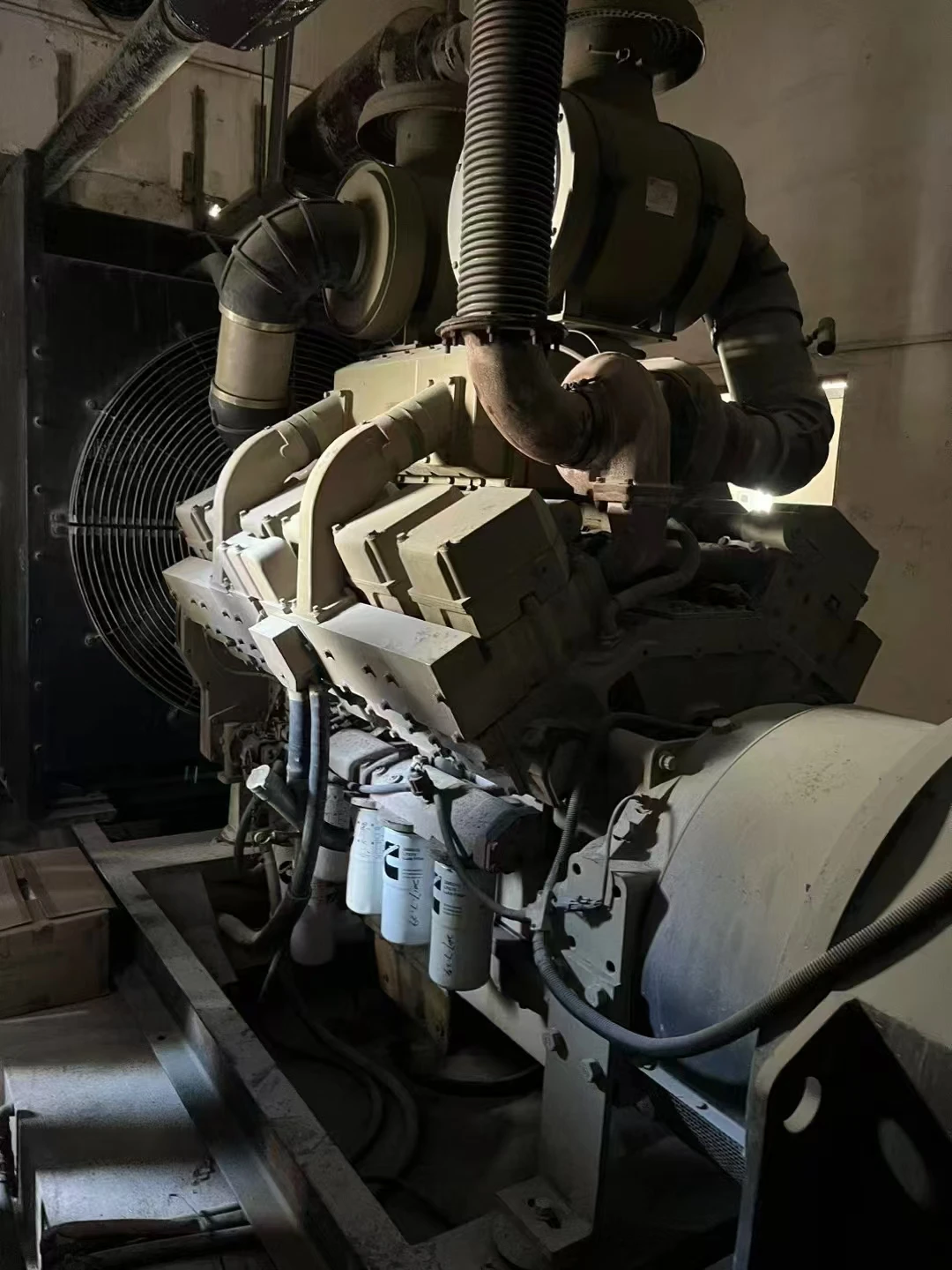

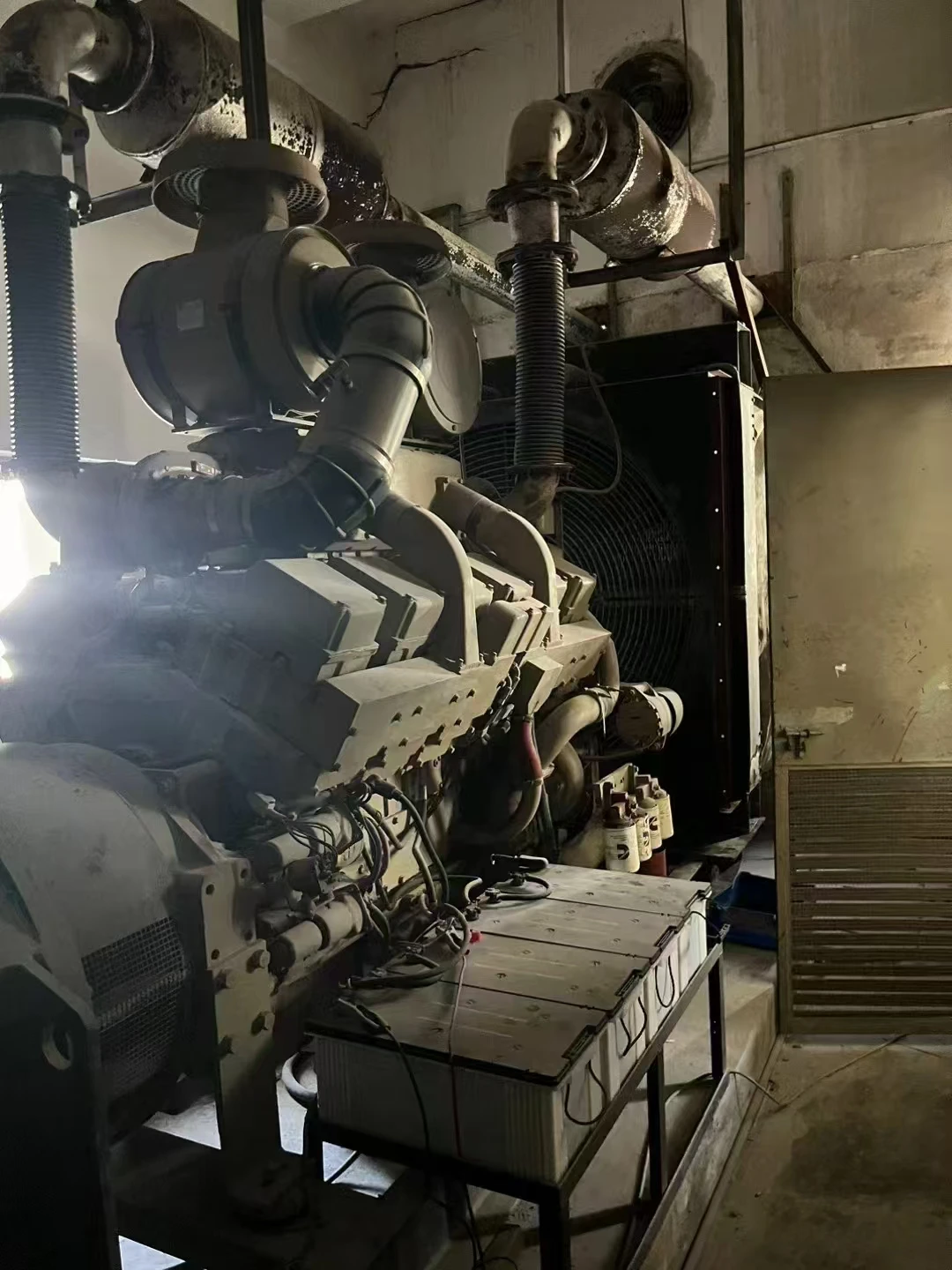

cummins used diesel generator sets KTA38 G2 cummins 800KW diesel generator
- Category: >>>
- Supplier: Shaoguan Lam Construction Machinery LtdShaoguan Ltd
Share on (1601256182350):
Product Overview
Description
Product Description

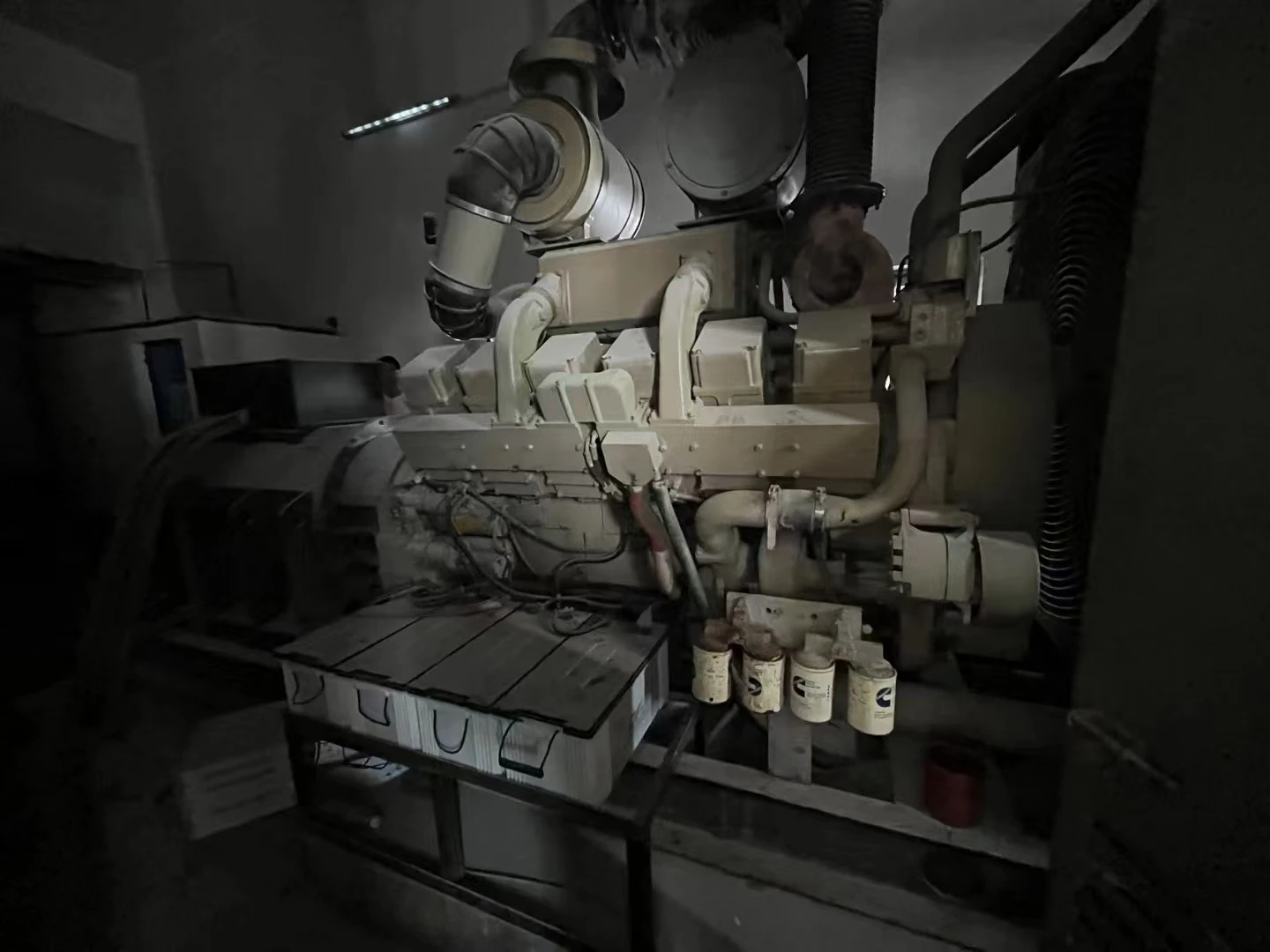

General data for Cummins KTA38-G2A Diesel Engine for Generator Set | ||
Engine Model | KTA38-G2A | |
Type | 4 Stroke; 60° Vee; 12-Cylinder Diesel | |
Displacement | 38 L | |
Bore&Stroke | 159*159 mm | |
Dry Weight(fan to flywheel engine) | 3880 KG | |
Wet Weight(fan to flywheel engine) | 4111 KG | |
Center of Gravity from Rear Face of Flywheel Housing | 980 mm | |
Center of Gravity Above Crankshaft Centerline | 279 mm | |
Performance Date for Cummins KTA38-G2A Diesel Engine for Generator Set | ||
Rated Output/Speed | 813KW/1090HP/1500RPM | |
Standby Output/Speed | 895KW/120HP/1500RPM | |
Continuous Output/Speed | ||
Brake Mean Effective Pressure(rated output) | 1407 KPa | |
Brake Mean Effective Pressure(standby output) | 1551 KPa | |
Fuel Consumption/Rated Output | 162 L/h | |
Fuel Consumption/Standby output | 183 L/h | |
Technical data for Cummins KTA38-G2A Diesel Engine for Generator Set | ||
Aspiration | Turbocharged Aftercooled | |
Fuel System | PT Pump Direct Injection | |
Coolant capacity-engine only | 118 L | |
Oil Pan Capacity-Low/High | 87/114 L | |
Idle speed | 725-775 RPM | |
Frictional loss power/rated output | 86 KW | |
Compression ratio | 14.5:1 | |
Piston Speed | 7.9 m/sec | |
Specification

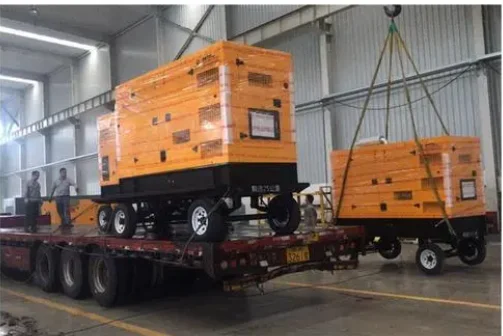

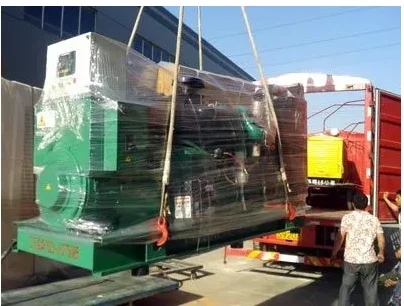

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
