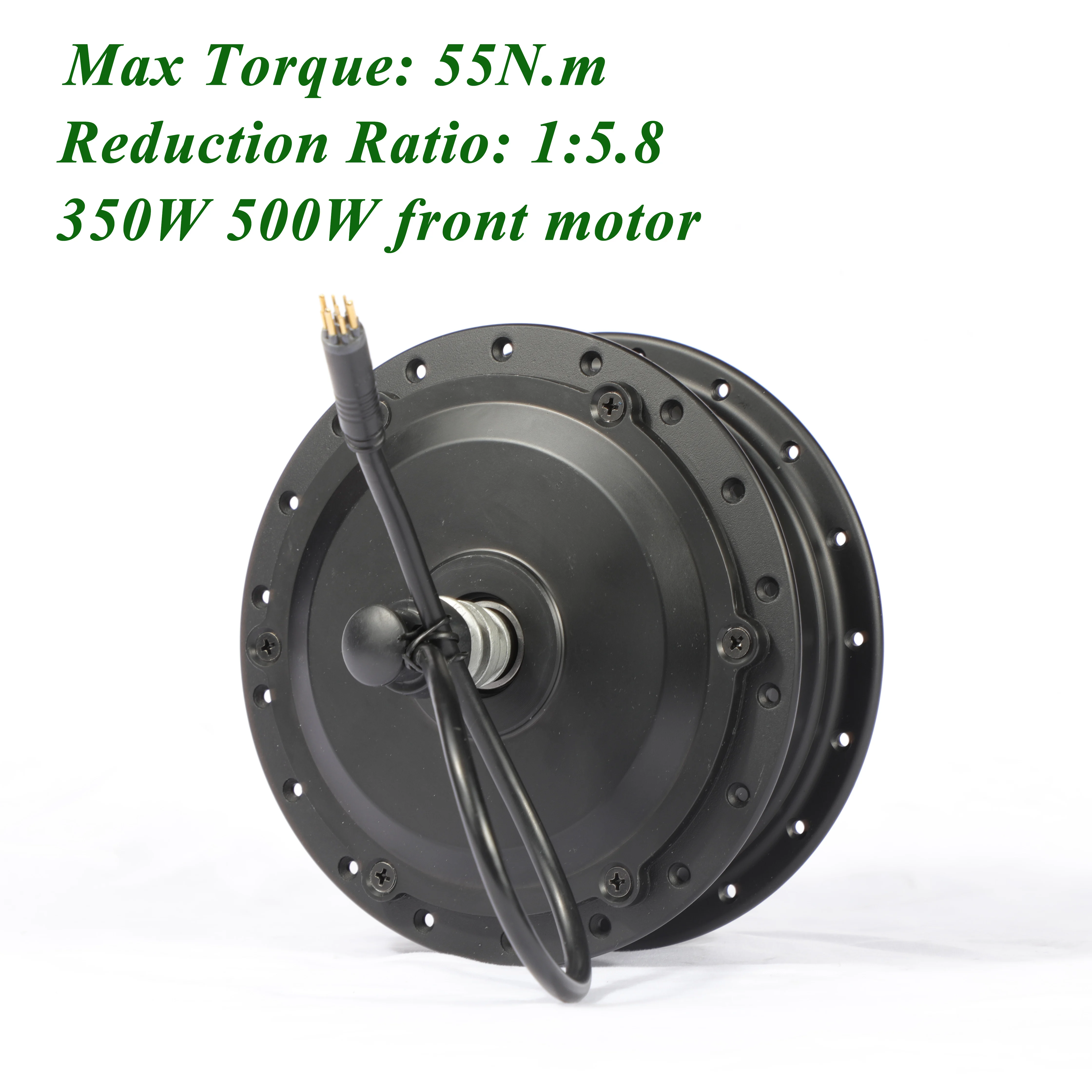

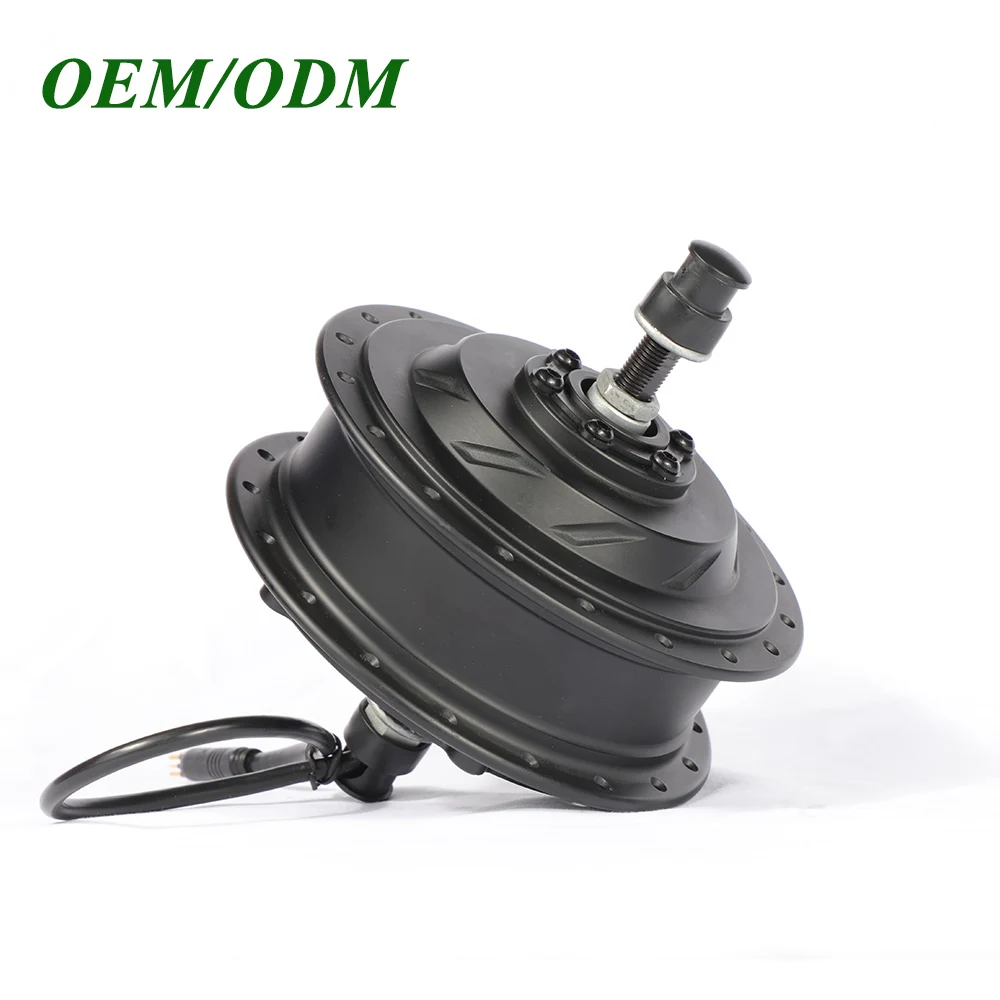

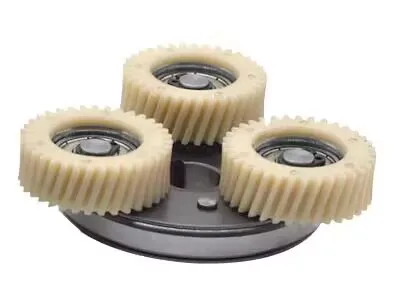

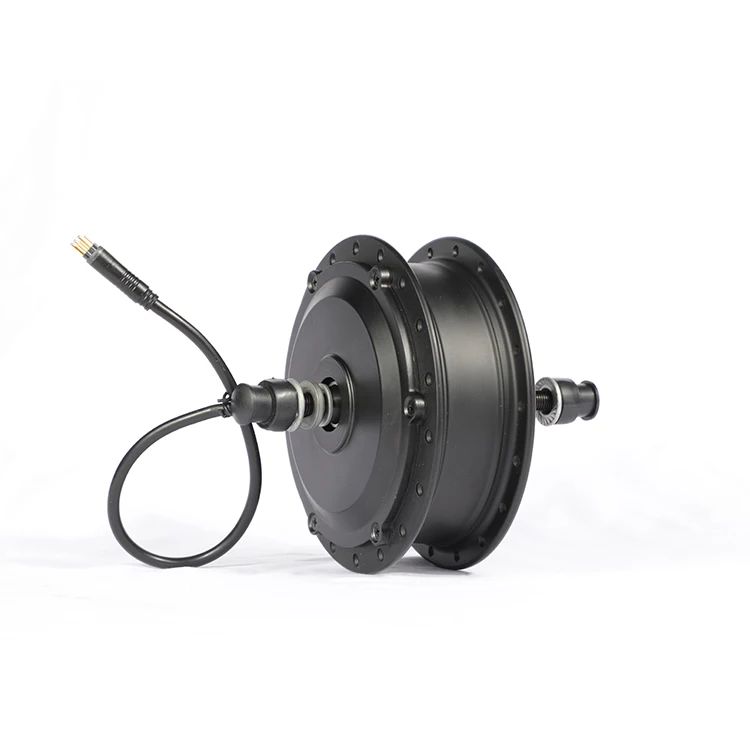

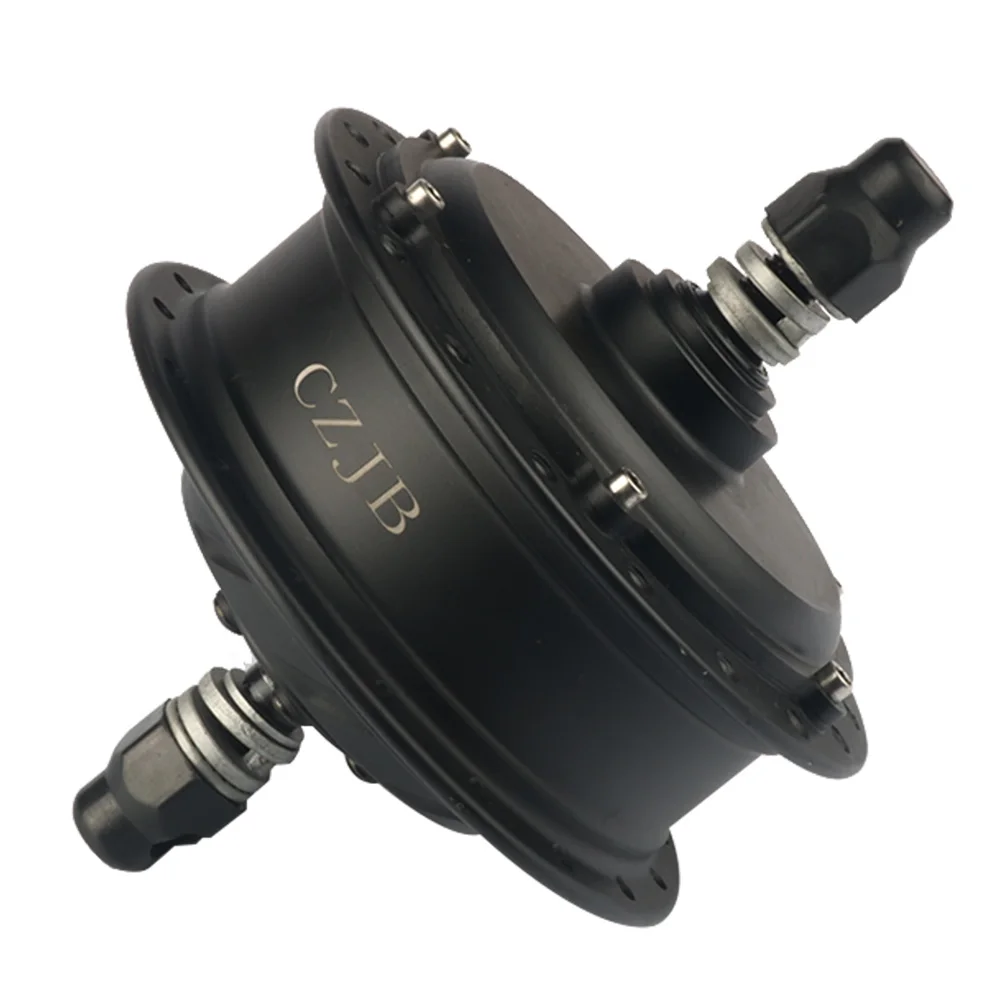

CZJB 105CQ low noise 350w 500w e bike brushless gear hub motor with helical gear
- Category: >>>
- Supplier: Changzhou Jiabo Machinery Manufacturing Co. Ltd.
Share on (1601256198680):
Product Overview
Description
Product Description
36v 350w
48v 500w
front gear motor use for MTB BIKE
48v 500w
front gear motor use for MTB BIKE
Rated Voltage(V) | 36/48 |
Rated Power(W) | 350/500 |
Rated Speed(km/h) | 25 |
Temperature(℃) | -20～45 |
Rated Efficiency(%) | ≥82 |
Color | Matt Black |
Wheel Size | 16"-28" |
Redution Ration | 1:5.8 |
Weight（kg） | 3.5 |
Open Size(mm) | 100 |
Cable Location | Shaft Center Right |
Spoke Specification | 36H*12g/13g |
Brake Type | V /Disc Brake |
Noise(db) | ≤55db |
Waterproof Grade | IP65 |

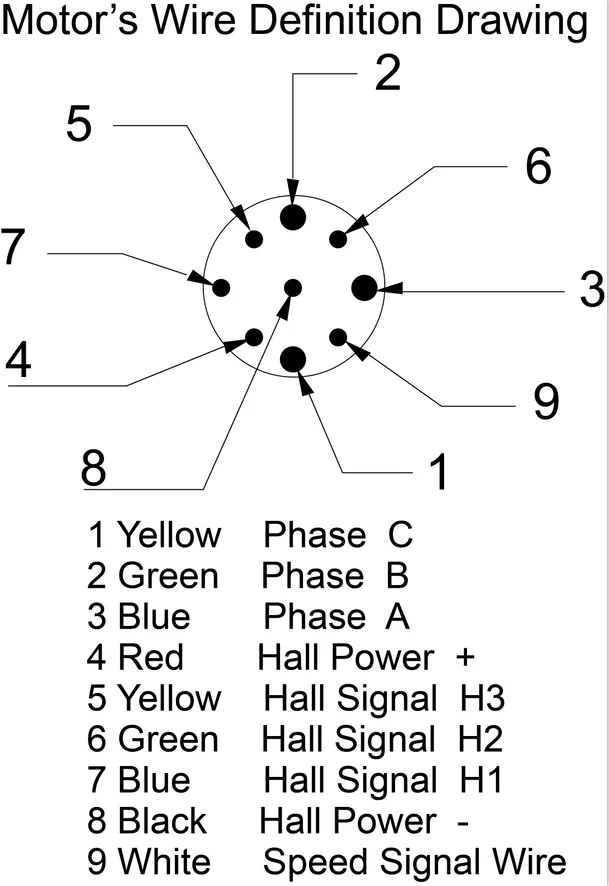

Nine pins waterproof cables(1.2 square for 250w/350w;1.5 square for 500w/750w)

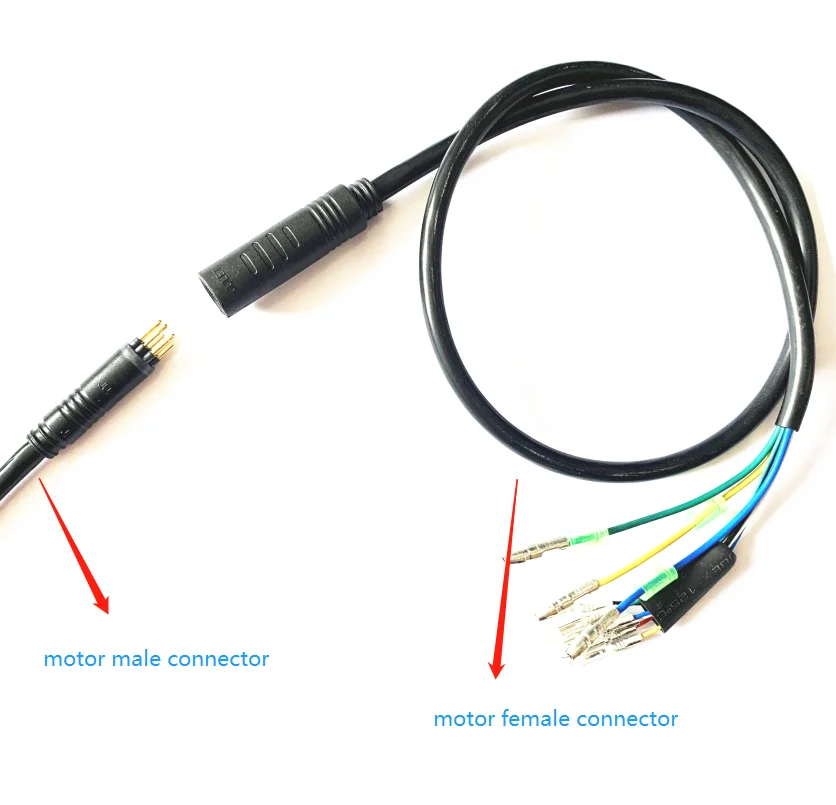

motor male connector:200mm female: 1200mm
If you need longer cables,customize is possible.We also can provide motor extension cables.
motor male connector:200mm female: 1200mm
If you need longer cables,customize is possible.We also can provide motor extension cables.
Company Profile
*E-bike hub motor manufacturer
*support e-bike system customization
*16 years professional experience of e-bike gear motor
*continuous R&D
*ODM&OEM
*ISO9001,CE,ROHS,SGS,UKCA,
*Western America Service Center
*support e-bike system customization
*16 years professional experience of e-bike gear motor
*continuous R&D
*ODM&OEM
*ISO9001,CE,ROHS,SGS,UKCA,
*Western America Service Center
