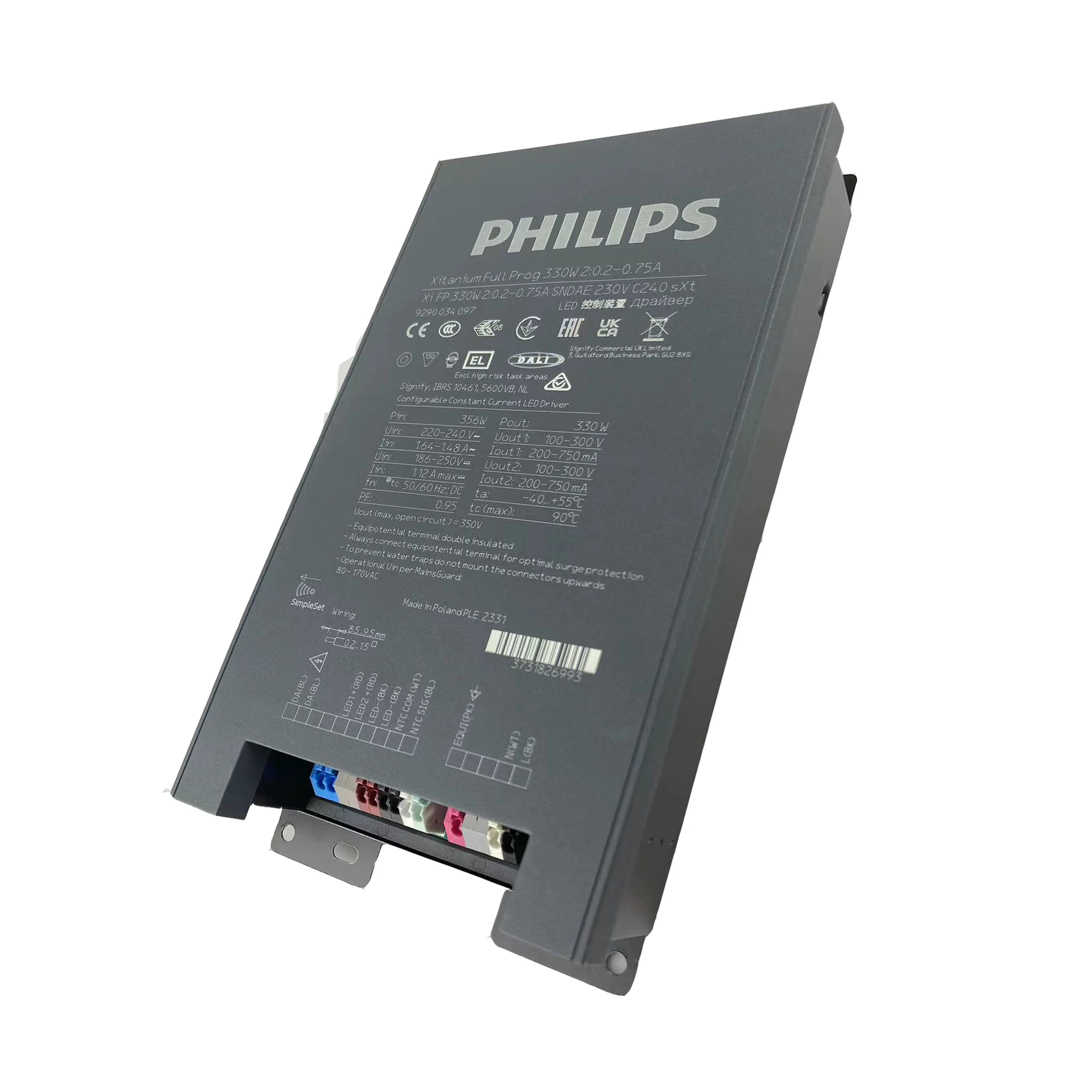

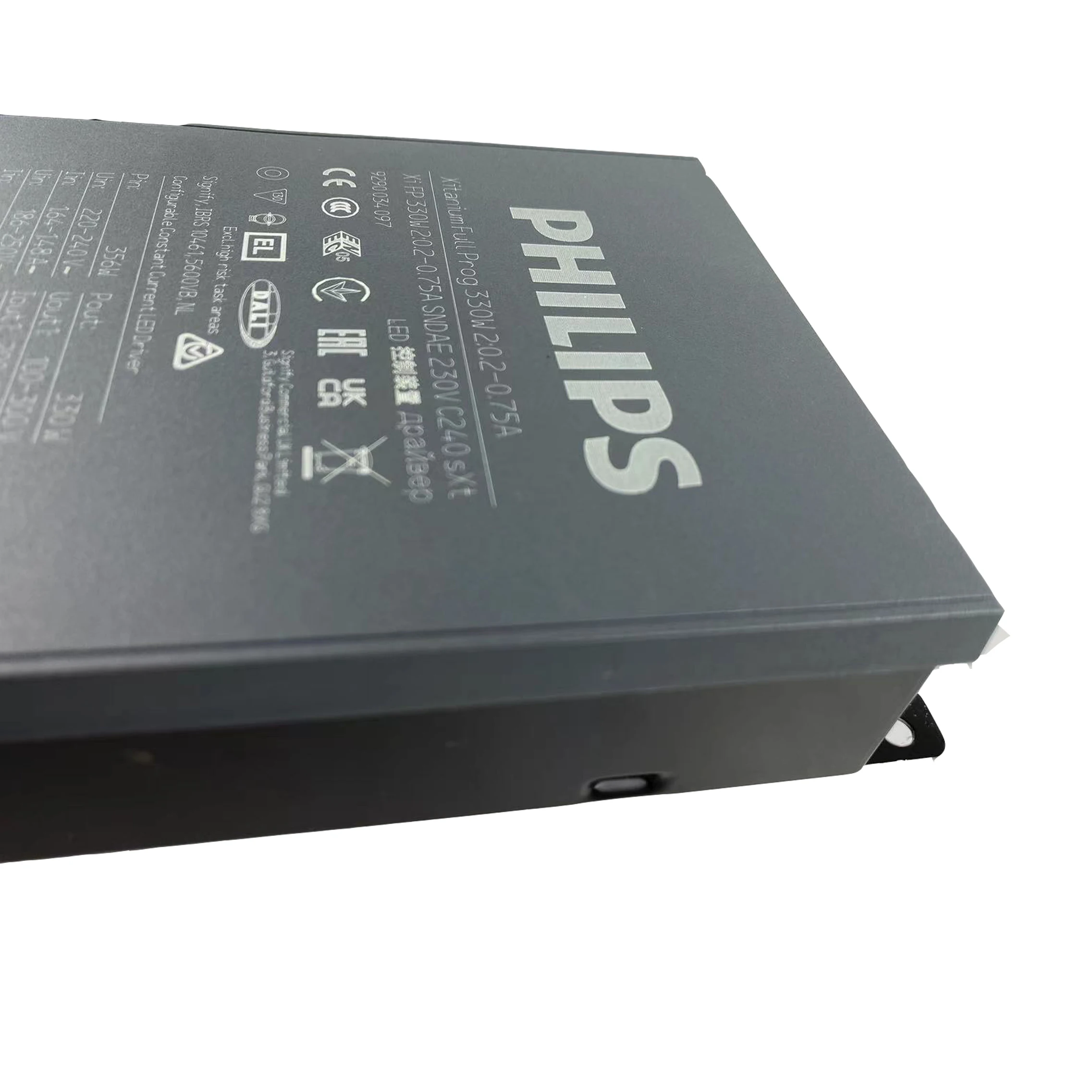

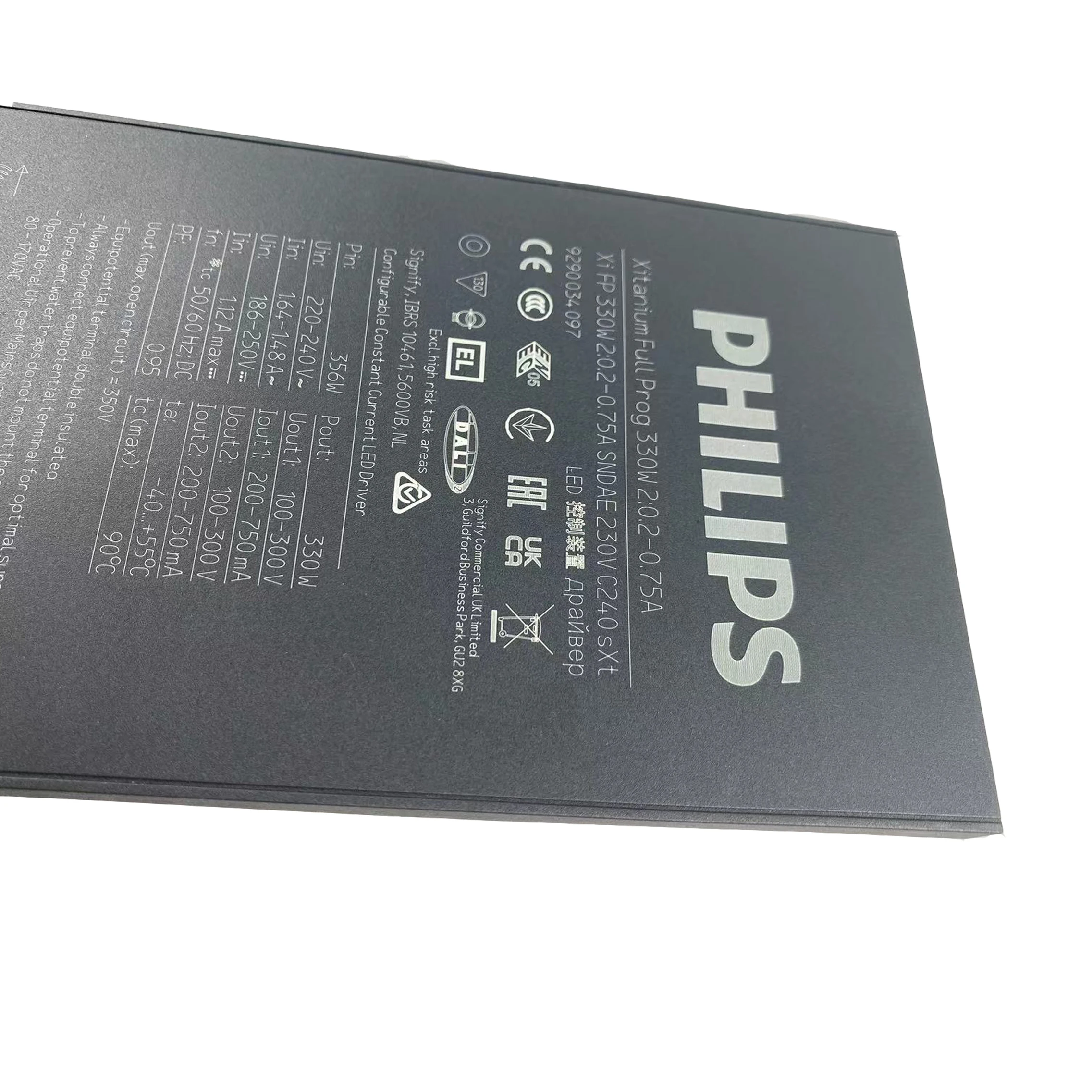

Xitanium FULL Prog LED Xtreme drivers Xi FP 330W 2:0.2 0.75A SNDAE 230V C240 sXt 929003409706
- Category: >>>
- Supplier: Shanghai Bipeng Lighting Company Limited
Share on (1601256201741):
Product Overview
Description
Product Description
Product Overview
Xitanium FULL Prog LED Xtreme drivers
Philips Xitanium Full Programmable LED drivers are specifically designed to deliver the highest performance, protection and configurability. The portfolio offers both central and standalone dimming protocols further increasing the energy savings and CO2 reductions achieved with LED lighting. The Xtreme technology ensures maximum robustness and
protection combined with a very long lifetime. In this product family Philips introduces new drivers in a compact form factor with state-of-the-art features, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance.
Benefits.
• Ultimate robustness, offering peace of mind and lower maintenance costs
• Fully programmable LED-drivers designed for the new digital and connected lighting world
• Extended diagnostics via MultiOne
• Easy to design-in, configure and install for Class I and Class II applications
• Energy savings through high efficiency and via multiple dimming options
Features.
• High surge protection (CM/DM)
• Long lifetime and robust protection against moisture, vibration and temperature
• Configurable operating windows (AOC)
• Multiple control interfaces: DALI, AmpDim, 1-step and 3-step LineSwitch
• Autonomous dimming via integrated DynaDimmer
• Adjustable thermal protection for driver (DTL) and LED module (MTP)
• Constant Light Output (CLO)
•Adjustable Start-up Time (AST)
• Adjustable Light Output (ALO)
• End-Of-Life indicator (EOL)
• Communication through mains via coded commands
• Compliant per DALI Part 251/252/253 (select models
Application.
• Road and street lighting
• Area lighting
• Tunnel lighting
• Industrial lighting
Datasheet
Electrical Input data
Specification item | Value | Unit | Condition |
Rated input voltage range | 202...254 | Vac | Performance range |
Rated input voltage | 230 | Vac | |
Rated input frequency range | 47...63 | Hz | Performance range |
Rated input current | 1.56 | A | @ rated output power @ rated input voltage |
Max. input current | 1.77 | A | @ rated output power @ minimum performance input voltage |
Rated input power | 356 | W | @ rated output power @ rated input voltage |
Power factor | ≥ 0.99 | @ rated output power @ rated input voltage | |
Total harmonic distortion | ≤ 8 | % | @ rated output power @ rated input voltage |
Efficiency | ≥ 93 | % | @ rated output power @ rated input voltage |
Rated input voltage DC range | 186...250 | Vdc | Performance range, external DC-rated fuse required |
Rated input current DC range | 1.12 | Adc | Performance range |
Input voltage AC range | 80...264 | Vac | Safety operational range, see MainsGuard graph |
Input frequency AC range | 45...66 | Hz | Safety operational range |
Input voltage DC range | 168...275 | Vdc | Safety operational range |
Standby Power | 0.46 | W | |
Isolation input to output | Double |
Electrical Output data
Specification item | Value | Unit | Condition |
Regulation method | Constant Current | ||
Output voltage | 100-300 | Vdc | |
Output voltage max. | 350 | V | Maximum voltage at open load |
Output current | 0.05...0.75 | A | |
Output current min programmable | 200 | mA | |
Output current min dimming | 50 | mA | |
Output current tolerance | ± 3 | % | |
Output current ripple LF | ≤ 4 | % | Ripple = peak / average @ < 1kHz |
Output current ripple HF | ≤ 4 | % | |
Output power | 5....165 | W |
Electrical Data Control Input
Specification item | Value | Unit | Condition |
Control method | AmpDim, Coded Mains, DALI, Dynadimmer | V | Output current amplitude dimming. Please refer to design-in guide at www.philips.com/oem for more controllability details. |
Dimming range | 10...100 | % | For latest DALI certification status please visit www.digitalilluminationinterface.org/products; LineSwitch: Vlow: < 160Vac Vhigh: 170 ... 264Vac |
Operational Temperature and Humidity
Specification item | Value | Unit | Condition |
Ambient temperature | -40...+55 | ºC | Higher ambient temperature allowed as long as Tcase-max is not |
Tcase-max | 90 | ºC | Maximum temperature measured at Tcase-point |
Tcase-life | 80 | ºC | Measured at Tcase-point |
Maximum housing temperature | 130 | ºC | In case of a failure |
Relative humidity | 10...90 | % |
Lifetime
Specification item | Value | Unit | Condition |
Driver lifetime | 100,000 | hours | Measured temperature at Tcase-point is Tcase-life. Maximum failures = 10% |
Programmable Features
Specification item | Value | Default setting | Condition |
Set output current (AOC) | Programmable, SimpleSet | 700 mA | Default output current: = 700 mA |
LED module temperature derating (MTP) | Yes | ||
Driver Temperature Limit (DTL) | Yes | ||
Constant Lumen Over Lifetime (CLO) | Yes | ||
DC emergency dimming (DCemDIM) | Yes | Default AOC: 15%. EOF(x) range: 10 ... 60%. No external DC rated | |
Adjustable Light Output (ALO) | Yes | ||
Ampdim | Yes | ||
LineSwitch single-step | Yes | ||
LineSwitch 3-step | Yes | ||
Adjustable Start-up Time (AST) | Yes | ||
Integrated Dynadimmer | Yes | 5-step, light turn-off possible |
Features
Specification item | Value | Remark | Condition |
Open load protection | Yes | Automatic recovering | |
Short circuit protection | Yes | Automatic recovering | |
Over power protection | Yes | Automatic recovering | |
Hot wiring | No | ||
Suitable for fixtures with protection class | I and II | per IEC60598 | |
Over temperature protection driver | Yes | ||
Overheating protection | Yes | Automatic recovering |

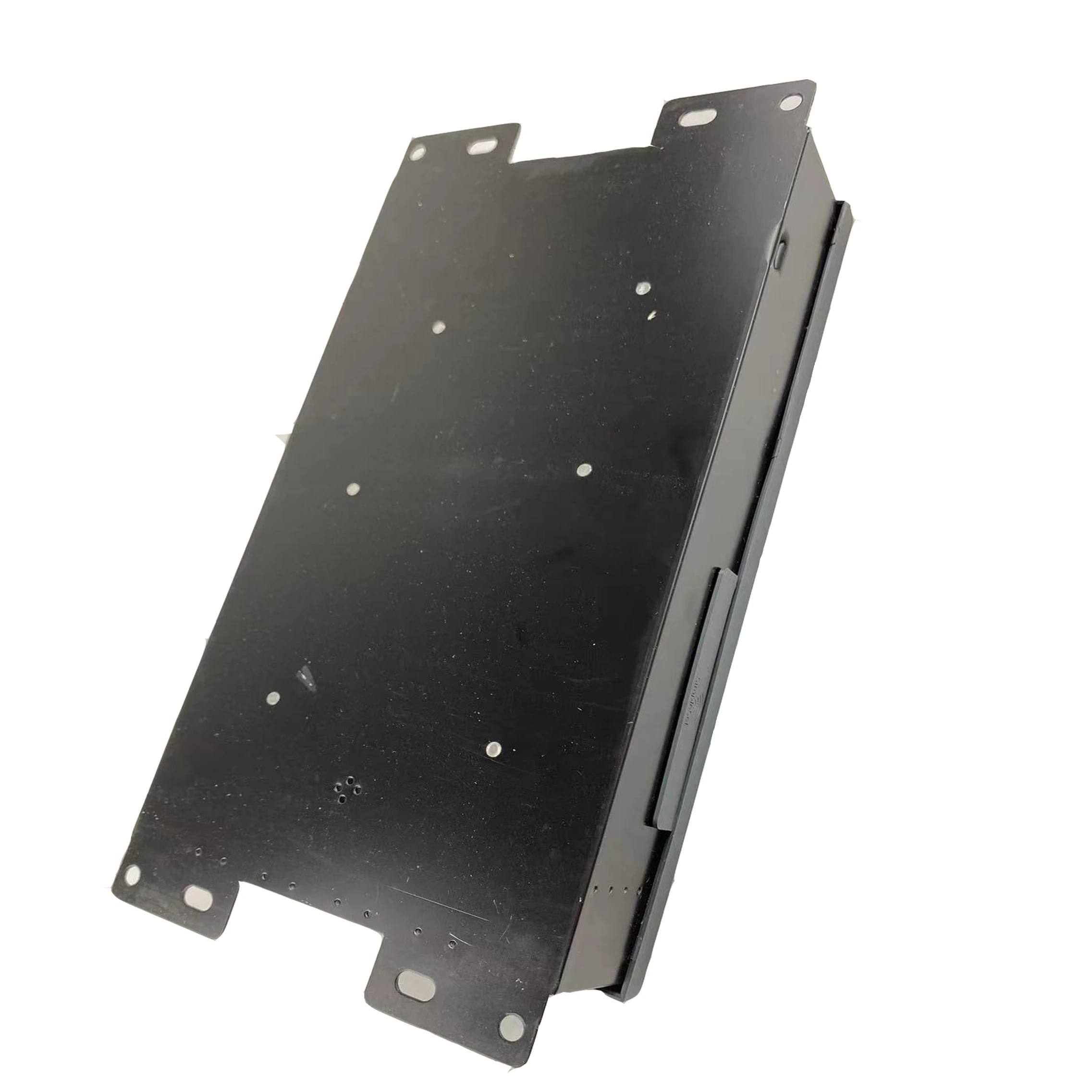

Dimensions
Specification item | Value | Unit | Condition |
1Length (A1) | 239.7 | mm | |
Width (B1) | 118 | mm | |
Height (C1) | 38 | mm | |
Fixing hole diameter (D1) | 4.8 | mm | |
Weight | 1700 | gram |

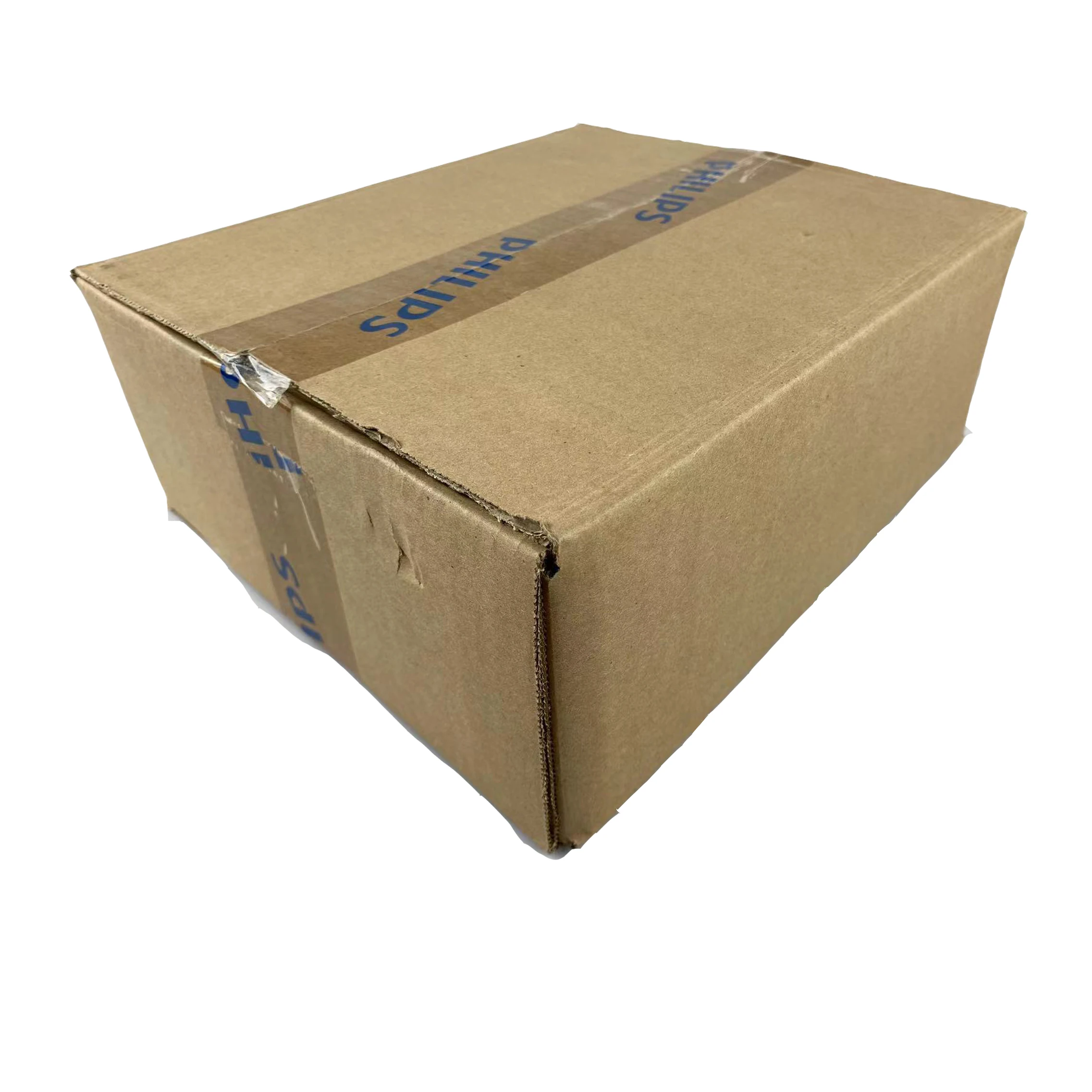

Packing & Delivery
Packaging | ||
Carton Size | 26*25*11cm | |
Catrton Weight | 8KG | |
Packaging Details | Led Drivers: Philips original carton packing with MOQ.( 4pcs in one carton.) Customize shipping packing (eg Composite wooden pallet, cardboard pallets and composite wooden cases package) are available at additional cost. | |
