SOEASY 800W Complete Balcony Solar Energy System Plug and Play PV Hub Micro Store for Apartment Balconies
- Category: >>>
- Supplier: Soeasy (xiamen) Photovoltaic Technology Co. Ltd.
Share on (1601256237832):
Product Overview
Description
SOEASY Deye micro inverter 300w Home flexible plug and play solar system balcony
Product Description

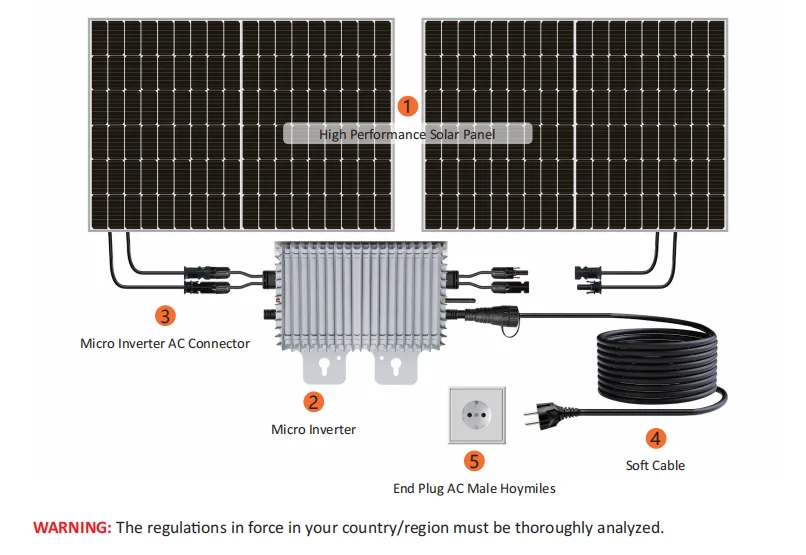

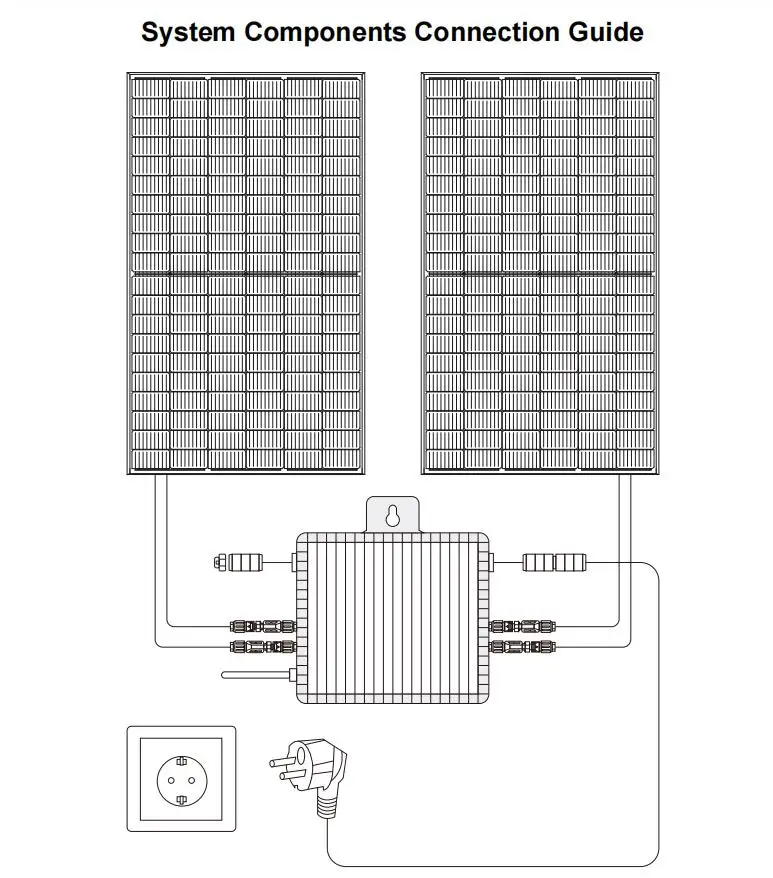

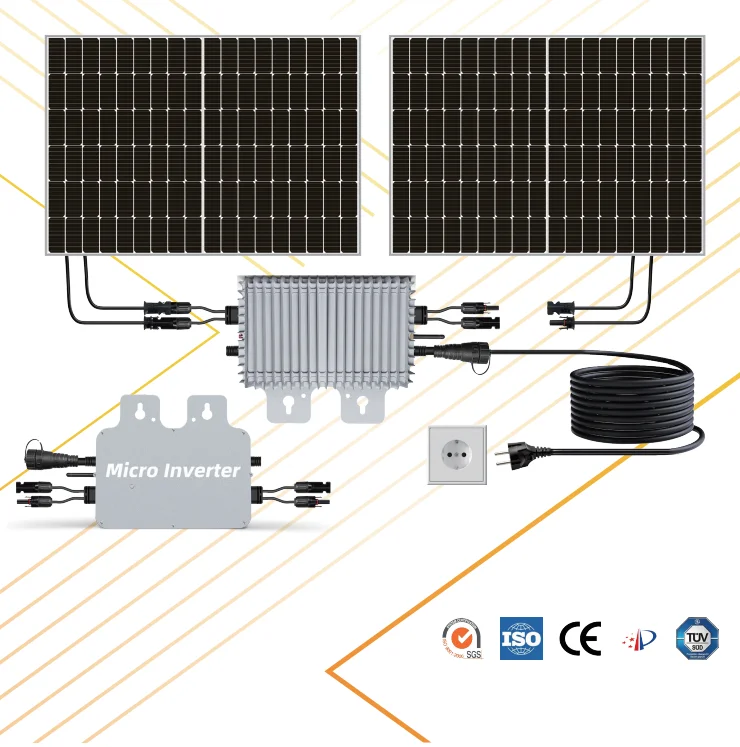

Balcony Solar System Kit

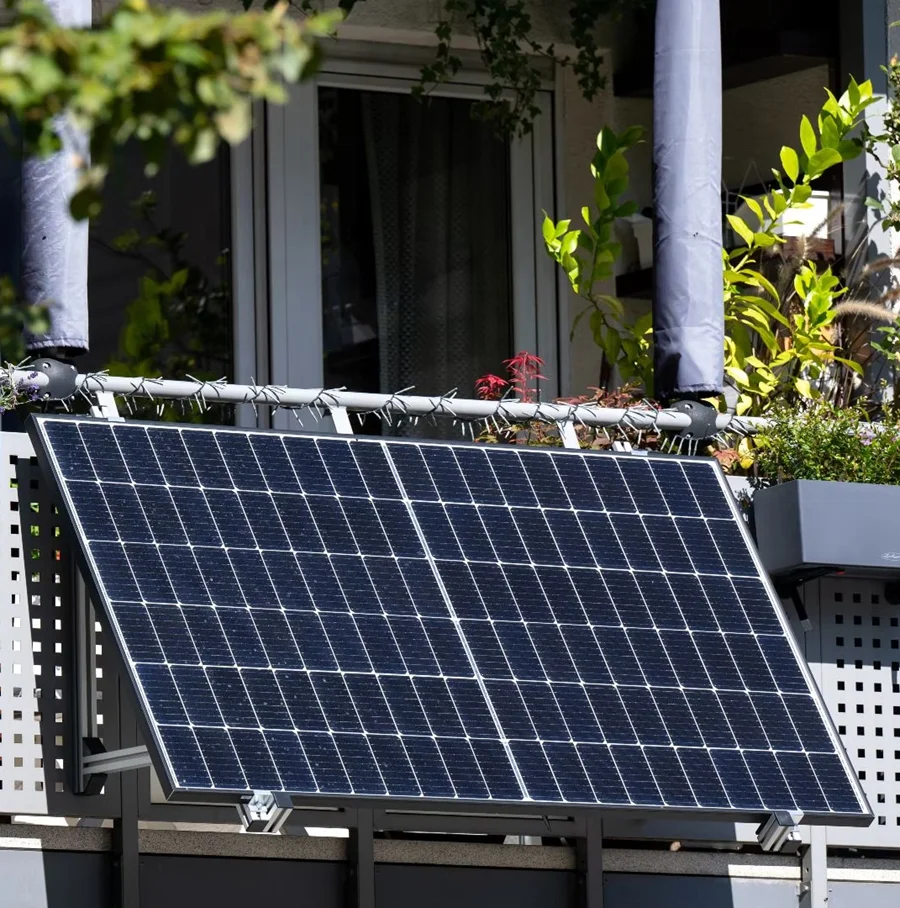

The balcony photovoltaic kit is designed specifically for installing solar power generation systems on balconies. By utilizing the space of the balcony, the photovoltaic system is installed on the balcony to provide corresponding electricity for households. SOEASY balcony photovoltaic system is flexible and highly applicable, and can be installed on the vast majority of balconies.
2 module rails per solar module,
Includes installation materials

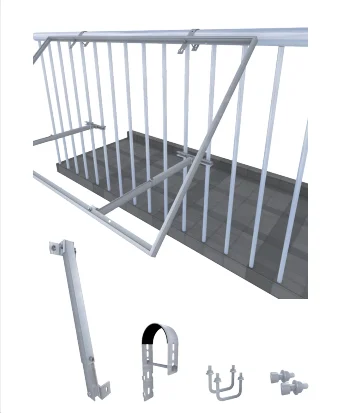

Combination of height adjustable toothed clips and hooks,Securely attaches to balcony railings
Includes installation materials
Combination of height adjustable toothed clips and hooks,Securely attaches to balcony railings
Weather resistant aluminum alloy

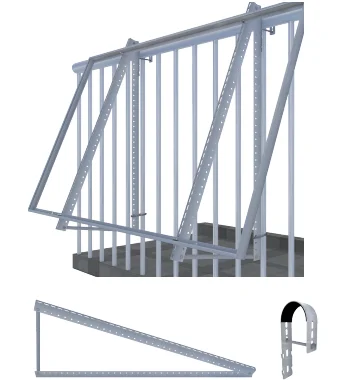

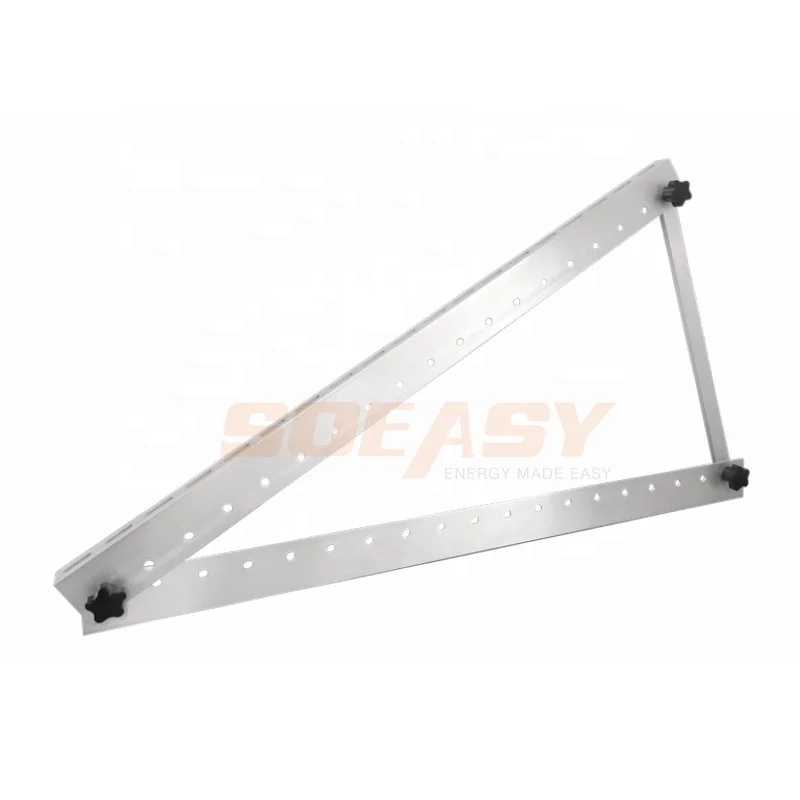

Balcony Bracket B
Angle of inclination 70° to the horizontal, high production
It is possible to use railings with a maximum height of 1.10 m, handrail diameters of up to 65 mm and profile thicknesses of up to 65 x 45 mm
Quick and easy to assemble

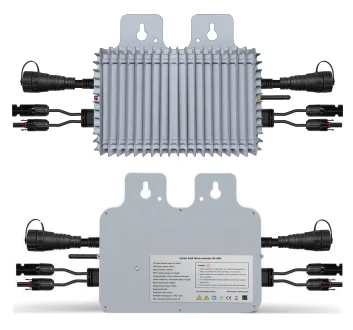

SP Smart Grid Micro Inverter
Input power:600 watts(Can be increased to 800 watts via the “TSUN Smart” app)
Maximum power generation even in partial shadow and diffuse light due to individual MPP tracking of each solar module
Input power up to 550W per solar module
Maximum rated current (AC): 3A
Manufacturer's warranty: 12 years

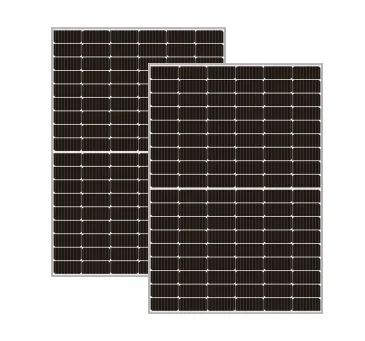

400W Mono-facial Module
Monocrystalline cell structure, rated power 400w
The double-sided solar cell enables additional power generation through the back of the module (Up to 30% performance improvement)
Efficiency up to 22.0%
Size:1762x1134x30mm, Weight:22 kg
Solar Balcony System Set | ||||
Item | Model | Description | ||
1 | Mono 400W | 1Grade A 400W Solar Panel Module Size:1762*1134*30mm Weight:22KGS | ||
2 | Micro Inverter | SP Smart Grid Micro Inverter | ||
3 | Mounting Structure | Material:AL6005-T5. SUS304. ZAM275 | ||

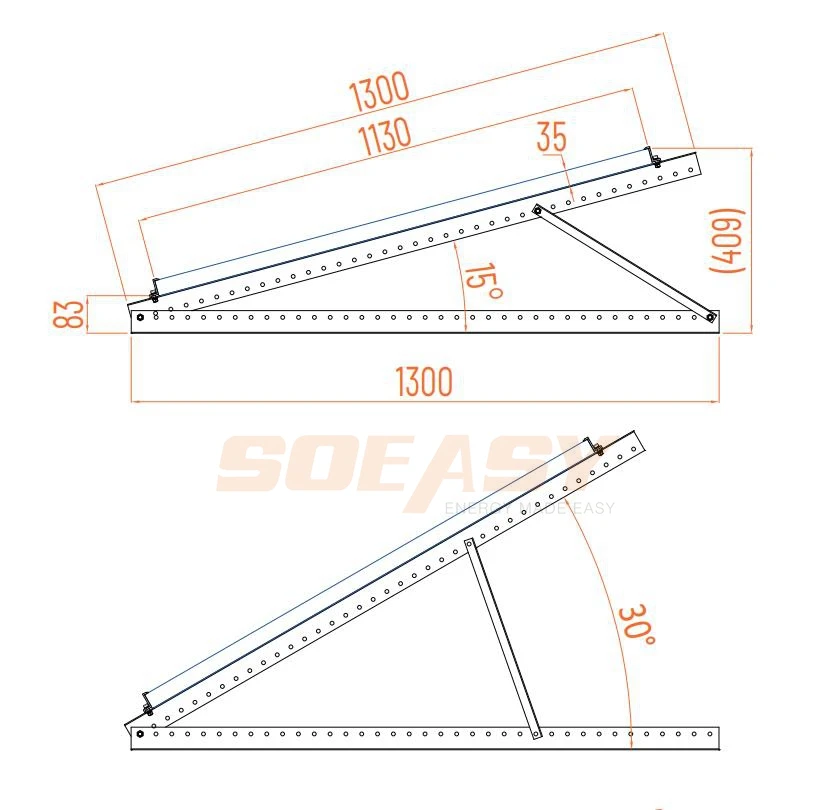

4 | Adjustable angle range | 15-45° | ||
5 | Wind load | 60 m/s | ||
6 | Snow Load | 1.4 kn/㎡ | ||
7 | Installation Site | courtyard wall guardrail，garden, balcony, railing, walls and etc. | ||
Packing and Shipping
- On-time delivery rate 98%- Package: Standard Carton & Steel Pallet
- Shipment: BY Sea, By Express, By Land, By Air
- Put Warranty solar mounting products into standard carton/ wooden pallet/other customized packages.
- Wrapped the aluminium profile with plastic film to against the moisture during shipping
- Shipment: BY Sea, By Express, By Land, By Air
- Put Warranty solar mounting products into standard carton/ wooden pallet/other customized packages.
- Wrapped the aluminium profile with plastic film to against the moisture during shipping

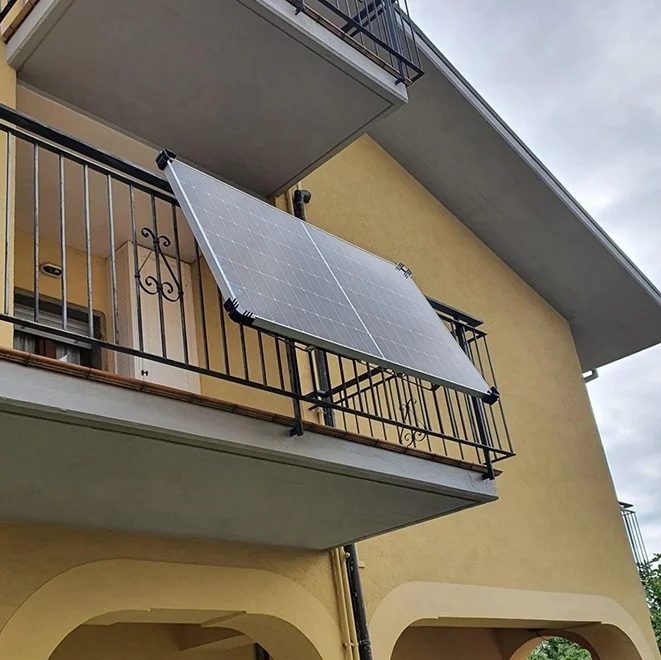

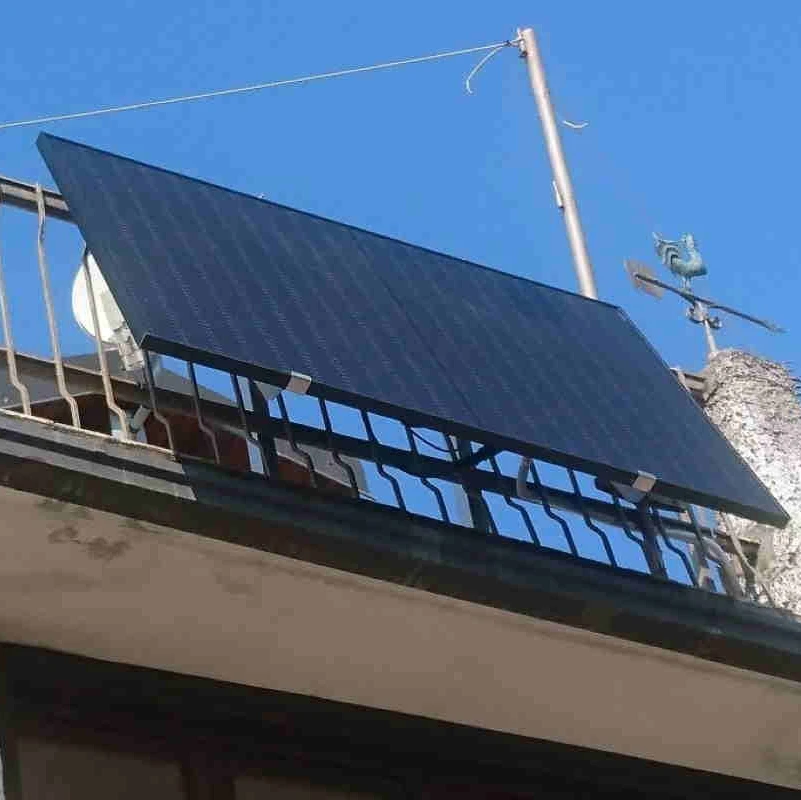

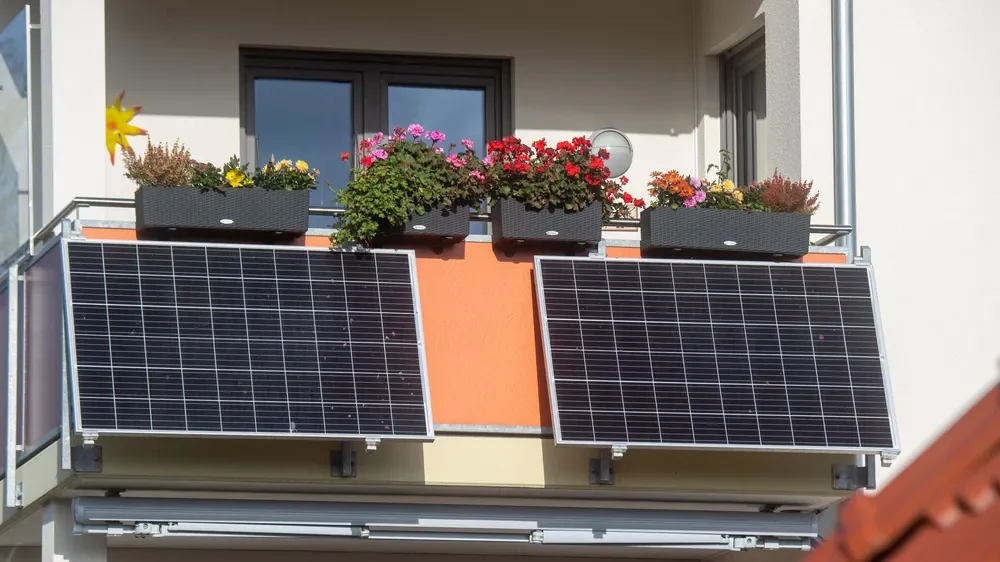

Practical Application
About us
SOEASY (Xiamen)Photovoltaic Technology Co., Ltd. started to set up production, R&D, and sales team in 2015. It has its own production base of 5000 square meters in the coastal city of Xiamen, with an annual production capacity of 1500MW. As well as modern office area of 1,000 square meters, with more than 80 employees. Since its establishment, the company has successively obtained the ISO9001 quality management certification system, more than 30 patent certificates, and government qualified suppliers, AAA-level integrity enterprises, etc.. The products have been sold to more than 100 countries or regions around the world, and the products are spread all over the world, the cumulative export volume exceeds 3GW.
