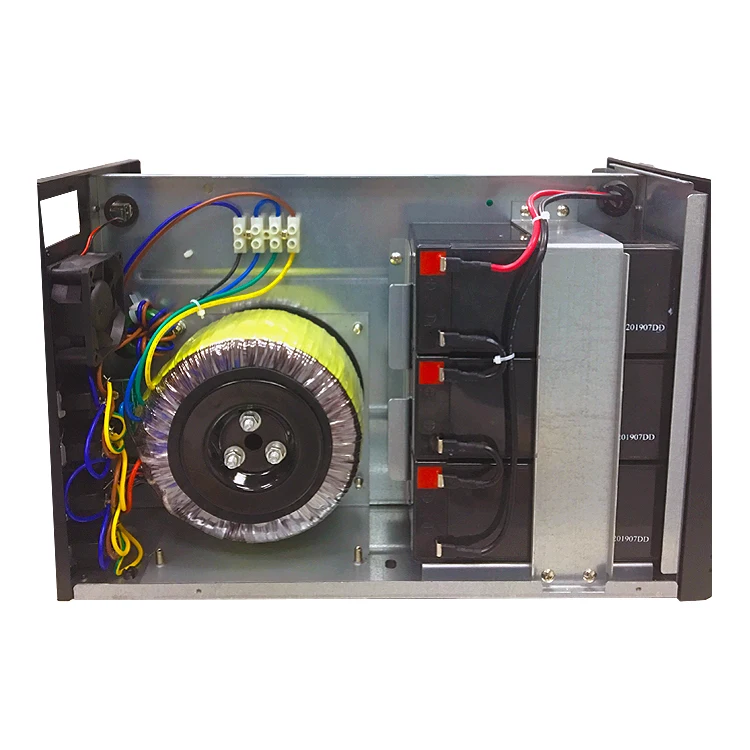

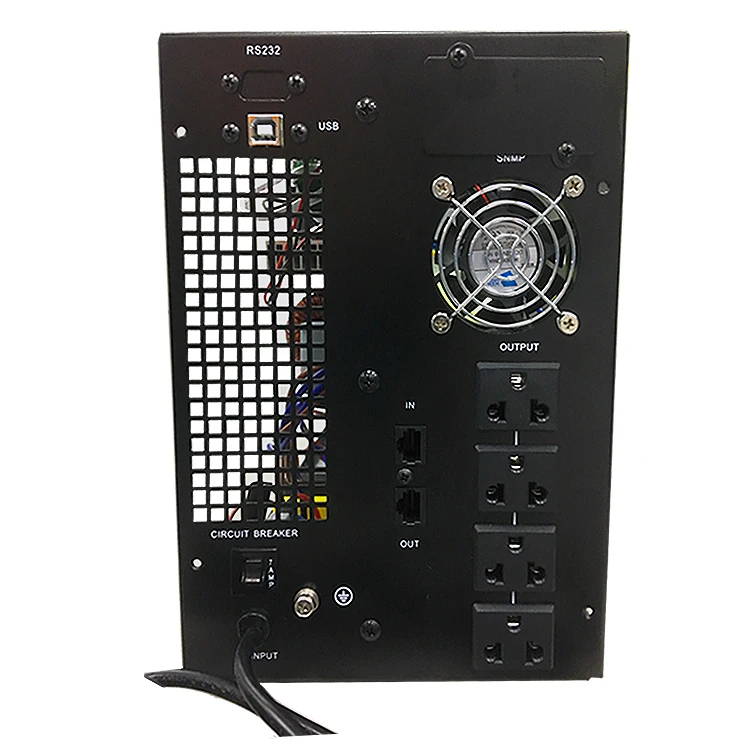

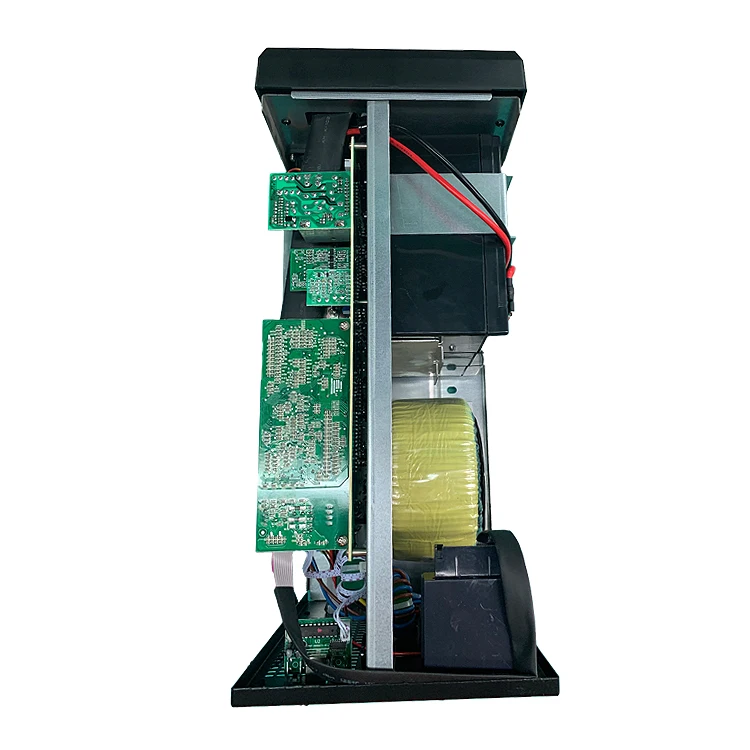

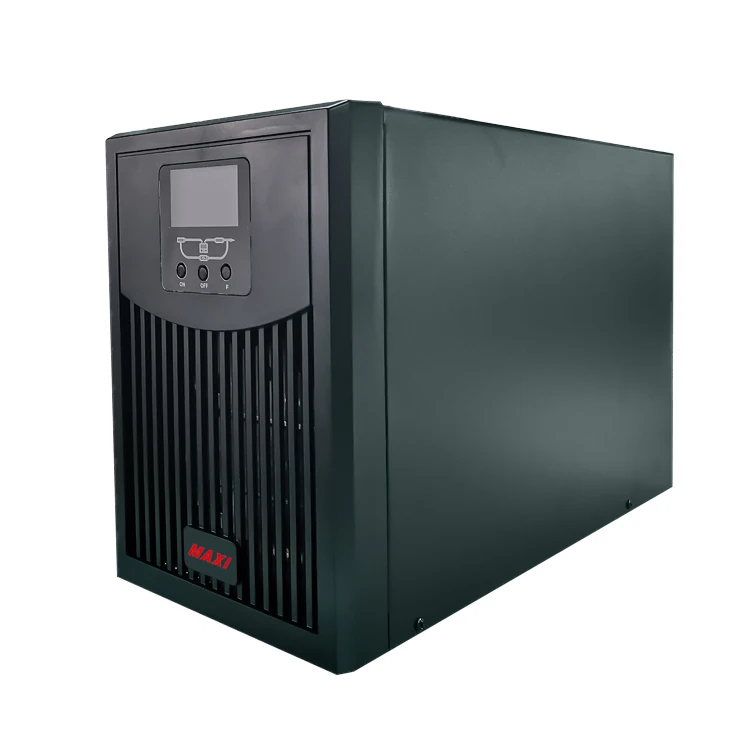

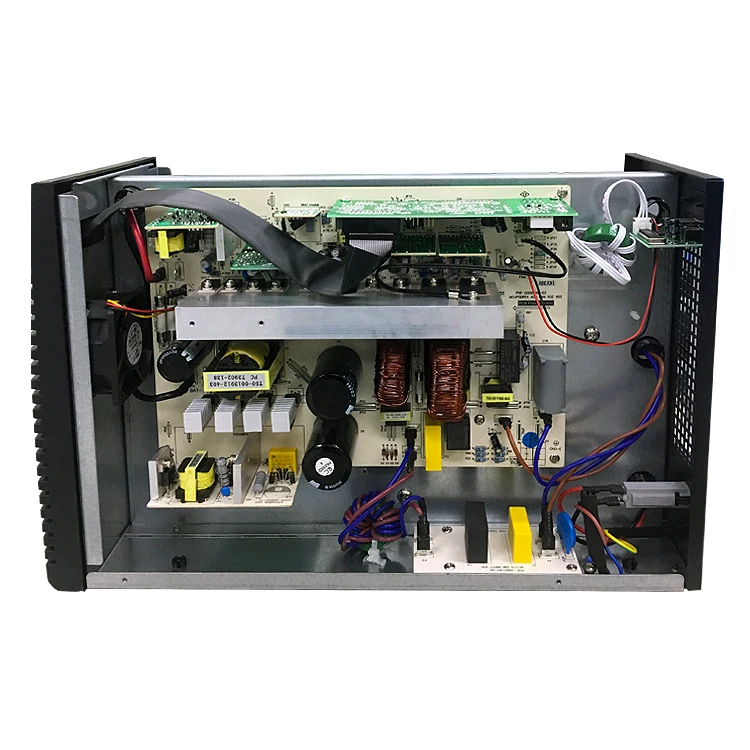

  • ups backup power online ups 1kva with built in isolation transformer for ATM machines use
ups backup power online ups 1kva with built in isolation transformer for ATM machines use
ups backup power online ups 1kva with built-in isolation transformer for ATM machines use
ups backup power online ups 1kva with built-in isolation transformer for ATM machines use
ups backup power online ups 1kva with built-in isolation transformer for ATM machines use
ups backup power online ups 1kva with built-in isolation transformer for ATM machines use
ups backup power online ups 1kva with built-in isolation transformer for ATM machines use
ups backup power online ups 1kva with built-in isolation transformer for ATM machines use

ups backup power online ups 1kva with built in isolation transformer for ATM machines use

Share on (1601256252182):


Price:$137.00

Quantity:


Product Overview

Description



VR


Company Profile






Products Description




Product Paramenters


MODEL
60KVA
80KVA
CAPACITY*
60KVA / 60KW
80KVA / 80KW
INPUT
Voltage Range
Low Line Loss
110 VAC(Ph-N) ± 3 % at 50% Load; 176 VAC(Ph-N) ± 3 % at 100% Load
Low Line Comeback
Low Line Loss Voltage + 10V
High Line Loss
300 VAC(L-N) ± 3 % at 50% Load; 276 VAC(L-N) ± 3 % at 100% Load
High Line Comeback
High Line Loss Voltage - 10V
Frequency Range
46Hz ~ 54 Hz @ 50Hz system
56Hz ~ 64 Hz @ 60Hz system
Phase
3 Phase with Neutral
Power Factor
≧ 0.99 at 100% Load
OUTPUT
Phase
3 Phase with Neutral
Output voltage
360/380/400/415VAC (Ph-Ph)
208*/220/230/240VAC (Ph-N)
AC Voltage Regulation
± 1%
Frequency Range (Synchronized Range)
46Hz ~ 54 Hz @ 50Hz system; 56Hz ~ 64 Hz @ 60Hz system
Frequency Range (Batt. Mode)
50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Overload
AC mode
100%~110%: 60min; 110%~125%: 10min; 125%~150%:1min;>150% : immediately
Battery mode
100%~110%: 60min; 110%~125%: 10min; 125%~150%:1min;>150% : immediately
Current Crest Ratio
3:1 max
Harmonic Distortion
≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load
Transfer Time
Line <------>Battery
0 ms
Inverter <------>Bypass
0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass)
Inverter<------> ECO
<10 ms
EFFICIENCY
AC mode
95.5%
Battery Mode
94.5%
BATTERY
Standard Model
Charging Voltage
+/-218 VDC ± 1%
Long-run Model
Type
Depending on applications
Numbers
32 ~ 40 (adjustable)
Charging Current(max.)
2.0~24.0A ± 10% (Adjustable)
Charging Voltage
+/- 13.65 VDC * N ± 1% (N = 16~20)
PHYSICAL
Long-run
Model
Dimension, D×W×H mm
790 x 360 x 1010
Net Weight (kgs)
108/112
113/117
ENVIRONMENT
Operation Temperature
0 ~ 40°C (the battery life will down when > 25°C)
Operation Humidity
<95 % and non-condensing
Operation Altitude**
<1000m**
Acoustic Noise Level
Less than 70dB @ 1 Meter
Less than 75dB @ 1 Meter
MANAGEMENT
Smart RS-232 or USB
Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC
Optional SNMP
Power management from SNMP manager and web browser


Why Choose Us




Exhibition




Certifications




Product packaging




FAQ


FAQ
Q1:Main products range
A: Our main products range is offline ups 600va-3000va, online hight frequency ups 1kva-80kva,online low frequency ups
2kva-200kva,ups battery 12V 7ah-200ah

Q2:Are you manufacturer or trading company?
A:we are UPS manufacturer

Q3:Can I have a sample for testing?
A:Yes，you can have a sample for testing.

Q4:how long is your deliver time?
A:normally 15 days

Q5:How do you control quality?
A: We strictly implement quality control following IQC, IPQC, FQC, QQC standards

Q6:How to pay?
A:We accpect TT and L/C

Q7:Warranty
A: 1 year warranty for UPS. 1 year warranty for battery 7AH-17AH. 2 years warranty for battery 24AH-200AH

Q8:Do you have OEM&ODM service?
A: Yes，our products can be customized.
