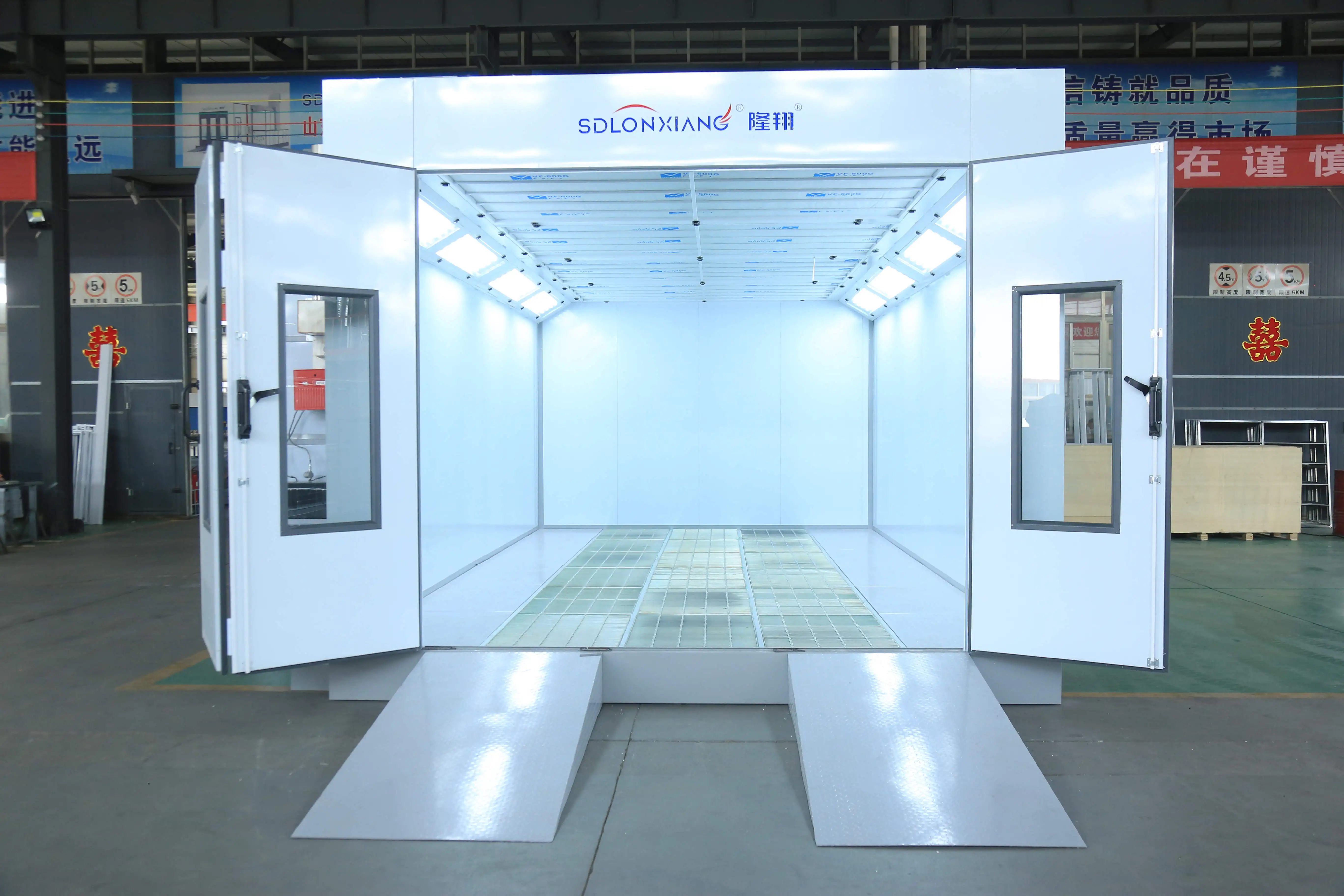

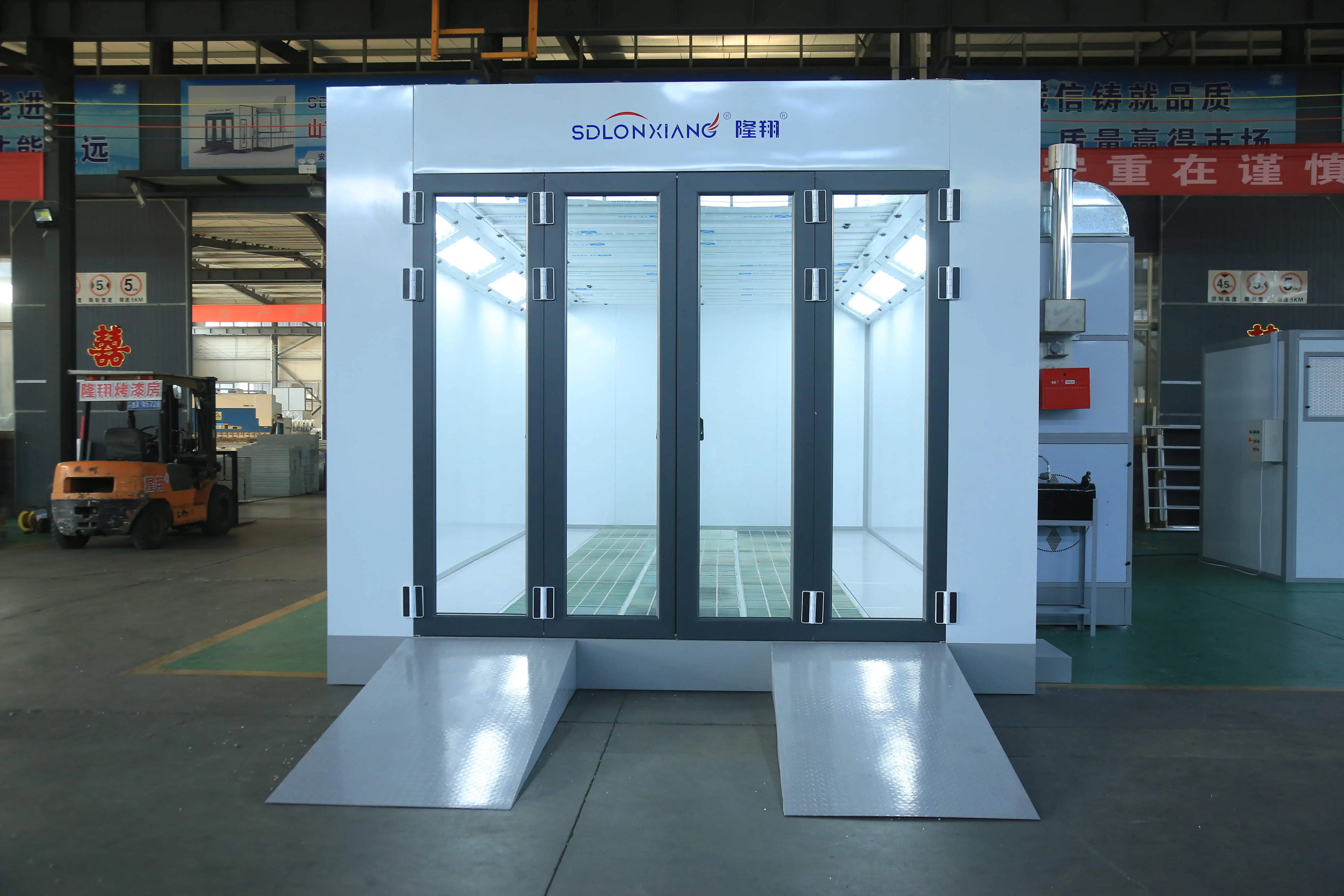

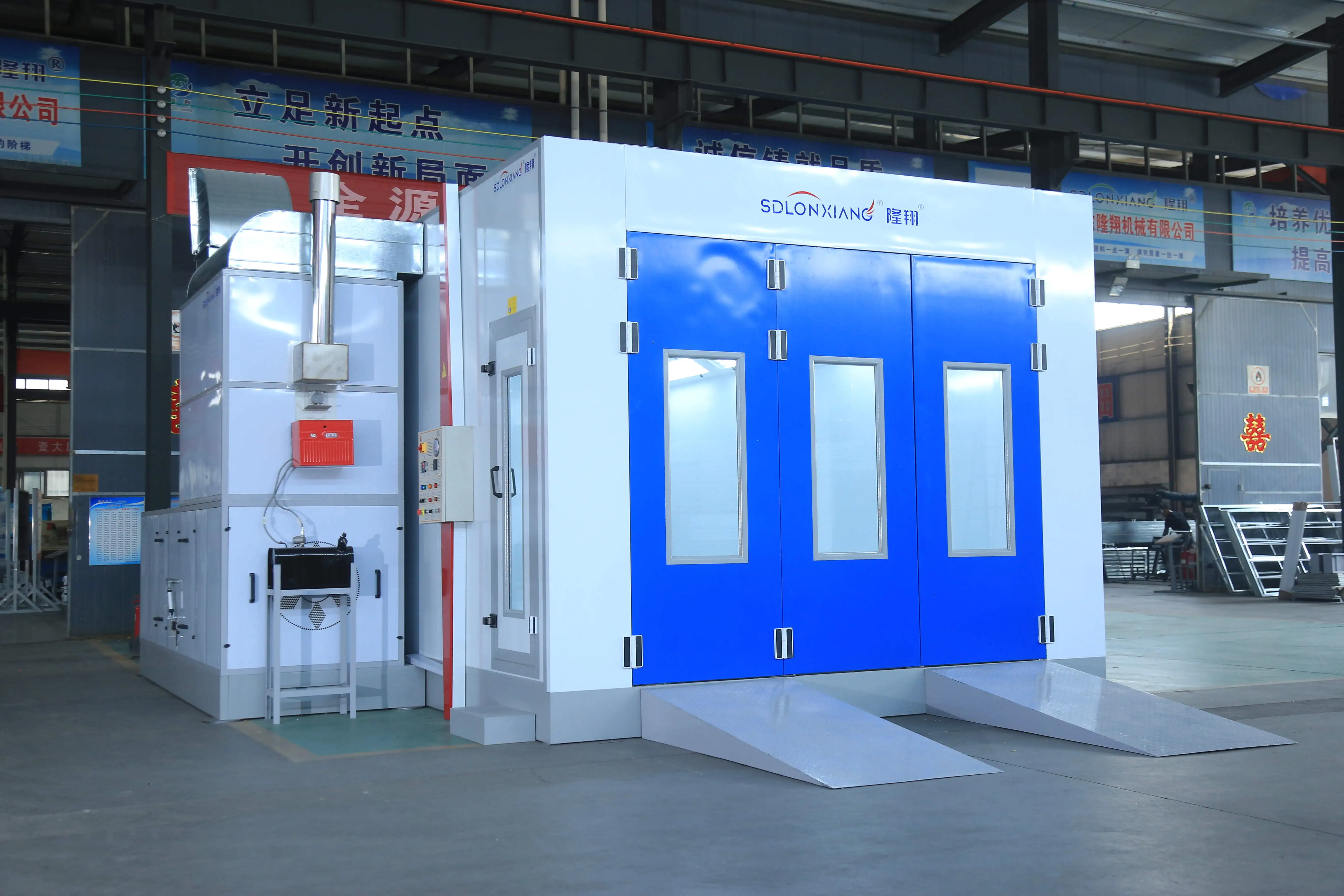

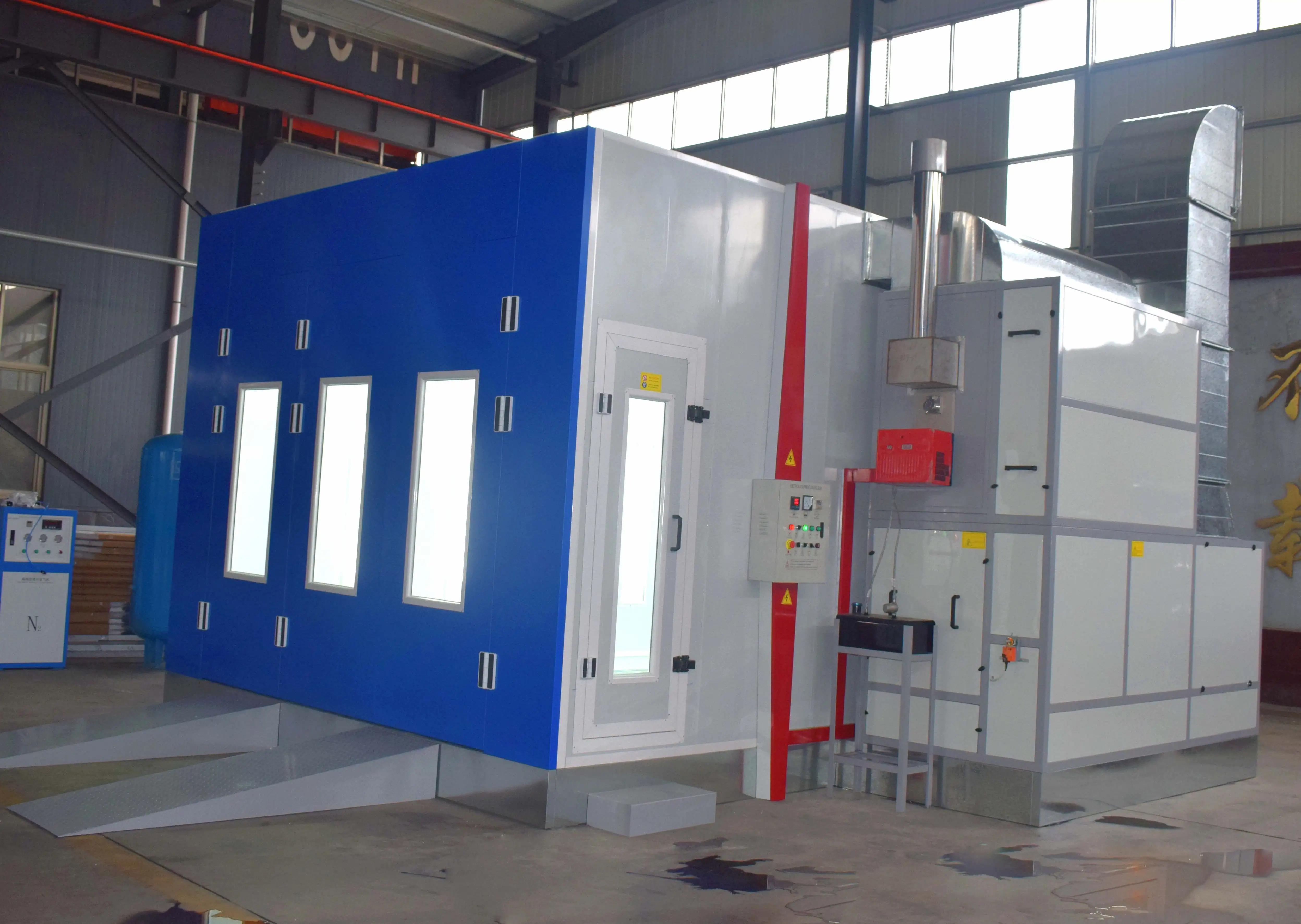

2022 CE Approved China Manufacturer Car Paint Booth Spray Booth Price Auto Painting Spray Booth
- Category: >>>
- Supplier: Shandong Longxiang Machinery Co. Ltd.
Share on (1601256276283):
Product Overview
Description
Product Description
Specification
LX1 | ||
Outside size | 8350×4000×3200mm(L×W×H) | |
Inside size | 6900×3900×2650mm(L×W×H) | |
Entrance door | 3 folds,3000x2600 mm(W×H), bending steel door,cast aluminum hinge, tempered glass window | |
Emergency door | 650*2000mm(W*H),with pressure lock，with glass window，with step | |
Main System | ||
Wall panel | -Sandwich style EPS 50mm,0.376mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel. | |
Basement | Optional | |
Inlet fan | Optional | |
Outlet fan | 1 set European-style exhaust air fan,the power is 5.5KW ,air capacity:18000m³/h. | |
Cabinet setting type | -Exhaust air from back downside,adopt powder quadrate steel frame , strong and beautiful . -Cabinet for the fan*1unit ,910mm height air duct *2units, -Elbow: 90°*1 unit | |
Airflow speed | On load 0.3m/s,ventilation rate:280time/h | |
Heating system | Optional : Movable infrared baking lamps(3 lamps or 6 lamps) | |
Ceiling lights | 8 groups*4 units=32 units*16W，LED lighting | |
Side lights | Optional | |
Primary filter | Grade G2 plate type , filtering rate＞83% | |
Floor filter | Multi-layer fiberglass filter,filtering rate＞70% | |
Control panel | Intelligent control system | |
Function | Lighting,painting, Overload, lack of phase protection | |
Voltage/Frequency | 380V,50HZ,3 phase | |
Total power | 6 KW | |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Details Images
Why Choose Us
Product Process
Exhibition
FAQ
