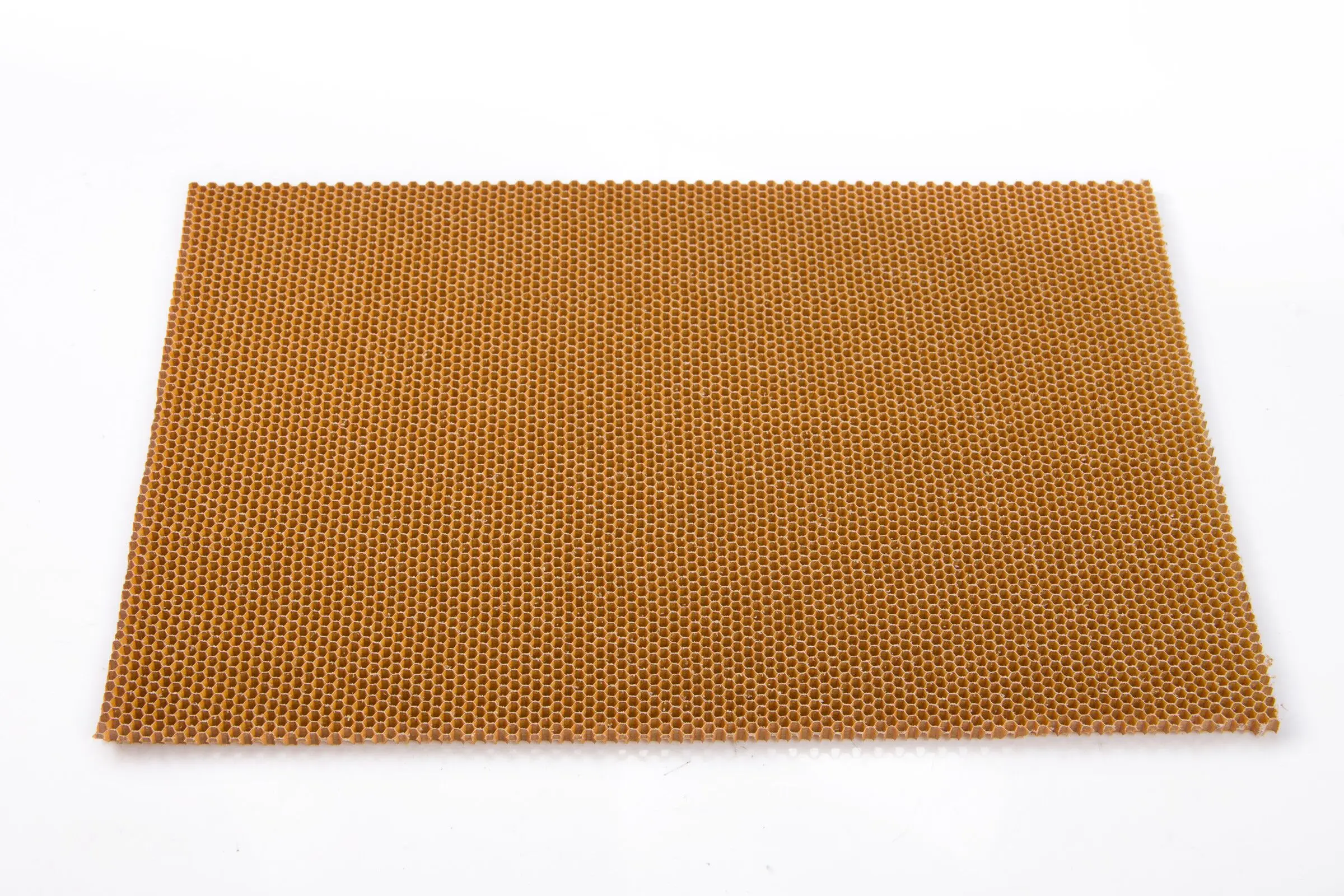

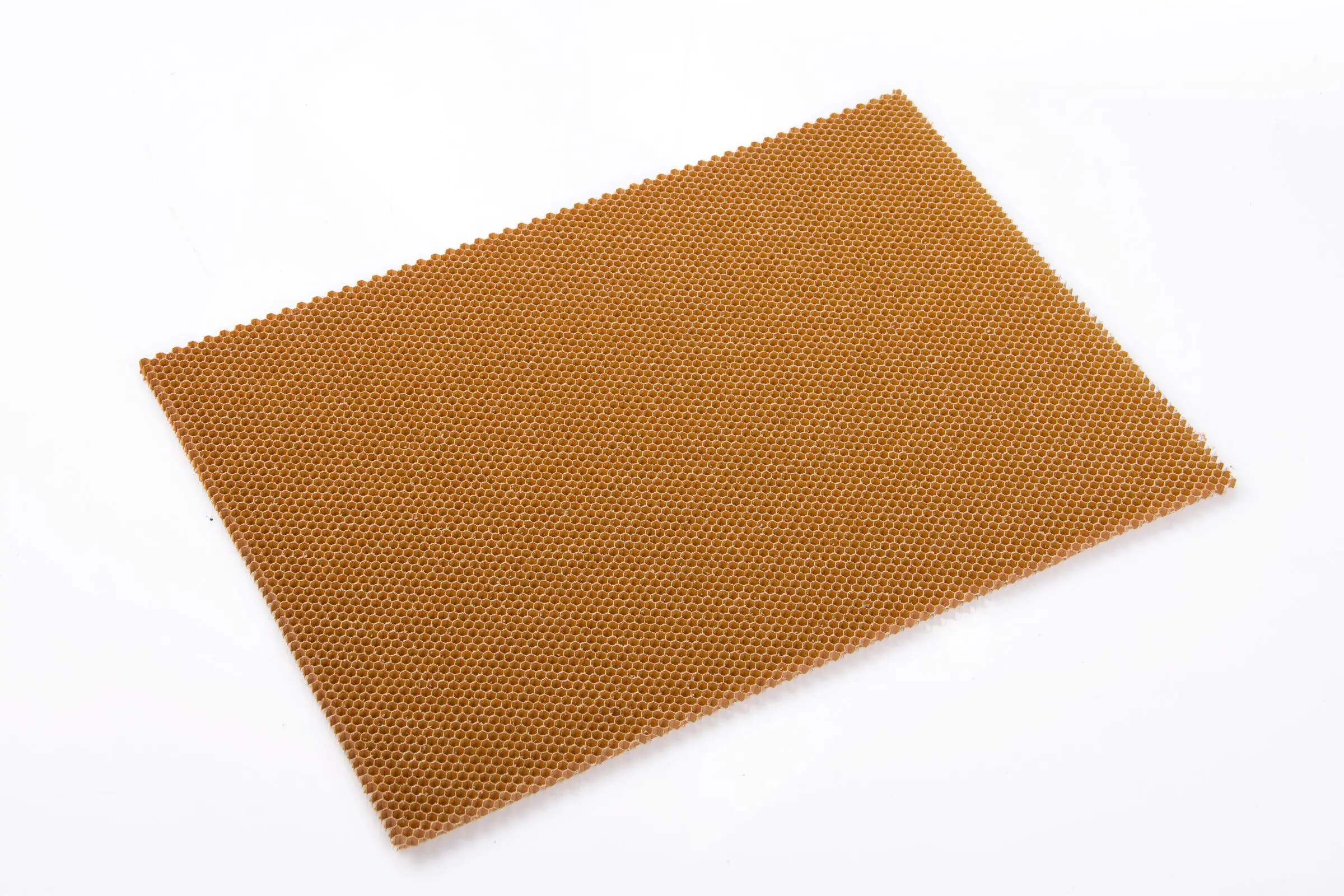

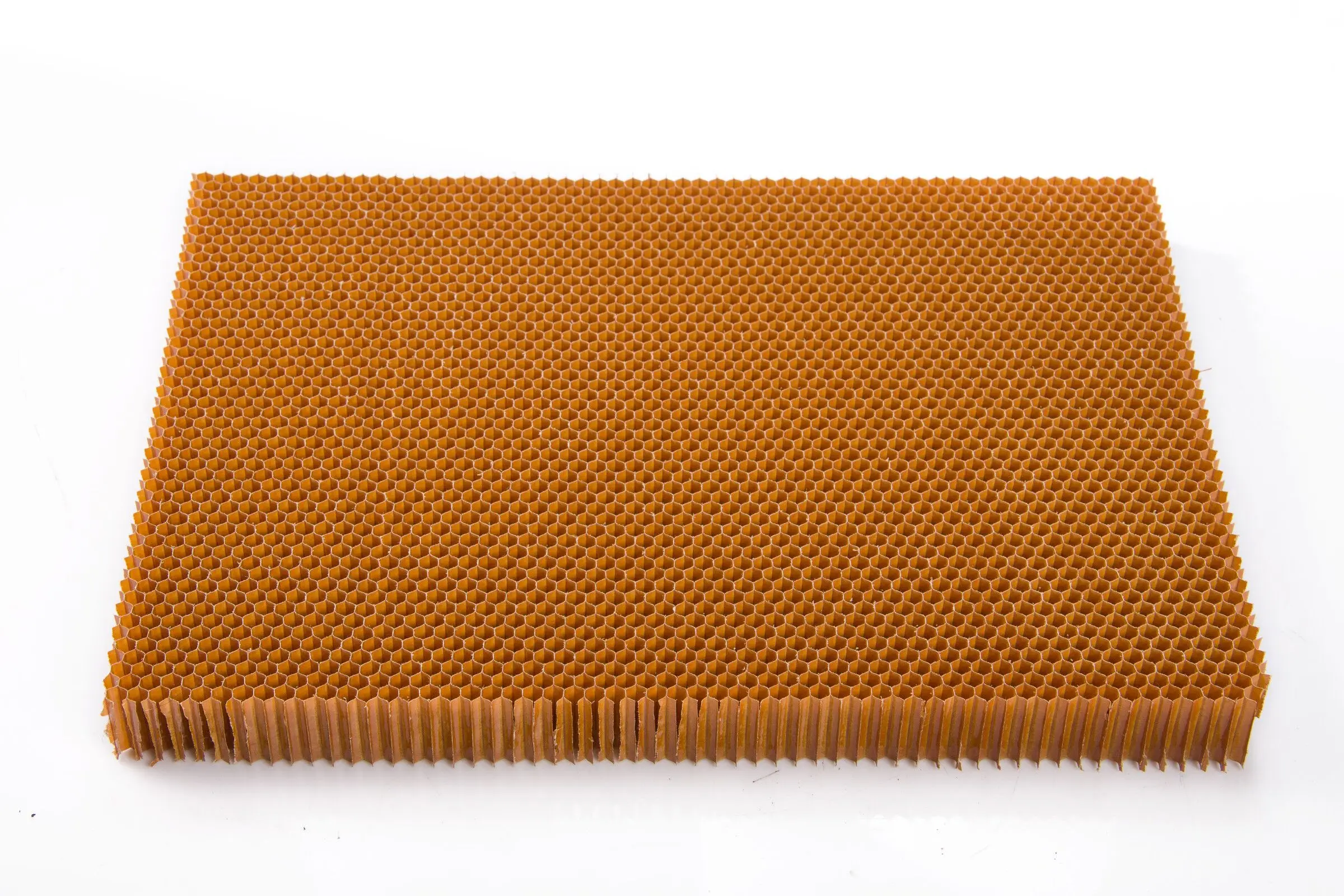

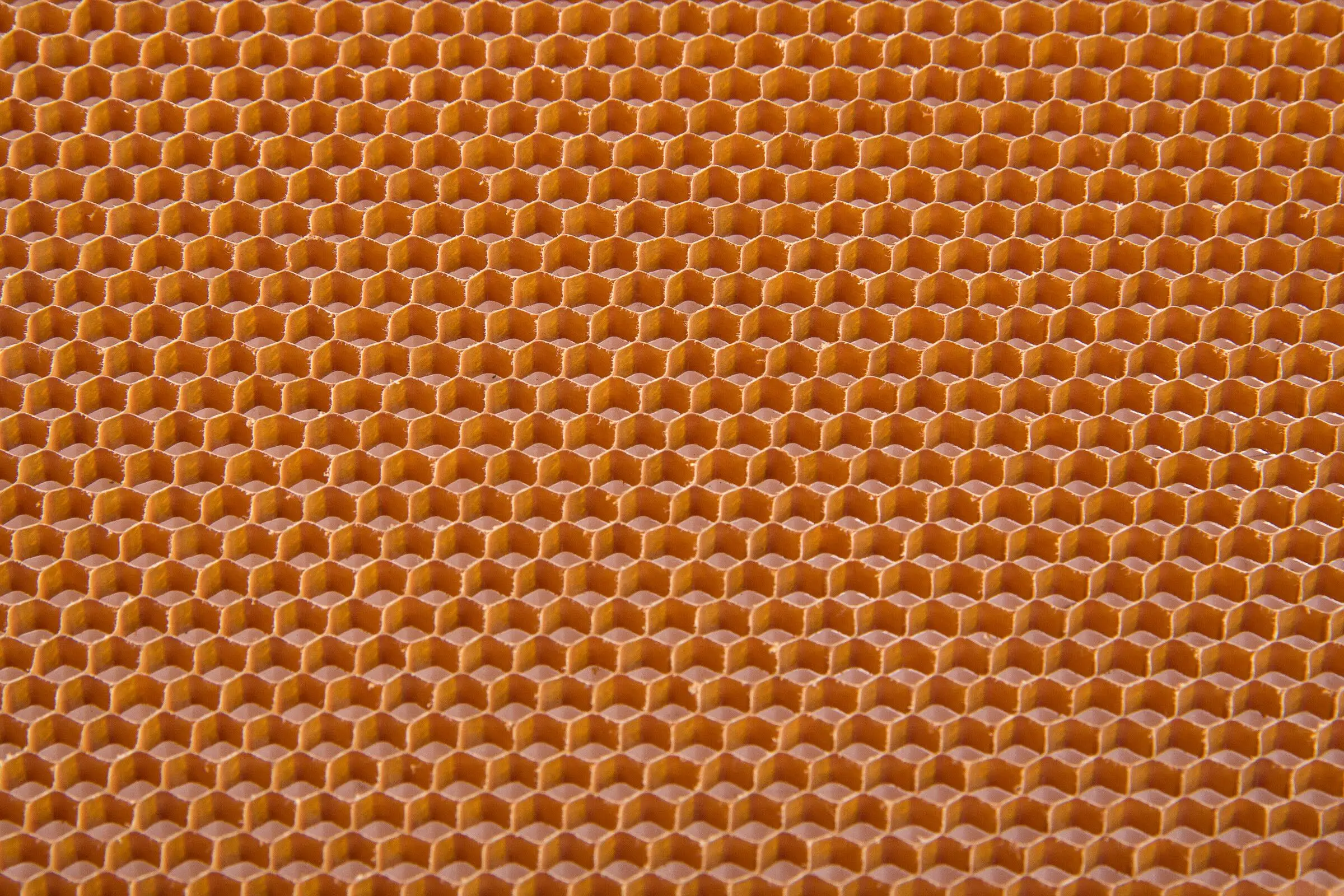

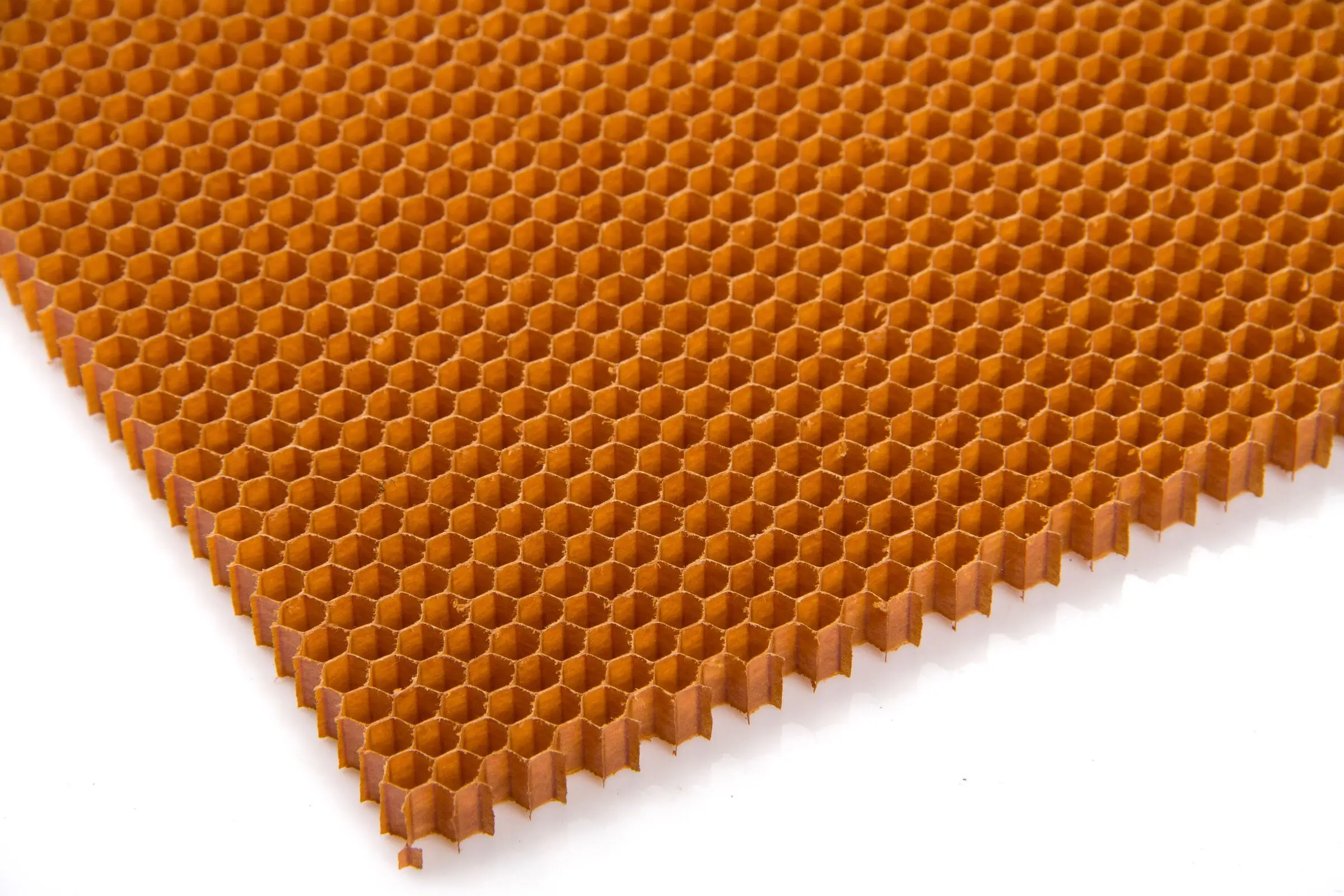

Cell Size 3.2mm Density 29kg Aramid Paper Honeycomb Core Aramid Honeycomb Core
Cell Size 3.2mm Density 29kg Aramid Paper Honeycomb Core Aramid Honeycomb Core
Cell Size 3.2mm Density 29kg Aramid Paper Honeycomb Core Aramid Honeycomb Core
Cell Size 3.2mm Density 29kg Aramid Paper Honeycomb Core Aramid Honeycomb Core
Cell Size 3.2mm Density 29kg Aramid Paper Honeycomb Core Aramid Honeycomb Core
Cell Size 3.2mm Density 29kg Aramid Paper Honeycomb Core Aramid Honeycomb Core
Cell Size 3.2mm Density 29kg Aramid Paper Honeycomb Core Aramid Honeycomb Core

Cell Size 3.2mm Density 29kg Aramid Paper Honeycomb Core Aramid Honeycomb Core

Share on (1601256337555):


Price:$15.00 - $20.00

Quantity:


Product Overview

Description



Description
The nomex honeycomb core is made of nomex paper which owns excellent physical, flame retardant phenolic resin, It has high fatigue resistance and anti chemical corrosion ability ,the excellent dielectric and rader conductive property as well. Nomex honeycomb laminated structure is broadly applied to aircraft , high vessel and train, radar etc.






Specification


Designation
Density
(kg/m3)
Compression strength
Mpa
L-Shear
N/mm2
W-Shear
N/mm2
Cell size(mm)
3.2
481/8 Inch
64
1.90
1.16
0.62
3.2
1/8 Inch

64
3.10
1.48
0.82


3.2



1/8 Inch

80
4.70
1.95
1.05


3.2



1/8 Inch

96
6.60
2.45
1.42


3.2



1/8 Inch

128
11.30
2.95
1.78


3.2



1/8 Inch

144
13.20
2.95
1.78


4.0

5/23 Inch
29
0.60
0.45
0.26


4.0



5/23 Inch

80
5.10
1.90
0.98


4.0



5/23 Inch

114
13.00
3.60
2.00


4.8

3/16 Inch
32
0.90
0.58
0.36


4.8



3/16 Inch

48
2.60
0.98
0.56


4.8



3/16 Inch

64
3.40
1.70
0.92


4.8



3/16 Inch

80
6.00
1.95
1.10


4.8



3/16 Inch

96
7.30
2.26
1.32


4.8



3/16 Inch

123
9.30
3.40
1.86


6.4

1/41 Inch
24
0.54
0.34
0.18


6.4



1/41 Inch

32
0.80
0.54
0.30


6.4



1/41 Inch

48
2.05
1.00
0.56


6.4



1/41 Inch

64
3.40
1.54
0.79


9.6

3/8 Inch
24
0.52
0.32
0.16


9.6



3/8 Inch

32
0.68
0.56
0.29


9.6



3/8 Inch

48
9.60
1.15
0.66


Feature
1. Excellent fireproof property
2. Super peeling strength
3. Perfect cold resistance performance
4. Excellent surface flatness and smoothness
5. Superior weather, corrosion, pollutant resistance
6. Even coating, various colors
7. Superior impact resistance
8. Lightweight and easy to process
9. Easy to maintain


Application




Why Choose Us

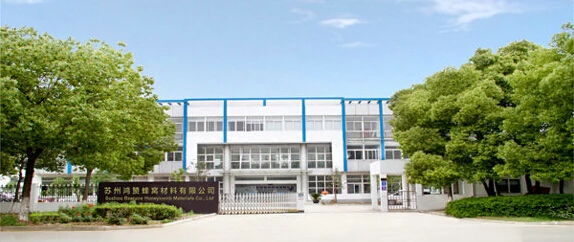

Suzhou Beecore Honeycomb Materials Co., Ltd.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1998Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core,
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Aisa and already obtained the technology partent in China.
2017 Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
