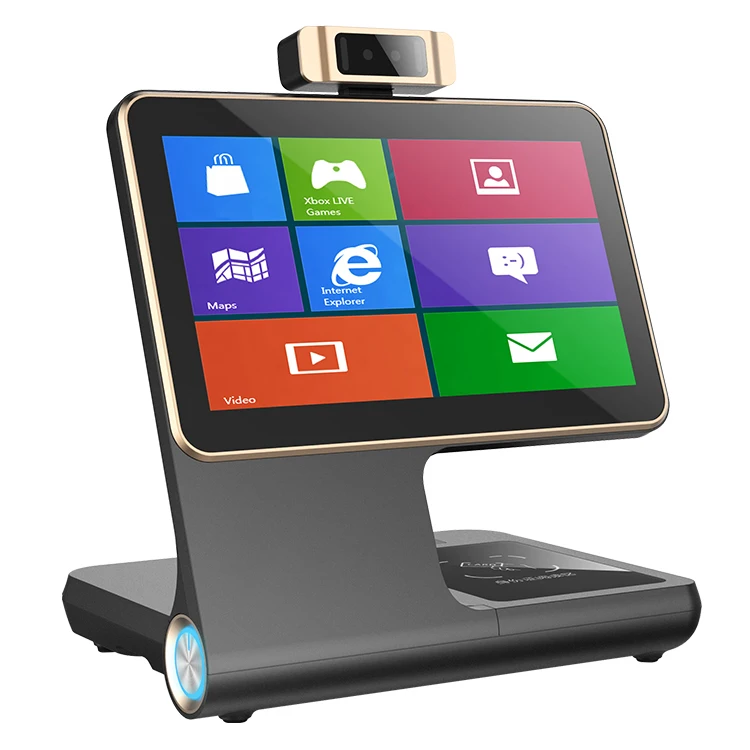

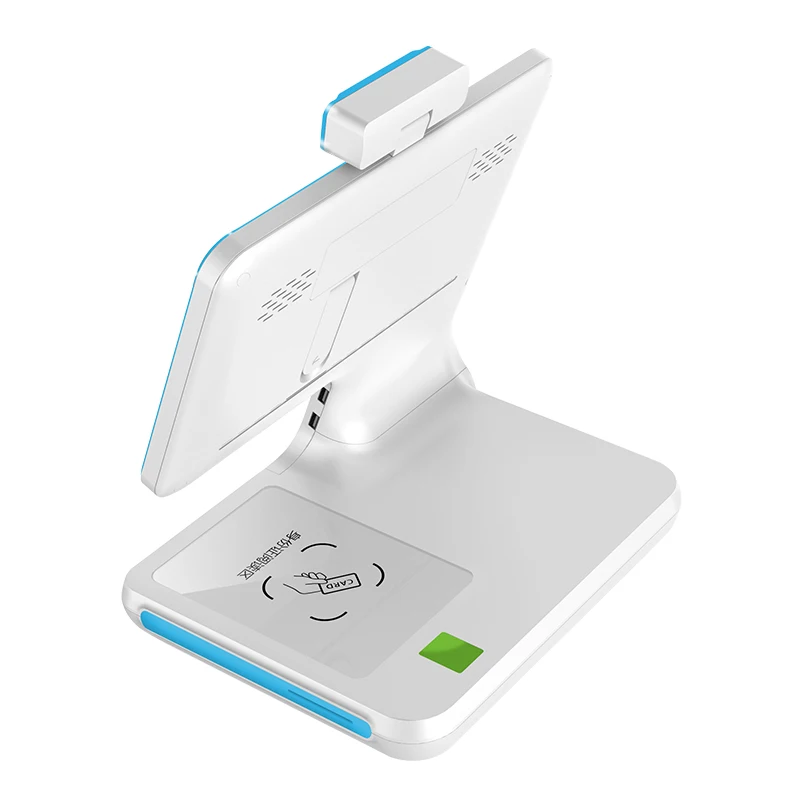

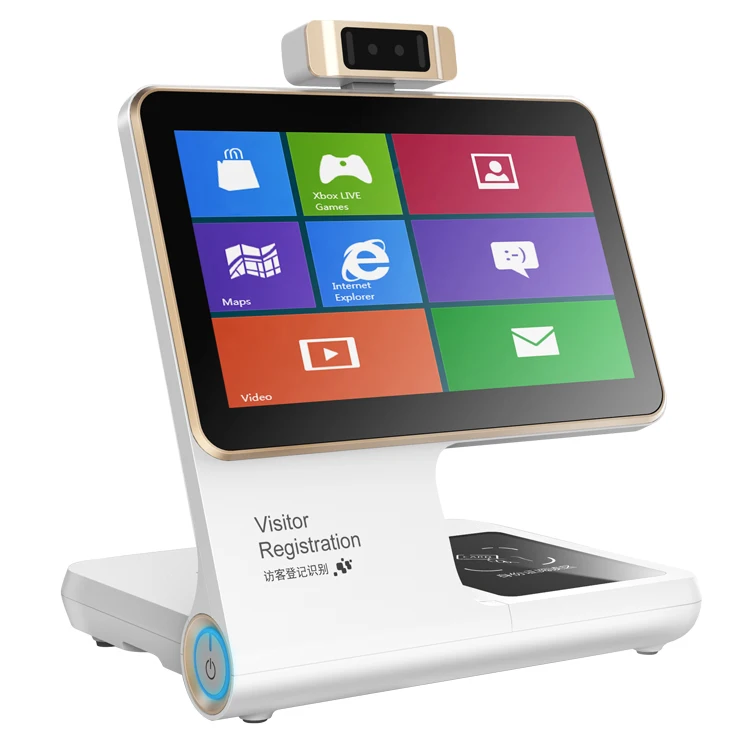

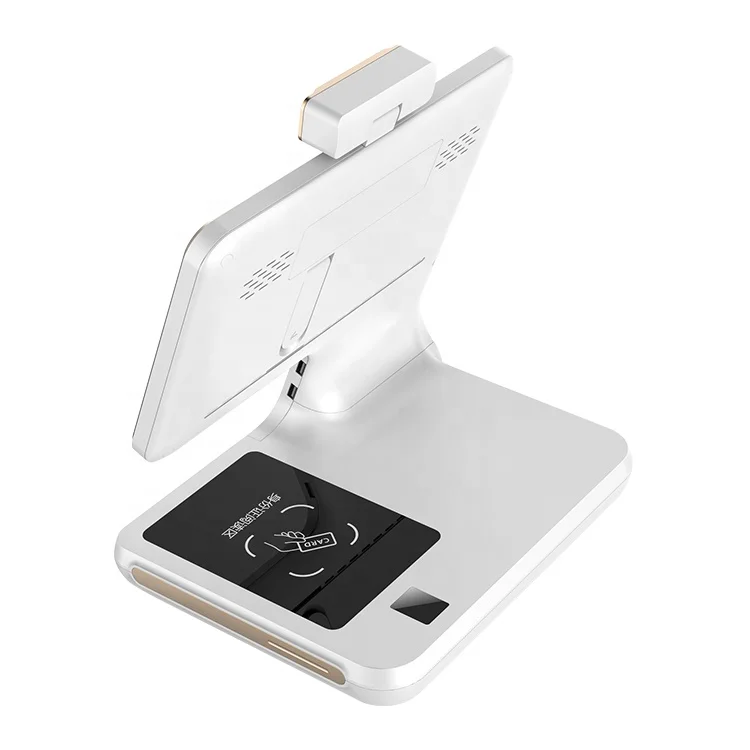

Face recognition visitor management system Reception touch screen android attendance system with fingerprint ID card reader
- Category: >>>
- Supplier: Shenzhen Haodexin Electronic Technology Co. Limited
Share on (1601256369316):
Product Overview
Description
Production Name | Reception touch screen Face recognition android attendance system with fingerprint Visitor ID card reader for hotel | ||
Model No. | GC103B | ||
| Application industry | Restaurant, catering, supermarkets, shops, convenience stores, gas stations, retail department stores, bookstores, attendance system, visitor registration, reception, etc. | ||
| Application software | OS installed, with basic software only, free SDK, POS software not included | ||
| 2D code decoding | Built-in 2D code decoding software, based on Windows or Android | ||
| OS | Android 6.0/Android9.0 | Android 7.1.2/Android9.0 | Android 11 |
| CPU | RK3288 ARM Cortex-A17,quad core,1.8GHz | RK3399, Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz | RK3566/RK3568,Quad-core Cortex-A55 up to 1.8GHz, |
| DDR | 2G | 4G | 2G |
| Storage | 8G | 16G | 8G |
| Operation display | Color RGB 11.6inch RGB TFT,1920*1080 pixel, aspect ratio:16:9 | ||
| G+G capacitive multi point touch,scratch-proof, harden | |||
| Camera(Optional) | Binocular WDR camera with light filling, 2MP-3MP optional | ||
| NFC Card Reader (optional) | 13.56MHZ contactless, ISO/IEC14443A/B, ISO/IEC 15693, MIFARE and FeliCa specifications.(For Android OS) | ||
| ID Card recognition (optional) | can read ID card, China standard | ||
| Fingerprint | Optical fingerprint module(Optional), authenticated by ministry of public security | ||
| SIM Card | Optional, 1 push IC card slot | ||
| Multi-media function | High effient DSP processing, support mp3, mp4(4k); support picturer play up to 8000*8000 pixel | ||
| Communication | 4G module: TDD-LTE, 4G FDD-LTE, 3G TD-SCDMA, 3G WCDMA, 3G CDMA EVDO, 2G CDMA, 2G GSM (optional) | ||
| WIFI module: 2.4G IEEE802.11b/g/n compatible with wapi(optional) | |||
| Bluetooth:support 2.0+EDR, 3.0, 4.0 | |||
| RJ45 Ethernet interface, supporting commonly used protocols such as TCP/IP and HTTP | |||
| Interface | USB x 4 (2 side, 2 on plate) | ||
| Mini USB OTG x 1 (only for Rk3288) | |||
| RS232 serial port, standard DB9 x 1 | |||
| Ethernet RJ45 port x 1, support TCP/IP HTTP protocol | |||
| Earphone port x 1 Microphone port x 1 | |||
| RJ11 x 2, connect password keypad and cash drawer | |||
| DC power socket(12V, 3A) x 1 | |||
| DC switch x 1 | |||
| Casing/Material | ABS, PCBA, color: White/Black | ||
| Accessories | DC power adaptor,input 100-240V, output, 12V, 3A | ||
| Working temperature | -10℃~50℃ | ||
| Storage temperature | -40℃~80℃ | ||
| Humidty | 95% without sticky | ||
| ESD protection | 12Kv | ||

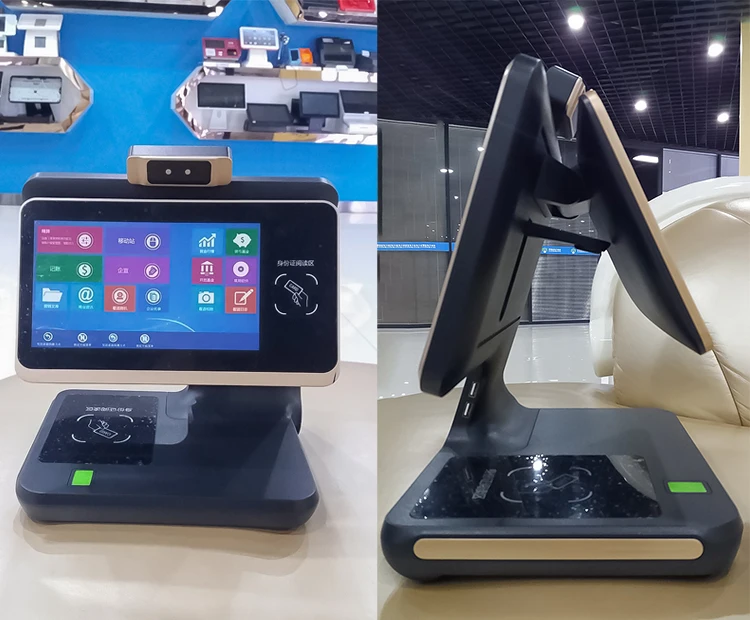

Product Detailed Images
Packaging & Shipping
Packing
Item size: 280*240*330mm
Box size: 375*405*305mm
Gross weight: kg
Qty/carton: 1 pcs/ctn
Shipping weight: 10kgs
Standard industrial package, gift box, paper tray, user manual, warranty card, carton, EVA holder, EPE foam
Shipping
we can delivery the good to the warehouse assigned by customers if you have your own forwarder;
And we can arrange shippment with our cooperated forwarder at best price;
We are VIP customer for DHL, UPS, FedEx, TNT and EMS, we accept any one upon your requirement.
Company Information
- 1.More than 16 years experience in wireless pos terminal.
- 2.More than 30 professional engineer in our R&D.

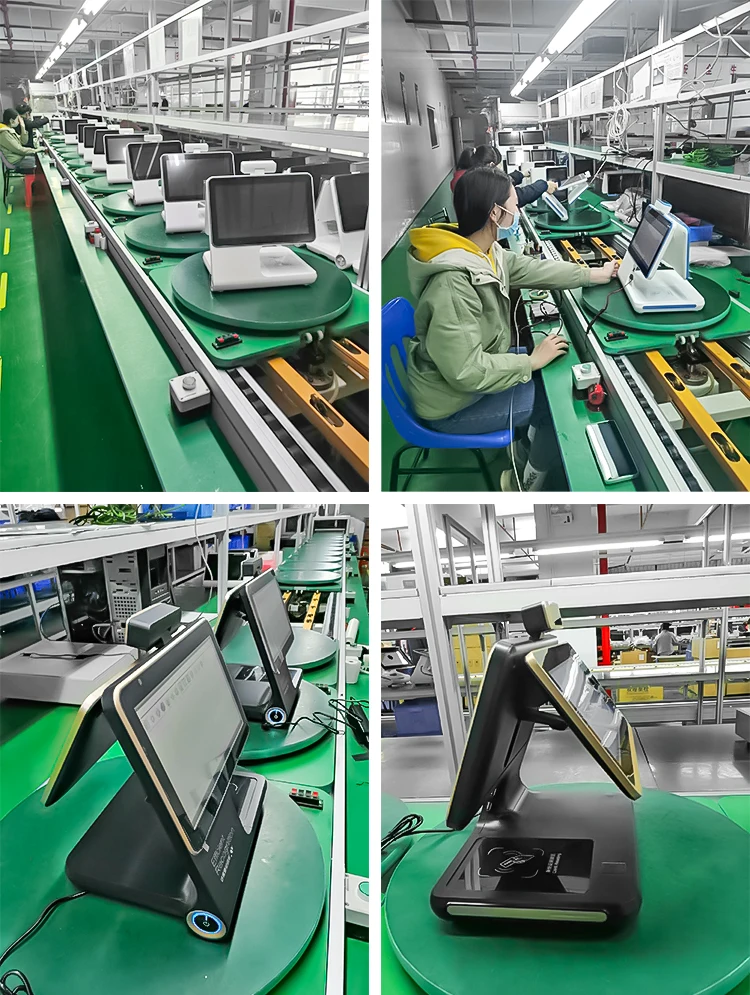

- 3.More than 7000 square meter factory,4 production line with more than 200 workers.
- 4.China telecom,China Unicom,China Mobile,Alibaba,Jin Dong,Wan DA are all our clients.
- 5.Haagen-Dazs,Sony,Pakistan Ufone operator all purchase from us.
- 6.The most innovative technology to ensure our best quality and competitive price.
- 7.Provide technology support for your secondary development after sale.
FAQ
1.Q:Are you manufacturer?
A:Yes.our factory and headquarter located in Pingshan High-tech Zone, Shenzhen.China, we are professional POS terminal source supplier,
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year for all devices, anyhow man-made damage is not included.
4. Q: Can we have our logo and set boot screen in the product?
A:Yes, we accept OEM/ODM, just send your logo in .cdr format and clear boot screen, we can set for you, on body logo, we can print, stick and laser.
5.Q: what is your sample policy?
A: Usually, customers should pay for the sample and the sample price will be a little higher than the bulk order.We will return the sample cost in the bulk order if the quantity is large enough. We warmly welcome you to come to our factory to test the sample
6. Q: What's the terms of payment?
A: We acceptTelegraphic Transfer(T/T), Western Union, Paypal, L/C.
A: We acceptTelegraphic Transfer(T/T), Western Union, Paypal, L/C.
The final price depends on factors such as the selected product configuration,purchasing quantity, and shipping cost. If you need more information, please contact Julia.
Name:Julia Wei
Mobile: 0086 15999500874(whatsapp&wechat)
Skype: julia.wei06
