Industrial vehicle charger 36V 150A forklift battery charger for charging lead acid forklift battery 36V 1500AH
- Category: >>>
- Supplier: Seawill Technology Co. Ltd.Seawill Ltd.
Share on (1601256373854):
Product Overview
Description
Specification
item | value |
Type | Infrared Wireless Charger |
Function | screen display |
Charging Port | 3 ports |
Connection | SIM Card |
Combination | Built-in Microphone |
Voltage | 36V |
Warranty | 1 Years |
Place of Origin | China |
Guangdong | |
Brand Name | Seawill |
Model Number | 36V 150A |
Charging current | 110 Ampere |
Voltage | 36V |
Data | 3P380V50/60Hz |
Certification | ce |

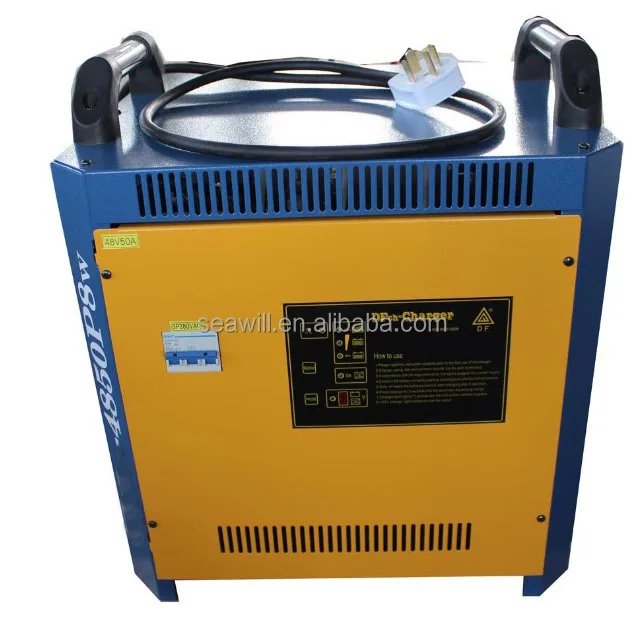

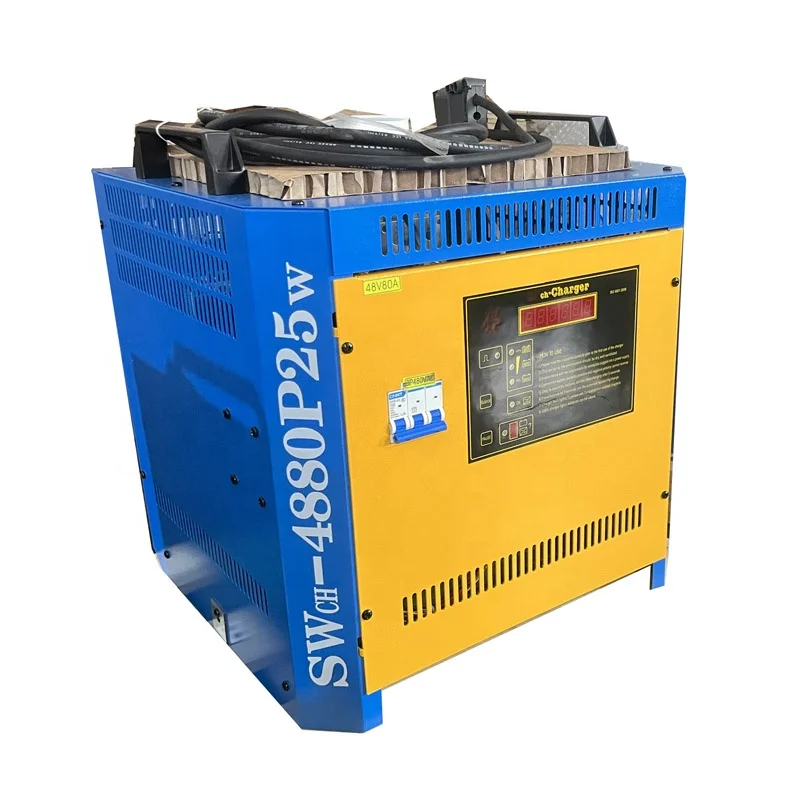

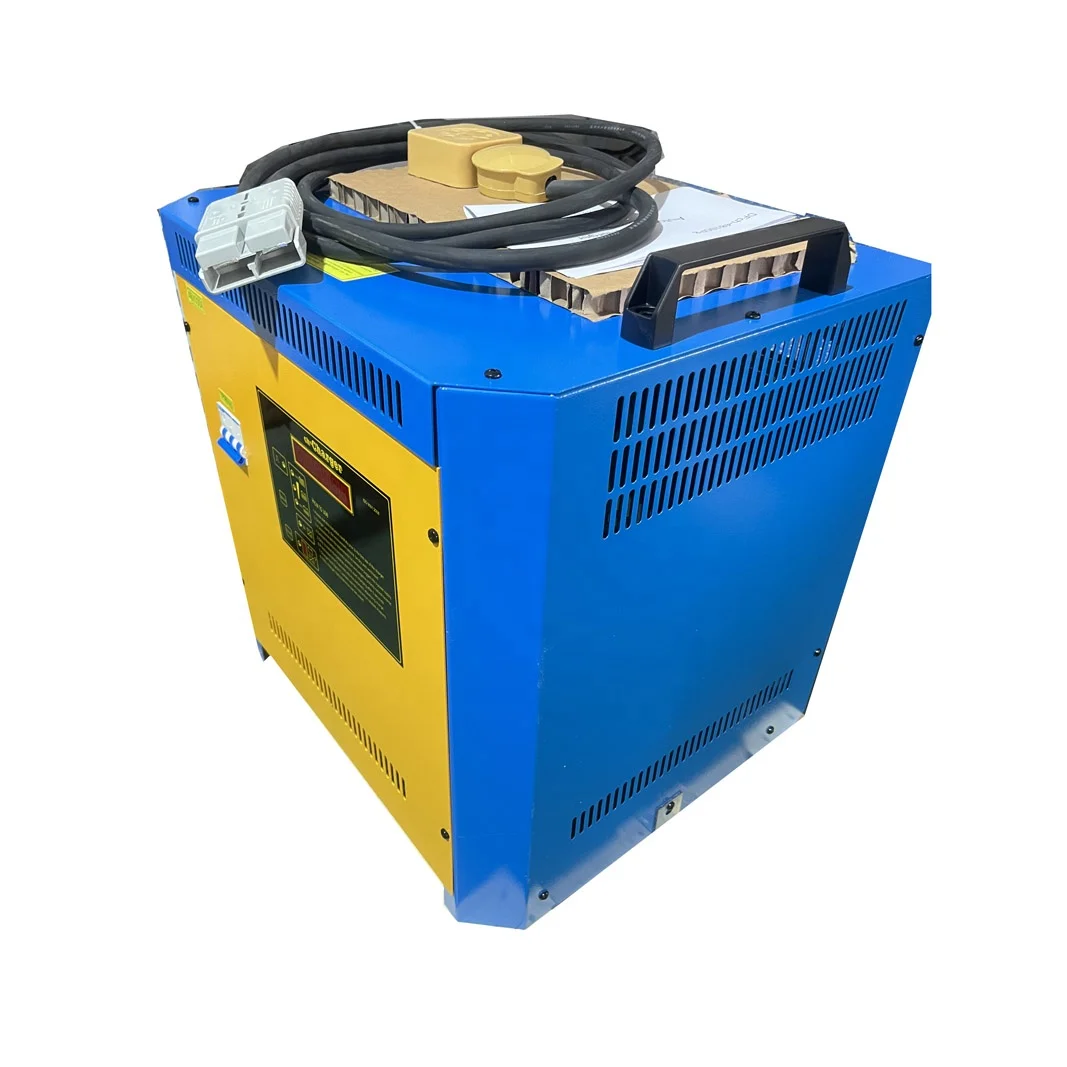

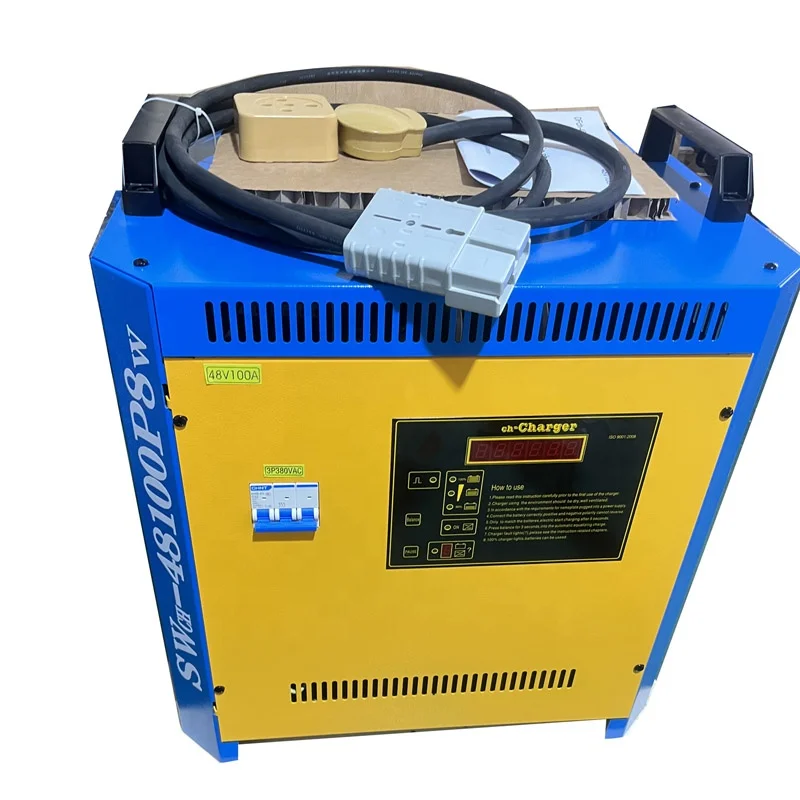

Details Images
Characteristics
Technical Parameters and Functions:
1, Charging technology Model: DF-4880P8W(Horizontal)
2, Specification: 48V 80A, can charge 48V 560-640Ah rechargeable traction lead acid batteries, with the fault code display pulse charging fuction, Equalizing charge, automatic rest.
3, Technical Parameters:
3.1, Input supply voltage: 3P400V±5% 50Hz/PE;
3.2, Input power 6.6kAv
3.3, Charging time:8-12 hours(discharge capacity of the battery is less than 80% C5)
3.4, Protection: IP21;
3.5, Environmental requirements: -0℃+40℃, no serious dust; no strong rot, no strong electromagnetic interference; no corrosive gas;
3.6, Humidity <95%(non-condensing)
3.7, Elevation: +2000m;
4, Charging machine configuration:
4.1, Output cable is: YH/25mm2 cord length 3m, with imports SB gray 350A600V charging plug.
4.2, Input power cord: YZ Universal cab tyre cable, diameter of not less than 4mm2 wire 2.4 meters long, white jade powder phase four-wire plugs and sockets.
5, Dimensions: 525*60*45cm(width*height*depth cm)
6, Weight: 78kgs.
7, Panel color: yellow, dark blue chassis, white zinc-plated steel base.
2, Specification: 48V 80A, can charge 48V 560-640Ah rechargeable traction lead acid batteries, with the fault code display pulse charging fuction, Equalizing charge, automatic rest.
3, Technical Parameters:
3.1, Input supply voltage: 3P400V±5% 50Hz/PE;
3.2, Input power 6.6kAv
3.3, Charging time:8-12 hours(discharge capacity of the battery is less than 80% C5)
3.4, Protection: IP21;
3.5, Environmental requirements: -0℃+40℃, no serious dust; no strong rot, no strong electromagnetic interference; no corrosive gas;
3.6, Humidity <95%(non-condensing)
3.7, Elevation: +2000m;
4, Charging machine configuration:
4.1, Output cable is: YH/25mm2 cord length 3m, with imports SB gray 350A600V charging plug.
4.2, Input power cord: YZ Universal cab tyre cable, diameter of not less than 4mm2 wire 2.4 meters long, white jade powder phase four-wire plugs and sockets.
5, Dimensions: 525*60*45cm(width*height*depth cm)
6, Weight: 78kgs.
7, Panel color: yellow, dark blue chassis, white zinc-plated steel base.

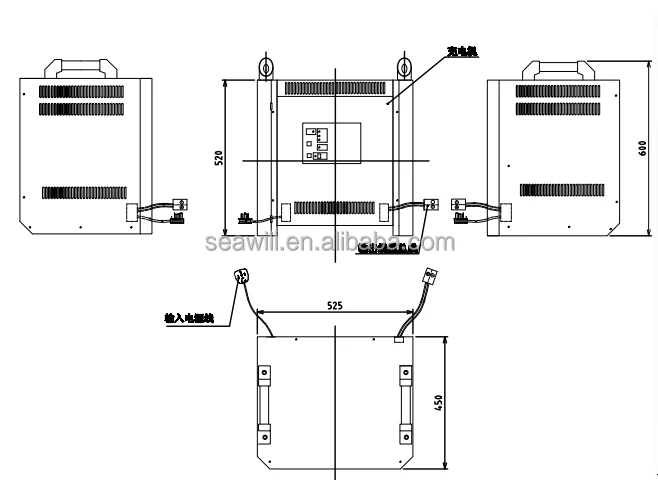

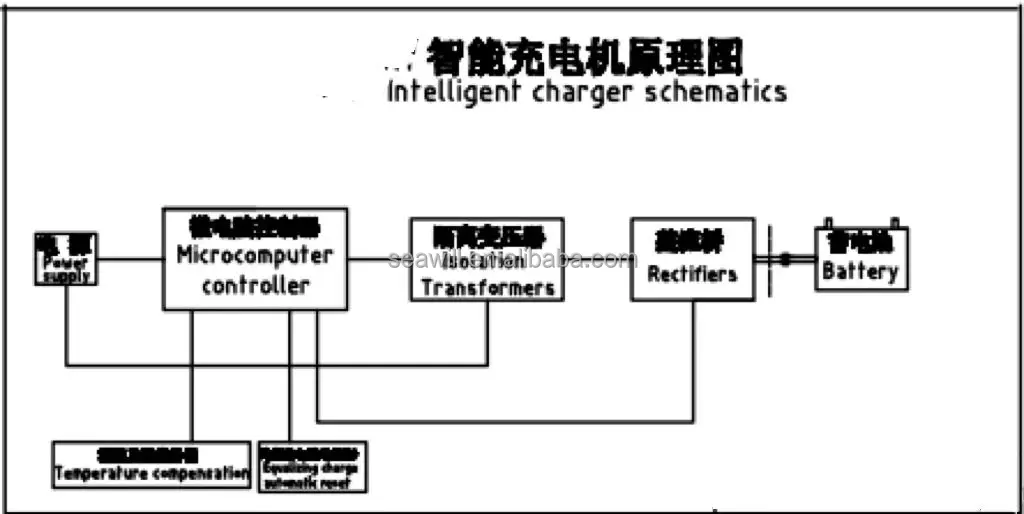

Charger's drawing and Schematics
Company Profile

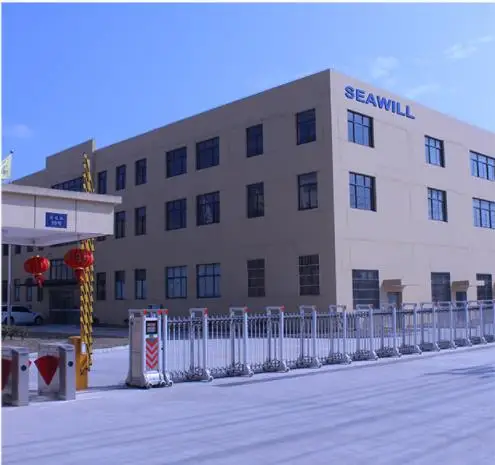

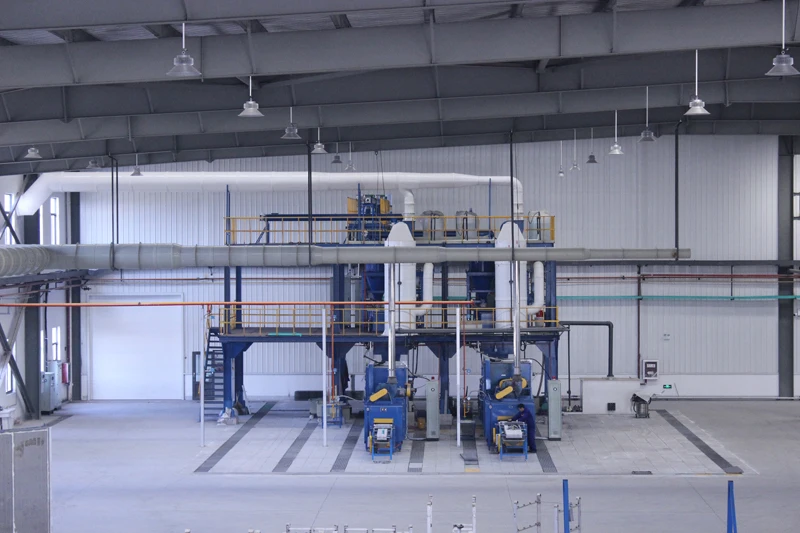

Seawill Technology Co., Limited is leading professional battery manufacturer in China who has been working in this industry for over 20 years, we have three factories, one produce Valve Regulated Lead Acid battery(VRLA battery), Gel battery,OPZV OPZS tubular plate battery which located in Guangdong province, one produce traction battery, forklift battery, golf car batteries which located in Jiangsu province, and one produce the Nickel Cadmium(NI-CD) battery, Nickel Iron(NI-FE) battery and silver zinc battery which located in north of China.
Seawill company's history:
2002, Seawill Technology Co.,Limited was established in Hongkong. 2004, Set up factory in Qingyuan city,Guangdong province.
2005, The international advanced technology and equipments were introduced to Seawill factory, China.
2006, Began export batteries in large quantities.
2007, Set up factory in Jiangsu province.
2008, Acquired ISO9001 International quality system certification. 2013,Acquired CE,RoHs Certification.
2014, Acquired SGS report.
2015, Acquired IEC60623 certificate.
2022, Acquired IEC62259 certificate.
Seawill has consistently devoted efforts to offering products and service:
-Advanced processing and manufacturing facilities
-A strong R&D department
-Fast development on new products
-Hundred of models covering a full range batteries
-On-time delivery and efficient logistic systems
-High customer satisfaction and reputation .
- 12 years Gold member of Alibaba and over 20 years battery manufacturing and exporting experience.
These enable us to be your best partner in China.
Seawill company's history:
2002, Seawill Technology Co.,Limited was established in Hongkong. 2004, Set up factory in Qingyuan city,Guangdong province.
2005, The international advanced technology and equipments were introduced to Seawill factory, China.
2006, Began export batteries in large quantities.
2007, Set up factory in Jiangsu province.
2008, Acquired ISO9001 International quality system certification. 2013,Acquired CE,RoHs Certification.
2014, Acquired SGS report.
2015, Acquired IEC60623 certificate.
2022, Acquired IEC62259 certificate.
Seawill has consistently devoted efforts to offering products and service:
-Advanced processing and manufacturing facilities
-A strong R&D department
-Fast development on new products
-Hundred of models covering a full range batteries
-On-time delivery and efficient logistic systems
-High customer satisfaction and reputation .
- 12 years Gold member of Alibaba and over 20 years battery manufacturing and exporting experience.
These enable us to be your best partner in China.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2012,sell to Southeast Asia(15.00%),Eastern Asia(10.00%),Mid East(10.00%),Northern Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South America(10.00%),Western Europe(8.00%),Southern Europe(5.00%),North America(5.00%),Domestic Market(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Sealed lead acid battery,Nickel Cadmium battery,Nickel Iron battery,Forklift battery,OPzV OPzS battery
4. why should you buy from us not from other suppliers?
Our products have got CE,ROHS and etc certificates. Our factories owns 100 thousand square meters of land, we have a strong production capacity. We are owning a large number of well-experienced engineers, we are good at the R&D capacity.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Guangdong, China, start from 2012,sell to Southeast Asia(15.00%),Eastern Asia(10.00%),Mid East(10.00%),Northern Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South America(10.00%),Western Europe(8.00%),Southern Europe(5.00%),North America(5.00%),Domestic Market(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Sealed lead acid battery,Nickel Cadmium battery,Nickel Iron battery,Forklift battery,OPzV OPzS battery
4. why should you buy from us not from other suppliers?
Our products have got CE,ROHS and etc certificates. Our factories owns 100 thousand square meters of land, we have a strong production capacity. We are owning a large number of well-experienced engineers, we are good at the R&D capacity.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
