New Fiber Pulse Laser Machine for Cleaning Floors Easy to Operate Multiple Materials Metal Wood Stone
- Category: >>>
- Supplier: Hunan Dachuan Automation Technology Co. Ltd.Hunan Ltd.
Share on (1601256389580):
Product Overview
Description
Product descriptions from the supplier
Overview
Video Description
Video Description

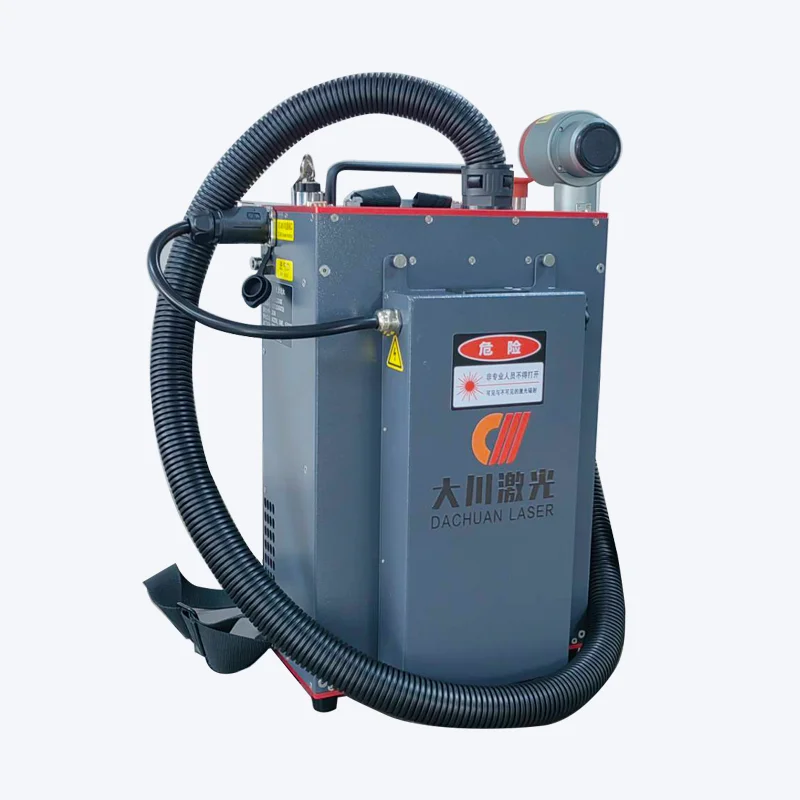

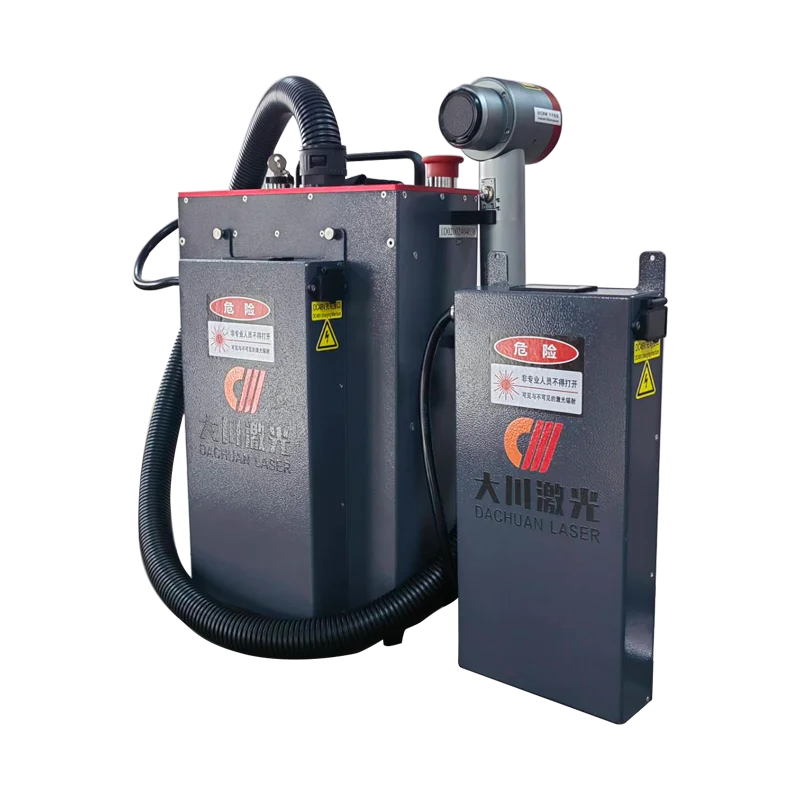

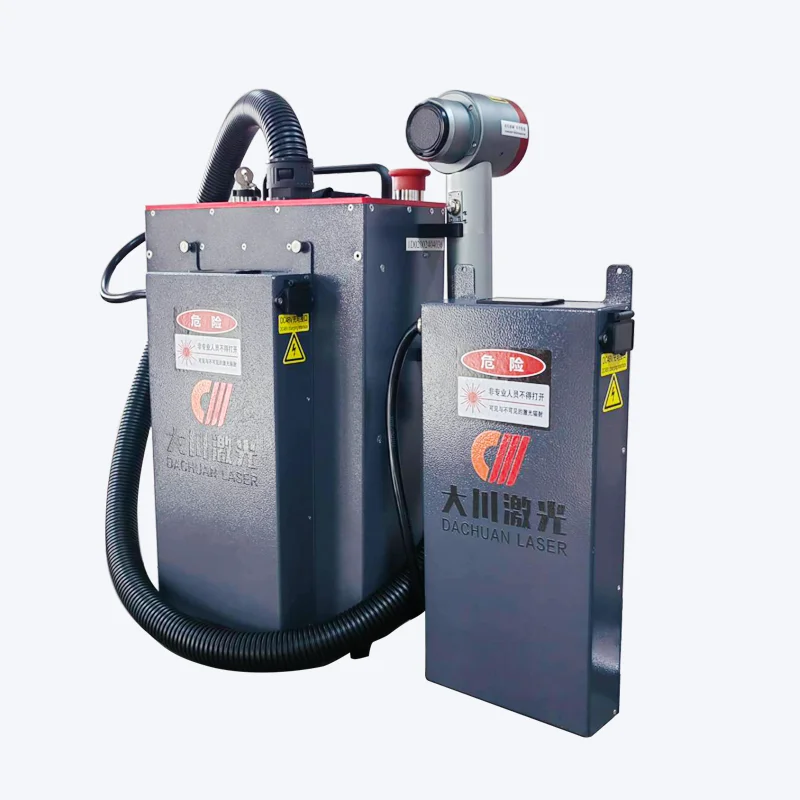

Backpack type pulse laser cleaning machine
Product description
Backpack pulsed laser cleaning, 50W size 210mm*118mm*265mm, weight only 7 kg, small and light, easy to use.
Product size drawing

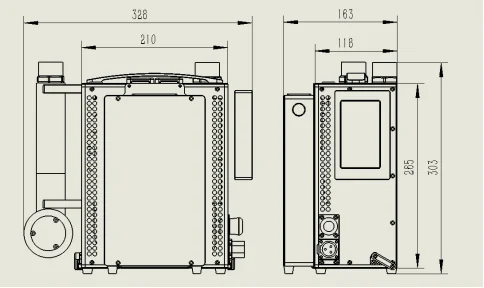

External dimensions of main engine.
Approx. 210mm*163mm*265mm (including battery)

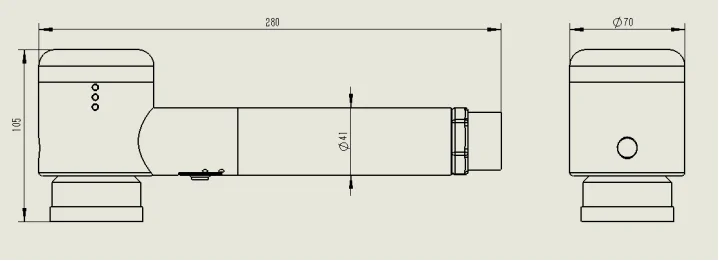

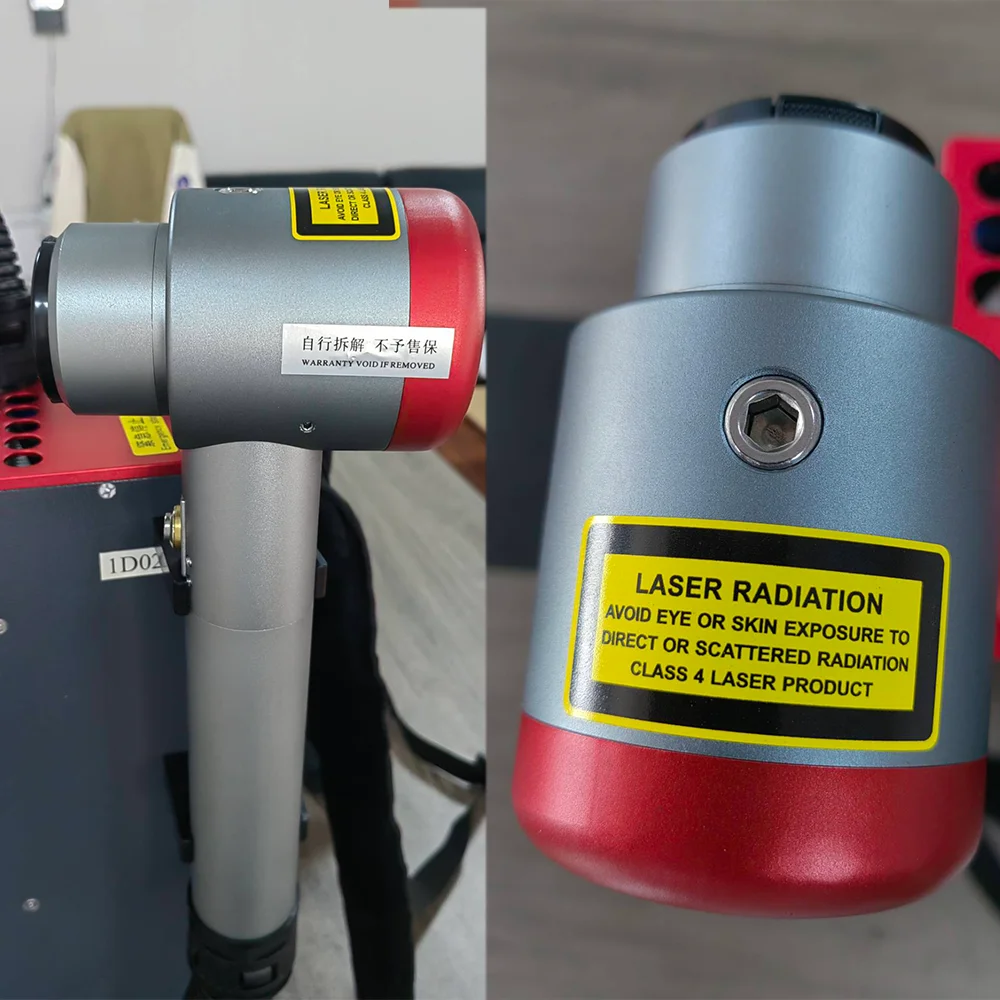

Dimensions of the gun head.
Cleaning head weight: < 0.75Kg, easy to use.
Technical product list
50 watt pulse cleaning parameters | ||
Operating environment | ||
Name | Backpack pulsed laser cleaner | |
Model number | DC -FLC50SC | |
Optional additional battery, 50W continuous working 2h, standard AC220V±10%, 50/60Hz power adapter (output DC48V) | ||
Power consumption | < 400W | |
Operating ambient temperature | 5℃ ~ 40℃ | |
Working environment humidity | 80% or less | |
Optical parameters | ||
Average laser power | ≥50W | |
Power instability | Less than 5% | |
How the laser works | Pulse | |
Pulse width | 80-110ns adjustable | |
Maximum monopulse energy | 1.1 mJ | |
Power adjustment range (%) | 10-100(gradient adjustable) | |
Repetition rate (kHz) | 45-170 (gradient adjustable) | |
Fiber length | 1.5 m | |
Cooling method | Air cooling | |
Cleaning head parameters | ||
Scan range (length * width) | 0-100mm, continuously adjustable; Dual axis supports 8 scanning modes; | |
Scanning frequency | 10Hz to 300Hz continuously adjustable | |
Field mirror focal length (mm) | 160mm (optional 210mm/254mm/330mm/420mm) | |
Focal depth | About 3mm | |
Mechanical parameters | ||
Host dimensions (length, width and height) | Approx. 210mm*118mm*265mm (without battery) | |
Host size (L W H) including battery | Approx. 210mm*163mm*265mm (including battery) | |
Dimensions after packaging (length, width and height) | Approx. 490mm*330mm*300mm (without battery) | |
Package size (length, width and height) including battery | Approx. 490mm*330mm*300mm (including battery) | |
Approx. 7Kg (without battery) | ||
Approx. 9.6Kg (including battery) | ||
Weight after packing | Approx. 14Kg (without batteries) | |
Approx 16.6Kg (including battery) | ||
Weight of cleaning head | < 0.75Kg | |
Method of operation | Handheld | |
Price | 34500RMB | |
Minimum order quantity | 1 | |
100 watt pulse cleaning parameters | ||
Operating environment | ||
Model number | DC-FLC100SC | |
Name | Backpack pulsed laser cleaner | |
Power Supply | Standard AC220V±10%, 50/60Hz power adapter (output DC48V) Optional battery 100W continuous work 80-90 minutes | |
Power consumption of the machine | < 600W | |
Operating ambient temperature | 5 ℃ to 40 ℃ | |
Working environment humidity | 80% or less | |
Optical parameters | ||
Average laser power | ≥100W | |
Power instability | Less than 5% | |
How the laser works | Pulse | |
Pulse width | 150- 190ns | |
Maximum monopulse energy | 1.7 mJ | |
Power adjustment range (%) | 10-100 (gradient adjustable) | |
Repetition rate (kHz) | 20-200 (gradient adjustable) | |
Fiber length | 1.5 m | |
Cooling method | Air cooling | |
Cleaning head parameters | ||
Scan range (length * width) | 0-100mm, continuously adjustable; | |
Dual axis supports 8 scanning modes; | ||
Scanning speed | Max 10 m/s | |
Field mirror focal length (mm) | 160mm (optional 210mm/254mm/330mm/420mm) | |
Focal depth | About 5mm | |
Mechanical parameters | ||
Host dimensions (length, width and height) | Approx. 213mm*123mm*339mm (without battery) | |
Approx. 213mm*168mm*339mm (including battery) | ||
Dimensions after packaging (length, width and height) | Approx. 600 x 400 x 360mm (without battery) | |
Approx. 600*400*360mm (battery included) | ||
Weight of machine (including cleaning head) | Approx. 8.5Kg (without battery) | |
Approx. 12Kg (including battery) | ||
Weight after packing | About 15.5Kg (without batteries) | |
Approx. 19Kg (including battery) | ||
Weight of cleaning head | < 0.75Kg | |
Method of operation | Handheld | |
Control mode | Wireless control screen | |
200 watts product parameters | ||
Operating environment | ||
Model number | DC-FLC200SC | |
Name | Backpack type pulse washer | |
Power Supply | Standard AC220V±10%, 50/60Hz power adapter (output DC48V) | |
Optional battery 200W continuous operation for 80 minutes | ||
Power consumption | ≤800W | |
Operating ambient temperature | 5℃ ~ 40℃ | |
Working environment humidity | 80% or less | |
Optical parameters | ||
Average laser power | ≥200W | |
Power instability | Less than 5% | |
How the laser works | Pulse | |
Pulse width | 13-500ns | |
Maximum monopulse energy | 2mJ | |
Power adjustment range (%) | 0-100(gradient adjustable) | |
Frequency adjustable range (kHz) | 1-3000 (gradient adjustable) | |
Fiber length | 1.5 m | |
Cooling method | Air cooling | |
Cleaning head parameters | ||
Scan range (length * width) | 0-145mm, continuously adjustable; | |
Dual axis supports 8 scanning modes; | ||
Field mirror focal length (mm) | 210mm (optional 160mm/254mm/330mm/420mm) | |
Focal depth | About 5mm | |
Mechanical parameters | ||
Host dimensions (length, width and height) | Approx 268mm x 135mm x 445mm (without battery) | |
Approx 268mm*191.5mm*445mm (with battery) | ||
Weight of machine (including cleaning head) | Approx. 12.5Kg (without battery) | |
Approx. 17Kg (including battery) | ||
Weight of cleaning head | < 0.75Kg | |
Method of operation | Handheld | |
Control mode | Wireless control screen | |

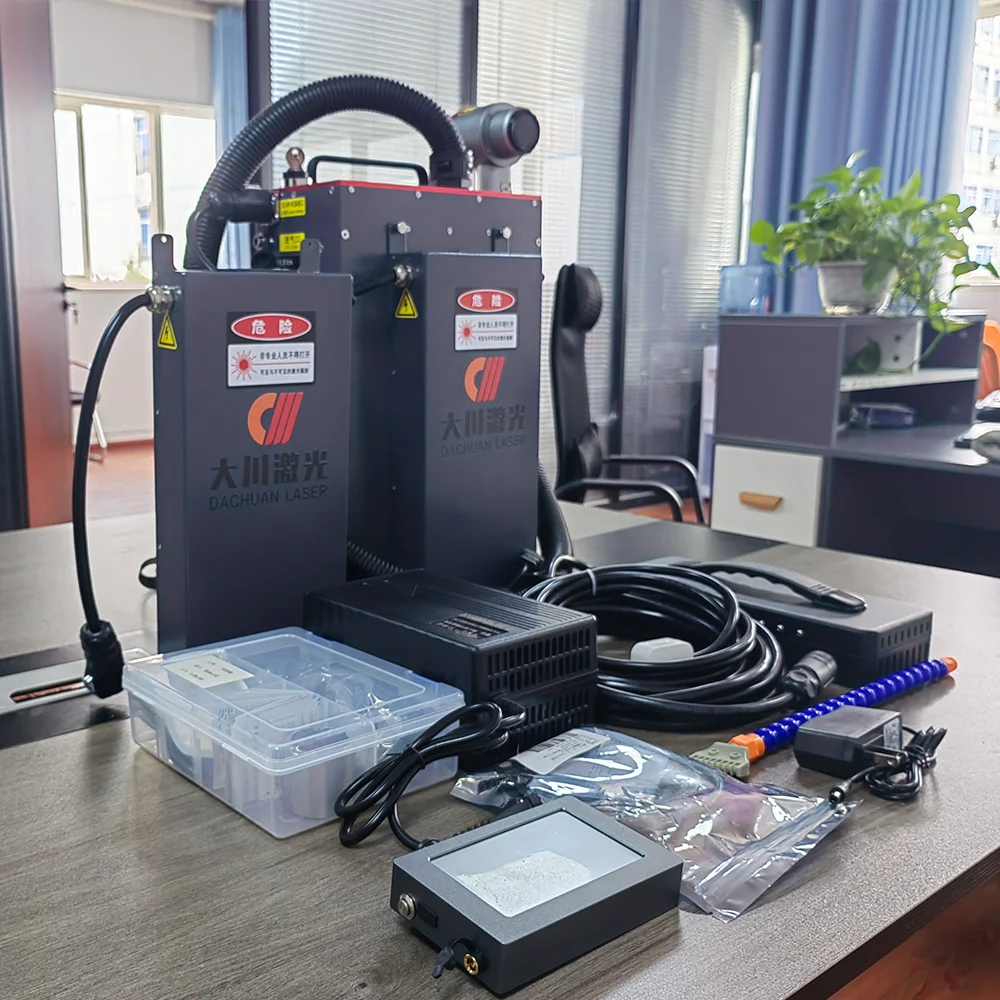

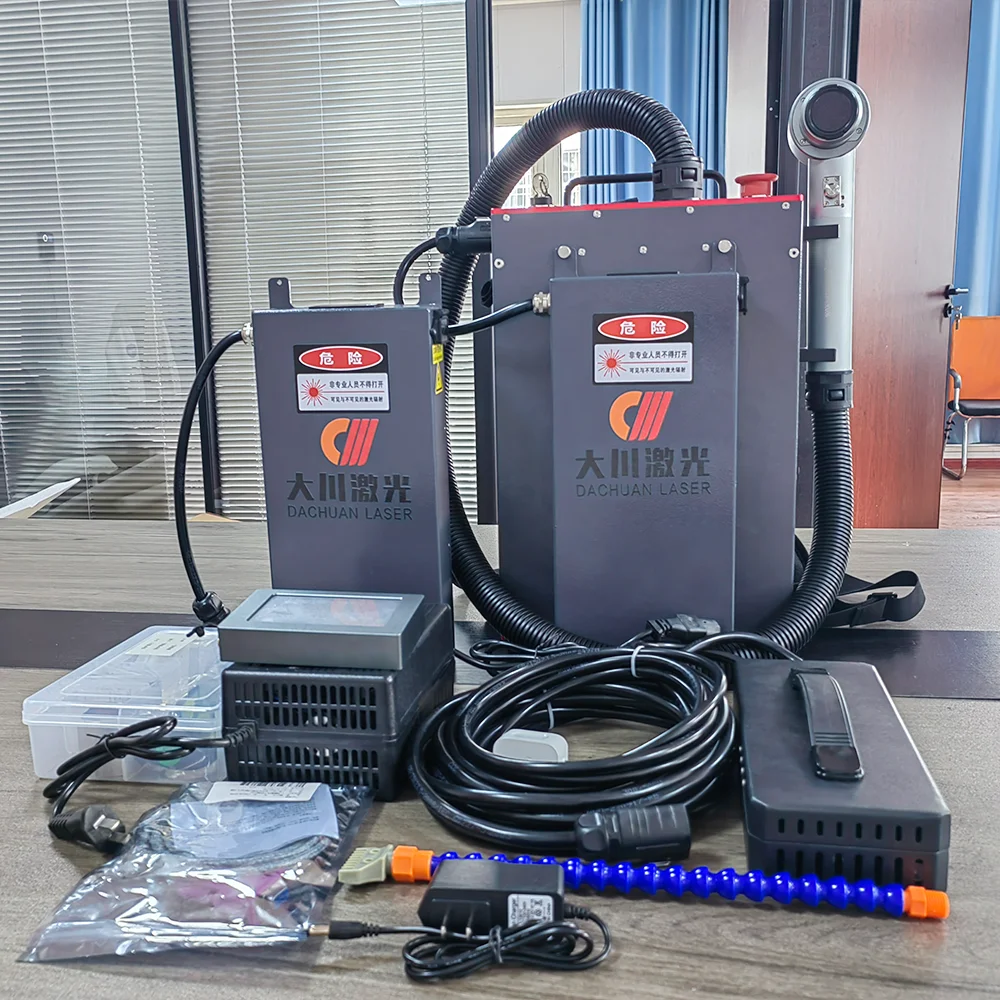

Product accessories introduction
battery
Battery capacity 48V7.5AH, the battery is optional, you can choose to configure multiple batteries, or no batteries.
Battery charger
Battery charger, used to charge our batteries.
Power adapter
Standard AC220V±10%, 50/60Hz power adapter (output DC48V).
Accessory box
Inside the box: protective glasses/protective lenses/lens wiping paper/lens changing wrench.
Operating handle
The operating handle is used to control and adjust the power of our equipment usage mode.
Handle charger
Used to charge the handle.
Cleaning effect display

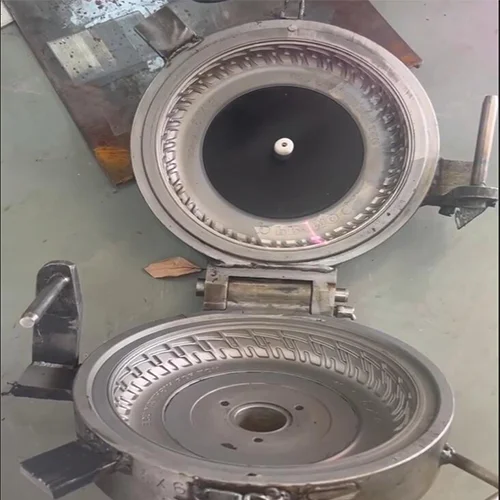

Tire mold surface rubber cleaning.
Shoes mold surface residual rubber cleaning.
Aluminum alloy surface coating paint cleaning treatment.
Steel plate surface rust cleaning treatment.
Copper bar surface insulation coating cleaning treatment.
Wrench surface dirt and rust cleaning treatment.
Q: How do we choose the most suitable laser cleaning machine?
A: In order to recommend the most suitable machine model to you, please tell us the following details:
1. What kind of surface material do you want to clean, such as metal surface, plastic surface, etc.?
2. Do you want to clean the surface of oil, rust, paint or other stains?
Q: When I receive this machine, I cannot operate it, how can I ask for help?
A: Our after-sales staff will send you the operation video and manual of the machine, and our technical engineers will conduct training and guidance online.
If necessary, we can send engineers to your site for training, or you can send operators to our factory for training.
Q: What should I do if something goes wrong with my device during use?
A: Our equipment is the whole machine warranty 1 year, laser warranty 2 years. Within the scope of the warranty, if there is any problem with the equipment, we will provide spare parts free of charge (except man-made damage). After the warranty period, we Lifetime service is still available. If you have any questions, please let us know and we will provide you with a solution.
Q: What are the payment options?
A: We accept payment terms including: T/T, VISA, Western Union online bank payment.
Q: What are the transportation methods of the equipment?
A: Shipping is the normal way, if there are special requirements, need to be confirmed by both parties.
A: In order to recommend the most suitable machine model to you, please tell us the following details:
1. What kind of surface material do you want to clean, such as metal surface, plastic surface, etc.?
2. Do you want to clean the surface of oil, rust, paint or other stains?
Q: When I receive this machine, I cannot operate it, how can I ask for help?
A: Our after-sales staff will send you the operation video and manual of the machine, and our technical engineers will conduct training and guidance online.
If necessary, we can send engineers to your site for training, or you can send operators to our factory for training.
Q: What should I do if something goes wrong with my device during use?
A: Our equipment is the whole machine warranty 1 year, laser warranty 2 years. Within the scope of the warranty, if there is any problem with the equipment, we will provide spare parts free of charge (except man-made damage). After the warranty period, we Lifetime service is still available. If you have any questions, please let us know and we will provide you with a solution.
Q: What are the payment options?
A: We accept payment terms including: T/T, VISA, Western Union online bank payment.
Q: What are the transportation methods of the equipment?
A: Shipping is the normal way, if there are special requirements, need to be confirmed by both parties.
