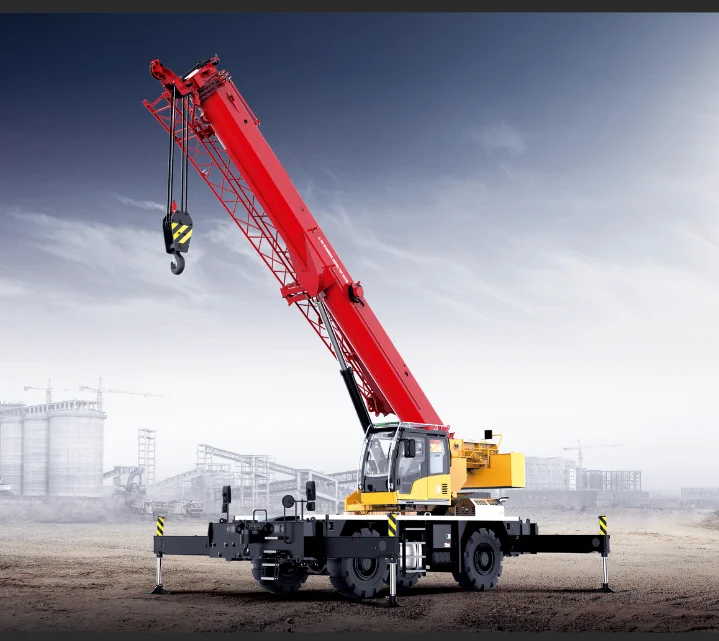

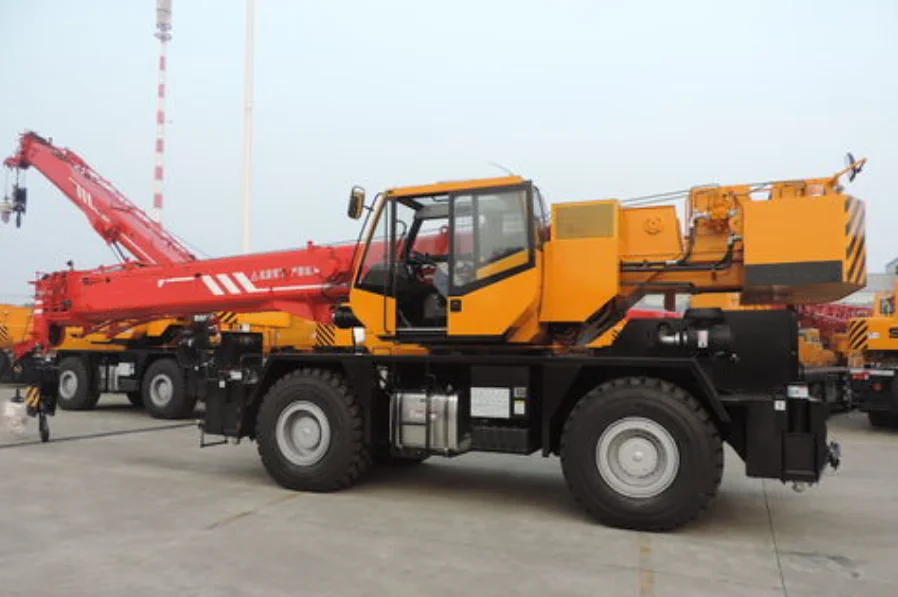

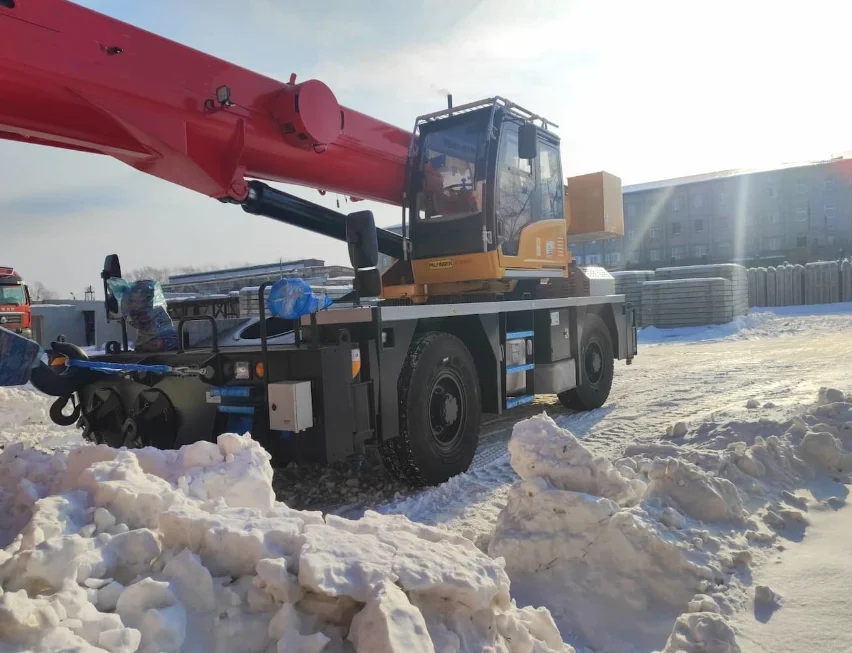

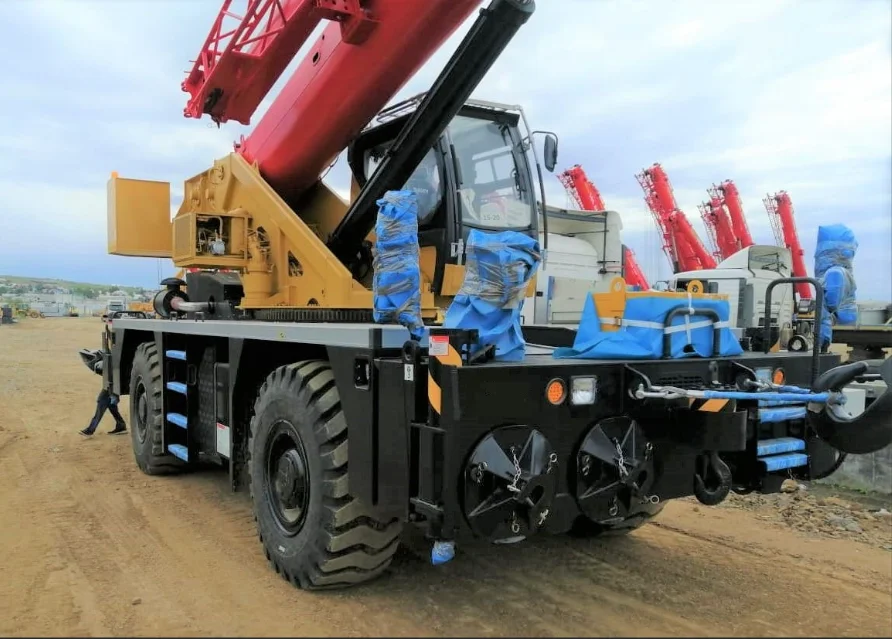

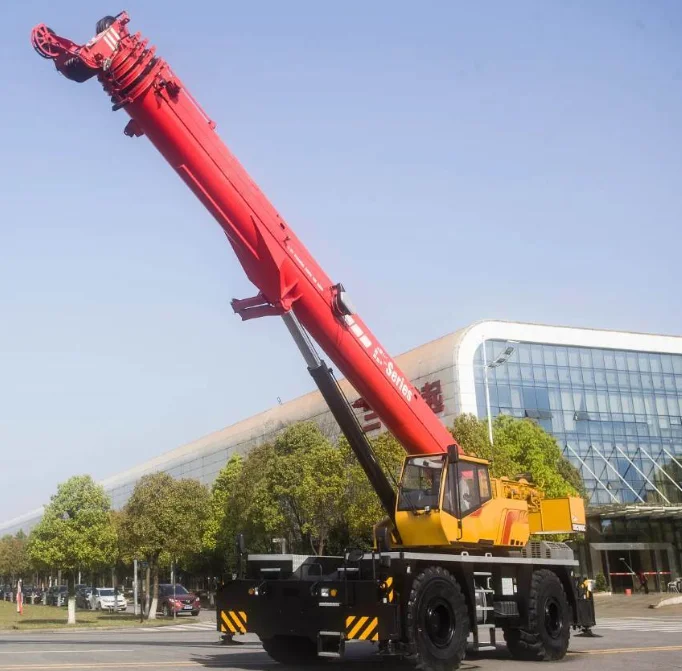

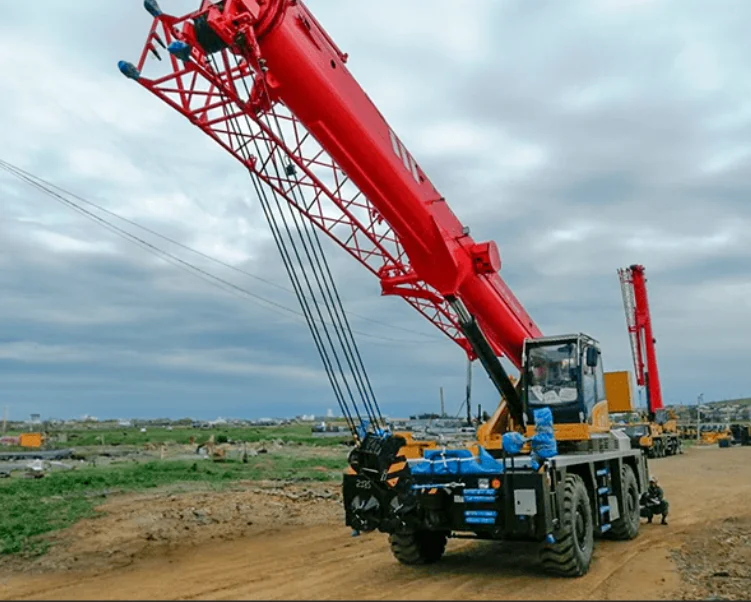

Famous Brand 40Ton SRC400T Rough Terrain Crane

A 40t rough terrain crane with four section 35m boom, featuring stronger capacity yet reduced self-weight. Key components come from International name brands. Operator comfort is improved by brand new cab design.

1. Four steering modes
2 wheel front / 2 wheel rear / 4 wheel / Crab

2. Engine
Power comes from a DF Cumins QSB6.7 inline six-cylinder water-cooled, turbocharged and inter-cooled off-highway diesel engine,complying with Stage Ⅲ emission standard.
Rated power: 194kW/2400rpm.
Max. torque: 990N·m/1500rpm.

3. Transmission
Da na electrioncally controlled auto tansmission features 6 speeds forward and 3 speeds reverse, wide ratio range, and smooth gearshift with reduced maintenance cost.

4. Axle and suspension
Mer itor axles, both axles are driven and steered. Front axle is mounted to the frame by independent steel plate, and rear adopts oscillation cylinders with hydraulic lockout. Driving comfort and lateral stability is therefore guaranteed on rough terrains and conditions.

5. Hydraulic System
Four boom sections extended by double cylinder with rope arranger, 2nd boom extended by cylinder Ⅰ, 3rd ~5th sections telescoped by cylinder Ⅱ with rope pull. Synchronized telescoping of variable lengths for more applications with higher efficiency.

6. One-trailer Transport
The basic machine is transported at 38.66t with counterweight, jib and hooks, 2.98m wide and 3.79m high, satisfying road regulations.


Product Parameters


CAPACITY
Max. lifting capacity
t
40
WEIGHT
Gross weight
kg
32300
POWER
Engine model
-
QSB6.7 (EU stage Ⅲ)
Max.engine power
kW/rpm
194/2400
Max.enginetorque
Nm/rpm
990/1500
DIMENSIONS
Overall length
mm
12970
Overall width
mm
2980
Overall height
mm
3730
TRAVEL
Max.travelspeed
km/h
41
Steering radius
Min.steering radius
m
6.2
Min.steering radius of boom tip
m
10.6
Wheel formula
-
4×2; 4×4
Min.ground clearance
mm
370
Approach angle
°
24
Departure angle
°
21
Max.gradeability
-
83%
MAIN PERFORMANCE
Working temperature range
℃
–20~ +51
Min.rated lifting radius
m
3
Tail slewing radius
mm
4.1
Boom sections
-
4
Boom shape
-
U shape
Max.lifting moment
Basic boom
kN.m
1421
Full-extension boom
kN.m
822
Boom length
Boom length
m
10.8
Boom length
m
35
Full-extension boom + jib
m
51
Max.lifting height
Basic boom
m
11.5
Full-extension boom
m
35.3
Full-extension boom + jib
m
51.5
Outrigger span (Longitudinal×Transverse)
m
7.2×7.2
Jib offset
°
0, 15, 30
In operator's cab
-
Heating & cooling
