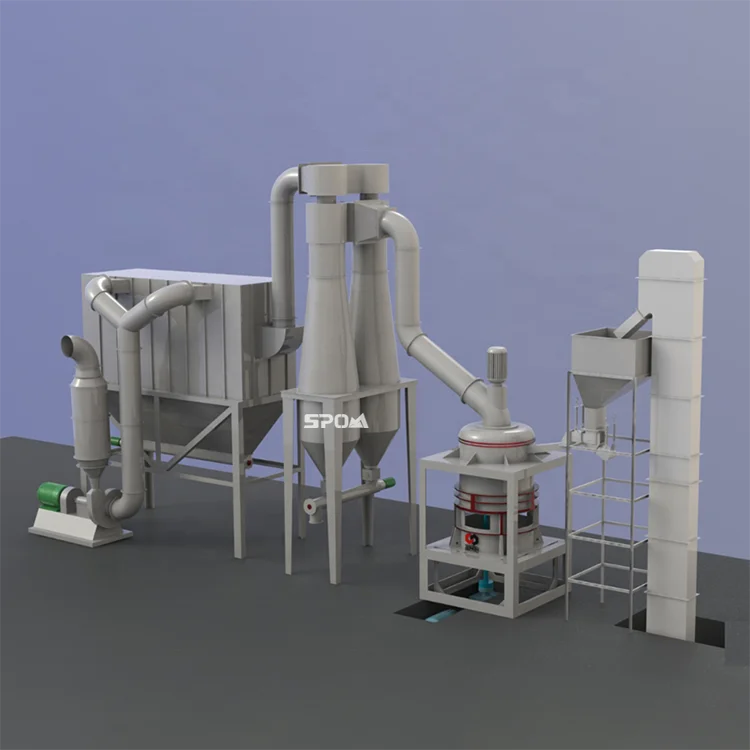

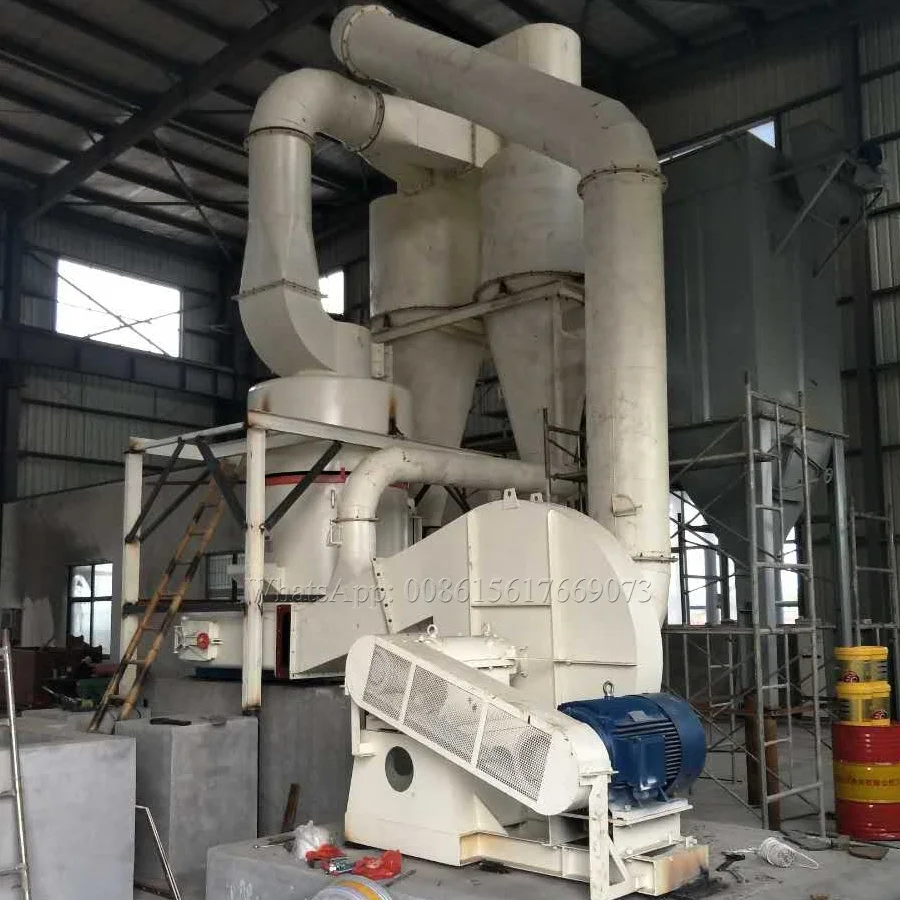

SHIBO HENAN Mining Grinding Mill Rock Phosphate Grinding Mill with 325 425 mesh output
- Category: >>>
- Supplier: Henan Shibo Mechanical Engineering Co. Ltd.
Share on (1601256464205):
Product Overview
Description
Superfine Micro Powder Calcium Oxide Quick Lime Silica Rock Phosphate Dolomite Grinding Mill Price in Sri Lanka
Ultra fine grinding mill (also called micro powder mill, superfine powder grinding mill,
ultra fine powder grinder) is designed to produce ultrafine powder 325 mesh to 2500 mesh. The hardness of the material determines the life of the wearing parts. It has strong technical and cost advantages.
ultra fine powder grinder) is designed to produce ultrafine powder 325 mesh to 2500 mesh. The hardness of the material determines the life of the wearing parts. It has strong technical and cost advantages.
Product Paramenters
Model | ZSM60 | ZSM80 | ZSM90 | ZSM100 | ZSM125 | ZSM168 | ||
Roller Qty. (pcs) | 12 | 21 | 24 | 36 | 44 | 44 | ||
Ring Diameter (mm) | Φ600 | Φ800 | Φ900 | Φ1000 | Φ1250 | Φ1680 | ||
Ring Number (pcs) | 1×3 | 1×3 | 2×4 | 2×4 | 2×4 | 2×4 | ||
Main unit speed (r/min) | 230-240 | 230-240 | 200-220 | 180-200 | 135-155 | 120-130 | ||
Max. feeding size（mm） | ≤10 | ≤10 | ≤20 | ≤20 | ≤20 | ≤20 | ||
Final size（mesh） | 325-2500 | 325-2500 | 325-2500 | 325-2500 | 325-2500 | 325-2500 | ||
Capacity（kg/h） | 300-3000 | 500-4500 | 800-6500 | 1000-8500 | 2500-14000 | 5000-25000 | ||
Feeder | Type | Belt feeder | Belt feeder | Belt feeder | Belt feeder | Belt feeder | Belt feeder | |
Model | B300x60 | B300x60 | B300x60 | B300x60 | B300x80 | B400x80 | ||
Power | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | ||
Main unit | Power | 45KW | 55KW | 45×2KW | 132KW | 185KW | 315KW | |
Classifier | Power | 15KW | 18.5KW | 22KW | 30KW | 75KW | 132KW | |
Dust cleaner | Model | DMC96 | DMC160 | LDCM35-7 | LDCM35-8 | LDCM72-8 | LDCM72-8x2 | |
Power | 37KW | 45KW | 55KW | 75KW | 132KW | 220KW | ||
Discharge screw | Power(KW) | —— | 3 | 3/5.5 | 7.5 | 7.5 | 7.5x2 | |
Discharge valve | Power(KW) | 0.75x2/0.75x1 | 0.75x1 | 1.1x1 | 1.5x1 | 1.5x2 | 1.5x2 | |
Air compressor | Power (KW) | 7.5 | 11 15 | 15 | 22 | 37 | 55 | |
Total weight (t) | 12.5 | 16.5 | 24.6 | 32.2 | 54 | 76 | ||
Outlet Size L*W*H (mm) | 12000×4500×6000 | 14000×4700×6200 | 14700×4800×8600 | 18000×4600×8600 | 14000×9000×10250 | 26300x7500x11900 | ||
Product Description
Types of Ultrafine grinding mill:
——Six models: ZSM60, ZSM80, ZSM90, ZSM100, ZSM125 and ZSM168
——Finished production fineness: 325-2500 mesh (47-5 microns)
——Capacity (ton/hour) ranges from 0.3T/H to 25T/H
——Six models: ZSM60, ZSM80, ZSM90, ZSM100, ZSM125 and ZSM168
——Finished production fineness: 325-2500 mesh (47-5 microns)
——Capacity (ton/hour) ranges from 0.3T/H to 25T/H
Application
The ultrafine mill is suitable for processing the low and intermediate hardness brittle materials which are non-flammable and non-explosive,such as dolomite, calcium carbonate, kaolin, bentonite, talc, mica, attapulgite, barite, gypsum and graphite and so on. It has been widely applied in paint, paper making, pigment, rubber, plastic, padding, cosmetic, chemical supplies and many other industrial fields.
The ultrafine mill is suitable for processing the low and intermediate hardness brittle materials which are non-flammable and non-explosive,such as dolomite, calcium carbonate, kaolin, bentonite, talc, mica, attapulgite, barite, gypsum and graphite and so on. It has been widely applied in paint, paper making, pigment, rubber, plastic, padding, cosmetic, chemical supplies and many other industrial fields.

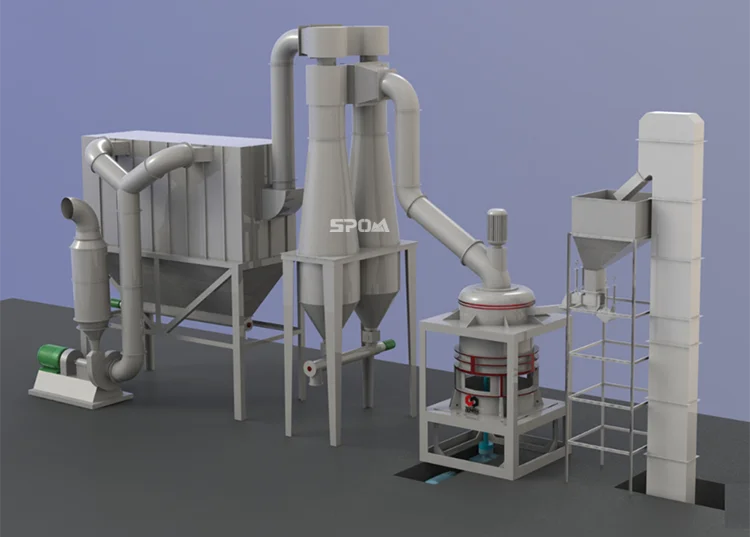

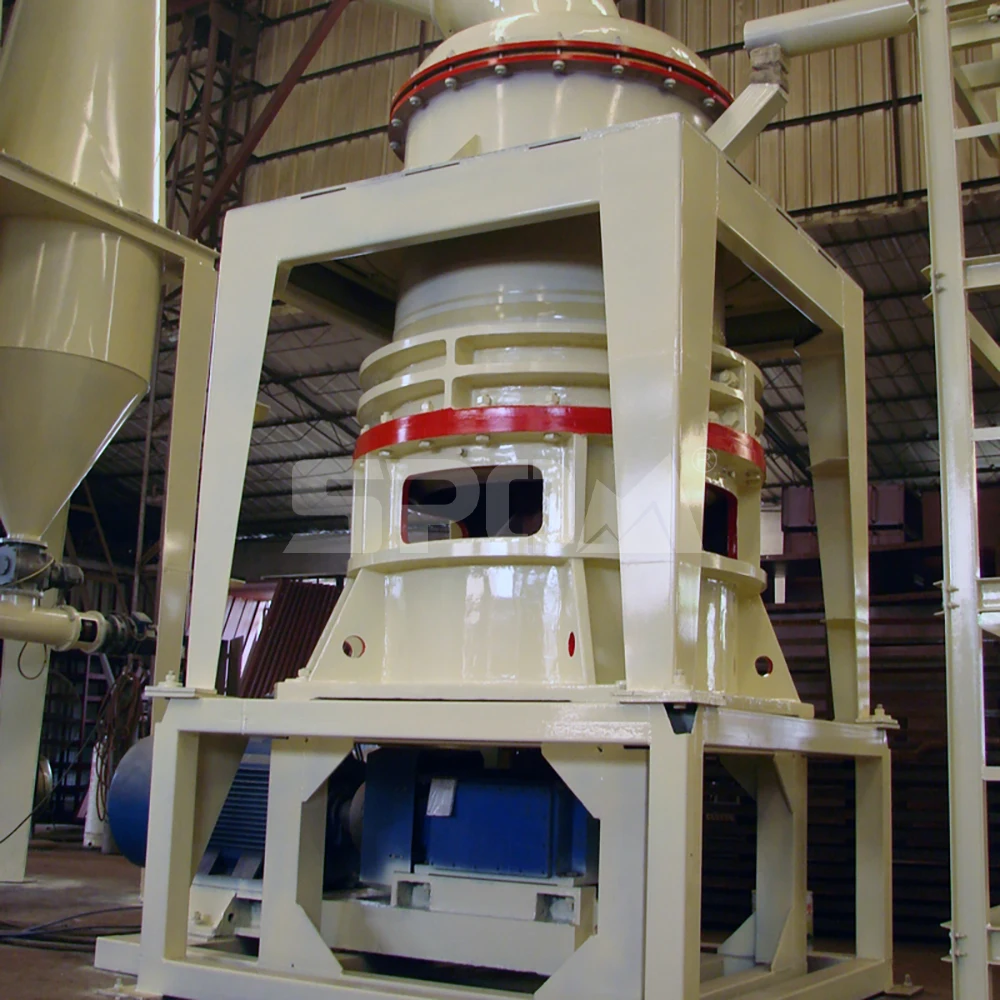

Main Structure
The main structure of Ultrafine mill consists of main unit, classifier, pulse dust collector, motor, pipes and blower, etc. The auxiliary equipment include jaw crusher, hammer crusher, elevator,feeder and control cabinet.
Benefits of Ultra Fine Grinding Mill
1. The yield is 40% higher than other mills.
2. High utilization rate of Wear material: 2-5 years.
3. High fineness, flexible adjustment, adjustable particle size: 325-2500 mesh. and the product fineness can reach D97≤5μm.
4. High safety and reliability. The design of the mill is rigorous, so no screw loosening to damage the machine.
5. Closed system, so it is the green and ideal equipment for environment protection.
Working Principle
The raw material will be fed into the hammer crusher to be crushed. The bucket elevator will load the crushed material below 20mm and then feed it into the main mill through a hopper and a belt feeder.
The motor of the main mill drives the center shaft and disc rotor to rotate through the reducer. The roller pins on the edge of the grinding disc drive the grinding rollers to roll in the mill roller path. The material will fall on the distribution plate above the disc rotor, moving sideward under the action of centrifugal force, and then falling into the mill roller path for being crushed and grinded between the ring and rollers. After being processed through roller paths, the material will become ultrafine powder. The high-pressure blower will inhale outside air into the mill body, then taking the grinded material into the powder classifier.
The rotating impellers in the classifer will drive the coarse particles to fall back for repeated grinding,with the qualifed fine powder forced into the cyclone powder collector along with the air flow and discharged from the lower discharge valve as finished products, while the air flow with small amount of fine dust will be discharged out of the mill via the blower and muffler after being purified by the impulse dust collector.

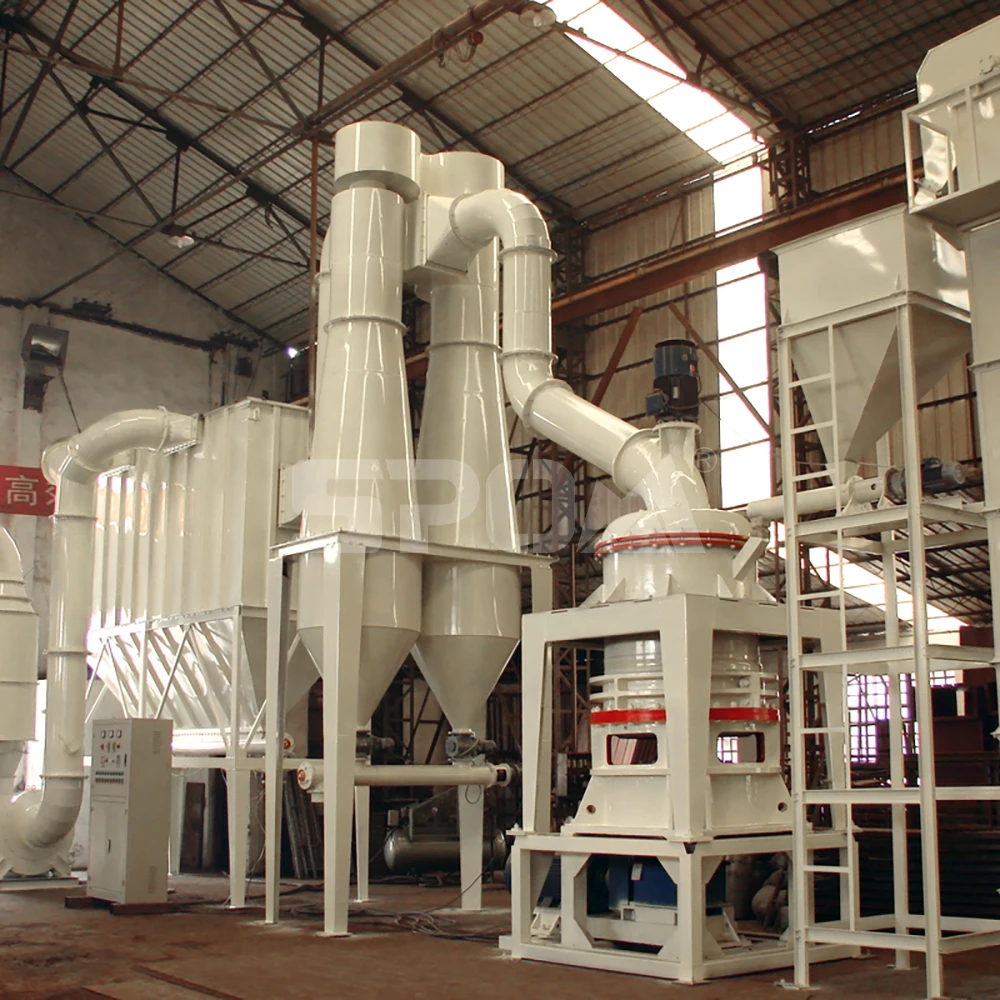

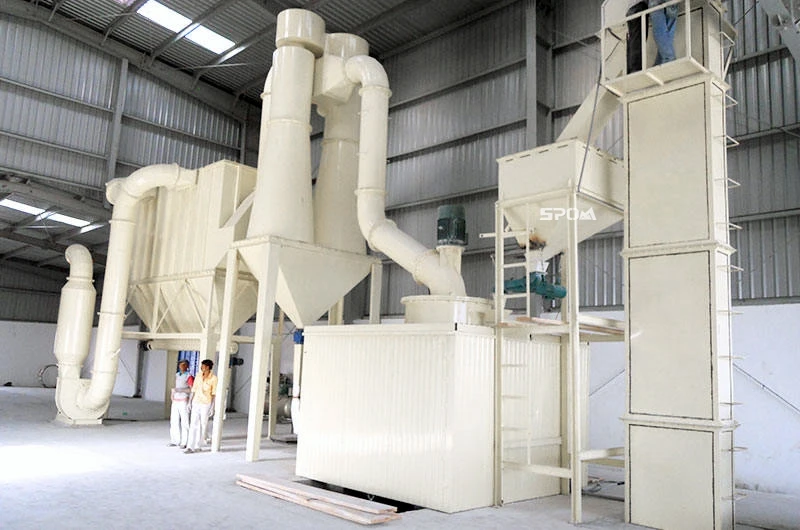

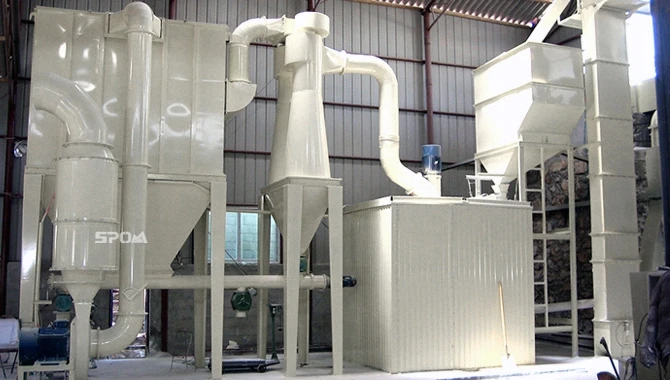

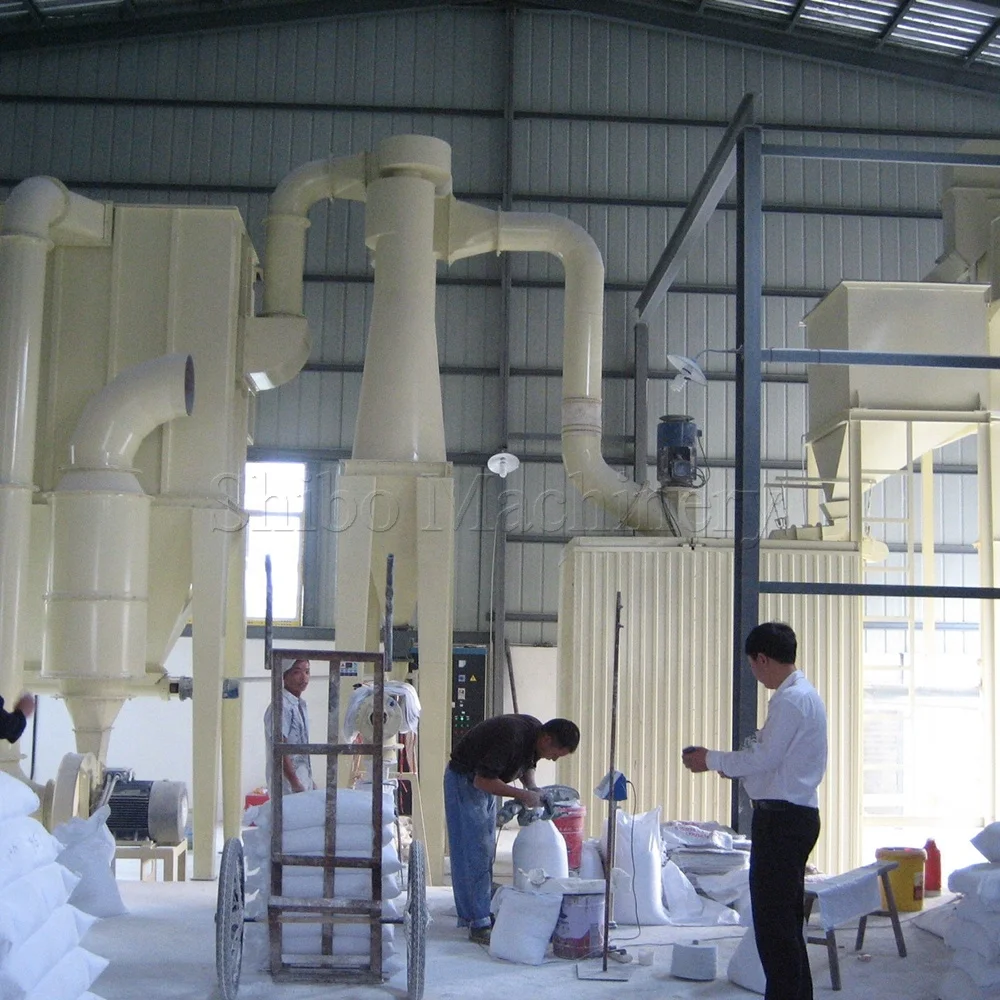

Working site
Packing and delivery
The machine is nude packing , motor and other accessories are packing in wooden box
Company Profile
As a leading global manufacturer of crushing, grinding and mining equipments, Henan Shibo Mechinical Engineering Co. Ltd. (SPOM) offers advanced, reasonable solutions for any size-reduction requirements including quarry, aggregate, and different kinds of minerals. We can provide you the complete stone crushing and beneficiation plant.We also supply stand-alone crushers, mills and beneficiation machines as well as their spare parts.

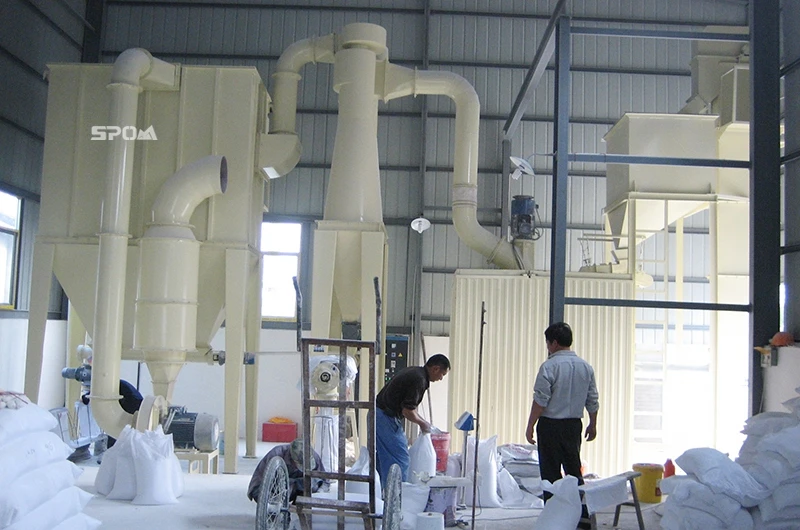

Customer Photos
After more than 30 years development, now we have more than 100 world markets and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
FAQ
Q: what is the payment terms ?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the impact crusher?
A: Most model are in stock, can delivery within 10 days.
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of stone do you want to grinding ? such as limestone ? gypsum ? or ?
2. what's the size of your stone before grinding ? how many inch or mm ?
3. what's your requirements of final powder size ? how many mesh ?
4. what's your requirements of production capacity ? how many ton per hour ?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the impact crusher?
A: Most model are in stock, can delivery within 10 days.
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of stone do you want to grinding ? such as limestone ? gypsum ? or ?
2. what's the size of your stone before grinding ? how many inch or mm ?
3. what's your requirements of final powder size ? how many mesh ?
4. what's your requirements of production capacity ? how many ton per hour ?
