hot china dental surgical operating corder microscope dental stand zoom stereo dental microscope
- Category: >>>
- Supplier: Chongqing Furoi Medical Equipment Co. Ltd.
Share on (1601256502537):
Product Overview
Description
Products Description

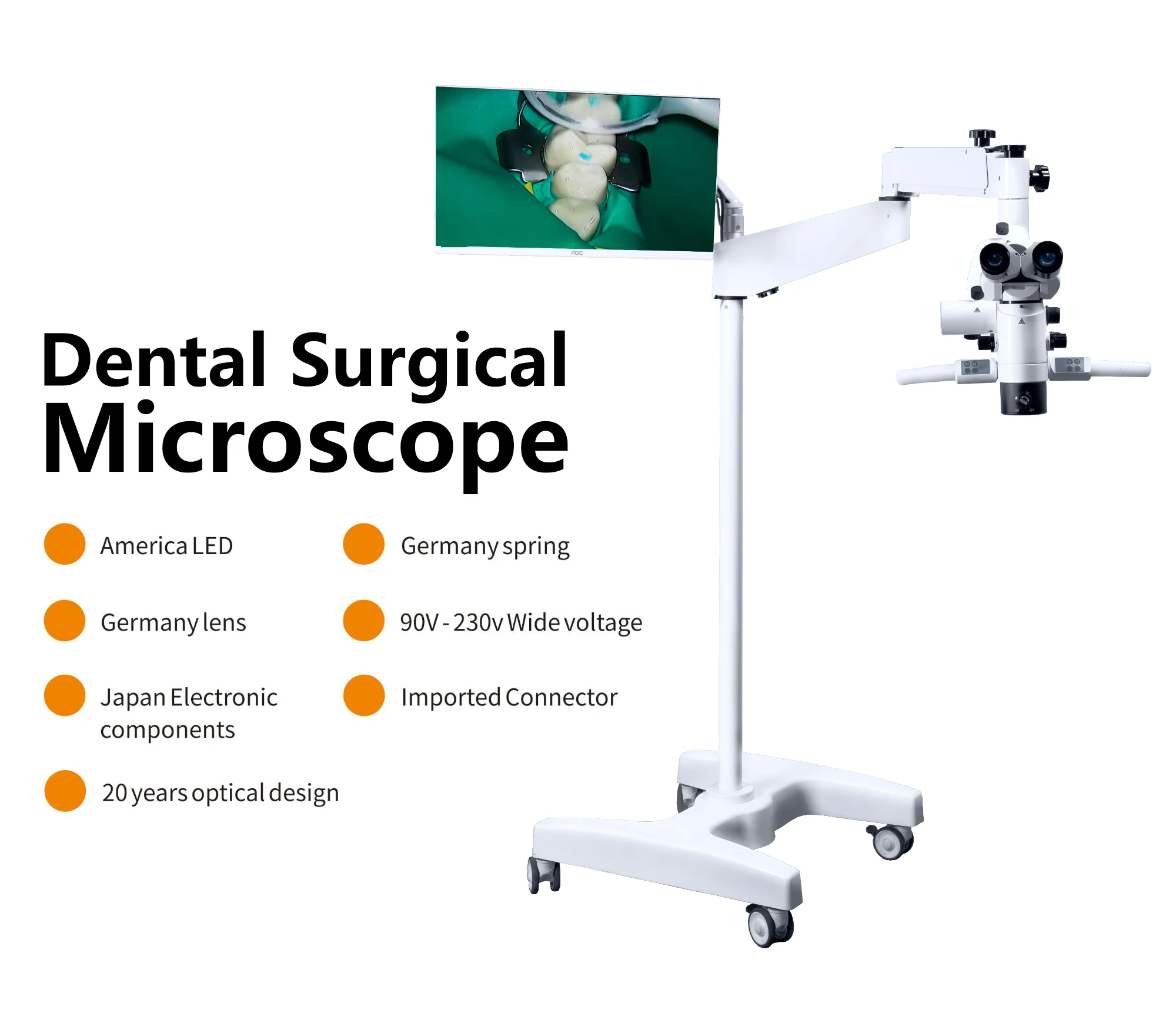

Digital Dental Surgical Microscope with Camera
6E dental surgical microscope: high resolution and high resolution optical system with strong stereo sense and deep depth offield. LED cold light lighting, brightness continuous adjustable, manual drum turn times.The machine is small, flexible and convenient to move.lt is suitable for the microsurgical operations in the Department of Stomatology Dental and the Department of ENT.
Features
● Dental/Stomatology/ENT/Decorative Sursery
● 100 thousand hours ultra long life LED light source
● The frame is small,beautiful,and flexible in movement

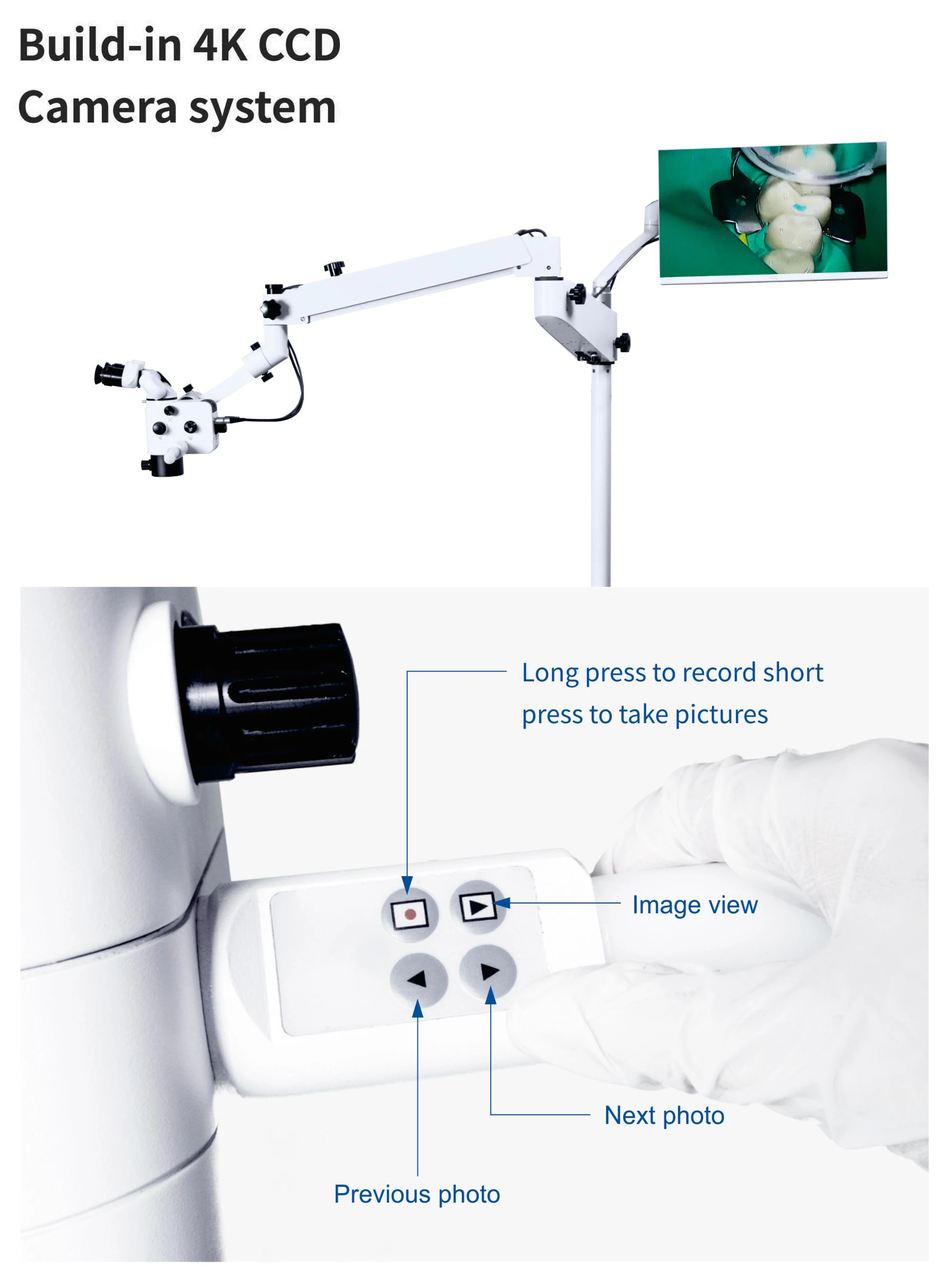

● Build in 4K CCD camera system
● 180-300mm ultra large range zoom lens
● Military optical quality, high definition, high brightness and ultra large depth of field

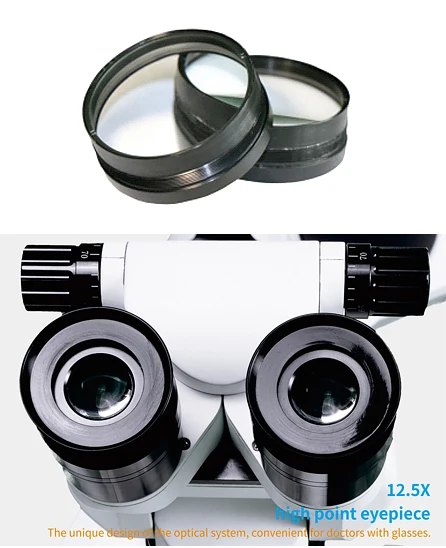

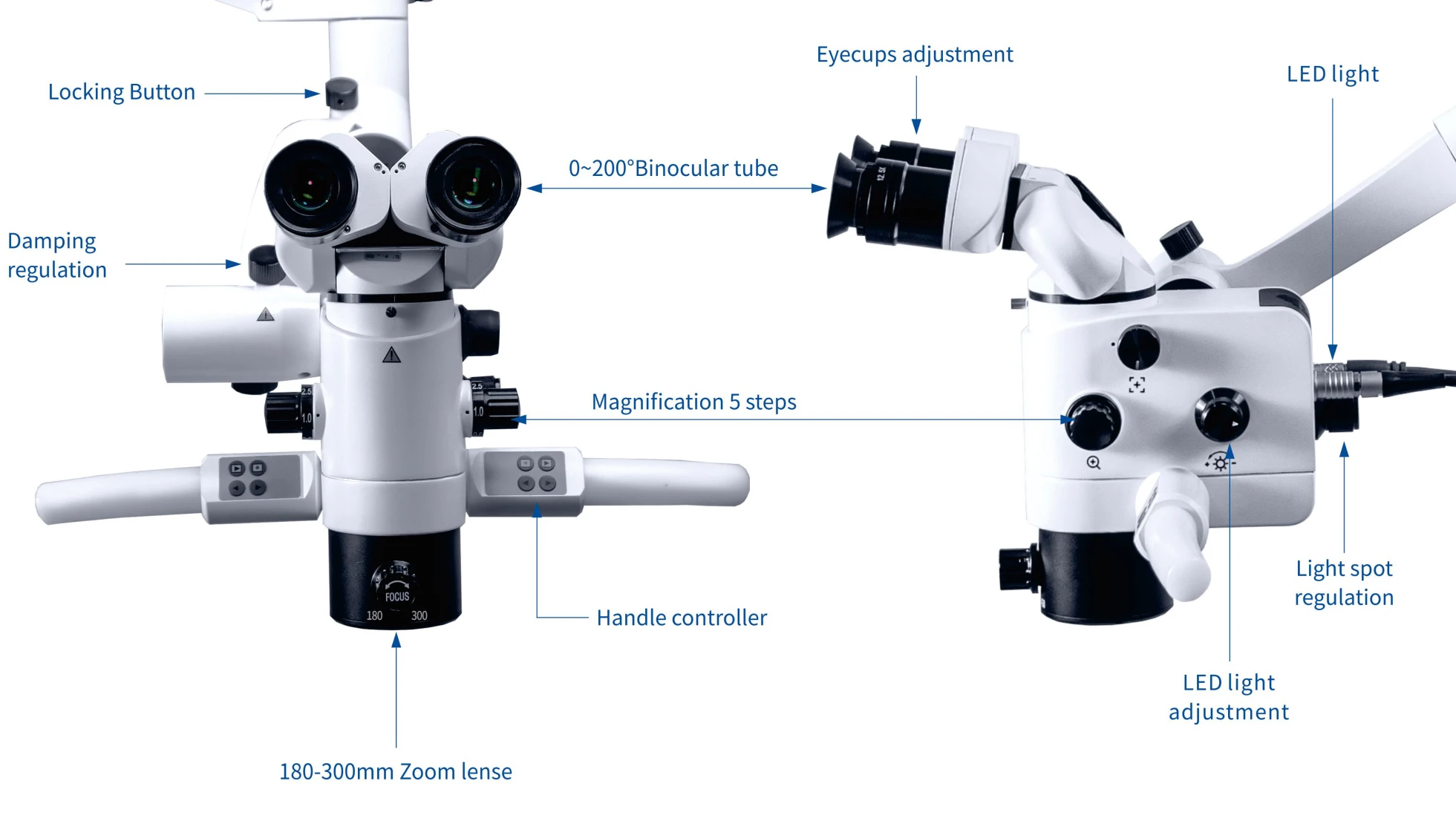

Adjustable eyecup in eyepiece suitable for with glass and without glass
pupil distance 55mm~75mm
diopter adjuatable +/-6D
zoom lense 180-300mm

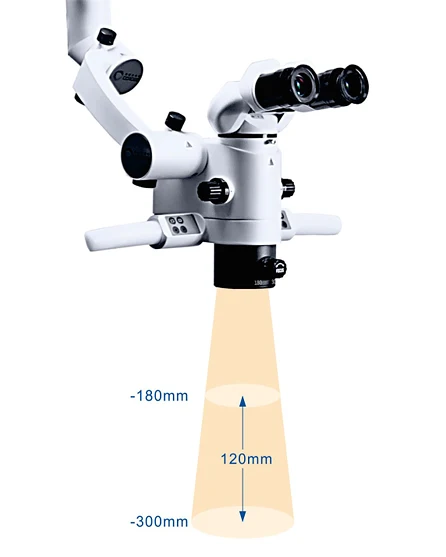

The maximum focusing stroke is 120mm, and the focusing range completely covers the whole oral depth.As long as the doctor prepares the best ergonomic position and adjusts the zoom knob,he can see the position of each detail without adjusting the lens, which is efficient, convenient and fast.

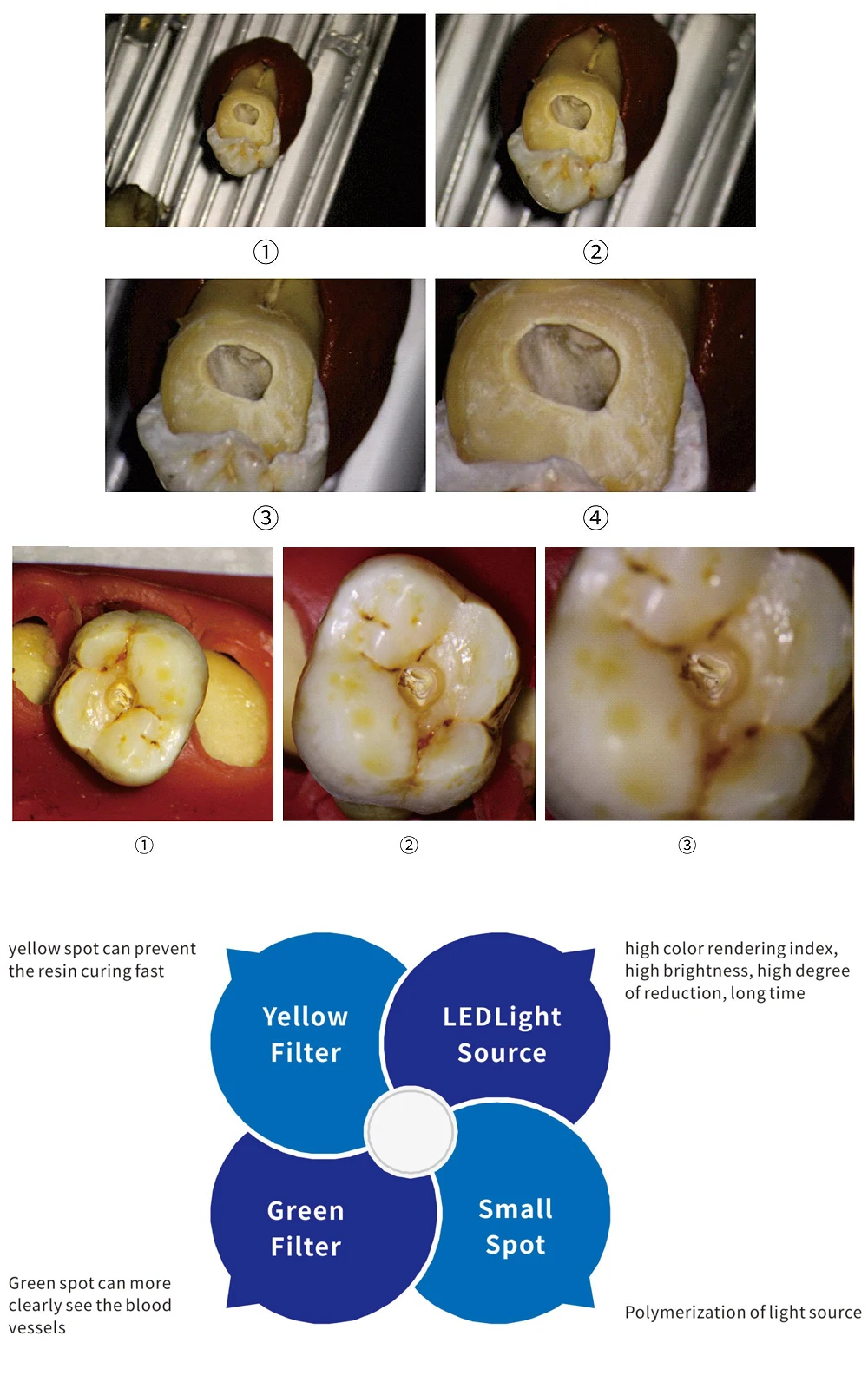

Built in yellow and green color, yellow green color, adjust the ordinary paddles through the built-in button, yellow spot can prevent the resin curing fast, green spot can more clearly see the blood vessels under the environment.
LED light source
Long life medical LED white light source, high color temperature, high color rendering index,high brightness, high degree of reduction, longtime use and no fatigue. Compared with traditional halogen lamp, it is more suitable for Department of Stomatology operation needs.LED energy consumption is low, the service life can be up to 100 thousand hours.
0~200°Binocular
It allows the clinician to choose the best angle of posture to create a comfortable and favorable operating environment.

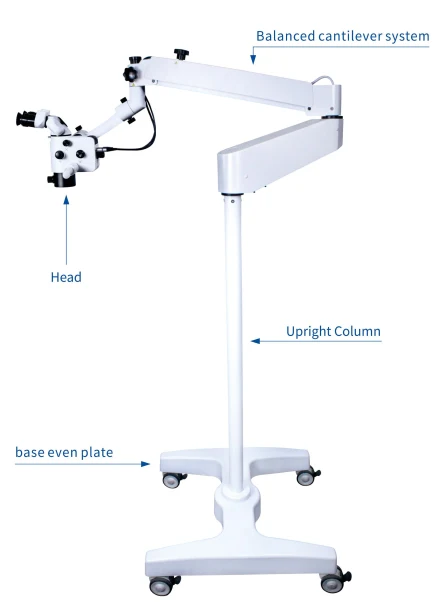

Super 120 degree balancing arm
Ssures a smooth, fluid and perfect balance during repositioning of the microscope. The head easy to stop at any position.
Beam splitter= Ratation + Extention + Beam spit
Extender = Ratation + Extention

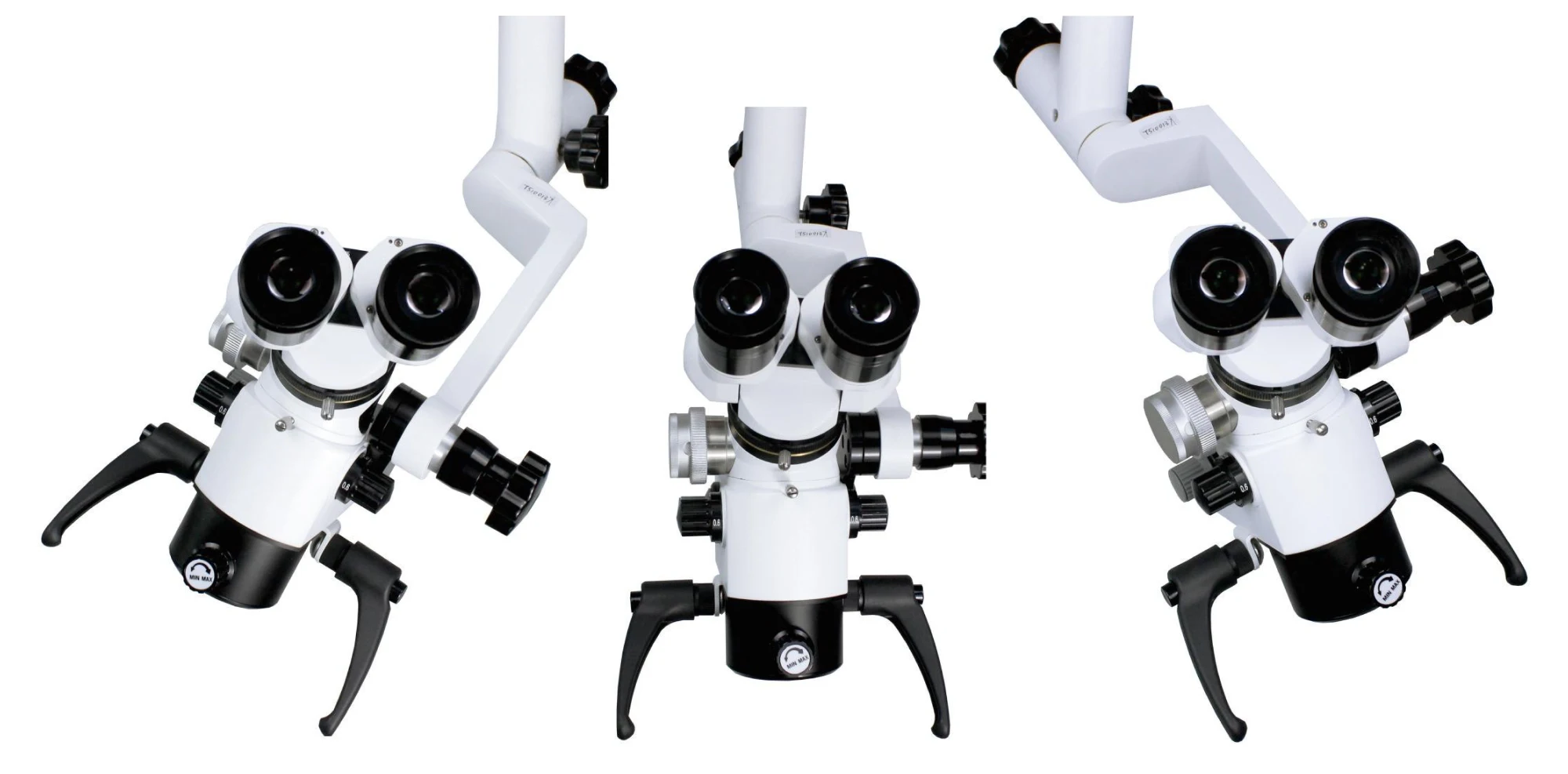

Obliquely pendulum binocular
In the condition that the eyepiece is at the same level, the doctor's sitting posture is constant, and the main mirror can swing right and left to observe different positions.
Application of dental microscope
● Looking for missing root canal
● Removal of plasticizer from root canal
● Removal of plasticizer from root canal
● Dredge calcified root canal and the passage of root canal steps
● Removal of broken instruments in root canal
● Repair perforation
●Micro apical surgery
● Microsurgical repair
● Microperiodontal
● Removal of broken instruments in root canal
● Repair perforation
●Micro apical surgery
● Microsurgical repair
● Microperiodontal
Multilayer coating technology, the lighttransmittance is up to 98%.
Through multilayer coating technology, we can reduce light reflection attenuation, increase light transmission and improve brightness. The multilayer coating technology we use can achieve optical energy passing rate of 98%.

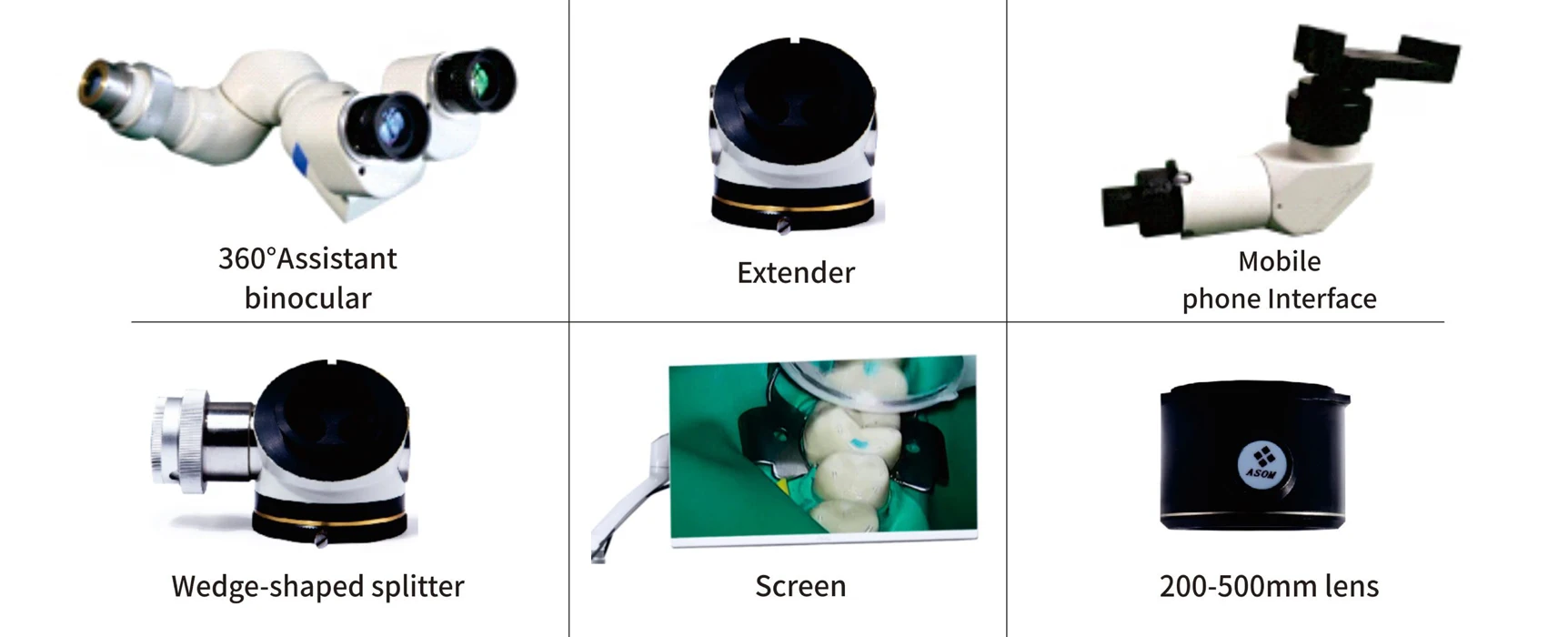

Optional
Specification
Dental/ Stomatology/ Decorative Sursery | ||
Eyepieces | magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D~ -6D. | |
Binocular tube | 0~200° binocular tube | |
Magnification | 5 steps magnification 3.6x, 5.4x, 9x, 14.4x, 22.5x; field of view 55.6mm, 37.1mm, 22.2mm, 13.9mm, 8.9mm | |
illumination | LED cold light, strong light, longer lifetime, brightness adjustable infinitely,illumination diameter of light spot Φ70mm, illumination intensity> 60000lux, field of viewΦ53mm, Φ32mm, Φ20mm build-in small-spot, both blue and yellow light filter. | |
Objectives | F=180-300mm | |
Rotating head for all direction | operate by two handles, free and easy to operate in 0-360° | |
Maximum length of arm | 1100mm | |
Build in 4K CCD Camera system | ||
Recommend Products

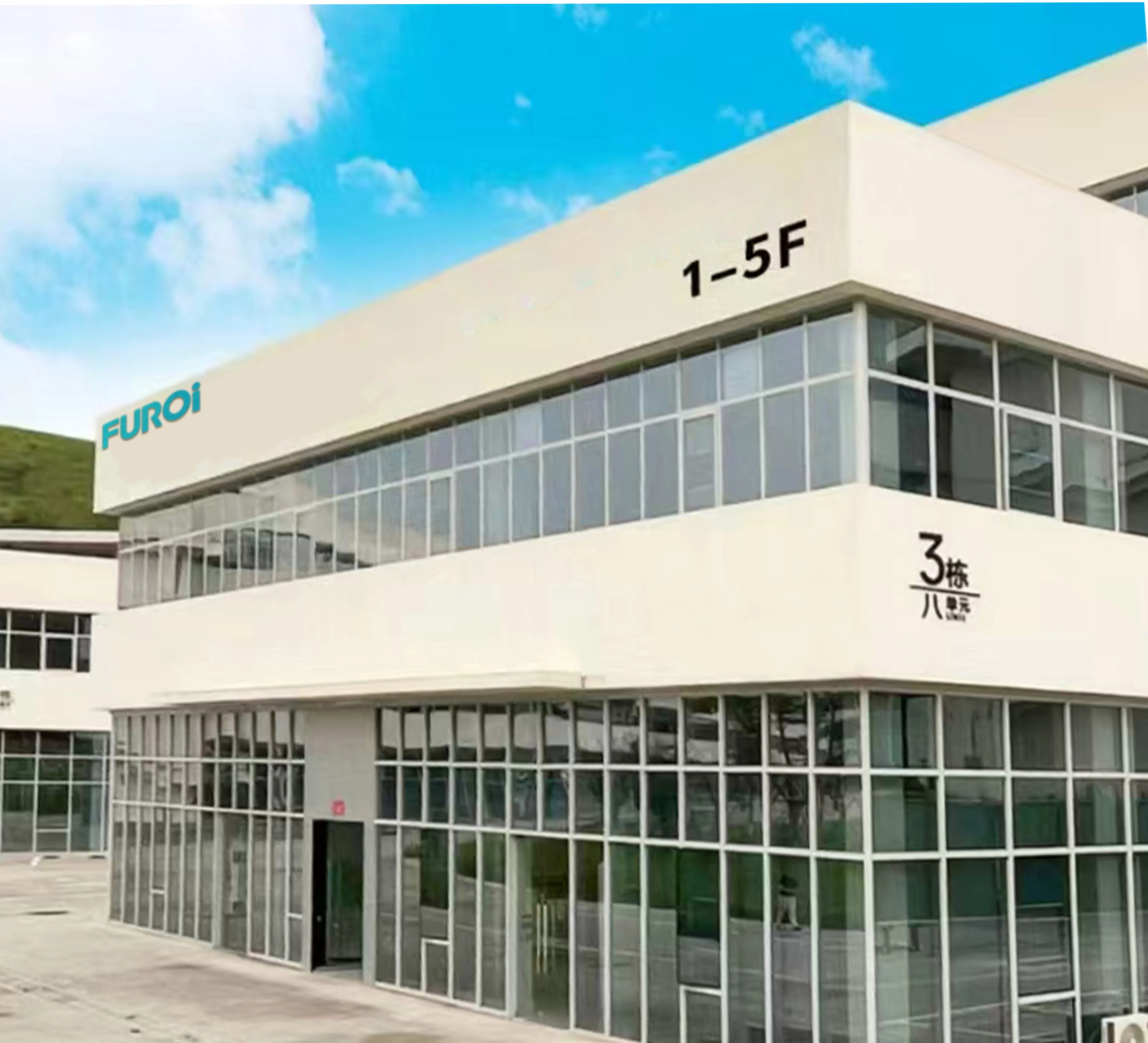

—About Us—
FUROI
Chongqing FURUI Medical Devices Co., Ltd. (FUROI) is a modern technological innovation enterprise in the digital dentistry field that integrates R & D, production and sales. It has a number of self-developed high-tech, safe and reliable products. The products cover basic dental equipment, imaging (system) equipment, digital chair-side and related auxiliary equipment and apparatuses.
—Our certificate—

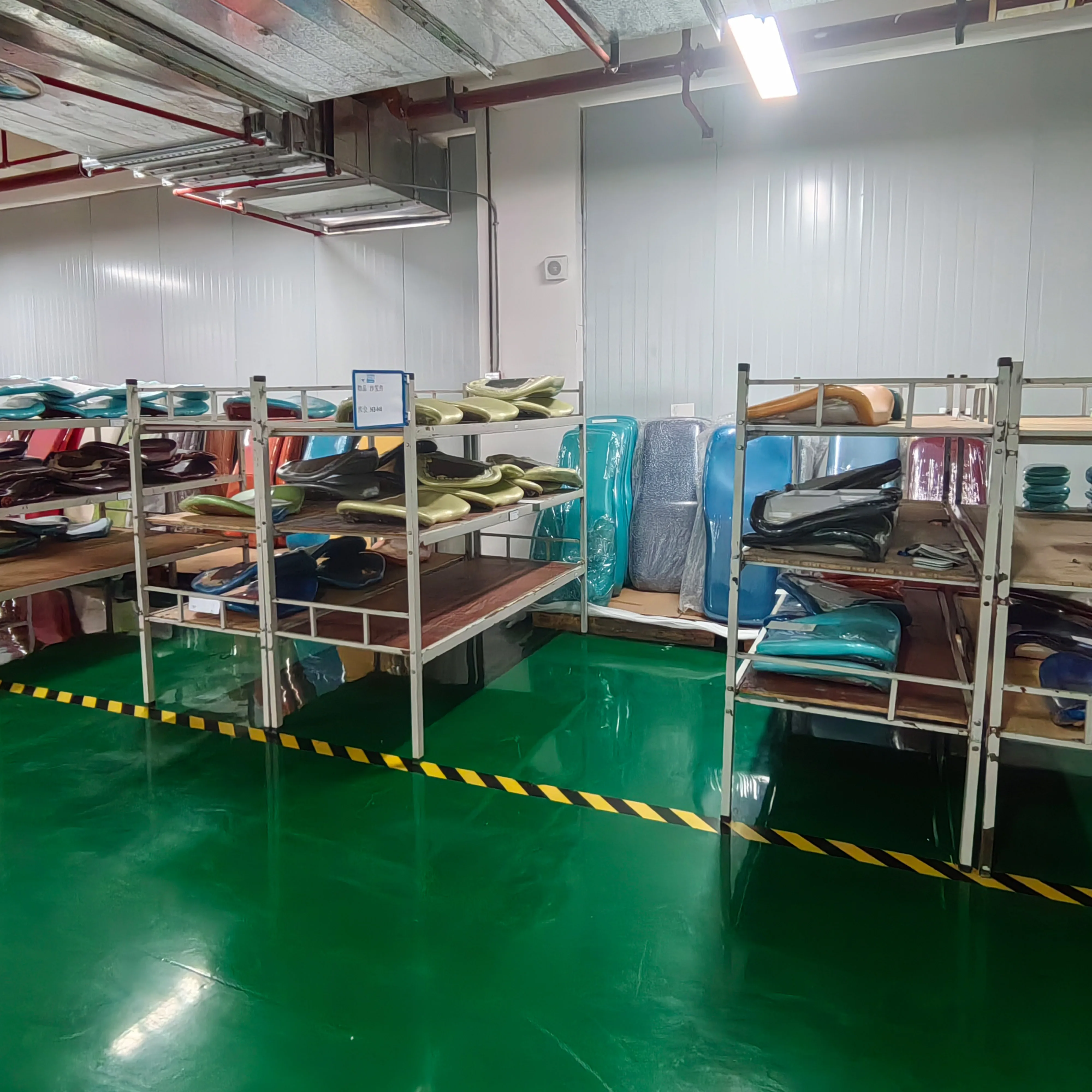

—Our factory—
