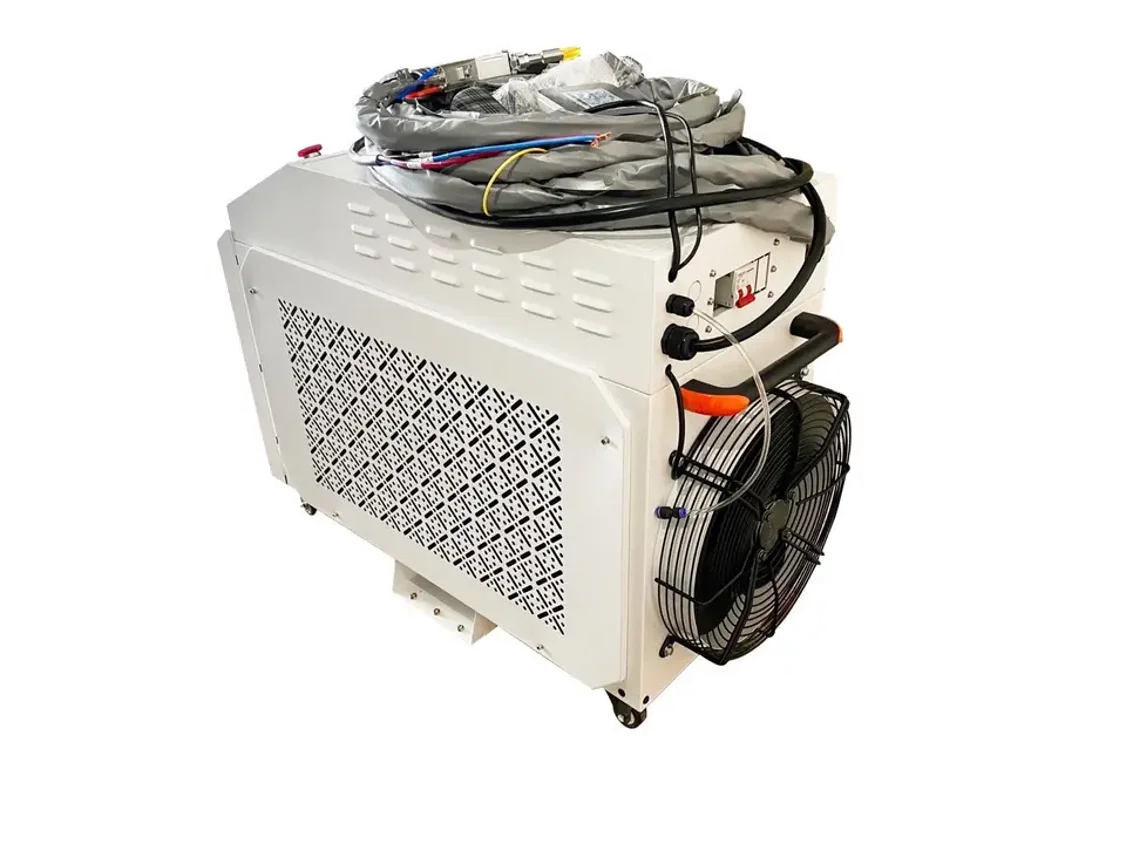

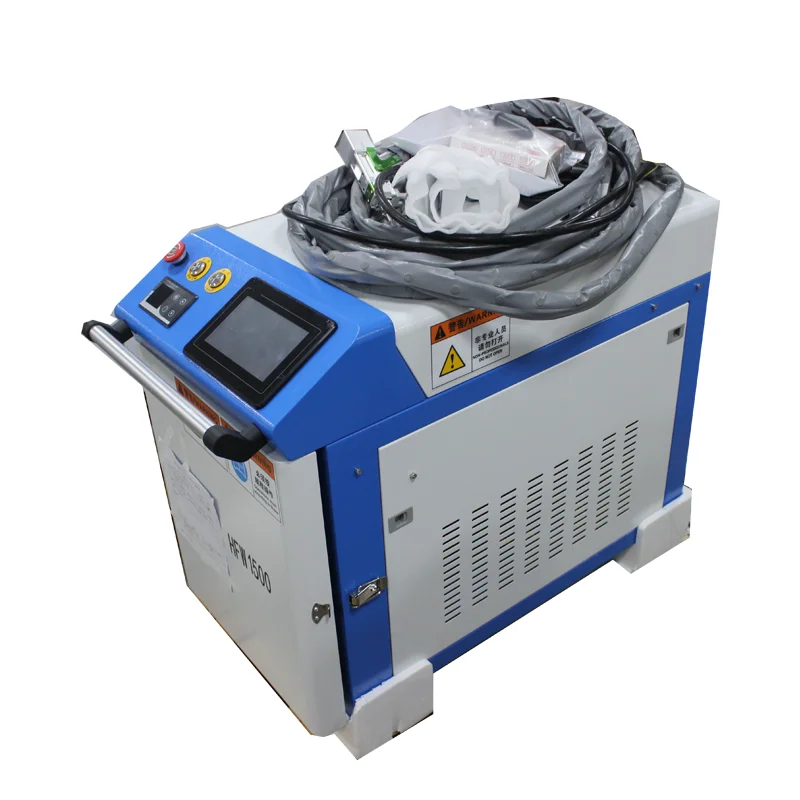

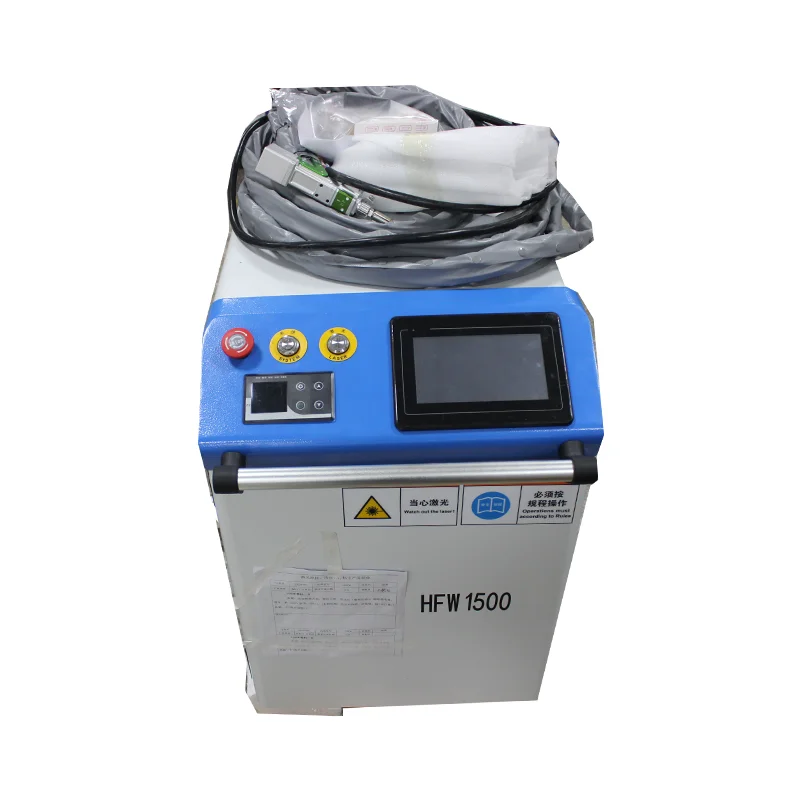

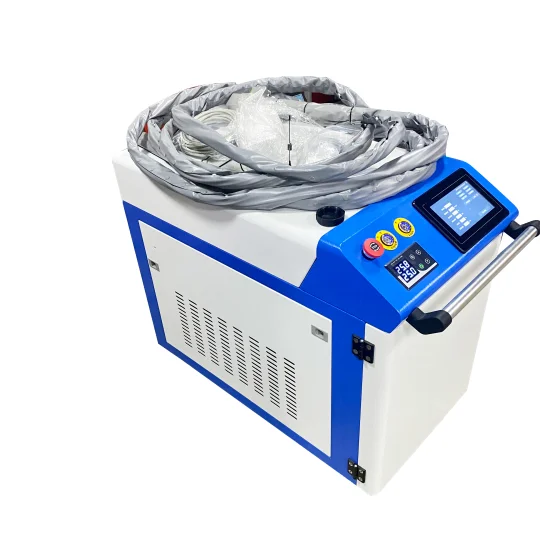

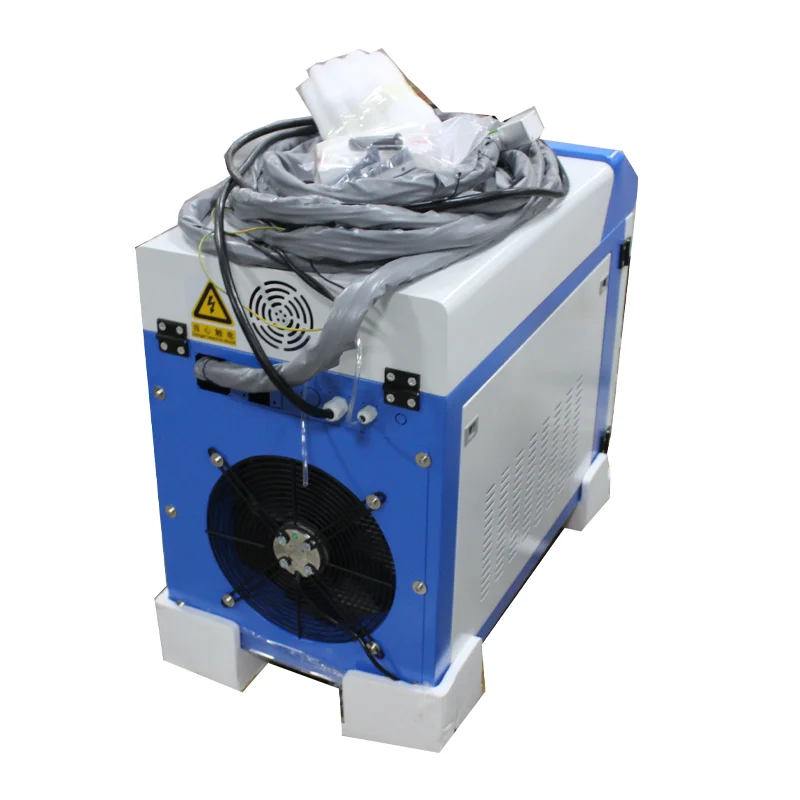

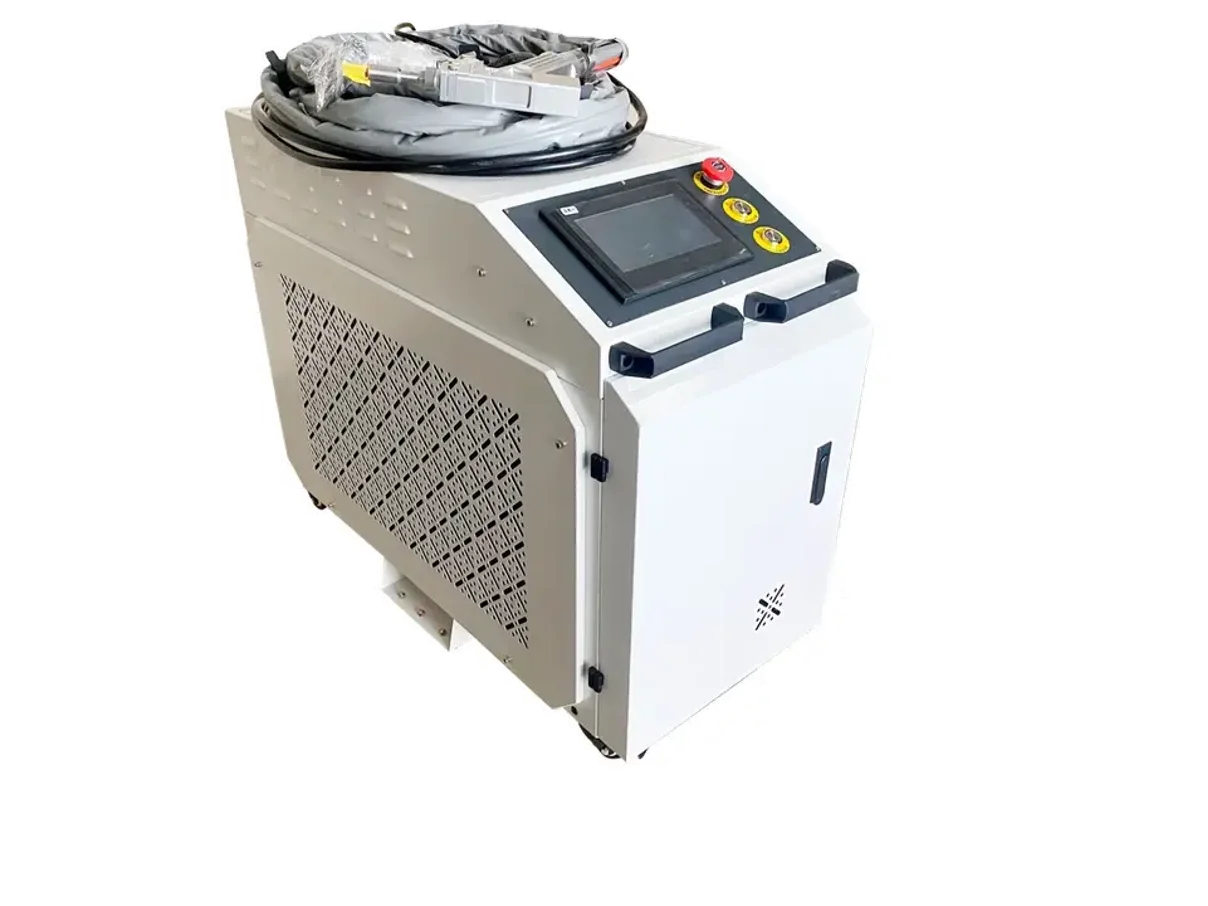

Ultimate cost effectiveness portable laser cleaner with control software fiber to remove rust

Product Overview

Description

Machine Offer

Model: Smart -2000W Main Configuration:

#Fiber laser power 2000 W Max;

#Realfar laser head (cleaning width could reach 30cm)

#10 Meter flexible optical fiber

#Ultra-light weight and compact, it swings the light spot left and right, and has a safety circuit trigger protection function.

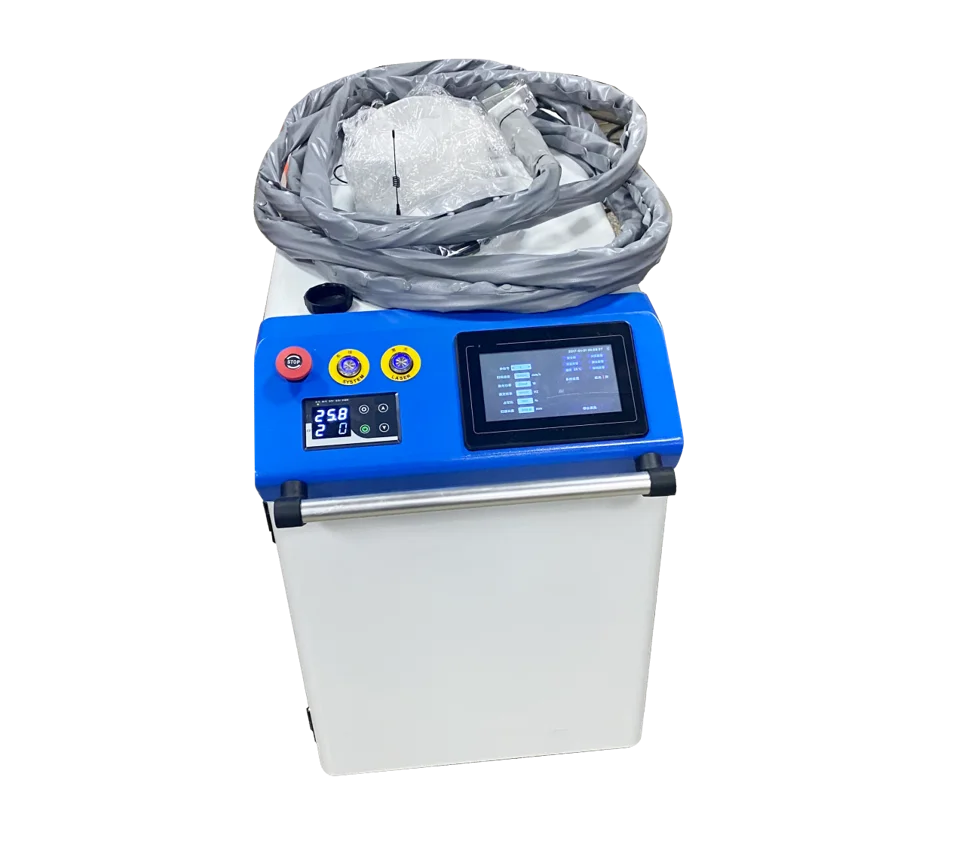

#Multi languages operation interface, touch screen control System

#One-piece design,With universal walking casters

#Wire feeding system;

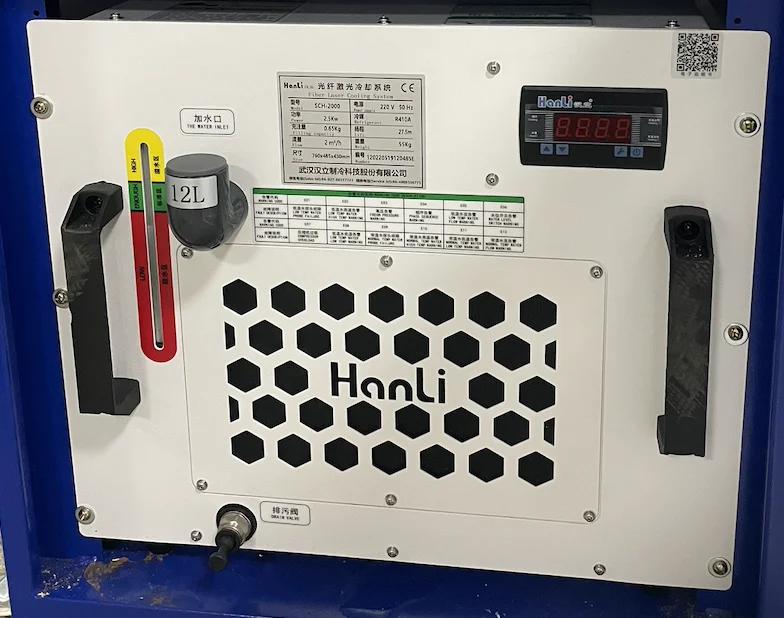

#Hanli Water Chiller;

#Intelligent control system Wire feeding mechanism

#20 pieces protective lens for free.

Technical data

Technical Parameter	1000W	1500W	2000W
Laser Type	Continously fiber laser	Continously fiber laser	Continously fiber laser
Laser power life span	100000 Hours	100000 Hours	100000 Hours
Power range (%)	10-100(adjustment )	10-100(adjustment )	10-100(adjustment )
Repeat frequency (KHz)	10-50(adjustment)	10-50(adjustment)	10-50(adjustment)
Focal length (mm)	210/160 changeable	210/160 changeable	210/160 changeable
Cooling mode	Water cooling	Water cooling	Water cooling
Laser wavelength	±1064	±1064	±1064

Collimated focal length	550mm	550mm	550mm
Scanning width	≤300	≤300	≤300
Cleaning head wire	10-15 m	10-15 m	10-15 m
Consumption power	3.5	5	6.5
Fiber Core Diameter	50um	50um	50um
Weight	150Kg	200KG	220KG
Size	1100×700×1000mm	1100×700×1050mm	1100×700×1150mm
Voltage	220/380V	220/380V	220/380V

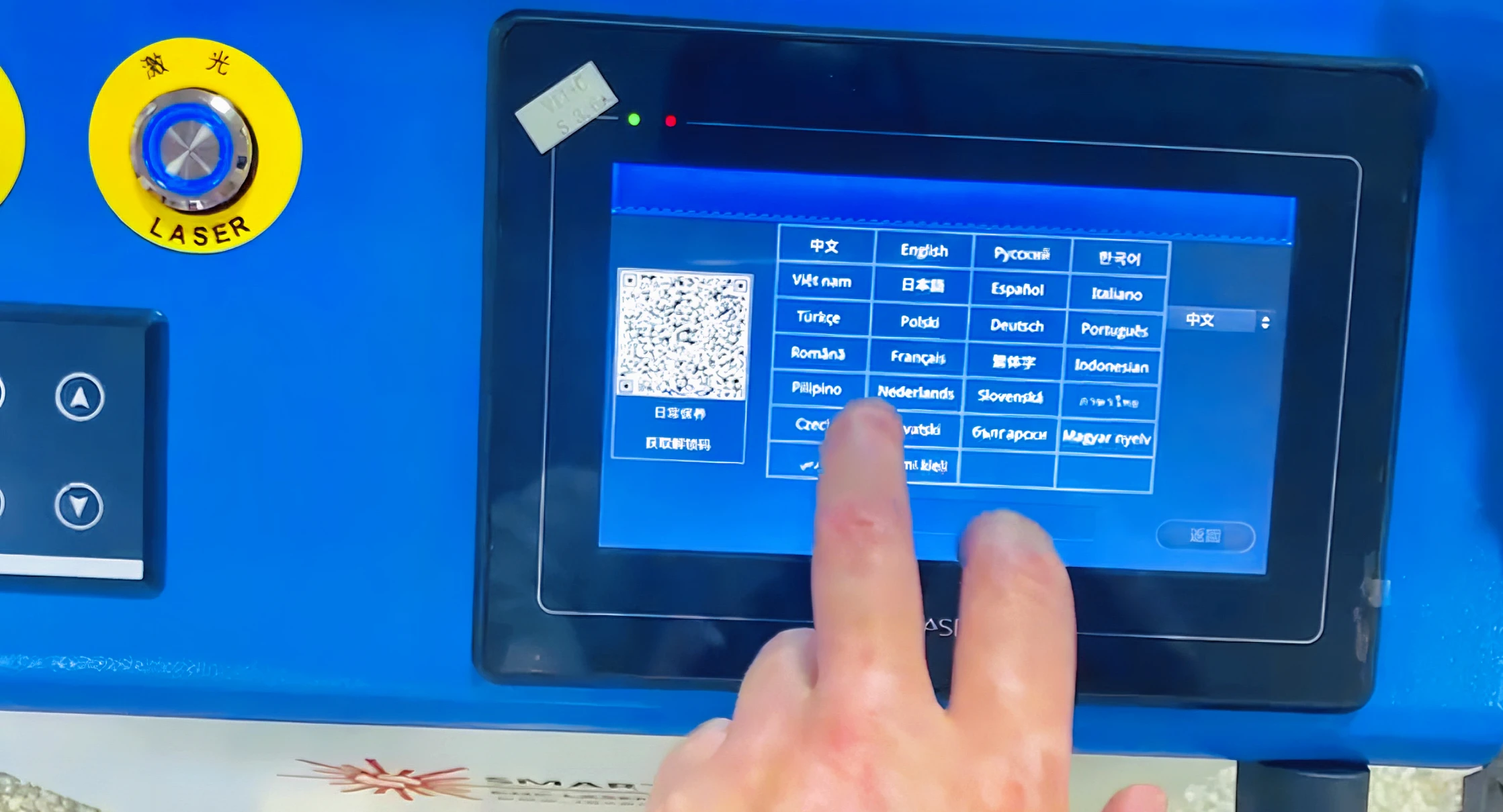

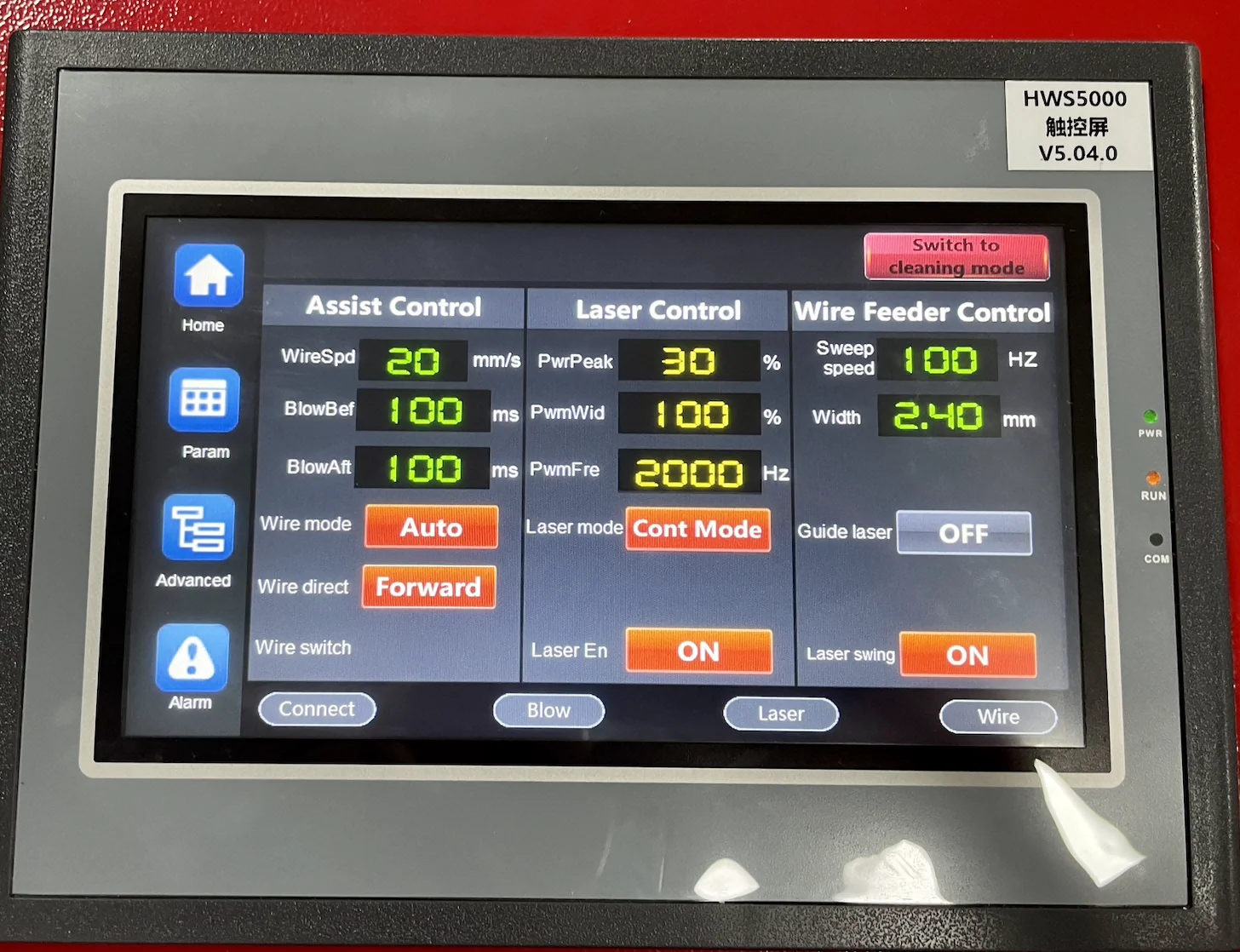

Control System

Support 26 languages

(1) The three-layer condenser sub-technology has large cooling capacity and good heat dissipation, ensuring the equipment is durable in harsh environments.

(2) The water quality is good, the precision is high, and the laser is carefully taken care of to prolong its service life.

(3) With automatic heating and heating technology, it can reduce the waiting time for customers to turn on the laser in winter and improve production efficiency.

(4) The arc-shaped design, the atmosphere is beautiful, and the laser is improved equipment The matching grade.

(5) Energy-saving and electricity-saving, effectively reducing customers' production costs.

(6) High, medium and low matching to meet the diversified needs of customers.

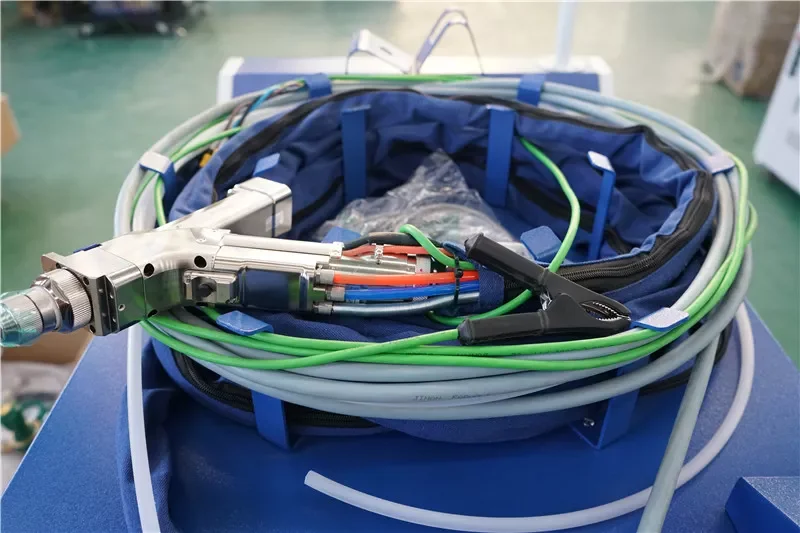

Laser Head

Features of laser welding head:

@1.The internal design is smart, and the good interactive control system expands the tolerance range of the processed parts and the width of the weld seam, solves the disadvantage of small light spot, and makes the weld seam better.

@2.Lightweight, using body engineering design method, comfortable grip; easy control with one hand,

@3.simple operation,Easy to use.

@4.With multiple safety alarms, the light will be automatically locked after the work piece is removed, which is highly safe.

@5.Beautiful welding seam, fast speed, no welding marks, no discoloration, no need for later polishing,Consumables few.

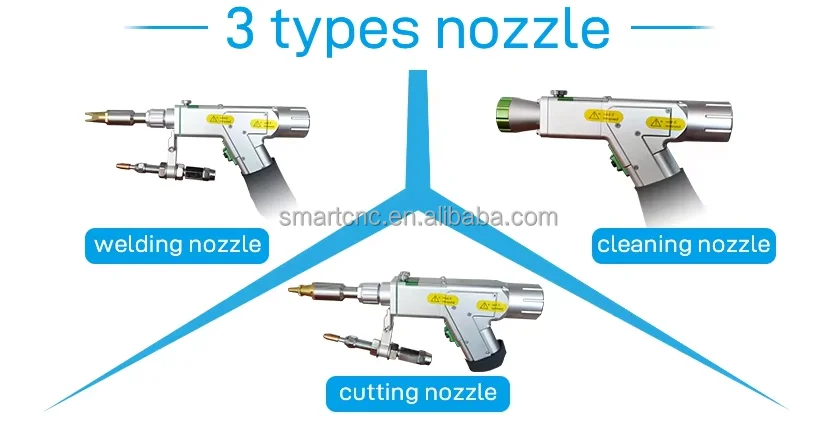

@6.Various angle nozzles can be configured to meet the welding needs of different products.

@7.technical parameter: Interface type: QBH Laser incident method: coaxial Laser power:2000W Laser wavelength range: 1080±20 Collimation focal length: 50mm Focusing focal length: 80mm/120mm Shielding gas: coaxial Weight: 1.1kg Adjustable amplitude width: 0-6mm

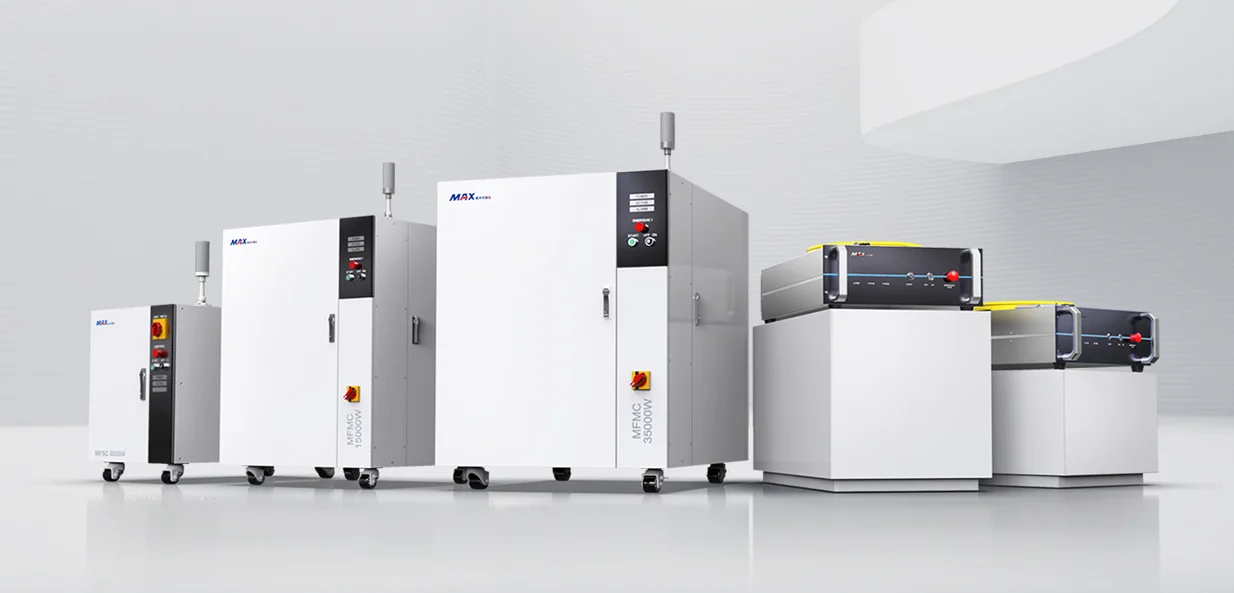

Laser Power Source-MAX/RAYCUS

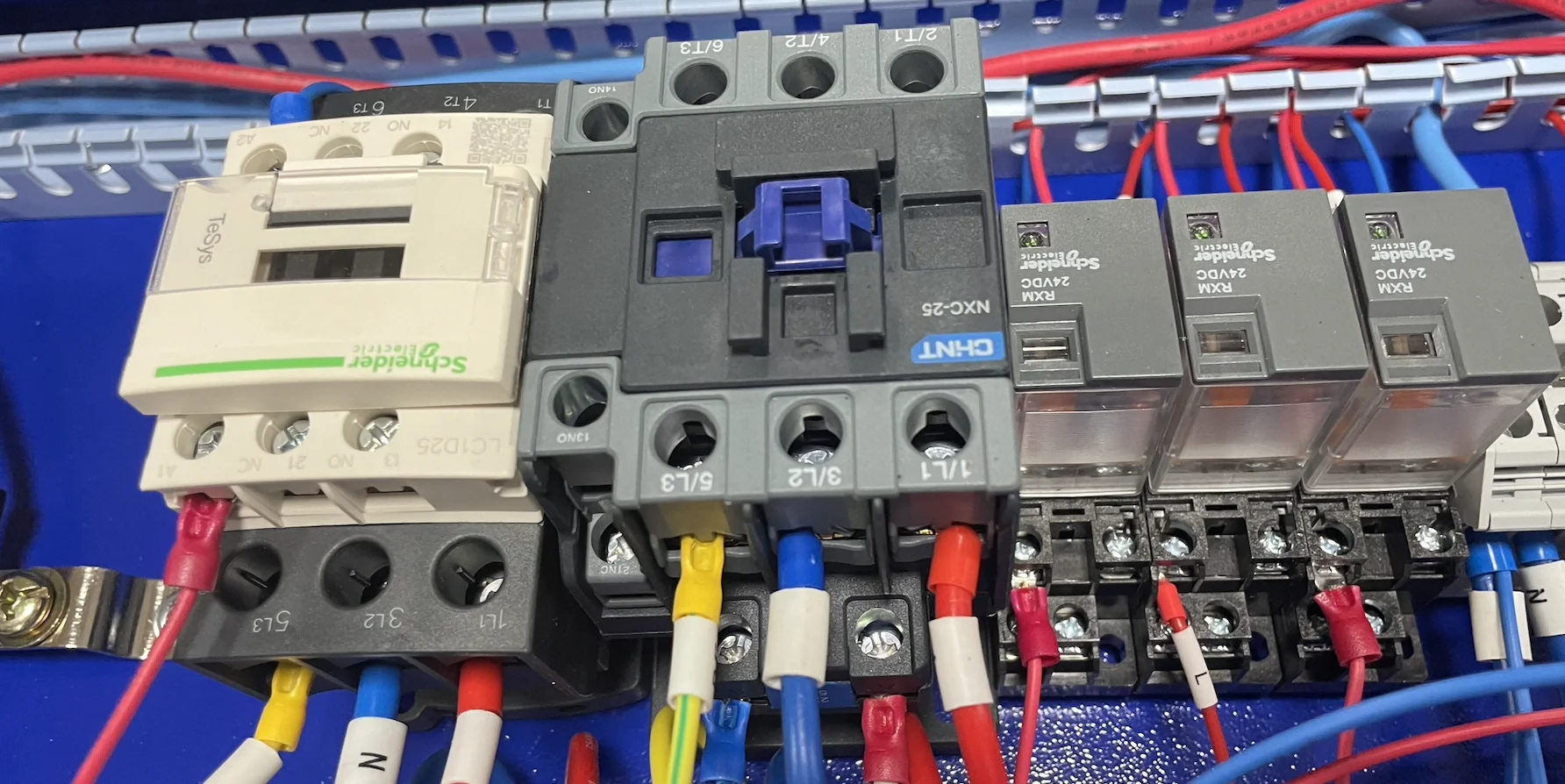

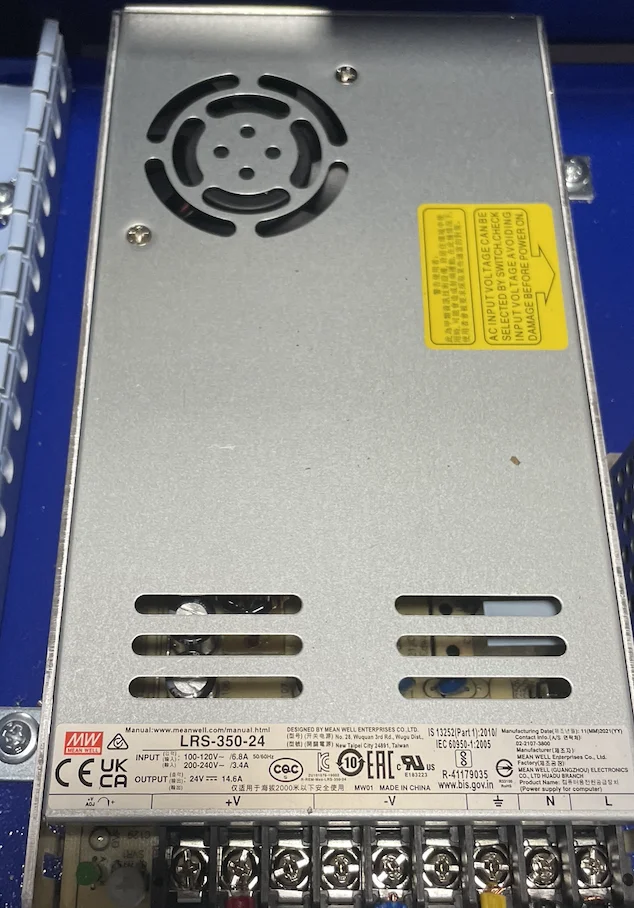

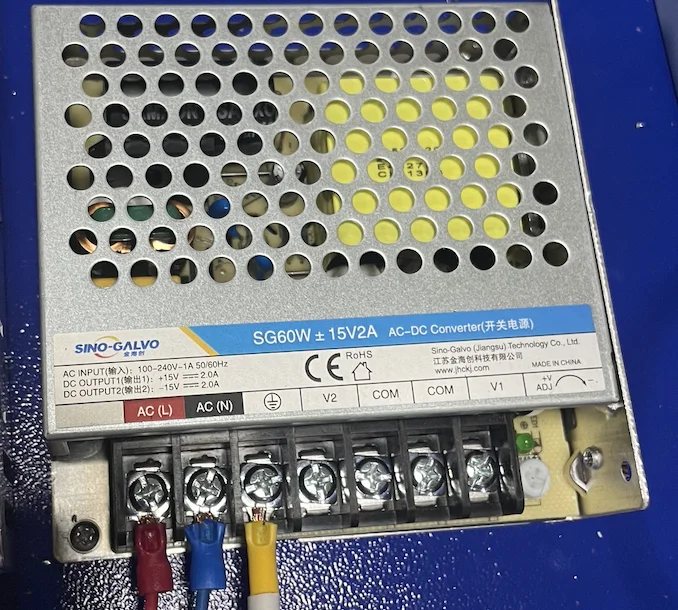

Power Supply & Power Switch

Electricity brands

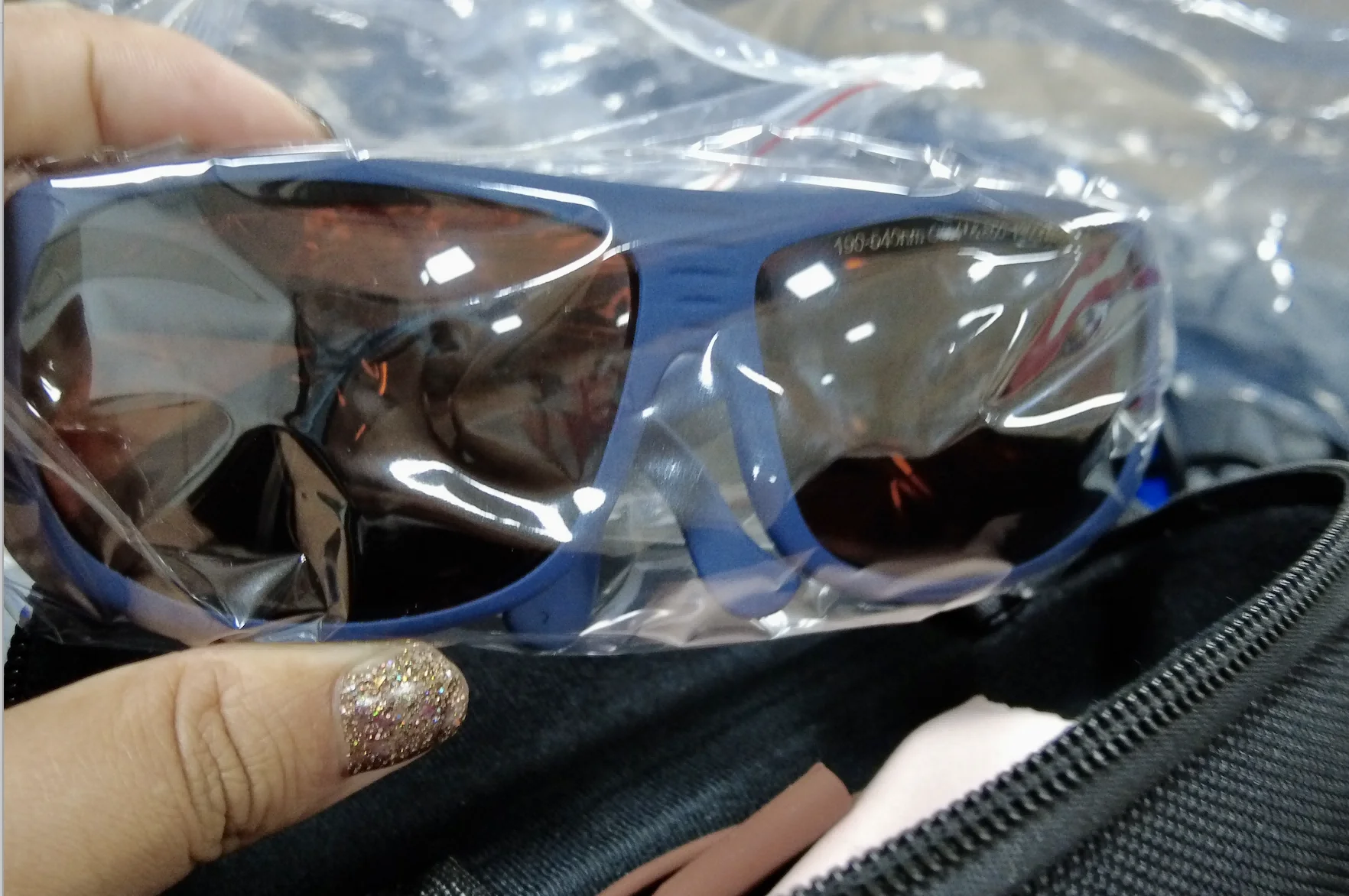

Protetive googles

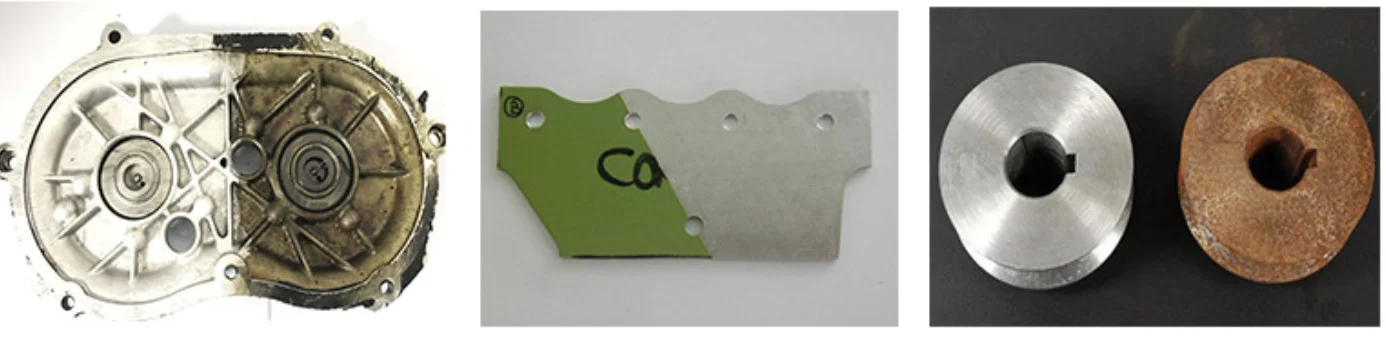

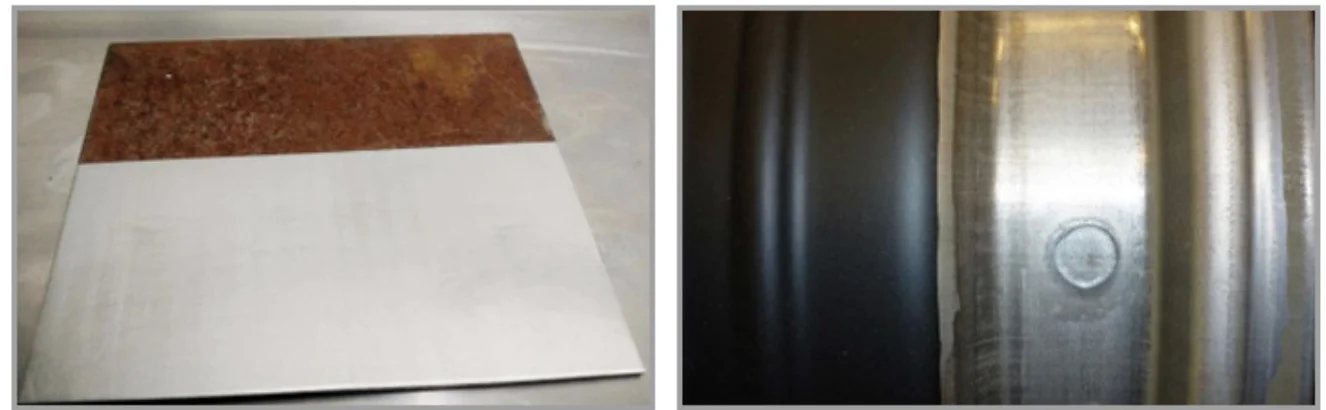

Processed samples
