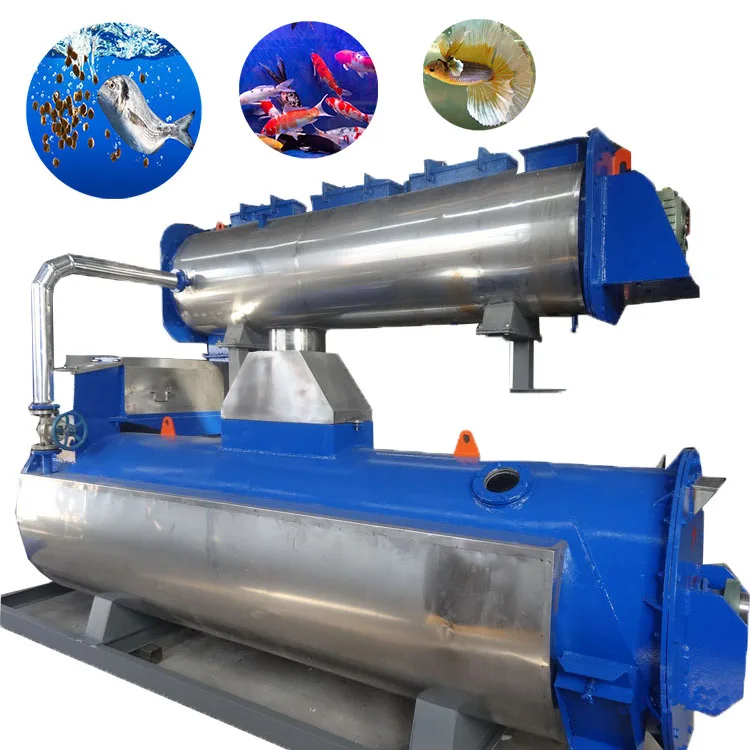

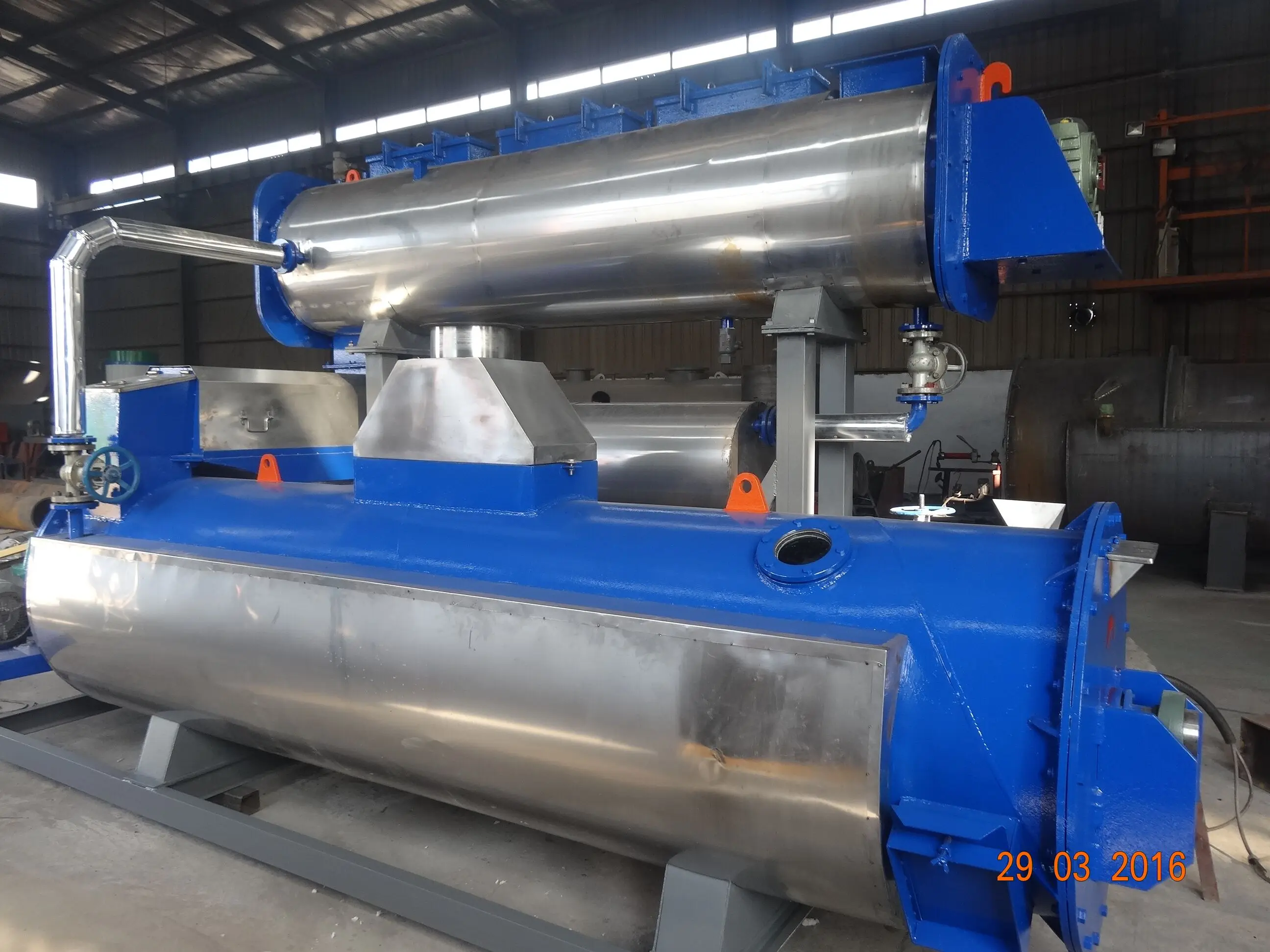

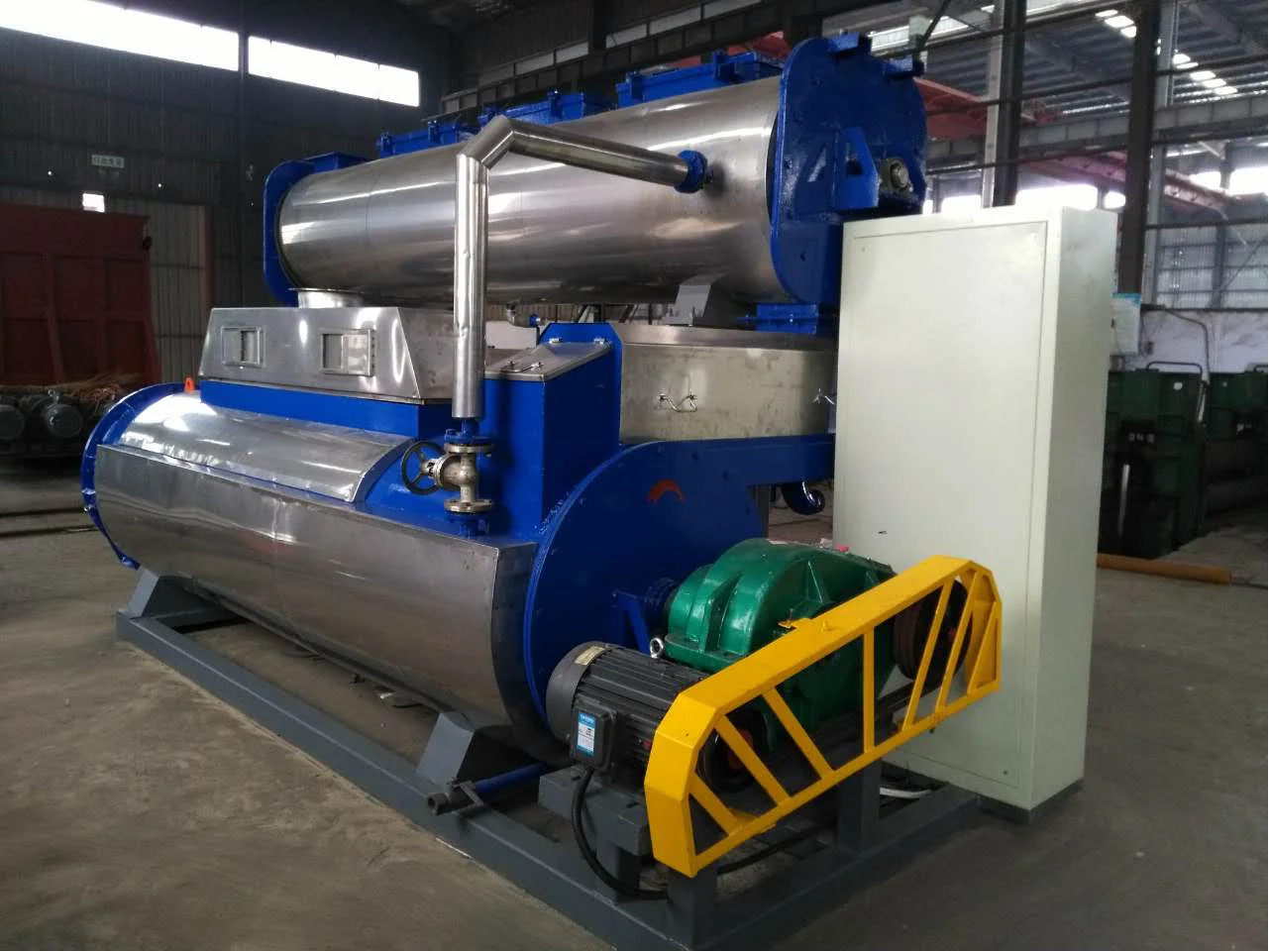

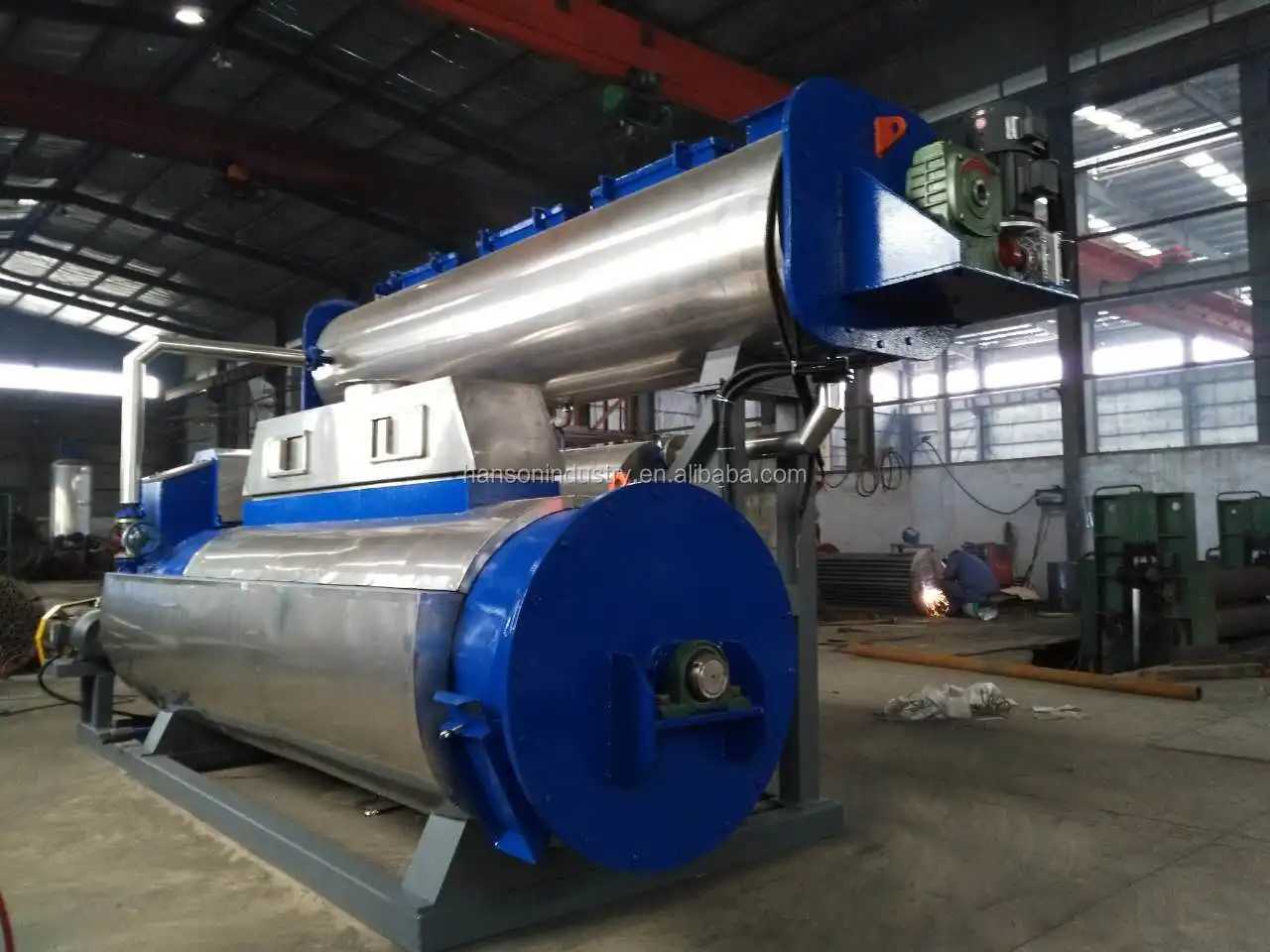

 2t per day small fish meal machine/fish meal plant for sale






Product Description


Raw material:


Whole fish(different kinds of fresh fish, fish heads, fish sausages and offals,fish waste),food waste, other aquatic products, like shrimp,loach,etc





Capacity: 2ton per day or 3 day per day of fish processing amount.

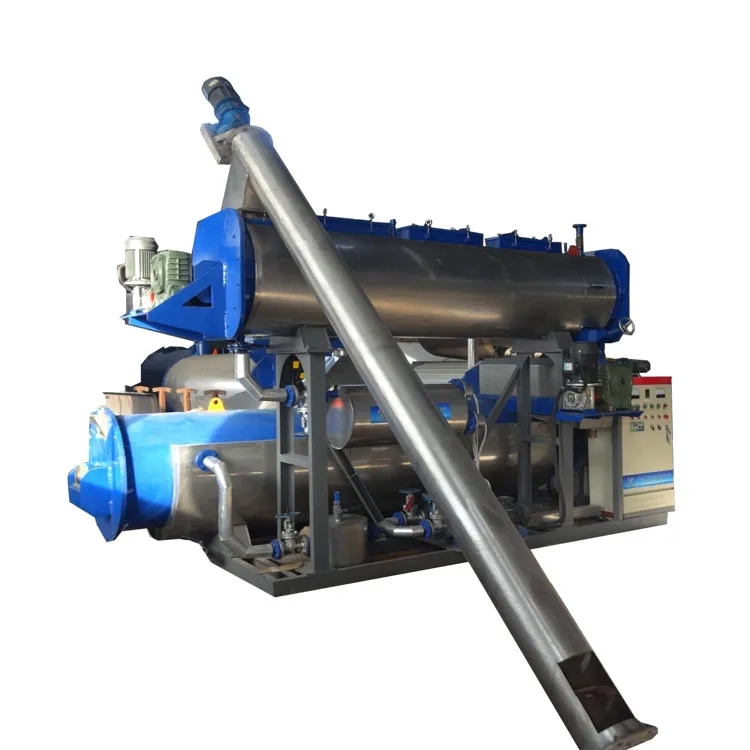

Whole plant process:Screw conveyor----Cooking----Pressing----Drying----Cooling-Screening-Crushing















































ItemDescriptionDimensionDetails
1Screw conveyorφ200×4000equipped with reducer 1 set, made of SUS304,1.5kw
2Cooking machineφ510×3000

·material of outer heat preservation made of SUS430, thickness: 0.5mm;


·inner and outer cylinder made Q235B;


·driving power: 1.5kw (speed adjusted by magnetization).


3Screw pressing machineφ245×1200

·outer cover made of SUS430, thickness  1.2mm;


· seive mesh applied SUS304;                                                                             ·driving power: 4kw.


4Dryerφ820×3500

·inner and outer cylinder made of Q235B;


 ·preservation made of SUS430, thickness  0.5mm;


·driving power: 4kw, V=30r/min;


5thermal oil pump driving power:1.5kw
6electric control box

electric control box

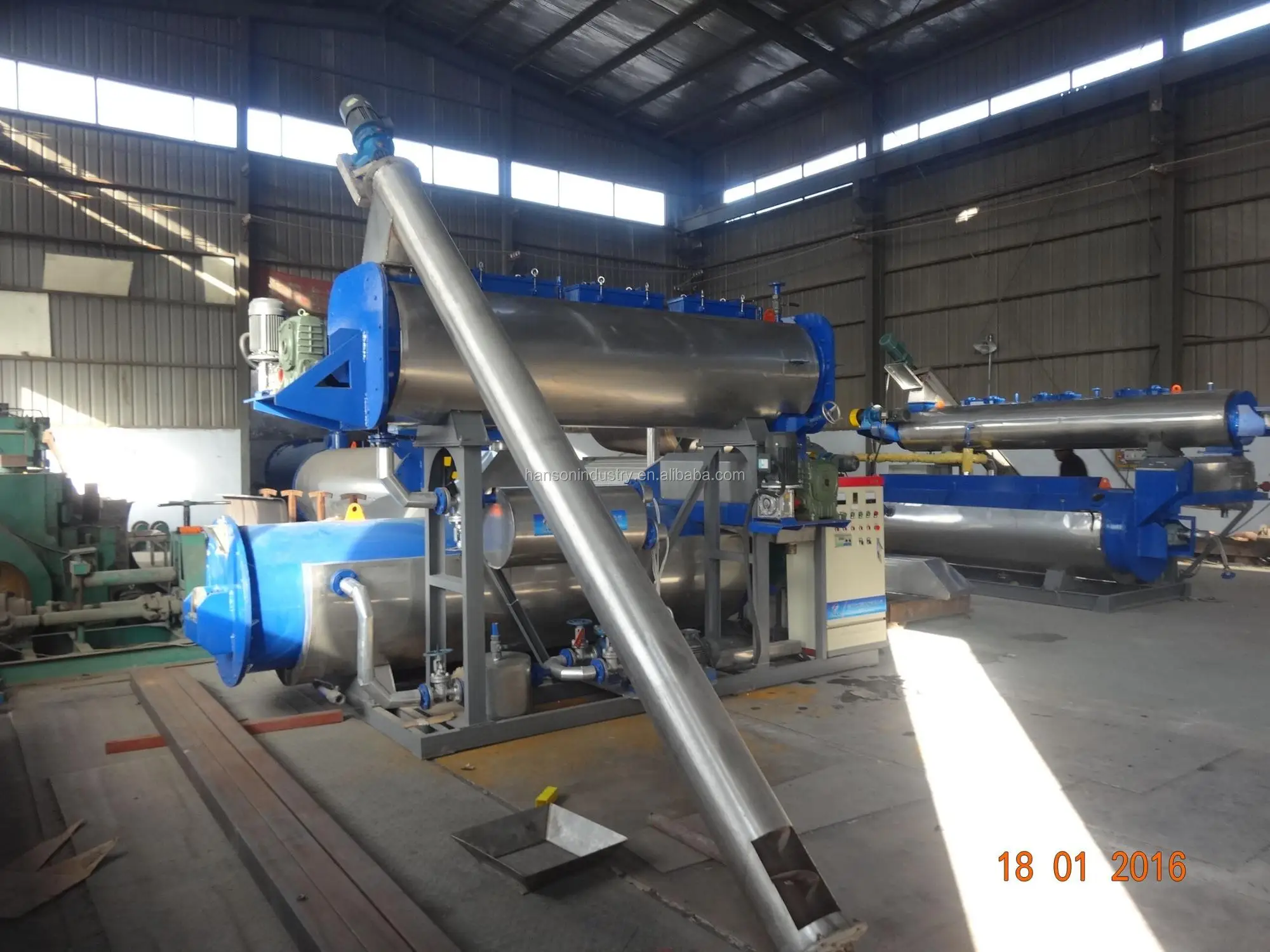

2t/day fish meal machine details:


Total size:4m*2m*4.5m





2000kg/day fresh fish, could get 400-500kg Defatted Fish MealMoisture≤12%.


320#conduction oil,using tempreture is150-260°C.





Total power:76kw.





Shipping type:one 20 container.





Recommend working area:Lenght 15m,width 10m,with height about 6m.

























Finished Fish Meal


Final product: skimmed fish meal
Moisture of final product: less than 12%
Note: usually the capacity of fish meal is based on fish type and fish quality


.jpg

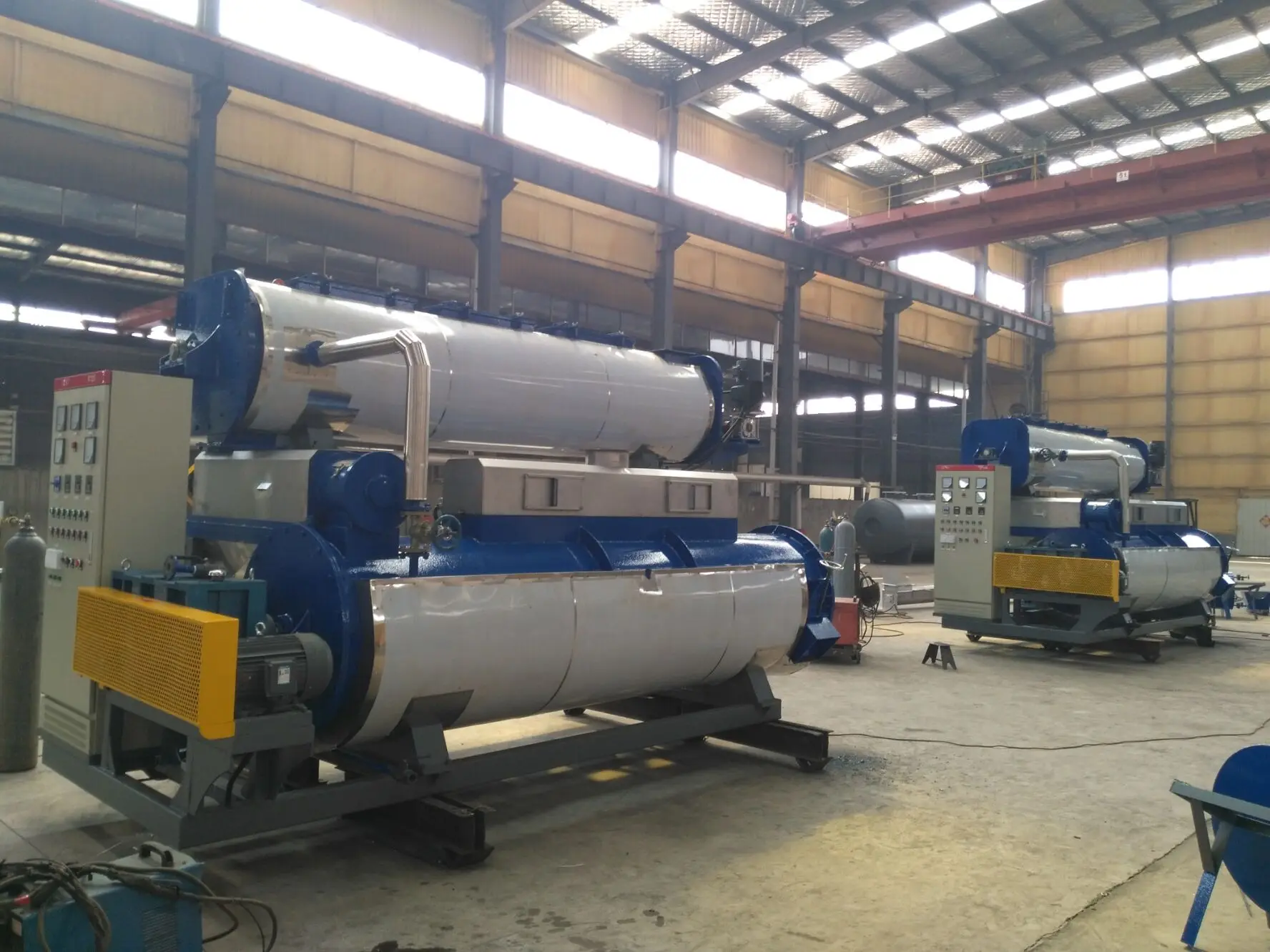

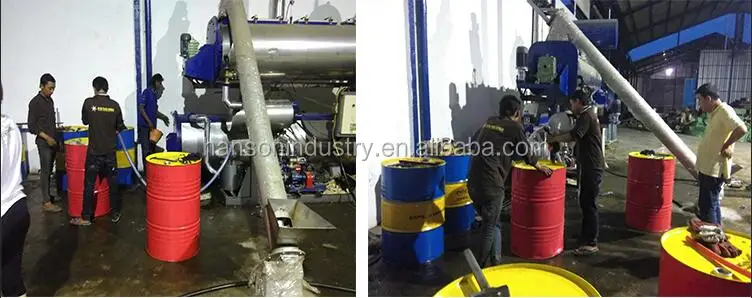

Project case


Whole plant installed in domestic and abroad


.jpg
















Packaging & Shipping


 2t per day small fish meal machine/fish meal plant for sale





Packing:  Load in whole container


Shipping: By sea


Delivery time:15-20 working days








Our Services


 2t per day small fish meal machine/fish meal plant for sale





1.Provide professional technical support and suitable proposal according to your request


2.Customers reception to visit our factory


After-sale:


1.Delivery on time.
2. One year guarantee.


3.Engineers can go abroad to guide the installation and traing.
