FY300A Hydraulic top drive 280m drill for deep water well track factory export
- Category: >>>
- Supplier: Xuzhou C-Star Import&export Co. Ltd.
Share on (1601256843334):
Product Overview
Description
Products Description

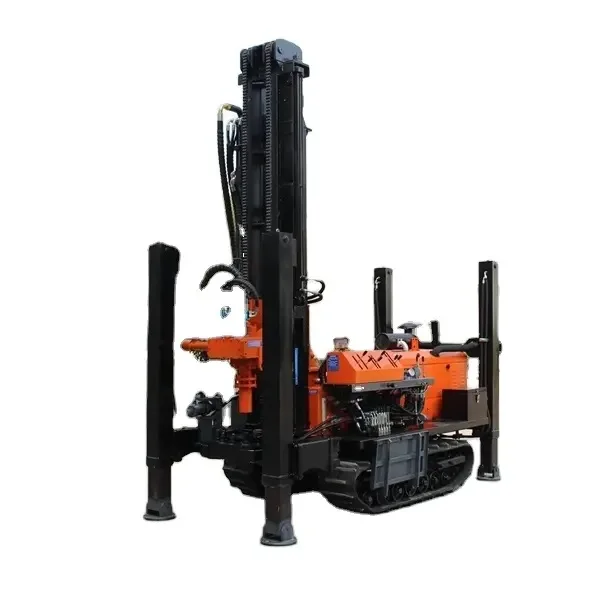

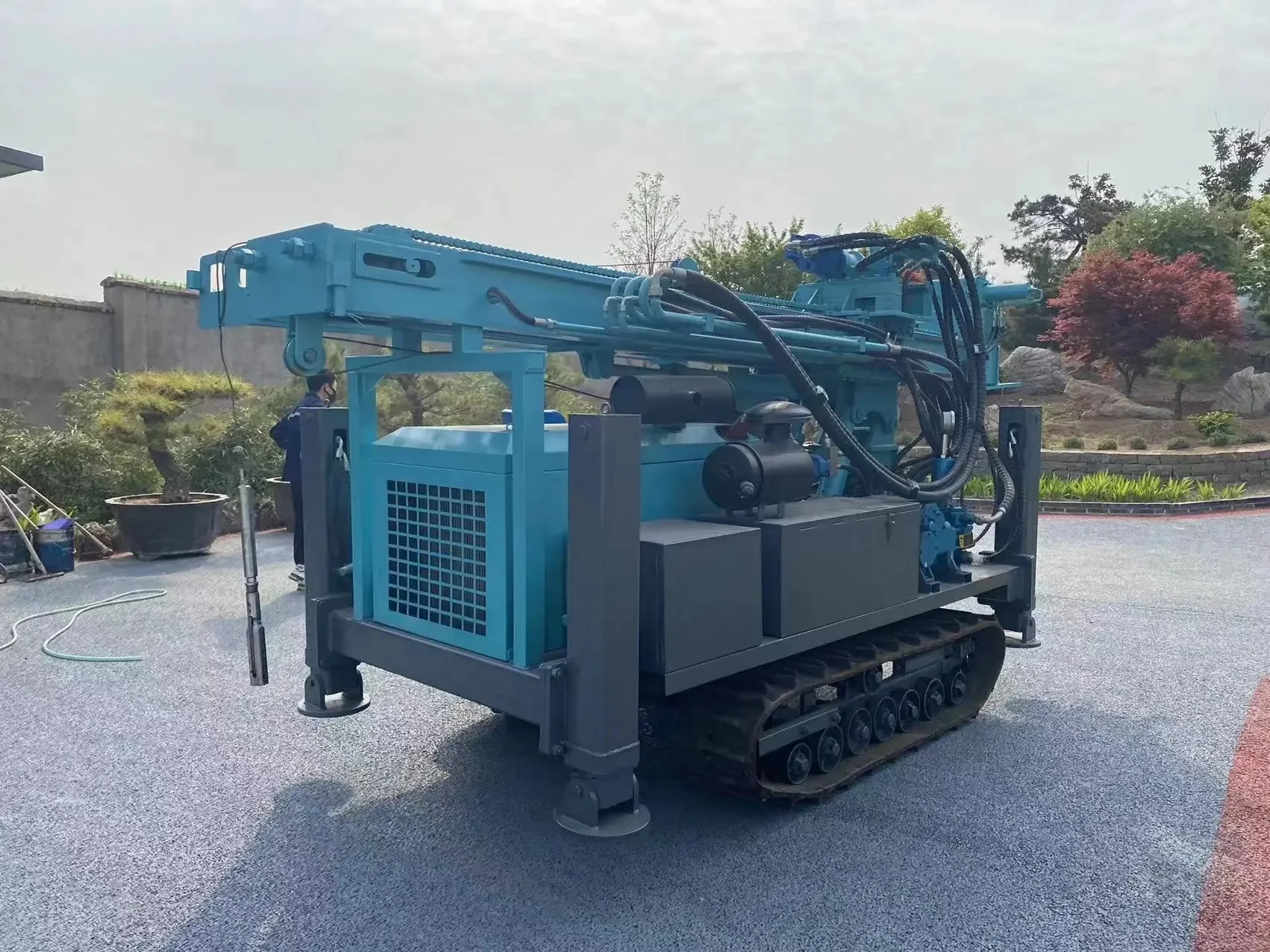

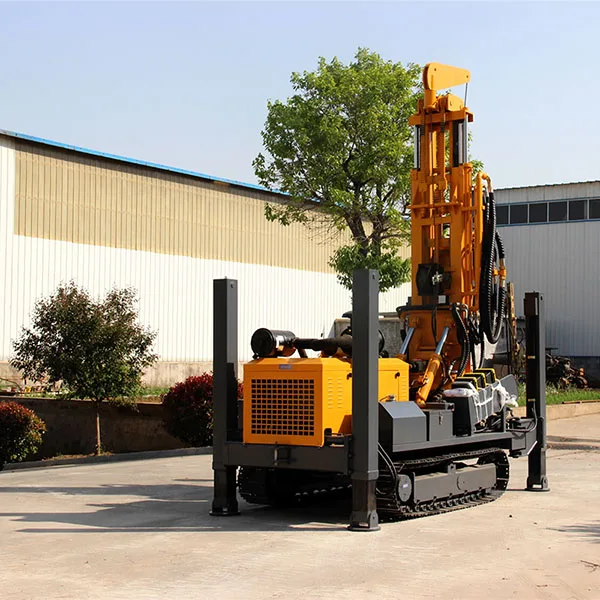

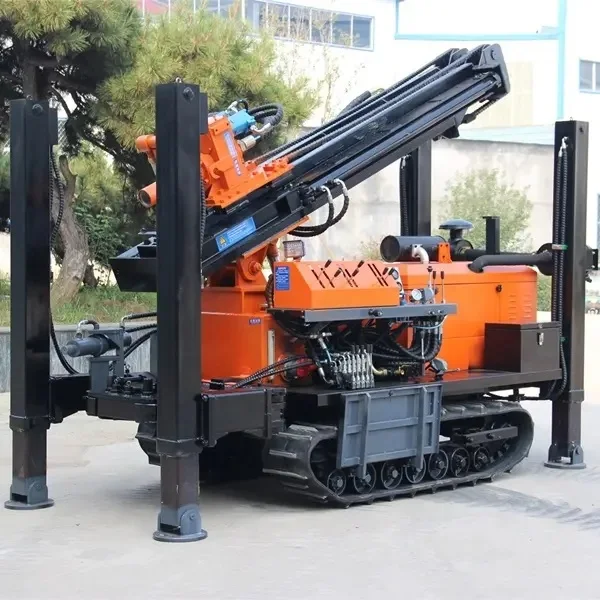

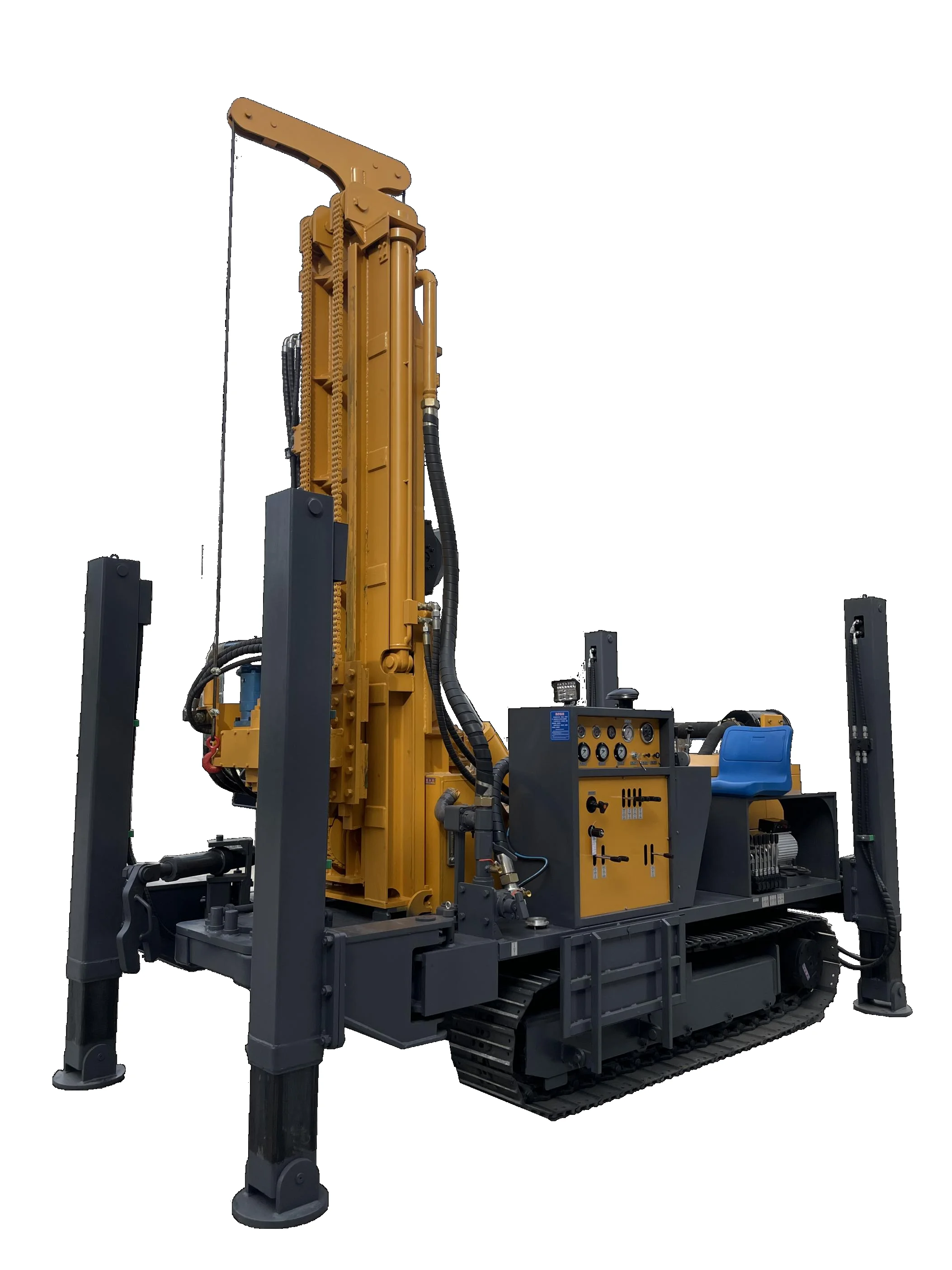

FY300A crawler water well drilling rig | ||||||
The weight（T） | 6.8 | Drill pipe diameter（mm） | Φ76 Φ89 | |||
The hole diameter（mm） | 140-325 | Drill pipe length（m） | 1.5m 2.0m 3.0m | |||
Drilling depth（m） | 300 | Rig lifting force（T） | 18 | |||
One-time advance length（m） | 3.3 | Rapid rise speed（m/min） | 22 | |||
Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 40 | |||
Climbing angles（Max.） | 30 | Width of loading（m） | 2.6 | |||
Equipped capacitor（kw） | 85 | Hoisting force of winch（T） | 2 | |||
Using air pressure（MPA） | 1.7-3.0 | Swing torque（N.m） | 5700-7500 | |||
Air consumption（m³/min） | 17-36 | Dimension（mm） | 4100×2000×2260 | |||
Swing speed（rpm） | 40-70 | The penetration efficiency（m/h） | 15-35 | |||
High leg stroke（m） | 1.4 | The engine brand | Yuchai engine | |||
1. Engine: well-known brand Guangxi Yuchai turbocharged engine;
2. Traveling device: equipped with new traveling motor and reducer, with long service life;
3. Hydraulic oil pump: imported from the United States, parallel gearbox design, independent oil pump, providing sufficient and
reasonable power distribution. The advanced hydraulic system has unique design, simple maintenance and low cost;
4. Power head device; the box is integrally formed, and the dual motors provide greater power, greater torque, more durability,
and lower maintenance costs;
5. Drilling rig chassis; professional excavator chassis, classic and durable, load-bearing, wide chain plate width,
Less damage to hard pavement;
6. Lifting force: The designed composite boom is used, which is small in size, long in stroke, double-cylinder lifting force, and
large in lifting tonnage of the drilling rig;
The boom configured with the rig body is provided with a limit device to protect the safety of the oil cylinder and ensure work
safety;
7. Each hydraulic oil pipe is covered with a thick protective sleeve, so that the oil pipe has a longer service life;
8. Dual systems can be installed: 1. Air power system with air compressor 2. Mud pump system with mud pump.
2. Traveling device: equipped with new traveling motor and reducer, with long service life;
3. Hydraulic oil pump: imported from the United States, parallel gearbox design, independent oil pump, providing sufficient and
reasonable power distribution. The advanced hydraulic system has unique design, simple maintenance and low cost;
4. Power head device; the box is integrally formed, and the dual motors provide greater power, greater torque, more durability,
and lower maintenance costs;
5. Drilling rig chassis; professional excavator chassis, classic and durable, load-bearing, wide chain plate width,
Less damage to hard pavement;
6. Lifting force: The designed composite boom is used, which is small in size, long in stroke, double-cylinder lifting force, and
large in lifting tonnage of the drilling rig;
The boom configured with the rig body is provided with a limit device to protect the safety of the oil cylinder and ensure work
safety;
7. Each hydraulic oil pipe is covered with a thick protective sleeve, so that the oil pipe has a longer service life;
8. Dual systems can be installed: 1. Air power system with air compressor 2. Mud pump system with mud pump.
Company Profile
Xuzhou C-Star Import & Export Co., Ltd.
Xuzhou C-Star Import & Export Co., Ltd. specialises in the export business of construction machinery and accessories.Our Foreign Trade Division members have above 10 years of experience in the export of construction machinery, and can efficiently and professionally solve the problems in the construction and export of equipments.
We commit to providing customer with high quality machinery and all accessories and we devote improving ourselves to help all our customers to solve more problems that they may encounter during construction projects.
Our company adheres to the management policy of “creat and win-win”, and seeks for mutual benefit. After years of industry experience accumulation, our company is mainly engaged in the design, manufacture and sale of trenchless machinery (mainly including pipe jacking machine and TBM machine and its supporting accessories, all kinds of HDD rods and drilling tools), rotary drilling rig drilling tools development and design (kelly bar and drill tools as well as supporting), also pile drivers machines. We endeavour to provide one-stop, low-cost, high-efficient equipments and supporting services for all our customers. All production links are strictly controlled, we have professional quality control equipment as well as professional personnel to strictly control each production link, to ensure that all products are guaranteed to leave the factory with good quality control, timely delivery and considerate service, which is worthy of trust and test!Our products have been exported to Southeast Asia, South Asia, the Middle East, Africa and other countries and regions, and harvested unanimous praise!
Looking forward to the future,we always adhering to the "Excellent quality, innovation and improvement" business philosophy, adhere to the "create, win-win" spirit of enterprise, with first-class service, first-class products, a comprehensive build the company's core competitiveness, to provide the most valuable industry services, is committed to become the best supply company.
We commit to providing customer with high quality machinery and all accessories and we devote improving ourselves to help all our customers to solve more problems that they may encounter during construction projects.
Our company adheres to the management policy of “creat and win-win”, and seeks for mutual benefit. After years of industry experience accumulation, our company is mainly engaged in the design, manufacture and sale of trenchless machinery (mainly including pipe jacking machine and TBM machine and its supporting accessories, all kinds of HDD rods and drilling tools), rotary drilling rig drilling tools development and design (kelly bar and drill tools as well as supporting), also pile drivers machines. We endeavour to provide one-stop, low-cost, high-efficient equipments and supporting services for all our customers. All production links are strictly controlled, we have professional quality control equipment as well as professional personnel to strictly control each production link, to ensure that all products are guaranteed to leave the factory with good quality control, timely delivery and considerate service, which is worthy of trust and test!Our products have been exported to Southeast Asia, South Asia, the Middle East, Africa and other countries and regions, and harvested unanimous praise!
Looking forward to the future,we always adhering to the "Excellent quality, innovation and improvement" business philosophy, adhere to the "create, win-win" spirit of enterprise, with first-class service, first-class products, a comprehensive build the company's core competitiveness, to provide the most valuable industry services, is committed to become the best supply company.
Certifications
FAQ
1.What kind of Water Well Drilling Rig can we provide?
Ans.: With years of experience and customer demand, we are able to offer a full range of Well Drilling Machine, including the Drilling Tools and Accessories,Screw Air Compressor.
2. What warranty do we provide?
Ans.: We provide 12 months warranty time.
3.How about the delivery time ?
Ans: Usually it will take 7 to 15days after receiving your deposit.
About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
4.Can you do OEM for me?
Ans:We have our own manufacture factory,we have the ability to accept all OEM orders,just contact us and give me your design.We will offer you a reasonable price and make samples for you ASAP.
5.Do you have any certificates for your machine?
Ans:All of our products coming with the certificates of CE,ISO9001.
6.What payment terms do we accept?
Ans.: 100% TT in advance is very appreciated.
We accept 30% T/T in advance,and 70% balance payment should be paid before delivery;
or 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
Please Contact Us for More Information.
Ans.: With years of experience and customer demand, we are able to offer a full range of Well Drilling Machine, including the Drilling Tools and Accessories,Screw Air Compressor.
2. What warranty do we provide?
Ans.: We provide 12 months warranty time.
3.How about the delivery time ?
Ans: Usually it will take 7 to 15days after receiving your deposit.
About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
4.Can you do OEM for me?
Ans:We have our own manufacture factory,we have the ability to accept all OEM orders,just contact us and give me your design.We will offer you a reasonable price and make samples for you ASAP.
5.Do you have any certificates for your machine?
Ans:All of our products coming with the certificates of CE,ISO9001.
6.What payment terms do we accept?
Ans.: 100% TT in advance is very appreciated.
We accept 30% T/T in advance,and 70% balance payment should be paid before delivery;
or 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
Please Contact Us for More Information.
