Product Overview

Description





Products Description










Specification


Model
Size(D)
Inlet/
Outlet
(inch)
Flow
(m3/h)
Filtration Area
(m2)
Sand Weight
(kg)
Packing size
(mm)
SW400
16"/Dia400
1.5”
6.3
0.13
35
410*410*490
SW500
20"/Dia500
1.5”
10
0.2
80
510*510*670
SW600
24"/Dia600
1.5”
15
0.3
160
630*630*670
SW700
28"/ Dia700
1.5”
18.5
0.37
220
710*710*670
SW800
32"/Dia800
2''
25
0.5
370
830*830*930
SW900
36"/ Dia 900
2''
30
0.64
447
900*900*990
SW1000
40"/Dia1000
2''
35
0.79
700
1030*1030*1200
SW1200
48"/Dia1200
2''
50
1.13
1200
1230*1230*1380
SW1400
56"/Dia 1400
2''
68
1.53
1700
1410*1410*1550

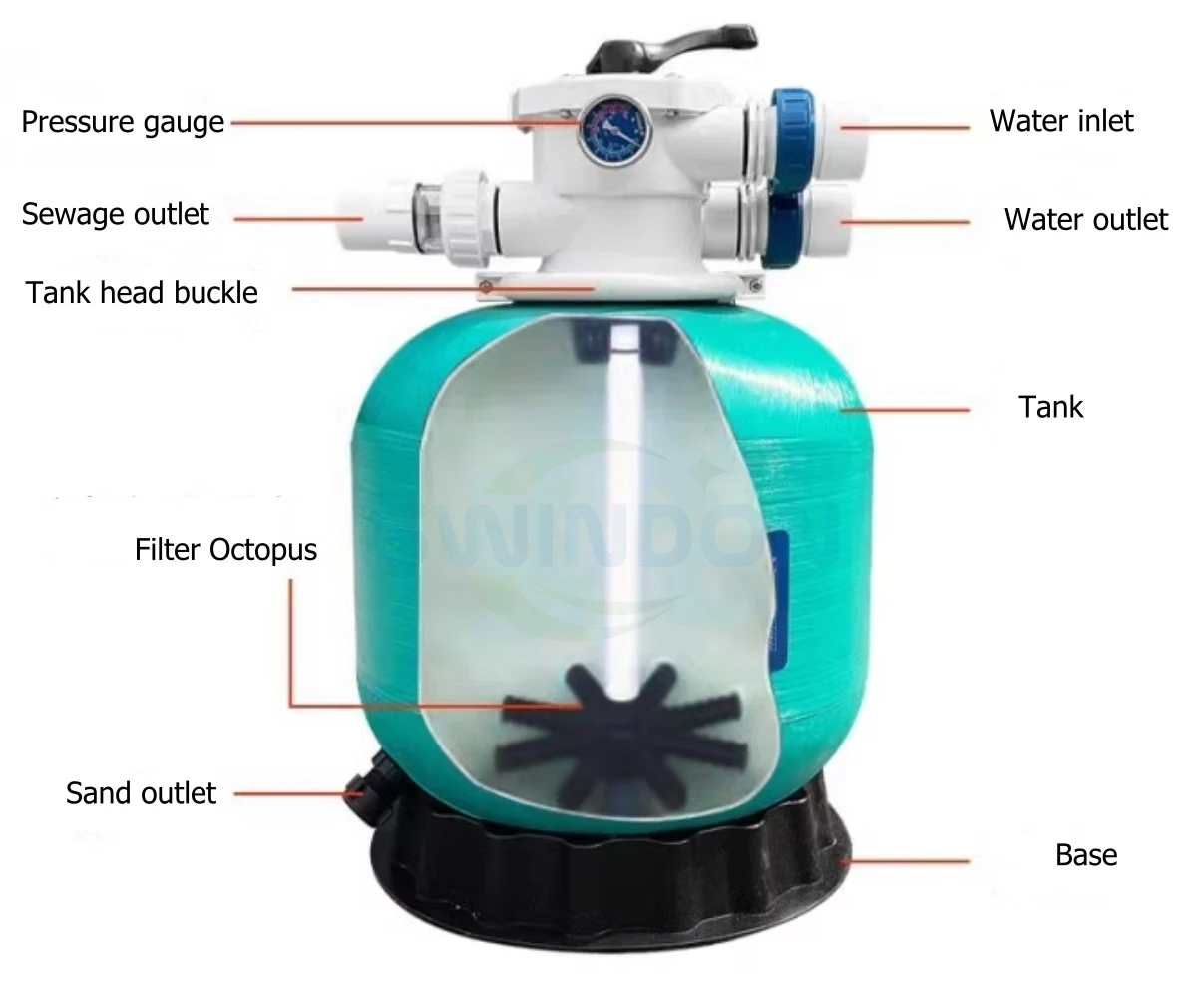

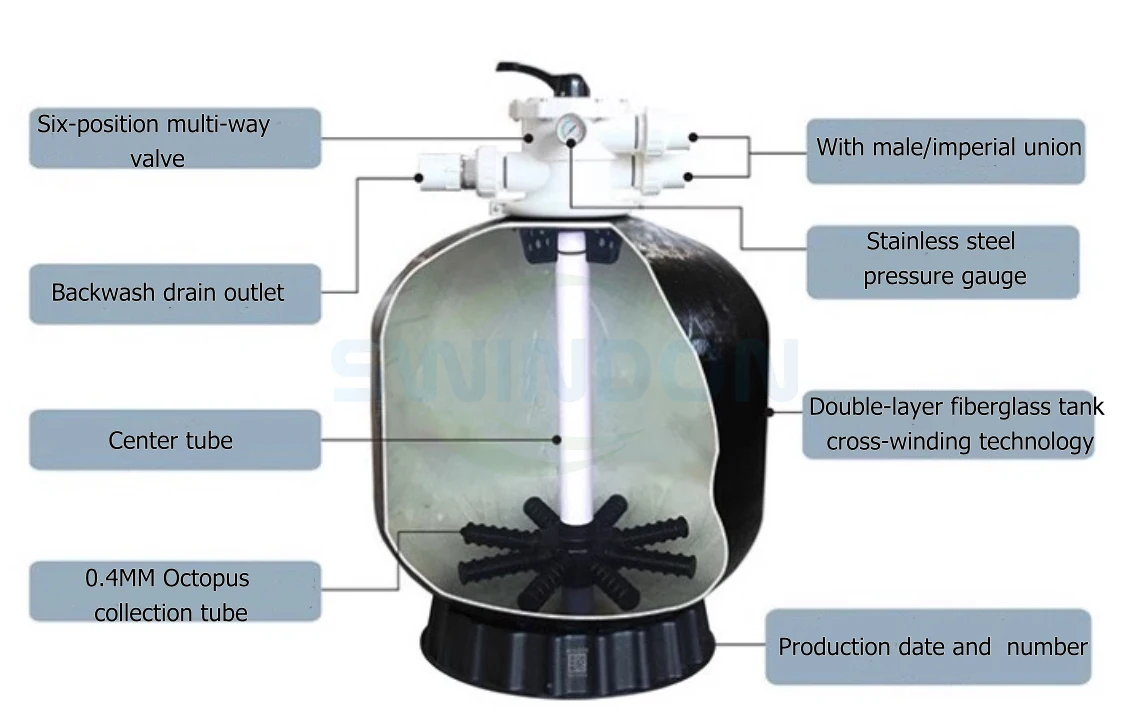

Details Images

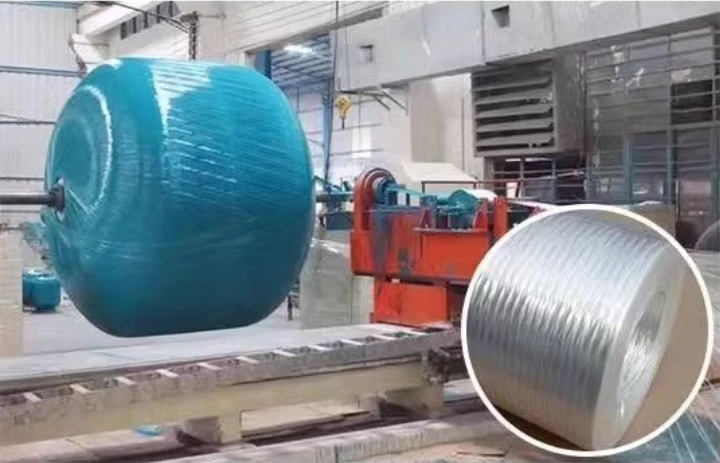

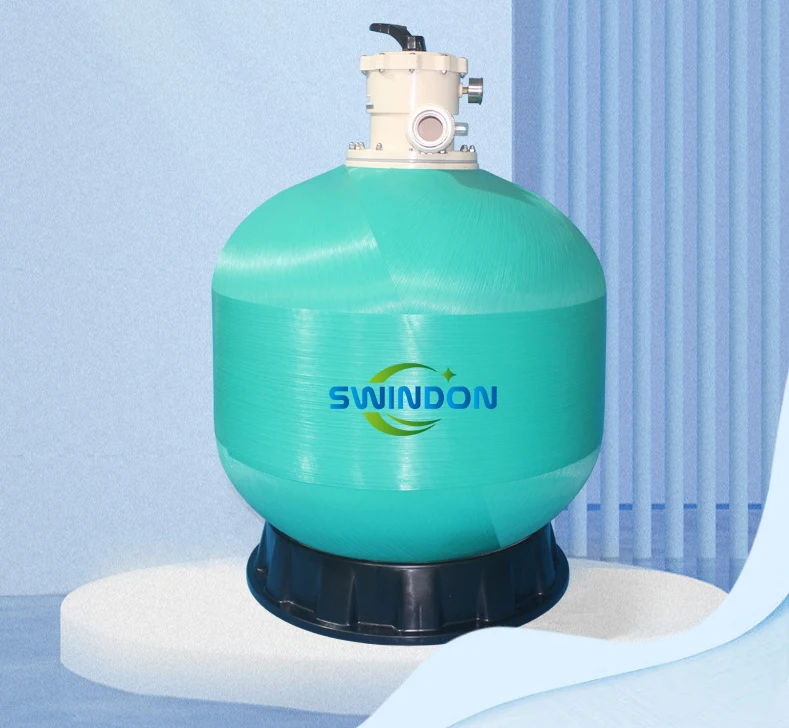

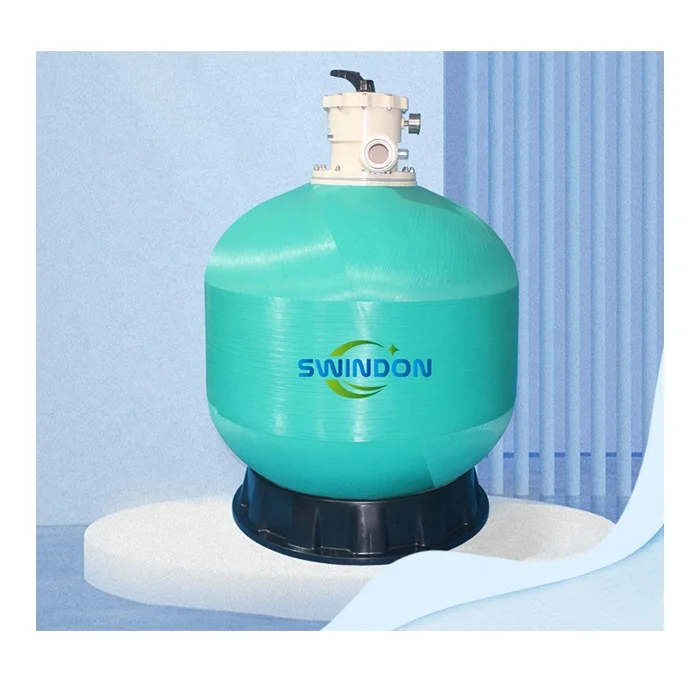

Fiberglass-wound sand filter
Fully automatic seamless
The fiberglass-wound water sand filter is with UV-resistant polyurethane protective layer.

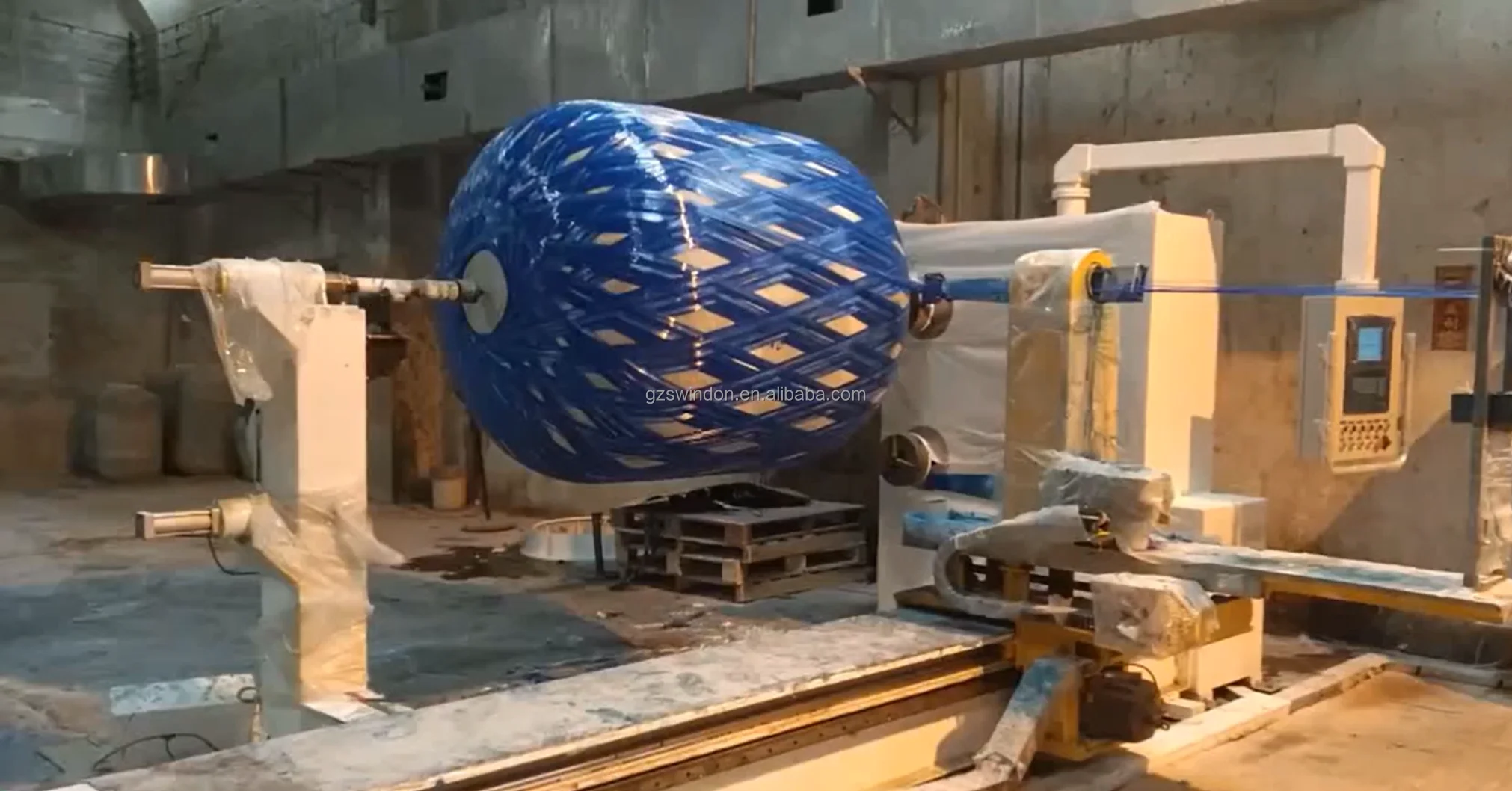

After the glass fiber is drawn into threads, its strength is greatly increased, and it is then seamlessly wrapped around pool sand
filter like a cocoon, making the swimming pool sand filter structure strong and pressure-resistant..


Easy maintenance and cost saving
After sewage filtration, the backwash function is used to remove the filtered dirt and impurities.

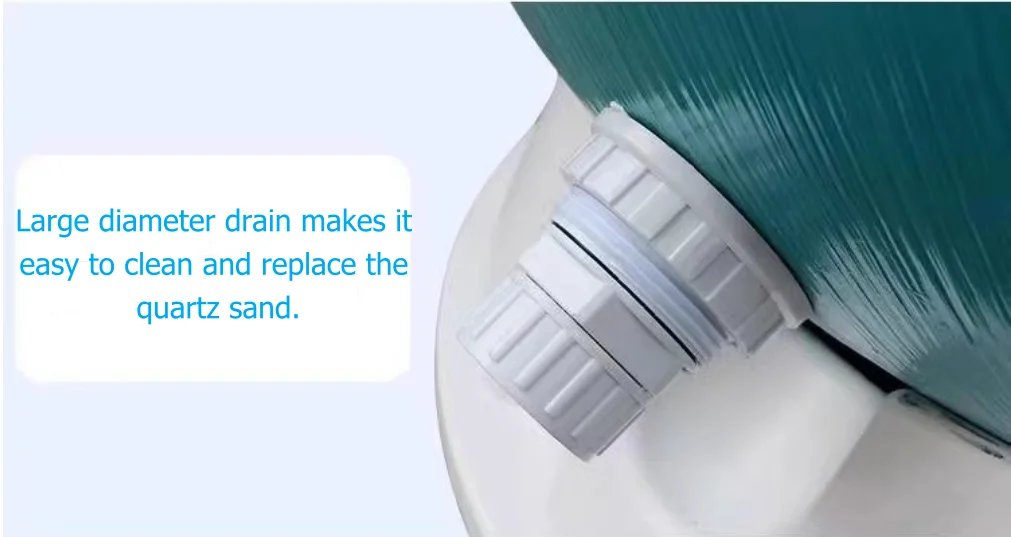

The bottom of the pool filter
system is designed with a sand discharge port, which makes it easy to replace the quartz sand.

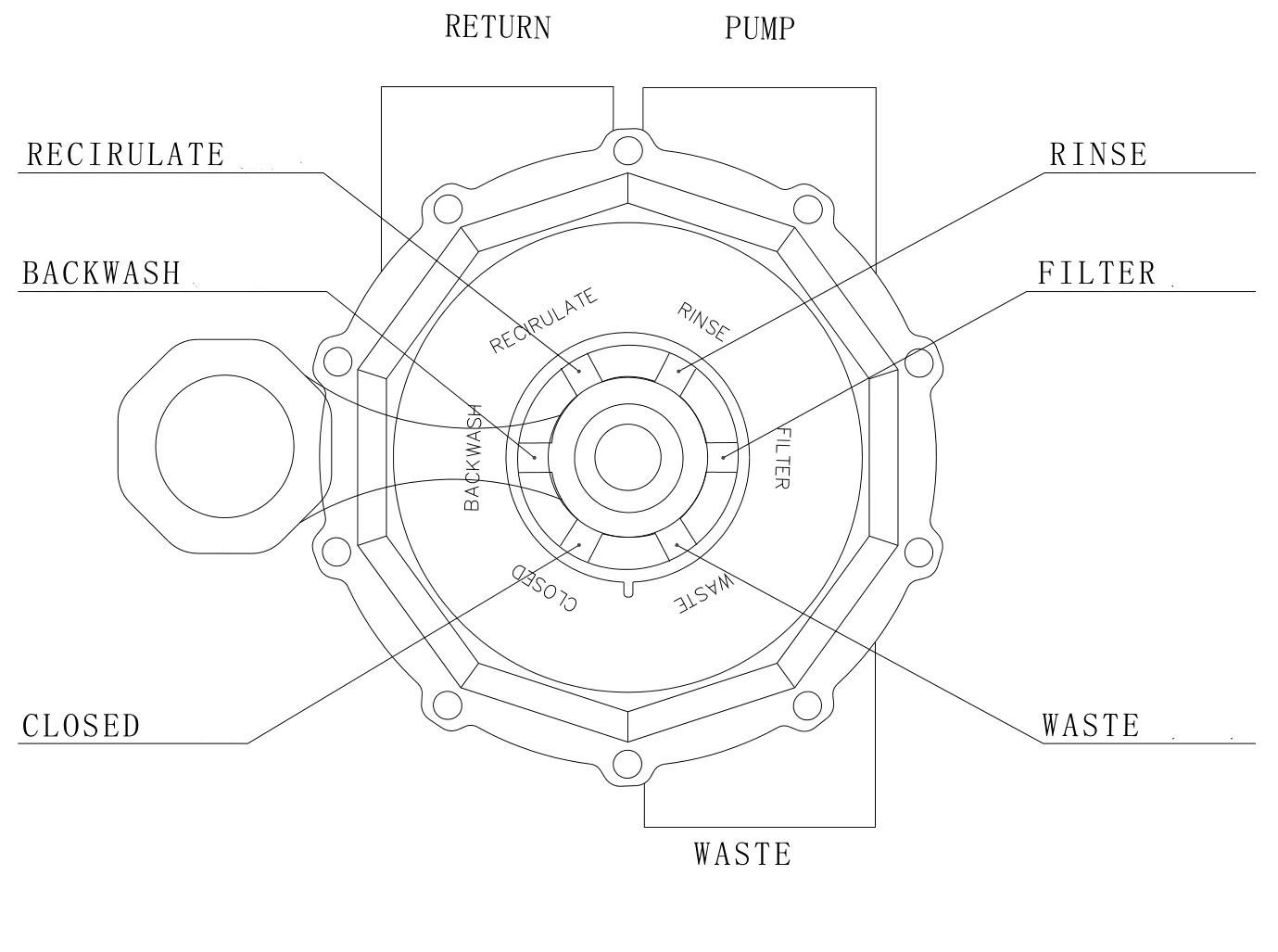

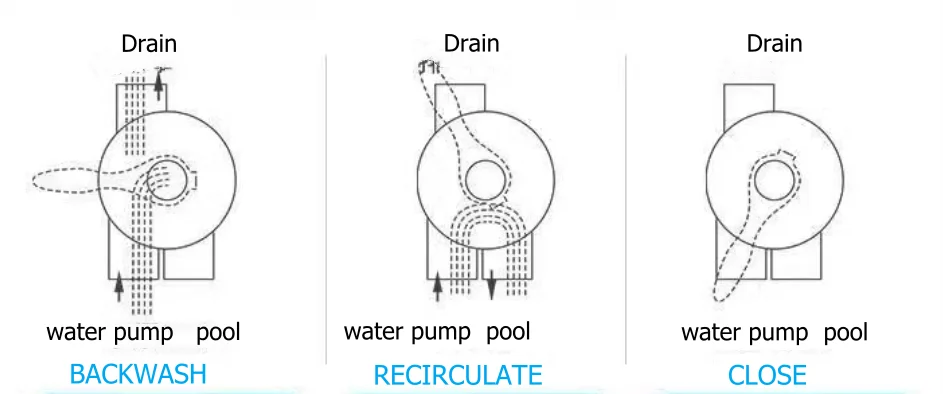

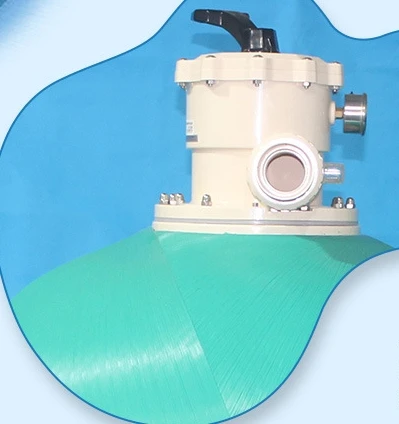

Multifunctional valve

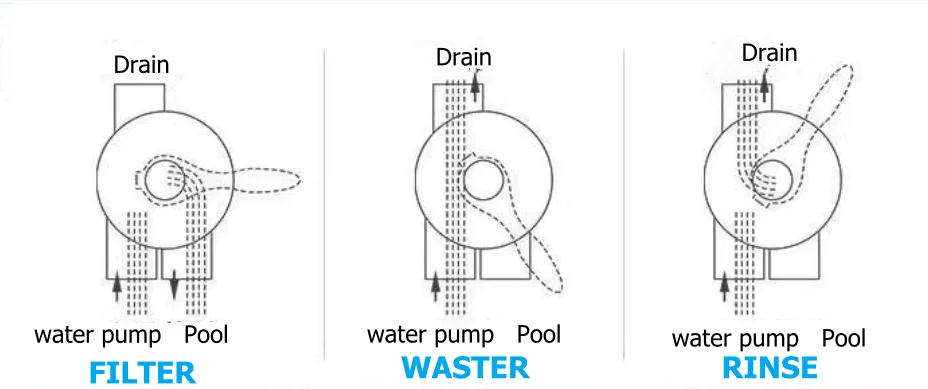

Ergonomically designed six-way valve, filter, backwash, rinse, waster, recirculate and close.


Working process of sand filter


Filtration mode
Through the water inlet of the filter machine, it first passes through the filter material layer filtration system for decomposition, and finally flows out as clean water
Backwash mode
Through the water inlet, the debris in the pool filter system is flushed from bottom to top and discharged through the drain
outlet to achieve the purpose of cleaning.

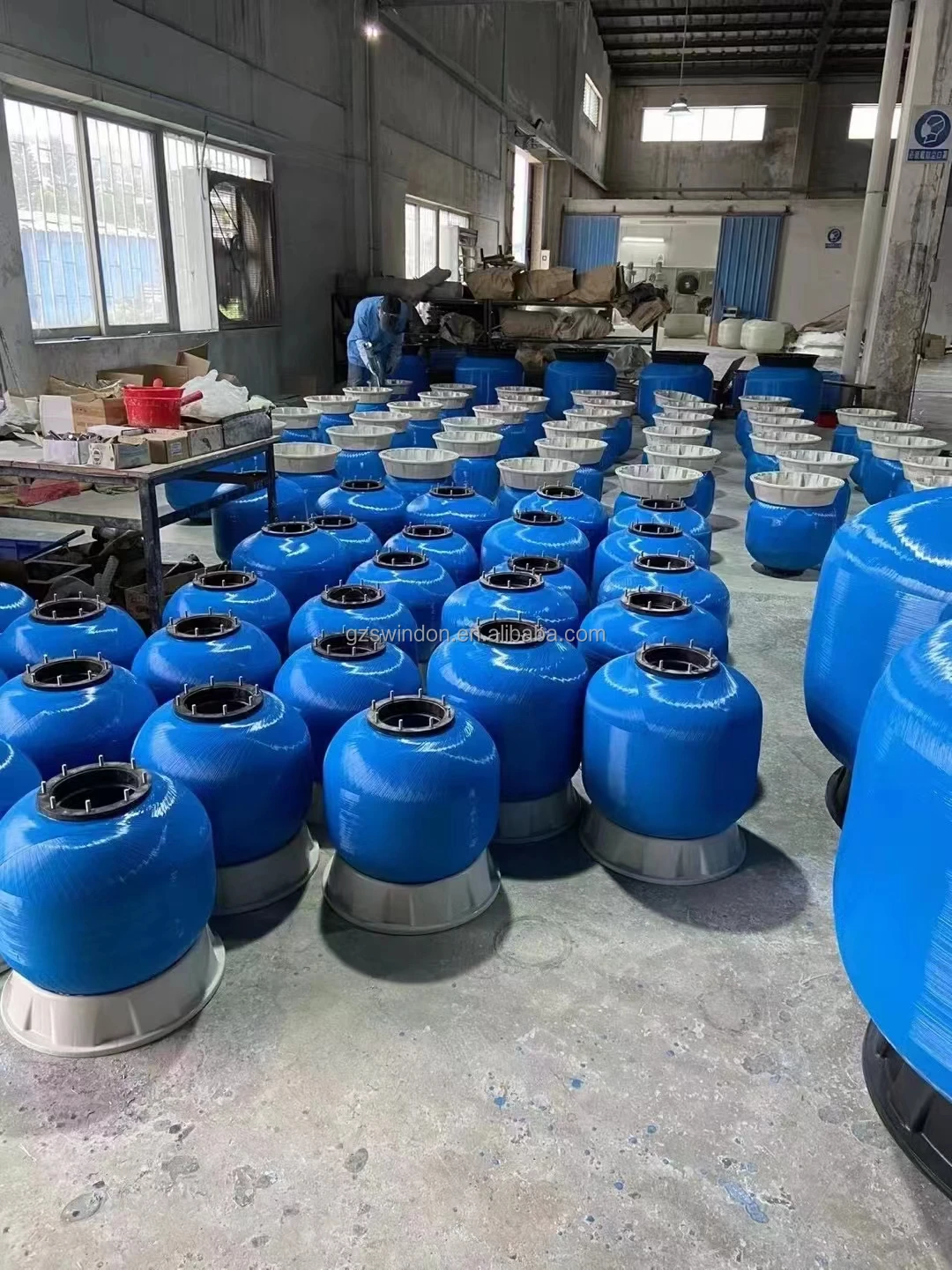

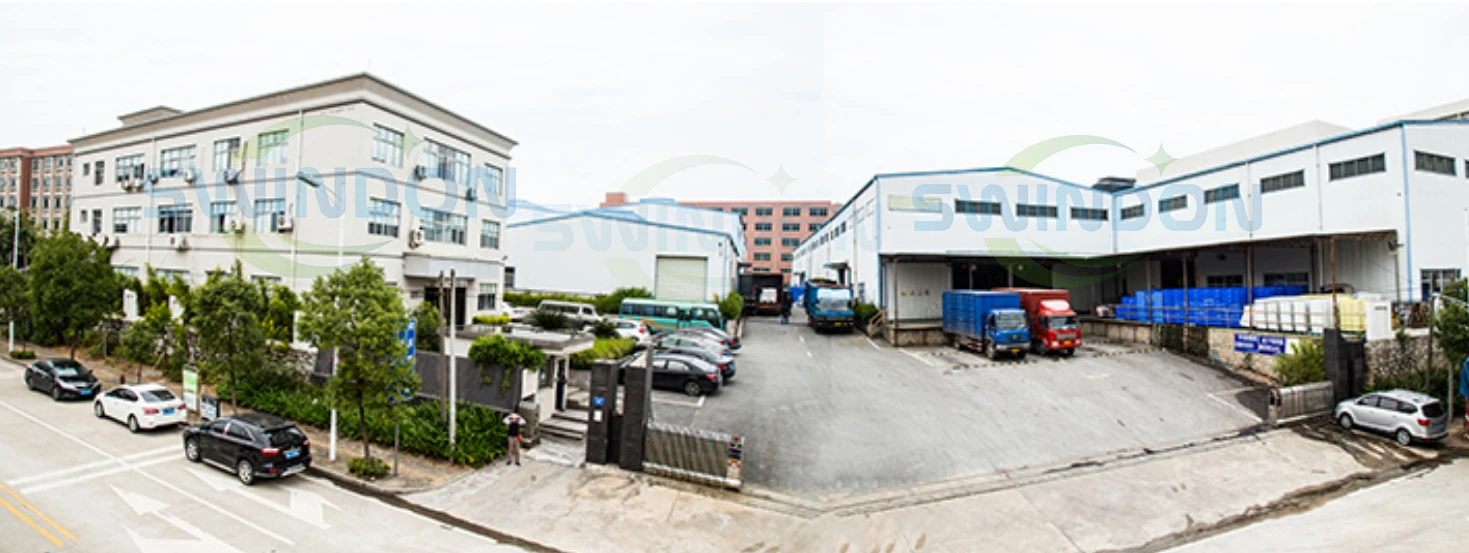

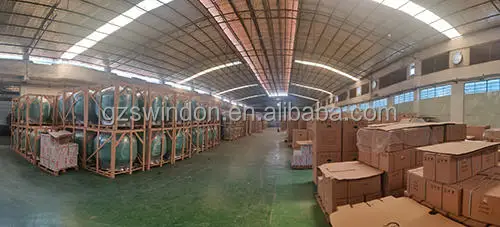

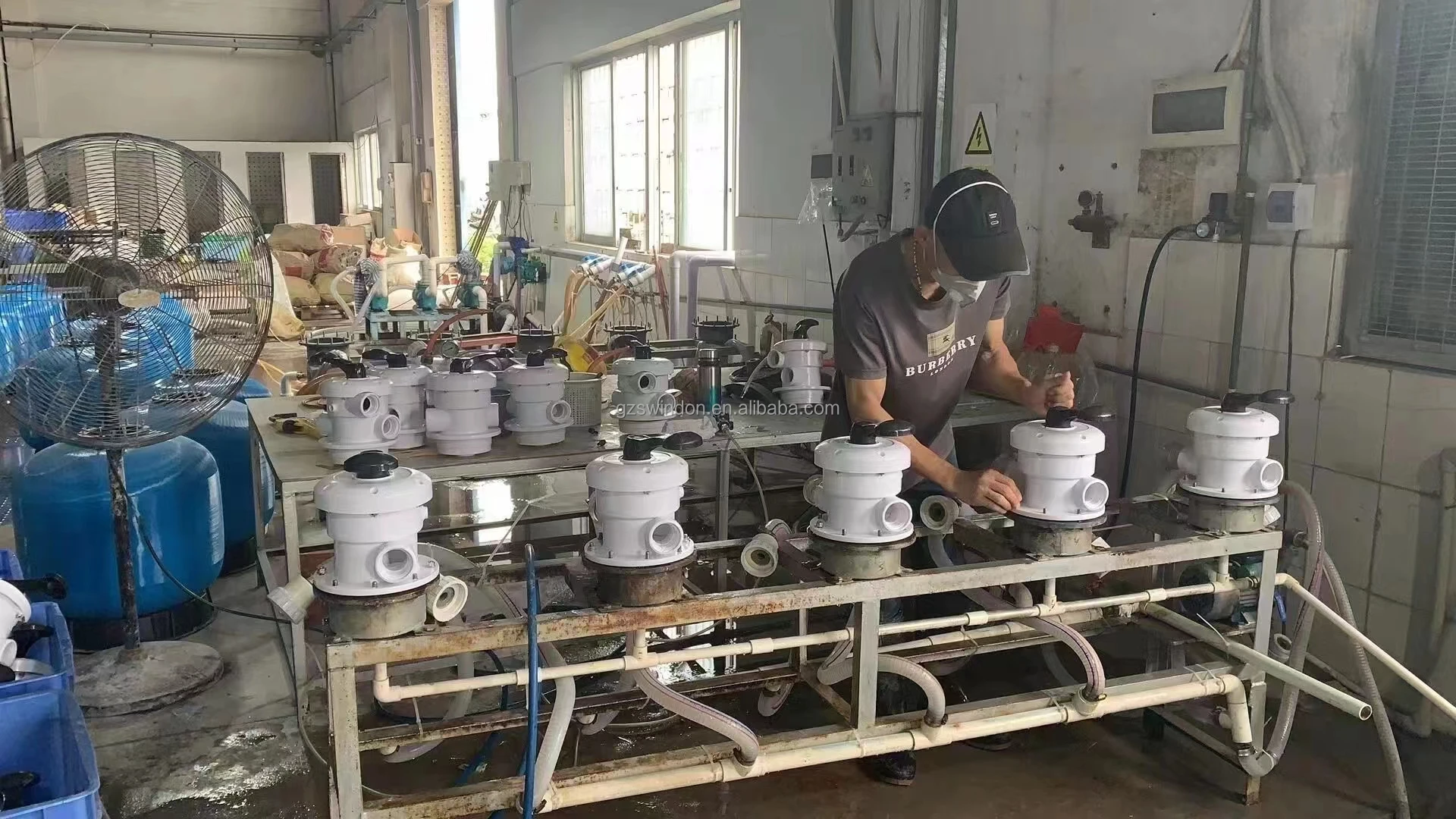

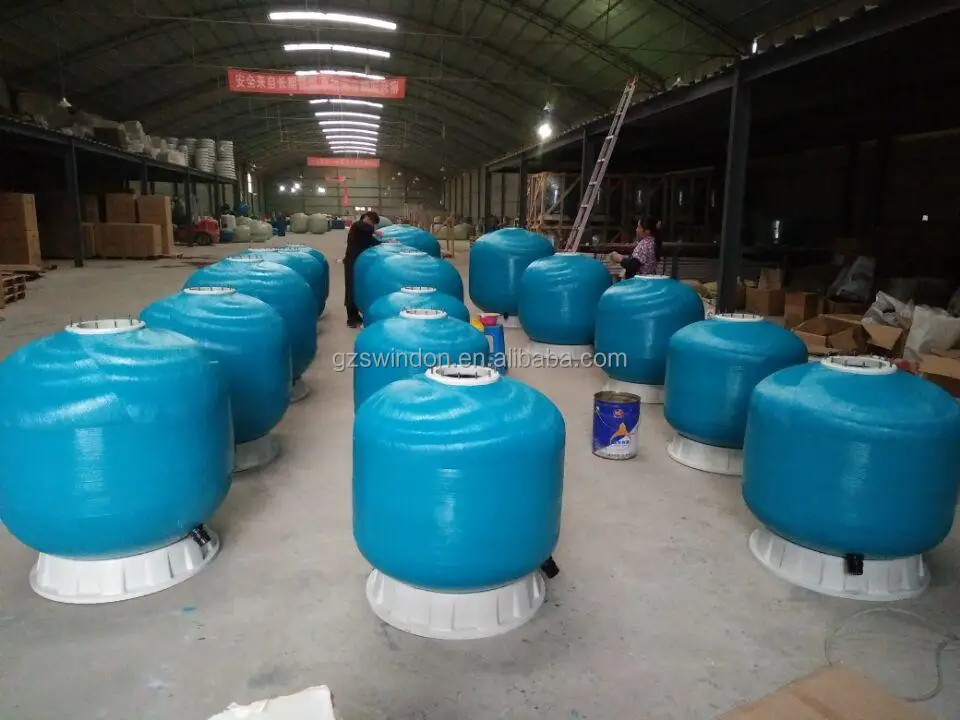

SWINDON Factory

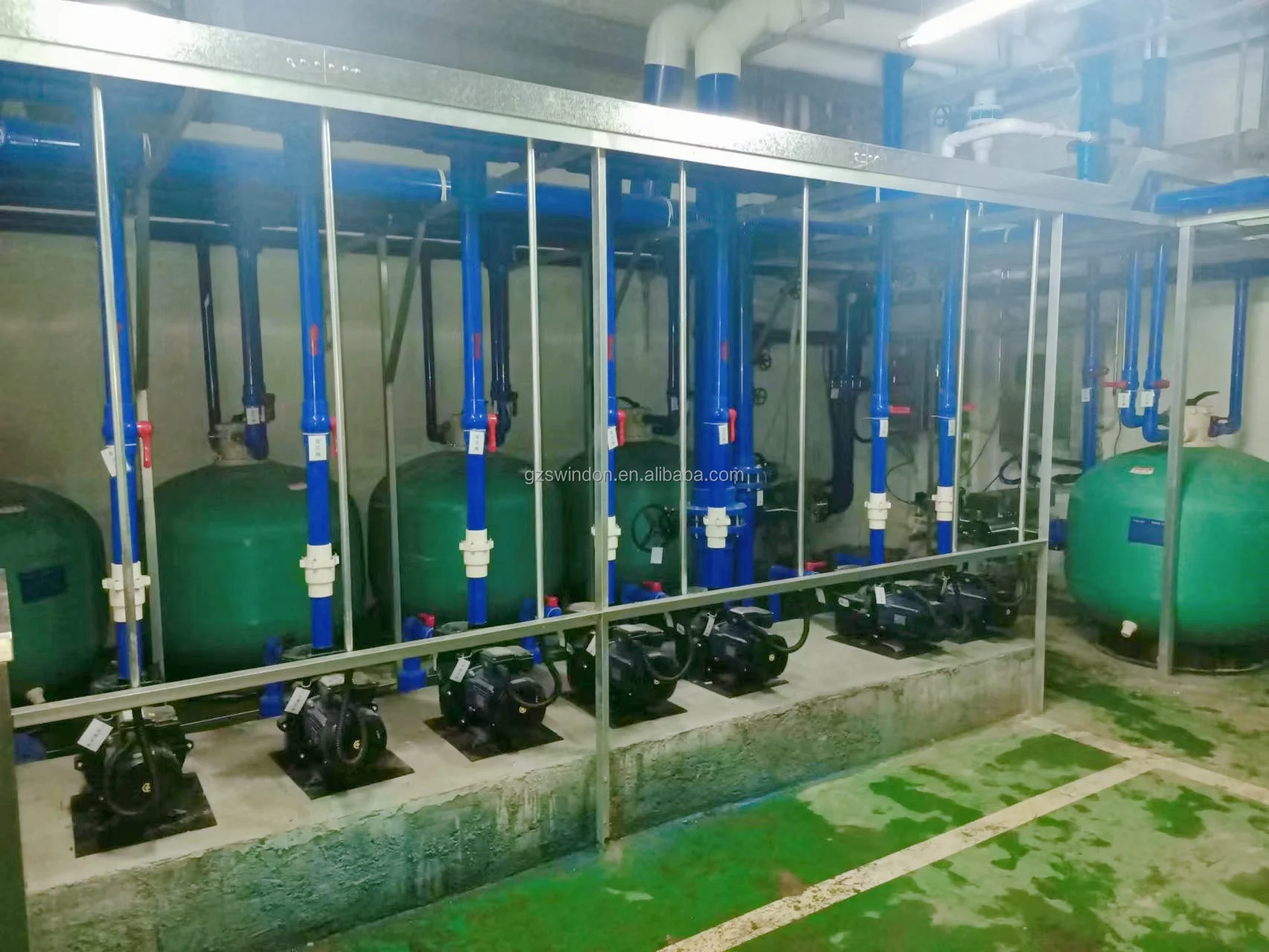

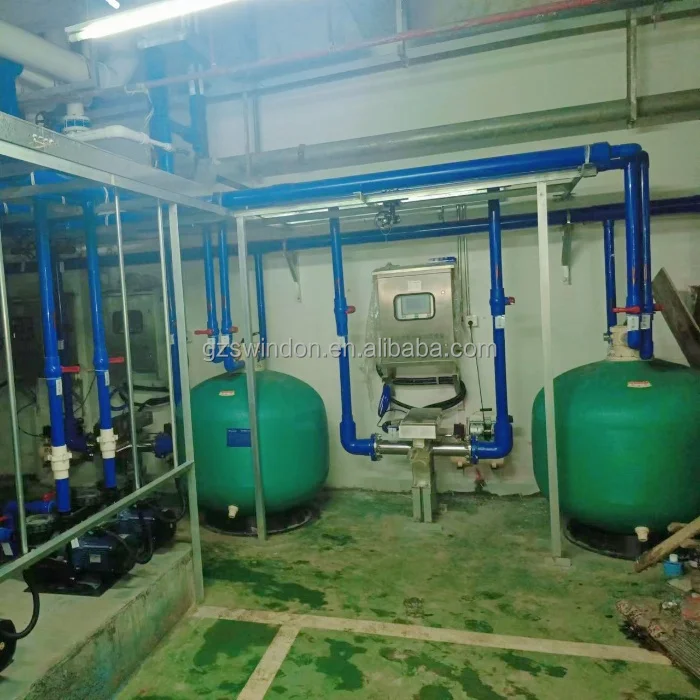

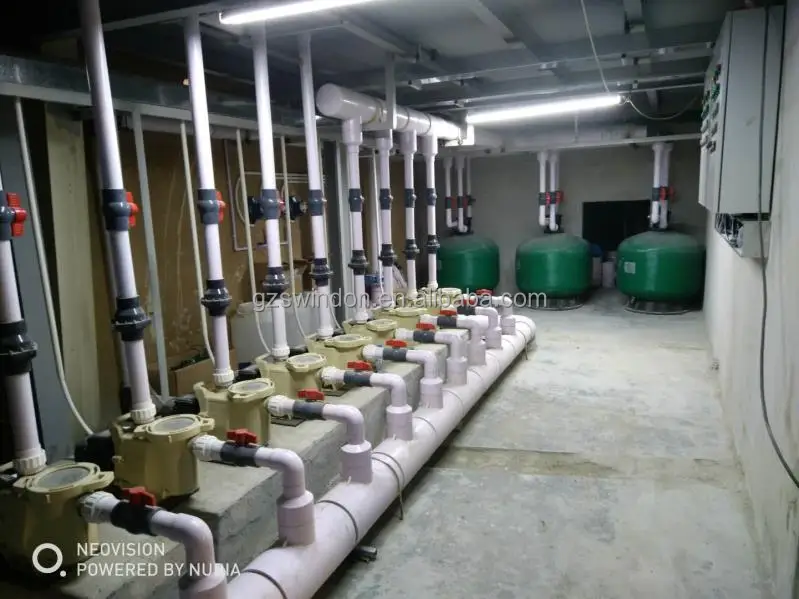

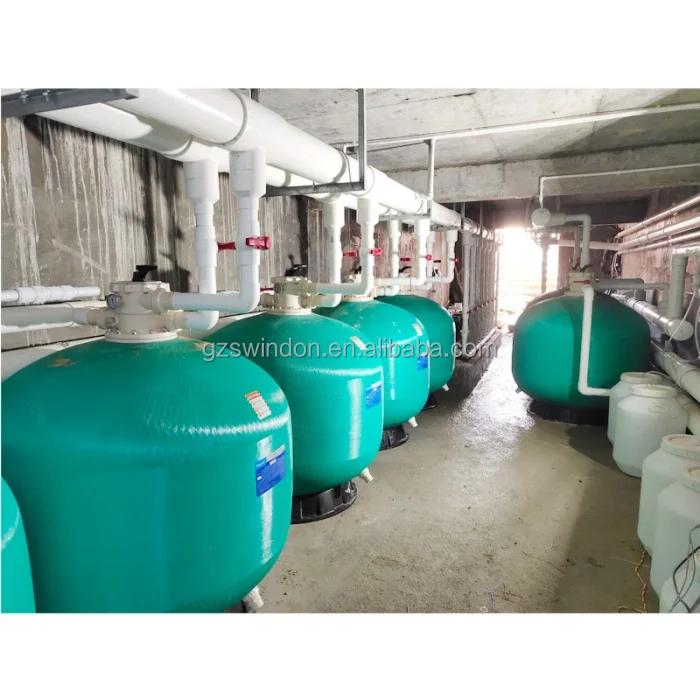

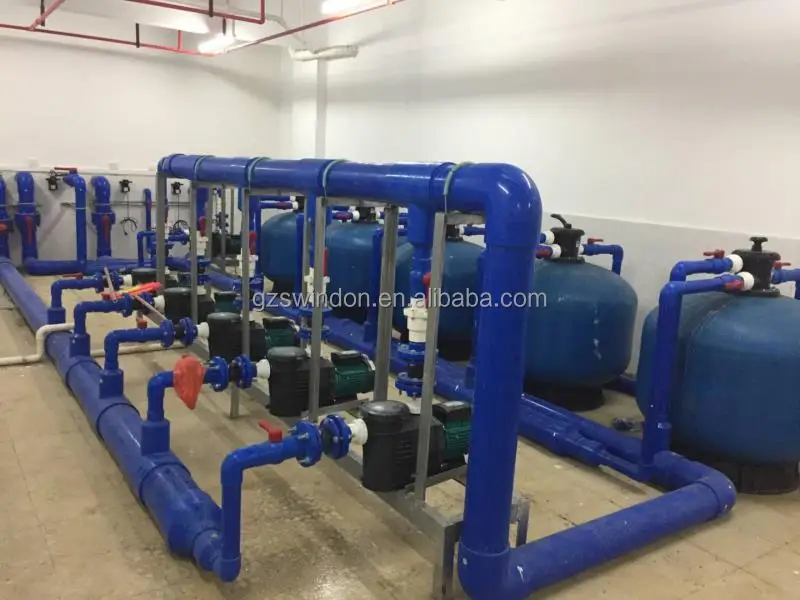

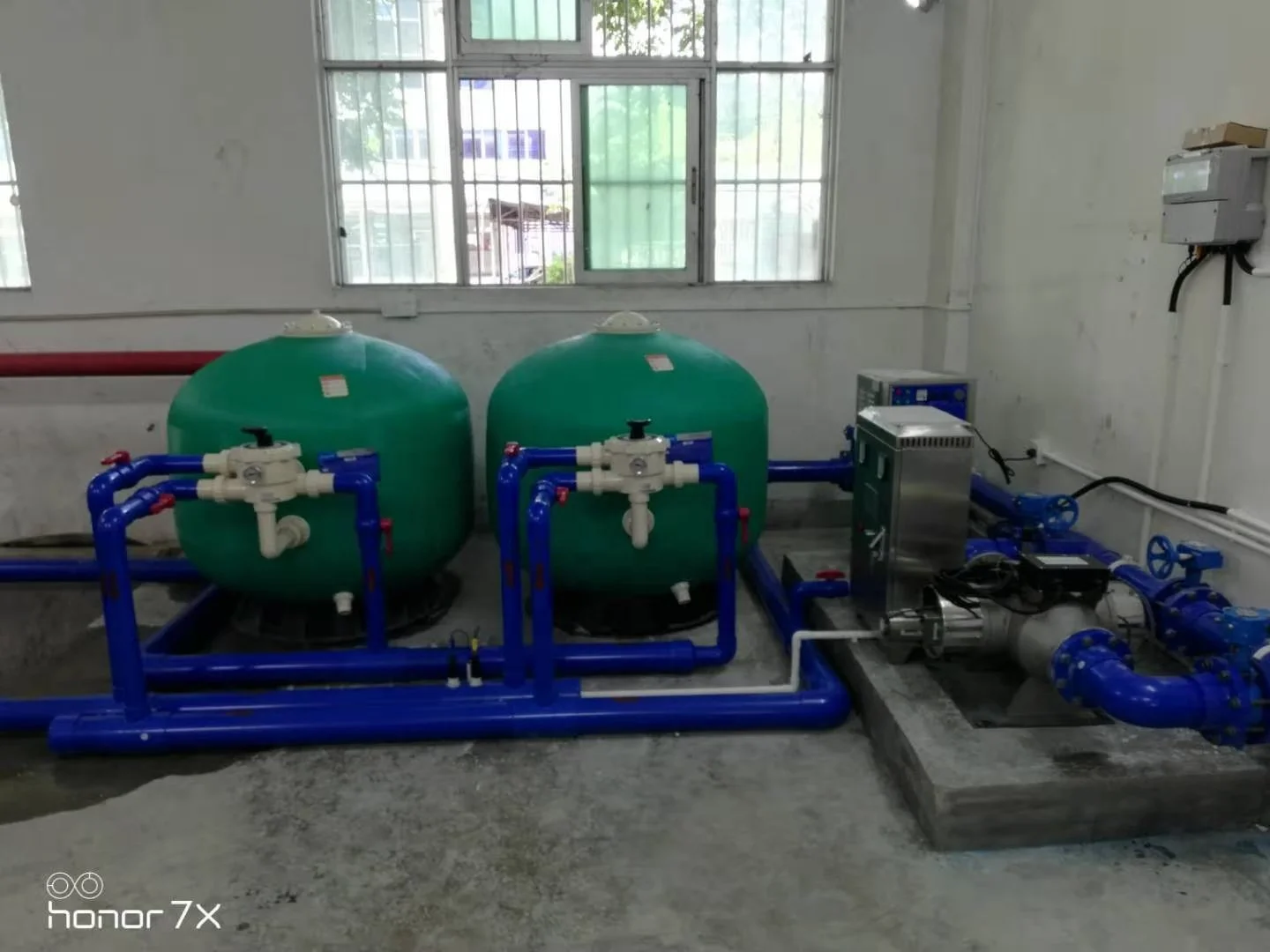

Real Pool Project Cases






Installation
