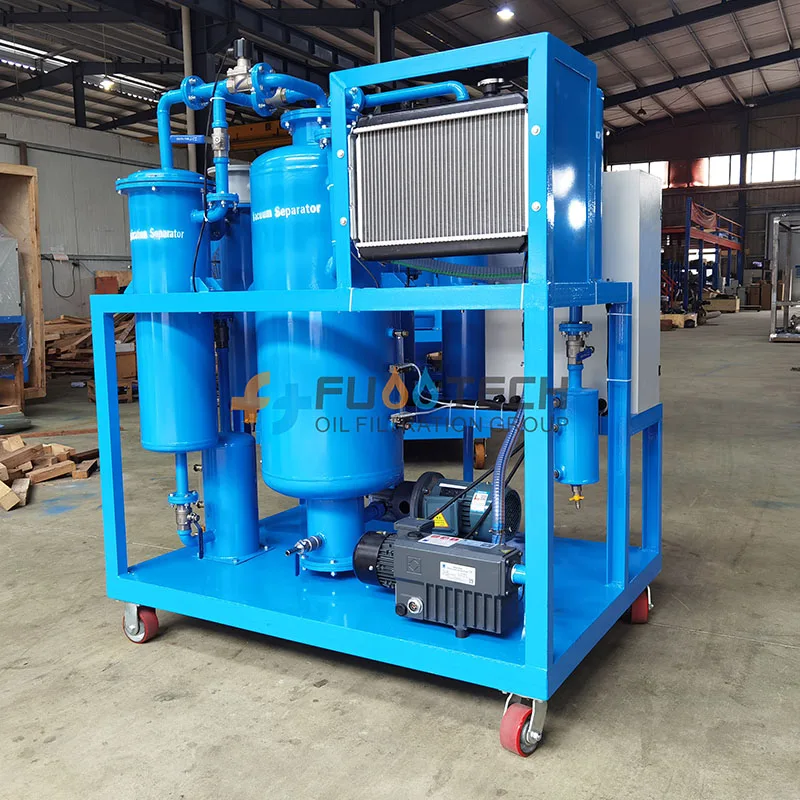

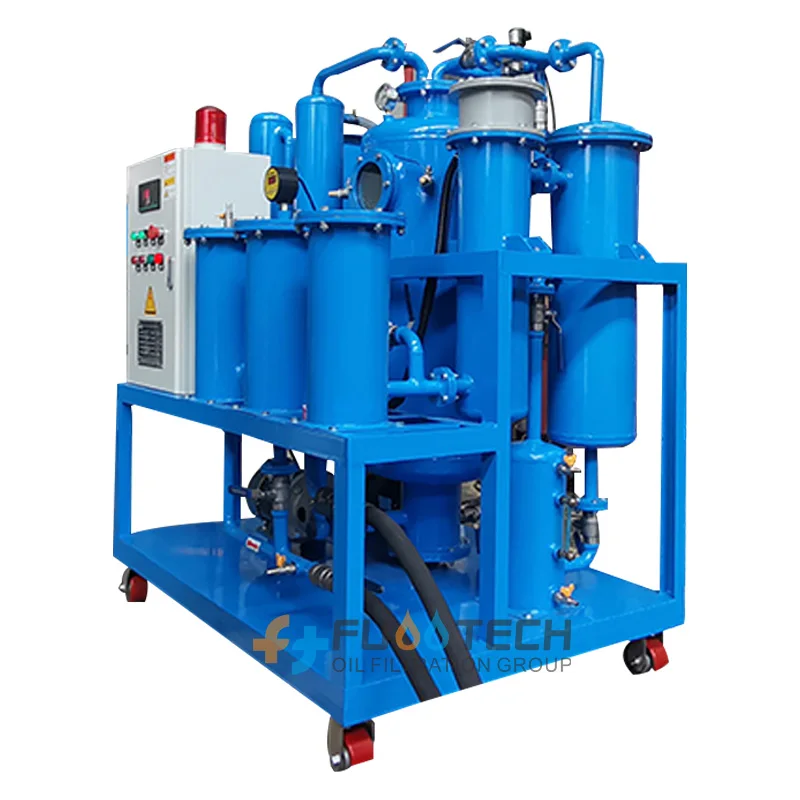

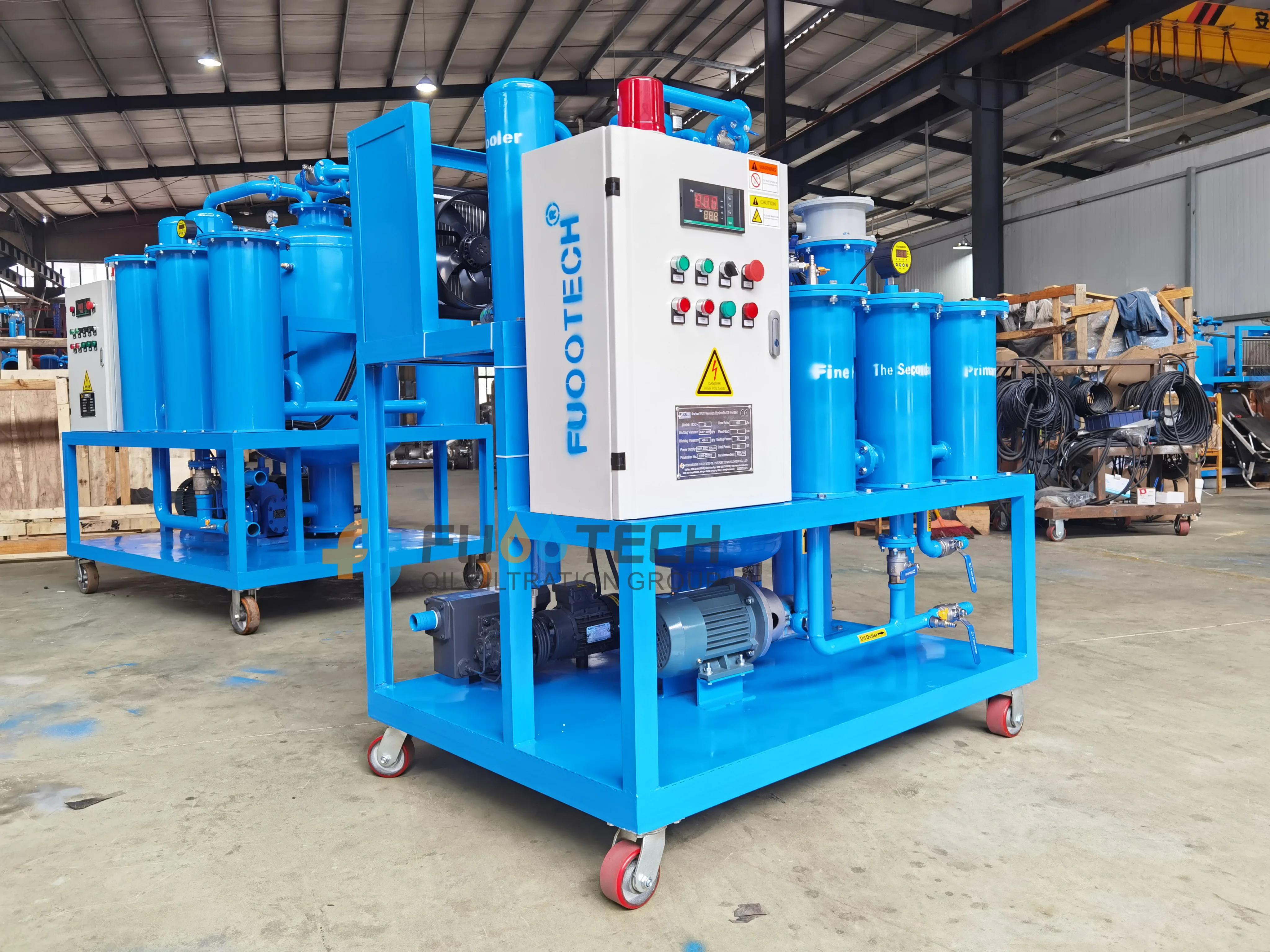

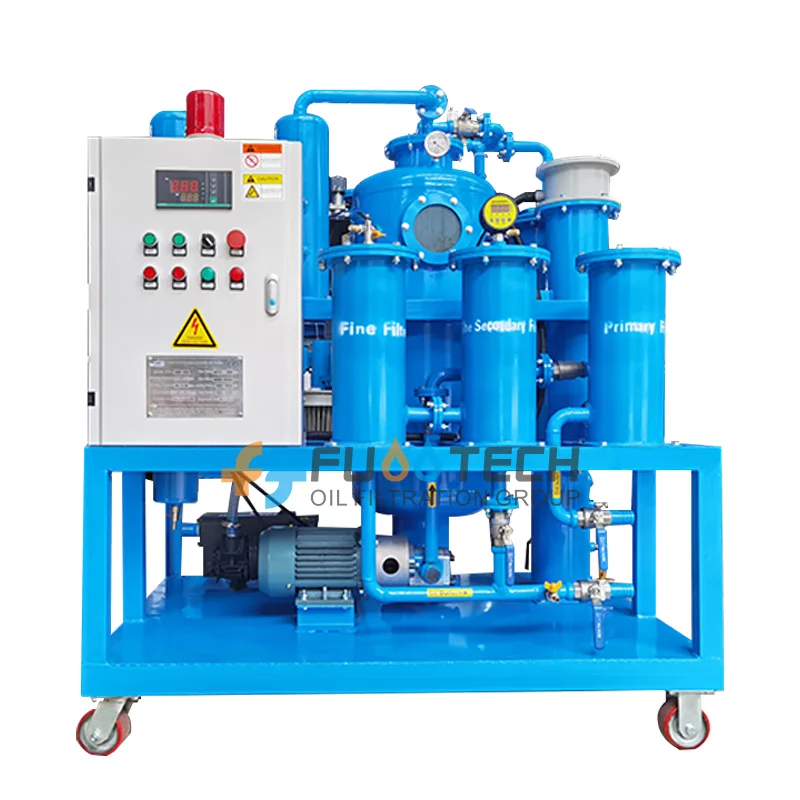

FUOOTECH HOC 100 6000L/H Hydraulic Oil System Oil Cleaning & Filtration Machine Vacuum Hydraulic Oil Purifier
FUOOTECH HOC-100 6000L/H Hydraulic Oil System Oil Cleaning & Filtration Machine Vacuum Hydraulic Oil Purifier
FUOOTECH HOC-100 6000L/H Hydraulic Oil System Oil Cleaning & Filtration Machine Vacuum Hydraulic Oil Purifier
FUOOTECH HOC-100 6000L/H Hydraulic Oil System Oil Cleaning & Filtration Machine Vacuum Hydraulic Oil Purifier
FUOOTECH HOC-100 6000L/H Hydraulic Oil System Oil Cleaning & Filtration Machine Vacuum Hydraulic Oil Purifier
FUOOTECH HOC-100 6000L/H Hydraulic Oil System Oil Cleaning & Filtration Machine Vacuum Hydraulic Oil Purifier
FUOOTECH HOC-100 6000L/H Hydraulic Oil System Oil Cleaning & Filtration Machine Vacuum Hydraulic Oil Purifier

FUOOTECH HOC 100 6000L/H Hydraulic Oil System Oil Cleaning & Filtration Machine Vacuum Hydraulic Oil Purifier

Share on (1601256986773):


Price:$6,500.00-25,000.00

Quantity:


Product Overview

Description



FUOOTECH HOC-100 6000L/H Hydraulic Oil System Oil Cleaning & Filtration Machine Vacuum Hydraulic Oil Purifier

Series HOC Hydraulic fluid purifier manufactured by FUOOTECH is capable of effectively purifying all
types of hydraulic oils at grade ISO-VG-32, 46, 68, 100, etc… by reducing the water content from 500 ppm downto 80 ppm, and separating (removing) the free water, dissolved water, sludge, gas content and carbon from hydraulic oil.

Our HOC Series oil cleaning & filtration machine is also used for cleaning and filtering the other industrial lube oils such as gear oil, compressor oil, conduction oil, heavy duty gear oil, refrigerator oil, etc.. used in the power generation, hydraulic system, machinery, metallurgy, mining, petroleum, chemical industry and other fields.




Item
Unit
HOC-10
HOC-20
HOC-30
HOC-50
HOC-100
HOC-150
HOC-200
HOC-300
Flow rate
L/H
600
1200
1800
3000
6000
9000
12000
18000
Vacuum degree
Mpa
-0.06 ~ - 0.095
Working pressure
Mpa
≤0.4
Temperature Control Range
℃
0 ~ 100
Operation Temperature
℃
50 ~ 70
Power supply
380 VAC, 50 Hz, 3 Phase (or as per required)
Working noise
DB (A)
≤ 65 ~ 90
Electric heating power
KW
18
24
26
30
48
60
96
135
Total electric power
KW
19.3
25.3
27.6
32.6
56
69
106.5
147
Inlet (outlet) caliber
mm
Ф25
Ф25
Ф25
Ф32
Ф42
Ф50
Ф50
Ф60
Dimension
(L × W × H)
mm
1190 x1000
x 1400
1550
x1050 x1600
1600
x1050
x1650
1600
x 1150
x1700
1750 x1250
x 1800
1900
x1600
x1950
1900
x1700
x2000
2100
x1700
x2100
Weight
Kg
450
550
600
750
850
1000
1200
1500

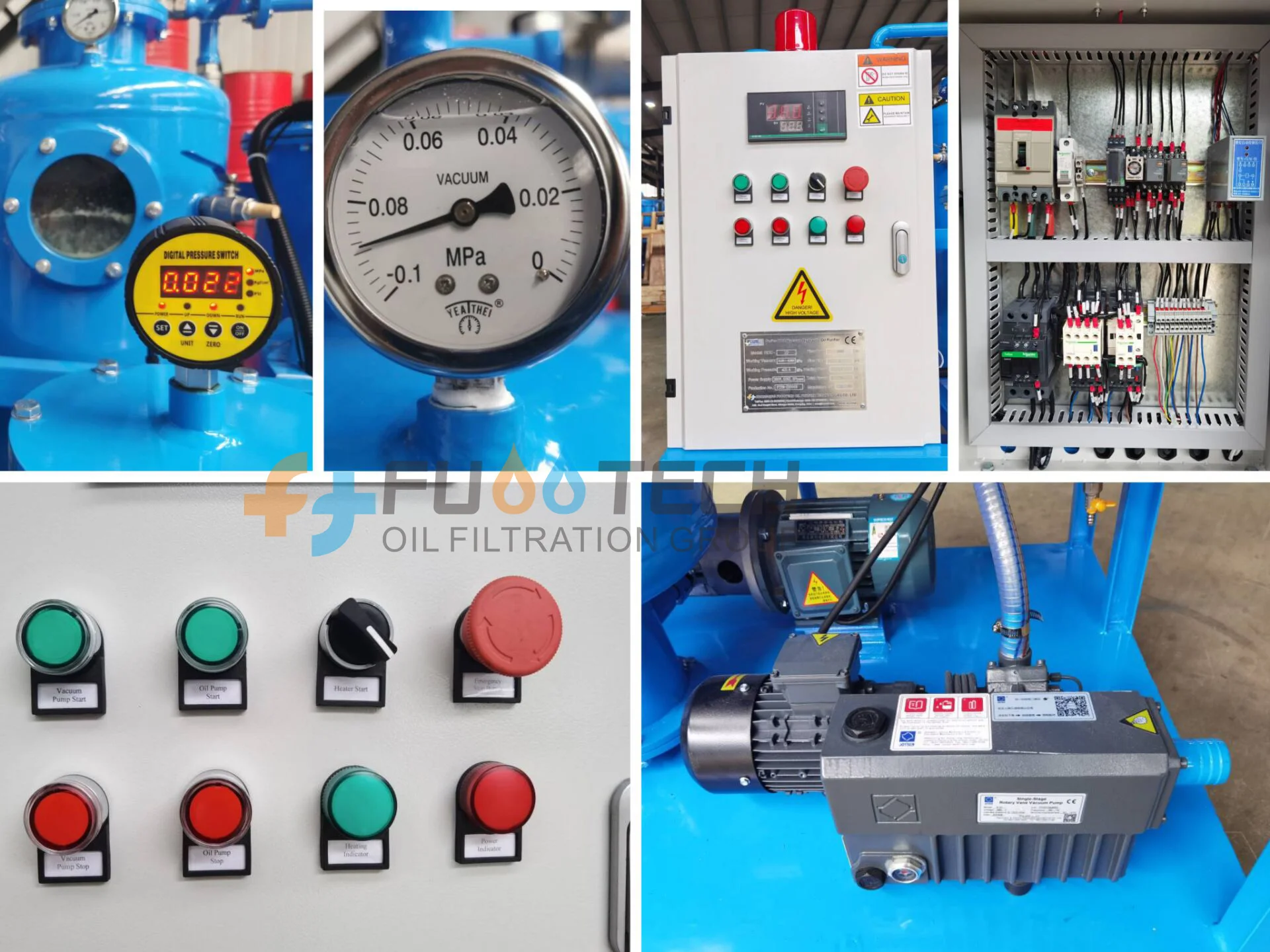

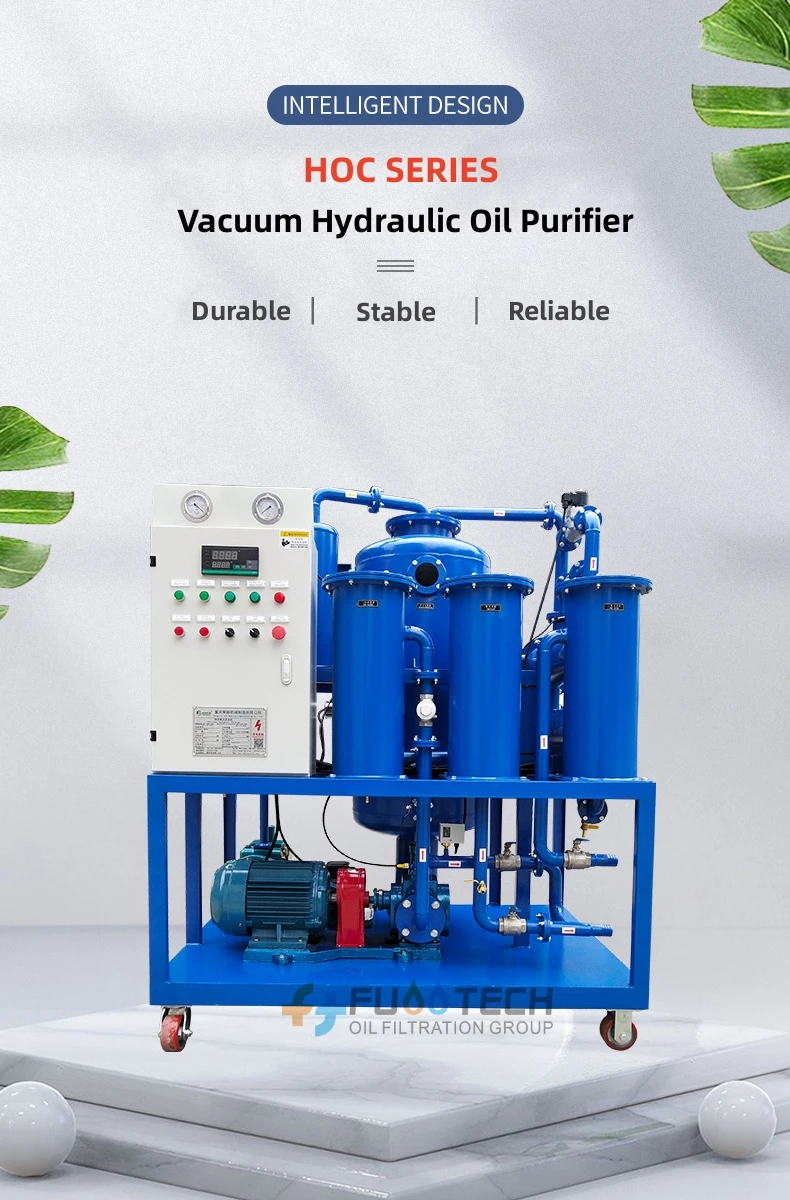

Details Images












Q1. ARE YOU A MANUFACTURERTRADING COMPANY OR A THIRD PARTY?WHEN AND WHERE DID YOUR FACTORY ESTABLISHED?
FUOOTECH: We are a manufacturer established since 2002, located at Chongqingcity, China.

Q2.WILL THE PRODUCTS BE TESTED BEFORE SHIPPING?
FUOOTECH: Yes, of course. QC personal will have a strict testing procedure to allthe products before shipping.

Q3.WHATS YOUR WARRANTY PERIOD?
FUOOTECH: We offer 24 months of warranty for all our products from the date ofshipment. Even if the warranty period is expired, we still provide lifelong maintenance.technical service and spare parts supply.

Q4: WHAT IS THE DELIVERY TIME OF YOUR MACHINE?
FUOOTECH: In general, the delivery time of our standard machine is about 15 days.
customized machine will be delivered as the negotiation with our clients.

Q5.WHAT IS THE USAGE OF A VACUUM OIL PURIFIER?
FUOOTECH: Dehydration, degassing, impurity removal of old oil, and extend oillife.

Q6.WHATIS CONSUMABLE?
FUOOTECH: There is no consumable except filters

Q7.WHO SHOULDICONTACT TO GET MORE INFORMATION ?
FUOOTECH: ATTN: Mr Tim or Kevin, Email: sales@fuootech.com, WhatsappTel:+86 135 2739 0908
