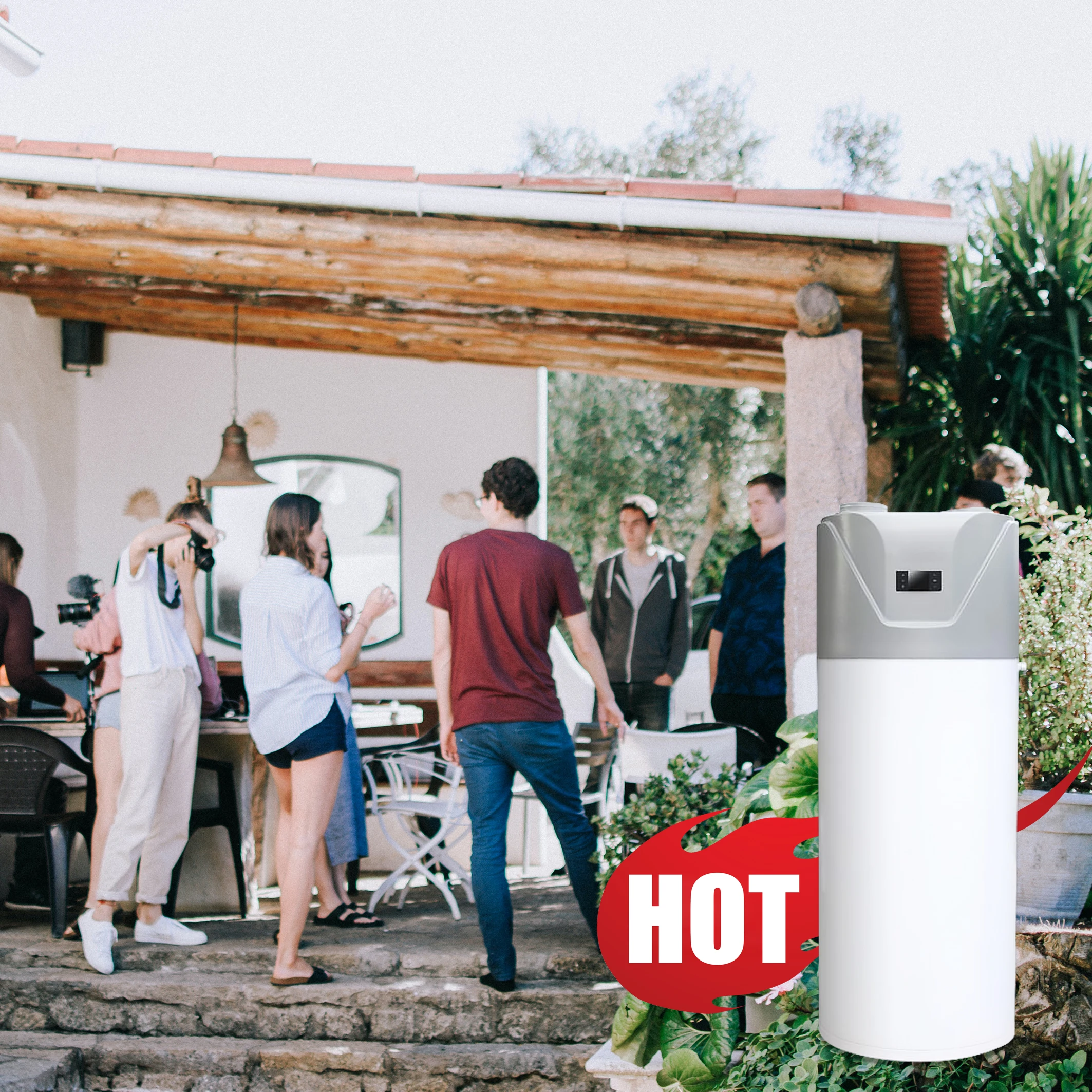

Namkoo Air Source Swimming Pool Heat Pump 3KW 4KW 150L 200L 300L Air Source Heat Pump For Home Heating And Cooling
- Category: >>>
- Supplier: Foshan Namkoo New Energy Technology Co. Ltd.
Share on (1601257141055):
Product Overview
Description
Product Description
Measuring conditions:
Heating:Dry bulb:20℃,Wet bulb:15℃.Water inlet:15℃,Water outlet:55℃.

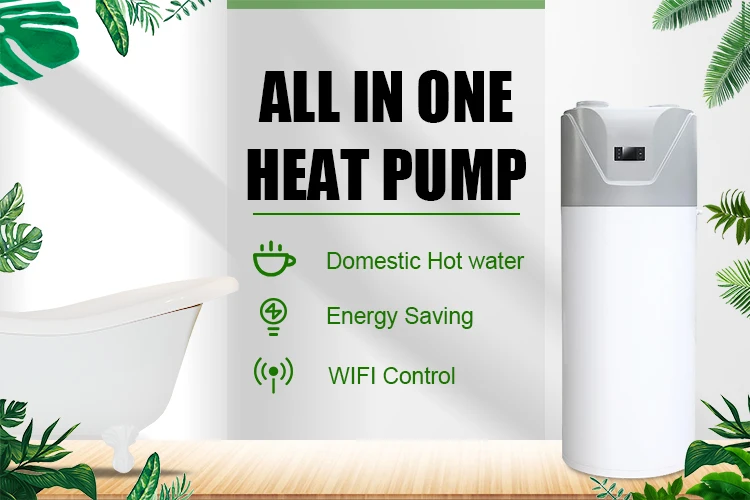

* 100L-400L,all in one design,save space,easy installation.
* Interal/External refrigerant coil optional.
* Max hot water up to 60°C.
* E-heater as backup optional.
* With high temperature antisepsis weekly.
* Pickling and perspiration treatment optional,ensure better quality and longer service time of tank.
* Optional extra solar coil inside to combine with solar heaters. (USD40/set, 10 meters per set)

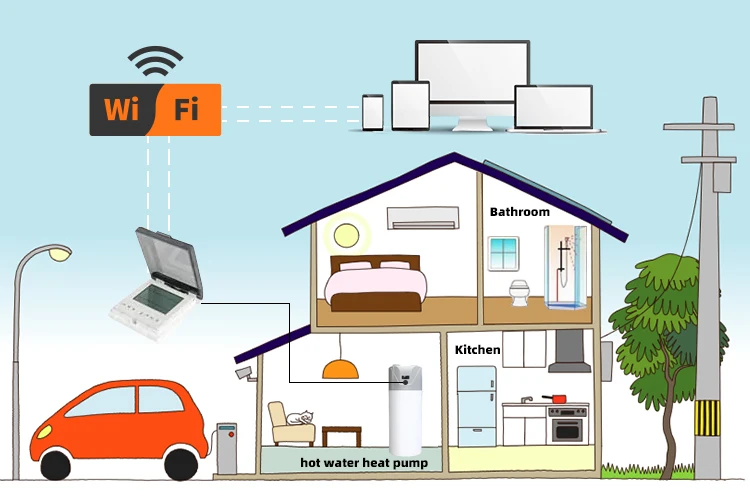

* App WIFI remote control optional(USD50/set, for free at present)
Specification
Model | ZR9W-150TV | ZR9W-200TV | ZR9W-30OWA | ZR13W-30OWA | ||||
Rated heating capacity | KW | 3.3 | 3.3 | 3.3 | 4.63 | |||
Water tank volume | BTU | 11200 | 11200 | 11200 | 15500 | |||
Water tank volume | L | 150 | 200 | 200 | 300 | |||
COP | 4 | 4 | 3.7 | 3.6 | ||||
Heating power input | 0.82 | 0.82 | 0.8 | 1.3 | ||||
Power supply | V/Ph/Hz | 220~240/1/50~60 | ||||||
Max outlet water temp | ℃ | 60 | 60 | 60 | 60 | |||
Applicable ambient temp | ℃ | 7~43 | 7~43 | 7~43 | 7~43 | |||
Rated running current | A | 3.7 | 3.7 | 3.7 | 6 | |||
Auxiliary electrical heating | KW | 1~2 | 1~2 | 1~2 | 1~2 | |||
Noise | dB(A) | 49 | 49 | 49 | 51 | |||
Air volume | m³/H | 700 | 700 | 700 | 700 | |||
Rated tank pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 | |||
Water connections | Inch | 3/4" | 3/4" | 3/4" | 3/4" | |||
Refrigerant coil | Internal coil | Internal coil | Internal coil | Internal coil | ||||
Gross weight | KG | 87 | 88 | 110 | 120 | |||
Container loading qty | 20/40/40HQ | 17/57/57 | 27/57/57 | 24/51/51 | 21/51/51 | |||
Product Application
Compact and easy to install : all components are preassembled , all parts are easy to reach for maintenance Can be installed indoor or on basement corridor with air ducts connection

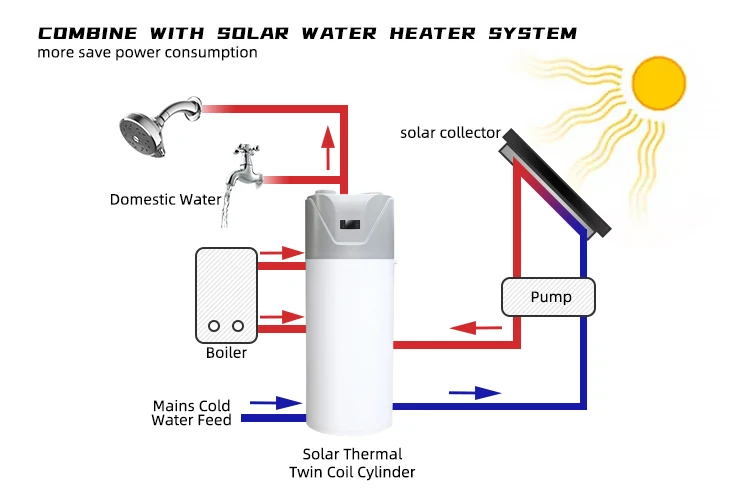

Optional Solar heater copper coil
Combine With solar water heater system , moresave power consumption .

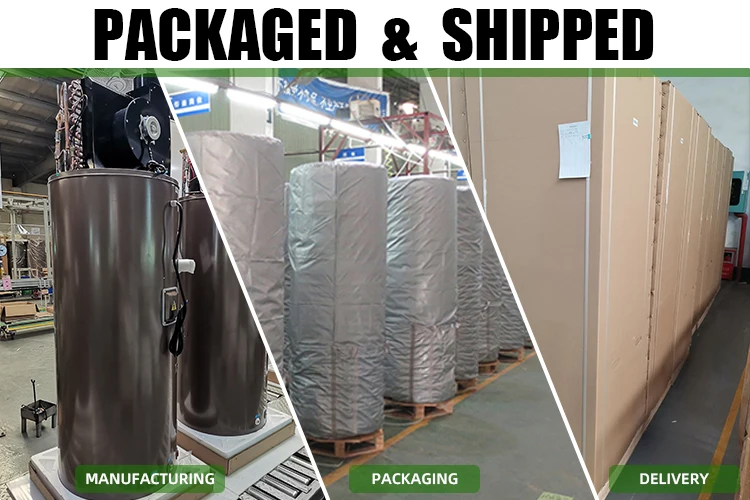

Packing & Delivery
Remark:

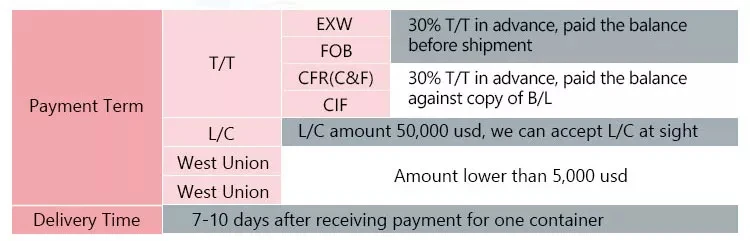

1.Payment terms:T/T at sight,30% deposit,balance before goods loading for container order.
2.Packing:factory export carton,for sample order and large product suggest to use
2.Packing:factory export carton,for sample order and large product suggest to use
3.Price based on FOB Shunde Rongqi port,China for container order. And EXW for LCL(less than container load)order.
4.MOQ: 1PC
5.Validity: Will be valid for one month.
6.Delivery:30days after receipt of deposit in O.S.B. account,depends on PMC plan.
6.Delivery:30days after receipt of deposit in O.S.B. account,depends on PMC plan.
7.Warranty:2 years for the whole unit. 8.1% free spare parts for container(20'ft or 40'ft) orders.
