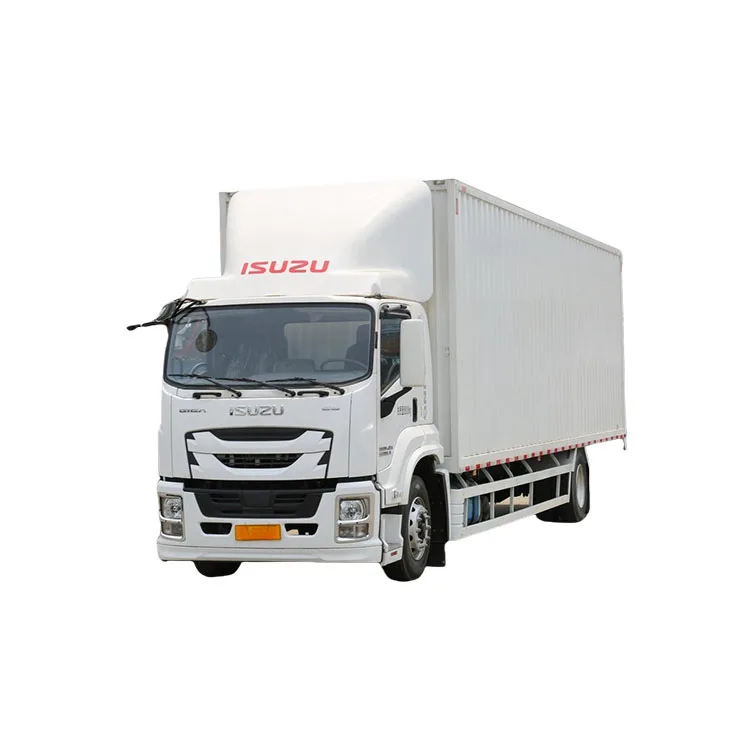

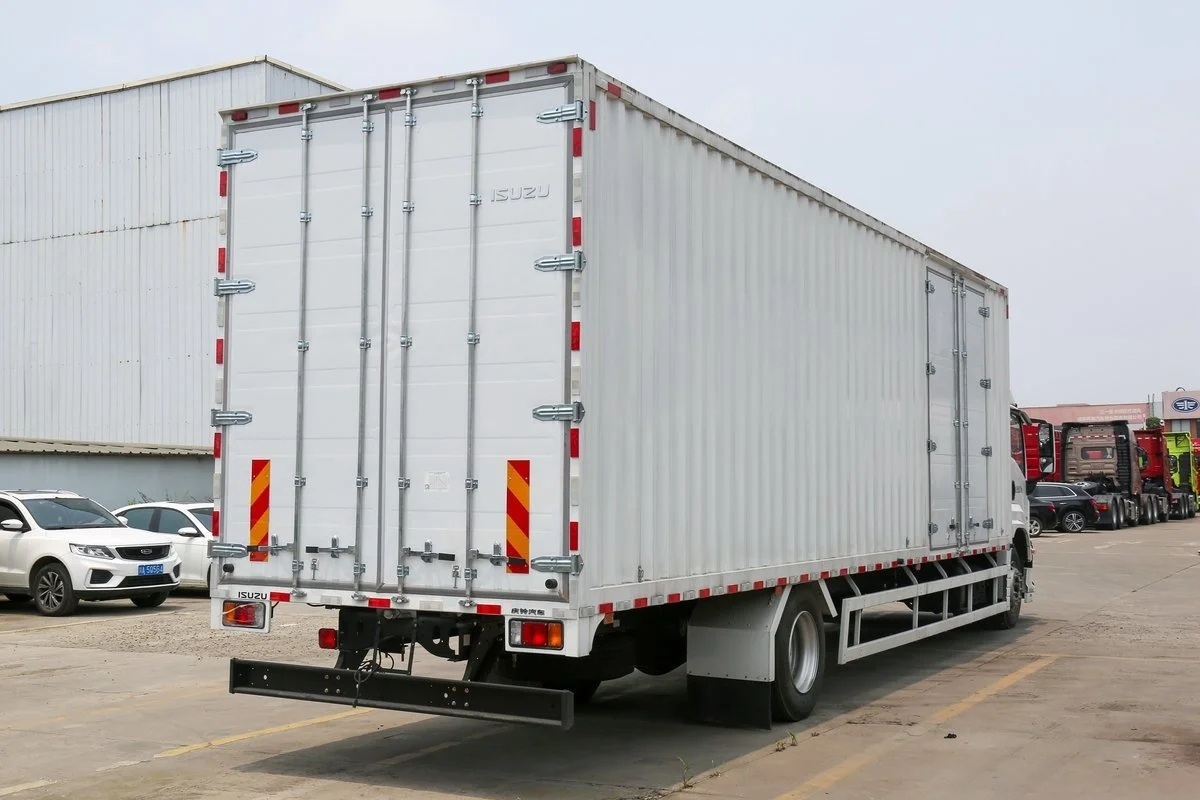

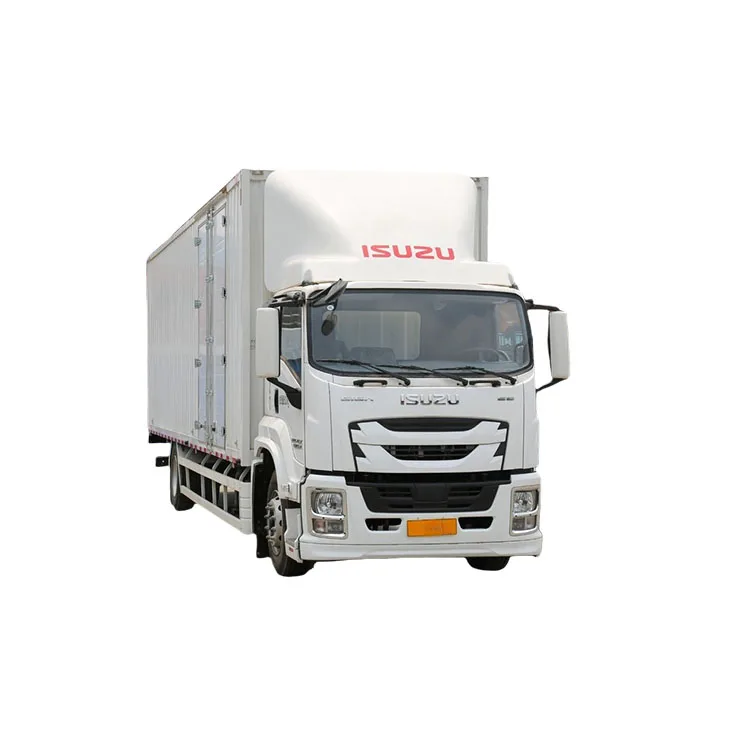

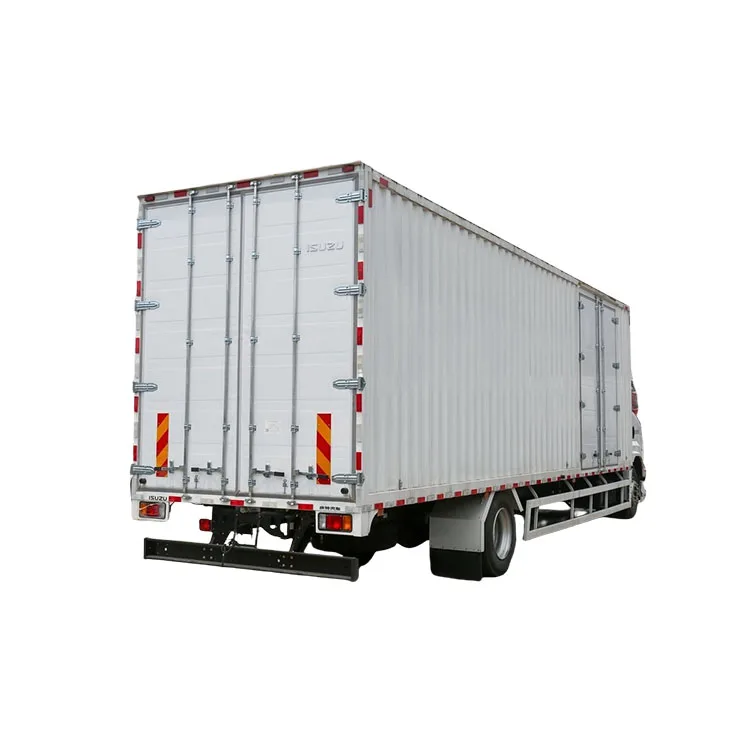

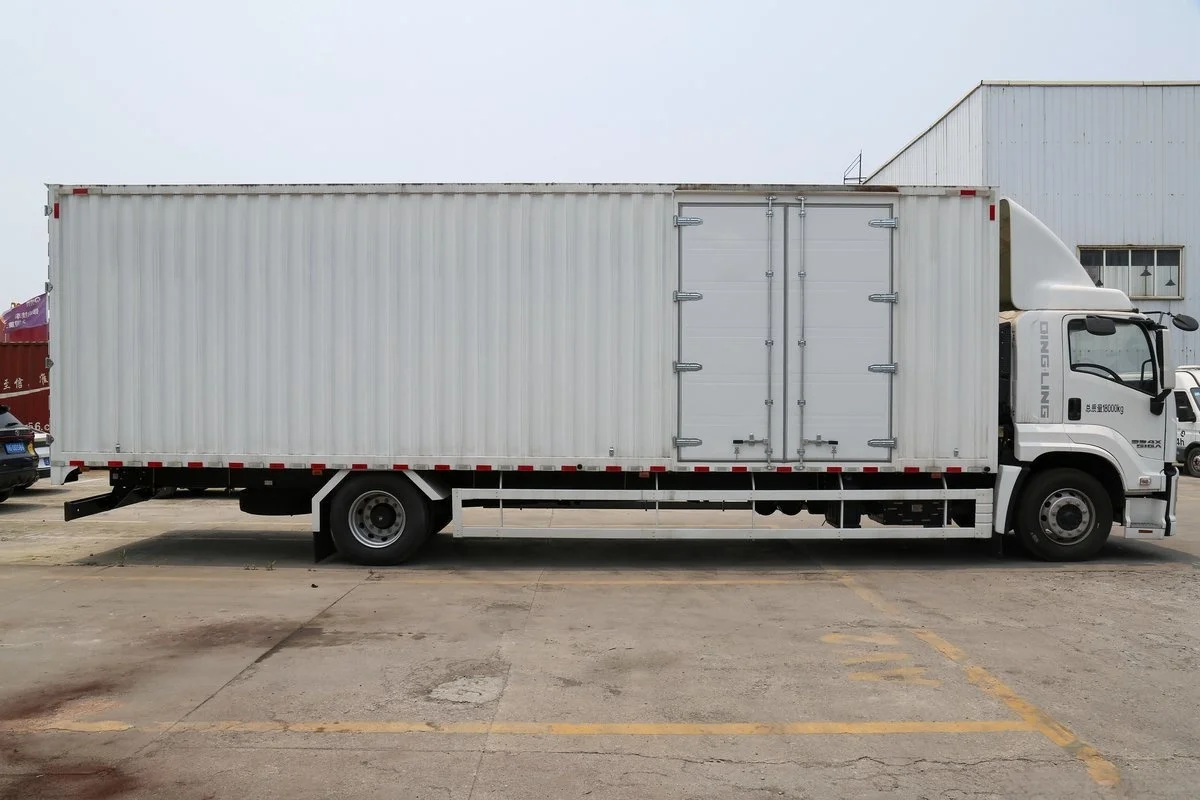

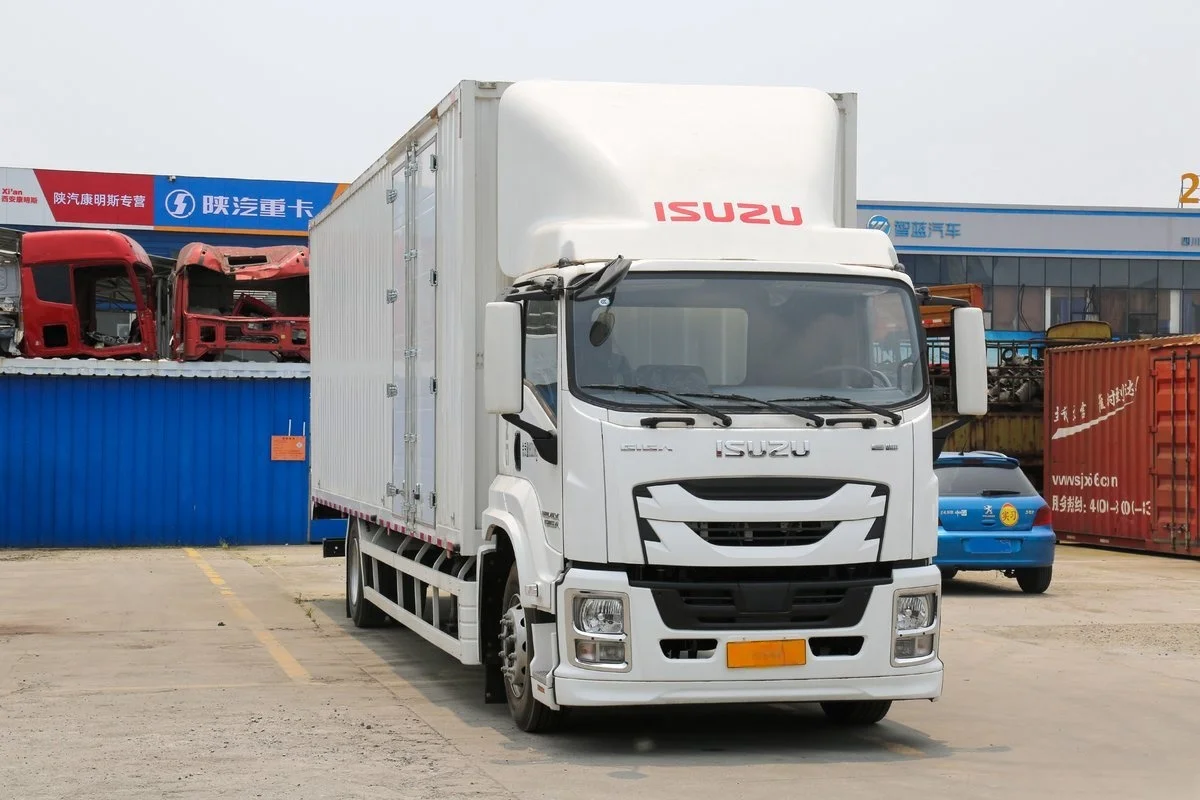

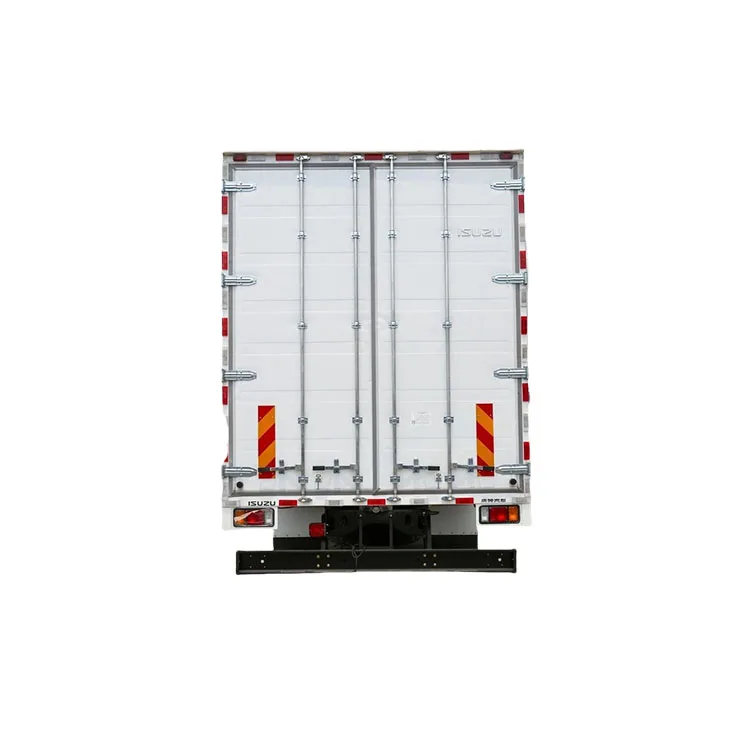

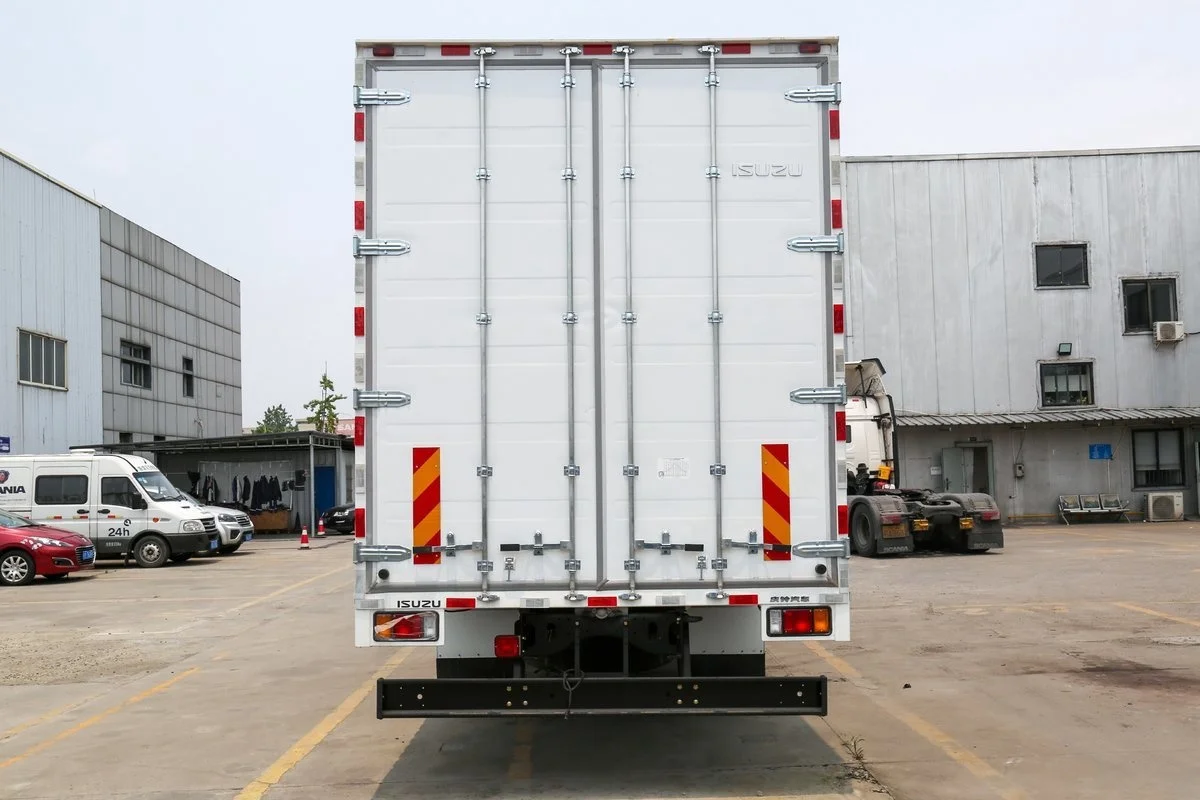

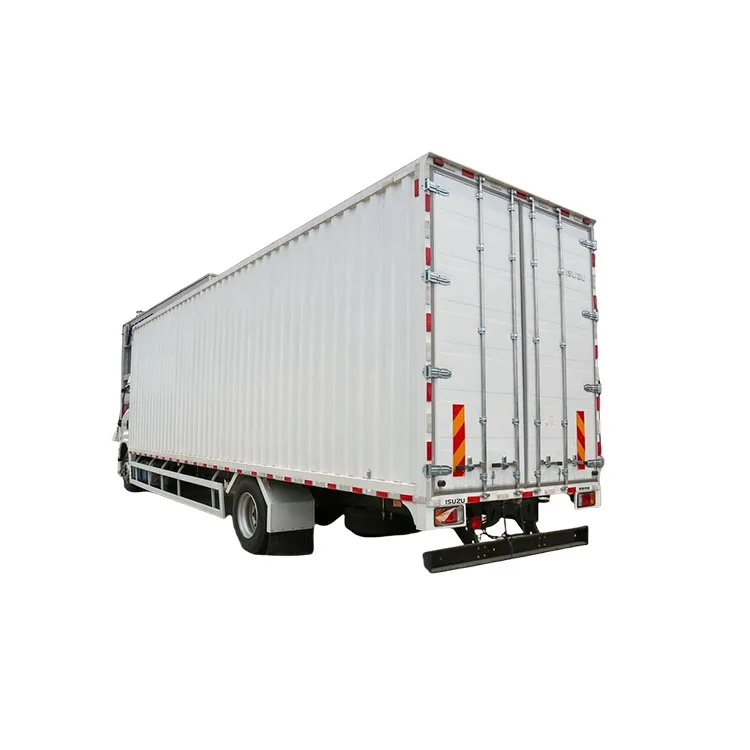

China Qingling 4*4 Manual Cargo Trucks for Express transportation

Share on (1601257202352):


Price:$37,500.00-38,500.00

Quantity:


Product Overview

Description



Product Description




Specification


Basic Information
Truck Dimension
12000*2550*4000
Box Dimension
9780*2490*2810
Truck Model
YZR5181XXYAJWH
Truck type
Vans
Drive Type
4X2
Wheelbase(mm)
7200
Box length Level (M
9.8
Engine
4HK1-TCG60
Transmission
6-speed gearbox
Truck length(mm)
12000
Truck width (mm)
2550
Truck height(mm)
4000
Front tread (on wheel )(mm)
1920
Rear tread (on wheel )(mm)
1844
Curb weight (kg)
8150
Rated loading weight(kg)
9655
Gross weight
18000
Max. Speed(km/h)
89
Origin
China
Tonnage class
Heavy duty
Approach angle (º)
15
Departure angle (º)
7
Front/rear suspension (mm)
1335/3465
Engine Parameters
Engine model
4HK1-TCG60
Engine brand
Isuzu
Engine class
/
Cylinder number
4
Fuel type
Diesel
Cylinder arrangement
inline
Displacement (L)
5.913
Emission standard
Euro 6
Max. output power(kw)
151
Max.Horsepower(hp)
205
Max. Torque(N.m)
647
Max. torque speed(RPM)
1600
Rated Rotated Speed(RPM)
2600
Cargo box parameters
Cargo box form
van
Length (mm)
9780
Width (mm)
2490
Height (mm)
2810
Cab parameters
occupancy
3person
Seat rows
Single,2200mm
Transmission parameters
Transmission Model
6-speed gearbox(isuzu MLD-6Q)
Shift mode
Manual
forward gear
6
reverse gear
1
Chassis parameters
Allowable front axle load(kg)
6500
Allowable rear axle load(kg)
11500
Number of spring plates
4/4+4
Fuel tanker
200L
Tires
Tire Specification
275/80R22.5 18PR
Number of tires
6
Controls
ABS anti-lock
Internal Configuration
multifunction steering wheel
Forms of air-conditioning regulation
Manual
power window
Electronic central locking
Multimedia Configuration
radio
Brake
Vehicle Brake Type
pneumatic brake
parking brake
Hand brake










Company Profile




Hubei Xindongri Special Purpose Vehicle Co., Ltd. is located in Suizhou, Hubei Province. Our company is specialized in special automobiles, like Fire Trucks, Wrecker Trucks, Sewage Suction Trucks, Fecal Suction Trucks, Road Sweepers, Garbage Trucks, Dump Trucks, Sprinkling Trucks, High Pressure Cleaning Trucks, Water Tank Trucks,, Fuel Tank Trucks, Aerial Platform Working Trucks, Truck Cranes, Cargo Trucks, Refrigerator Trucks, Bulk Cement Trucks, Concrete Mixer Trucks, Chemical Liquid Tank Trucks, Drawing Heads, Instructional Trucks, Semi Trailers, and more than 100 kinds of other automobiles.

We have 1000 working staff members, and 20% of them are engineer persons. The asset property of our company comes up to RMB100, 000,000. Our covering area is about 90000 square meters. Our factory is equipped with more than 300 sets of high-tech production and testing equipment, and operates under strict QC guidelines to guarantee high-quality products at competitive prices.

With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially the Mid-East, Southeast Asia, Africa, etc. Meanwhile, OEM orders are welcome. Our products enjoy great popularity among our customers.

We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us.


Factory Show




Certifications




Exhibition




Packing and Shipping




FAQ


1. who are we?
We are based in Hubei, China, start from 2009,sell to Domestic Market(71.00%),Southeast Asia(10.00%),Africa(4.00%),South America(3.00%),Mid East(3.00%),Central America(2.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about 1000+ people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Fire Truck, Aerial Work Vehicle, Sanitation Vehicle

4. why should you buy from us not from other suppliers?
Our advantages:
1. manufacturer & factory of special trucks in China
2. years' experience in this fields
3. owns workshop, profesional works & experienced engineers
4. complete procedure for order, production, sales,
5. national & international maket

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DAF,DES;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram;
Language Spoken:English,Chinese
