HuanSheng Hydraulic System Truck Dumper 95HP Dumper Mining Truck Mini Dumper Truck 10 TONS
- Category: >>>
- Supplier: Henan Huansheng Mechanical Equipment Co. Ltd.Henan Ltd.
Share on (1601257222641):
Product Overview
Description
HuanSheng Hydraulic System Truck Dumper 95HP Dumper Mining Truck Mini Dumper Truck 10 TONS
Product Description

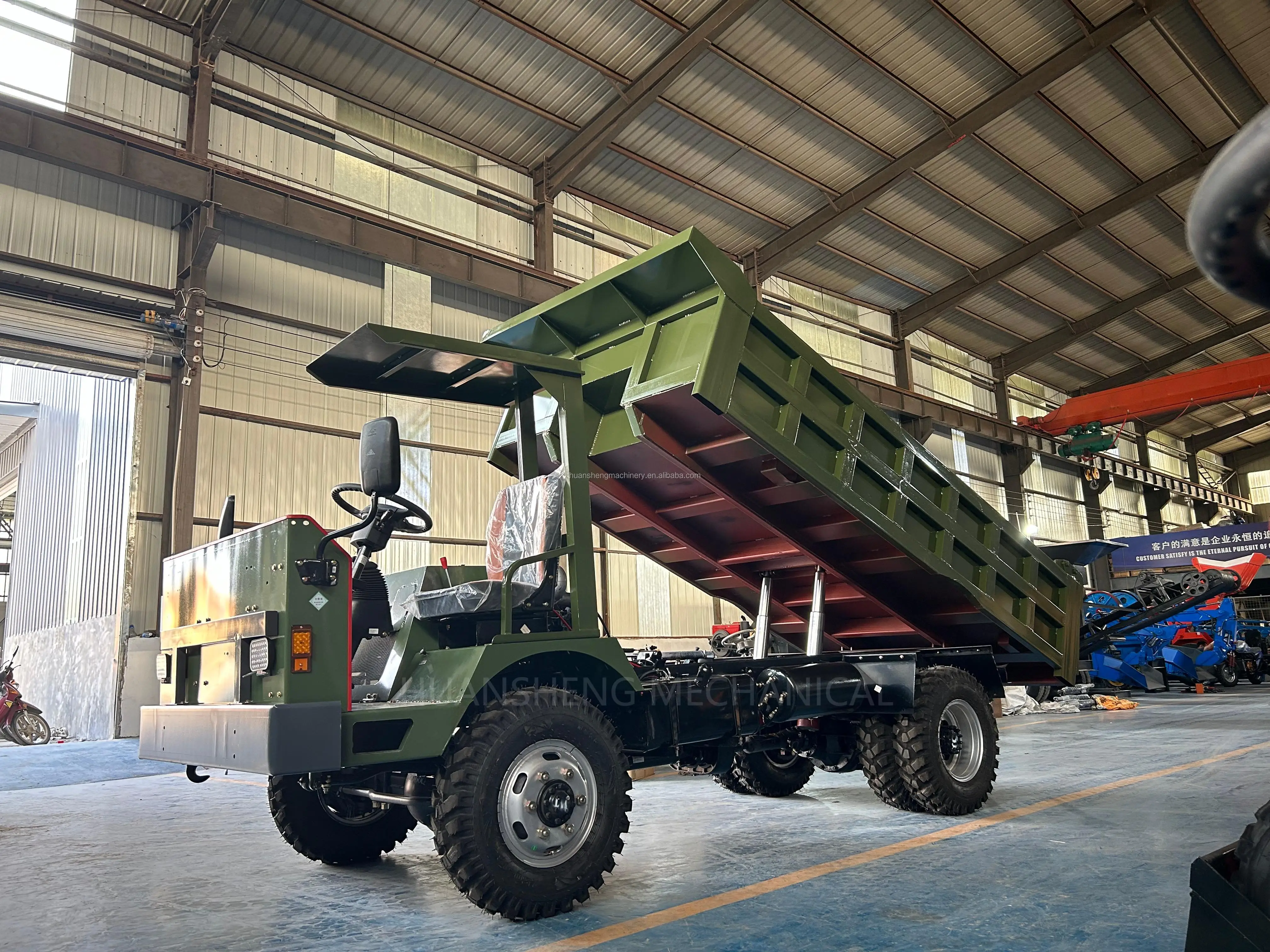

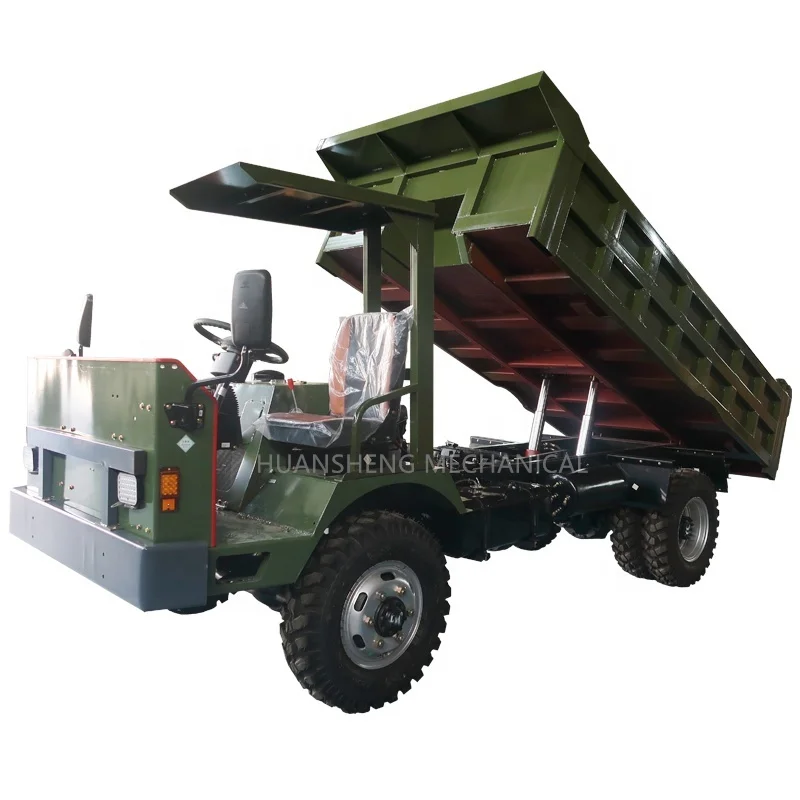

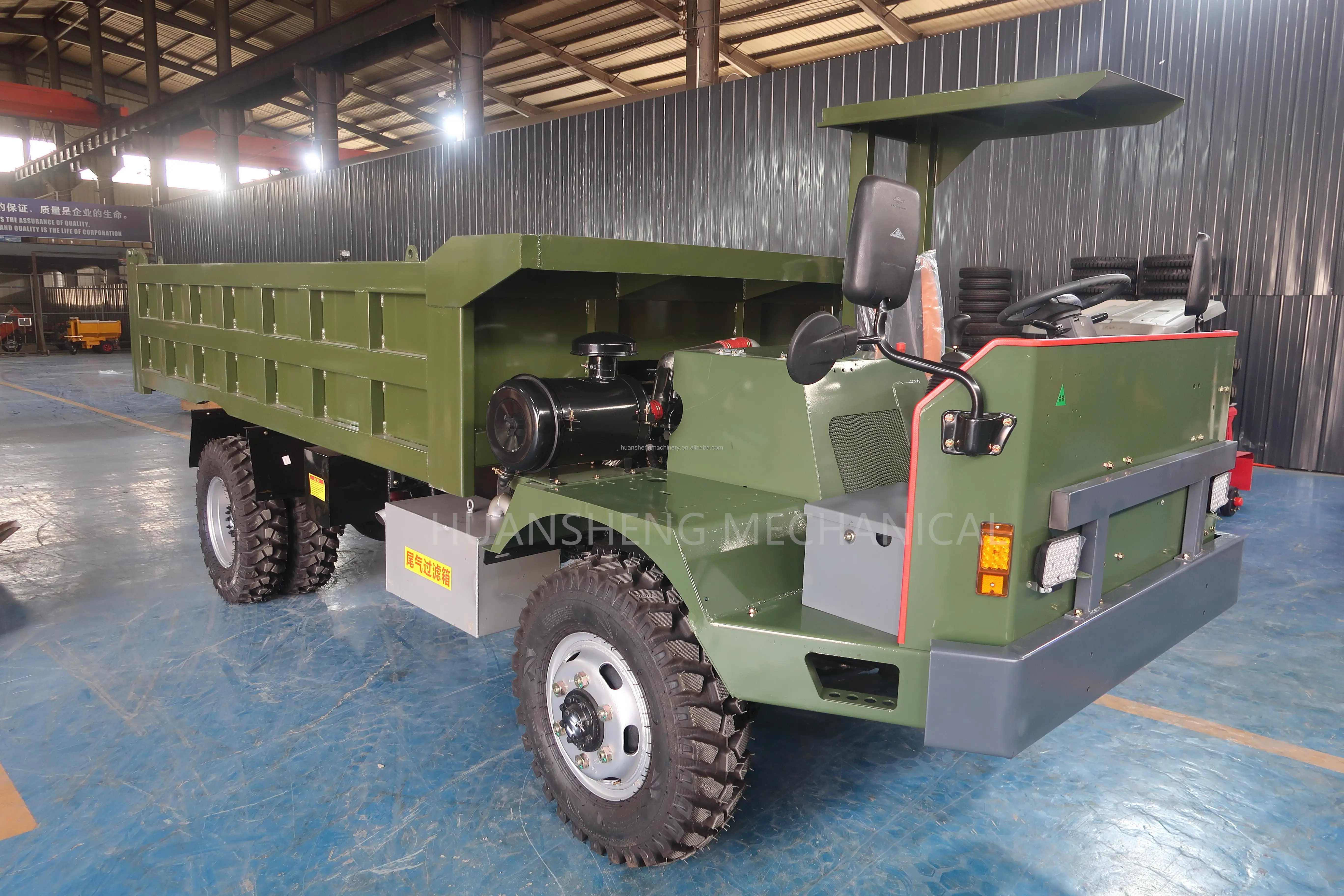

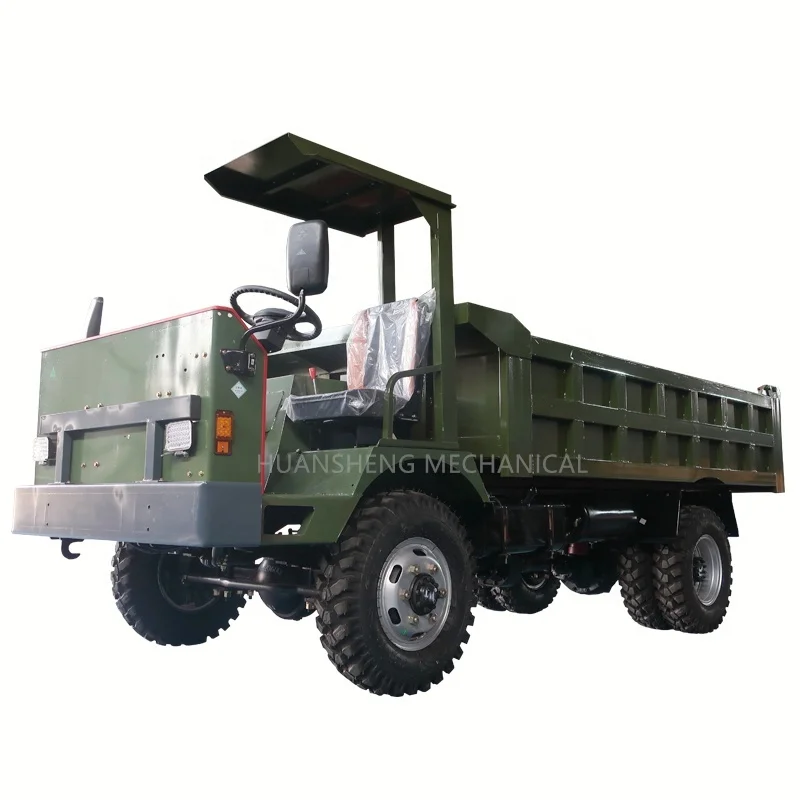

6 Wheels 4X4 10 Tons Diesel Dumper Truck
Diesel mine dumper truck is our main product, the loading capacity of it is 10 ton. And this diesel mine dumper truck has the characteristics of strong power, strong loading capacity, long working hours, and small requirement for road condition, at the same time this vehicle is driven by diesel, so the power is strong .
Dump Trucks are equipped with famous brand tires and engines, which are of safe and reliable quality. Double Hydraulic Lifting System, convenient operation and fast unloading speed; spring steel plate plays the role of friction and shock absorption, making the driving experience safer.

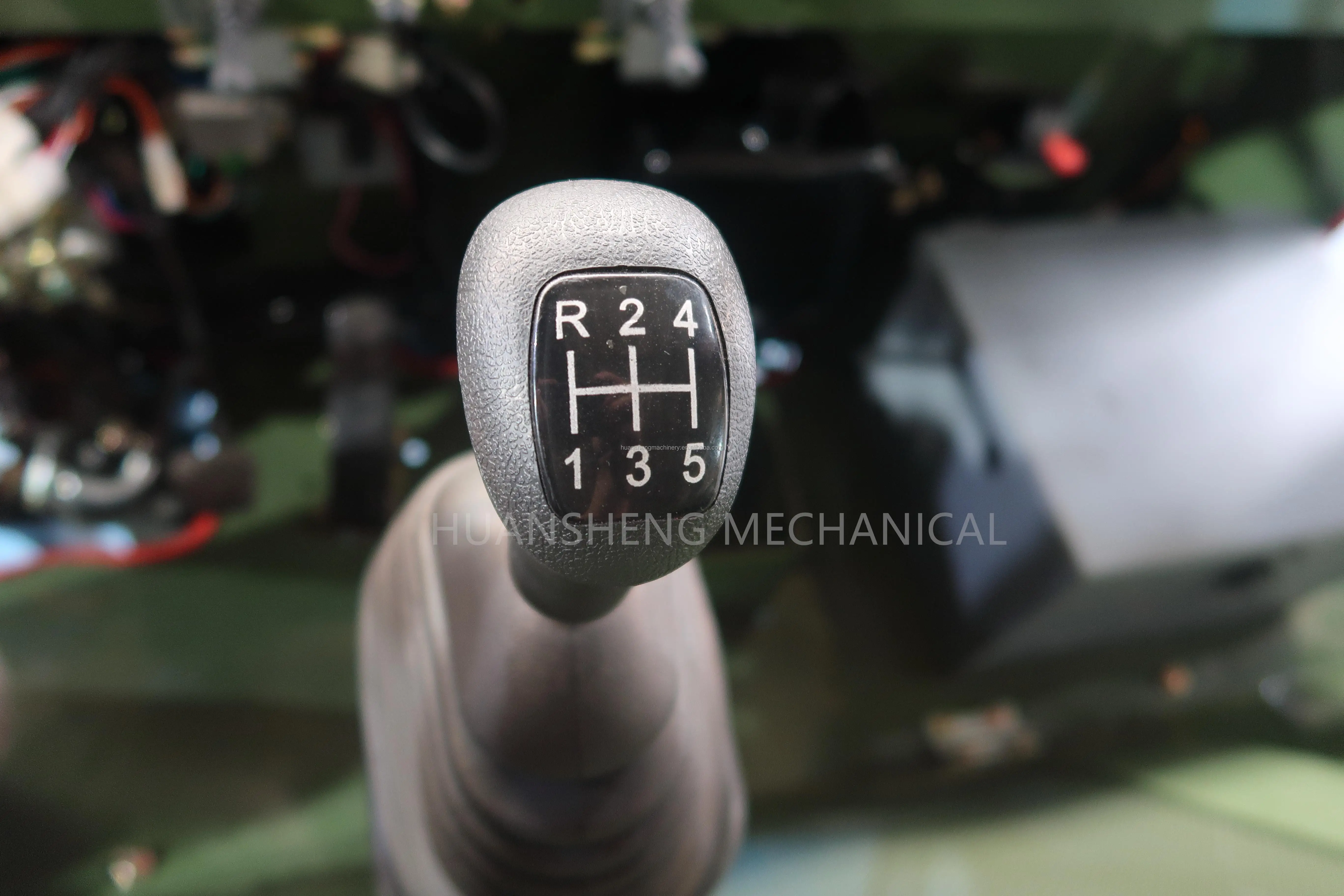

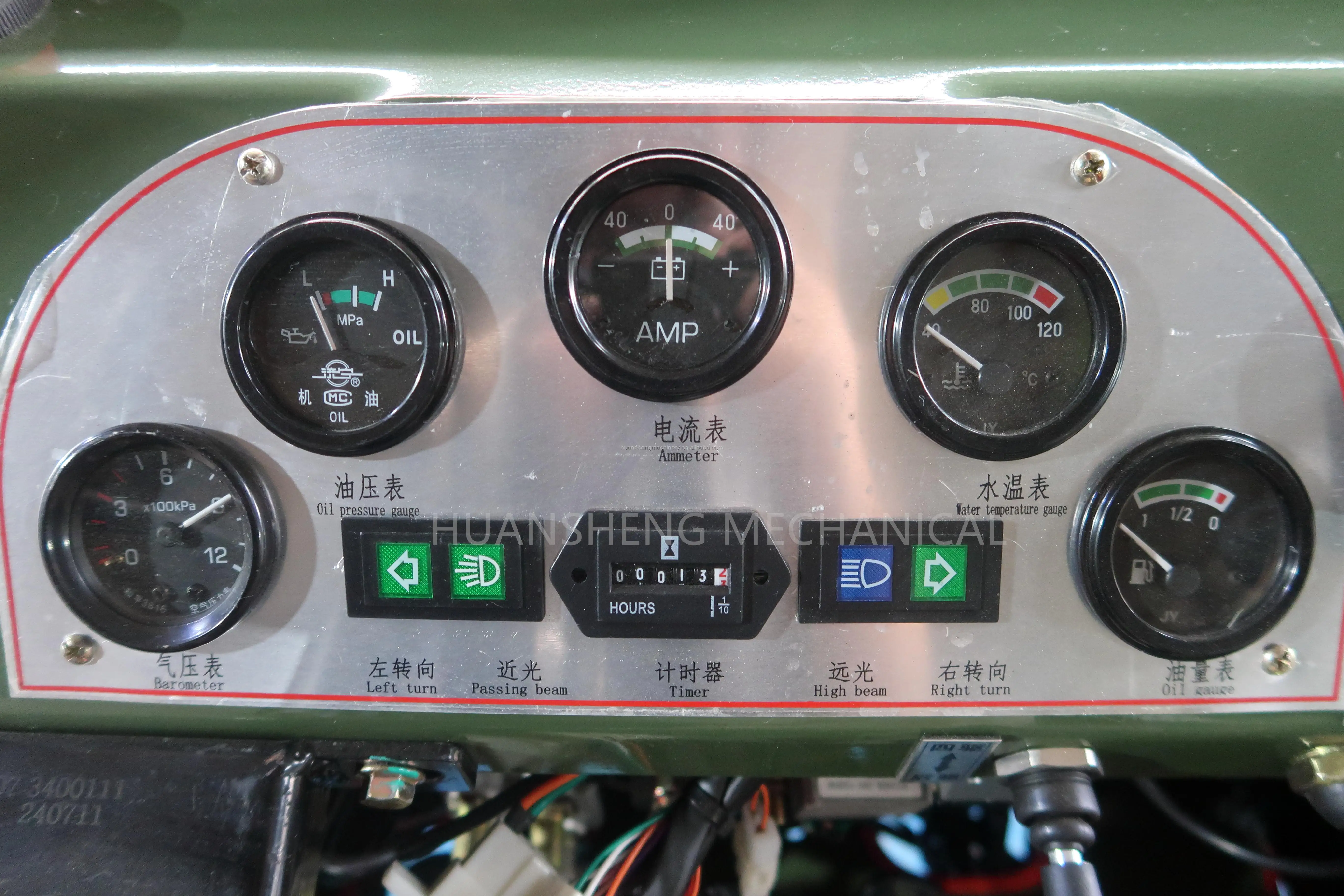

Diesel Dumper Truck has simple and easy-to-operate workbench allows the first-time driver to be clear at a glance, Fast and proficient, Sturdy hardware accessories and equipment, wear-resistant, long-term use; 5 Gears can be switched at will, it is a good partner for you! This truck deeply loved by customers from home and aboard.
Product advantages：
1. Good traffic ability: With the cab, suspension frame, vehicle frame, cargo compartment, lifting mechanism, etc. designed specially, the underground tunnel dumper truck has the compact structure and small turning radius and is extremely flexible, thus suitable for flexible operations in narrow spaces inside the roadway ramp.
2. High safety: According to the underground characteristics of humid air, insufficient light, slippery road surface, the tunnel dumper truck lamps and electrical components are improved and the waterproof and moisture-proof performances are enhanced with the dedicated anti-slippery tires, thus it has the strong obstacle crossing capability and high safety.
3. Strong power: The power comes with the large torque、excellent grade and starting performances.
4. Strong bearing capacity: The complete dumper truck is configured and designed scientifically according to the mining vehicle design concept with the bearing capacity as 1.5 times of that of the ordinary road vehicle.
2. High safety: According to the underground characteristics of humid air, insufficient light, slippery road surface, the tunnel dumper truck lamps and electrical components are improved and the waterproof and moisture-proof performances are enhanced with the dedicated anti-slippery tires, thus it has the strong obstacle crossing capability and high safety.
3. Strong power: The power comes with the large torque、excellent grade and starting performances.
4. Strong bearing capacity: The complete dumper truck is configured and designed scientifically according to the mining vehicle design concept with the bearing capacity as 1.5 times of that of the ordinary road vehicle.
Notice for Use
1. After the vehicle has been working for 50 hours, replace the vehicle oil (engine oil, transmission oil, rear axle gear oil).
2. Frequently check the half shafts, drive shafts, steering gears, steel plate clamps, diesel engine feet and other joint
screws. When a new vehicle is loaded for the first time, the entire vehicle screws must be checked and the bow plate clamp screws must be tightened.
3. Frequently apply lubricating oil to all moving parts. In cold weather areas, high-grade engine oil and antifreeze should be added.
4. The air brake type should always keep the air pressure above 4KPA, and drive at low speed when carrying large loads or making sharp turns.
5. This equipment is intended for use in mining areas or construction areas, please do not drive on the road.
6. When using four-wheel-drive agricultural vehicles, it is strictly prohibited to hit the target on the spot, and it is
strictly prohibited to use high-speed four-wheel drive!
7. For models with supercharged engines, idling for more than 15 minutes is strictly prohibited.
8. When jacking up a dump truck, the operation should be stopped when the last section of the cylinder comes out 1/3 to avoid rupture of the cylinder.
1. After the vehicle has been working for 50 hours, replace the vehicle oil (engine oil, transmission oil, rear axle gear oil).
2. Frequently check the half shafts, drive shafts, steering gears, steel plate clamps, diesel engine feet and other joint
screws. When a new vehicle is loaded for the first time, the entire vehicle screws must be checked and the bow plate clamp screws must be tightened.
3. Frequently apply lubricating oil to all moving parts. In cold weather areas, high-grade engine oil and antifreeze should be added.
4. The air brake type should always keep the air pressure above 4KPA, and drive at low speed when carrying large loads or making sharp turns.
5. This equipment is intended for use in mining areas or construction areas, please do not drive on the road.
6. When using four-wheel-drive agricultural vehicles, it is strictly prohibited to hit the target on the spot, and it is
strictly prohibited to use high-speed four-wheel drive!
7. For models with supercharged engines, idling for more than 15 minutes is strictly prohibited.
8. When jacking up a dump truck, the operation should be stopped when the last section of the cylinder comes out 1/3 to avoid rupture of the cylinder.
Product Parameters
Loading capacity | 10 tons | Net weight | 3500kg | ||
Tires | 7.50-16 | Diesel engine | 95 hp (YUNNEI BRAND) | ||
Overall size | 4800*1800*1600mm | Hopper size | 3750*1800*600mm | ||
Steering Method | Hydraulic steering | Speed Gears | 5 forward，1 reverse | ||
Unloading system | Double hydraulic oil cylinder | Max speed | 70km/h | ||
Tail gas treatment | Water treatment | Brake way | Air brake | ||
Hopper steel plate | Side steel plate is 5mm thick, bottom steel plate is 8mm thick | ||||
Spring steel plate | 18 pieces, each width 70mm, thickness 14mm | ||||
Warranty
(1)The electric mini dumper parts quality assurance period for 12 months. In normal use circumstances, there is any quality problem during warranty period, we will use DHL, UPS, or other express delivery to send the free accessories for customers after determine the damaged parts.
(1)The electric mini dumper parts quality assurance period for 12 months. In normal use circumstances, there is any quality problem during warranty period, we will use DHL, UPS, or other express delivery to send the free accessories for customers after determine the damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
Product Details

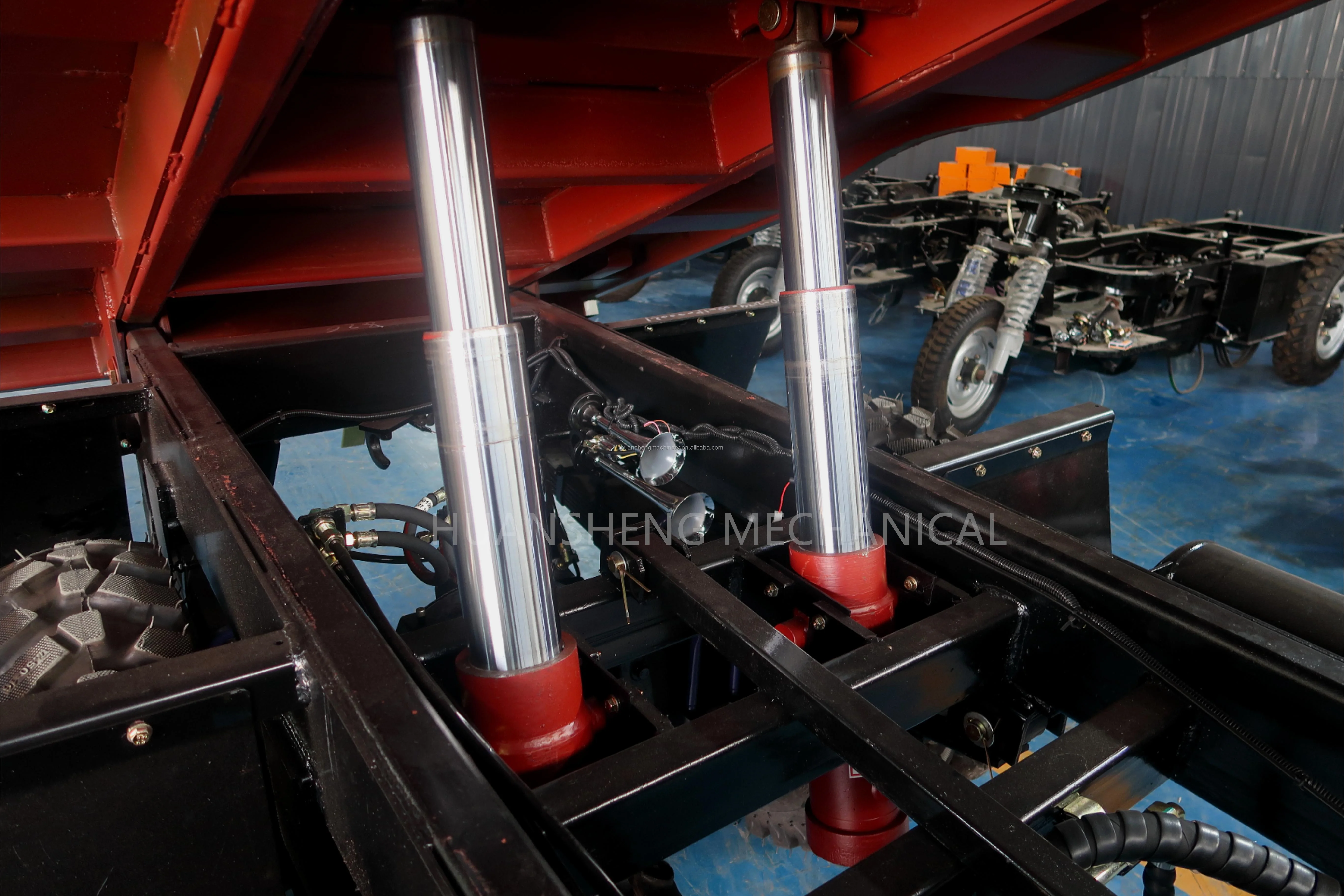

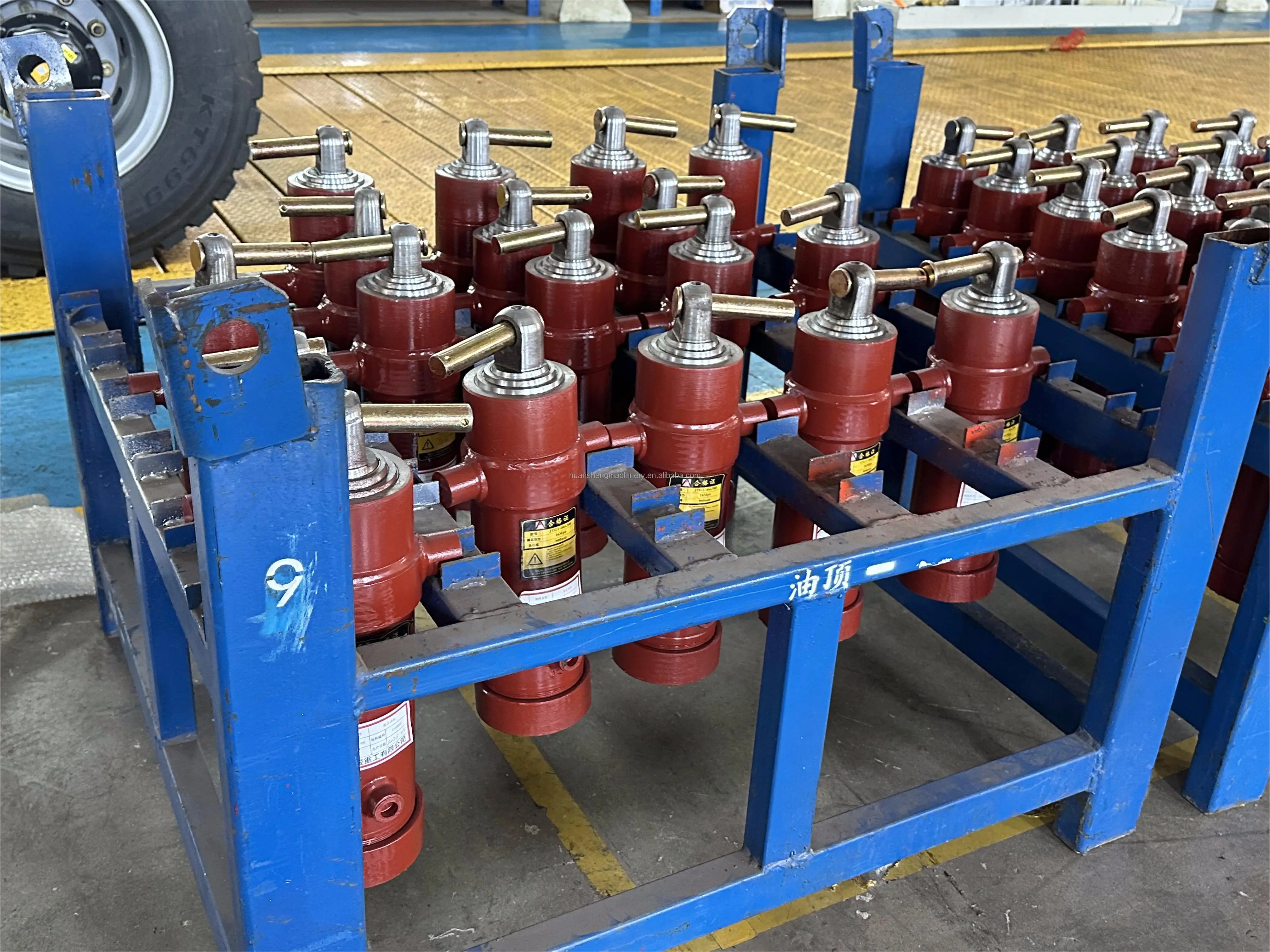

Hydraulic Lifting System
Equipped with dual hydraulic lifting systems, it can unload automatically. Not only saves manpower, but also speeds up transportation efficiency. If you want to transport materials, this will be a very good choice

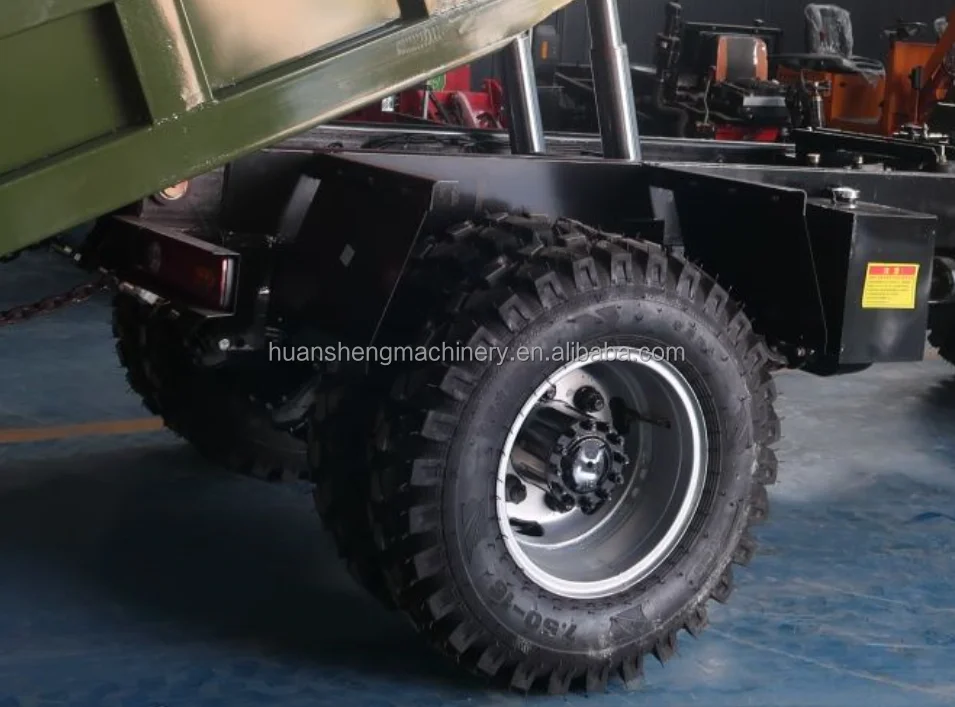

Double Rear Tires
The use of dual rear wheels not only enhances stability on bad roads, but also increases the contact area with the ground and reduces pressure. And a variety of tire patterns and models are available

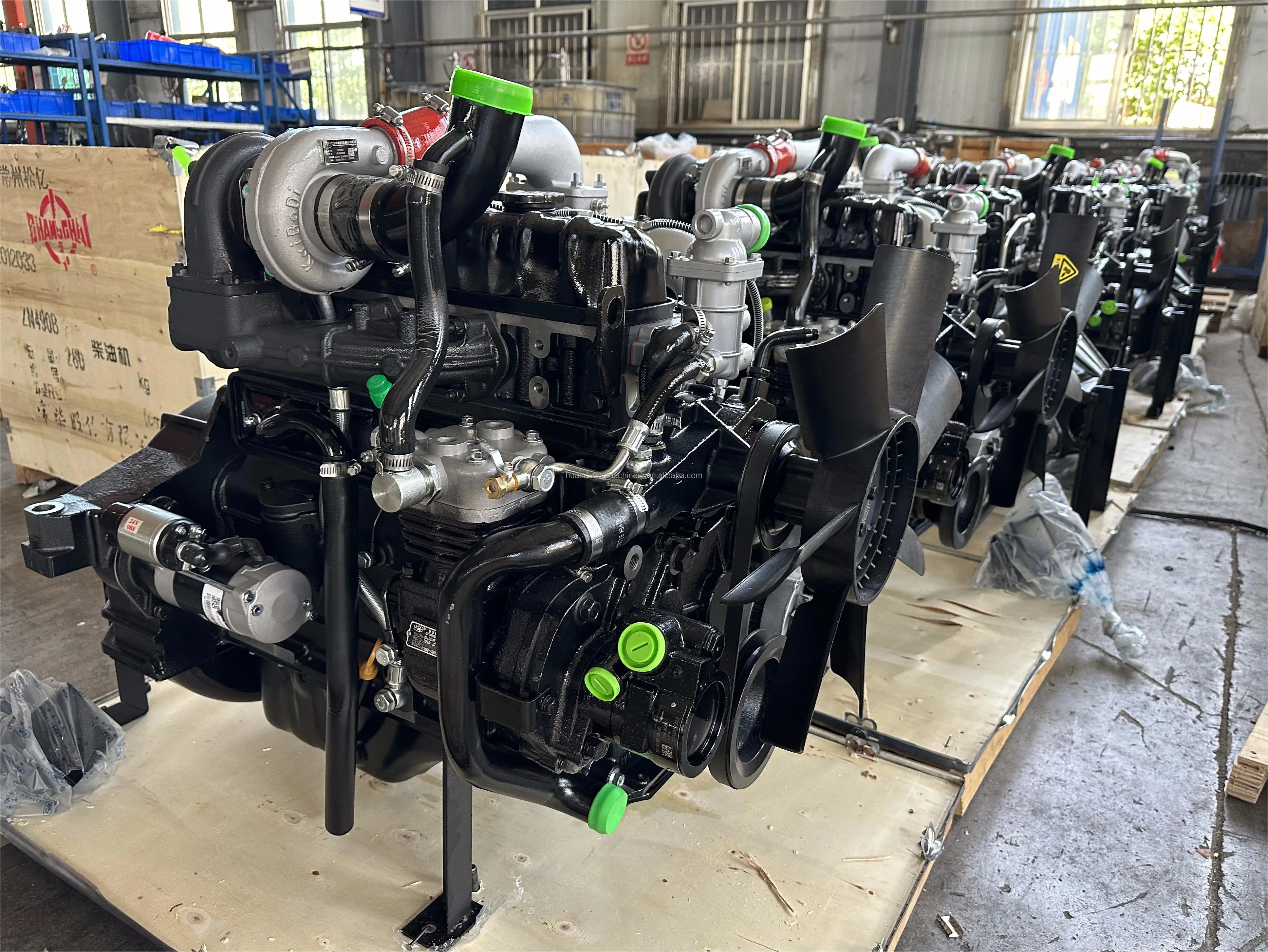

Yunnei Diesel Engine
Use Yunnei brand diesel engine. This is a famous Chinese brand diesel engine with guaranteed quality.

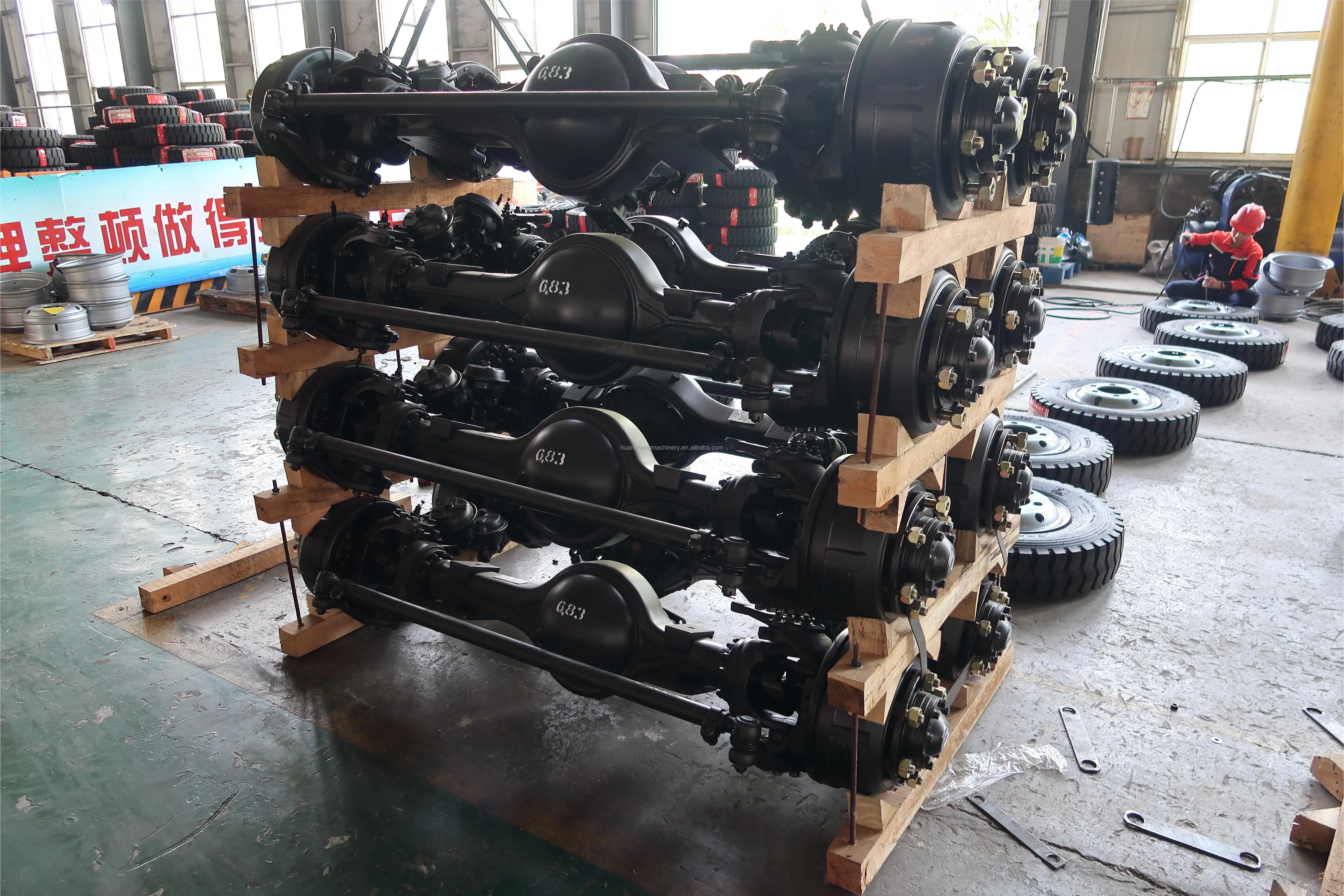

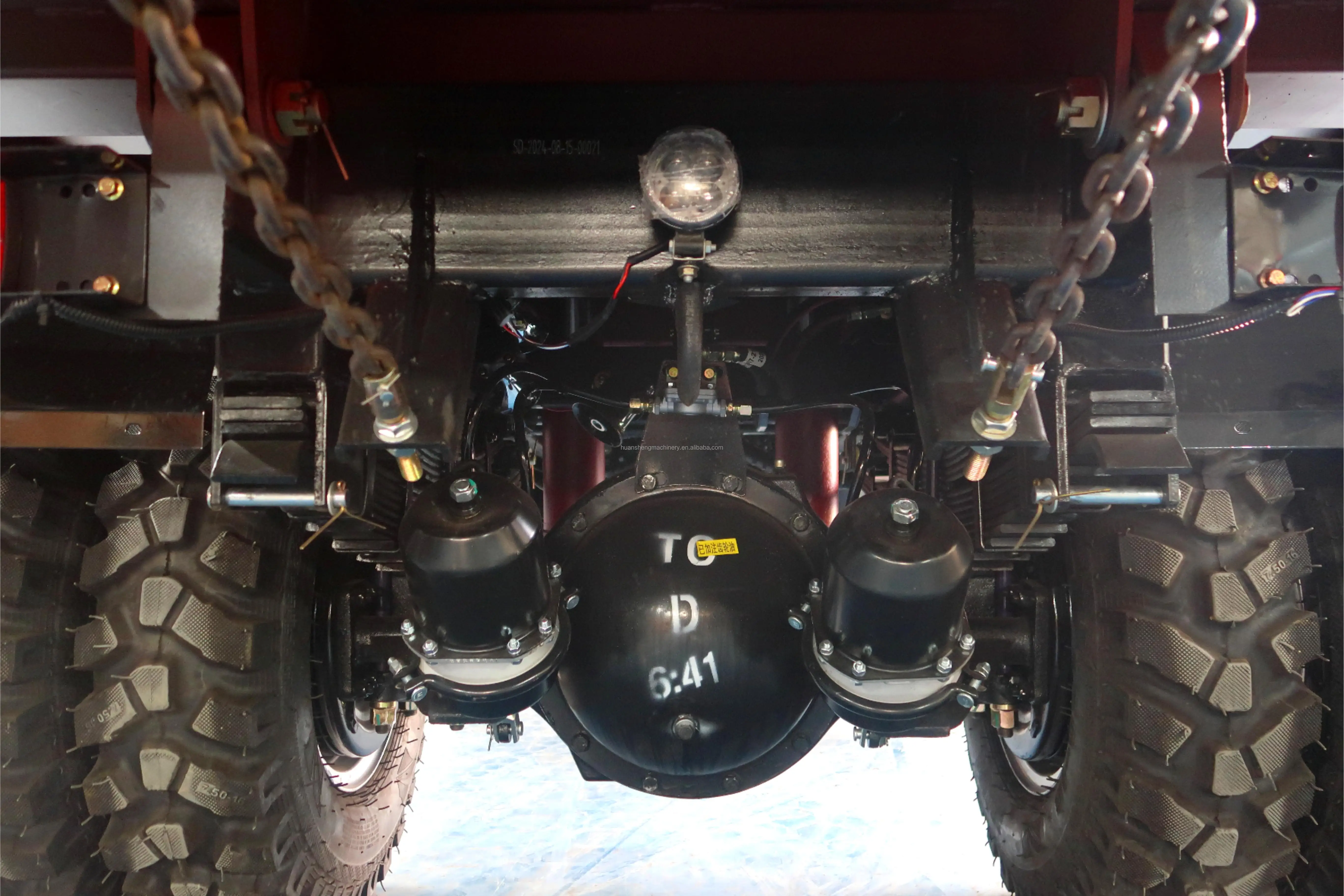

Front Axle and Rear Axle
Different models of steering axles and drive axles are available.

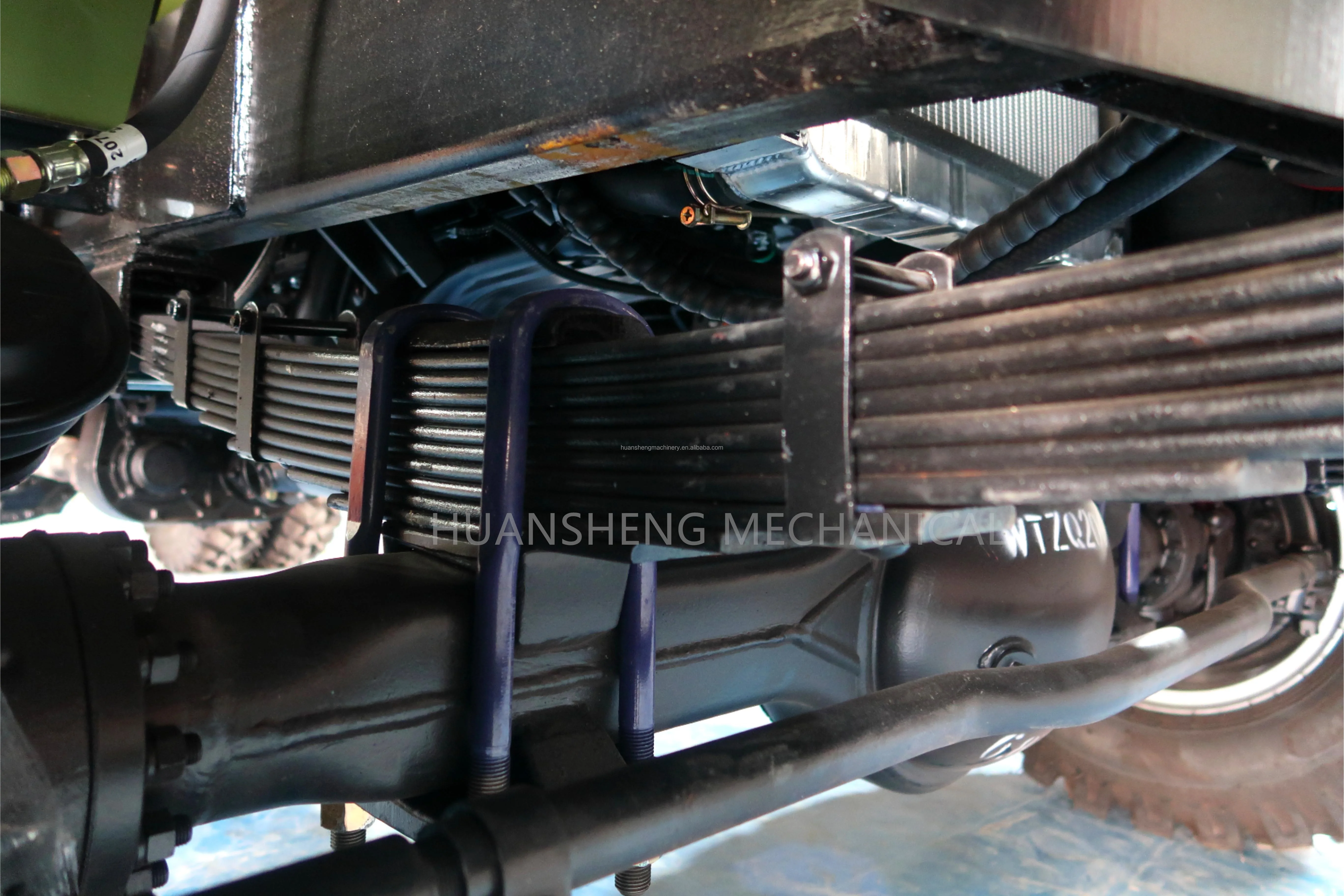

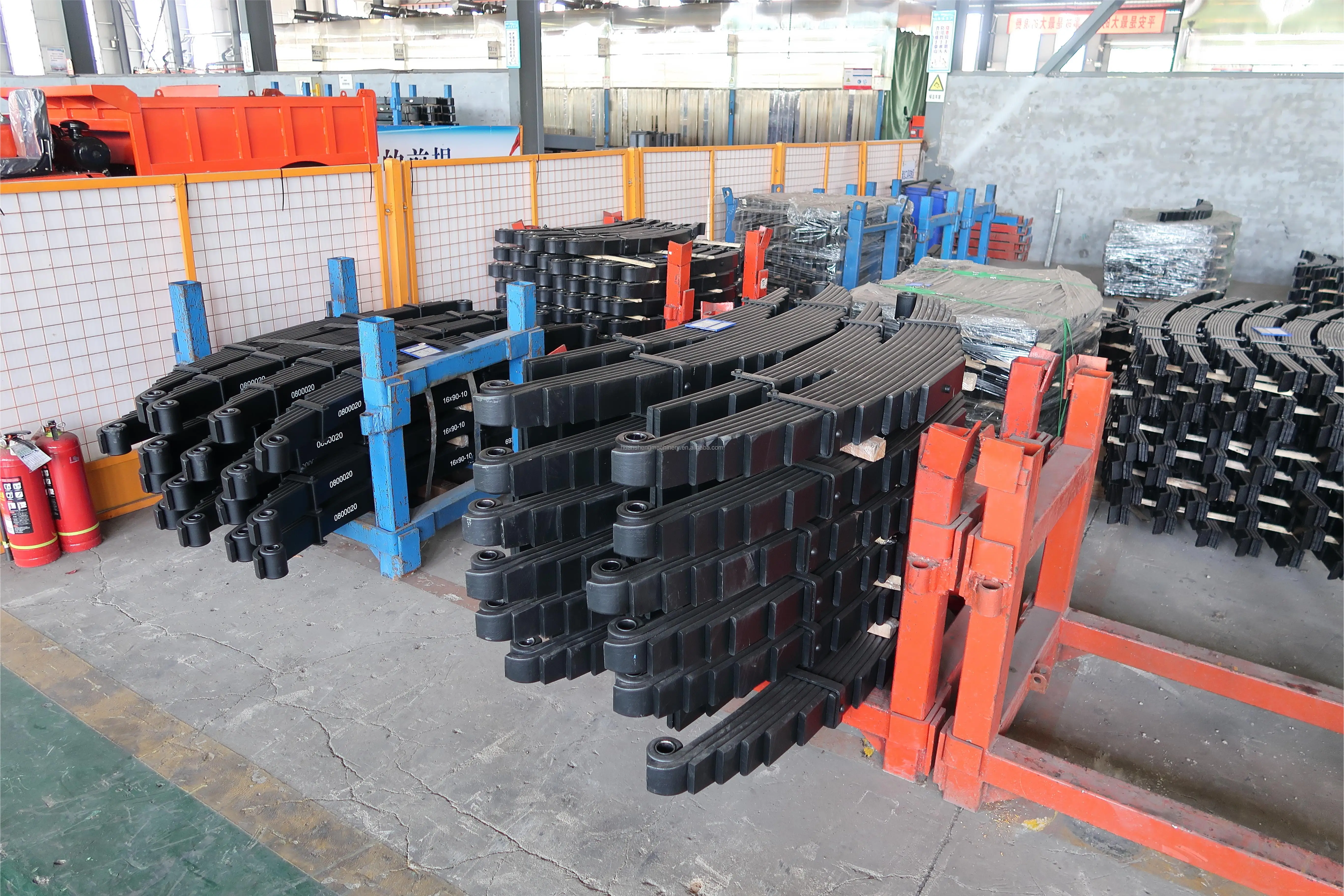

Shock absorbing system
It uses 16 spring steel plates to reduce vibration, maintain the vehicle's riding comfort, and improve the comfort performance of drivers and passengers.

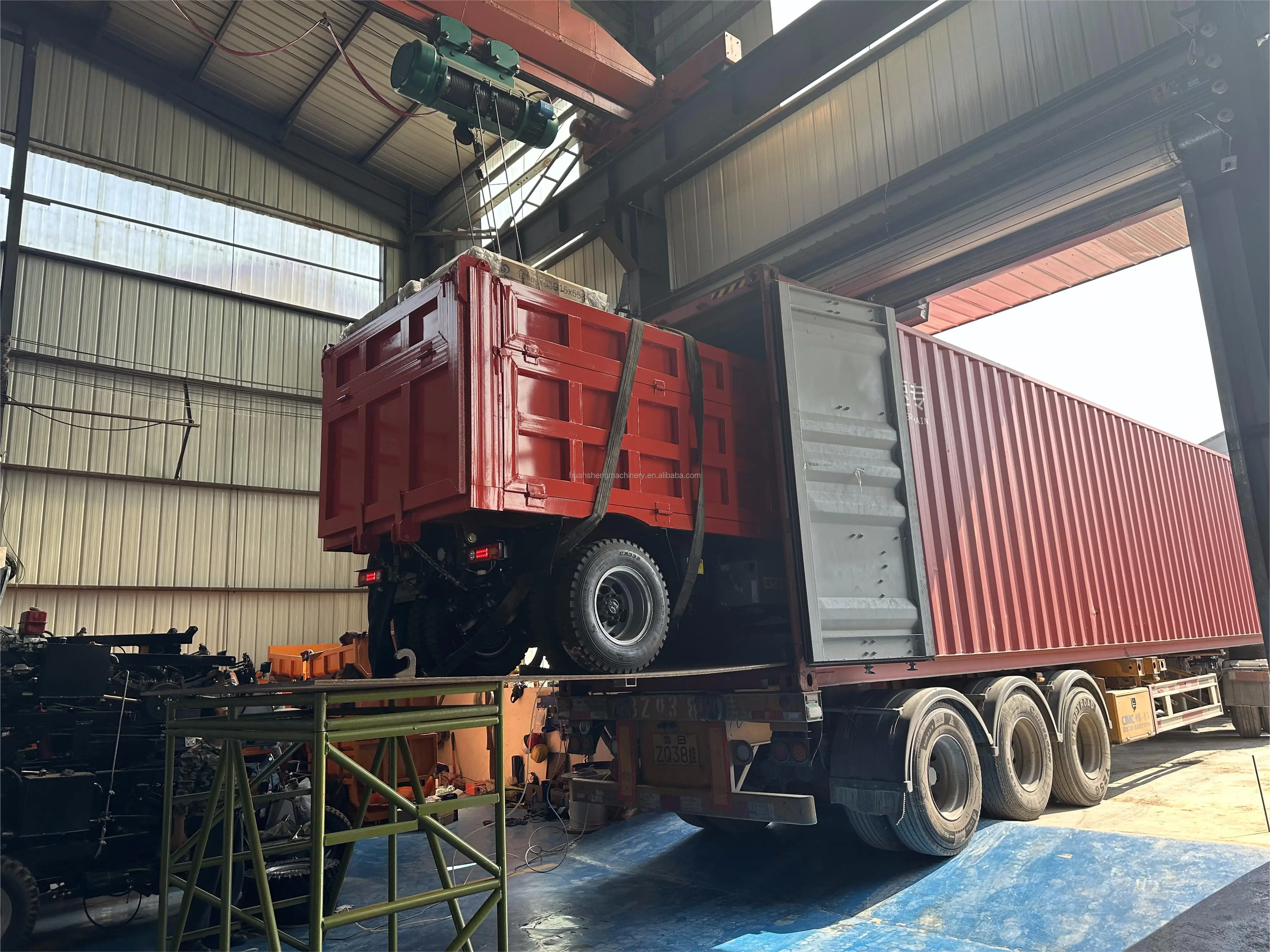

Packing & Shipping
For the order quantities, normally we advise to adopt full container load, full container shipment without any demolition, it‘s
more convenient transportation and cost savings.Application

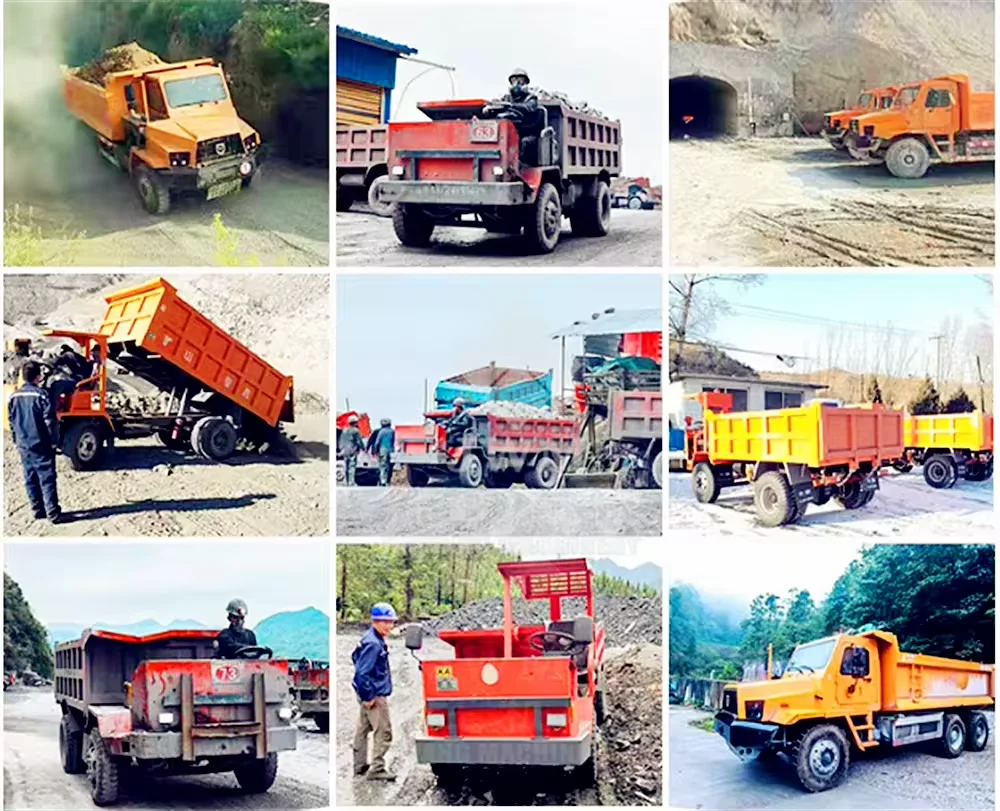

Multi-Function Diesel Dumper Truck
(1)Diesel mine dumper truck is widely used in off-highway outdoor sites, such as large open pit mines, water conservancy projects, Dump Trucks for transporting coal mines, metal mines and sandstones. It is often combinedwith excavators, loaders and other construction machinery to finish the loading, unloading and the complete transportation working lines.
(2)Diesel mine dumper truck is the perfect choice for underground Mining transportation. It has been expertly designed for reliable and durable in small-to-medium mining and construction operations. It has good performance for extreme environment and narrow space,with loading capacities from 1 tonnes to 10 tonnes.
(3)Diesel mine dumper truck is suitable for underground roadway mine, iron ore mine and rare metal mine.
(3)Diesel mine dumper truck is suitable for underground roadway mine, iron ore mine and rare metal mine.
Company Information
Henan HuanSheng Mechanical Equipment
Henan HuanSheng Mechanical Equipment CO.,LTD, is a specialized manufacturer and trade of dumper trucks, tricycles, loaders, mucking loaders, crushers etc., integrating development and production. We are holding this line for more than 10 years, with well-equipped testing facilities and strong technical force. Our products are exported to many countries all over the world. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in construction, woodworking and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Contact Information
If you are interested in our products and want to get more information and videos about them, you can contact me. You can also tell me your specific needs and I will recommend a suitable model for you.
