Wholesale 215Kwh Industrial Commercial Energy Storage System Hot 100Kw Solar Energy System Lifepo4 Industrial Commercial ESS
- Category: >>>
- Supplier: CEEG (Jiangsu) Tech Co. Ltd
Share on (1601257345158):
Product Overview
Description
Product Description
Product Introduction

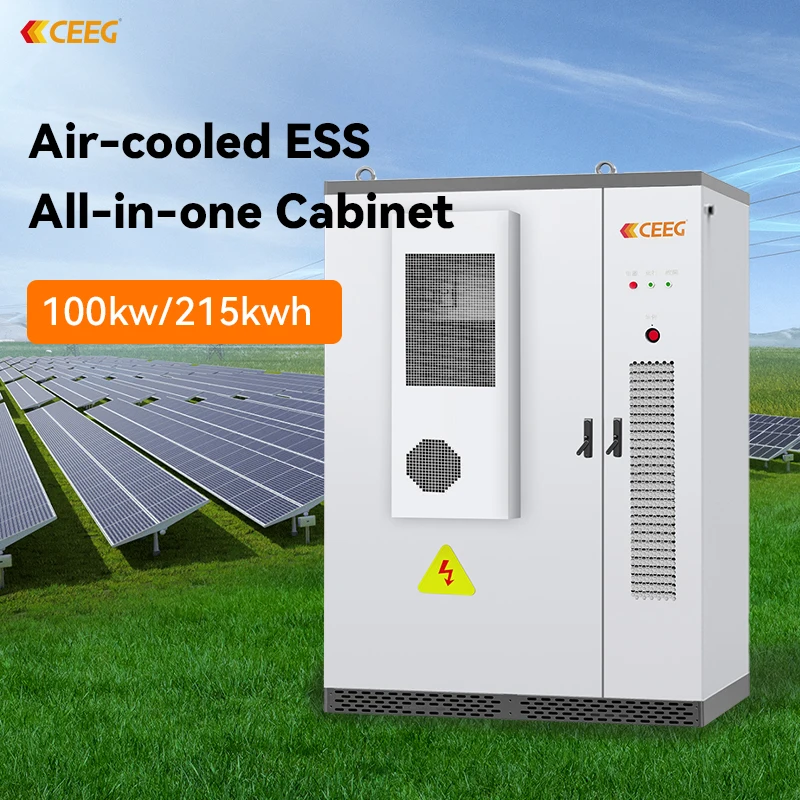

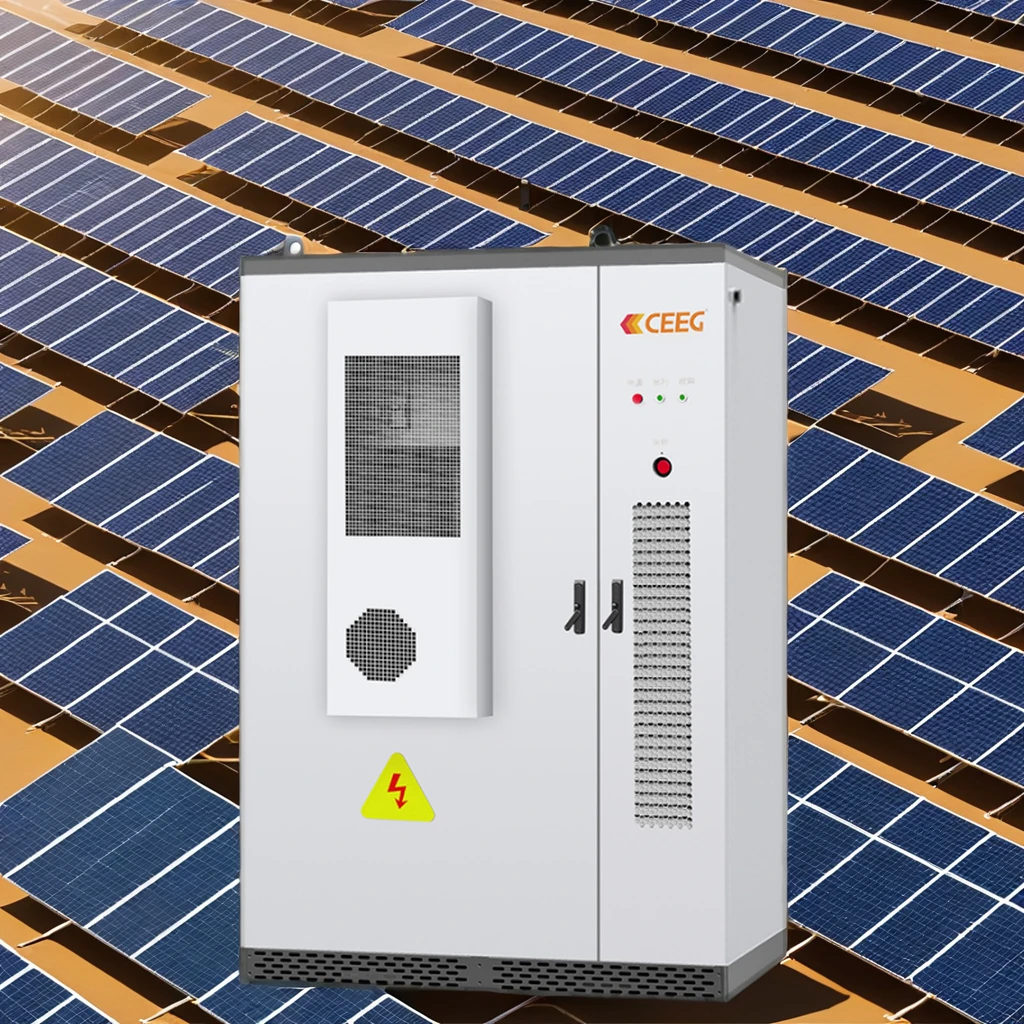

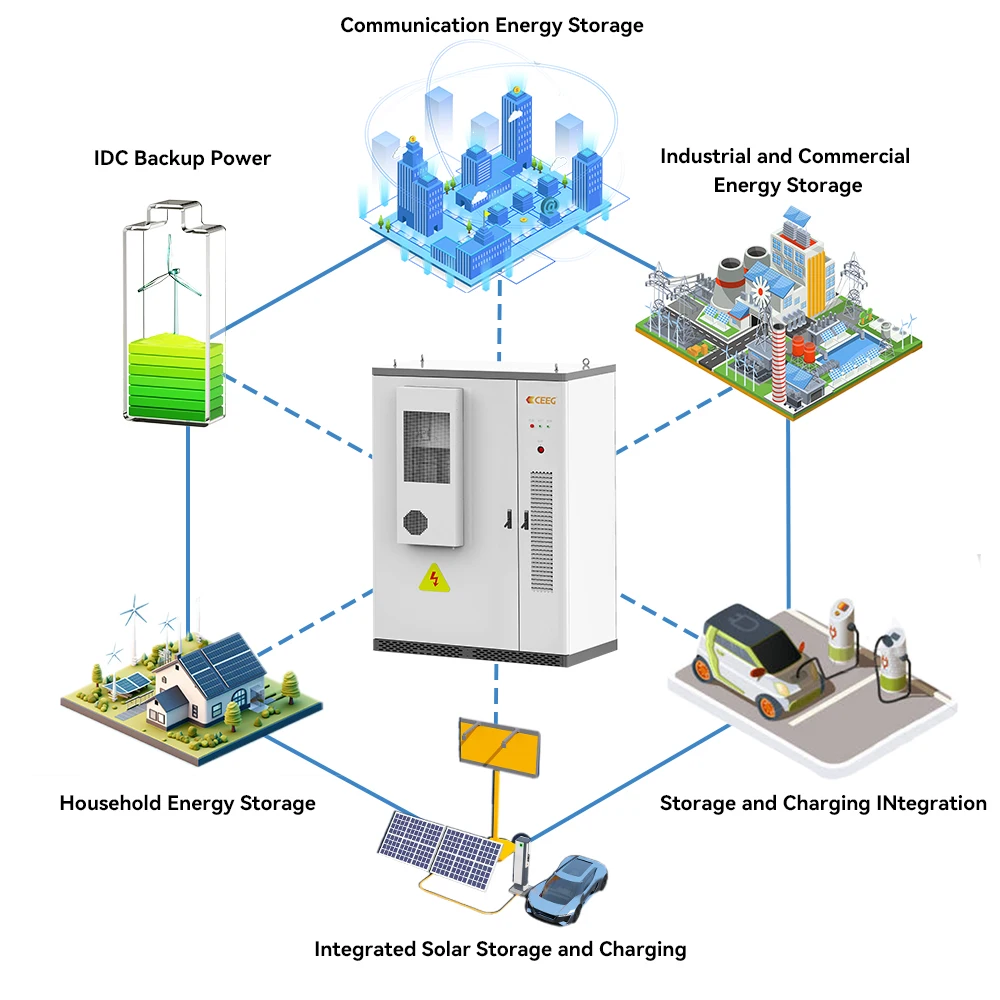

The 215kWh air-cooled energy storage system (Model: CElc-W-215kWh-100kw) internally integrates Dc energy storage/photo voltaic-side voltage transformation, supporting connection to photovoltaic systems.
lt is capable of Real time monitoring ot smoke and temperature, along with multiple-point real-time monitoring by BlS and ElS to ensurethe system's safe and reliable operation.
lt is capable of Real time monitoring ot smoke and temperature, along with multiple-point real-time monitoring by BlS and ElS to ensurethe system's safe and reliable operation.

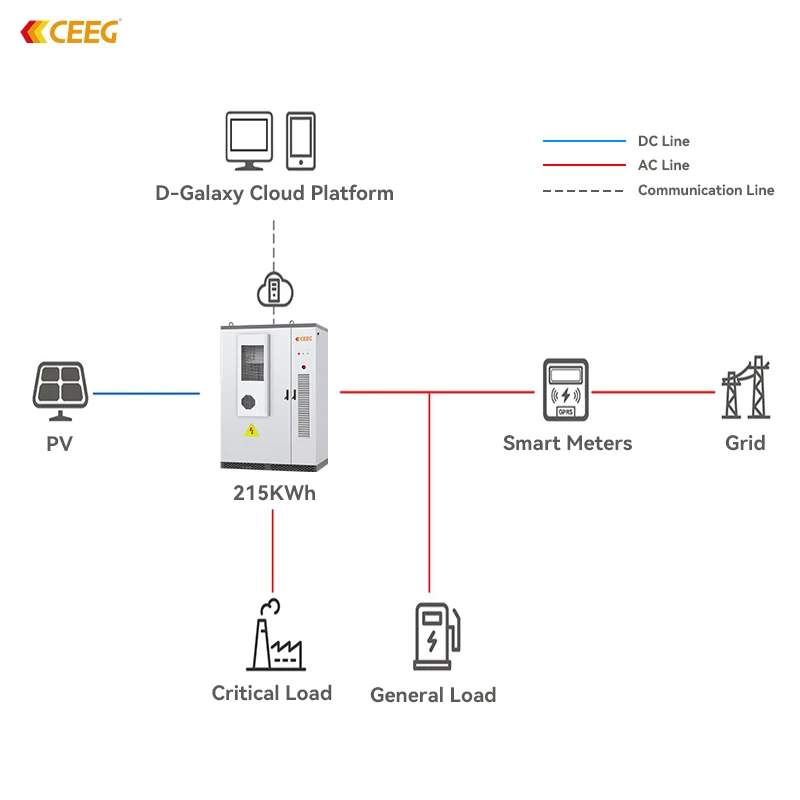

The EMs system enables the storage, transfer and exchange ofenergy betweenthe storage device, the photovoltaic system, the grid and the load, thus optimizing the energy,improving the stability ofthe power supply system and the quality ofthe power supply.
Model | CEIC-W-215kWh-100kW |
Battery | 215KWH |
Cell Type | LFP |
Charge/Discharge Ratio | ≤0.5C |
Nominal Voltage [V] | 768 |
DC Voltage Range [V] | 672~852 |
Rated Capacity[Ah] | 280 |
DC Nominal Capacity [kWh] | 215.04 |
Serial-parallel type | 1P240S |
AC Input(Grid Side) | AC Output(Load Side) | |
Rated Output Power [kW] | 200 | 100 |
Max. Output Current [A] | 288.7 | 159 |
Rated Output Voltge [V] | / | 3W/N/PE, 400 |
Rated Output Frequency [Hz] | / | 60 |
Three-phase Unbalanced | / | 100% |
Rated Grid Voltage [V] | 3W/N/PE, 400 | / |
Frequency Range [Hz] | 55~65 | / |
General Data | |

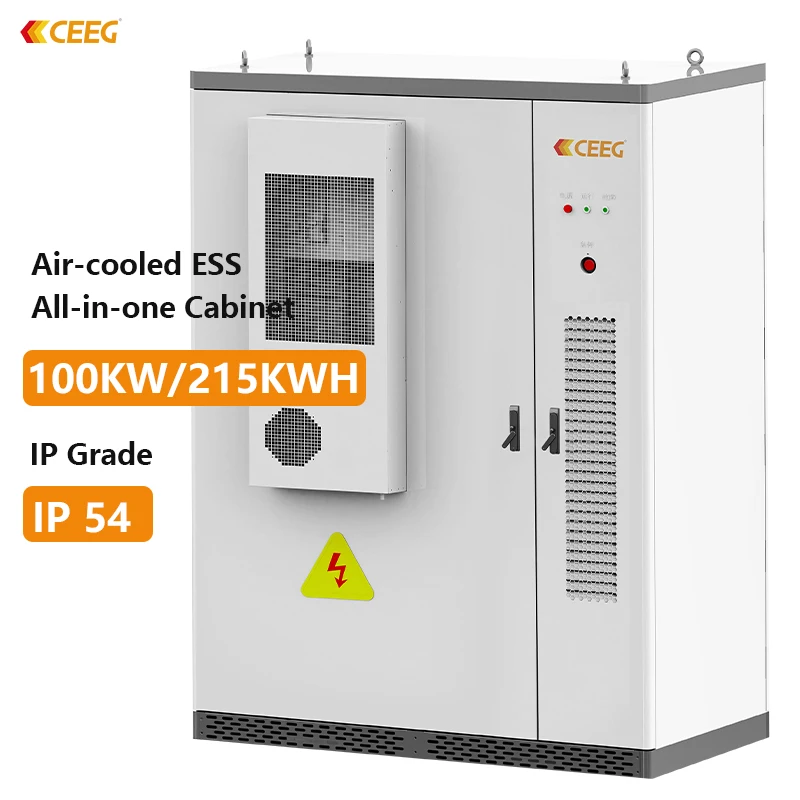

Ingress Protection | IP54 |
Communication Mode | RS485, CAN |
Communication Protocol | Modbus, IEC104 |
Operation Temp [℃] | -20~+50 |
PCS Cooling | Intelligent Air-cooled |
Battery Colling | Air-conditioning Cooling |
Fire Protection System | Yes |
Altitude [m] | 5000（>1000 Derating） |
Relative Humidity | 0~95%, Non-condensing |
Weight [t] | 2.6 |

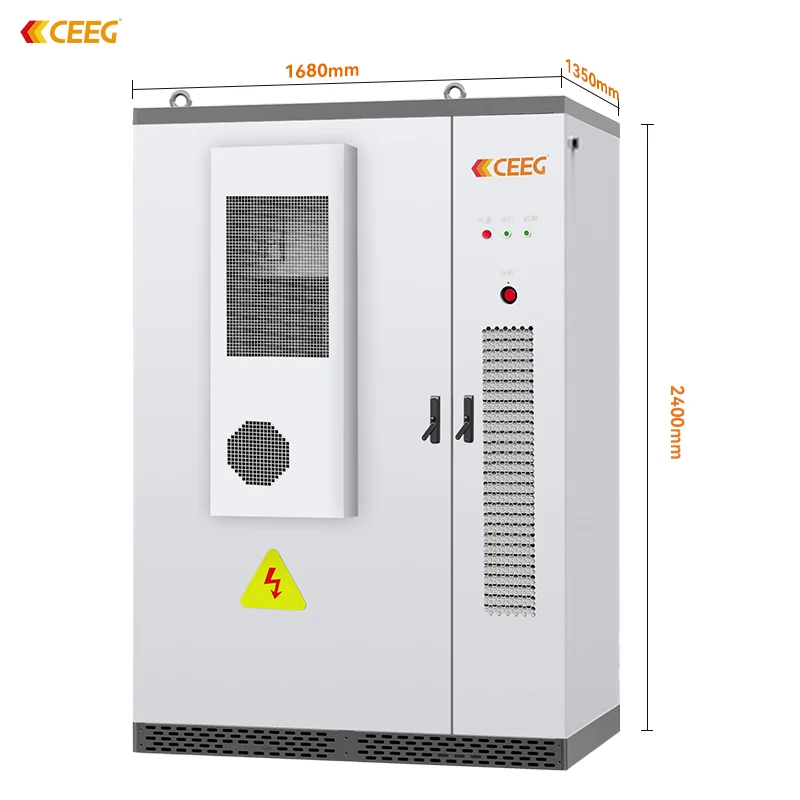

Dimension（W×D×H）[mm] | 1350×1680×2400 |
Safe & Reliable
Multiple intelligent satety systems, With over current.over voltage, over temperature,
overload and otherprotection.

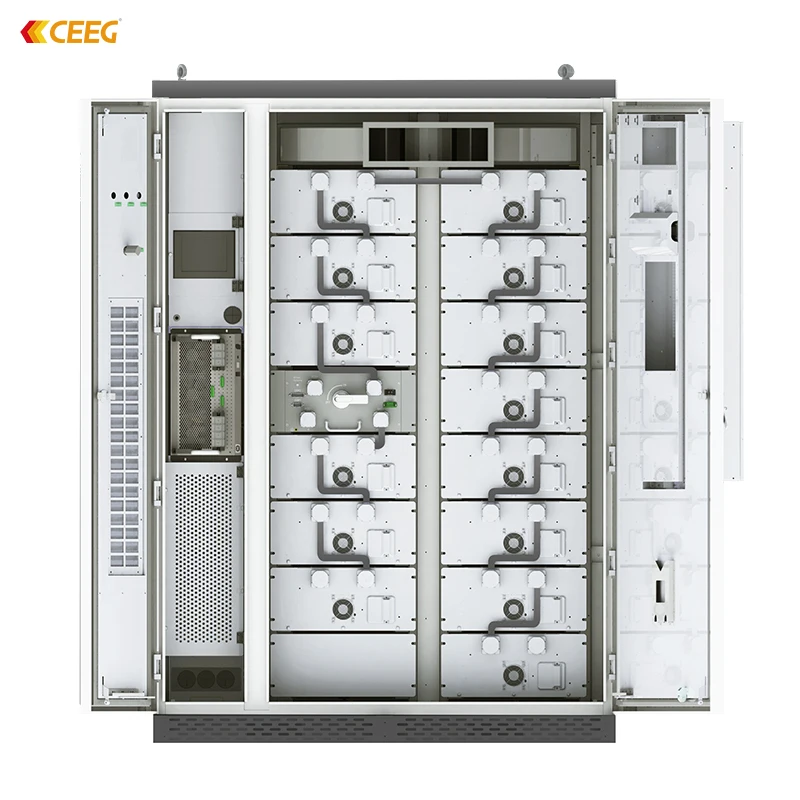

Battery system with hierarchical management, real.time monitoring, and dual-layer thermalinsulationdesign.
Battery system with hierarchical management, real.time monitoring, and dual-layer thermalinsulationdesign.
Intelligent & Friendly
Intelligent EMS with multiple management strategies.Integrated components such as DC/Dc, supporting PVintegration.
Seamless switching between STS and off-grid operation.
Seamless switching between STS and off-grid operation.
Flexible Deployment
Modular design, flexible configuration, easy maintenance.
Support lifting and forklift transportation.
Support lifting and forklift transportation.
Economical & Efficient
Professional design and one-stop service,Supports demand-side response, virtual power plants,etc. for multiple benefits.
Company Profile
FAQ
1. who are we?
This is CEEG, one-stop solar storage products technology solutions manufacturer
This is CEEG, one-stop solar storage products technology solutions manufacturer
2. how can we guarantee quality?
We have CE,ICE,VDE,EN50549,EMC,COC certificates.
3.what can you buy from us?
215 kWh Commercial Energy Storage systems;
We have CE,ICE,VDE,EN50549,EMC,COC certificates.
3.what can you buy from us?
215 kWh Commercial Energy Storage systems;
Off-grid/Hybrid all in one set 5/10/12/15/25 kWh ect.
4. Can I buy 1 set?
Yes.Please feel free to contact us .
4. Can I buy 1 set?
Yes.Please feel free to contact us .
