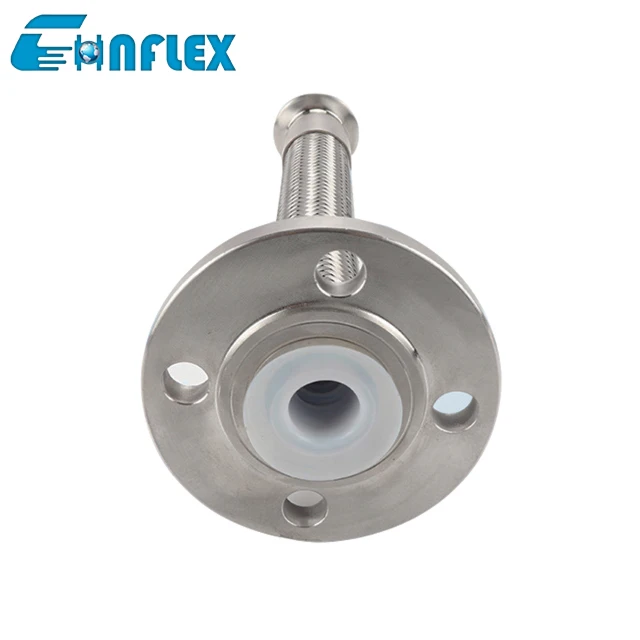

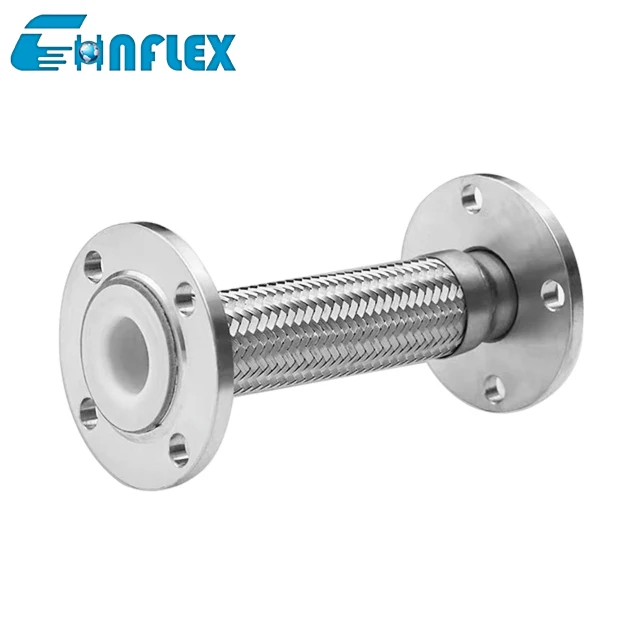

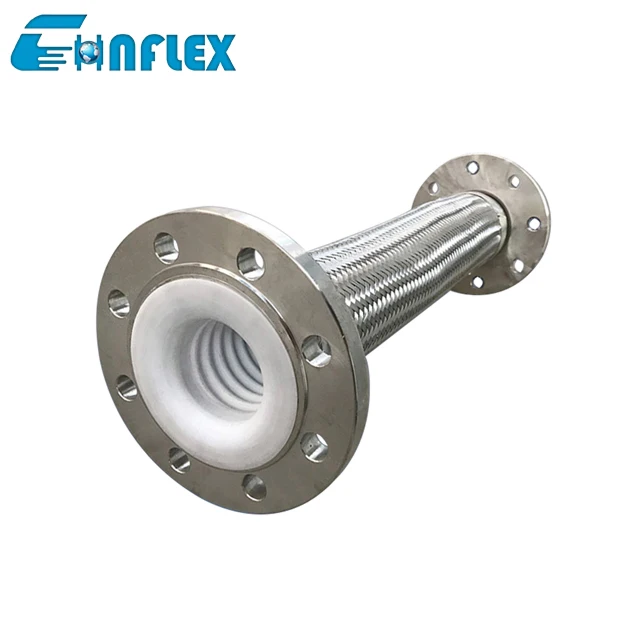

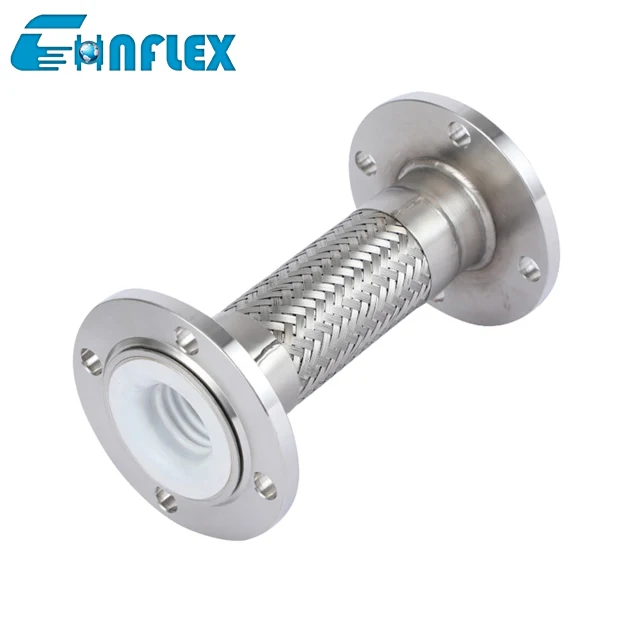

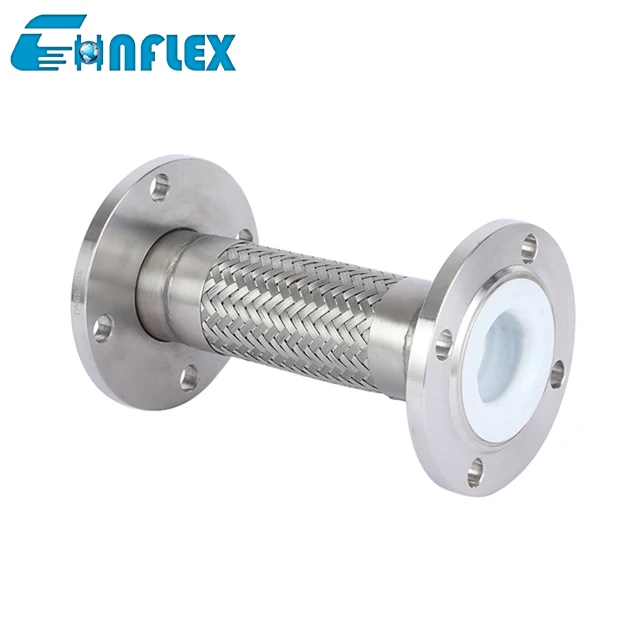

Stainless Steel Metal Hose with PTFE Lining Metal Braided Hose Mesh Flex hose pipe
- Category: >>>
- Supplier: Henan Chnflex Industrial Co. Ltd.
Share on (1601257388594):
Product Overview
Description
| Main data of metal hose | |||||||
| Norminal diameter | Inside diameter | Outside diameter mm | Minimum bending radius mm | Maximum working | |||
| pressure MPa | |||||||
| mm | mm | Corrugated hose | With a network set | Static | Dynamic | One network set | Two network set |
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 15 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 15 | 20 |
| 20 | 20 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27 | 34.5 | 36.1 | 160 | 360 | 63 | 10 |
| 32 | 32 | 40 | 41.6 | 175 | 400 | 40 | 63 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 40 | 63 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 30 | 50 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 30 | 50 |
| 80 | 79 | 96.3 | 97.9 | 486 | 1030 | 30 | 50 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 25 | 40 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 25 | 40 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 25 | 40 |
| 200 | 176 | 240 | 243.2 | 1000 | 2000 | 25 | 40 |
| 250 | 248 | 290 | 294 | 1250 | 2500 | 25 | 40 |
| 300 | 298 | 350 | 354 | 1500 | 3000 | 16 | 25 |
| 350 | 347.6 | 400 | 404.8 | 1750 | 3500 | 16 | 25 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 16 | 25 |
| Note: 1. Special requirements can be customized according to the user's drawings. The flange standard is GB / t9115.1-2000. A variety of flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, EN, JIS, ISO, etc.) can be selected for production. Rubber spheres can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene green rubber, fluororubber, etc.2. When the suspended water supply uses products above DN200, the pipeline must have fixed support or fixed bracket, otherwise the product should be installed with anti pull off device. |
Q1:Can you provide only rubber?
A1:Yes, we can provide only rubber.
Q2:Is the flange galvaized?
A2:Yes, we have electronic galvanized and hot dip galvanized flanges.
Q3:Can I get a sample?
A3:Of cause. We can offer sample for free.
Q4:Are you a manufacturer or slaes company?
A4:We are a manufacturer specilized in metal hose since 2004. Pls contact us to get the business license.
