DC 12V 24V uv germicidal lamp 254nm uvc light for air purification

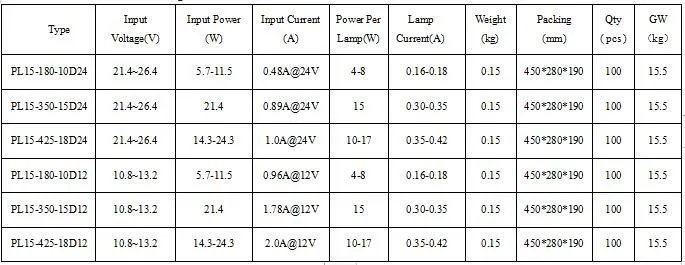

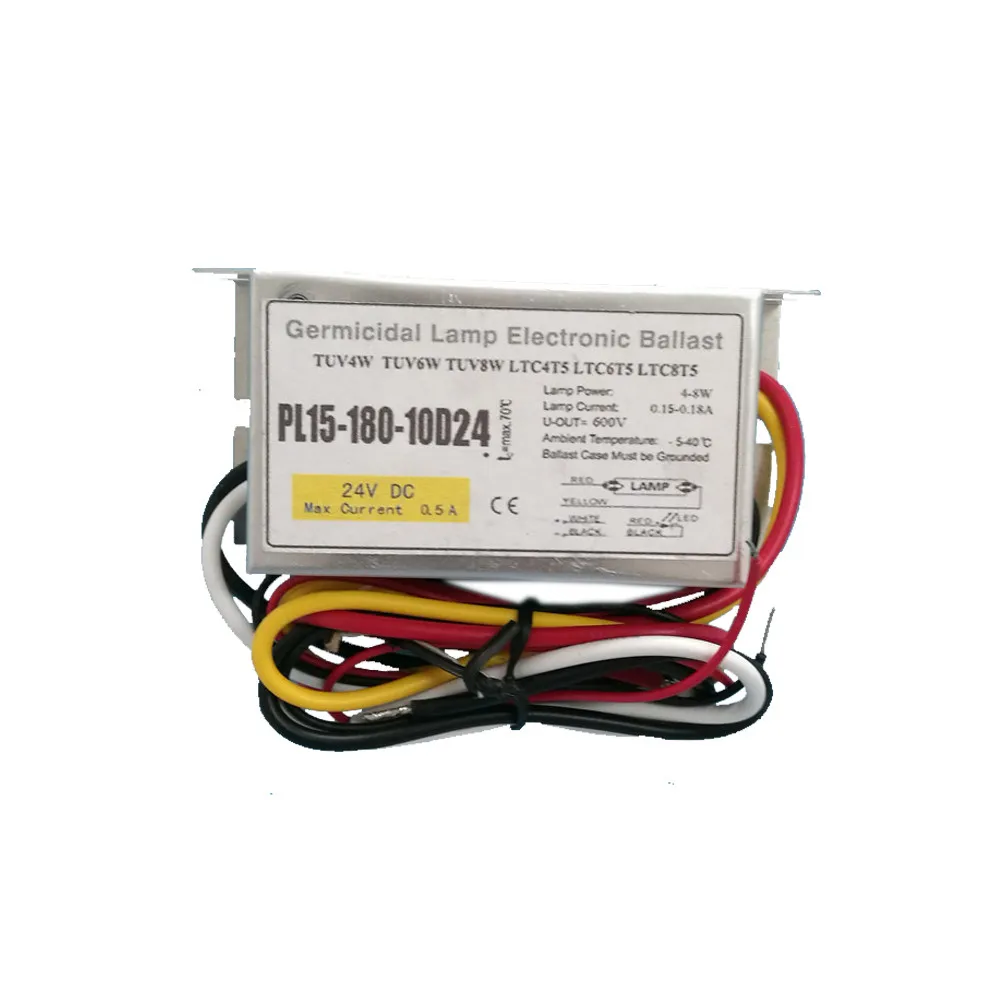

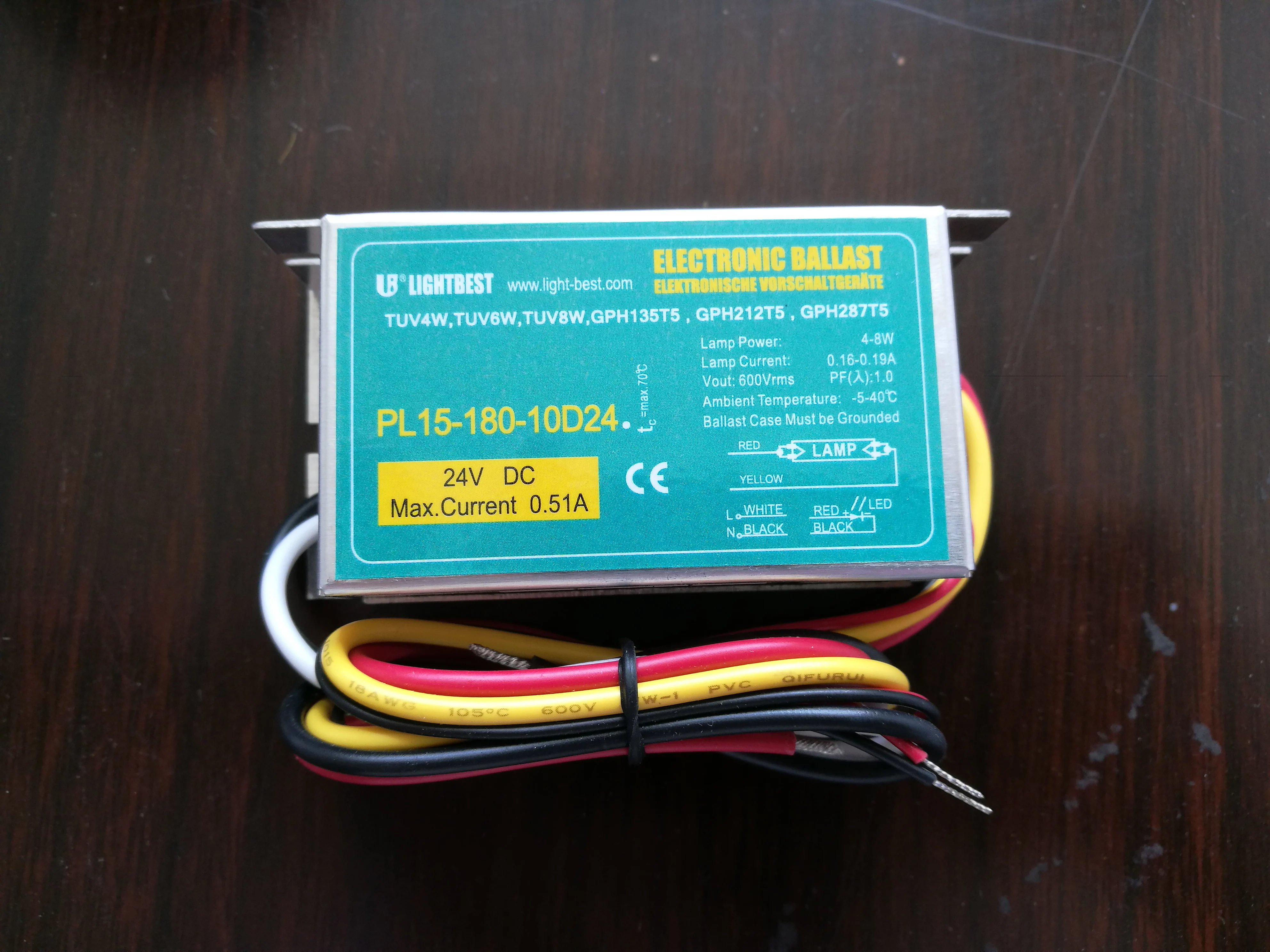

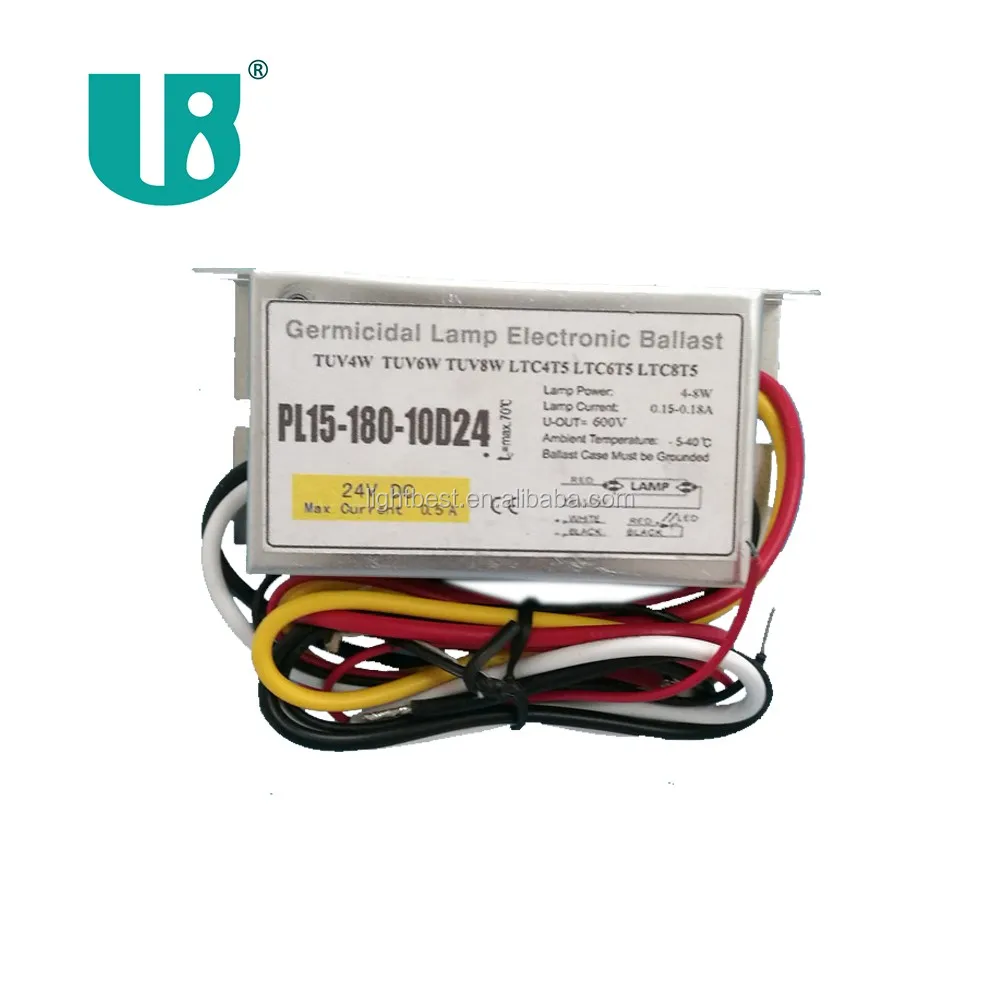

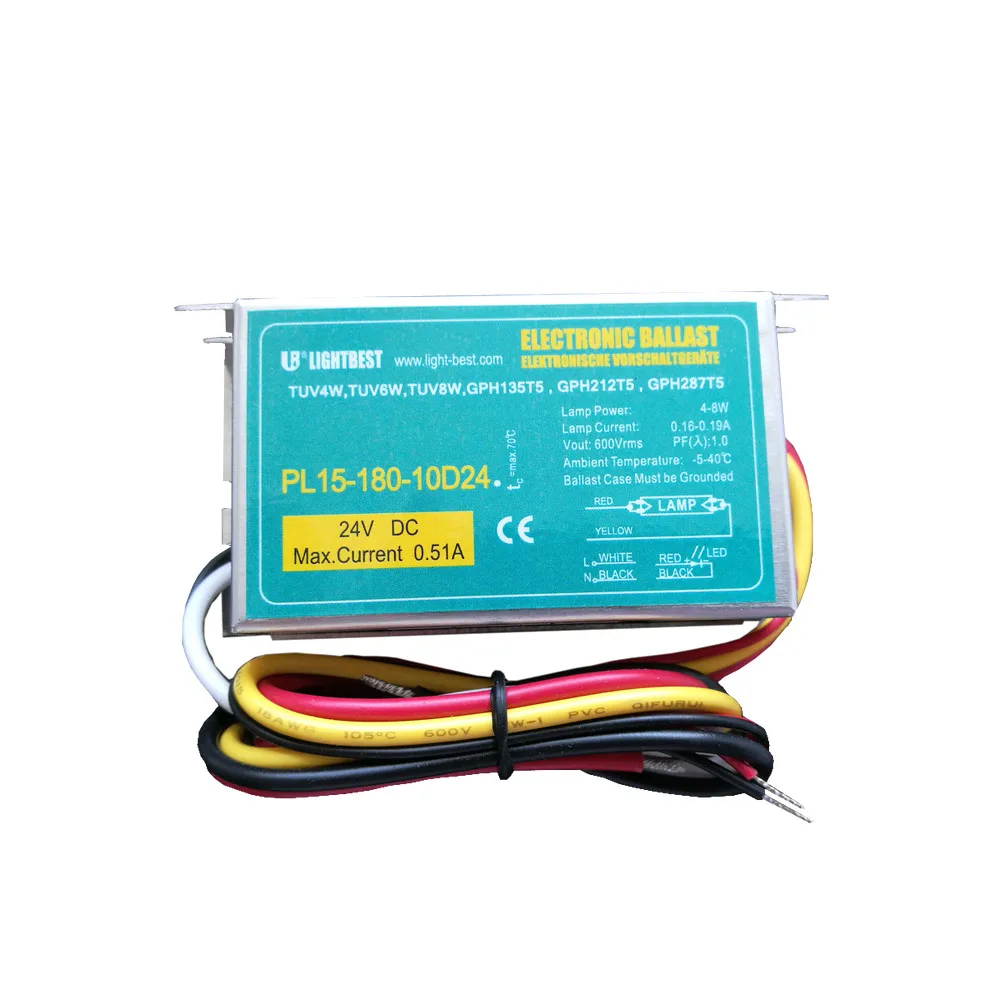

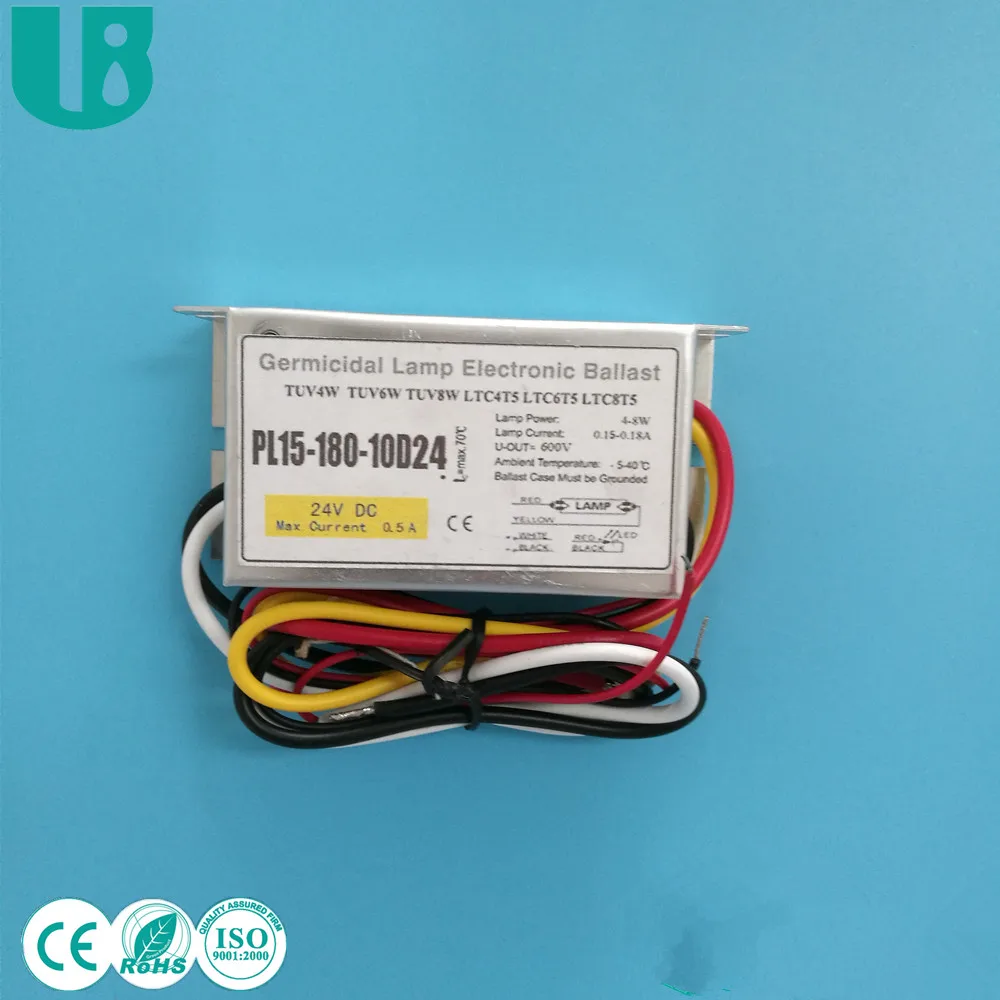

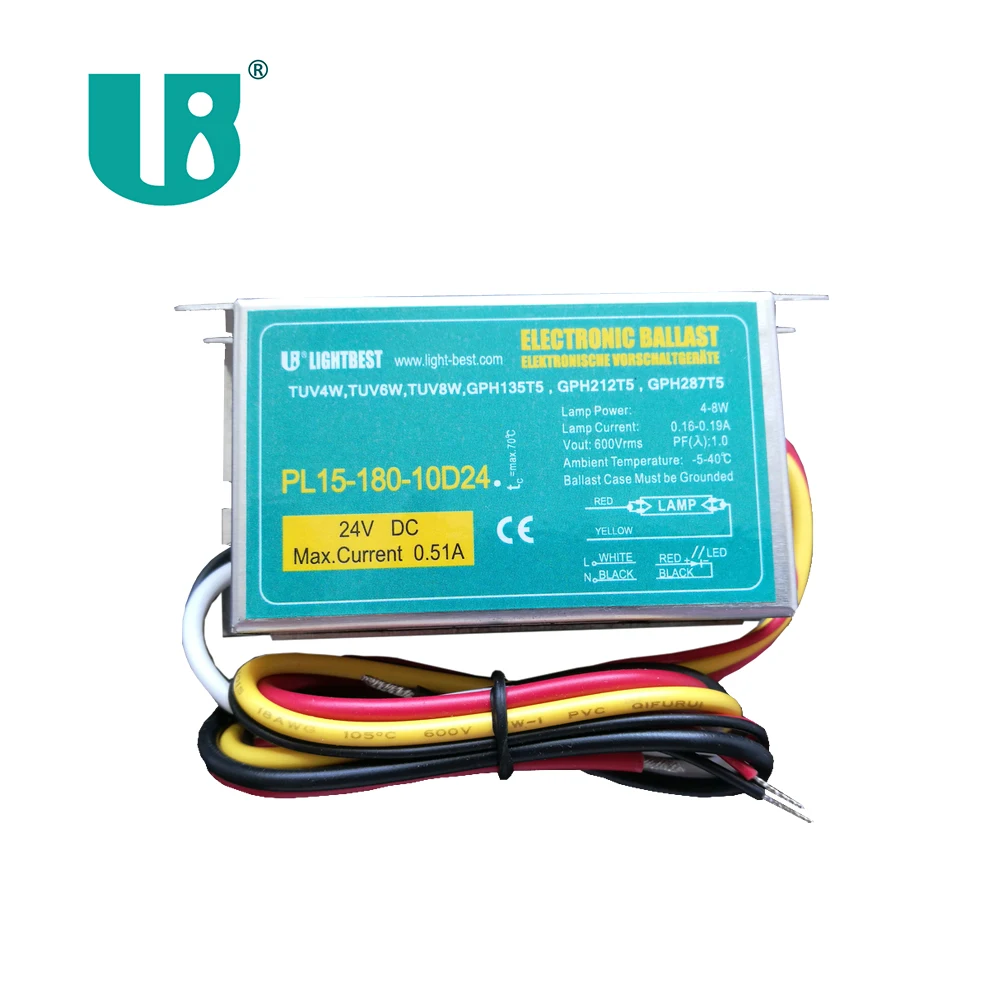

PL15-180-10D24

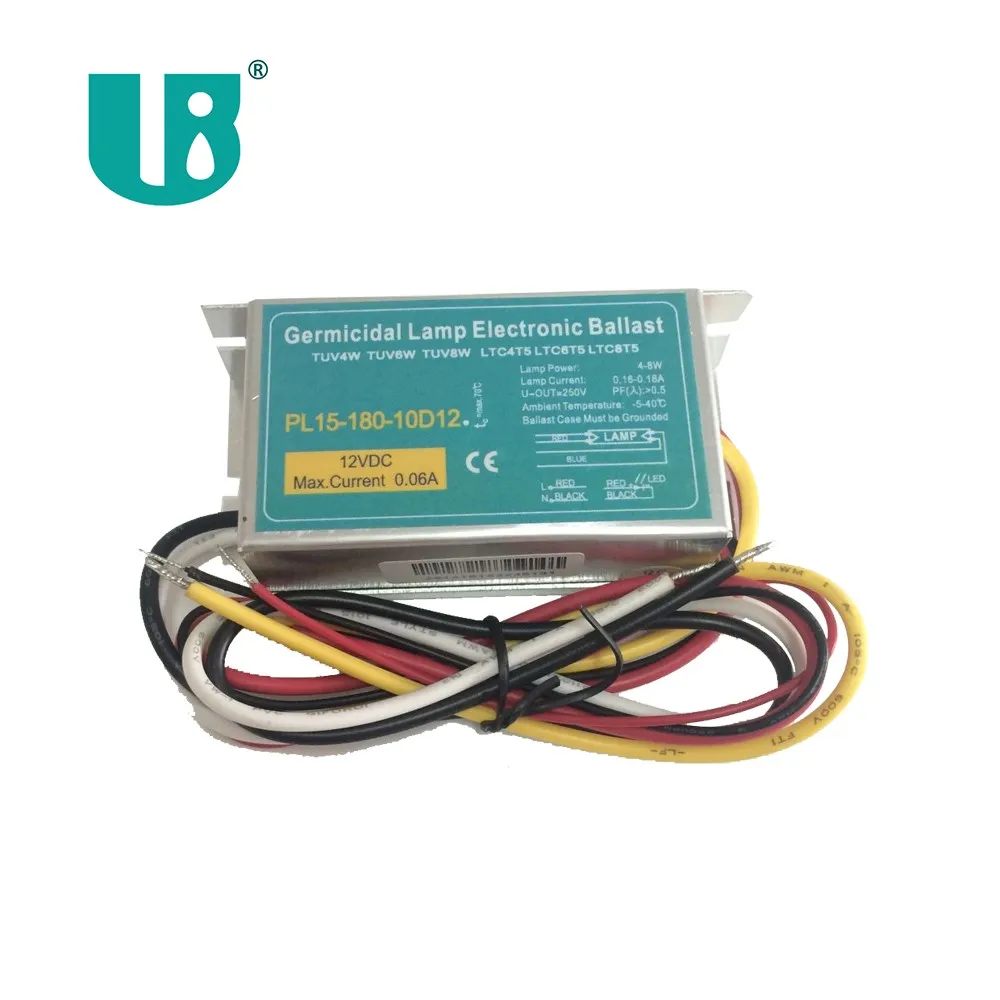

\tPL15-180-10D12

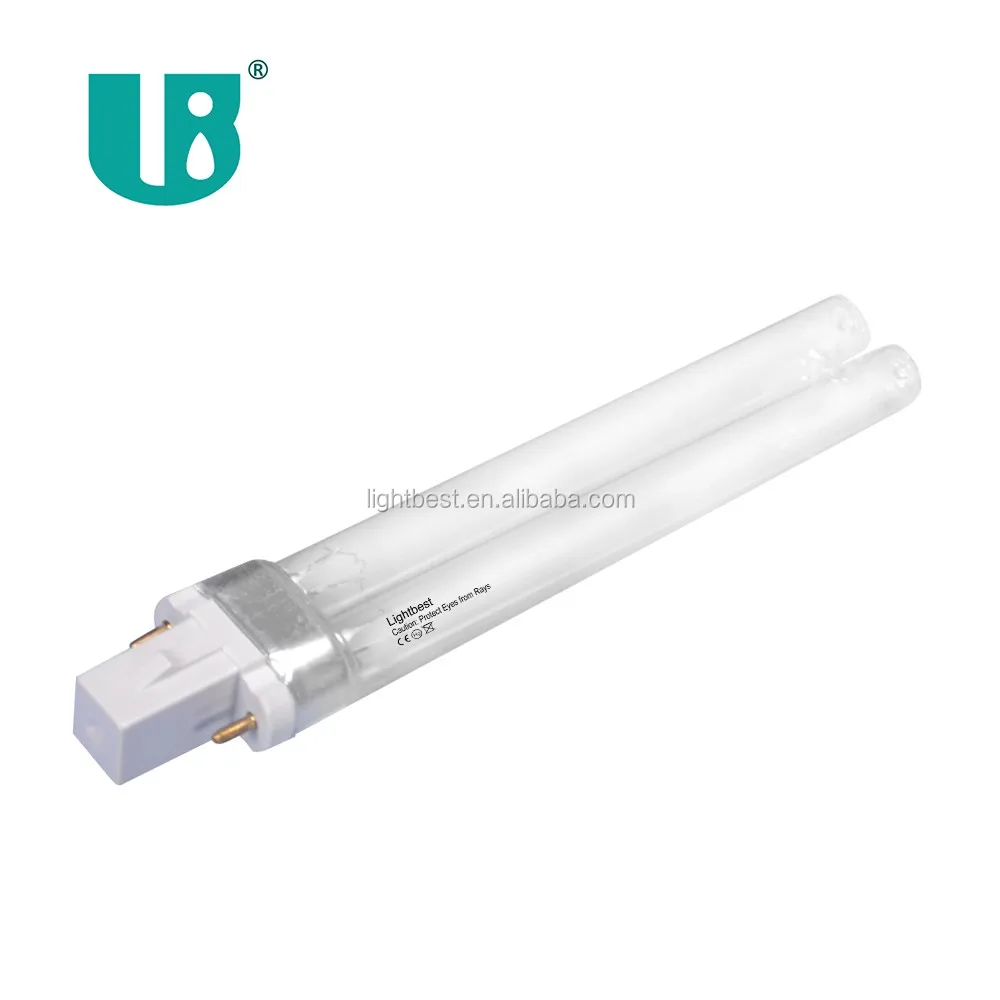

\tLamp Types:TUV4W TUV6W TUV8W LTC4T5 LTC6T5 LTC8T5
PL15-350-15D24
\tPL15-350-15D12
\tLamp Types:TUV15WT8
PL15-425-18D24
PL15-425-18D12
Lamp Types:GPH212T5 GPH287T5 GPH303T5 GPH357T5 TUV11W \t\t\tTUV16W

Technical specifications
\tEfficiency: >70%
\tOperating Frequency: 40-70KHz

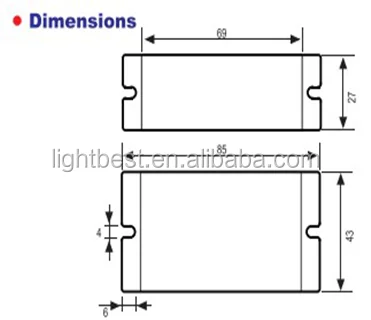

\tDimensions:85*43*27mm
\tMax.cable length between ballasts and lamp:1.5m

Installation requirement
\tWire Gauge:0.5-1.0mm2
\tLED specification:VF=1.8-3.6V LF=20-50mA

Mounting restrictions
\tDisconnect Input Power Before Installing or Servicing.
\tBallast Case Must Be Grounded.
\tDon't short any two wires of the four outputs.
For applications with less than one switch-on cycle per day
\t(other otherwise preheat start ballasts are recommended)
\tLamp filament must be suitable for instant start operation,ask lamp manufacturer.

Features
\tStarting:Instant

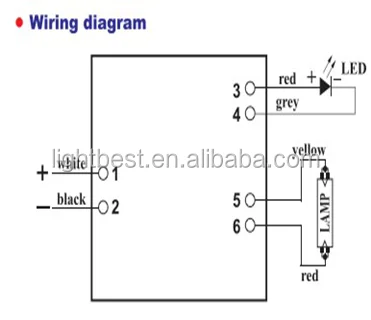

\tLamp status indication via DC signal output.
\tDC3~6V 5mA:lamp on. DC 0~0.8V:lamp fault or on lamp. Connect LED

Applications
All areas of applications include Tanning UV lamps:
=>Air purification
=>Aquarium
=>Domestic drinking water
