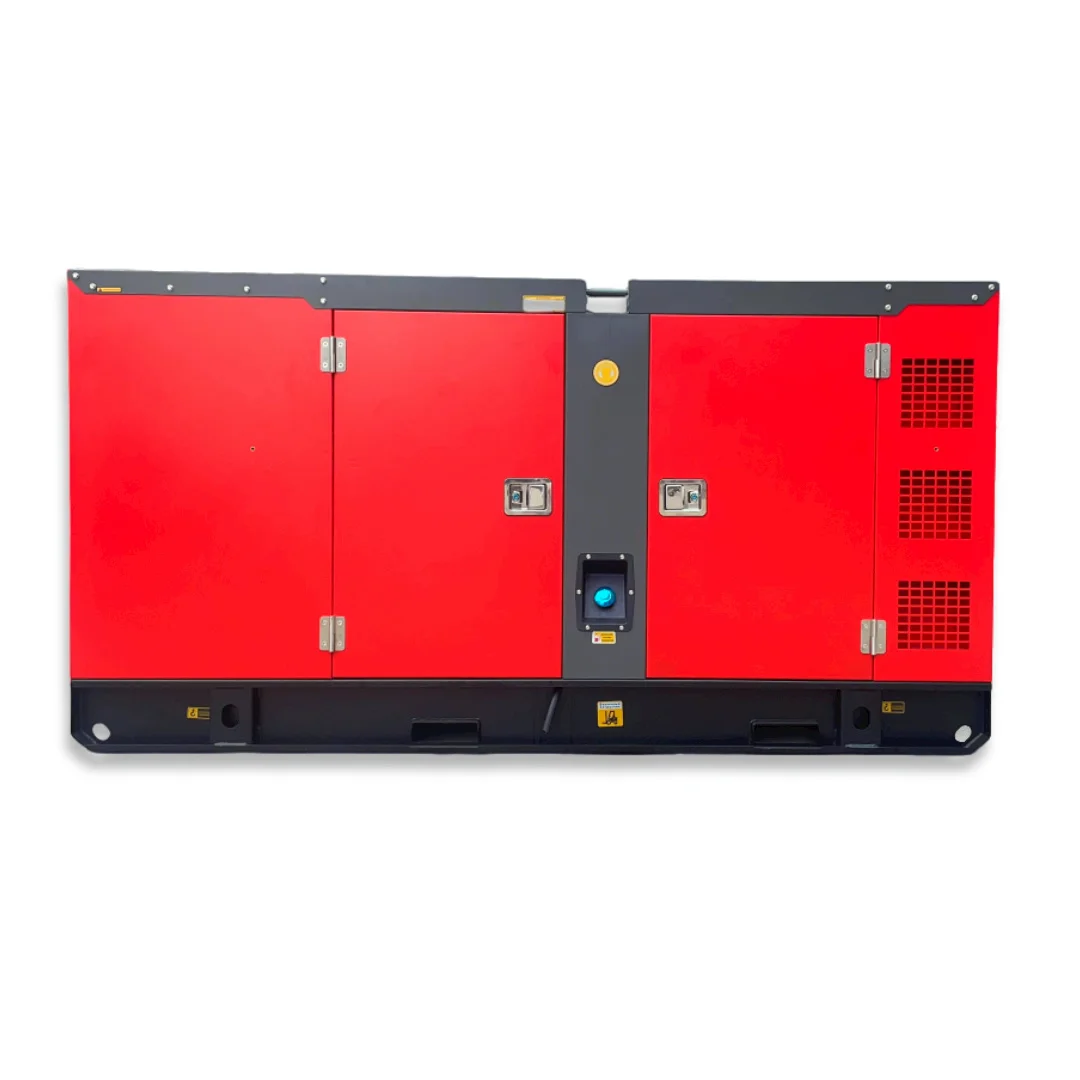

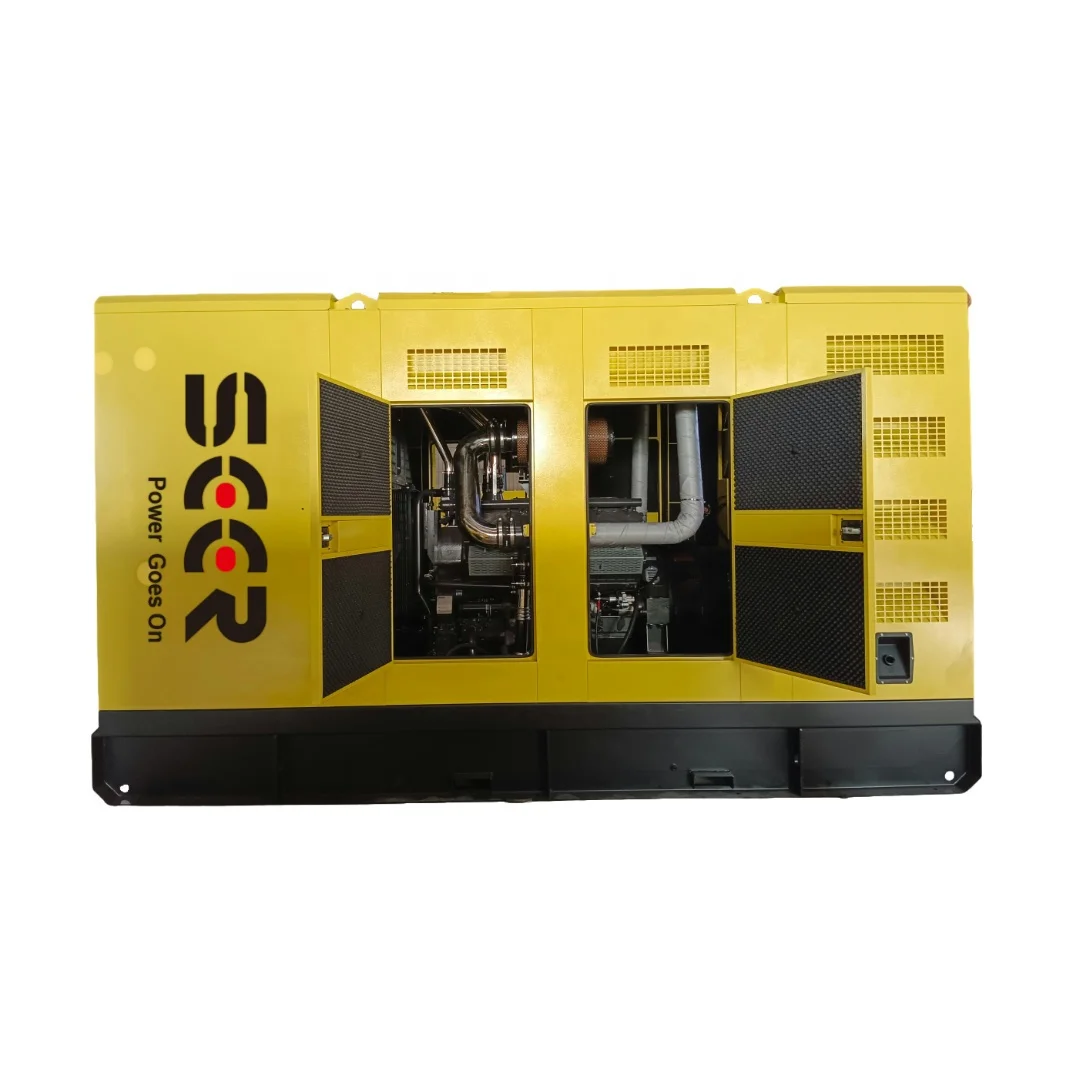

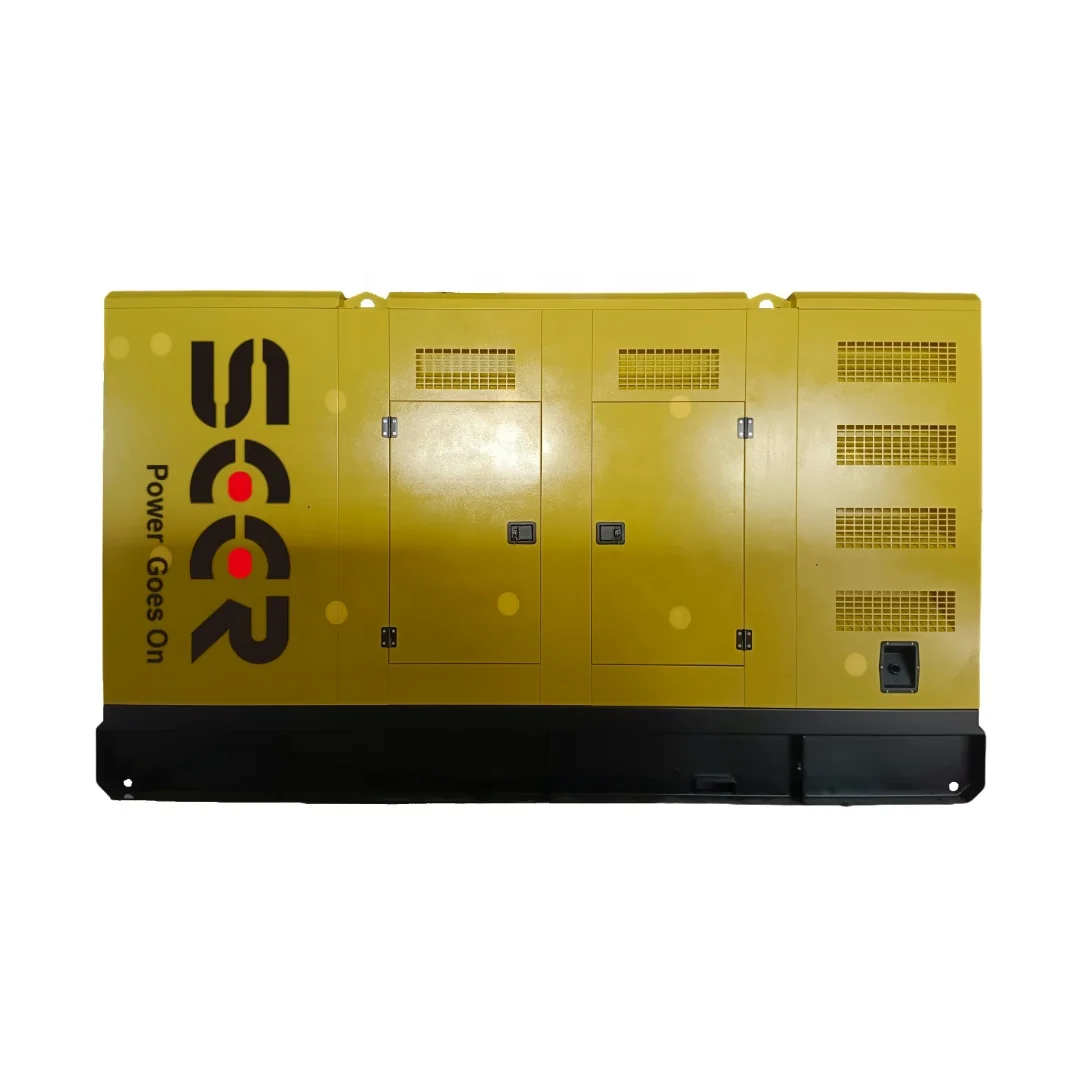

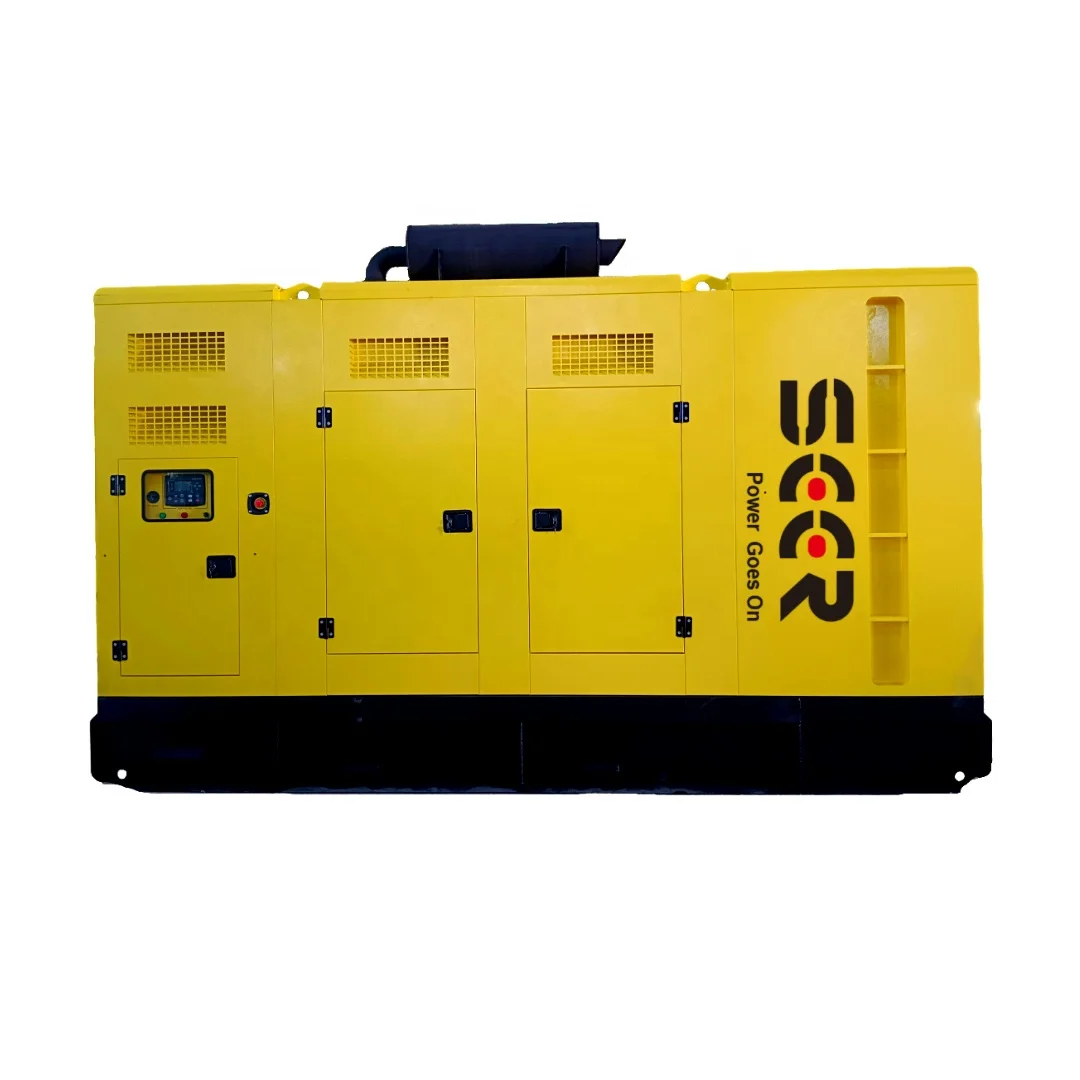

WEICHAI engine WP13D440E310 350KW/438KVA Diesel Generator Set Silent Type Open Frame Container Type Trailer Type
WEICHAI engine WP13D440E310 350KW/438KVA Diesel Generator Set Silent Type Open Frame Container Type Trailer Type
WEICHAI engine WP13D440E310 350KW/438KVA Diesel Generator Set Silent Type Open Frame Container Type Trailer Type
WEICHAI engine WP13D440E310 350KW/438KVA Diesel Generator Set Silent Type Open Frame Container Type Trailer Type
WEICHAI engine WP13D440E310 350KW/438KVA Diesel Generator Set Silent Type Open Frame Container Type Trailer Type
WEICHAI engine WP13D440E310 350KW/438KVA Diesel Generator Set Silent Type Open Frame Container Type Trailer Type
WEICHAI engine WP13D440E310 350KW/438KVA Diesel Generator Set Silent Type Open Frame Container Type Trailer Type

WEICHAI engine WP13D440E310 350KW/438KVA Diesel Generator Set Silent Type Open Frame Container Type Trailer Type

Share on (1601257517150):


Price:$24,177.00-27,804.00

Quantity:


Product Overview

Description



Product Overview


Weichai Series Diesel Generator Set
Weichai Series Diesel Generator Set offers a range of configurations with adjustable voltage and frequencies. Choose from 50HZ/1500RPM or 60HZ/1800RPM, with voltages including 380/220V, 400/230V, 415/240V, and 220/127V, 440/254V.
Available in Open, Silent Box, soundproof, and trailer types.
Optional ATS and choice of controller brands like UK Deepsea, Czech ComAp, Denmark DEIF, and SUPER POWER China ensure reliable performance.
Robust engine, comprehensive service, and maintenance support make it a trusted global power solution.


FEATURES AT A GLANCE



Unparalleled Reliability
Advanced Technology
Diverse Product Range
Fuel Efficiency
Easy Operation and Maintenance
Customizable Solutions
Brand Reputation

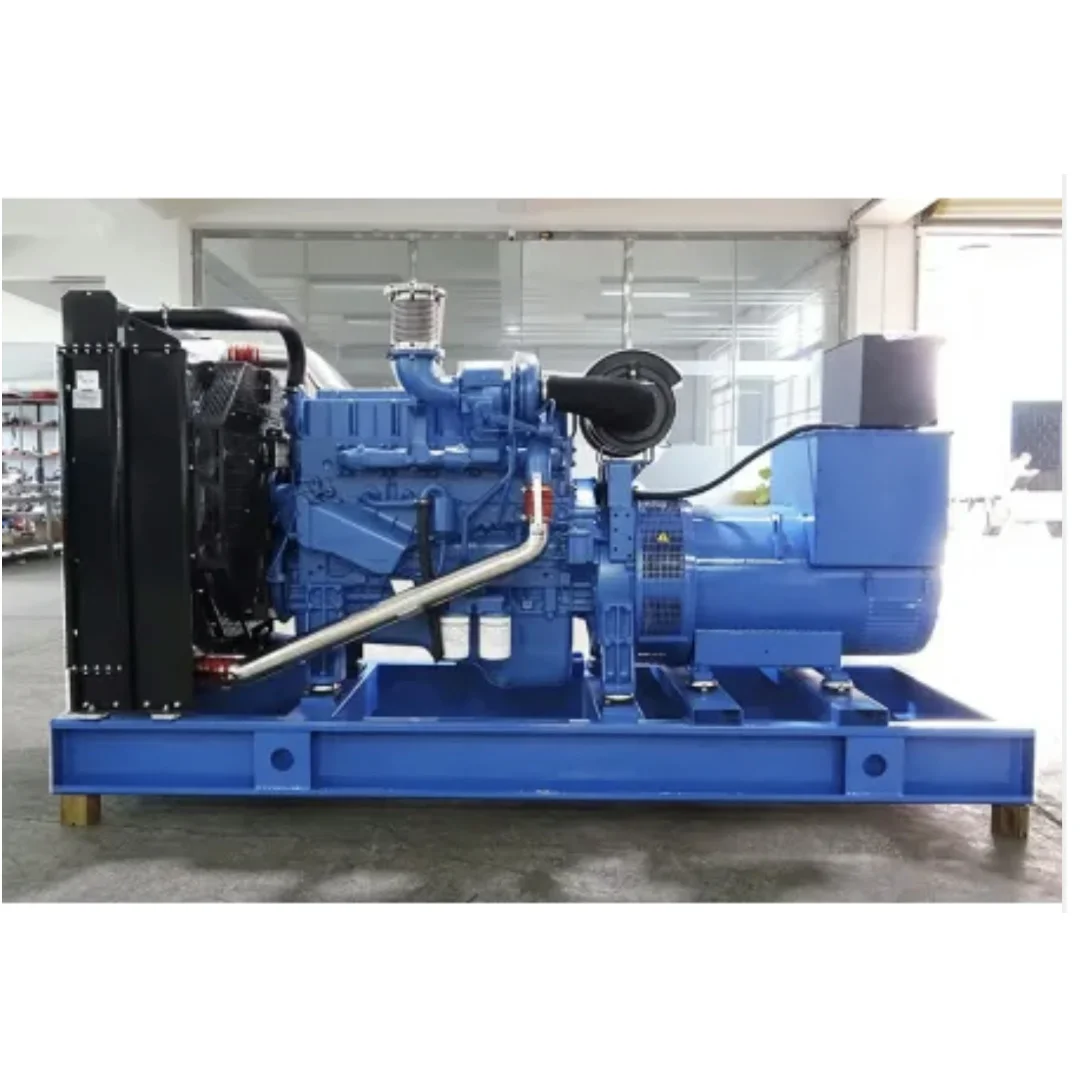

Front Genset
Right Genset
Back Genset


PRODUCT SPECIFICATIONS




Generator Specification
Model
SP-350WC
Voltage
400V/230V
Standby Power
37.5KW
Prime Power

KVA
KW
KVA
KW
481.3
385
438
350
Frequency
50HZ
Rated Speed
1500r/min
Engine Details
Max. breakout force
96kN


Manufacturer
Weichai
Model
WP13D440E310

Capacity factor
392/440


Style
Vertical, in-line, water-cooled, four-stroke
Inhale way
Inter-cooling
Number of cylinders
6/L
Bore and stroke(MM)
127×165
Displacement
12.54L
100%Oil consumption(L/H)
82.08
Total oil capacity(L)
30
Coolant capacity(L)
69
Machine combustion ratio
≤0.1
Starting mode
Electrical start of the DC24V
Alternator Details
Manufacturer
SUPER POWER
Model
SP-350E4
Number of Phases
3
Connecting Type
3 Phase and 4 Wires, Y type connecting
Power Factor
0.8
Protection Class
IP23
Exciter Type
Brushless Exciting
Insulation Class/ Temperature Rise
Class H/H
Telephone Influence Factor (TIF)
＜50
Telephone Harmonic Coefficient
＜2%
Alternator Capacity
438kVA
Voltage
400V
Controller Brand: SUPER POWER China
Dimension
Length(mm)
Width(mm)
Height(mm)
Weight(kg)
Open Type
3140
1295
1790
2925
Silent Box
4400
1300
2220
3690

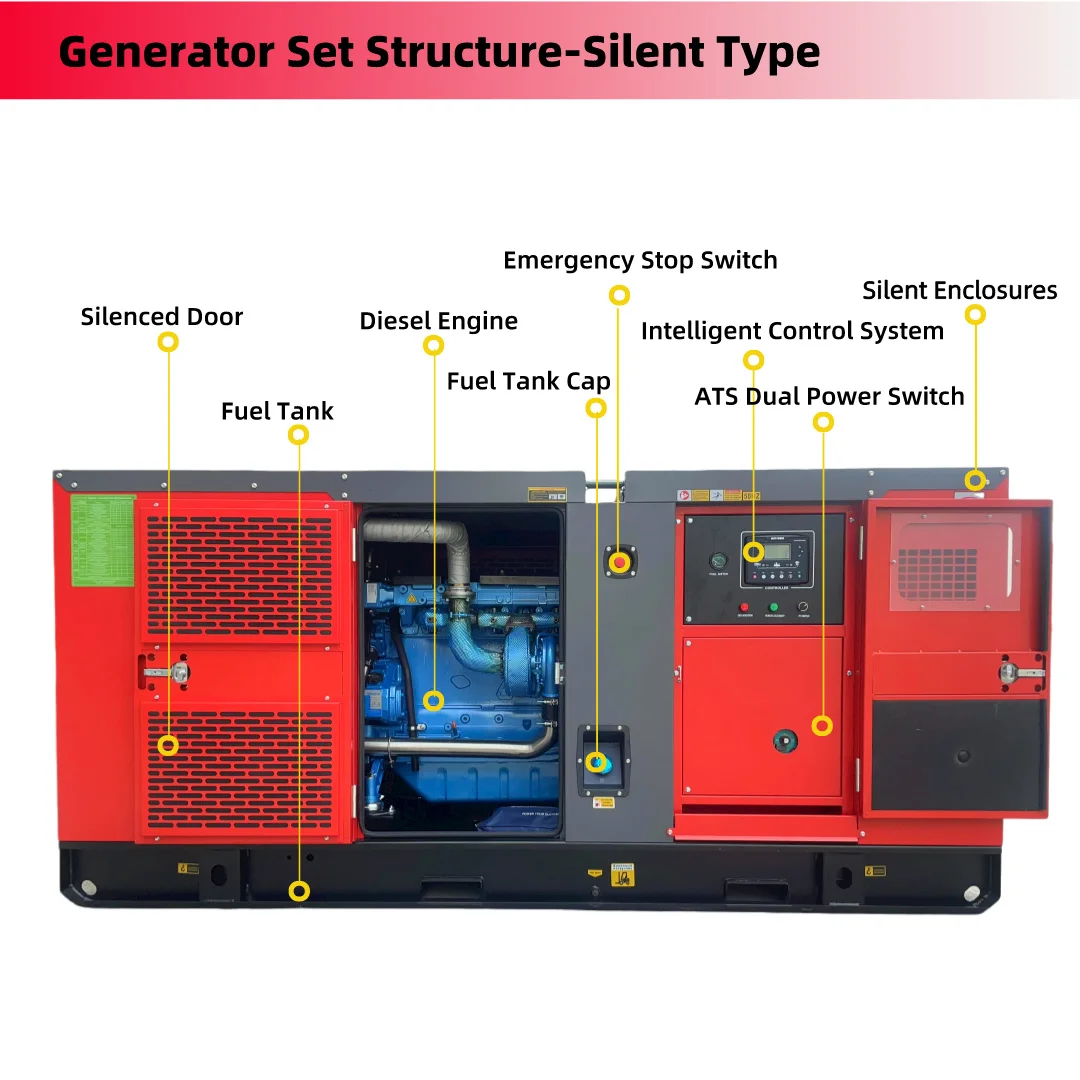

PRODUCT CONFIGURATION








Intelligent Control System
Switch, ATS Optional
Emergency Stop Button


Electrical start of the DC24V
Portable Sockets
Stainless steel door locks


Heavy duty battery terminal
Water Injection
Exhaust Pipe


Why Choose Us


10 Years Experience
Established in 2014, HUNAN SUPER POWER NEW ENERGY CO.,LTD have 10 years of experience in generator set production, research, and sales. Our skilled team develops efficient, reliable, and environmentally friendly solutions. We offer customized products and exceptional service, ensuring customer satisfaction and long-term partnerships.

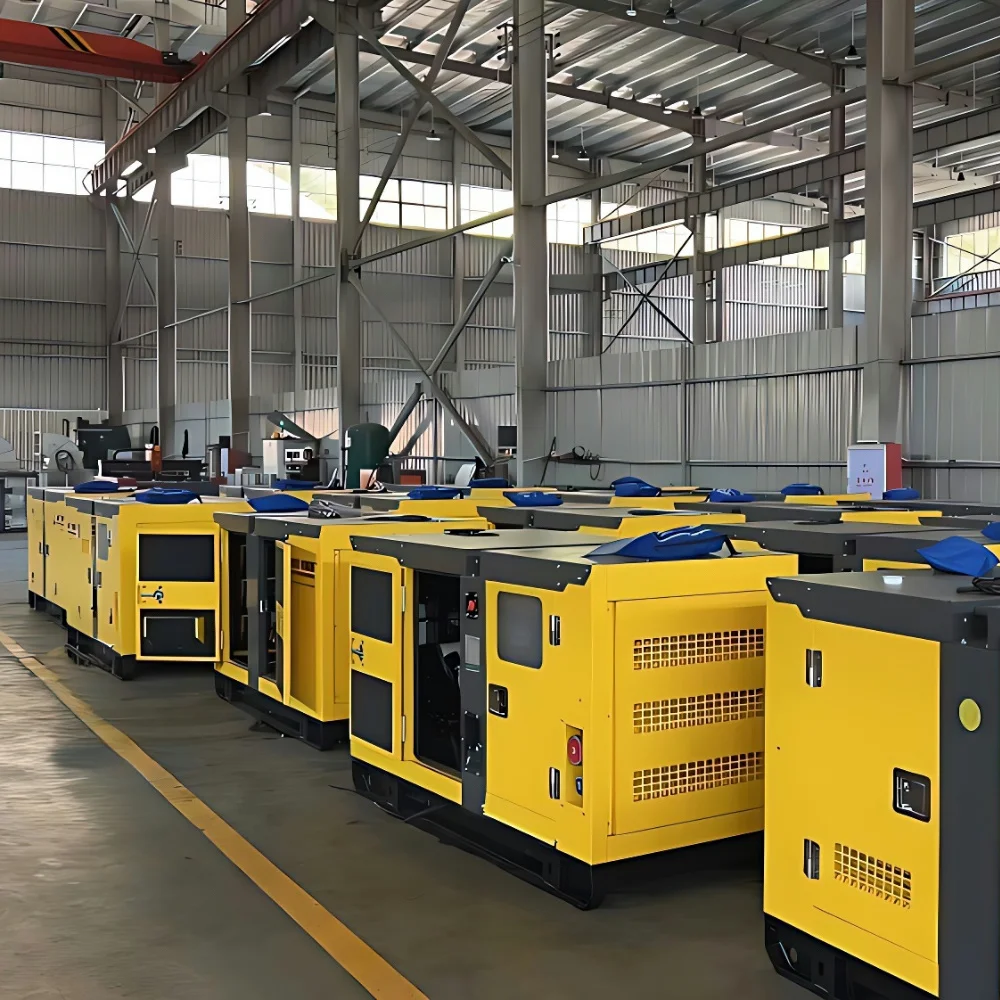

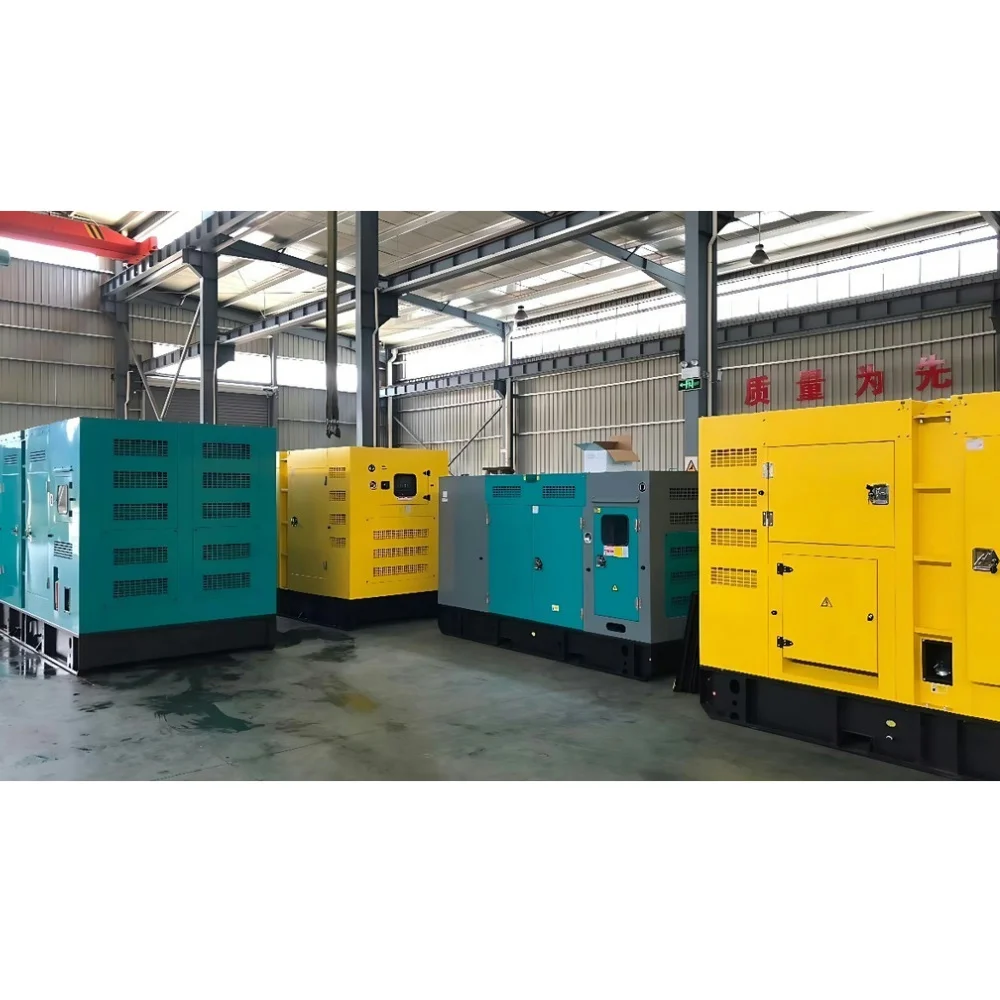

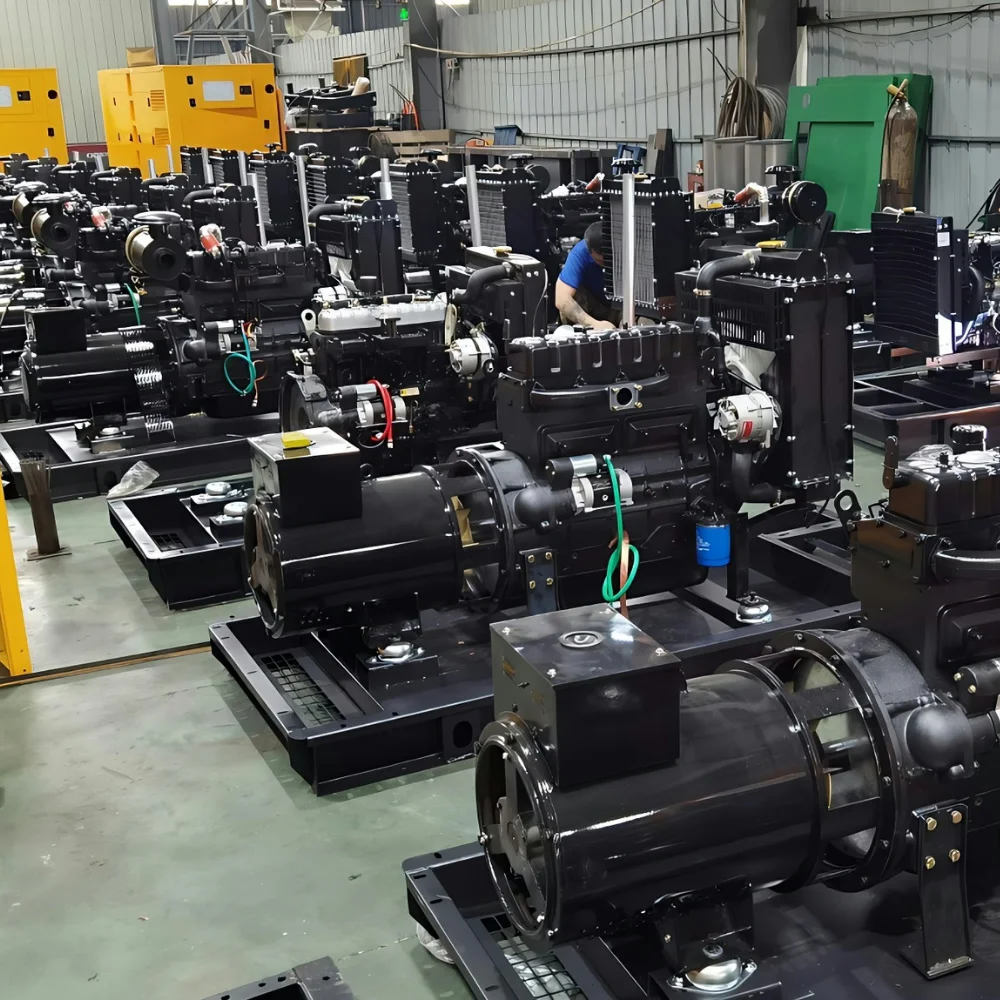

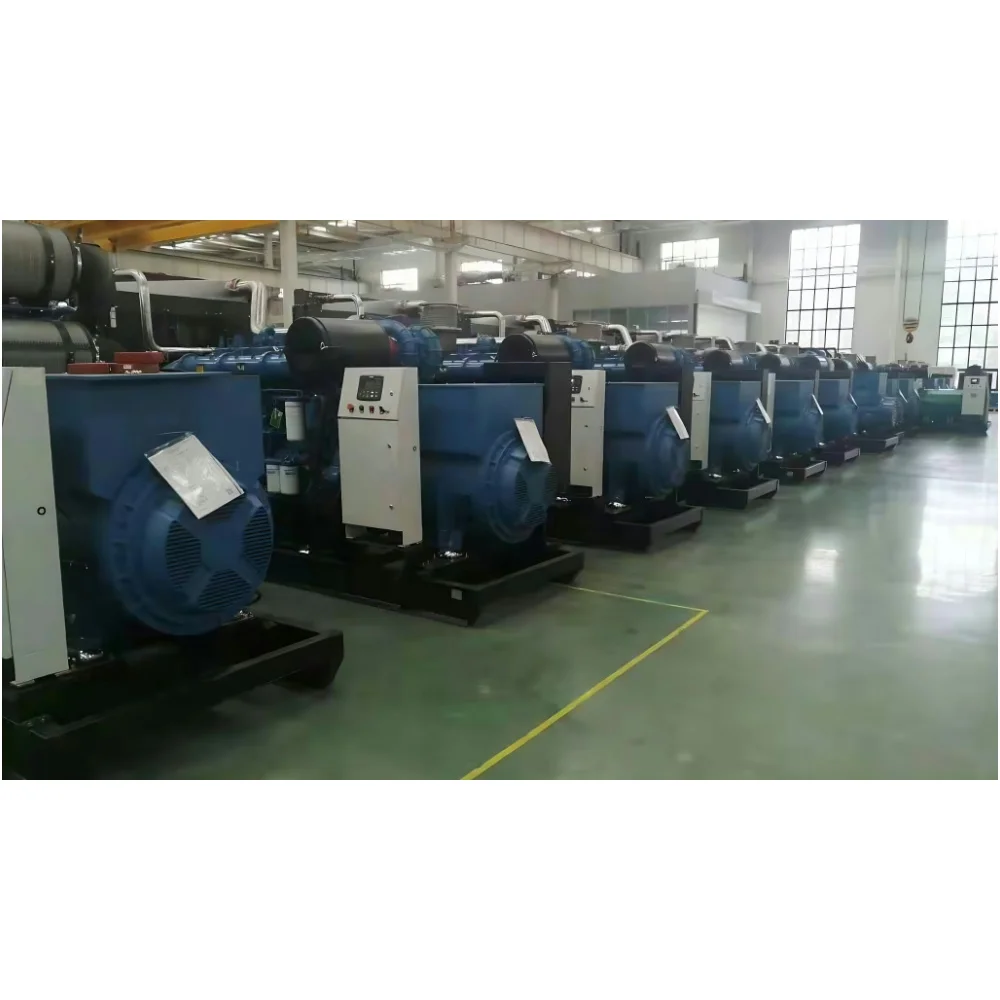

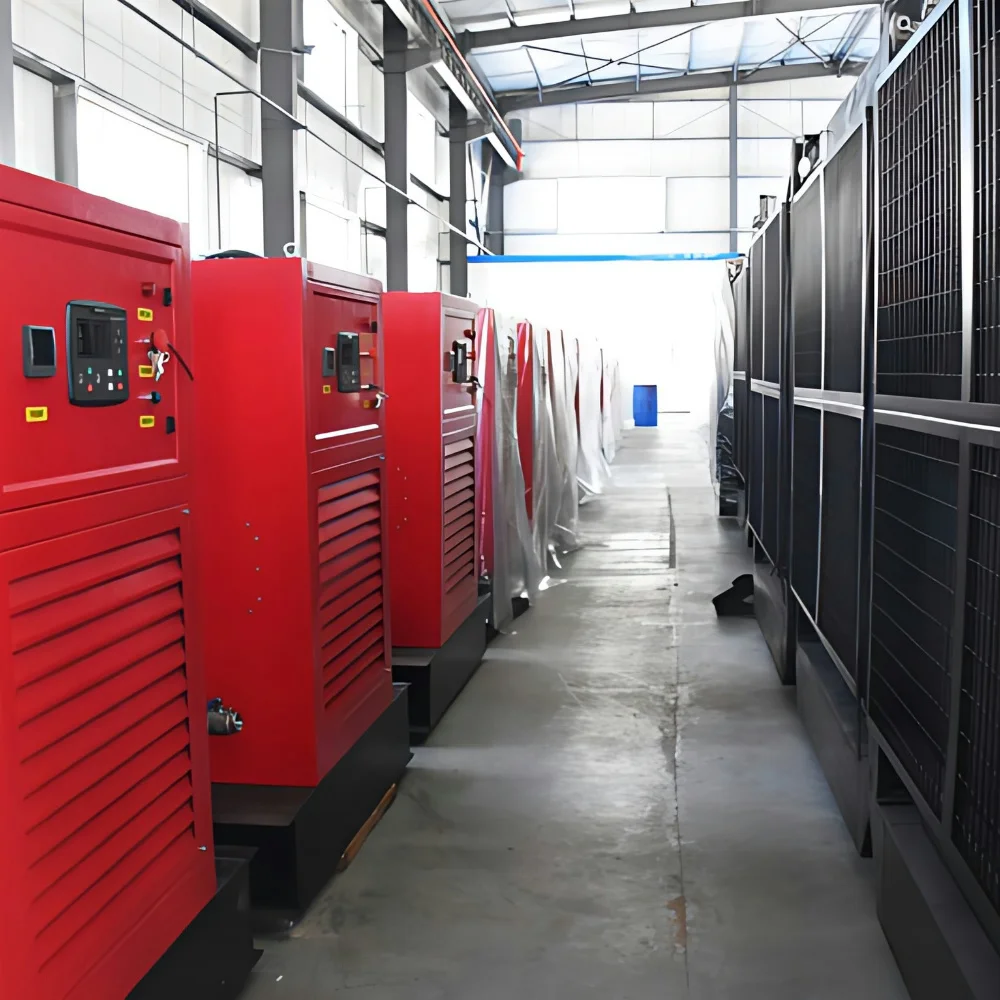

2 Production Bases
We operate two production bases in Fu'an and Changsha, located in Tiehu Industrial Park in Fujian and Environmental Industrial Park in Hunan. These facilities ensure efficient production and reliable delivery times, meeting customer demands consistently and on schedule.




Service Guarantee



① Warranty for 1-2 years or 1200-2500 hours from the date of shipment.
② 100% two times inspection before shipment
③ Overseas maintenance service and Training working operator


④ We stock abundant spare parts to meet client urgent maintenance requirements.
⑤ We supply one set air filter, oil filter, fuel filter for free.


Customized Product



① LOGO and color customization
② Nameplate customization




③ Style customization

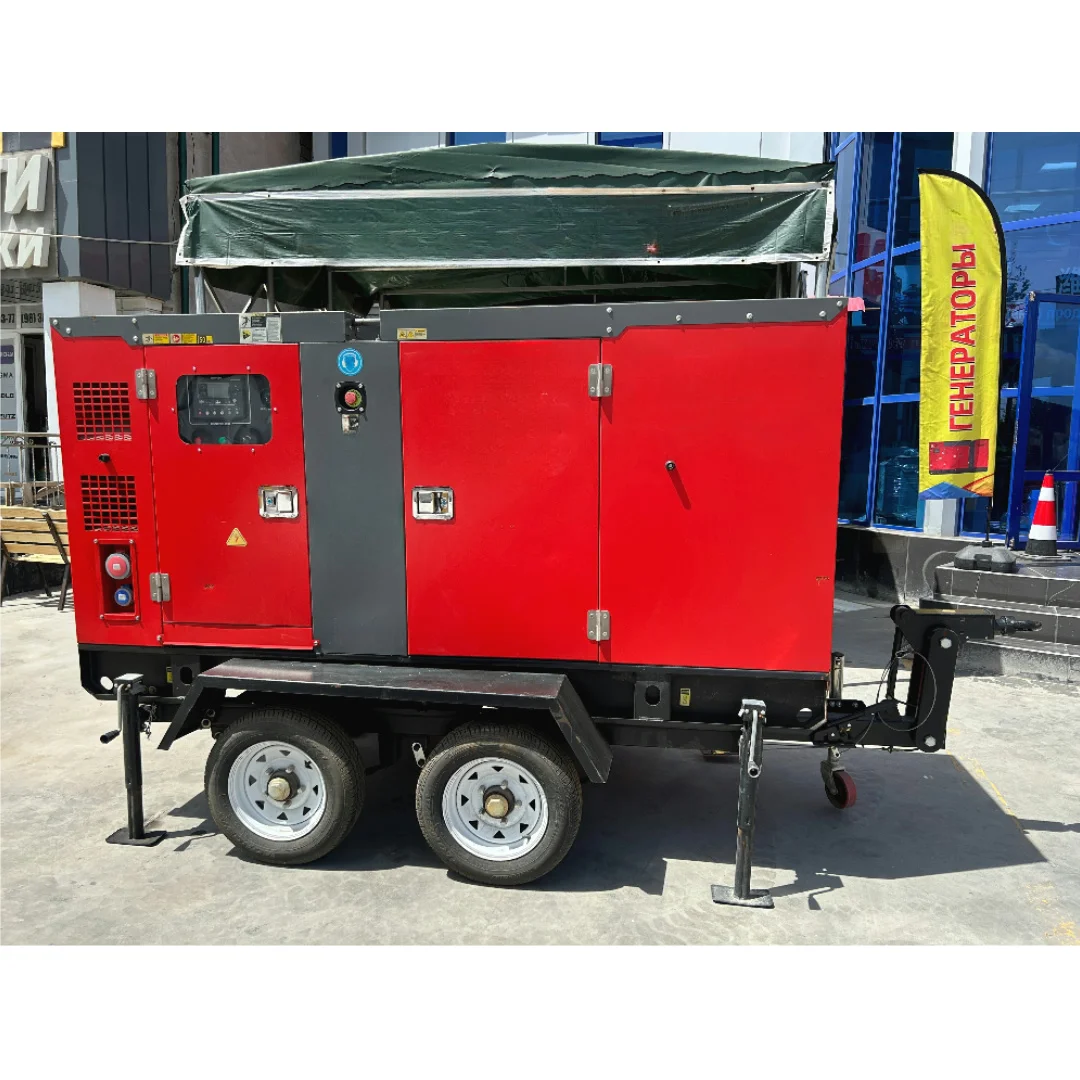

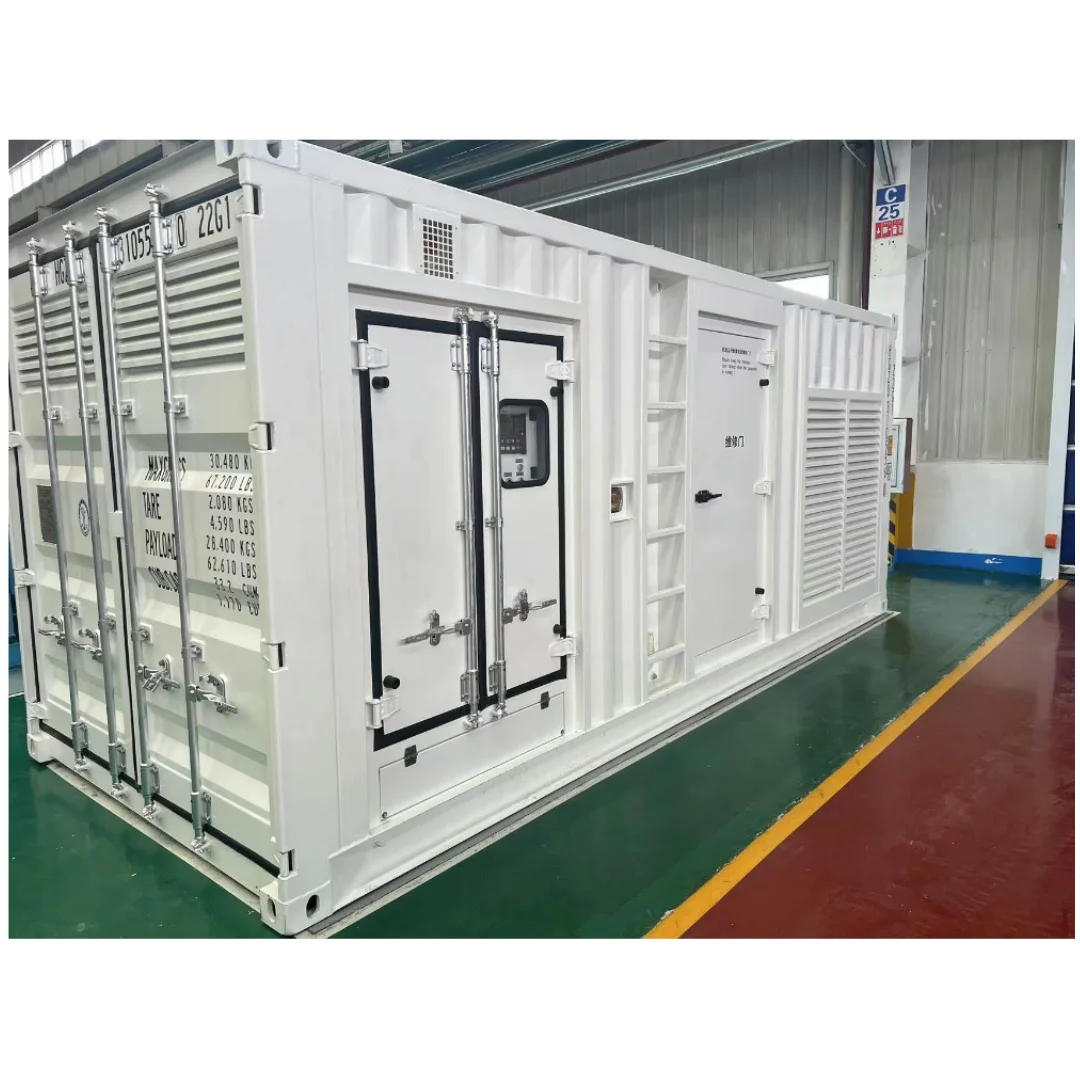

You can choose Open type, Silent type, Containerized and Trailer Type


SALES AND SERVICE NETWORK




Successful Project


Country：Uzbekistan
Project：National Data Center
Genset model:
Power：1200KW
Quantity: 8 SETS
Country：Uzbekistan
Project：Oil and Gas Field Project
Power：400KW
Quantity: 1SET
Country：Djibouti
Project：Container Project
Genset model:Cummins Series
Power：250KVA-750KVA
Quantity: 12 SETS


Country：China
Project：Caihong Group (Shaoyang) Special Glass Co.,Ltd
Genset model: WEICHAI
Power：2000KW
Quantity: 6 SETS
Country：Uzbekistan
Project：TV Station Project
Power：500KW
Quantity: 1SET
Country：China
Project：Hunan Xianggu Information Technology Co.
Genset model:YUCAHI
Power：1000KW
Quantity: 3 SETS


FAQ


Q: How to request a quote?
A: Please feel free to contact our sales department at 0086 15116240218.
Q: What is your minimum order quantity(MOQ)?
A: 1 set.
Are you a trading company or a manufacturer?
A: We are a factory.


Q: What are your terms of payment?
A: 30% by TT in advance and 70% balance before shipment.
What is the power range of your diesel generator?
We can provide 5KW-4000KW diesel generators and comprehensive power supply solutions for you.
Q: Do you provide OEM services?
A: Yes.


Q: What is your warranty period?
A: Our warranty period is 18 months or 1000 hours, whichever comes first. But according to some special items, we can extend the warranty period.
Q: What certificates do you have?
A: We have CE and ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COC for
Tanzania, etc.
Q: What is the delivery time?
A: 4-6 weeks.


Q: How can I trust you?
A: If you are not satisfied with the pictures, videos, boarding reports, load tests, customer experience, and sales staff's understanding of the generators you are interested in, we invite you to visit our spacious storage yards and stores to witness your generators. Carry out a load test and check our professional operations here.
Q: How do I get replacement parts for my generator?
A: It's as easy as calling your advisor. He will handle everything related to your machine, including supply and delivery of replacement parts and consumables, maintenance, technical assistance, operation, etc.
Q: What should I do after I receive the generator set?
A: Please read the operation manual carefully after obtaining the generator. The generator is attached to the user manual, With
Operation, Installation, Maintenance, and Repair Guide.
