Price:$179.00 - $209.00

Quantity:


Product Overview

Description



Product Description


Performance Feature & Application

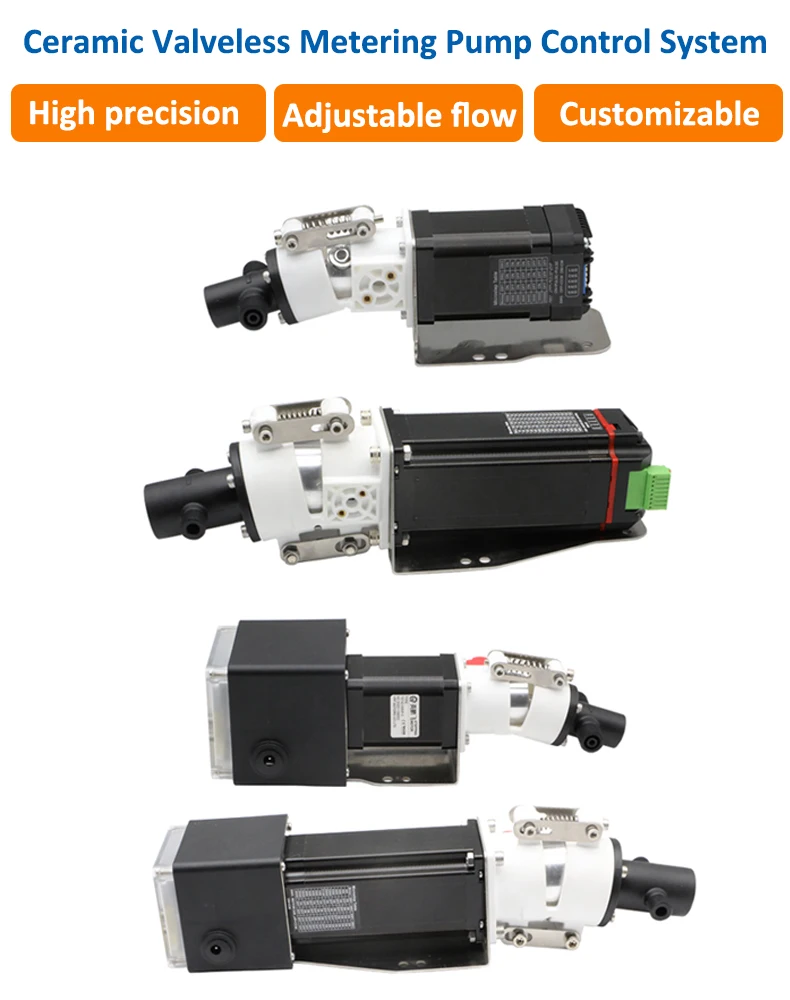

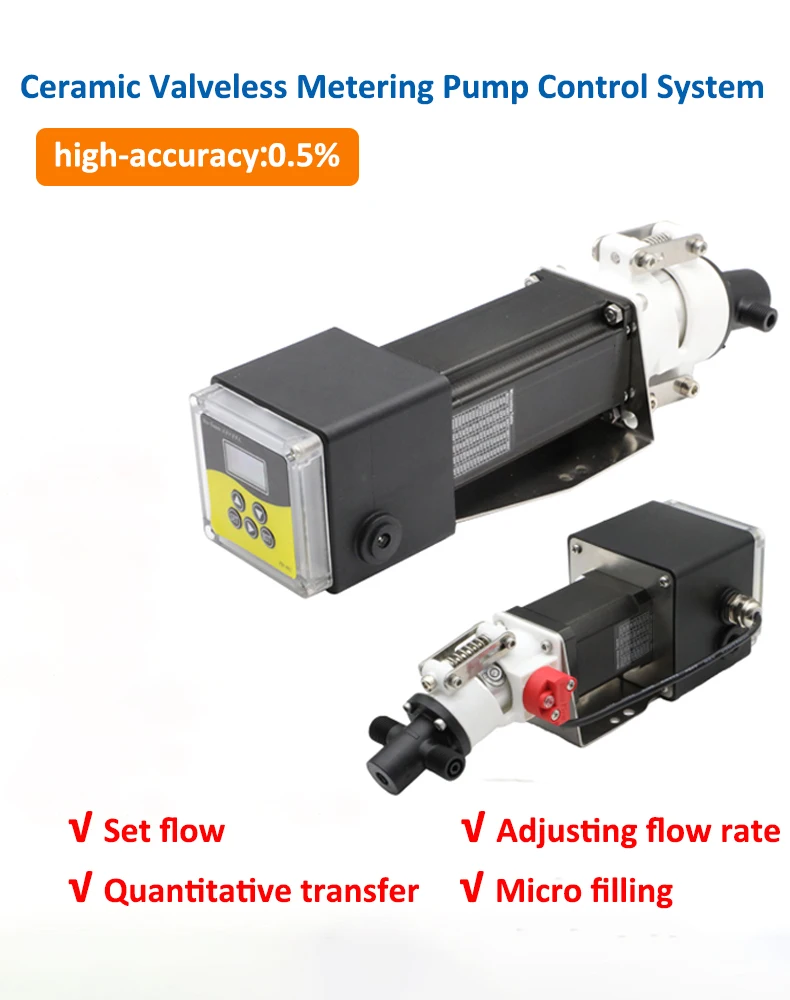

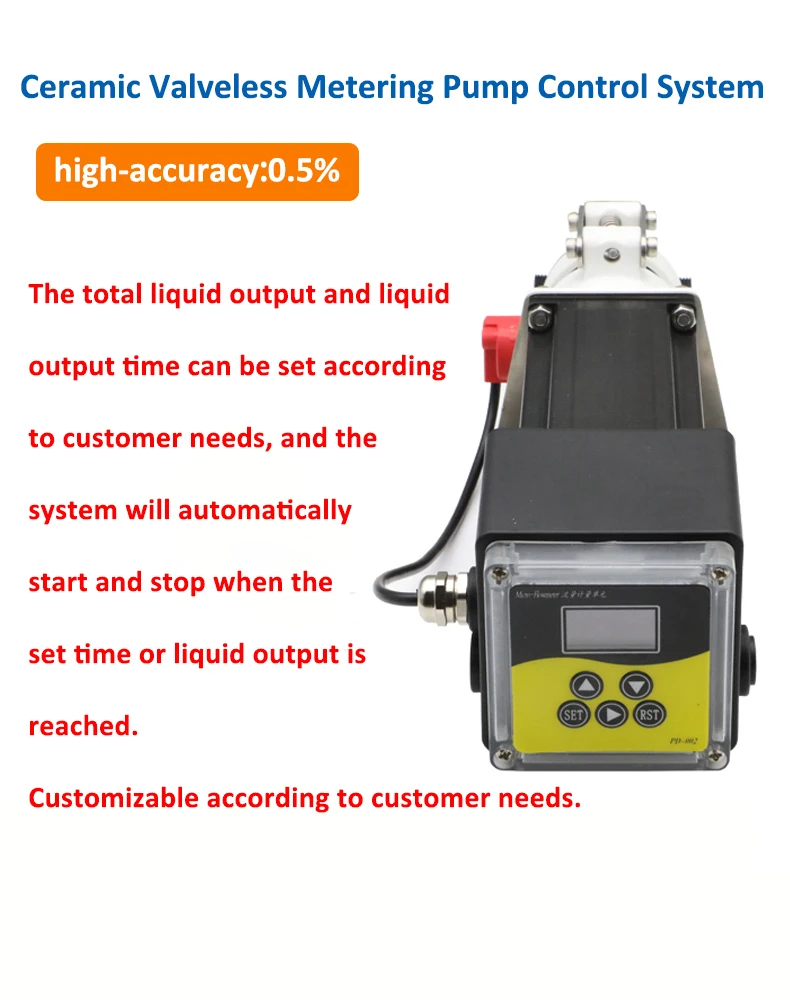

The plunger metering pump adopts a fluid pump with ceramic rod and ceramic sleeve (according to customer requirements or other materials) as the main structure of the pump body. The system includes a switch power supply, stepper motor, stepper motor driver, controller, and high-precision plunger pump body. Used to provide customers with high-precision solutions for small doses or trace amounts of liquids, such as conveying, dripping, and packaging. The system uses a microprocessor controller to control the stepper motor to travel 1600-6400 steps to drive the flow rate per revolution, providing a higher flow rate resolution and achieving fluid trace control.


Product Name
Ceramic Dosing Pump Pure Fruit Juice Edible Oil Dairy Liquid Valveless Metering Pump Micro Addition Filling Plunger Pump
Rated pressure
≤ 0.2MPa
Repetition accuracy
≤ 0.5%
Voltage
DC24V
Drive
stepper motor, servo motor, brushless motor
Fluid temperature
≤ 100 ° C
Medium used
general liquids, oils, water agents, etc


<Features>

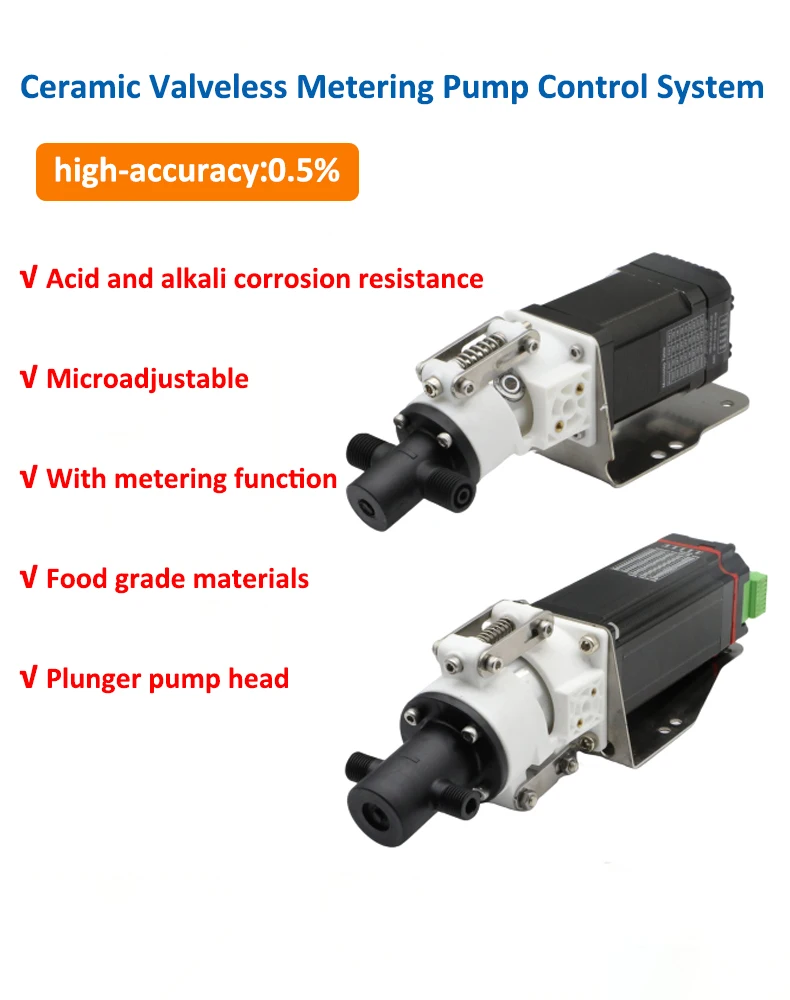

a. High density ceramic pistons and jackets have the characteristics of wear resistance, corrosion resistance, and high precision. With a clever motion structure, the liquid can move accurately in one direction without the need for a one-way valve, eliminating the deformation error of the pump body material under working pressure and the inlet and outlet liquid error caused by the opening and closing of the one-way valve, achieving high-precision liquid transfer accuracy. The repeated liquid transfer accuracy can reach up to 0.2%.

b. Meanwhile, ceramics themselves have good wear resistance, corrosion resistance, and excellent chemical compatibility, with a service life of over 200 million times.

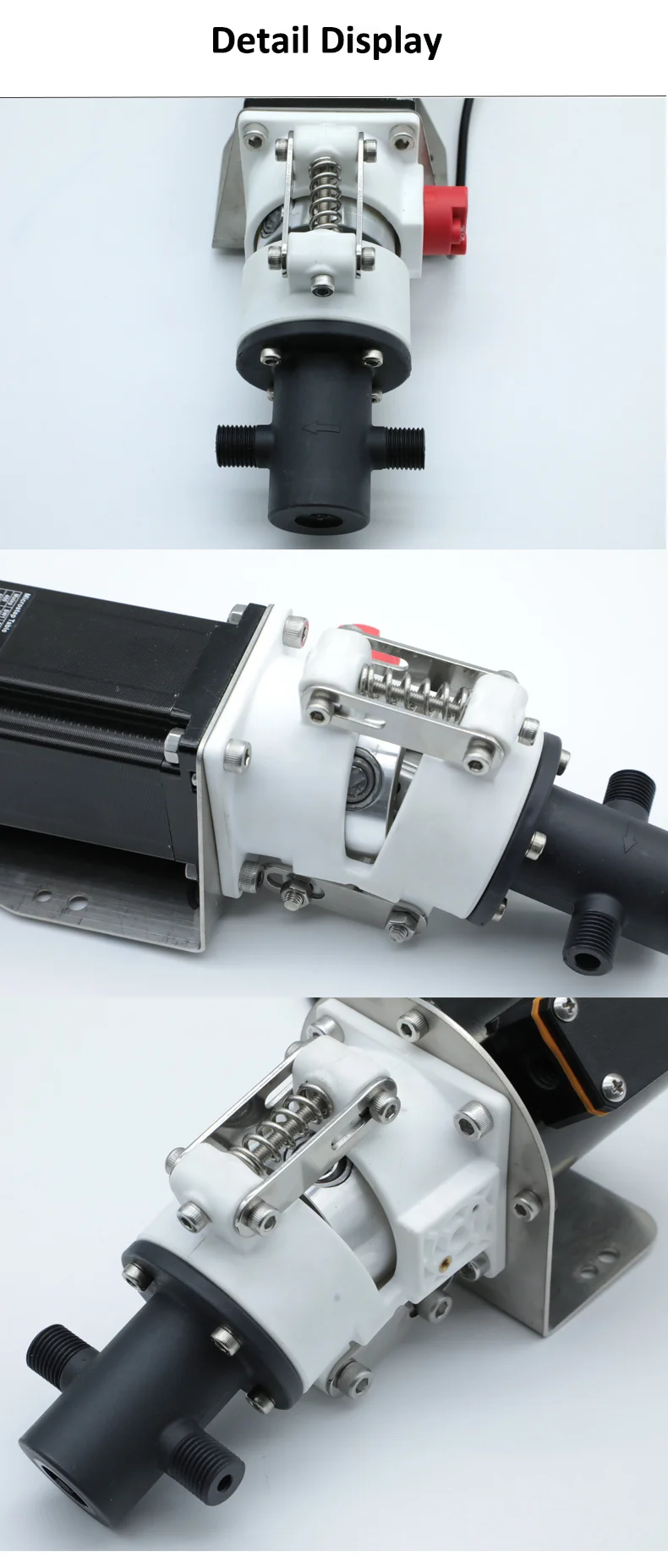

c. Quantitative adjustment control, pump head adjustment structure design is exquisite, easy to operate, and high-precision micrometer micro head is used to achieve fine adjustment of each stroke.

d. The key mechanism of the pump's movement adopts special technology and materials, achieving long service life, high precision, and maintenance free operation of the pump.

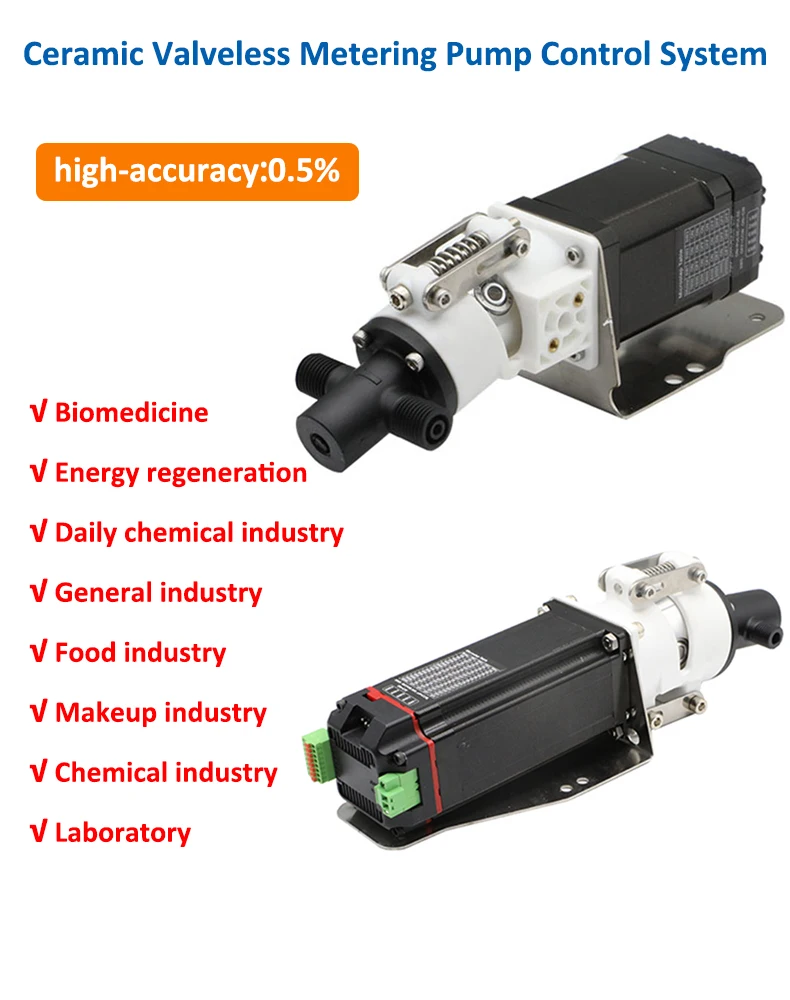

e. Used for the transportation, titration, sampling, packaging, and filling of liquids such as acids, bases, salts, organic solvents, various additives, and oils. Accept OEM.

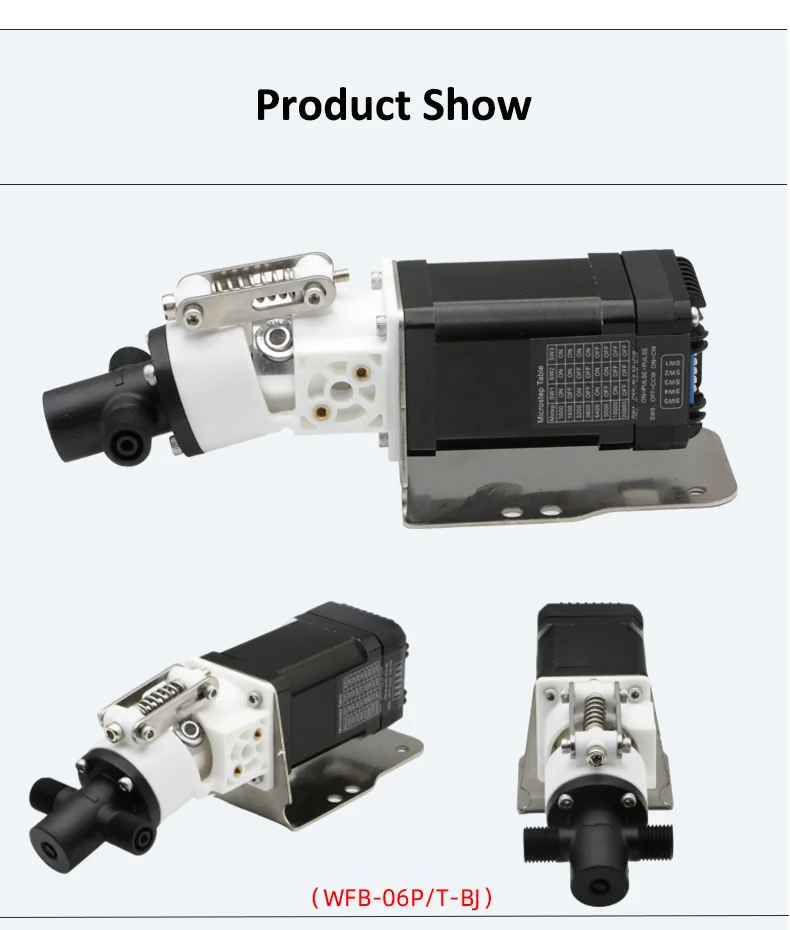

Product Show




Model
Plunger
Diameter
Liquid
receiving material
Speed
RPS
Max throughput
(uL/r)
Maximum
discharge
pressure
Control

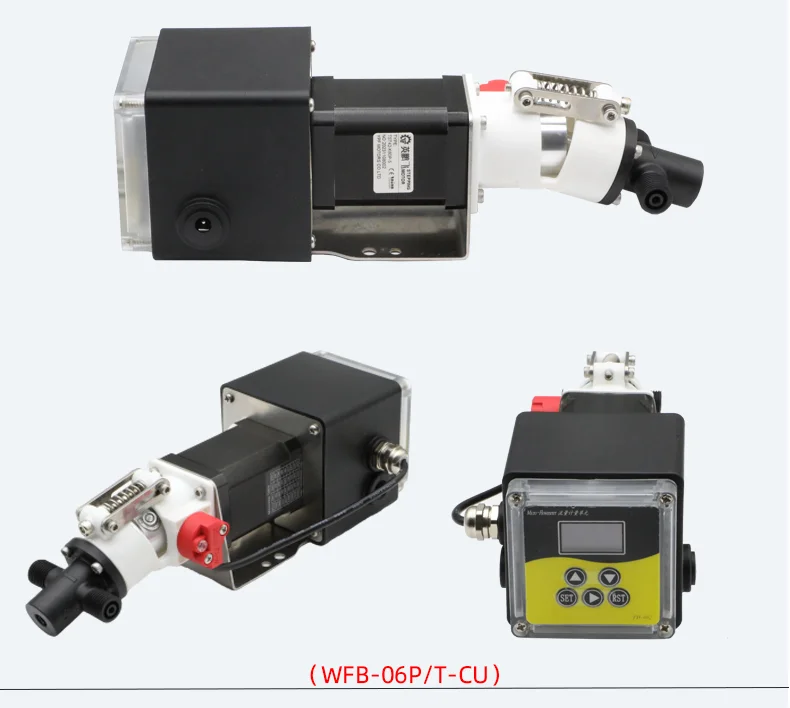

WFB-06P-CU
6mm
PP
0-10
0-130
1.0
With control screen
WFB-06T-CU
6mm
ptfe
0-10
0-130
1.0
With control screen
WFB-06P-BJ
6mm
PP
0-10
0-130
1.0
No control screen
WFB-06T-BJ
6mm
ptfe
0-10
0-130
1.0
No control screen

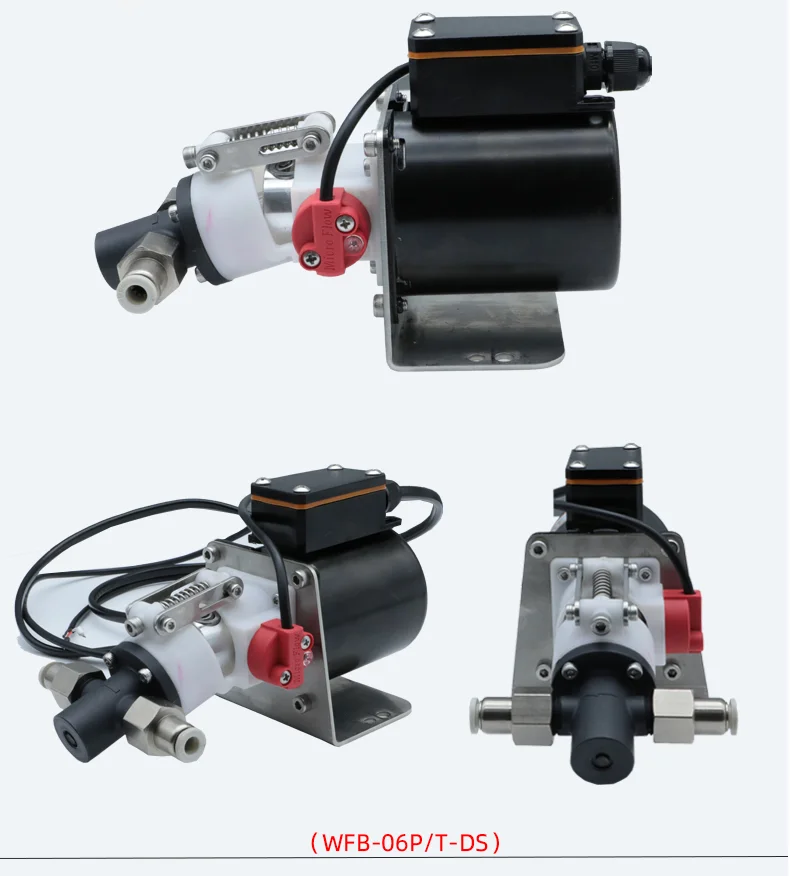

WFB-06P-DS
6mm
PP
0-10
0-130
1.0
Constant speed motor
WFB-06T-DS
6mm
ptfe
0-10
0-130
1.0
Constant speed motor
WFB-12P-CU
12mm
PP
0-10
0-1000
1.0
With control screen
WFB-12T-CU
12mm
ptfe
0-10
0-1000
1.0
With control screen

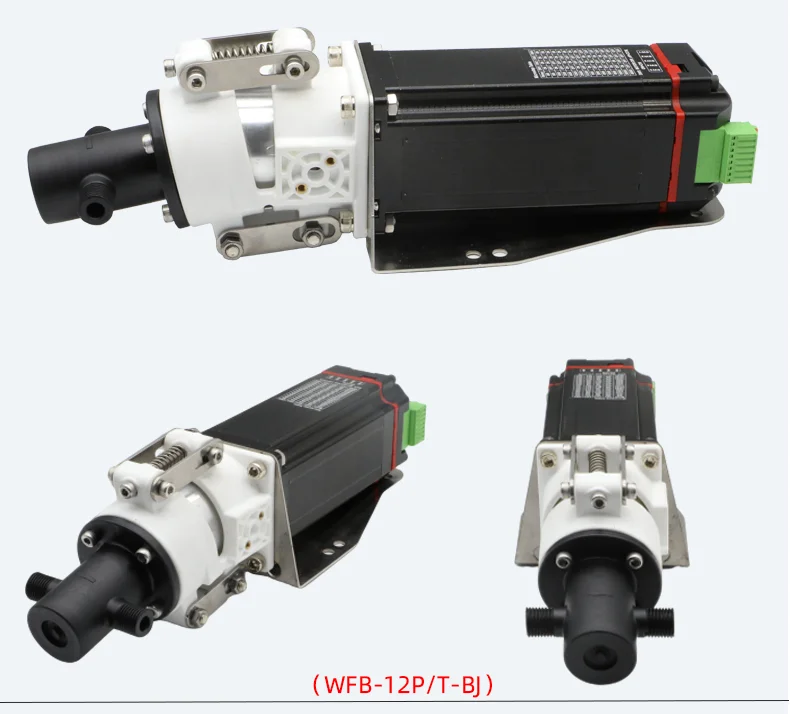

WFB-12P-BJ
12mm
PP
0-10
0-1000
1.0
No control screen
WFB-12T-BJ
12mm
ptfe
0-10
0-1000
1.0
No control screen

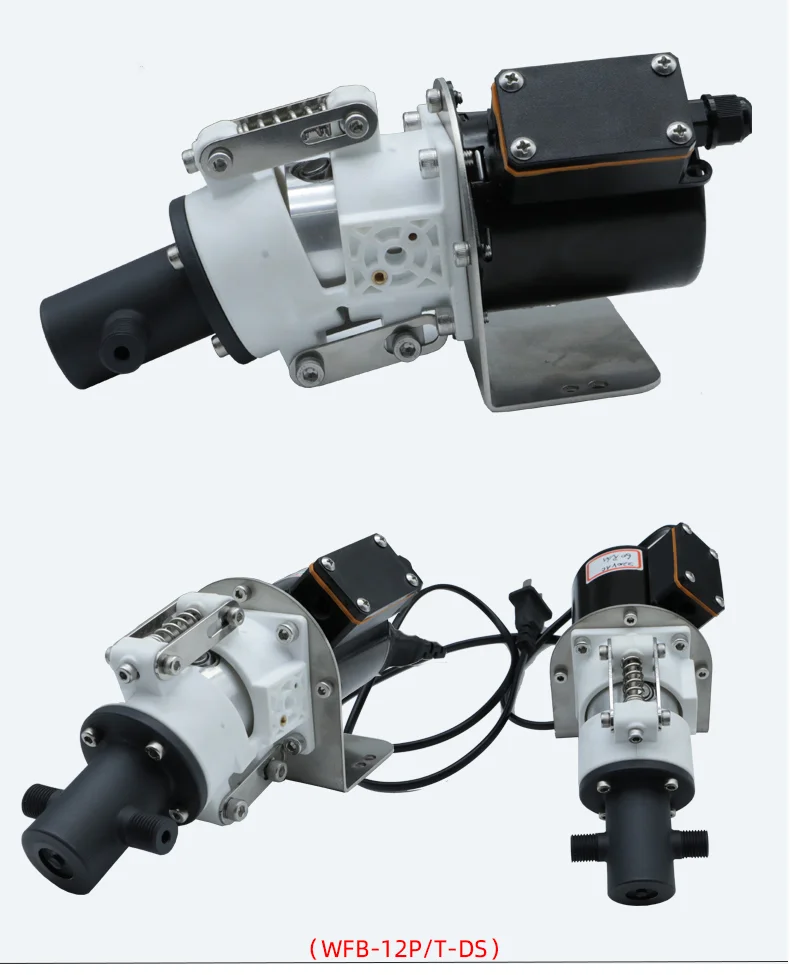

WFB-12P-DS
12mm
PP
0-10
0-1000
1.0
Constant speed motor
WFB-22T-DS
22mm
ptfe
0-10
0-6000
1.0
Constant speed motor
WFB-22T-DS
22mm
PP
0-10
0-6000
1.0
With control screen
WFB-22T-CU
22mm
ptfe
0-10
0-6000
1.0
With control screen
WFB-22P-BJ
22mm
PP
0-10
0-6000
1.0
No control screen
WFB-22T-BJ
22mm
ptfe
0-10
0-6000
1.0
No control screen
WFB-22P-DS
22mm
PP
0-10
0-6000
1.0
Constant speed motor
WFB-22T-DS
22mm
ptfe
0-10
0-6000
1.0
Constant speed motor














Company Profile










FAQ


Q1.Are you a factory?
A1:We are based in Shanghai, China, start from 2011.Main production and sales of various industrial flow meters and other products.Welcome to visit!

Q2.what can you buy from us?
A2:We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.

Q3. What is your terms of packing?
A3: Generally, JSN brand colorful cardboard boxes packing.OEM brandbrown cardboard boxes packing.

Q4. How about your delivery time?
A4: Generally, standard type : 6-7 working days after confirm the order.non-standard type: 8-10 working days after confirm the order.

Q5. What's your MOQ?
A5: We have no MOQ demand, 1 piece for test purpose at first is acceptable.

Q6. How do you ensure good product quality?
A6: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.

Q7. How long your quotation valid?
A7: Our quotation valid for 1 months.

Q8. Can you accept OEM brand?
A8: Yes, we can accept the OEM brand without extra charge.

Q9. How long is your product warranty?
A9: 7 days replacement and 12 months repair free of charge for quality problem.

Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
