Hot Sale Automation 1500W Aluminum Substrate Stainless Steel Metal Cutting High Accuracy Online Fiber Laser Sub Board Machine
- Category: >>>
- Supplier: Shenzhen Smida Intelligent Equipment Co. Ltd.
Share on (1601257794633):
Product Overview
Description

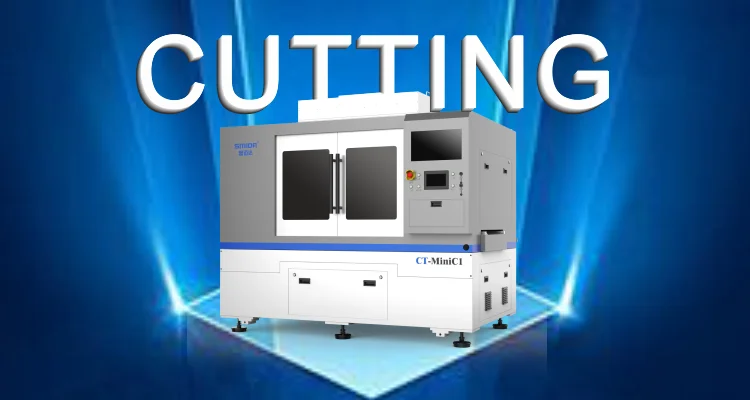

Product Introduction: CT-MiniC1
This laser sub-board machine is an excellent equipment for cutting aluminum substrates, copper substrates, and other metal materials, with high performance and efficiency, playing a huge role in metal cutting.
Features at a Glance
A concise description of core functions and features.
Cutting
Using high-performance fiber laser for cutting, with good optical mode, long lifespan, simple maintenance, dedicated cutting head and fixture, automatic follow-up, good cutting quality, cutting thickness of 1-2mm.
IPC
Equipped with a dedicated industrial control computer, the entire process is automatically controlled by computer software, making
it easy to operate and ensuring stable and efficient production of the machine.
it easy to operate and ensuring stable and efficient production of the machine.
CCD
Equipped with a high pixel CCD camera, it has automatic image recognition and high-precision image positioning functions, and can
capture various Mark marks and workpiece corners, chamfers, hole positions, etc.
capture various Mark marks and workpiece corners, chamfers, hole positions, etc.
Product Specifications
This table is for reference only. Actual dimensions are subject to the actual product. Changes in product appearance and specifications are not notified.ent industries.
Item | Data |
Machine model | CT-MiniC1 |
Laser type | Fiber |
Infrared laser power | 1500W, 2000W, 3000W, etc ( optional ) |
Platform processing format (L*W) | 1200X550mm |
Machinable material thickness | ≤2mm |
Positioning accuracy | ±3μm |
Repetitive positioning accuracy | ±1.5μm |
X/Y resolution | 0.2um |
X axis travel | 1340mm |
Y axis travel | 680mm |
Z-axis travel | 100mm |
X, Y single axis maximum speed | 1000mm/s |
XY maximum acceleratio | 1.5G |
CCD resolution | 5 million pesos |
High pressure air source (dry filtered air) | 1.2-1.5Mpa |
Air source (dry filtered air) | 0.5-0.6Mpa |
Working height | 900+30mm |
Rated voltage of main equipment power supply | 220V/50Hz |
Industrial vacuum power supply | 380V/50Hz |
Main equipment external dimensions(L*W*H) | 2405x1560x2140(mm) |
Main equipment weight | 2400kg |
Total power | 13kW/h (including dust catcher) |
Production Configuration
Main hardware components and software systems.
Laser
Equipped with fiber laser cutting, good optical mode, long lifespan, and easy maintenance.

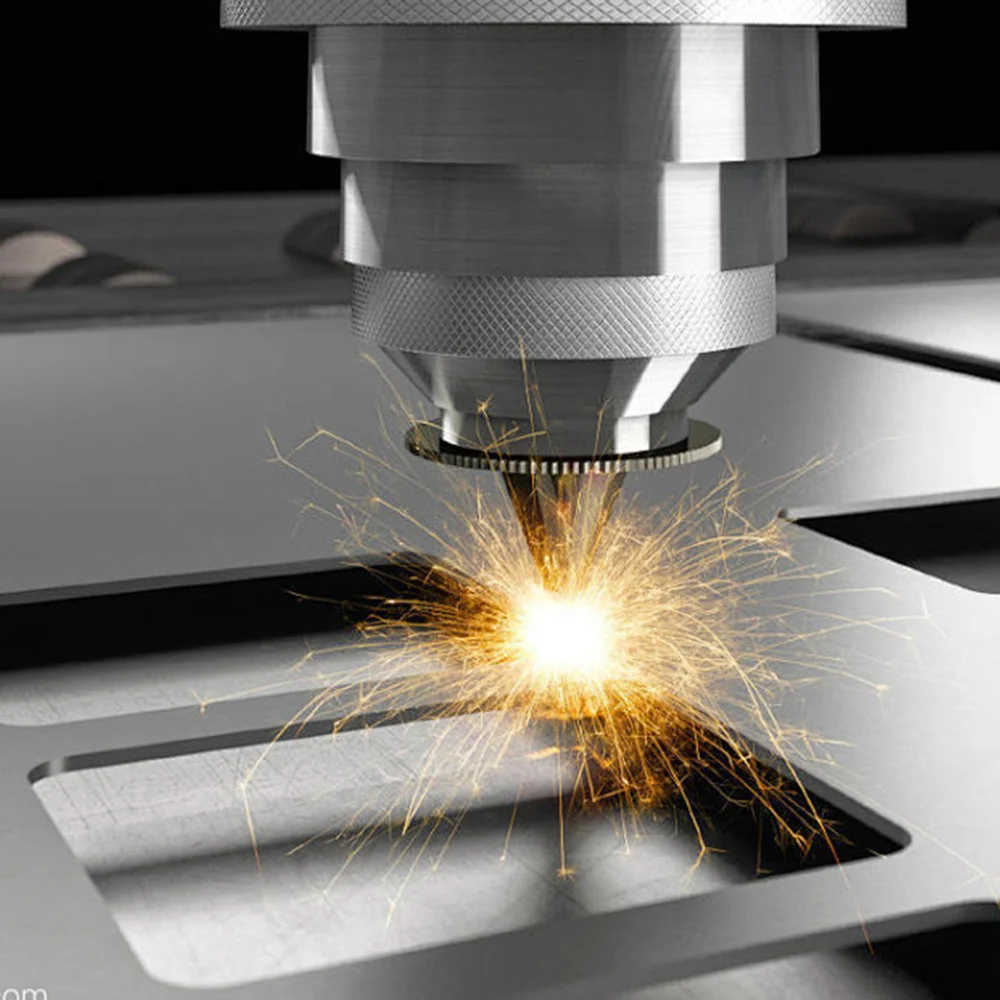

Cutting head
Equipped with a dedicated cutting head, automatic tracking system, and specialized fixtures, the cutting quality is good.
CCD camera
Equipped with a high pixel CCD camera, it has automatic image recognition and high-precision image positioning functions.
Cutting system
SMIDA independently developed. " One click " operation is simple and fast.
Dust buster
Standard configuration. Improve the environment and protect the health of personnel.
MES system
Optional. Reserve interfaces and customize information collection.
Products Applications
Mainly used for laser cutting of aluminum and copper substrates, it can also cut metal sheets and materials such as aluminum alloys, stainless steel, carbon steel, alloy steel, silicon steel, etc.
Aluminum substrate
Copper substrate
Stainless steel
Customers List
Shenzhen Smida Intelligent Equipment Co., Ltd. is a high-tech enterprise with over ten years of experience. It has provided automation equipment with independent intellectual property rights to multiple Fortune 500 companies, listed companies, and industry leaders. Currently, its business scope covers nearly 30 countries in five continents around the world.
