Wall Mounted ERV Ventilation System Double energy recovery,heat recovery efficiency mechanical ventilation with heat recovery
- Category: >>>
- Supplier: Sichuan Guigu Renju Technology Co. Ltd.Sichuan Ltd.
Share on (1601257847513):
Product Overview
Description
About us
1.Have 2 plants meet the capacity demands 2.Possess 80 patents certificates
3. 11 years experience HVAC industry 4. Have strong R&D and HVAC design team
5. Free installation plan design service 6.A full set of ventilation system installation pipe fitting supply
7.Have 2 laboratories(national approved enthanlpy and 30m³ laboratory
8. Duilt a sound certificate system of ISO9001, ISO 14001， ISO45001， CE certificate and other product certification system.
Features & Benefits

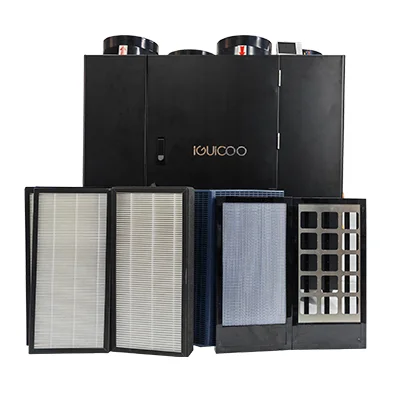

G4+H12 Hepa filters IFD module ( optional）
Making the air entering the room more healthy, fresh and pure
Noise test physical shot
Noise test physical shot
This Vertical ERV is suitable for house unit with insufficient headspace
* The system uses air energy recovery technology.
* It integrates balanced ventilation, pre- heating of fresh air in winter.
* It provides healthy and comfortable fresh air while achieving maximum energy savings,heat recovery efficiency is up to 90%.
* Reserve positions for custom function modules.
* Bypass function is standard.
* PTC heating,ensure operation in low temperature environment in winter
* It integrates balanced ventilation, pre- heating of fresh air in winter.
* It provides healthy and comfortable fresh air while achieving maximum energy savings,heat recovery efficiency is up to 90%.
* Reserve positions for custom function modules.
* Bypass function is standard.
* PTC heating,ensure operation in low temperature environment in winter

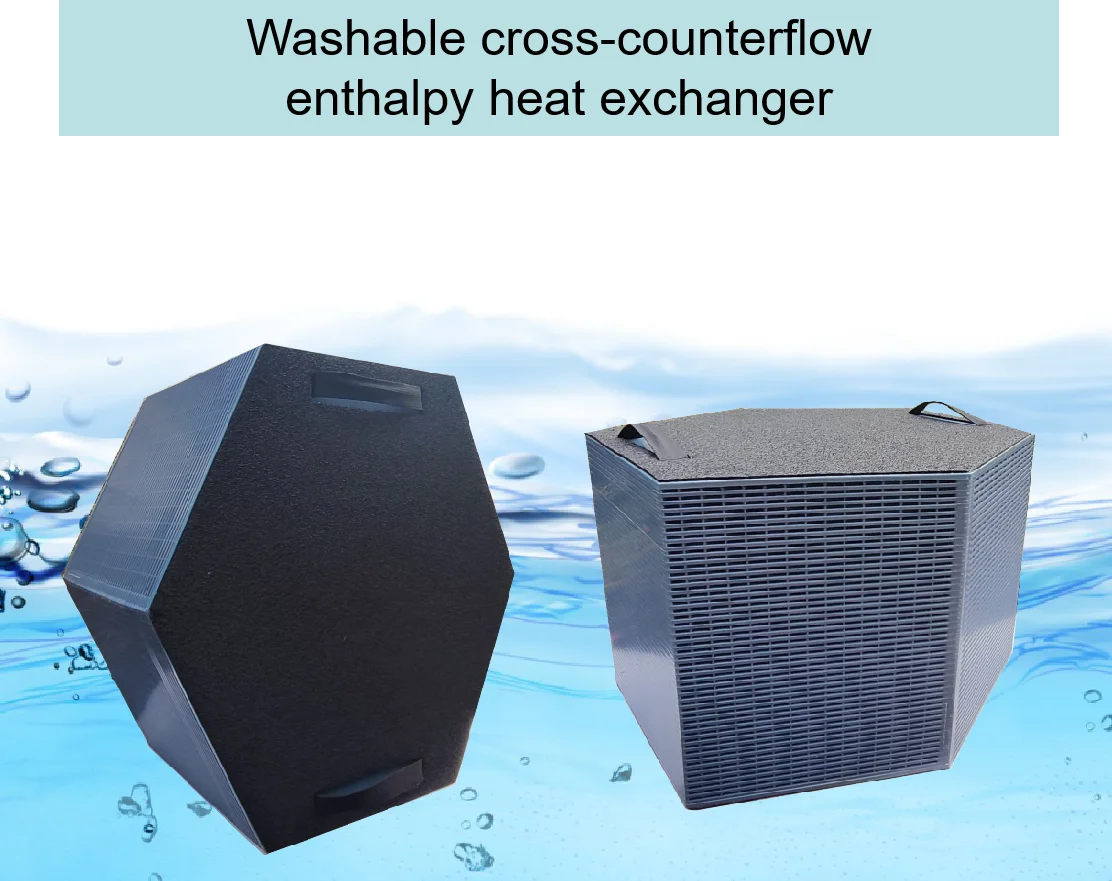

Washable cross-counterflow
enthalpy heat exchanger
enthalpy heat exchanger

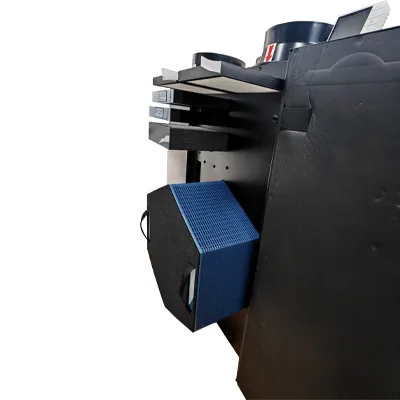

1.High efficiency cross-counterflow enthalpy heat exchanger
2.Easy to maintain
3.5~10 years life
4.Up to 93% heat exchange efficiency
2.Easy to maintain
3.5~10 years life
4.Up to 93% heat exchange efficiency

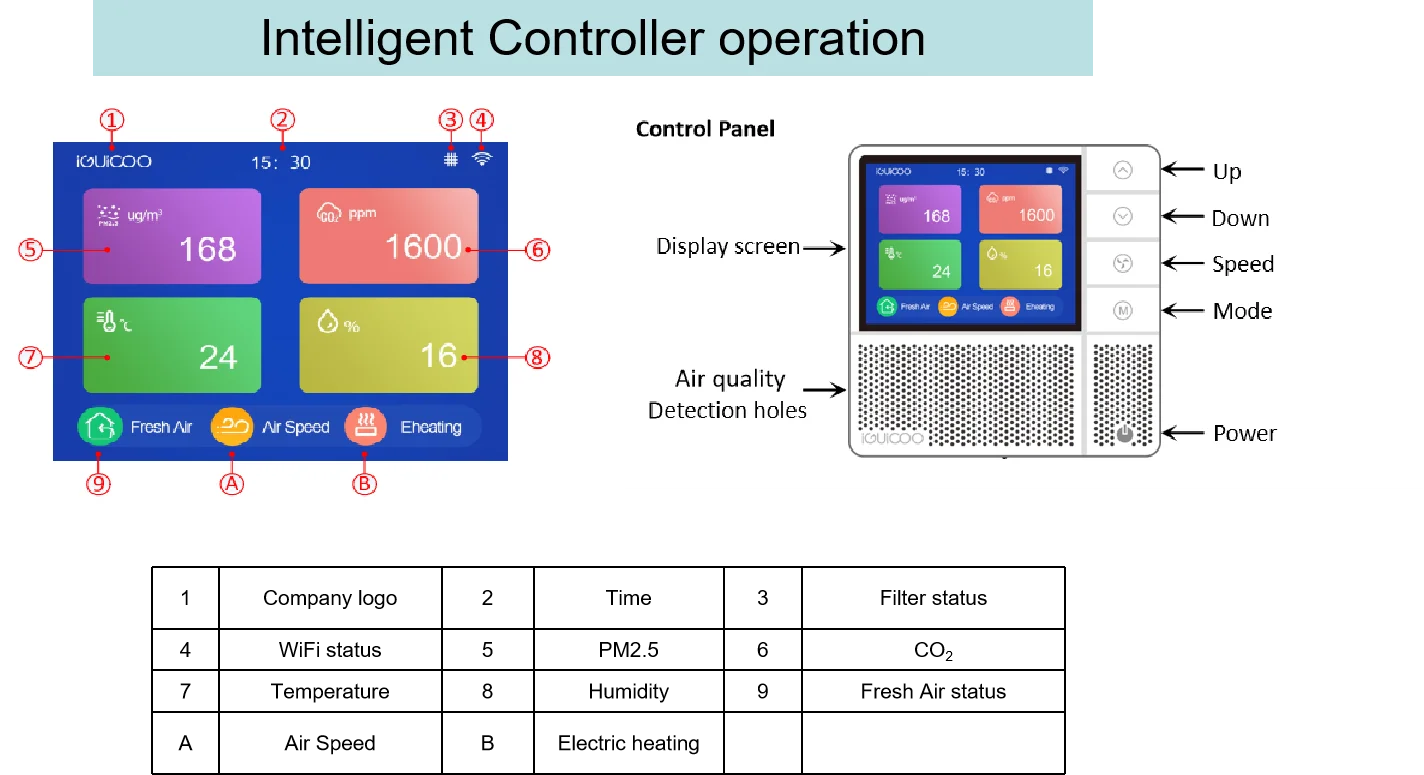

Intelligent Controller operation
•Intelligent detection
Indoor temperature, humidity, CO2 concentration, PM2.5 concentration detection
•Smart display
2.8 inch color LCD display, all data real-time display;
•4 speed speed
High speed, medium speed, low speed, automatic 4 speed, to meet the needs of more customers;
•A variety of working modes
Pre-heating, ventilation, bypass,to meet the needs of different seasons
Indoor temperature, humidity, CO2 concentration, PM2.5 concentration detection
•Smart display
2.8 inch color LCD display, all data real-time display;
•4 speed speed
High speed, medium speed, low speed, automatic 4 speed, to meet the needs of more customers;
•A variety of working modes
Pre-heating, ventilation, bypass,to meet the needs of different seasons
WIFI function
Work with Tuya Smart APP
Intelligent control
According to indoor air quality

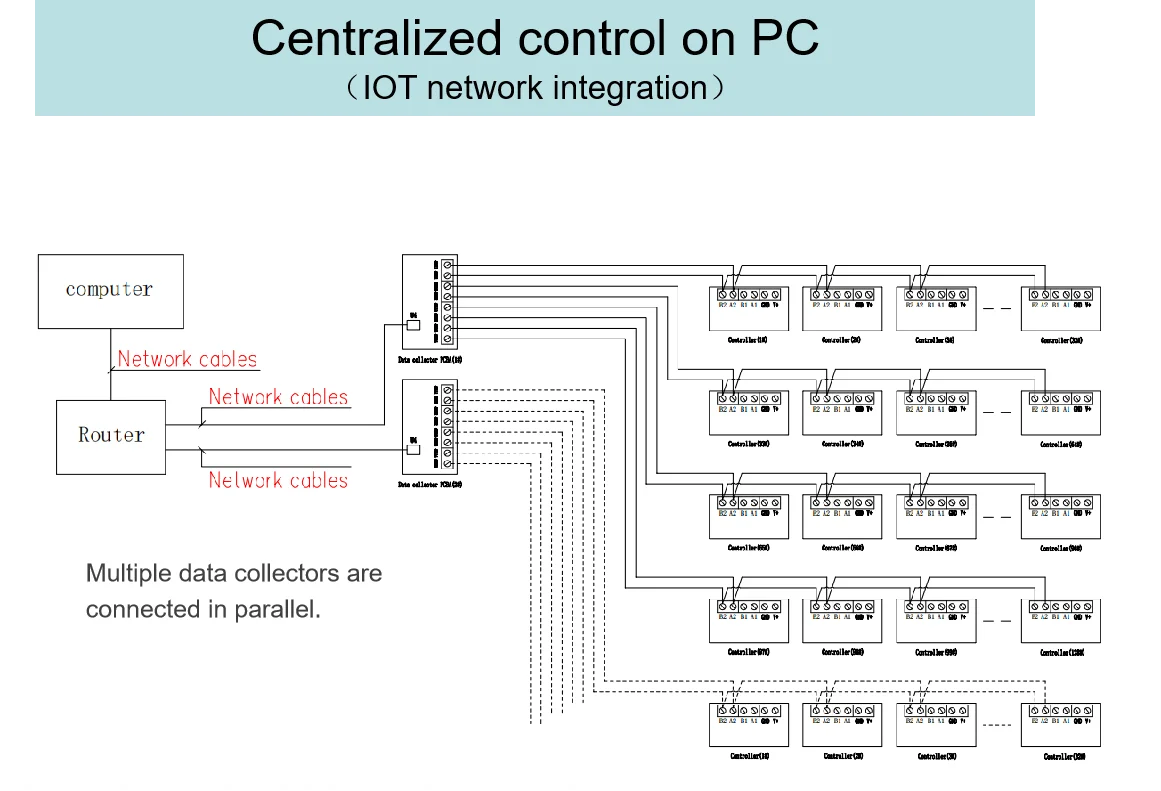

Optional Centralized control
Up to 128pcs ERV controlled
by one Data acquisition unit
by one Data acquisition unit

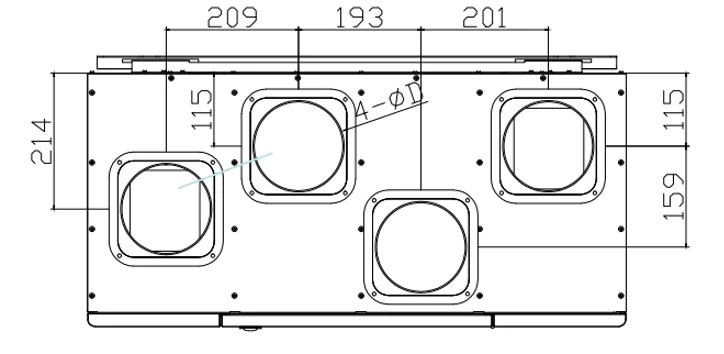

Model | Φ D | Inlet and outlet pipe diameter |
TEWPW-025(C1-1D2) | 150 | Rc 3/4" |
TEWPW-035(C1-1D2) | 150 | Rc 3/4" |
TEWPW-050(C1-1D2) | 200 | Rc 3/4" |

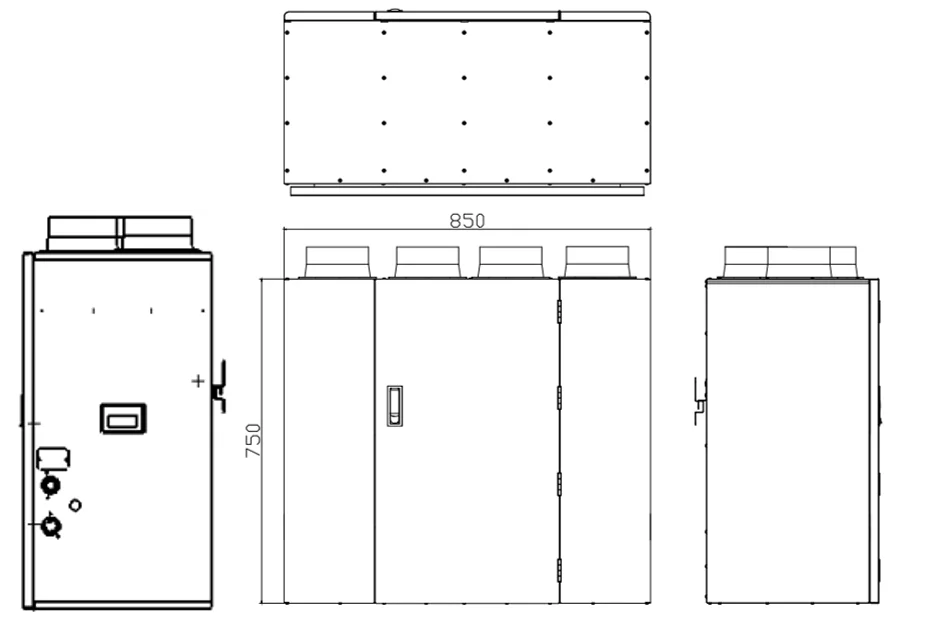

Specification & Dimensions
Technical parameter | ||||||
Model | TFPW-025(C1-1D2) | TFPW-035(C1-1D2) | TFPW-050(C1-1D2) | |||
Airflow（m³/h） | 250 | 350 | 500 | |||
Rated E.S.P（Pa） | 100 | 100 | 100 | |||
Temp.Eff. (%) | 80-93 | 75-90 | 73-88 | |||
Noise dB（A） | 34 | 36 | 42 | |||
Power input (W)（Fresh air only） | 115 | 155 | 225 | |||

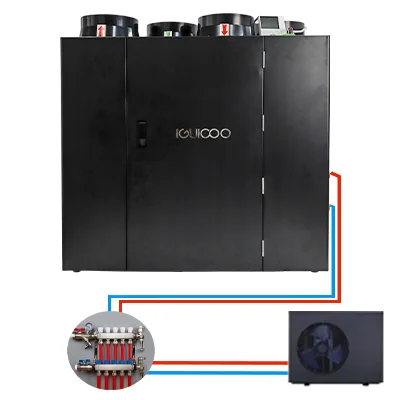

Pre-cooling capacity（W） | 1200* | 1500* | 1800* | |||
Pre--heating capacity（W） | 2000* | 2500* | 3000* | |||
Water supply (kg/h) | 210 | 270 | 320 | |||
PTC preheating （W）（Anti-freezing） | 300（600） | |||||
Rated voltage/frequency | AC 210-240V / 50（60）Hz | |||||
Energy recovery | Enthalpy exchange core，heat recovery efficiency is up to 93% | |||||
Purification efficiency | 99% | |||||
Controller | TFT Liquid crystal display / Tuya APP | |||||
Motor | DC motor（Double intake direct current centrifugal fan） | |||||
Purification | Primary filter + H12 Hepa filter | |||||
Operation mode | Fresh air purification + By-pass function | |||||
Operating ambient temperature（℃） | -25～40 | |||||
Product size（L*W*H）mm | 850x400x750 | |||||
IFD sterilization filter | Optional | |||||
Fixation | Wall-mounted or standing-mounted | |||||
Connect size（mm） | φ150 | φ150 | φ200 | |||
* Indicates test conditions: cooling inlet dry and wet bulb temperature DB/WB: 27/19.5℃, chilled water inlet and outlet
temperature: 7/12℃. Heating inlet air dry bulb temperature DB: 21℃, hot water inlet temperature 60℃.
temperature: 7/12℃. Heating inlet air dry bulb temperature DB: 21℃, hot water inlet temperature 60℃.
