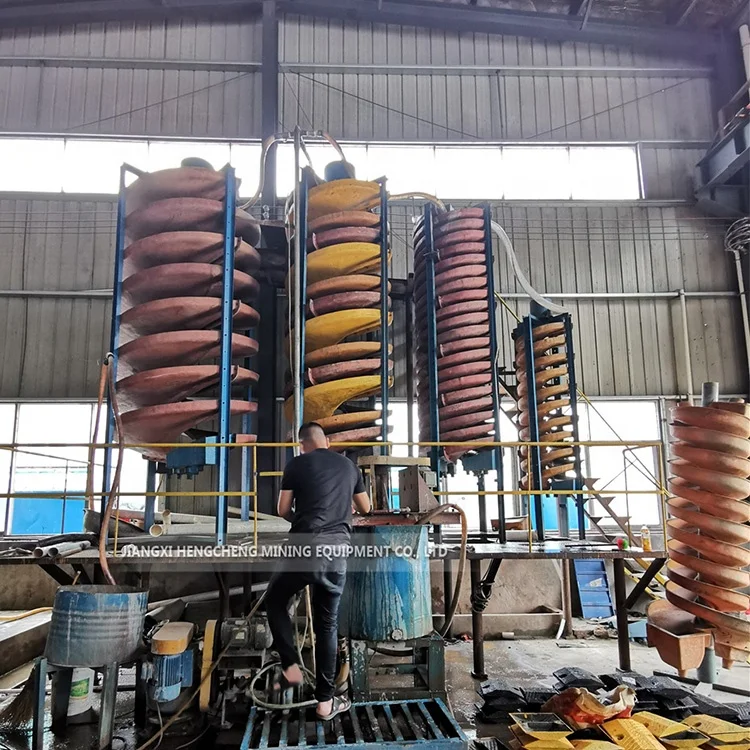

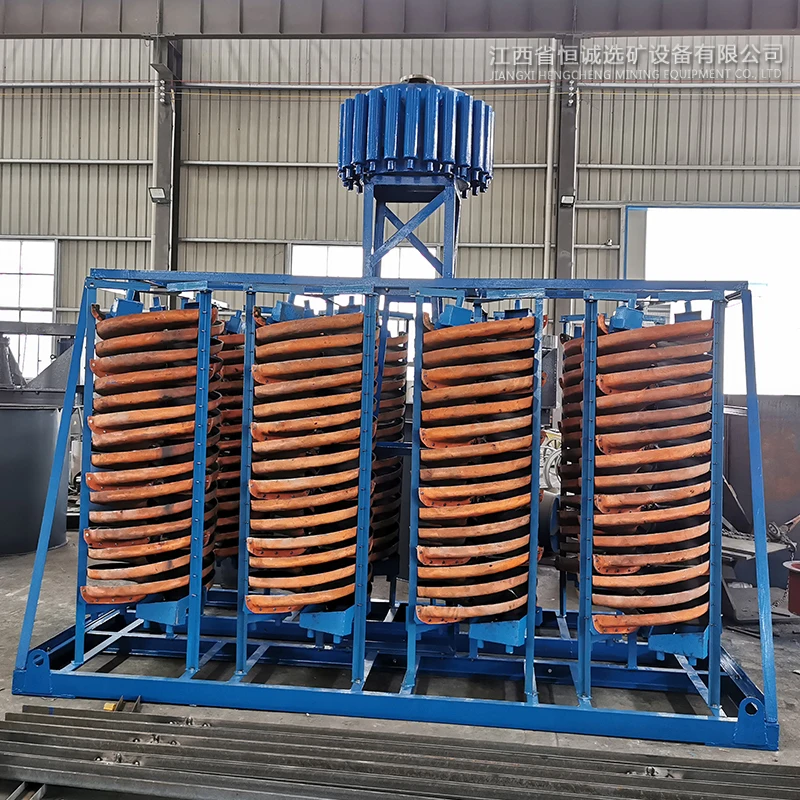

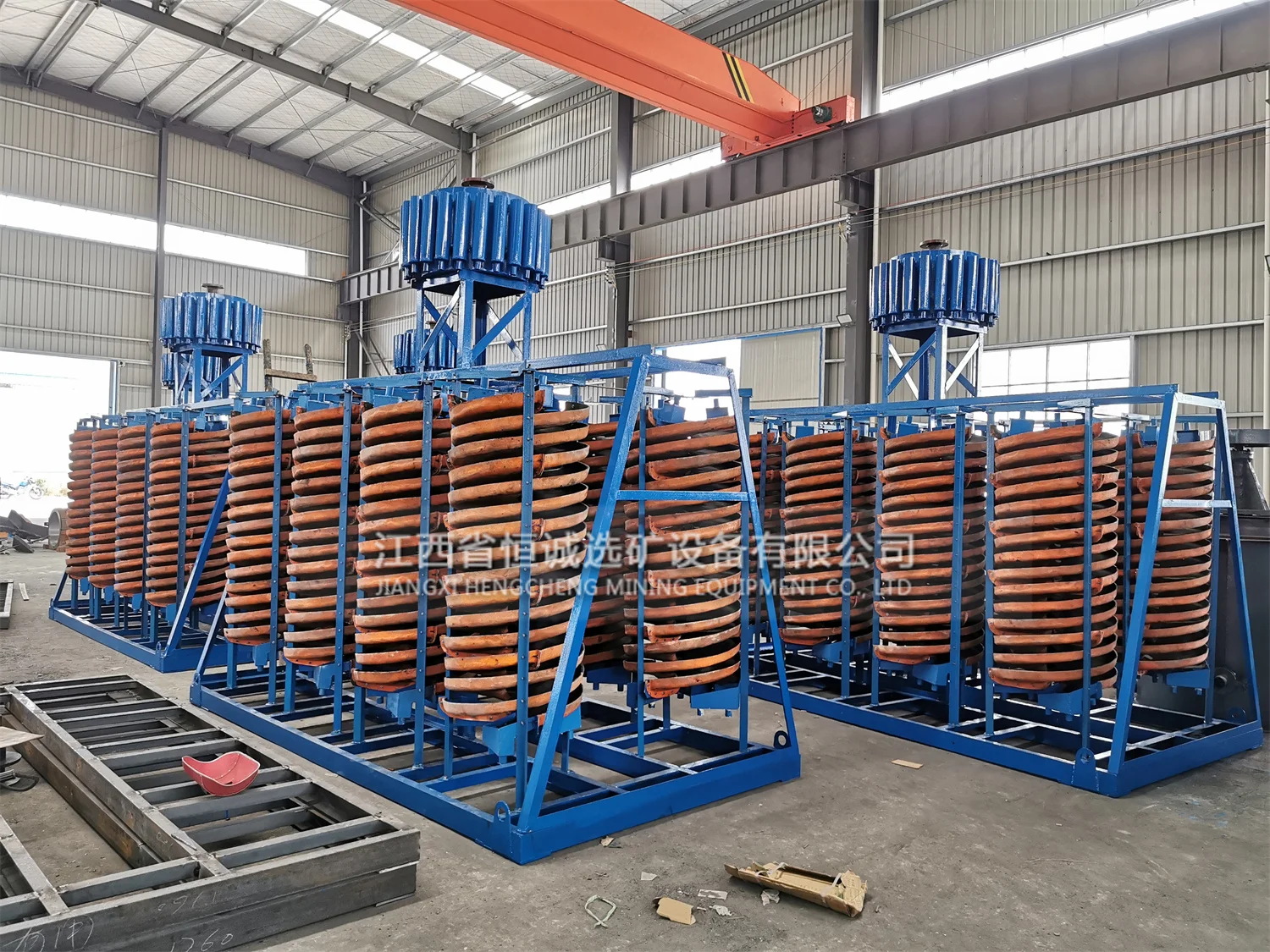

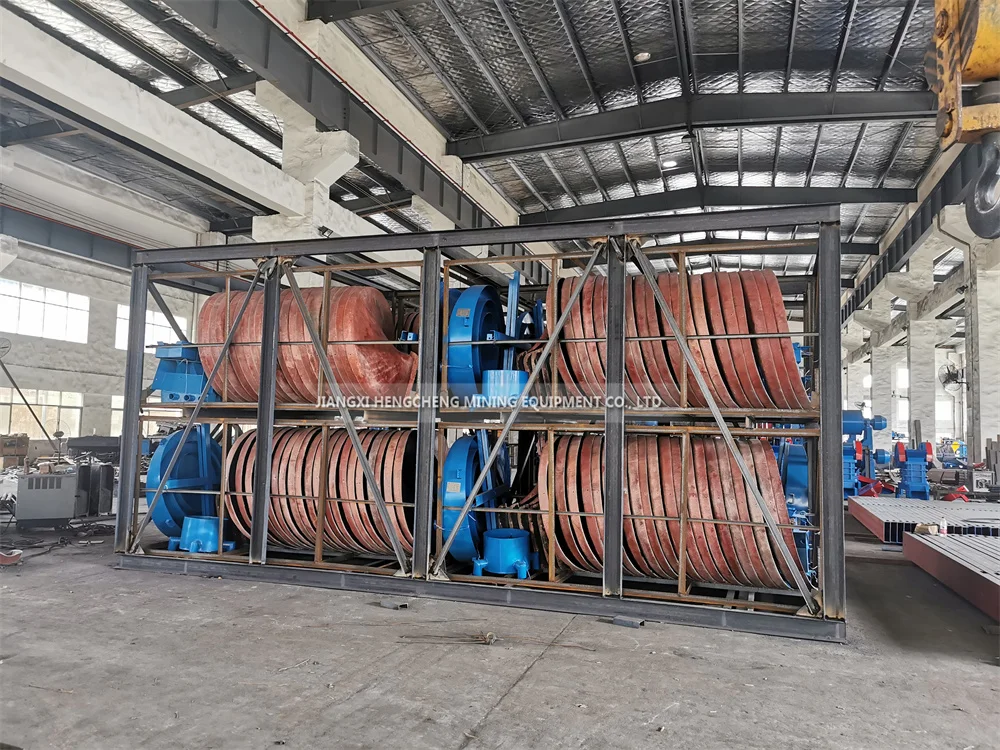

Lumpy Chrome Ore Processing Equipment chrome wash plant 5LL 1200 Spiral Chute Machine
- Category: >>>
- Supplier: Jiangxi Hengcheng Mining Equipment Co. Ltd.
Share on (1601257939693):
Product Overview
Description
Product Overview
DESCRIPTION
Chrome ore currently exists in two types. Lump chrome ore and sand chrome ore. Different types of mines have different sorting methods. However, their beneficiation methods are all gravity separation. The biggest feature of gravity separation is environmental protection, low investment, easy operation and quick return.

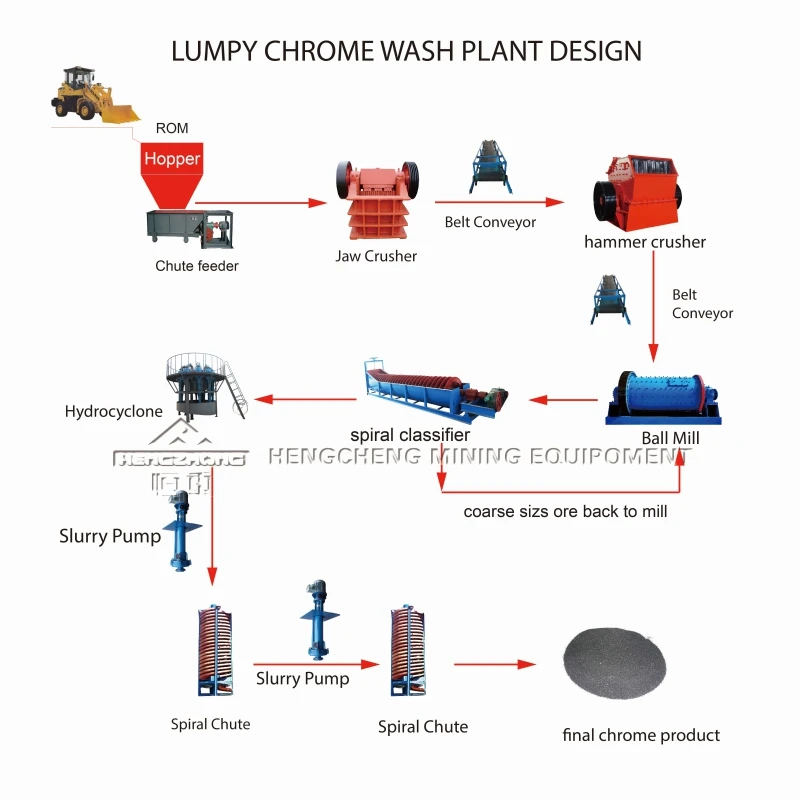

The beneficiation process of massive chrome ore is crushing, grinding, sieving, and enrichment.

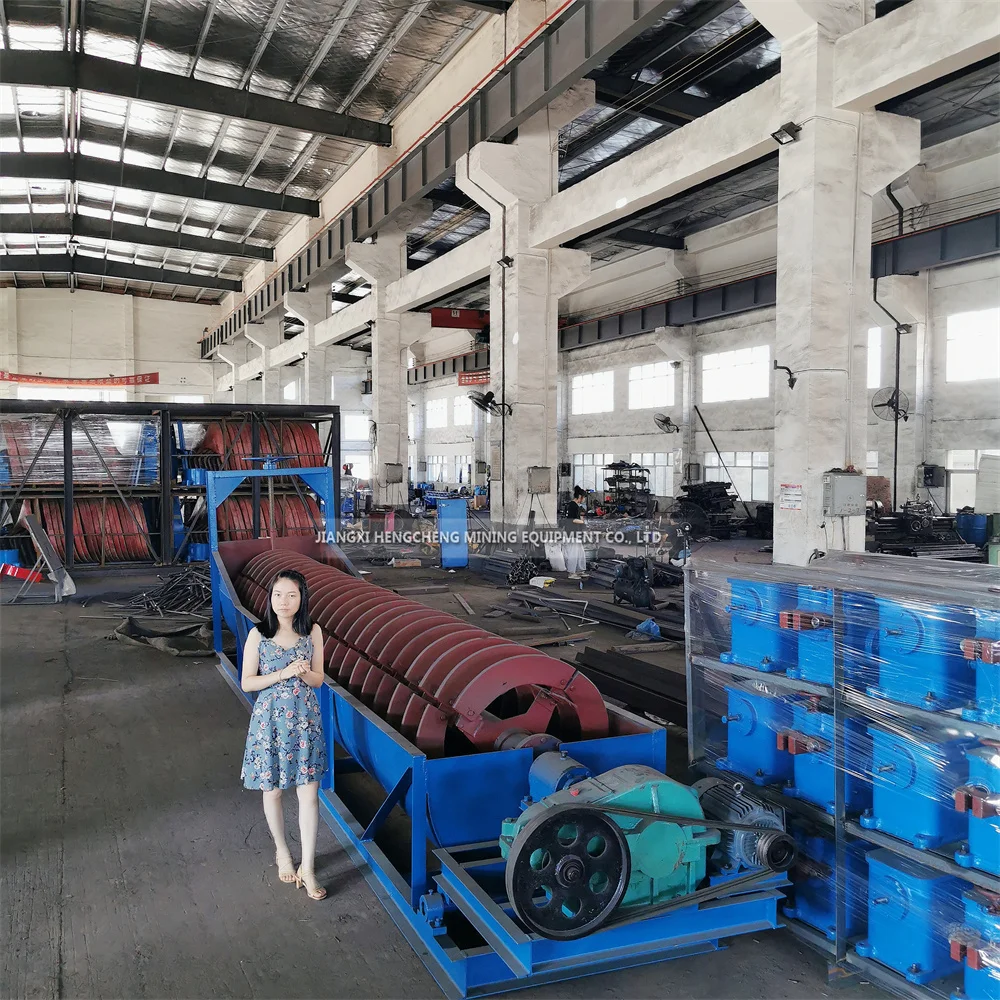

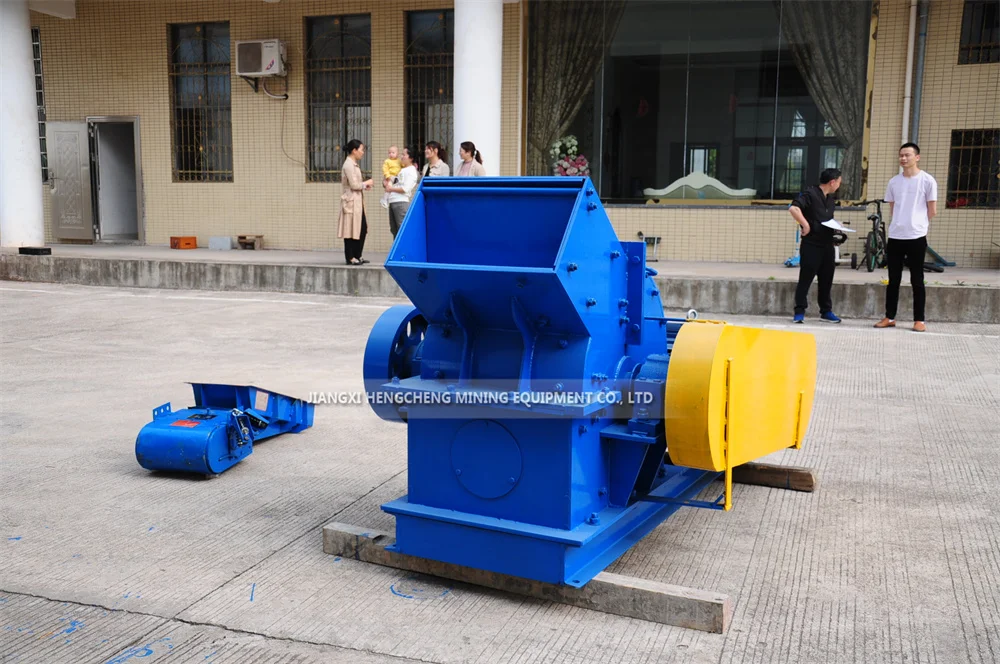

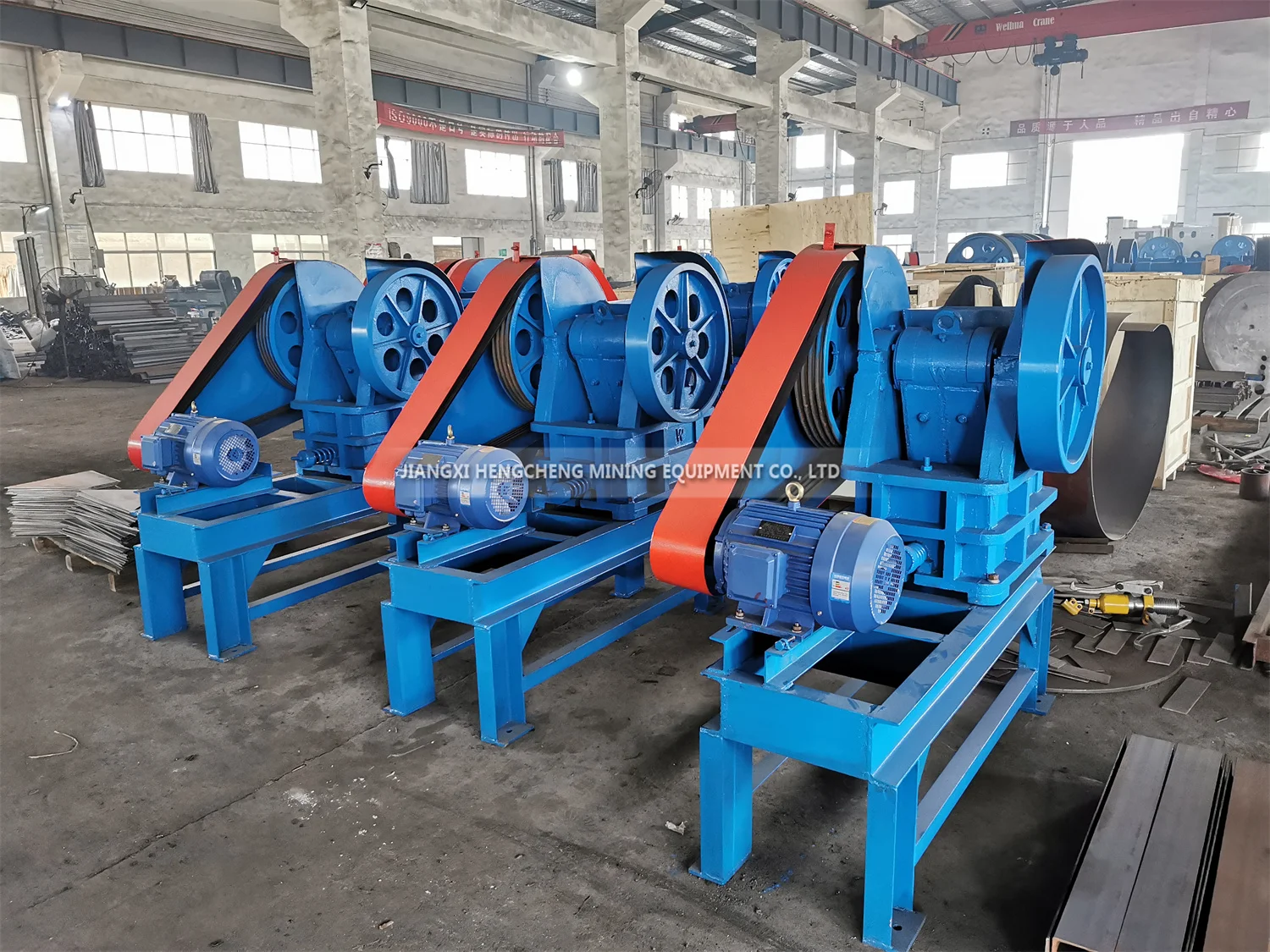

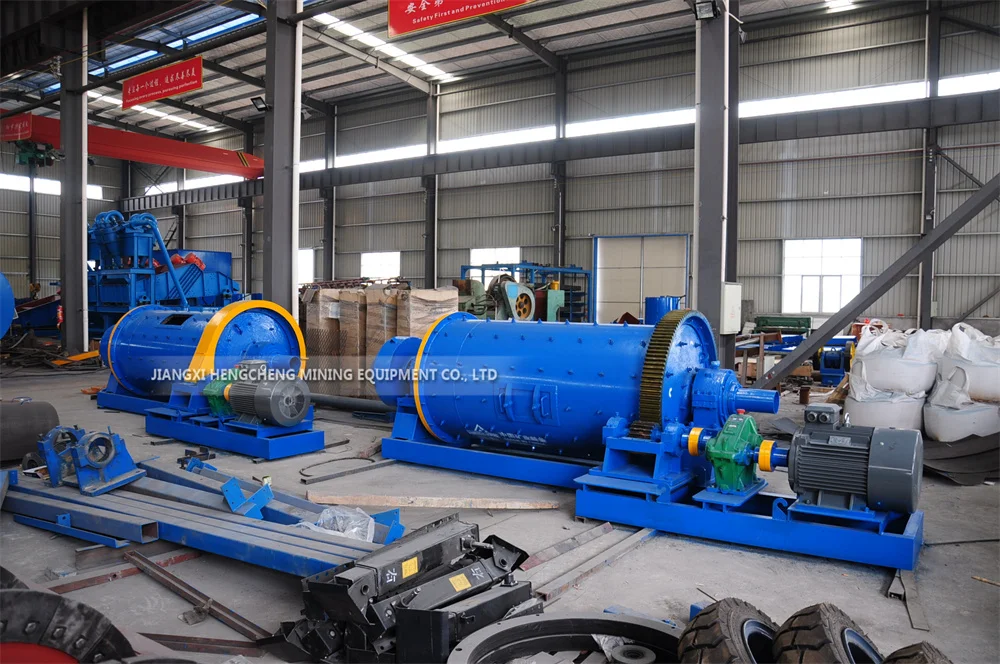

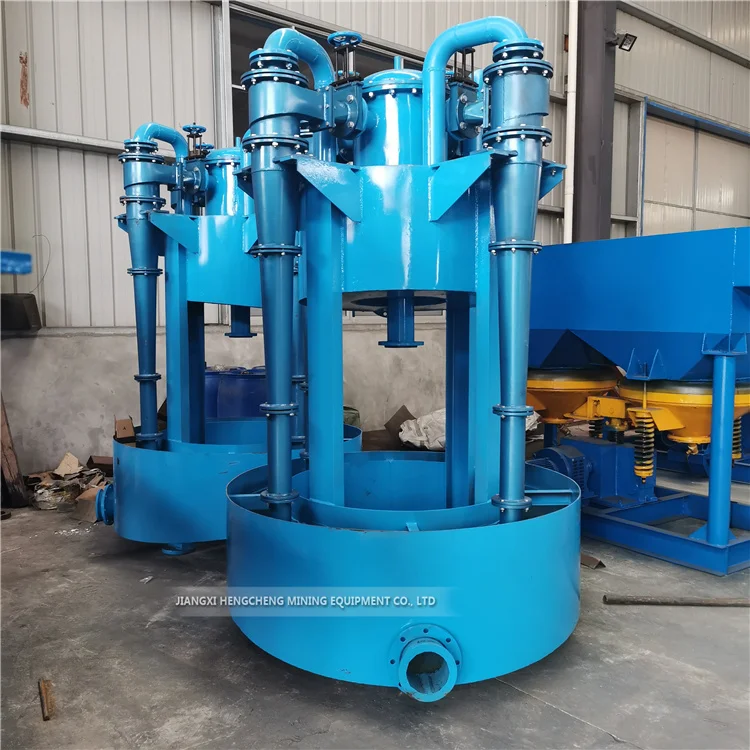

The main machines for lumpy chrome ore wash are jaw crusher, hammer crusher, ball mill, spiral classifier or hydrocylone, and spiral chutes
PRODUCT SPECIFICATIONS
Technical Parameters
Model | Outside Diameter (mm) | Screw Picth (mm) | Heads Number | Feeding size (mm) | Capacity (t/h) | Weight (kg) | Dimension (mm) |
BLL-1500 | 1500 | 900,675 | 2-4 | 0.3-0.02 | 8-6 | 1100 | 1600*1600*4510 |
BLL-1200 | 1200 | 900,720,540 | 2-4 | 0.3-0.03 | 4-6 | 800 | 1360*1360*5230 |
BLL-900 | 900 | 675,540,405 | 2-4 | 0.2-0.02 | 2-3 | 400 | 1060*1060*4000 |
BLL-600 | 600 | 450,360,270 | 3 | 0.2-0.02 | 0.8-1.2 | 150 | 700*700*2600 |
BLL-400 | 400 | 240,18 | 2 | 0.2-0.02 | 0.15-0.2 | 50 | 460*460*1500 |
Recommend Products
Packing & Shipment
1. All the goods will be delivered in 15-30 working days after receiving payment.

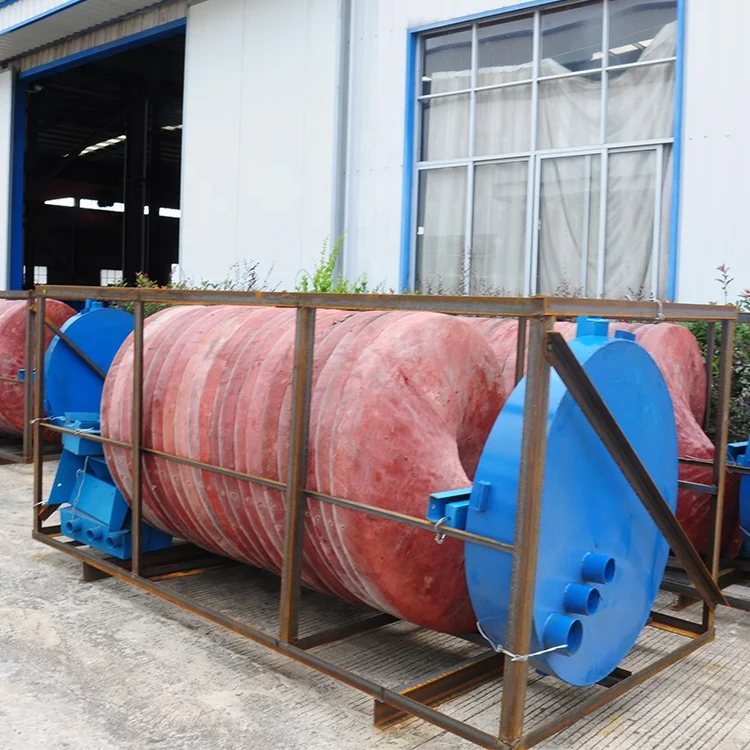

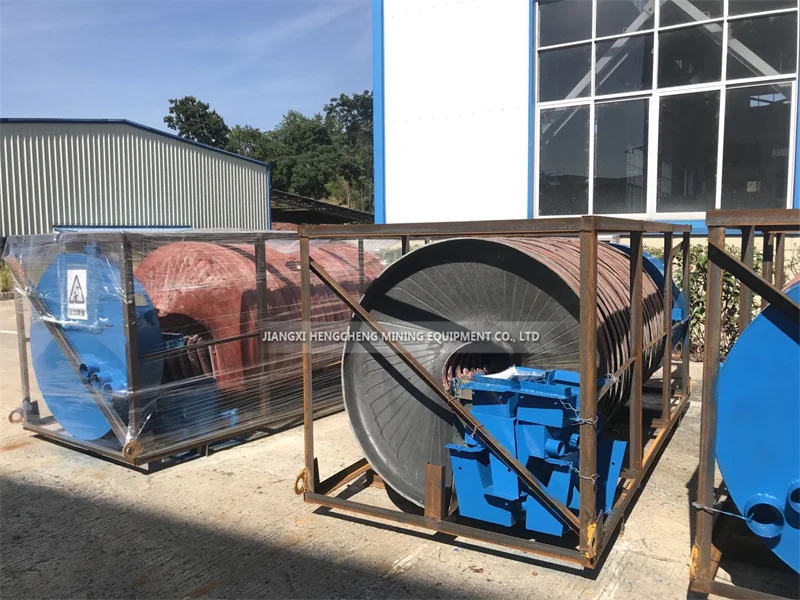

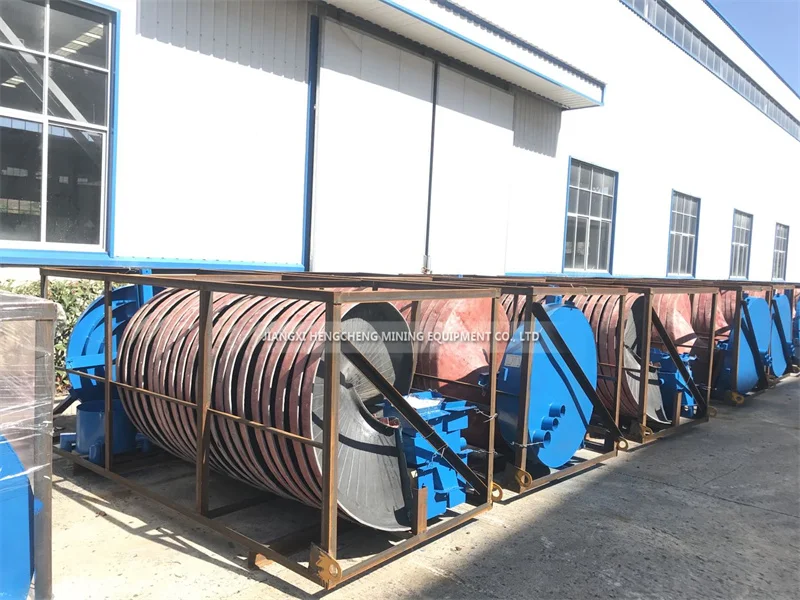

2. The machine will be packed in export container.
3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.
4. We promise that your goods will be shipped to destination timely and safely.
2. The machine will be packed in export container.
3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.
4. We promise that your goods will be shipped to destination timely and safely.
Company Profile
Jiangxi Hengcheng Mining Equipment Co.,ltd
Jiangxi Hengcheng Mining Equipment Co.,ltd is a well-known manufacturer and supplier of gravity separation equipment in Jiangxi Province, China. We has more than 20 years of equipment producing experience. Currently our factory owns an area of more than 30000m2, self-contained with modernized processing machines. Our machines have already been exported to more than 20 countries, like South Africa, Togo, Sudan, Zimbabwe, Tanzania, Kenya, Mali, Vietnam, Indonesia, Philippine, Bolivia, USA, Singapore, Mongolia, etc. Currently we are good at alluvial/deluvial gold ore, hard-rock gold ore, manganese ore, tin ore, copper ore, tantalum-niobium(coltan) ore processing, and we have gained lots of project running experiences till now.
Contact Us
All of our equipment can be customized according to your requirements. If you are interested in our products, please
don't hesitate to contact us. You can tell me the following questions so that we can send you an accurate quotation
don't hesitate to contact us. You can tell me the following questions so that we can send you an accurate quotation
soon, including extra discounts!
1. Which machine do you need like gold washing machine, spiral chute, vibrating screen, jig separator, Shaking table, stone crusher, jaw crusher, impact crusher, etc.
2. What is your raw material plan to process like gold ore, diamond ore, copper ore or iron ore, etc.
3. The capacity you need is Like 100 tons per hour or 2000 tons per day.
4. Your contact information both email and phone number are essential, we can contact you easier.
2. What is your raw material plan to process like gold ore, diamond ore, copper ore or iron ore, etc.
3. The capacity you need is Like 100 tons per hour or 2000 tons per day.
4. Your contact information both email and phone number are essential, we can contact you easier.
