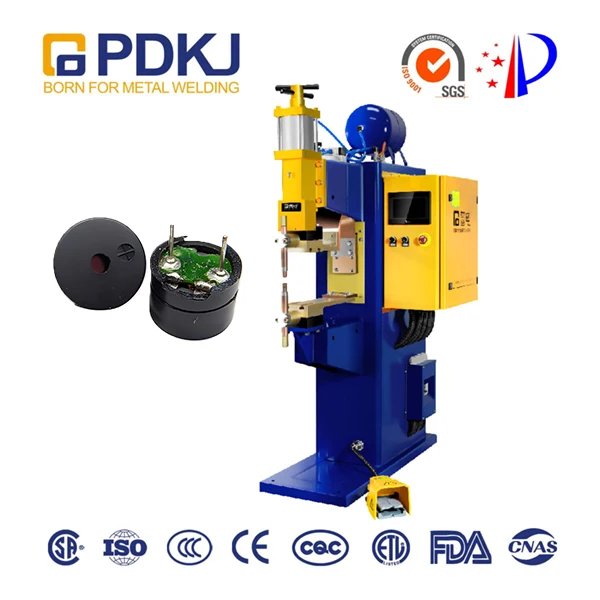

Chinese Welding Machine DTB 80 Intermediate Frequency Inverter DC Spot Welder Metal Welding machine
- Category: >>>
- Supplier: Guangdong Pudian Automation Technology Co. ltd.Guangdong ltd.
Share on (1601257954412):
Product Overview
Description
Product Overview
PRODUCT SPECIFICATIONS
No | Item | DTB-80 |
1 | Rated capacity | 3 phases 380V |
2 | Short-circuit current | 25KA |
3 | Duty cycle | 20% |
4 | Control way | Primary/secondary constant current |
5 | Inverter frequency | 1000HZ |
6 | Pressure | 6000N |
7 | Electrode stroke | 80 mm |
8 | Cooling water flow rate | 12 L/min |
9 | Welding capacity/Aluminum plate | 2.0+2.0mm |
10 | Welding capacity/Carbon steel | 2.5+2.5 mm |
11 | Arm extension size | 500*250 mm |
12 | Electrode arm size | 59*173 mm |
13 | Electrode holder size | 24.6*180 mm |
14 | Electrode head size | 16*50 mm |
15 | Weight | 336kg |
16 | Dimension | 1180×750×1830mm |

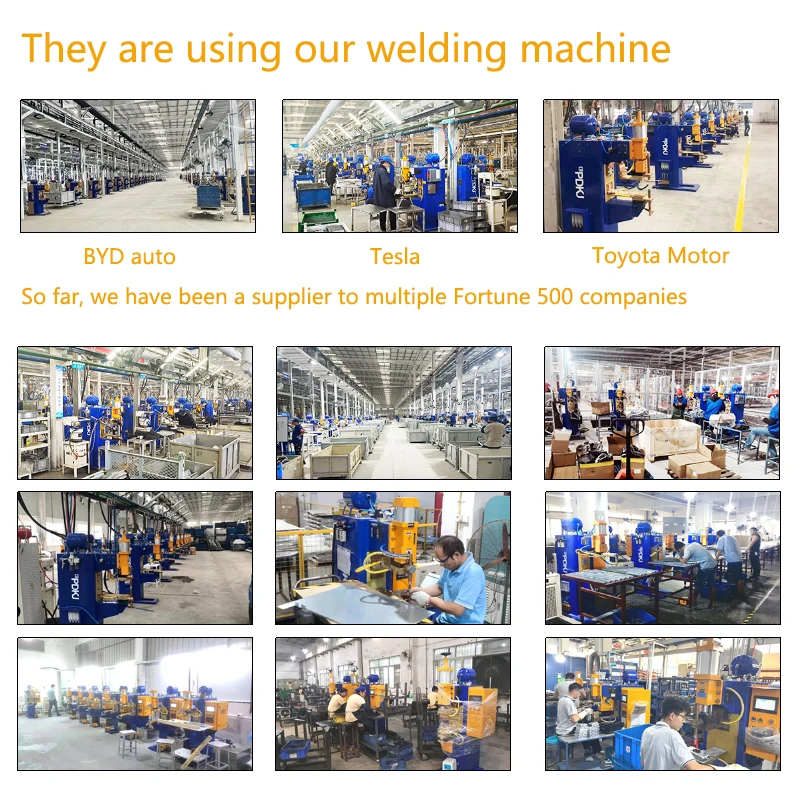

Our Customer

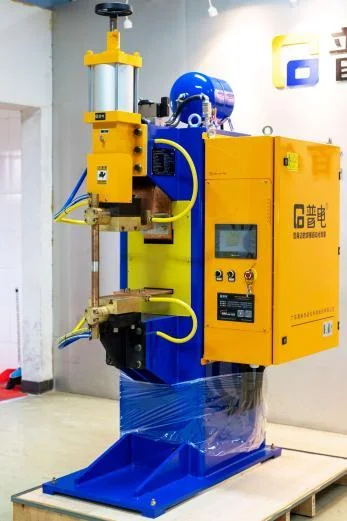

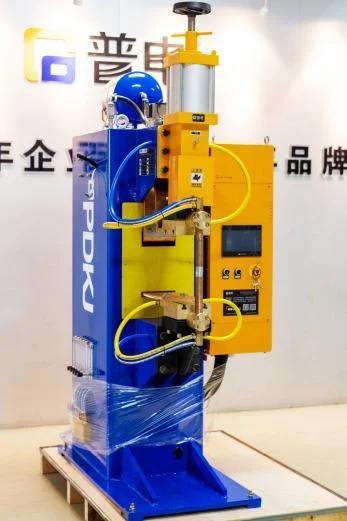

Factory

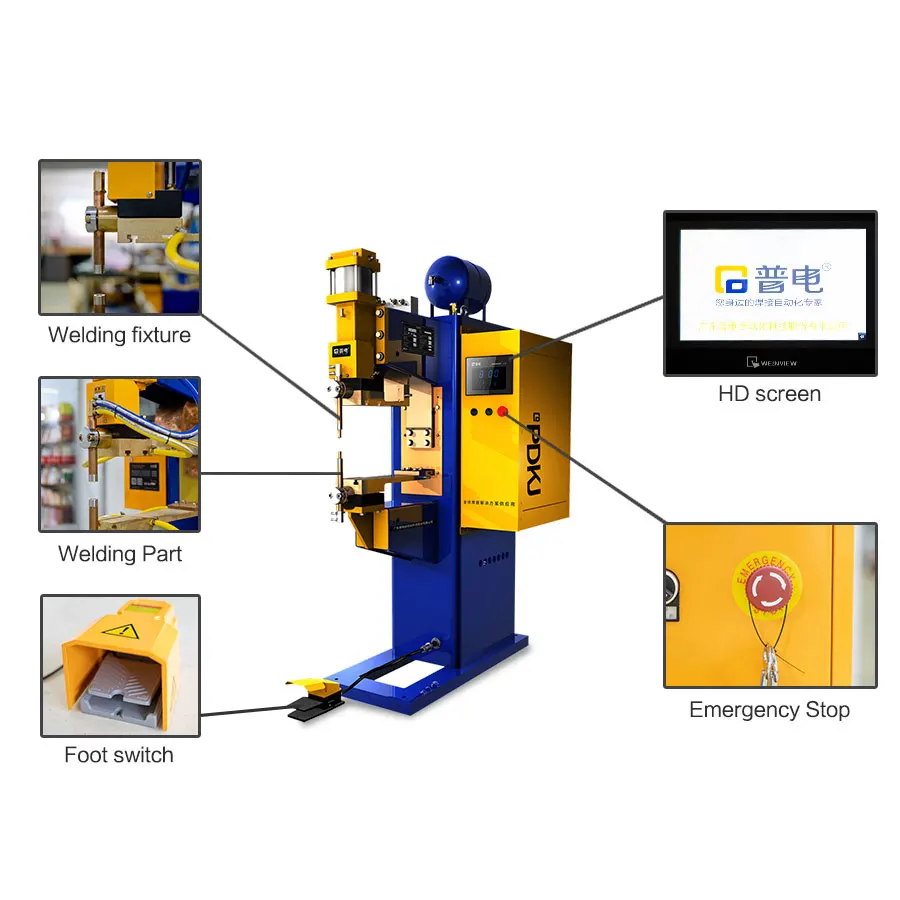

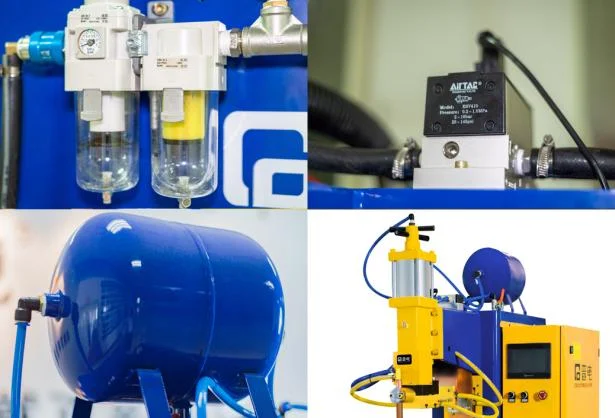

Details Images

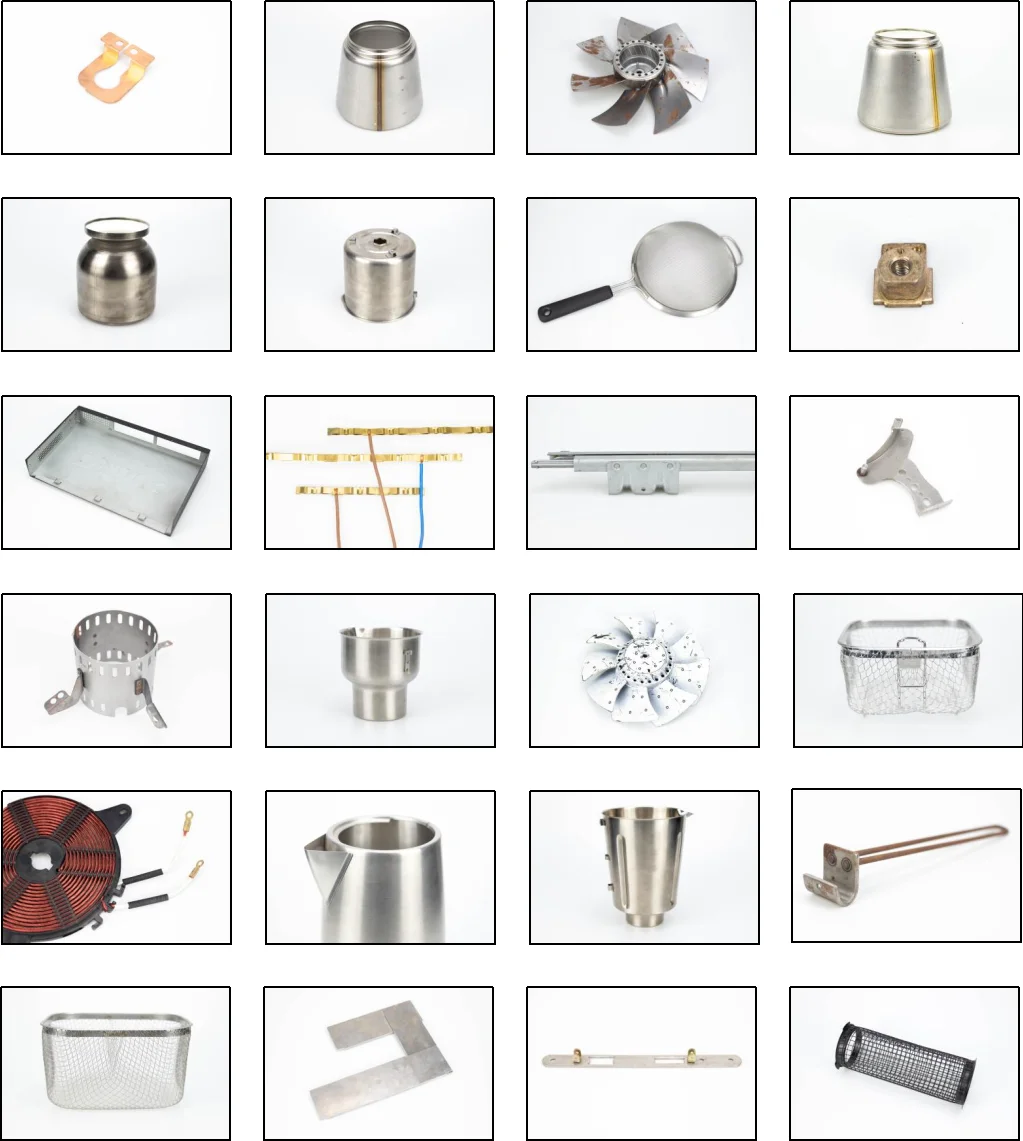

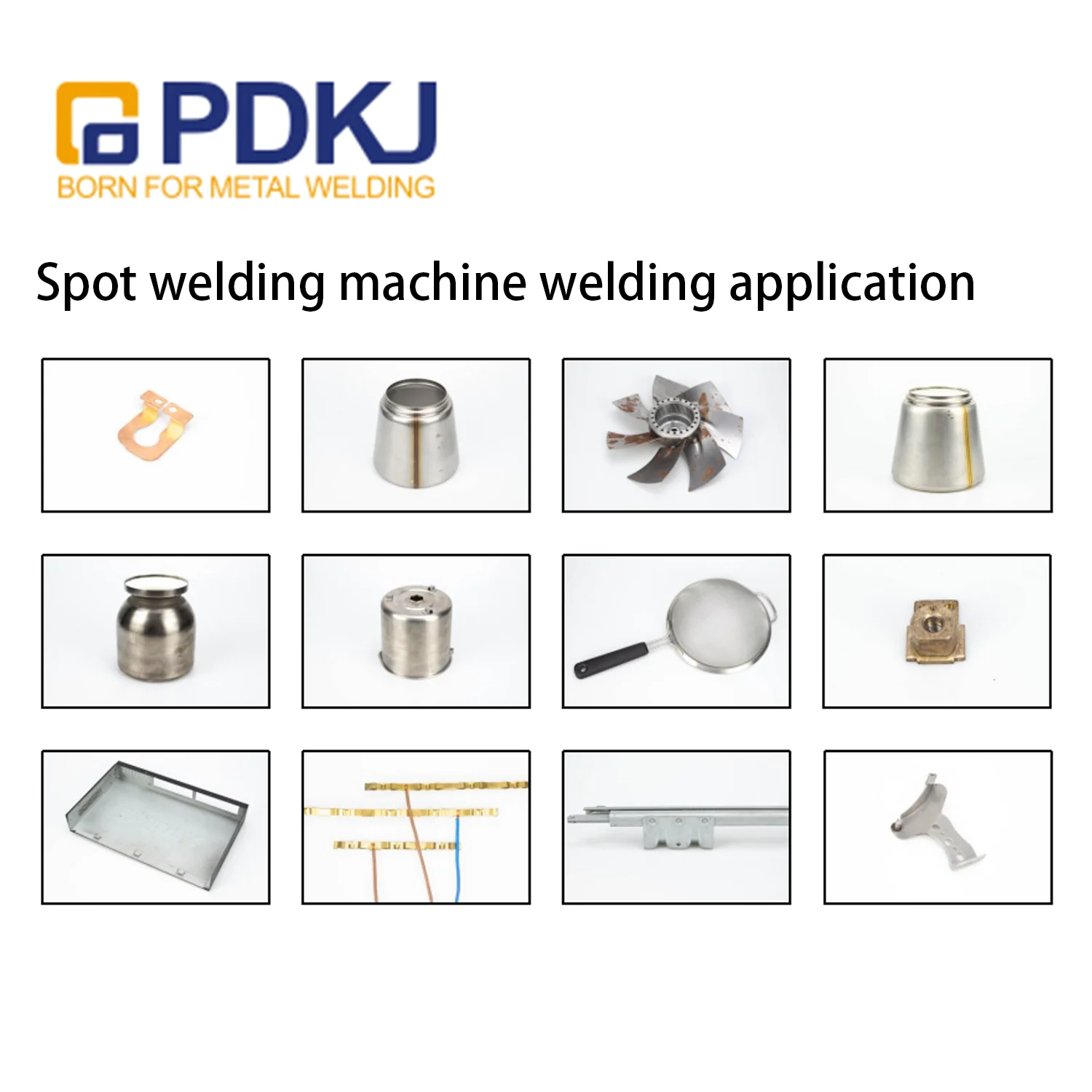

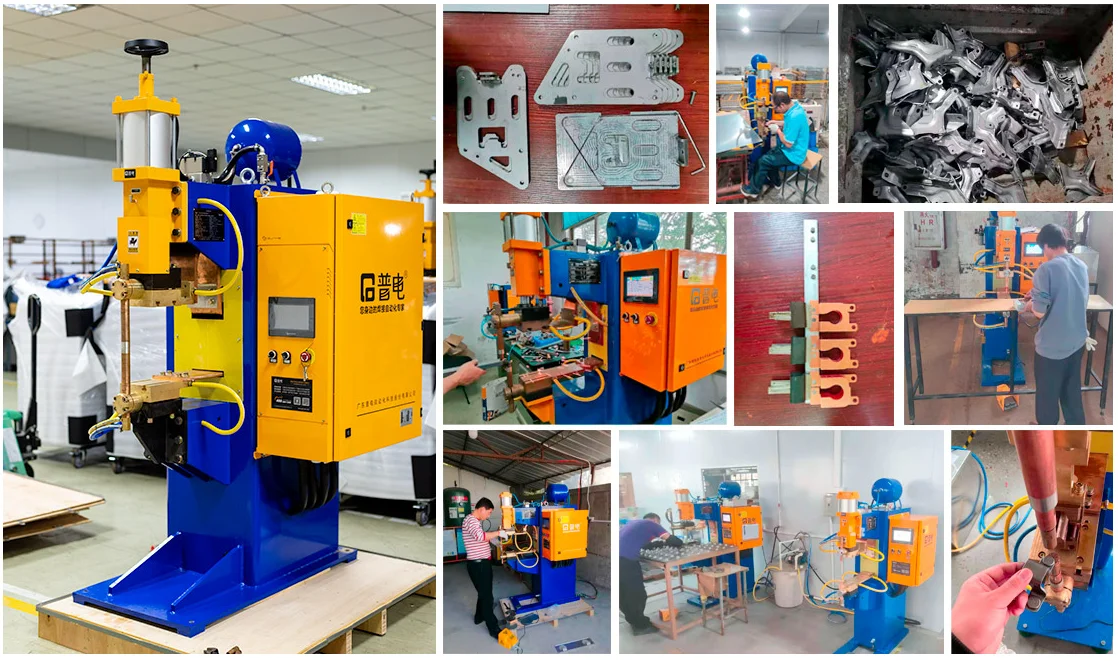

Application
