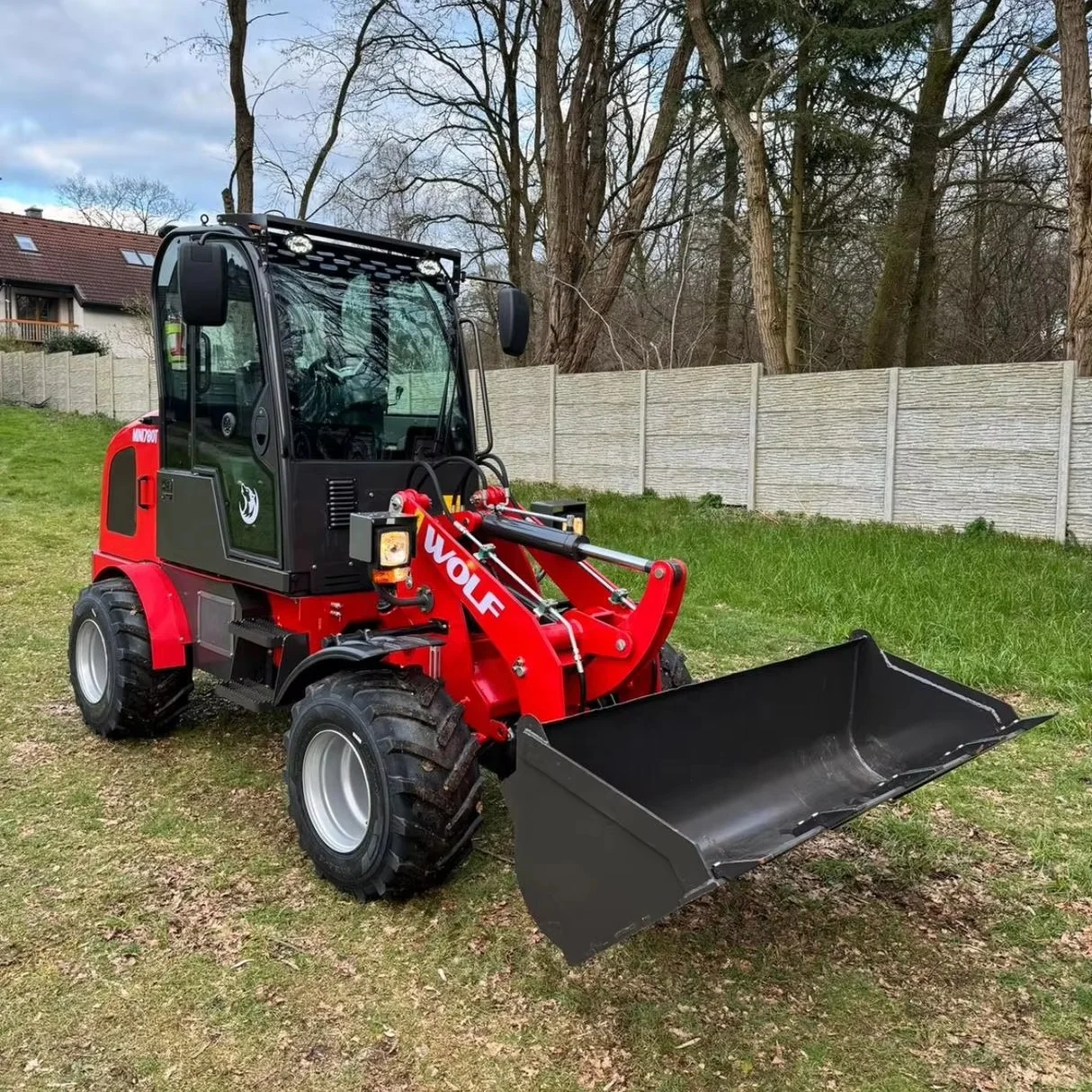

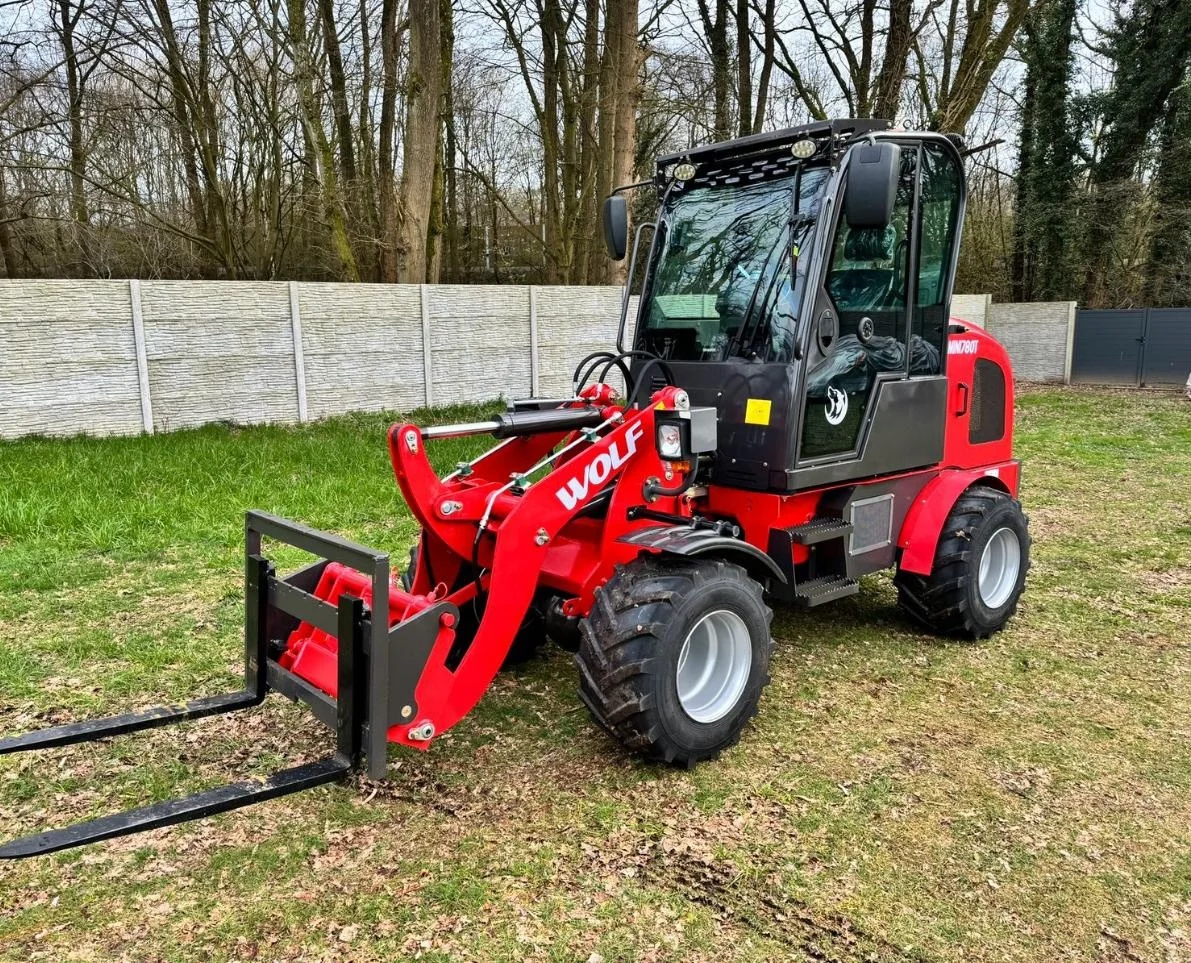

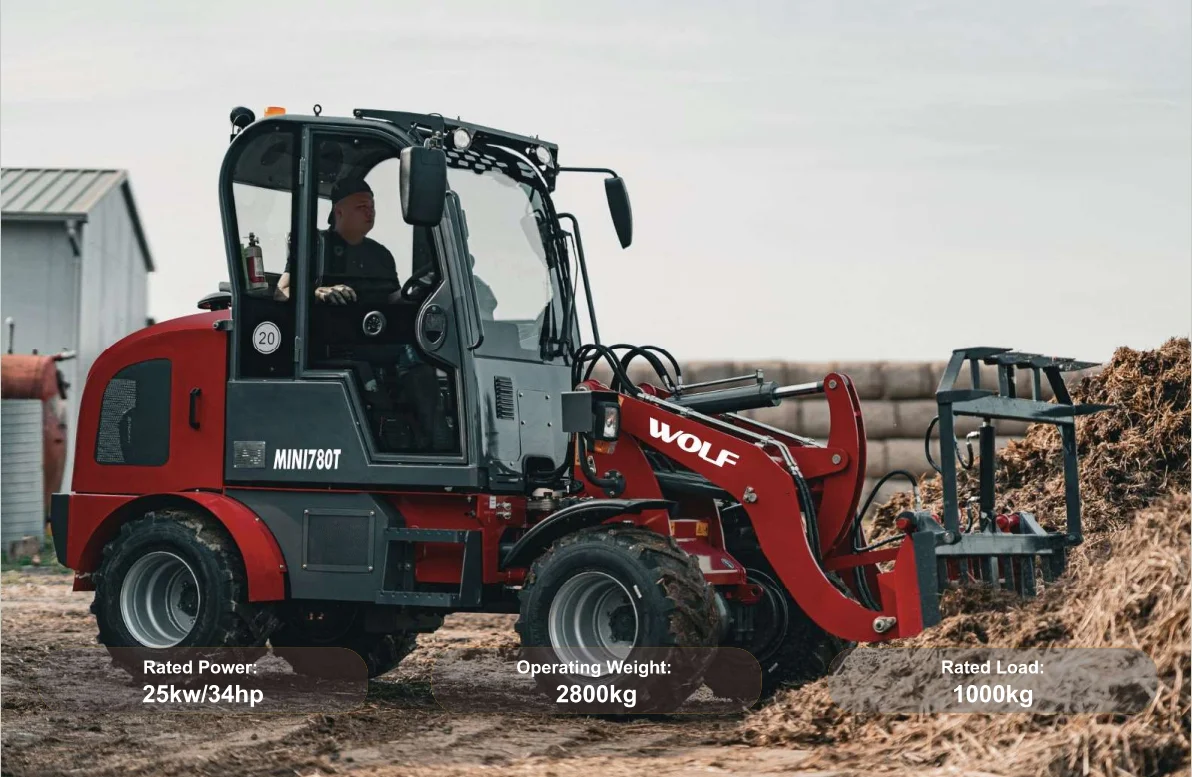

1ton/1000kg shovel wheel loader diesel with Euro V engine
- Category: >>>
- Supplier: Qingdao Zongjin Engineering Machinery Co. Ltd.
Share on (1601257955583):
Product Overview
Description
China hot sale mini/small/compact wheel price loader for sale
Mini 780T is one innovative loader, with new completely appearance, from new structure, frame, rear hood and cabin,
you can easily find out the differences from traditional loader. Open cabin and enclosed cabin meets your different demands.
It has been widely welcomed by European customers when published.

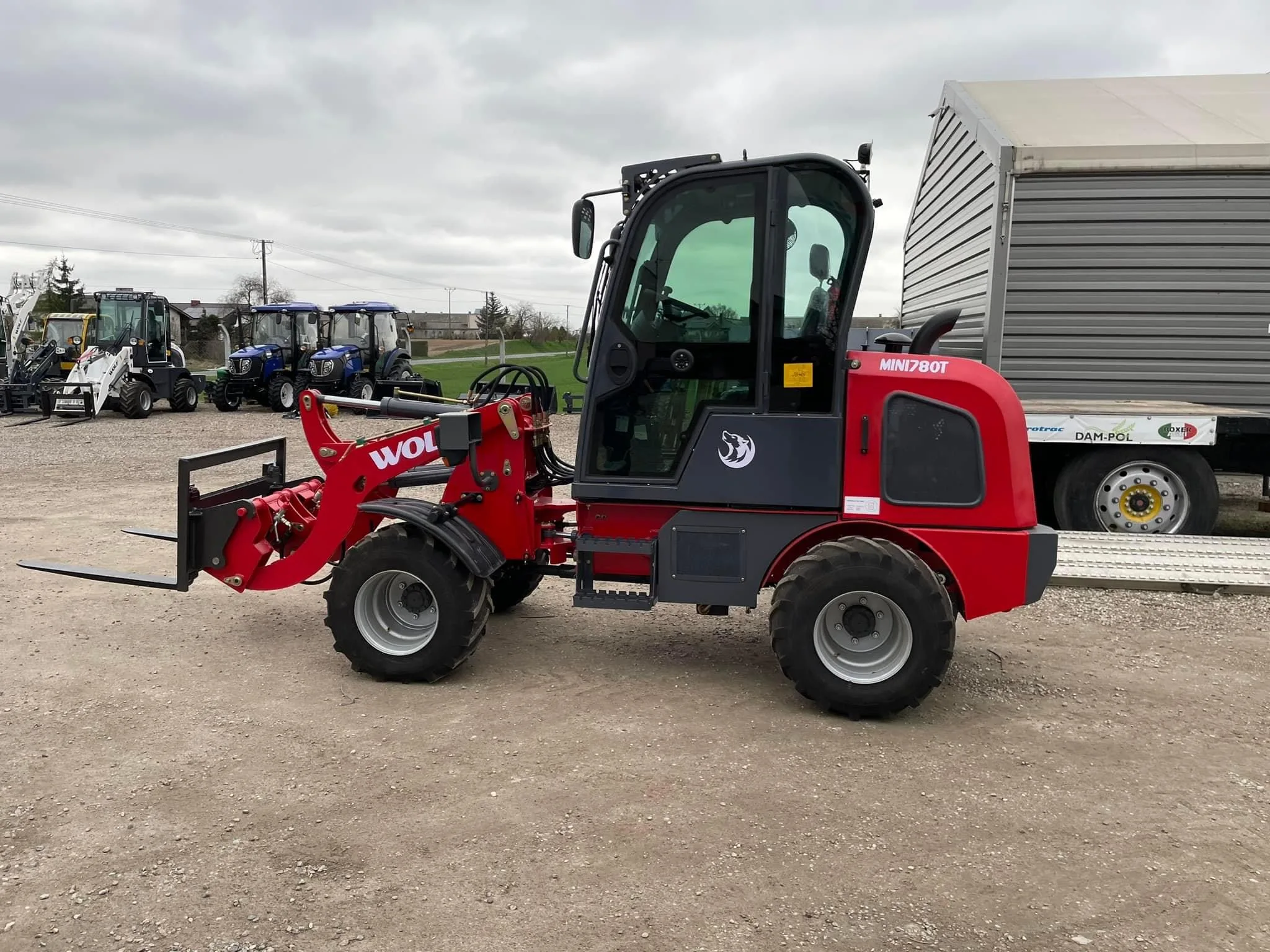

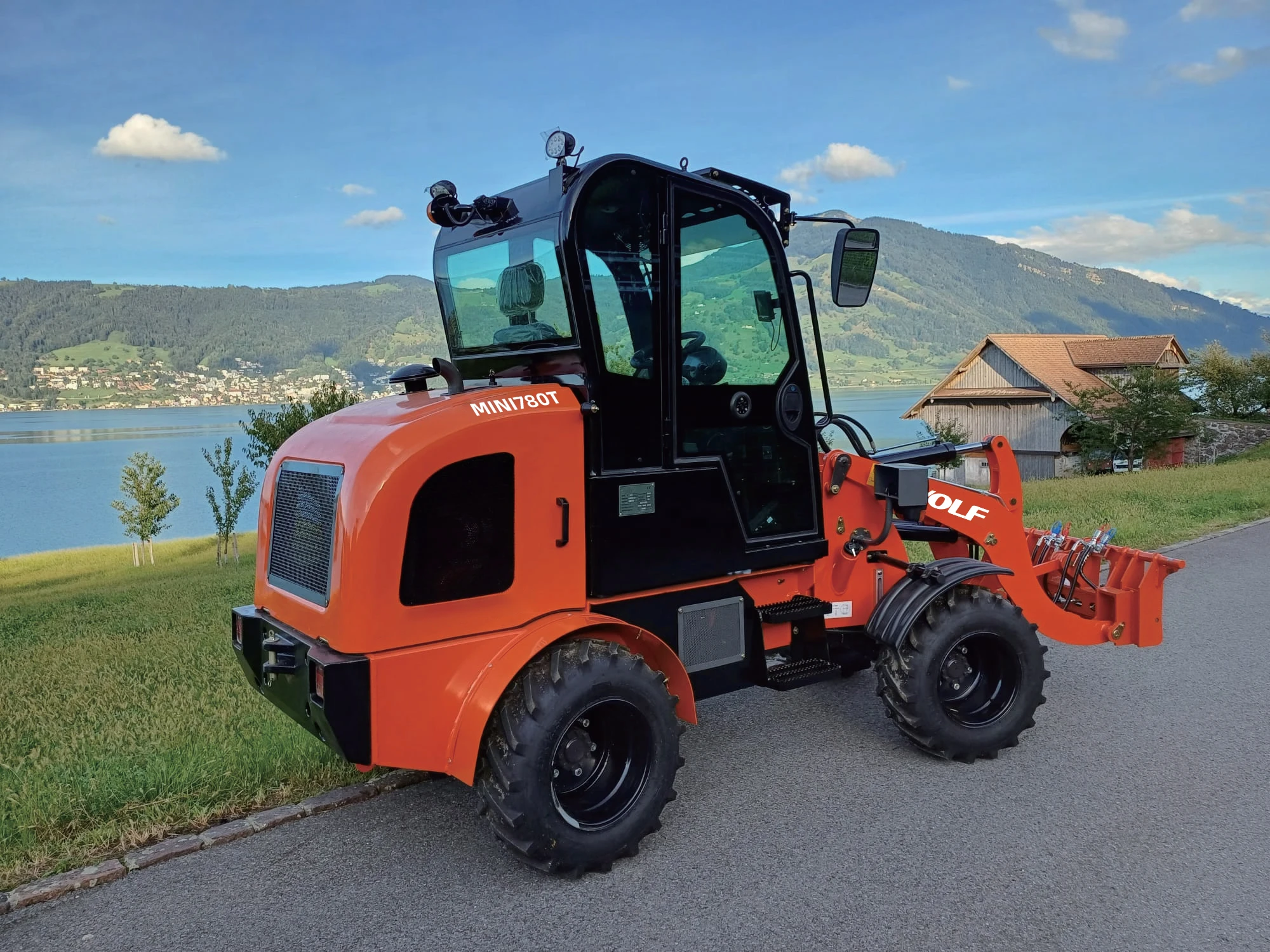

Mini780T with enclosed cabin

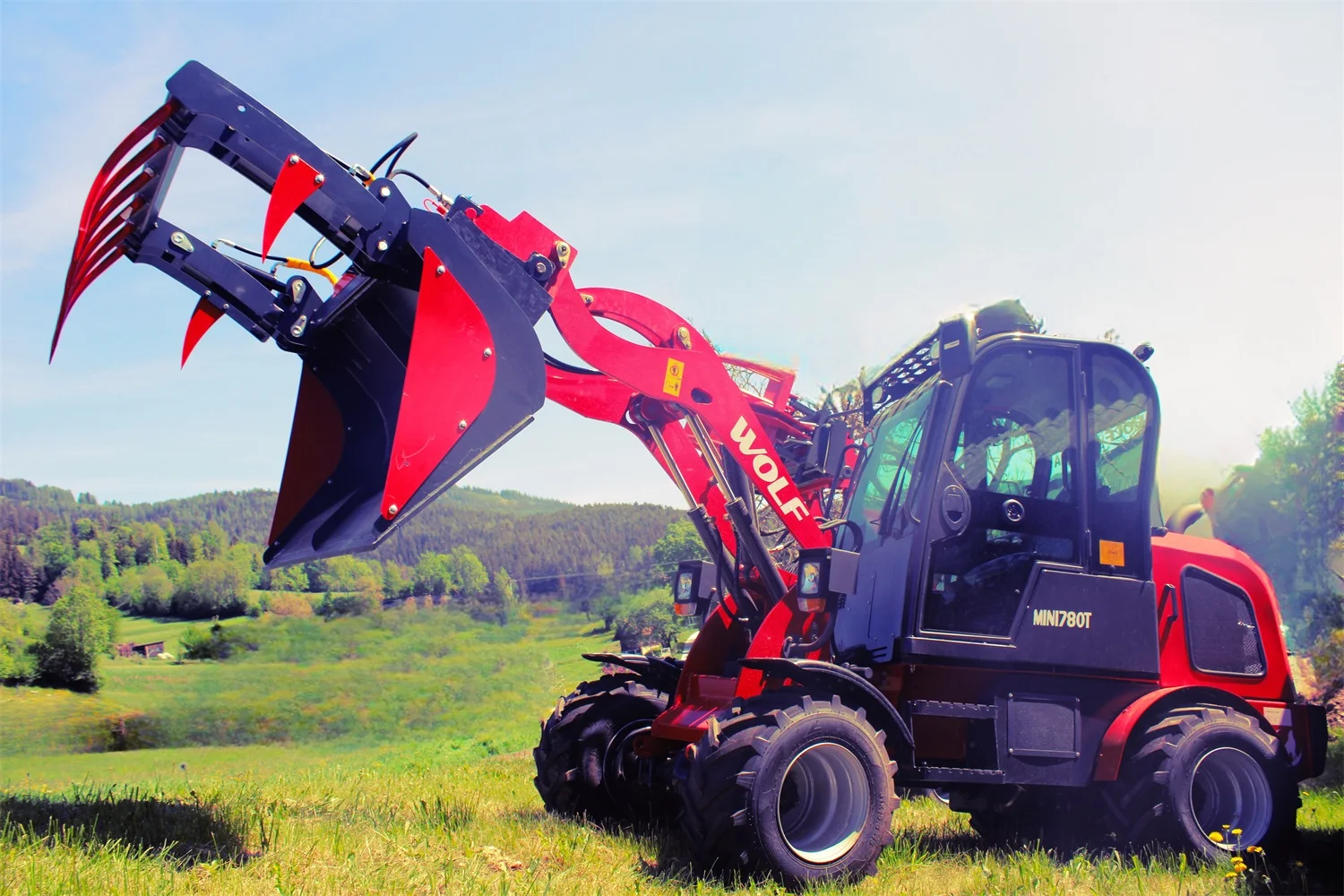

Mini780T With Roll Ball

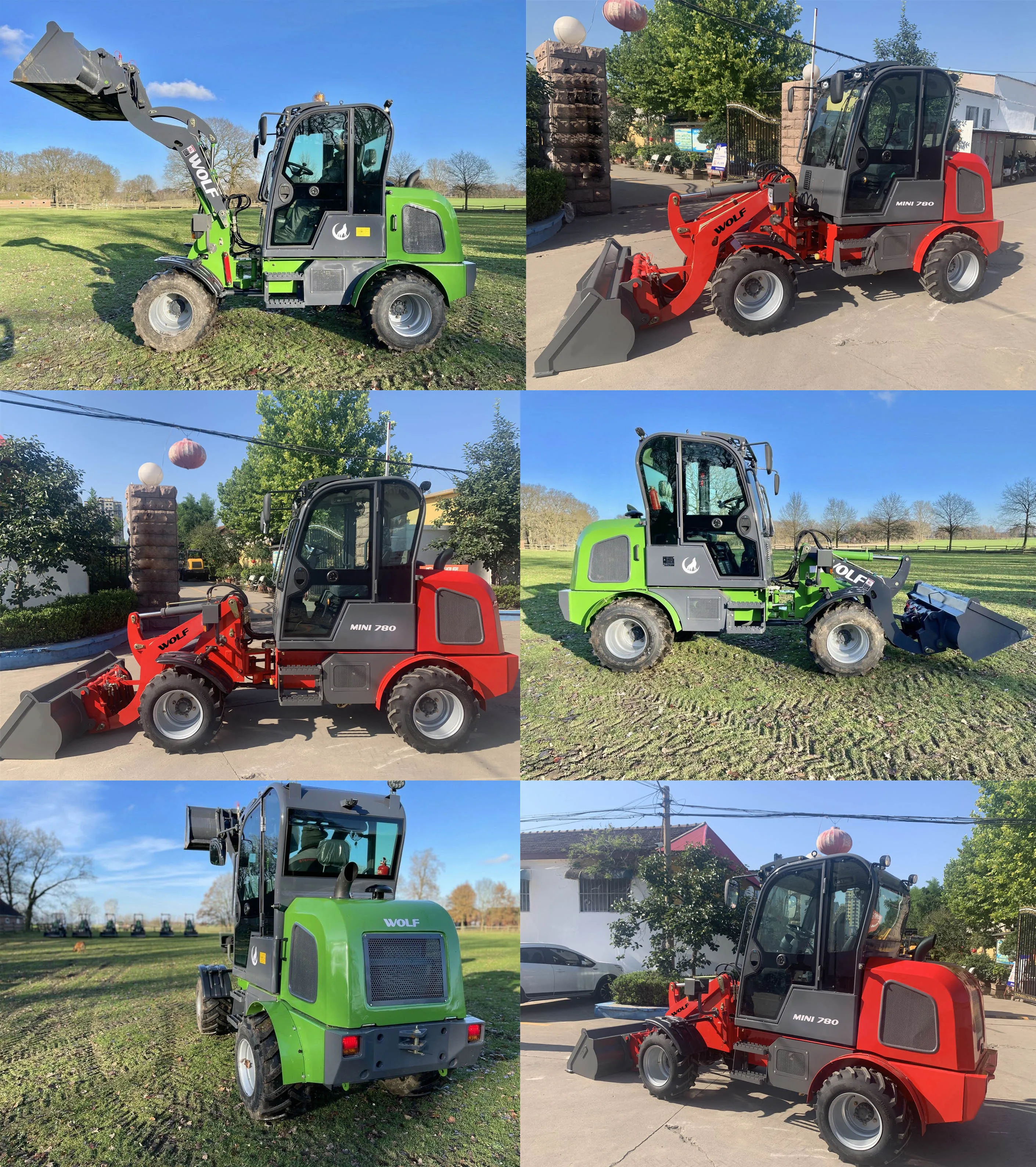

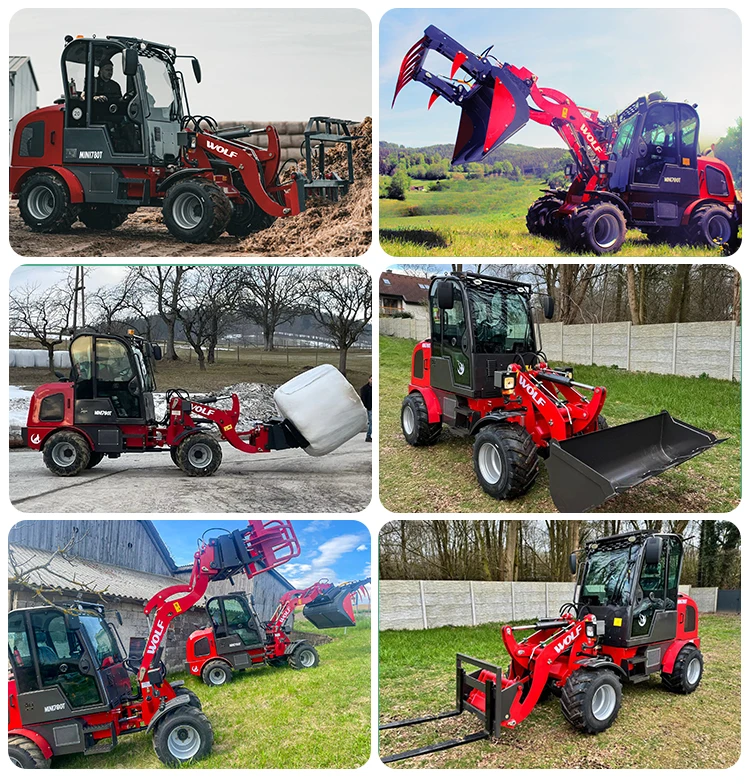

More Pictures:
Enclosed Cabin

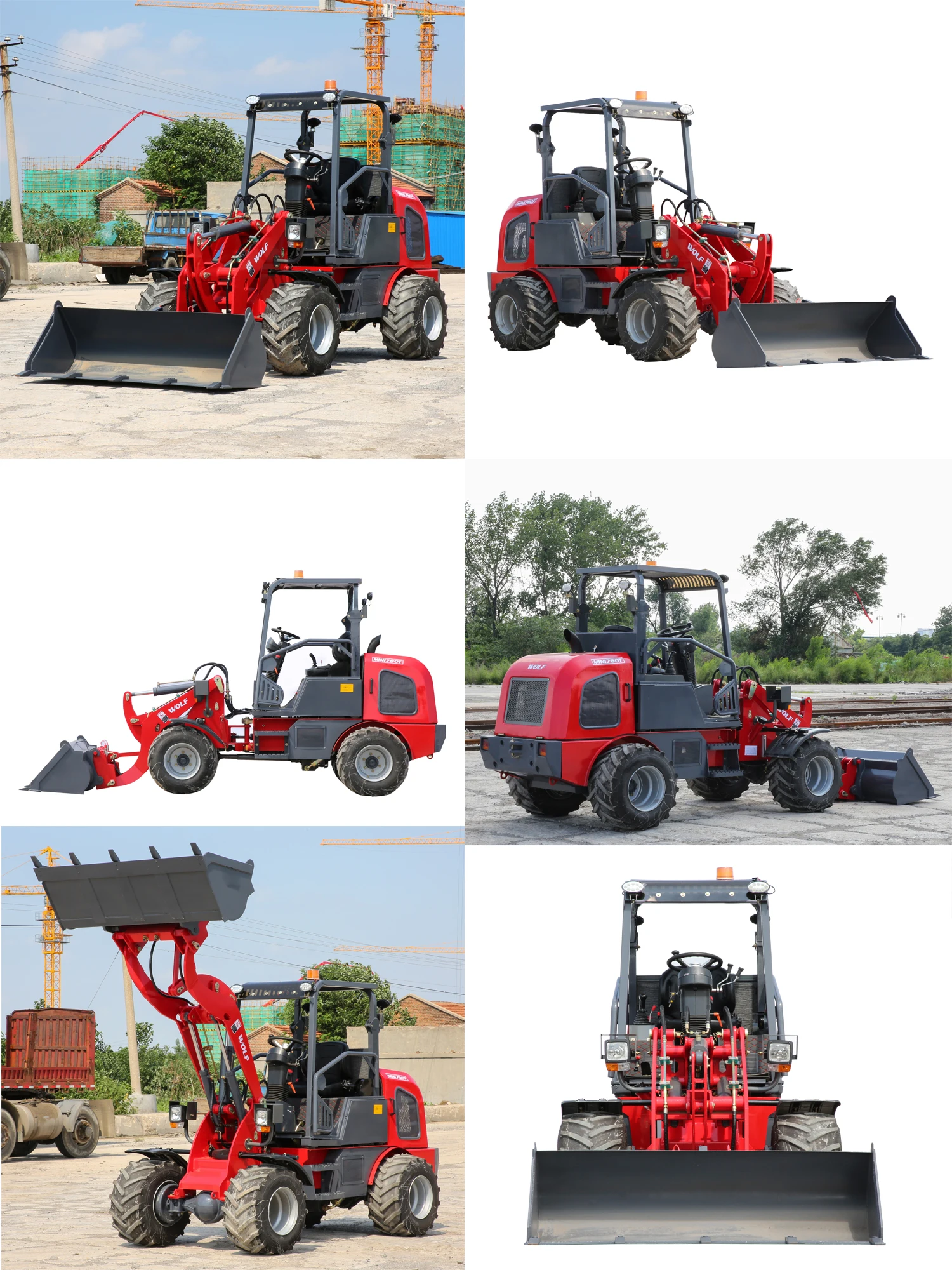

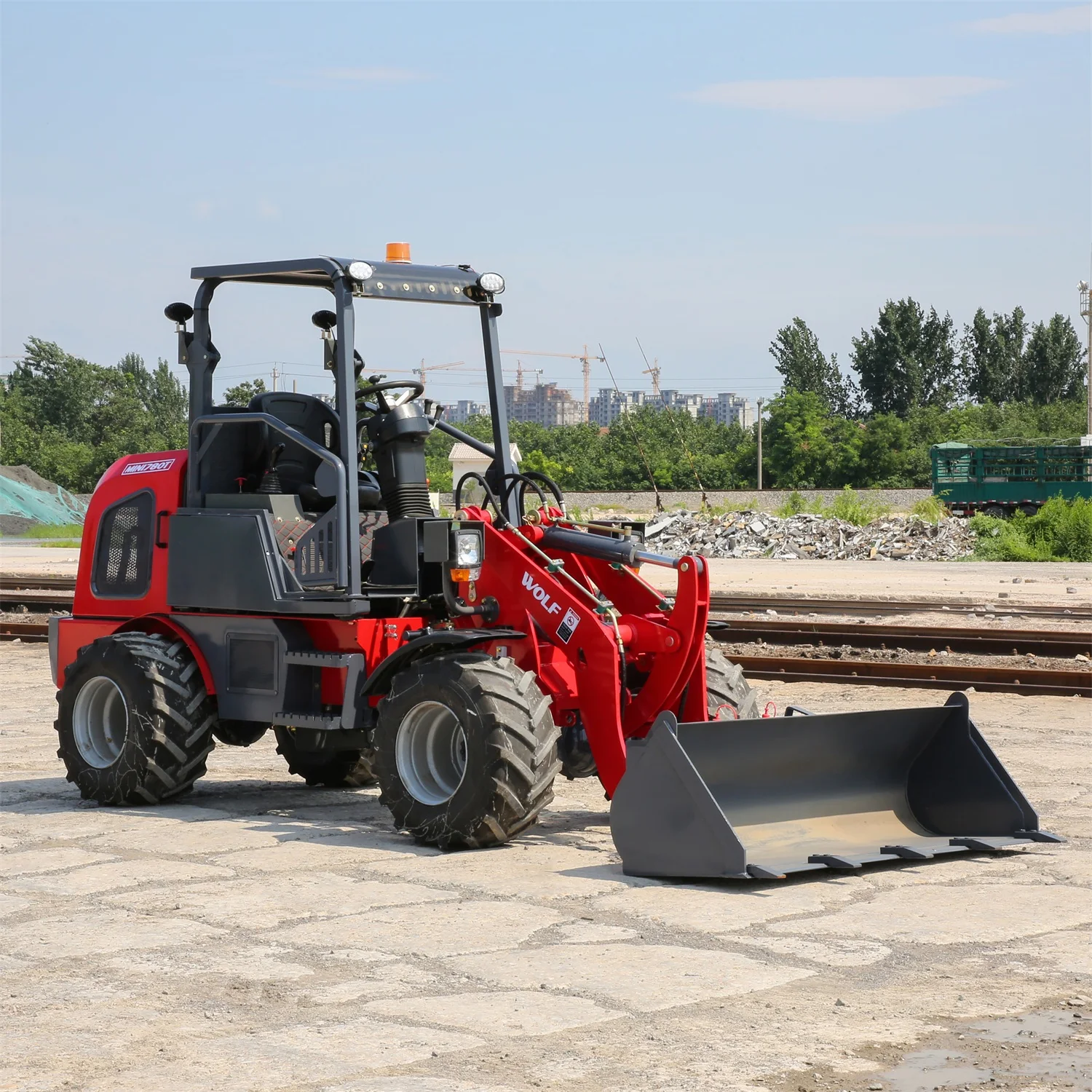

Without cabin/ with canopy
Standard Configuration:
- Changchai 3 Cylinders engine 25KW
- Standard Joystick
- Standard 825-16 tires
- Safety Canopy
- 3 ways hydraulic pipelines
- Rear Trailer ball
- Standard bucket

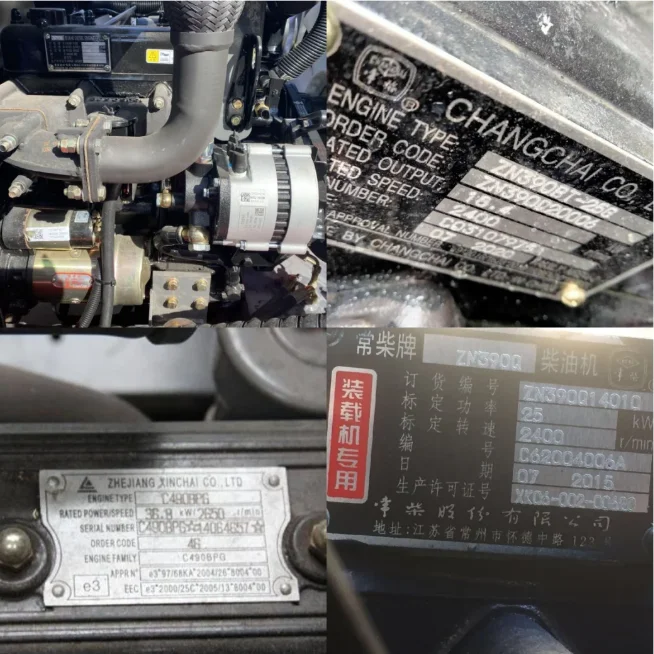

Engines:
The standard engine is Changchai ZN390Q engine, which has good torque and is economical in consumption,
and you can also choose optional Xinchai 490 Euro 3 engine or Changchai 390 Euro 5 engine
based on different engine emmission standards in different markets. Always one for you!
Specification:
| Basic Parameters | overall weight(kg) | 2000 |
| L×W×H(mm) | 4036x1350x2200mm | |
| rated bucket capacity(m3) | 0.5 | |
| Rated load(kg) | 800 | |
| Lifting height(mm) | 2500 | |
| dump height (mm) | 2100 | |
| Dump distance | 700mm | |
| Wheelbase | 1000mm | |
| Thread | 590mm | |
| Total time | 11s | |
| Engine | Model | Changchai ZN390 |
| Optional engine | Changchai Euro5 engine | |
| Type | direct injection, horizontal, water-cooled, four stroke, 3 cylinder | |
| Rated power(KW) | 25KW | |
| Rated speed(r/min) | 2400 | |
| Working system | Distribution of work valve | DF15.2C |
| Working pump | CBF32 | |
| Steering system | Type | Articulated hydraulic steering |
| Min. turning angle | 280±1 | |
| Min turning radius(mm) | 3200 | |
| Tyres | Standard tires | 26x12-x12 |
| Optional tires | 31*15.5-15 wide tire |

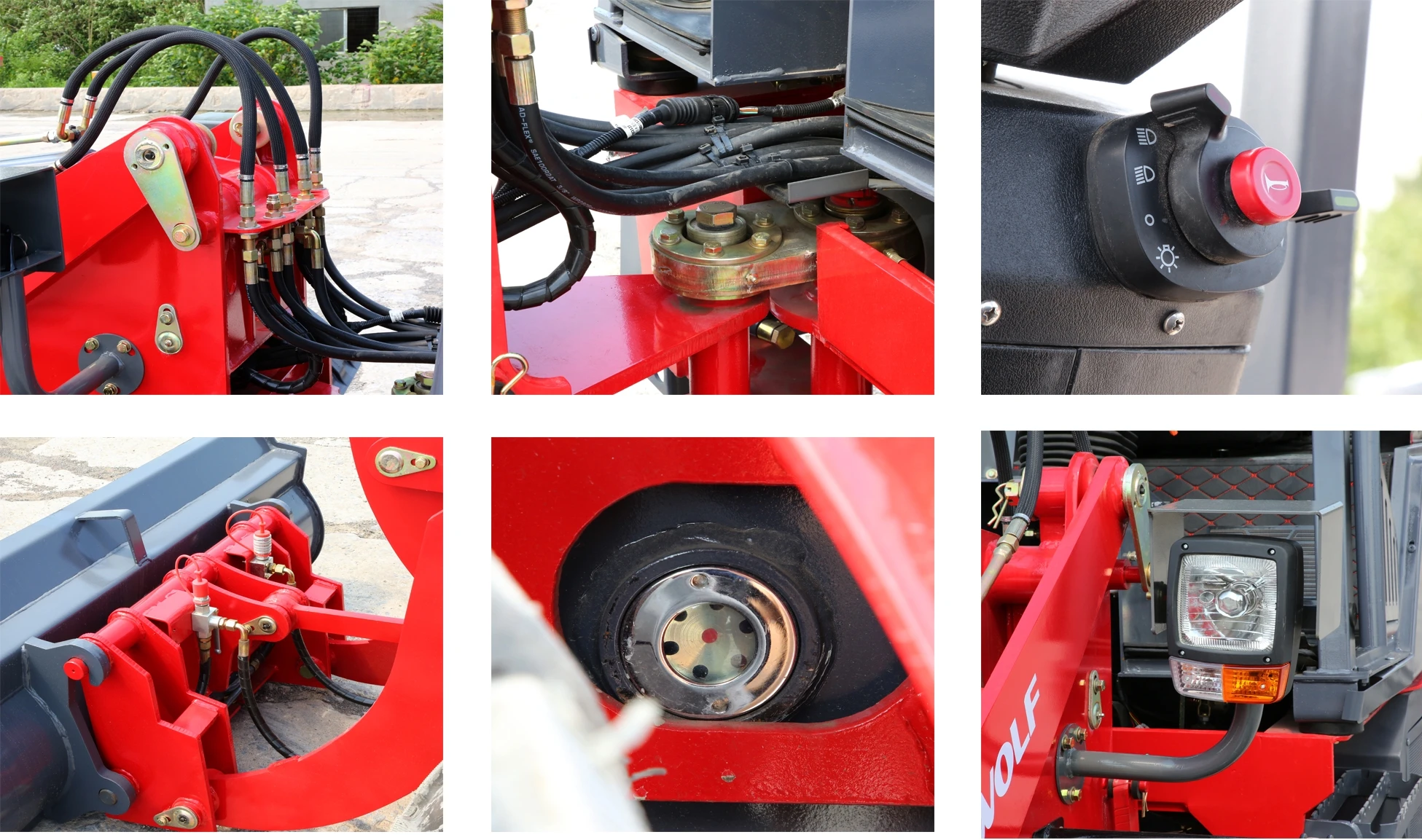

More Details:

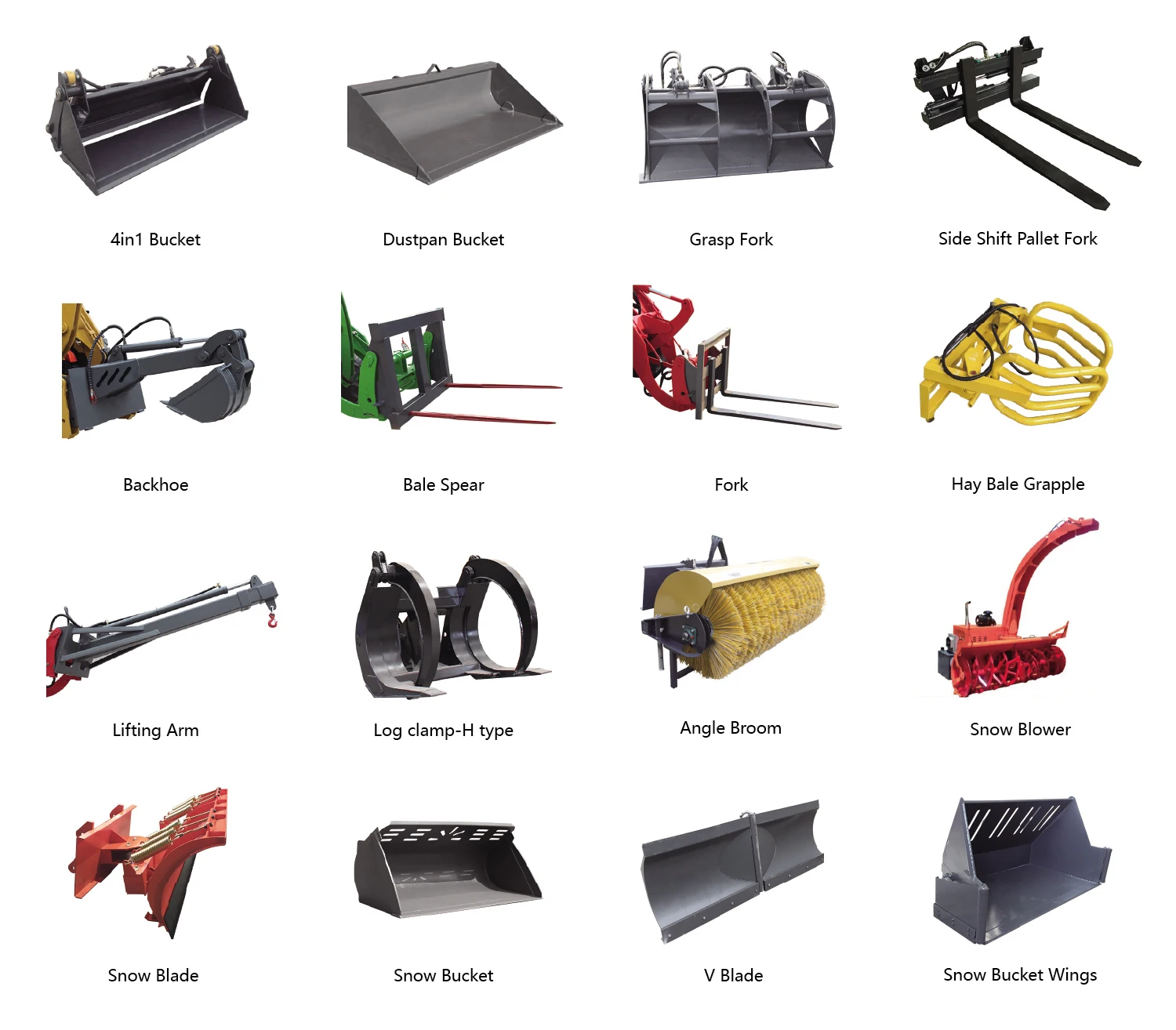

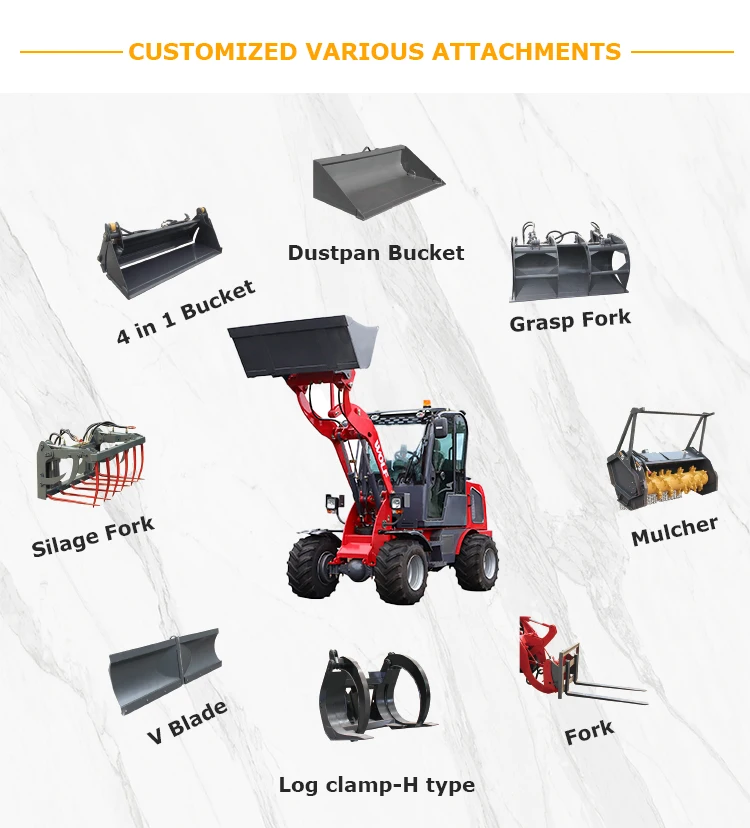

Attachments
Working with WOLF
FAQ
Q: Why should I choose Wolf instead of other brands?
A: With 10+ years' exporting experience, Wolf has been a well known brand in the market, now you can see Wolf machines in 100+ countries.
What we can provide:
- Quality machines, CE certificated.
- More competitive price based on same configuration machines.
- More timely and effective service base on same price.
Q: Can I test the machine before order?
A: Yes, we have dealers in Germany/ Austria/ Switzerland/ Portugal/ Sweden/ Finland/ Denmark/ Poland/Serbia etc.
A: Yes, we have dealers in Germany/ Austria/ Switzerland/ Portugal/ Sweden/ Finland/ Denmark/ Poland/Serbia etc.
Please tell me your detailed address, then I would like to recommend the closest customer for you, then you could go to test.
Q: What is your delivery time?
A: The delivery time is around 30 working days. In peak season, the production time would take longer.
Q: What is the payment term?
A: Normally we use T/T 30% deposit for production, balance 70% before shipment. Or upon loading photos.
Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose. We can customize the color when you order more.
Q: What is your delivery time?
A: The delivery time is around 30 working days. In peak season, the production time would take longer.
Q: What is the payment term?
A: Normally we use T/T 30% deposit for production, balance 70% before shipment. Or upon loading photos.
Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose. We can customize the color when you order more.
Whatever questions you have, just leave your messages to us :)
