LUZUN Official Self Loading Concrete Mixer 1.6 1.8m3 Portable Diesel Mini Small Concrete Cement Mixer for Sale
- Category: >>>
- Supplier: Laizhou Luzun Machinery Co. Ltd.
Share on (1601257976894):
Product Overview
Description
Product Overview
purchase 1.6-1.8m3 miniature cement mixer from manufacturers

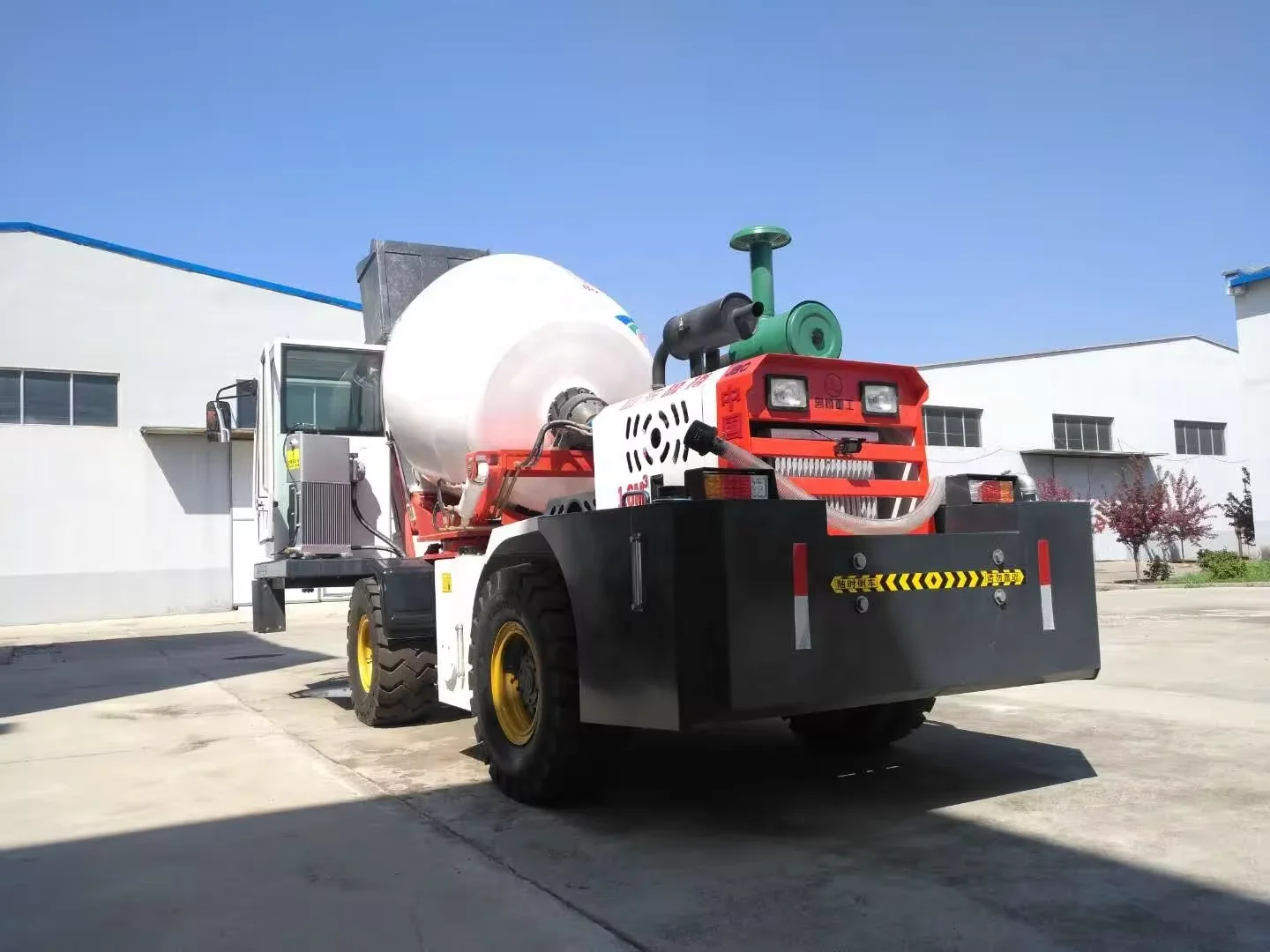

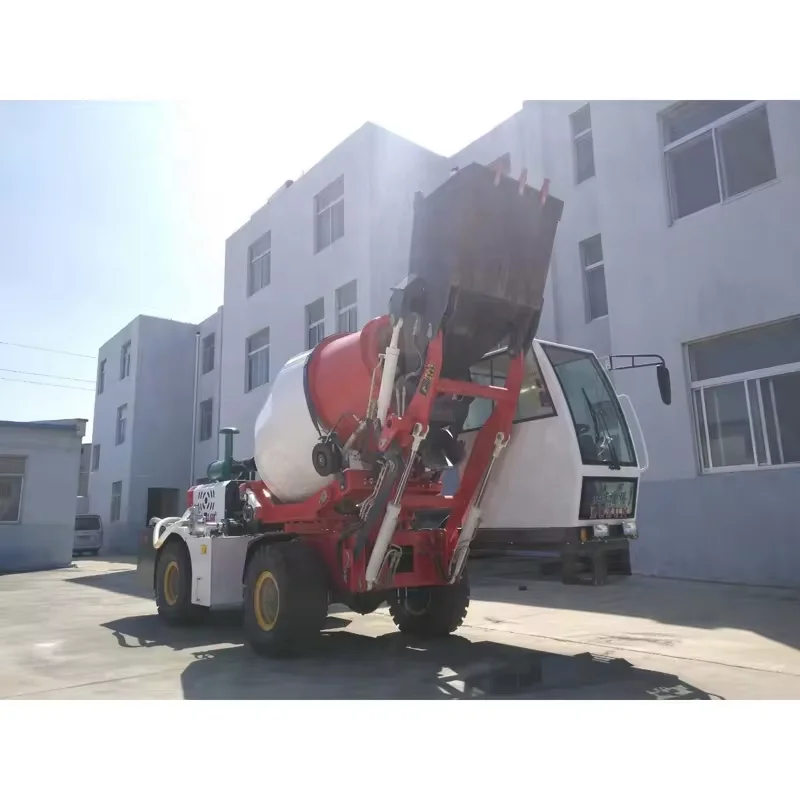

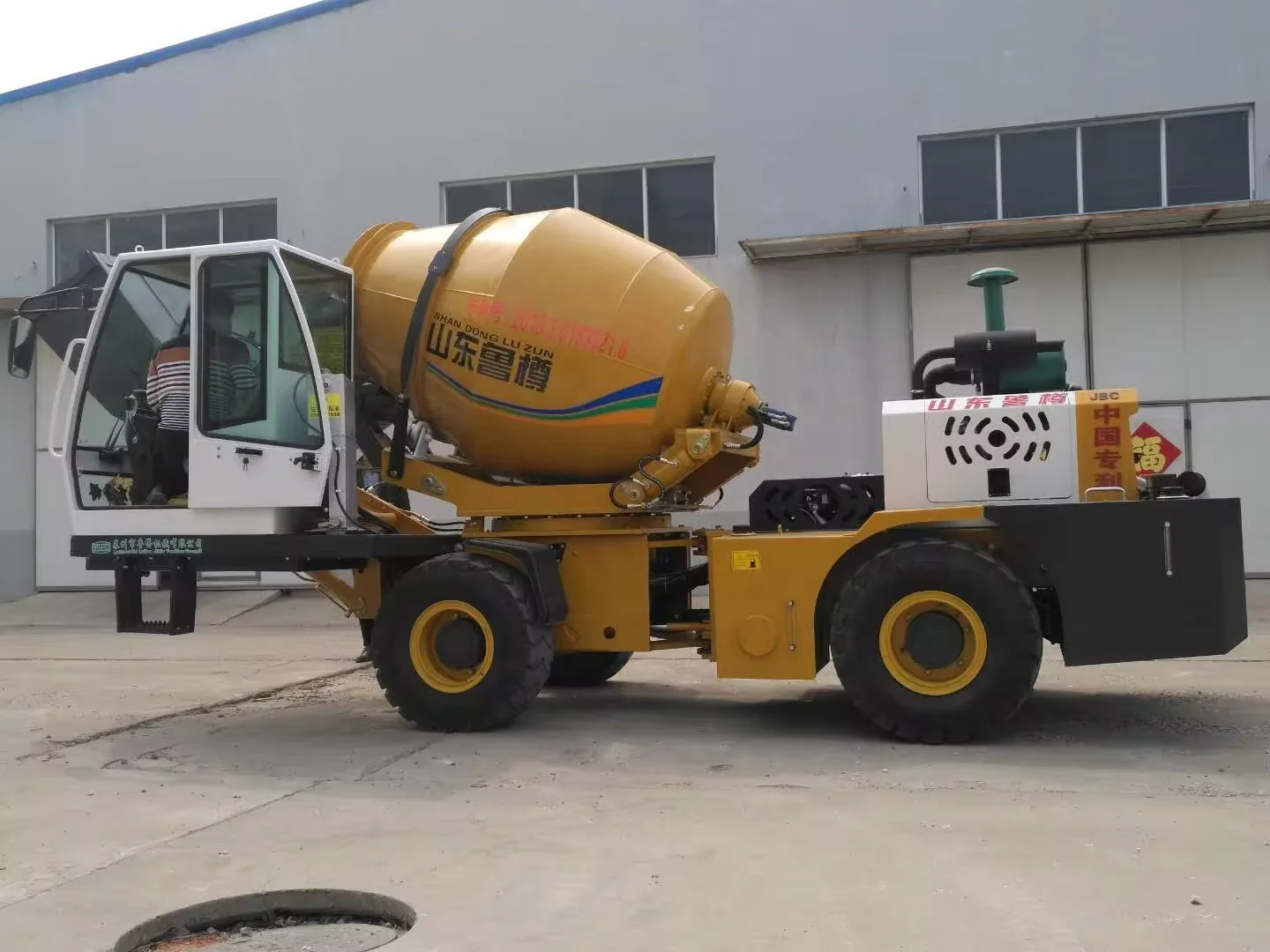

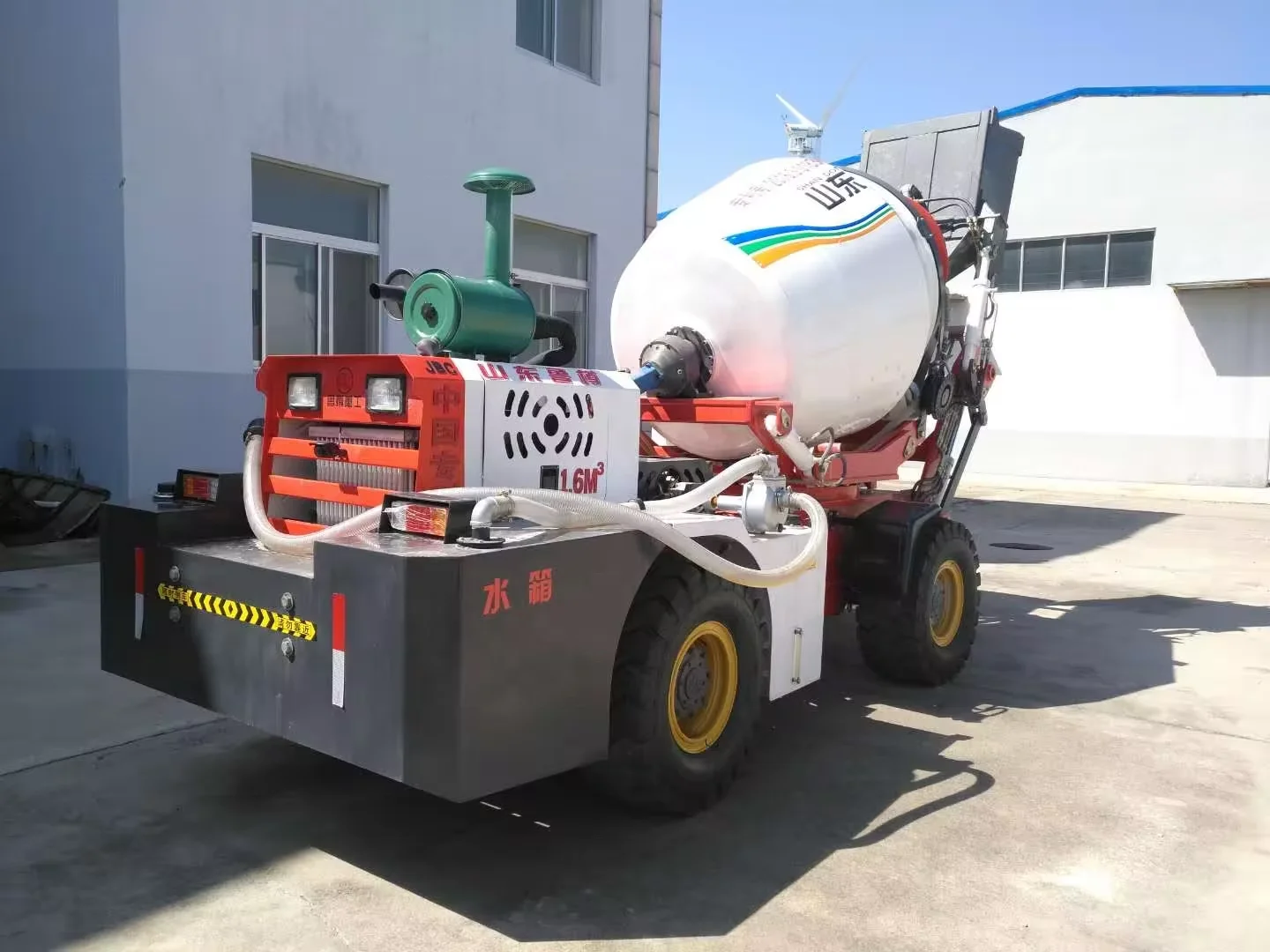

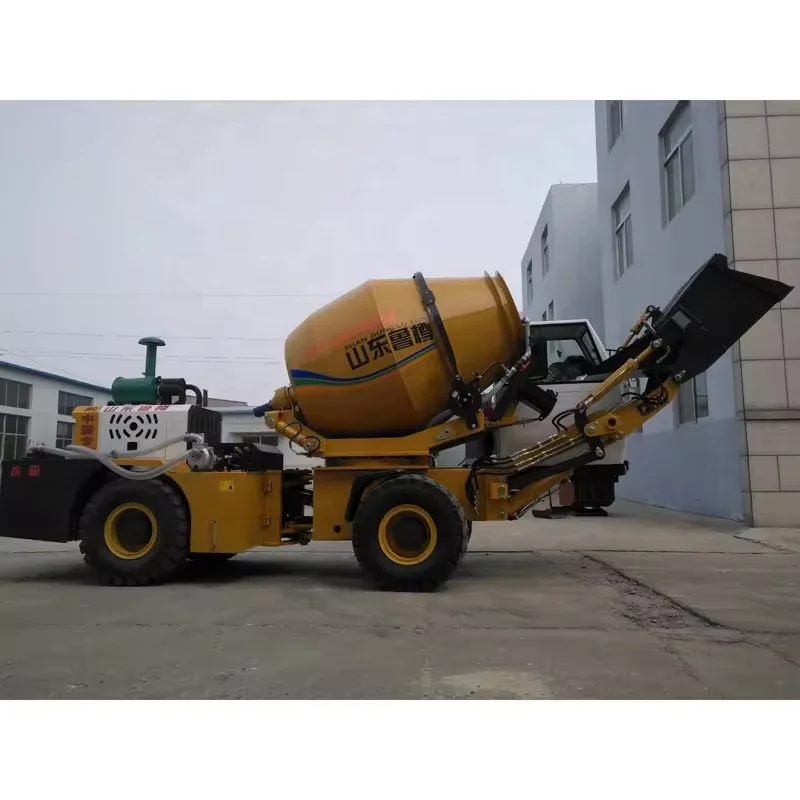

Luzun self loading concrete mixer truck is used to solve the problem that the prior mixer truck has a single function and can only carry out the concrete conveying task. The self loading mixer truck comprises a mixing body, and the body is equipped with a mixing drum. The drum is driven to rotate by the hydraulic mechanism. The drum is inclined, with an opening at the highest end. At the opening there is a feeding port fixed to the mixer truck. The drum is equipped with stirring screws. The two sides of the mixing drum are symmetrically provided with a boom. One end of the boom is hinged on the mixing body, and the body is further provided with a lifting cylinder to lift and lower the booms. A hopper is fixed between the two booms, and is provided with a door at the end near the feeding port. A discharging cylinder for controlling opening and closing of the door is provided on the hopper. The fully automatic loading mixer has a simple structure and is easy to use. It can realize the loading, mixing and unloading of concrete without excessive staff operation, which is economical and practical.
Product configuration
Engine | Yuchai/ Cummins |
Rated Power | 78kw |
Type | 4-cylinders |
Max Torque | 237nm/2000rpm |
Chassis | articulated chassis |
Driving type | 4*4 |
Tyre | 20.5-16 |
Hopper volume | 270L |
Mixing volume | 1.6-1.8 cbm |
Geometrical volume | 2.9 cbm |
Concrete output | 1.6-1.8 cbm/batch, 6.4- 7cbm/hour |
Drum rotating speed | 16rpm |
Drum slewing angle | 0/180/270 |
Water tank | 2*260L |
Water pump | 24v self priming pump |
Hydraulic gear pump | Dehong/Permco/Sunny |
Gradient | 30% full loaded |
Max speed | 23km/h |
Size | 5650*2210*3450mm |
Weight | 5800kg |
Loading capacity | 3480kg |
Cab | colsed, with warm/cool air conditioner |
Fuel tank | 100L |
Total hydraulic capacity | 100L |
Engine oil | 16L |
Product Configuration
Customers&Expos

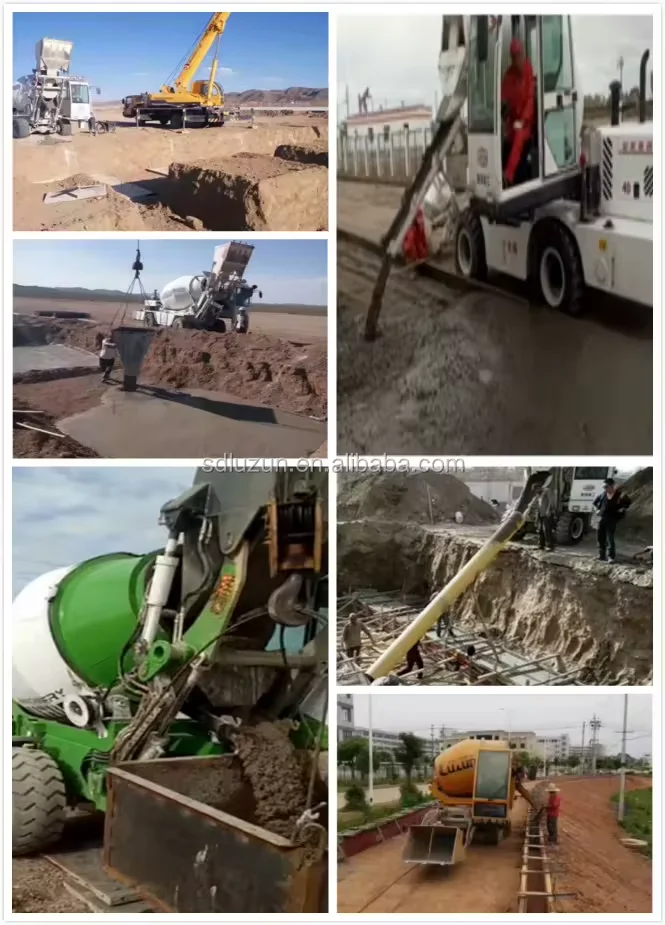

Successful Project
Project in Thailand
Project in India
Project in Russia
Company Profile
Recommend Products
FAQ
Q: What is your payment term?
A: Our payment term is T/T- 30% deposit, balance paid before delivery. Or 100% irrevocable L/C at sight.
Q: How soon can you deliver the mixer afther I place the order?
A: We keep fresh inventory. Most orders are delivered in less than 7 days.
If it is OEM, the order will be delivered in 15-20 days.
Q: Is your quality good?
A: We use advanced Italian technology and make improvement based on customer feedback. Till now our professional R&D team has
launched 13th generation mixers and registered 24 national patents.
Besides, we successfully passed the quality certification of CCC and CE.
Q: Do you have warranty?
A: Yes, we offer one year warranty based on the confidence on our quality.
Q: Can I be your agent?
A: Sure. You are welcome to be our agent. We will provide necessary support to you.
Q: Can I get a discount?
A: We sell diretly from factory. The price is better than trading companies.
But still discount is available based on the order quantity.
Please feel free to let us know if you have any further questions.
