OEM Factory Steam Pipe Radiator Thermal Insulation Aluminum Foil Bubble Warp
- Category: >>>
- Supplier: Zhejiang Zhongyue Packaging Materials Co. Ltd.
Share on (1601258004510):
Product Overview
Description

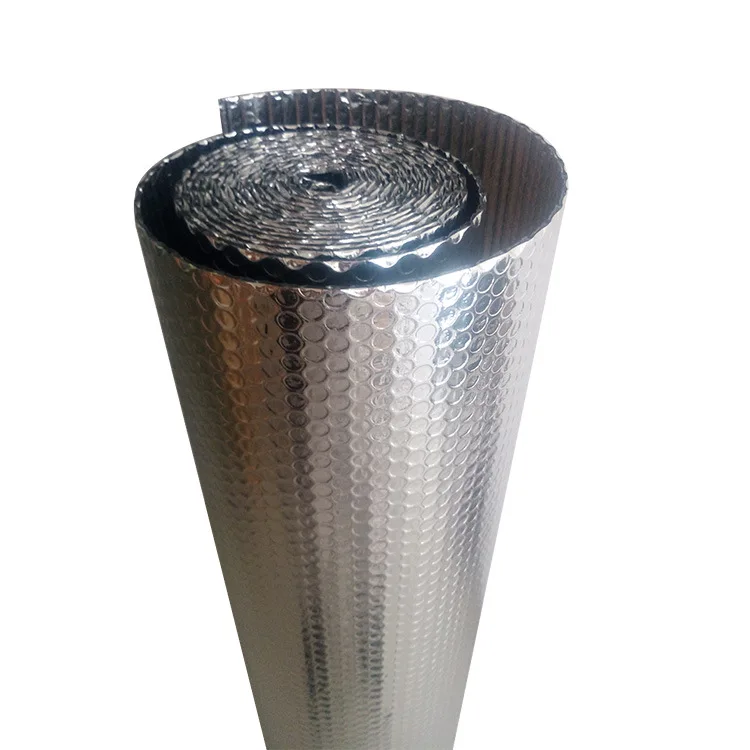

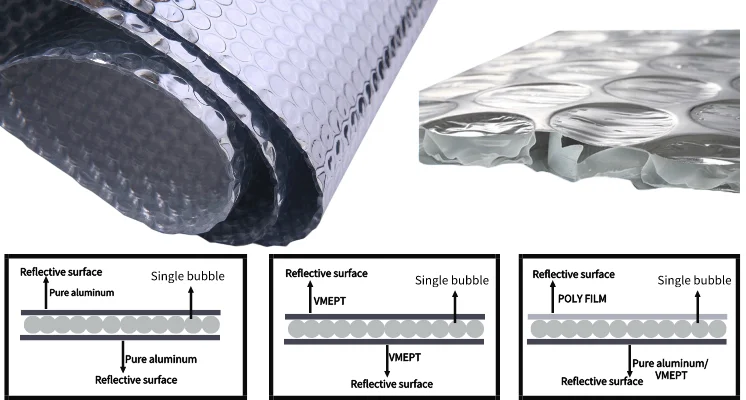

Single bubble insulation
The single bubble aluminum foils insulation product consists of 1 layer of 3mm or 4mm polyethylene bubble with one or two sidealuminum foils. The polyethylene air bubbles serve as an effective thermal break as well as a vapor barrier while the outer foil reflect up to 97% of radiant heat, it is a cost-effective way to keep your building cool in the summer and warm in the winter.
Item Name | Single Bubble Foil Insulation |
Material Structure | AL + Bubble + White PE Film |
AL + Bubble + AL | |
VMPET + Bubble + VMPET | |
Bubble Diameter | 6mm, 9mm(Common),10mm(Common),12mm,15mm, 20mm, 25mm, 30mm |
Bubble Height | 3mm, 4mm, 6mm, 8mm, 10mm |
Aluminum Thickness | 7um, 12um or customized |
Size/Roll | Normal size: 1.2m*40m,1.2m*30m,1.2m*20m.,1.22*38.1m, 1.22*30.5m.,Max width is 2m, length can be customized |
Weight | 150g/m2 - 550g/m2 |
Reflectivity | 90%-97% of radiant heat |
Emissivity | 0.03 or 0.05 |

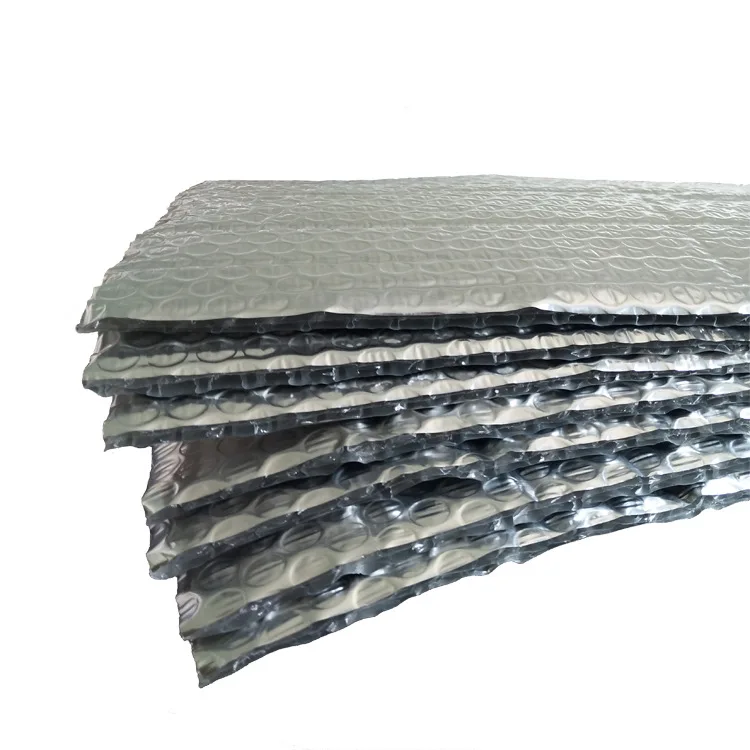

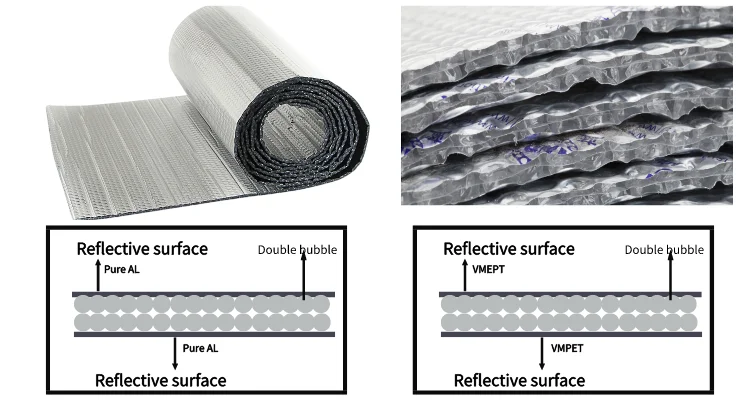

Double bubble insulation
Double the bubbles for double the airspace. The more airspace in the product, the better it is at slowing heat transfer. Double bubble insulation provides maximum efficiency. Key benefits of this foil-faced double bubble include:
• 6mm and 8mm nominal thickness of foil bubble insulation
• 99.9% Pure Aluminum bonded to tear-resistant polyethylene core and bubblewrap insulation
• Highly reflective foil facing
• Optional UV resistant polyethylene facing on one side, foil on the opposite side (foil double bubble white poly option)
• Reflective bubble insulation has a very low rate of emissivity
• Durable polyethylene bubbles make up the center bubblewrap insulation
• Acts as 100% vapor barrier
• Fire retardant
• Foil-faced bubblewrap insulation makes an excellent thermal barrier
• Barrier for methane, radon, moisture, termites, and other pests
Item Name | Aluminium foil Bubble Heat Insulation Material for Roof |
Material Structure | AL+ Bubble+Bubble + AL |
VMPET + Bubble + Bubble + VMPET | |
Bubble Diameter | 6mm, 9mm(Common),10mm(Common),12mm,15mm, 20mm, 25mm, 30mm |
Bubble Height | 3mm, 4mm, 6mm, 8mm, 10mm or customized |
Aluminum Thickness | 7um, 12um or customized |
Size/Roll | Normal size: 1.2m*40m,1.2m*30m,1.2m*20m.,1.22*38.1m, 1.22*30.5m.,Max width is 2m, length can be customized |

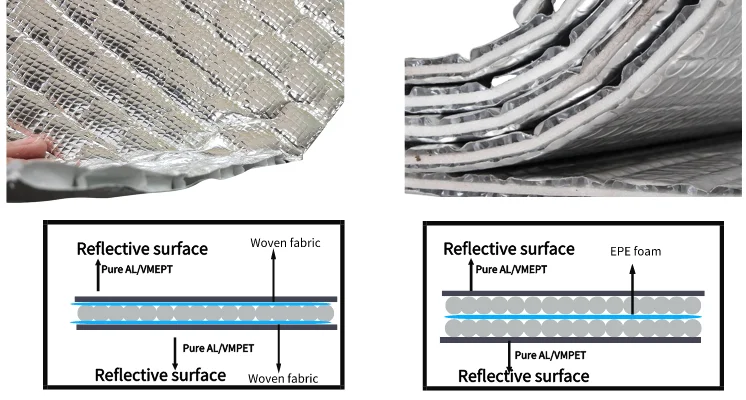

Bubble Foam Insulation/bubble woven insulation
Aluminum Foil Foam & Bubbler Core Insulation is manufactured with a closed-cell foam and two layer bubble of the inner layer,outside are two outer layers aluminum foil that reflect about 97% of radiant heat, the inner layer of bubble and foam can reduce heat transfer efficiently to keep cool in summer and warm in winter of house.
aluminum foil woven&bubble：Woven fabric enhances the strength of the reflective surface and increases its service life.
Material Structure | AL/VMPET+Woven fabric+Bubble+Woven fabric+AL/VMPET |
AL+BUBBLE+EPE/XPE+BUBBLE+AL | |
Bubble Diameter | 6mm, 9mm(Common),10mm(Common),12mm,15mm, 20mm, 25mm, 30mm |
Bubble Height | 3mm, 4mm, 6mm, 8mm, 10mm |

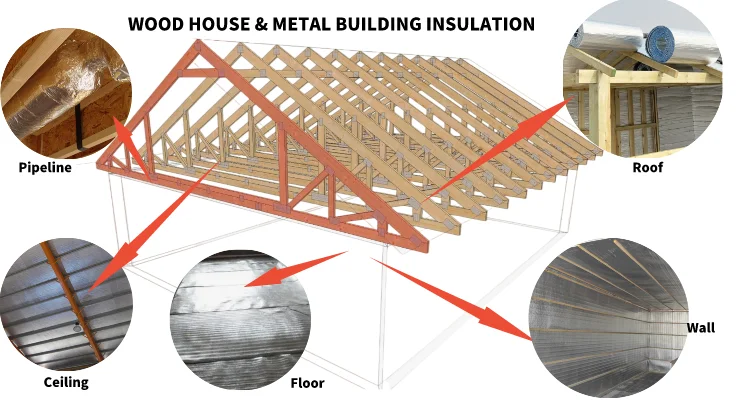

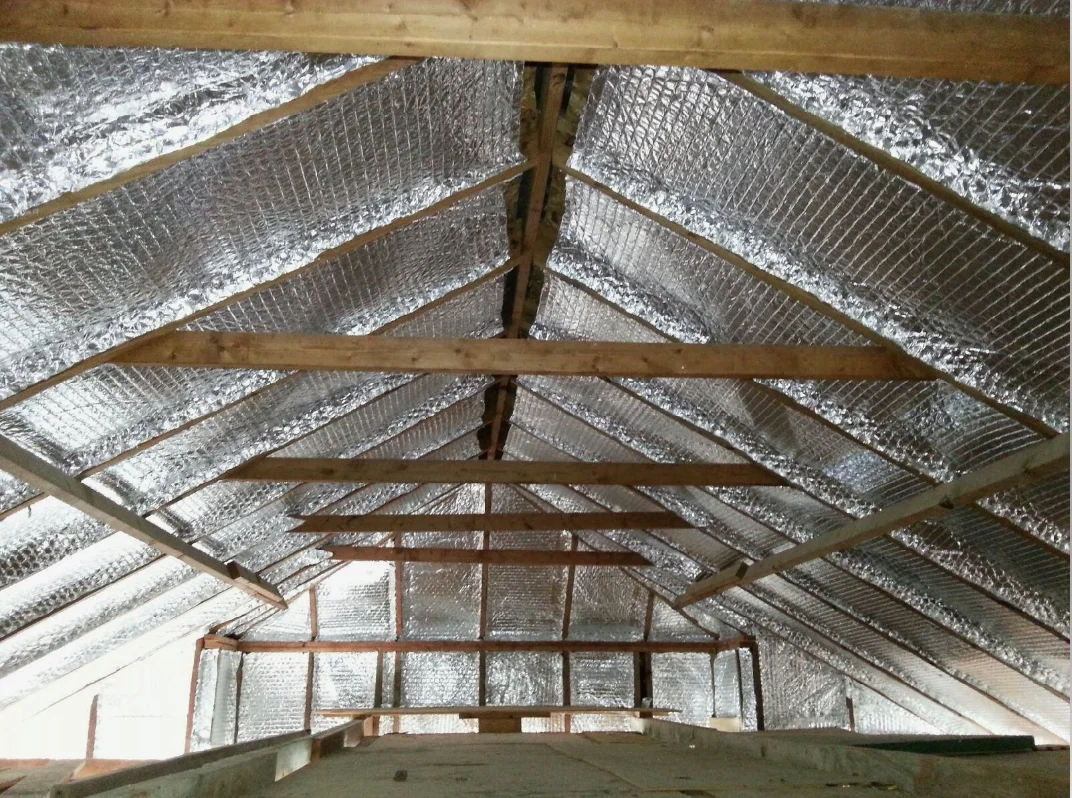

Application scenarios

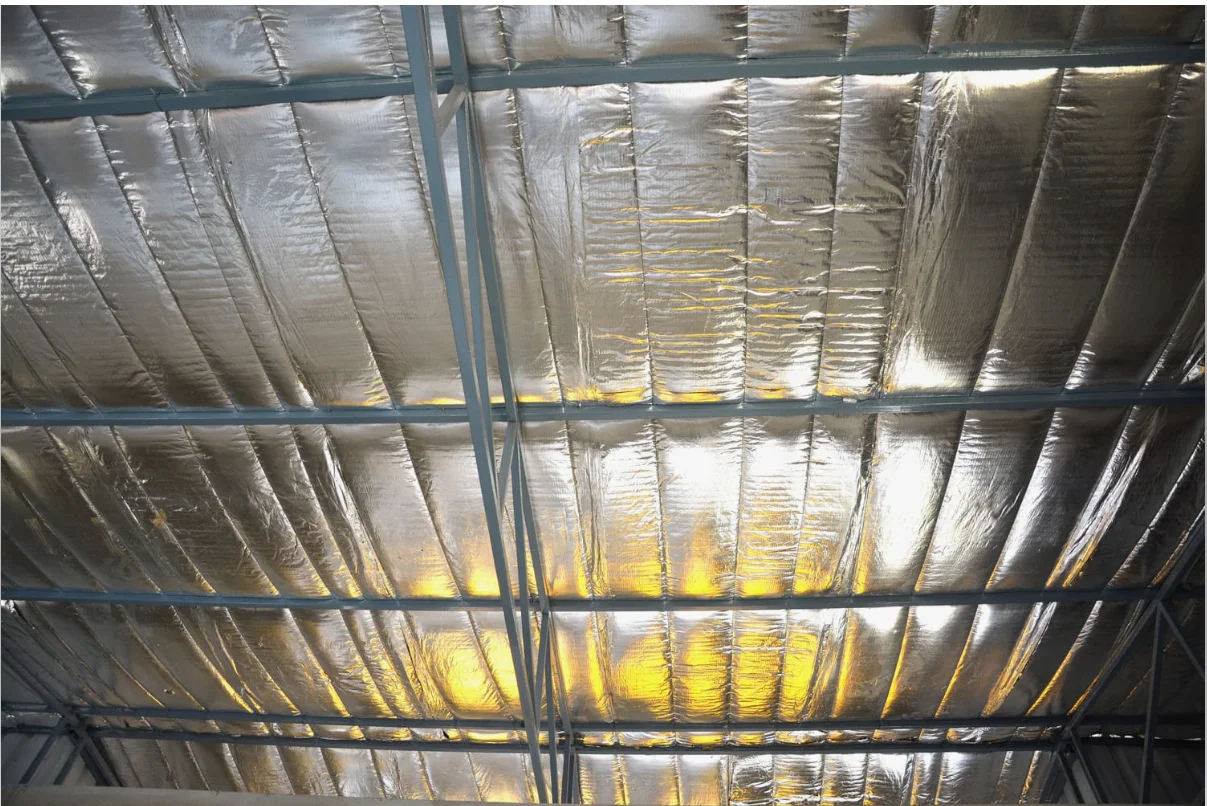

Metal Building walls & roofs
Post Frame / Pole Barn walls & roofs
Cold-chain transportation, school bus, truck thermal insulation
