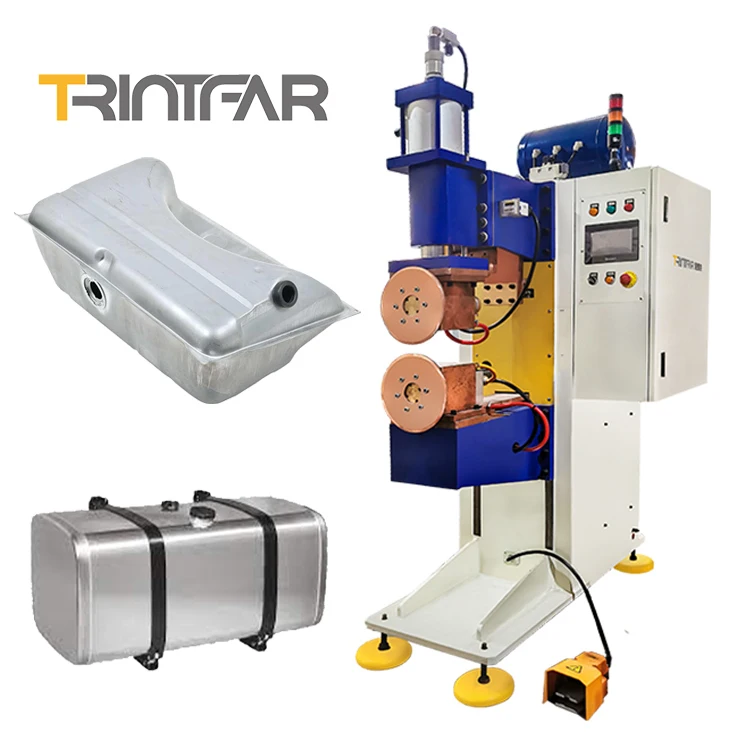

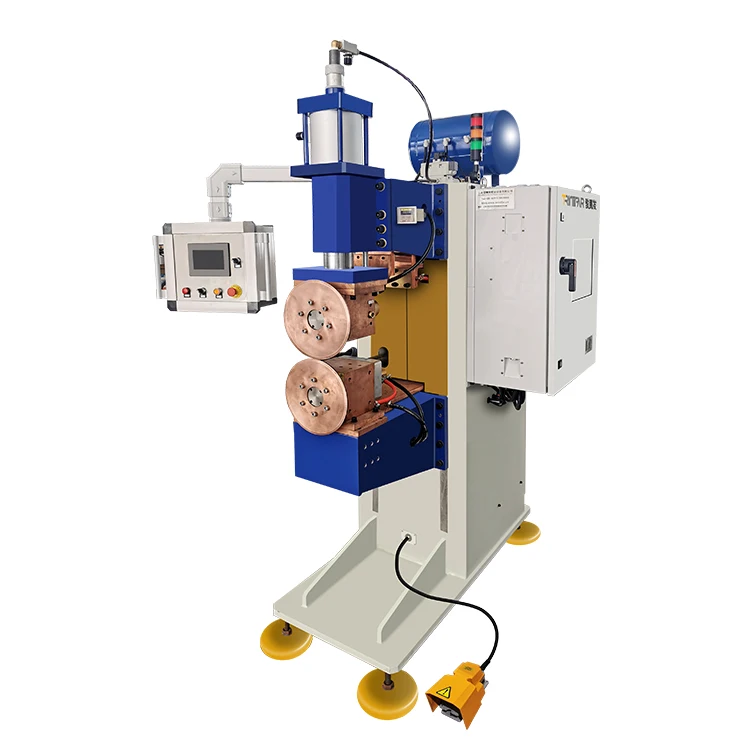

Seam Welding Machine Making Fuel Tank Straight Seam Welding Equipment For Oil Storage Tank Resistance Seam Welder
- Category: >>>
- Supplier: Shanghai Trintfar Intelligent Equipment Co. Ltd.
Share on (1601258055801):
Product Overview
Description
Product Description
Suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized steel sheet.etc.
Feature:
* The power supply unit's duty are balanced. Three phase power make MD frequency inverter more adaptable in winding and pressure
of wire.
* More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
* Faster to set up current, the speed is 20folds quicker than traditional technic
* Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
* Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
* Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc.
of wire.
* More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
* Faster to set up current, the speed is 20folds quicker than traditional technic
* Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
* Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
* Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc.
Item Model | Maximum Short Current KA | Rated Duty Cycle % | Secondary Voilage V | Rated Power KVA | Electrode Pressure N | Electrode Stroke mm | Cooling Water L\\mim |
FM-20 | 20 | 50 | ≈9.8 | ≤50 | 4700 | 80 | 24 |
FM-25 | 25 | 50 | ≈9.8 | ≤70 | 4700 | 80 | 24 |
FM-40 | 40 | 50 | ≈11.6 | ≤120 | 7300 | 80 | 30 |
FM-60 | 60 | 50 | ≈11.6 | ≤160 | 12000/18000 | 100 | 50 |
FM-80 | 80 | 50 | ≈11.6 | ≤240 | 12000/18000 | 100 | 50 |
FM-120 | 120 | 50 | ≈11.6 | ≤300 | 18000 | 100 | 60 |
Related Products
Company Introduction
Established in 1995, Trintfar is a high-tech enterprise of automatic welding equipment integrating scientific research, development, manufacturing and sales. As a national high-tech enterprise, after more than 20 years of unremitting efforts,
Trintfar has many cutting-edge welding technology products, including medium frequency, high frequency inverter resistance welding machine, numerical control resistance welding, laser welding equipment, automobile welding production line, welding robot integrated system, high speed steel drum seam welding machine, etc.
Trintfar has many cutting-edge welding technology products, including medium frequency, high frequency inverter resistance welding machine, numerical control resistance welding, laser welding equipment, automobile welding production line, welding robot integrated system, high speed steel drum seam welding machine, etc.
It is not only used in major automobile manufacturing and parts manufacturing enterprises, but also in aerospace, home appliance manufacturing, high-speed rail, low-voltage electrical appliances and other industries. The innovative team, excellent product design, advanced technology and reliable quality have made the Trintfar brand a reputation as a "reliable partner" in the welding equipment market at home and abroad.
