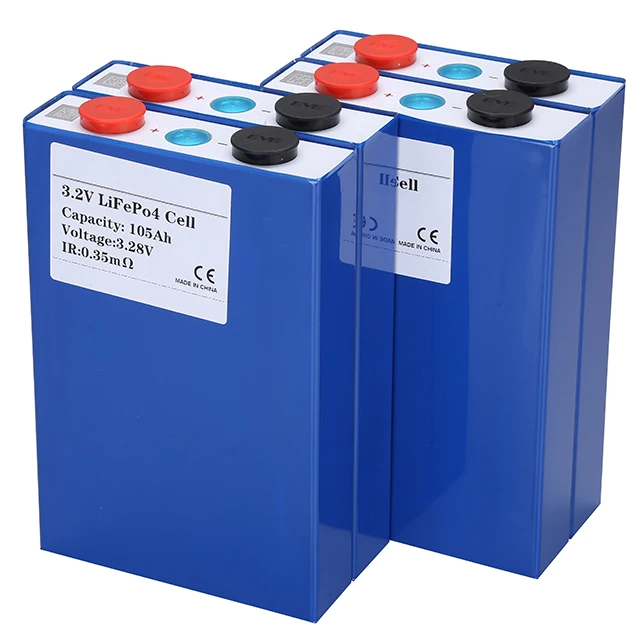

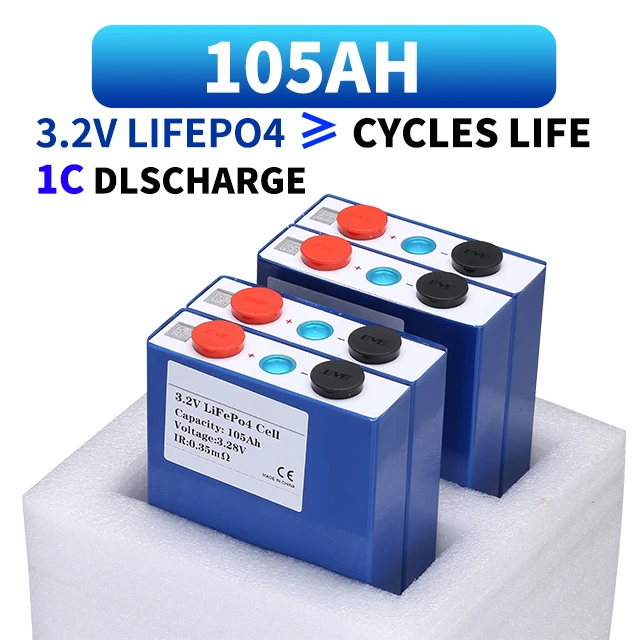

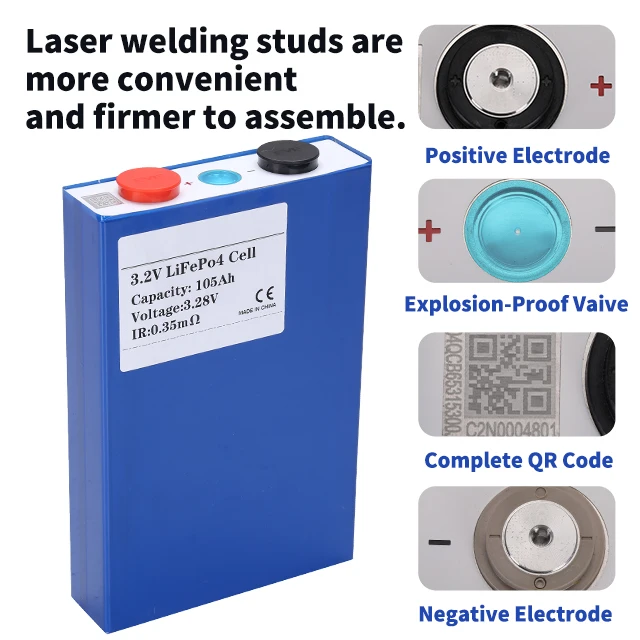

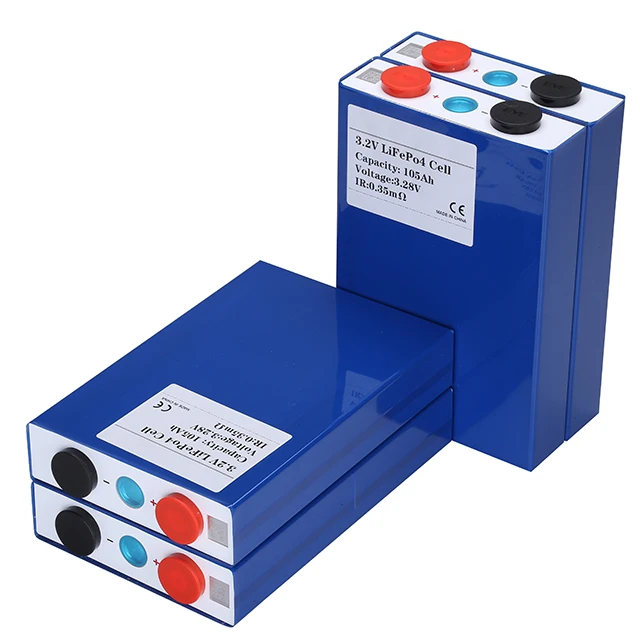

EV LF105 3.2V lifepo4 cell battery 105ah lifepo4 LFP Batteries 4000 Cycle 12v 100ah 24v 200ah 300ah 48v lifepo4 105Ah battery
- Category: >>>
- Supplier: Shenzhen Huaxu New Energy Co. Ltd.
Share on (1601258091693):
Product Overview
Description
Huaxu now have enough stock in China/Poland EU/US/CA/UK location for the 3.2V LiFePO4 cell. It's best time to have quick shipping! | ||||||||
Product Description

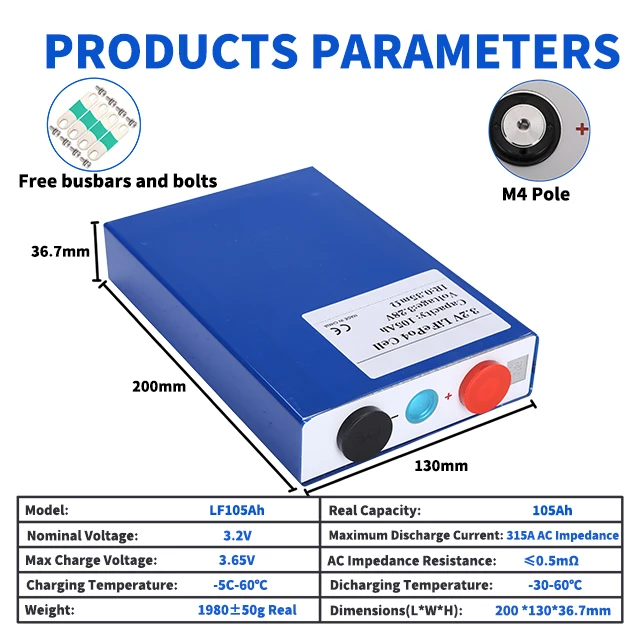

Model Number | LF105 | |||
The charging ratio | 0.5C | |||
The discharge rate | 0.5C | |||
Anode Material | LFP | |||
Application | Golf Carts, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Electric Forklifts | |||
Capacity | 105.0 Ah | |||
Initial IR | 0.32 mΩ | |||
Nominal Voltage | 3.20 V | |||
Charging Cut-off Voltage | 3.65 V | |||
Standard Charging Current | 52.5 A | |||
Standard Discharging Current | 52.5 A | |||
Cycling Performance | 4000 Cycles (20℃) | |||
Discharging Temperature | -35 ℃ ~ 65 ℃ | |||
Storage Temperature | -20 ℃ ~ 45 ℃ |
Note:
（1） Grade A quality, brand new with original factory QR code.
（2） The LiFePO4 cells come with complimentary
* Busbars * Bolts * Insulation boards
（3）We will test all the battery Voltage ,Internal resistance and capacity before delivery
Please confirm the quantity required for your system before placing an order
To use in 48V system, you need 16pcs
To use in 24V system, you need 8pcs
To use in 12V system,you need 4pcs
....
*Suit for System:12V 24V 48V 72V 96V 108V Solar Energy Storage System
*Applicantion:RV Vans Campers EV Boats Yacht Golf Carts Forklift Solar Battery
（4）Huaxu is a direct distributor for EV, CATL, LISHEN, CALB, and REPT batteries, offering fresh stock prepared for shipment.Please feel free to reach out to us for any requirements.
Model | Voltage (V) | Capaity (Ah) | AC Impedance Resistance (mΩ) | Cycle Times | Weight (g) | Dimension H*W*T(mm) |
3.2V 50AH | 3.2 | 50 | ≤2.0 | 1500 | 1050±100 | 130*148*27 |
3.2V 100AH | 3.2 | 100 | ≤0.5 | 5000 | 1985±100 | 118*160*50 |
3.2V 105AH | 3.2 | 105 | ≤0.5 | 4000 | 1980±100 | 196*130*37 |
3.2V 160AH | 3.2 | 160 | ≤0.5 | 3500 | 3000±100 | 157*174*54 |
3.2V 230AH | 3.2 | 230 | ≤0.5 | 4000 | 4140±124 | 174*207*54 |
3.2V 280AH | 3.2 | 280 | ≤0.25 | 8000 | 5490±300 | 207*173*72 |
3.2V 302AH | 3.2 | 302 | ≤0.25 | 6000 | 5300±300 | 208*173*72 |
3.2V 304AH | 3.2 | 304 | ≤0.5 | 4000 | 5480+164 | 208*174*72 |
M30 306AH | 3.2 | 306 | ≤0.25 | 10000 | 5600±300 | 208*173*72 |
M31 314AH | 3.2 | 314 | ≤0.25 | 8000 | 5600±300 | 208*173*72 |
3.2V 320AH | 3.2 | 320 | ≤0.25 | 8000 | 5400±150 | 208*174*72 |
FREE Insulation sheets,Copper busbars, Bolts
Battery Reliability Test
Before leaving the factory, we will have professionals to test the voltage and internal resistance twice.
Make sure you receive a top quality, brand new original QR code battery cells.↓↓
More options and accessories
We are official distributor of JK, JBD and JK brand BMS. These brand BMS can be offered and shipped with batteries together. Please feel free to show us the voltage and current or the model name of the BMS you need, then we can check them for you soon.
If any question, please just click here to contact with (Click here) directly.
JK BMS
JK-BD4A17S4P JK-B1A20S15P
JK-BD4A20S4P JK-B1A24S15P
JK-BD4A24S4P JK-B2A24S15P
JK-BD6A17S6P JK-B2A20S20P
JK-BD6A20S6P JK-B2A24S20P
JK-BD6A24S6P JK-B1A8S20P
JK-BD6A17S8P JK-B2A8S20P
JK-BD6A20S8P JK-B2A25SRP
JK-BD6A24S8P JK-BD6A24S12P
JK-BD6A20S10P JK-BD6A24S12P
JK-BD6A24S10P JK-BD6A24S15P
JK-BD6A20S12P JK-BD6A20S15P
Optional parts:
RS485 module
4.3 inch LCD Display
2.5 inch LED screen
2.5 inch stents
GPS 4G
JK ON-OFF Switch
CAN function
Heating function
JBD BMS
Hardware BMS/Smart BMS
ModelString:
Current:
All can be customized

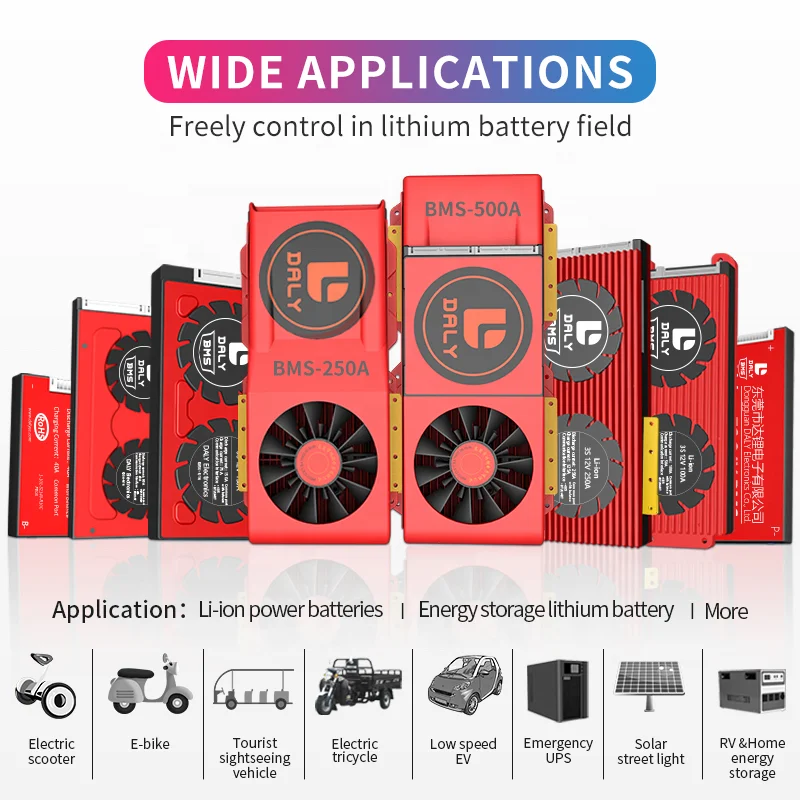

DALY BMS
Hardware BMS/Smart BMS
Model
String:
Current:
All can be customized
String:
Current:
All can be customized
Customer Feedback
Company Profile
Shenzhen huaxu new energy Co.Ltd,
Shenzhen huaxu new energy Co.Ltd,established in 2006,is mainly engaged in lithium iron phosphate battery, energy storage battery pack, portable power supply, providing new energy battery products related to home solar energy storage and outdoor power supply.
the products are widely used in home solar energy storage, communication base station backup power supply, UPS system, RV, golf cart, forklift, yacht and other power supply fields.
Whichensure the stability,security,capacity of the battery. Rapid inbound channel and mature personnel management system can promptly provide you with best quality and most convenient & attentive service. Our company always hold the sustained business conception of "credit is the basis, quality is the first". We are committed to providing customers with competitive price and high quality products. We sincerely look forward to cooperating with you and hope that we can create the glorious future together.
the products are widely used in home solar energy storage, communication base station backup power supply, UPS system, RV, golf cart, forklift, yacht and other power supply fields.
Whichensure the stability,security,capacity of the battery. Rapid inbound channel and mature personnel management system can promptly provide you with best quality and most convenient & attentive service. Our company always hold the sustained business conception of "credit is the basis, quality is the first". We are committed to providing customers with competitive price and high quality products. We sincerely look forward to cooperating with you and hope that we can create the glorious future together.
Shipping & Payment
* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
About the Shipping and delivery(In stock) | ||||||||
Ship to US/USA | ETD:3-7 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By sea+FEDEX Delivery(DDP,Tax free) | |||||
ETA:40-55 days after delivery | ||||||||
Ship to EU | ETD:2-7days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By railway+UPS(DDP,Tax free) | |||||
ETA:40-55 days after delivery | ||||||||
Ship to AU | ETD:3-7days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By sea+Delivery(DAP) | |||||
ETA:40-55 days after delivery | ||||||||
Noted: * The tracking will be update after pick up by local express. Please wait patiently or contact us for help. * Countries that do not appear in the table, Please click here to consult us for freight charges. | ||||||||
FAQ
1) Is the product original?
A: Yes,it is indeed 100% original and authentic, we never sell fake battery, honest is the best policy.
2) Can you test each battery PRIOR to shipping?
A: We will test all the battery Voltage ,Internal resistance and capacity before delivery.
3) What's your MOQ(minimum order quantity)?
A:No limited. More quantity has better price, we will check the best price for you.
4) What's your delivery time?
A: The cargo will be shipped out within 2-5 working days and 7-15 days to arrive to your hand.
5) What is your term of payment?
A: We adopt Alibaba trade assurance, T/T, Paypal, Wester union and so on.
6) What kind of the package of the cells?
A: Pack with strong package each cell into thickness PE foam or bag then into 5 layers strong carton.
2) Can you test each battery PRIOR to shipping?
A: We will test all the battery Voltage ,Internal resistance and capacity before delivery.
3) What's your MOQ(minimum order quantity)?
A:No limited. More quantity has better price, we will check the best price for you.
4) What's your delivery time?
A: The cargo will be shipped out within 2-5 working days and 7-15 days to arrive to your hand.
5) What is your term of payment?
A: We adopt Alibaba trade assurance, T/T, Paypal, Wester union and so on.
6) What kind of the package of the cells?
A: Pack with strong package each cell into thickness PE foam or bag then into 5 layers strong carton.
Reminder:
DIY battery pack must get the cells balanced (same voltage ) before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detected voltage/resistance/appearance and other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not provide return nor refund. If you found problems you can contact us for return or refund.Battery can only be unused (the electrode intact, no welding, no wear, the appearance good) to provide return. Any return behavior buyers need to be responsible for shipping fee.
1).Warranty period:5 years(from the date of successful delivery),if the single battery capacity less than 80% initialcapacity,take the test pictures or video to us,we will replace it or give satisfied solution.
2).If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case of lossof cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.
3).These situations not provide return nor refund
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
Tips:
* These products are prototype batteries without protection board, you need to purchase a match one! Pls click here to consult us.
* please consider before taking orders, place order means you have agreed. thank you for your cooperation!
1).Warranty period:5 years(from the date of successful delivery),if the single battery capacity less than 80% initialcapacity,take the test pictures or video to us,we will replace it or give satisfied solution.
2).If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case of lossof cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.
3).These situations not provide return nor refund
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
Tips:
* These products are prototype batteries without protection board, you need to purchase a match one! Pls click here to consult us.
* please consider before taking orders, place order means you have agreed. thank you for your cooperation!
