Mine Transport Vehicle Rail Wagon Mine Car Railroad Minecar Railway Wagons Material Supply Mining Car
- Category: >>>
- Supplier: Yimei Machinery Equipment Manufacturing Co. Ltd.Yimei Ltd.
Share on (1601258117589):
Product Overview
Description
Company Profile
Products Description
Introduction of Mine Transport Vehicle Rail Wagon Mine Car Railroad Minecar Railway Wagons Material Supply Mining Car
Fixed mine wagon transportation tool for moving coal, ore, waste rock and material in the process of mining, dragged by a locomotive or winch.
Mechanical loading demands the largest possible car consistent with haulage and loading conditions so as to reduce the number of car changes and time delay. When the car must be designed for the colliery, shaft size may limit the car length and width. When a new mine is opened, the car size is often chosen arbitrarily, subject to physical conditions as far as can be determined.zmwm24
Mechanical loading demands the largest possible car consistent with haulage and loading conditions so as to reduce the number of car changes and time delay. When the car must be designed for the colliery, shaft size may limit the car length and width. When a new mine is opened, the car size is often chosen arbitrarily, subject to physical conditions as far as can be determined.zmwm24
Product Paramenters
Model | MGC1.7-6 | MGC1.7-9 | MGC1.1-6 | MGC3.3-9 | ||
Volume(m3) | 1.7 | 1.7 | 1.1 | 3.3 | ||
Theoretical | Capacity(T) | 1.5 | 1.5 | 1 | 3 | |
Max. Load(T) | 2.7 | 2.7 | 1.8 | 5.3 | ||
Gauge(mm) | 600 | 900 | 600 | 900 | ||
Wheel Base(mm) | 750 | 600 | 550 | 1100 | ||
Wheel Diameter (mm) | 300 | 350 | 300 | 350 | ||
Traction(KN) | 60 | 60 | 60 | 60 | ||
Traction Height(mm) | 320 | 320 | 320 | 320 | ||
Overall Size(L*W*H) | 2400*1050*1200 | 2100*1150*1300 | 2000*880*1150 | 3450*1320*1300 | ||
Weight(≤kg) | 720 | 970 | 610 | 1320 | ||

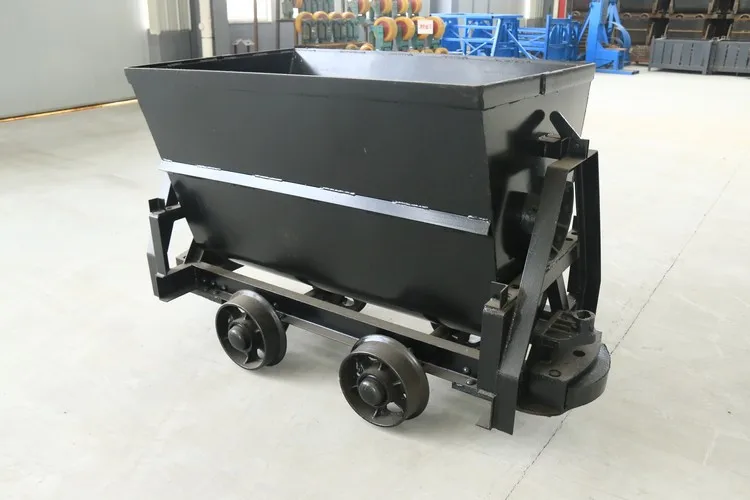

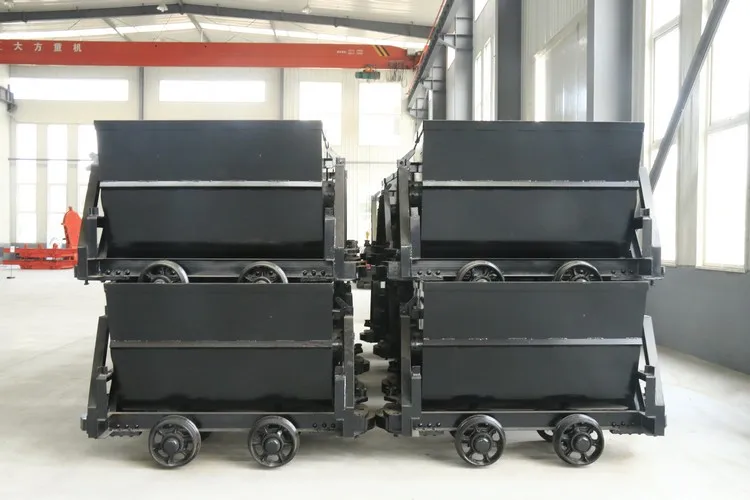

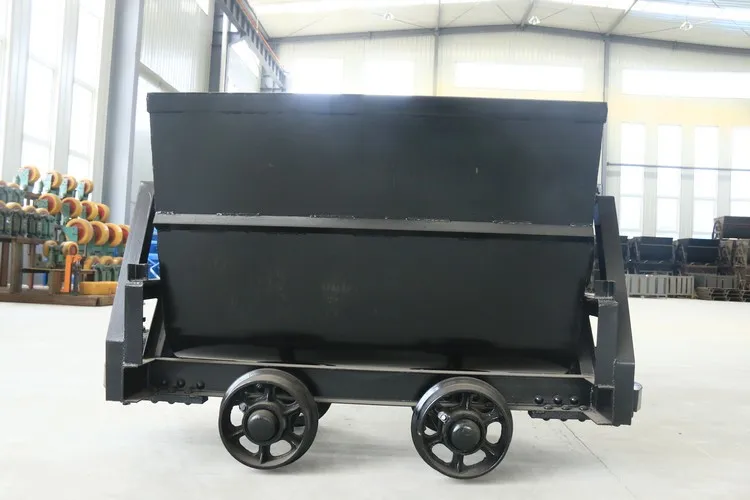

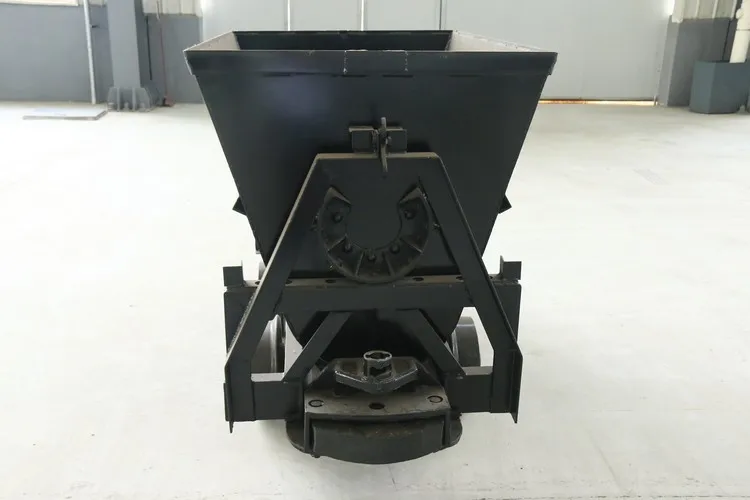

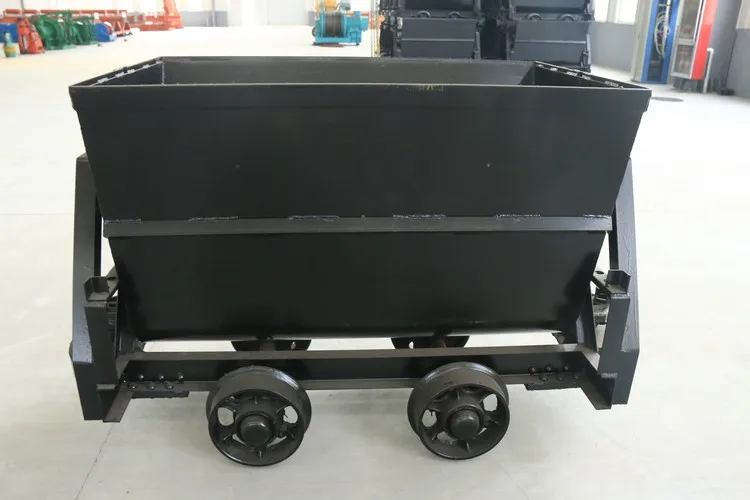

Details Images
FAQ
1.Factory
Q: Are you Underground Mining Truck manufacturer?
A: We are the Railway Fixed Mine Wagon manufacturer. Yimei fixed mining car factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about Fixed Box Mine Car for sale?
A: Our Fixed Mine Cart have a 12 months warranty after sale.
3. Packing
Q:What is the container size of railway fixed mine wagon?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these rail coal mining car, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
Q: Are you Underground Mining Truck manufacturer?
A: We are the Railway Fixed Mine Wagon manufacturer. Yimei fixed mining car factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about Fixed Box Mine Car for sale?
A: Our Fixed Mine Cart have a 12 months warranty after sale.
3. Packing
Q:What is the container size of railway fixed mine wagon?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these rail coal mining car, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
